Product Overview

Description

Key Features

  • 6.5" Mid-Range w/Bullet
  • MAX Power: 650 Watts
  • RMS Power: 325 Watts
  • Impedance: 4 Ohm
  • Neodymium Magnet
  • 97dB

SPECS

SKU
6XL650NB-4
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 Ohm / 8 Ohm
RMS Power Handling
325 watts
MAX Power Handling
650 watts
Sensitivity (1w/1m)
97dB
Frequency Response
80Hz-12.5KHz
Recommended HI Pass Crossover
100Hz
Sold in Pair or Single
Single
Grill Included
No


Motor

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Non-pressed Paper
Dust Cap Material
N/A
Bullet Material
Aluminum
Bullet Color/Finish
Black
Surround Material
Cloth
Basket Material
Aluminum
Basket Color/Finish
Satin Black
Magnet Material
Neodymium Rings
Magnet Weight
11.4 Oz
Displacement Volume
0.34L / 0.012ft3


Thiele & Small Parameters

Equivalent Volume
5.07L / 0.17ft3
Excursion (one way)
3.7mm
Free Air Resonance
120Hz
Mechanical Factor
5.16
Electrical Factor
0.28
Total Factor
0.26
Mechanical Mass
9.11g
Mechanical Compliance
0.19mm/N
BL Factor
9.41
Voice Coil Inductance
0.05mH
Cone Area
136.85cm2
DC Resistance
3.5 ohm
Mechanical Mass w/o air
8.2g


Measurement

Overall Diameter
6.7" / 170mm
Overall Depth
3.19" / 81mm
Front Mount Baffle Cutout
5.9" / 150mm
Mounting Depth
2.83" / 72mm
Motor Diameter
4.13" / 105mm

Product Overview

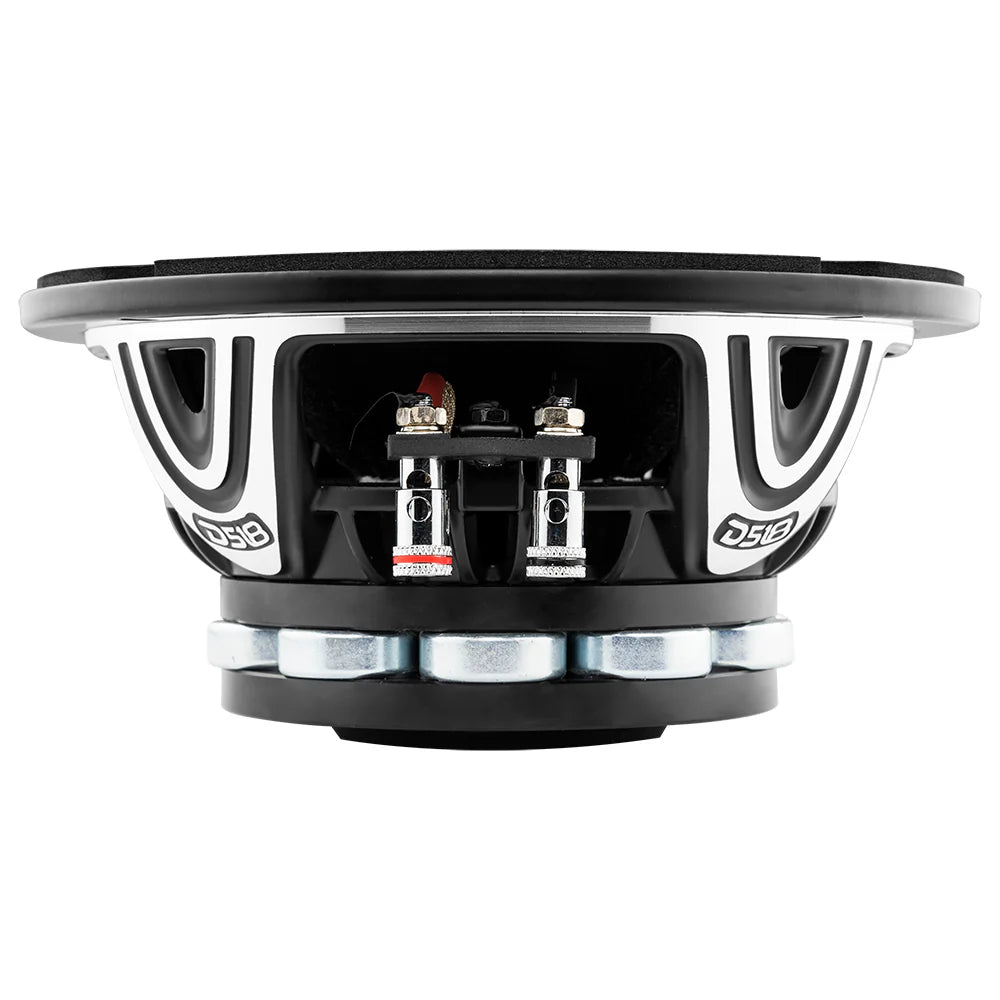

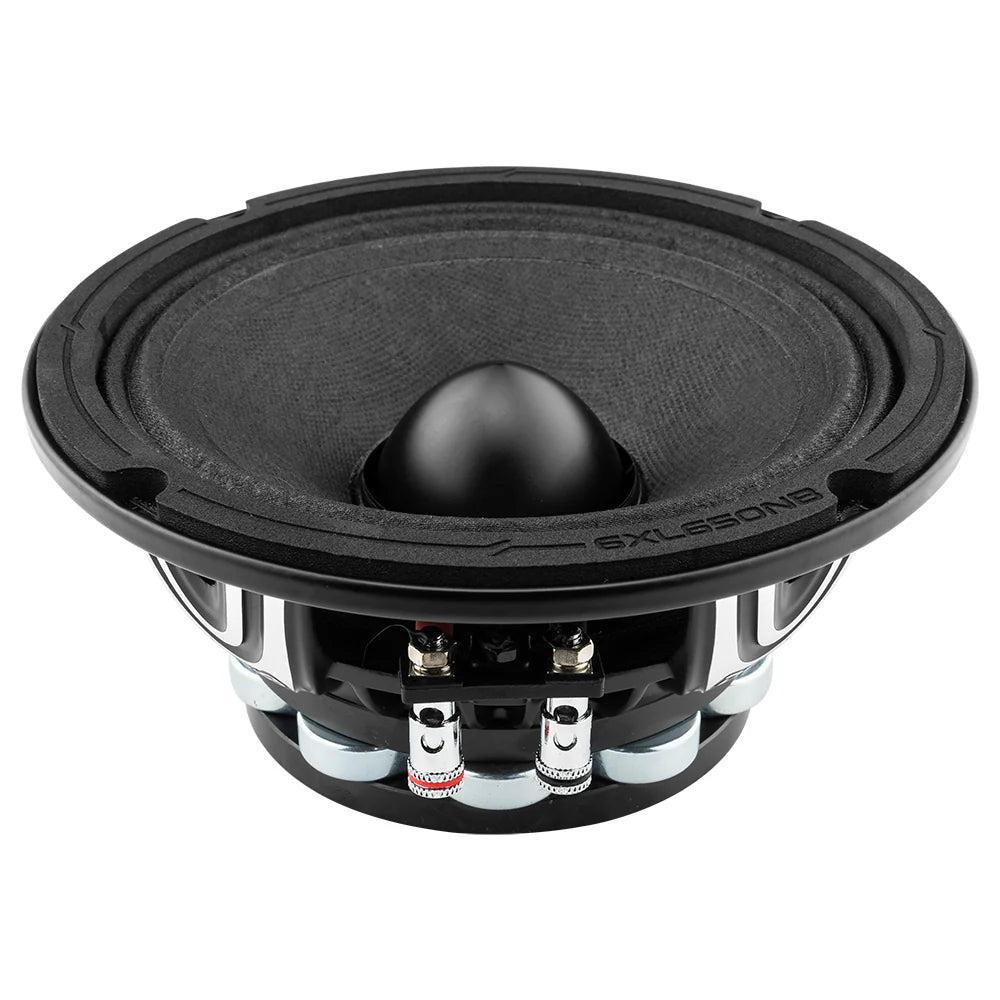

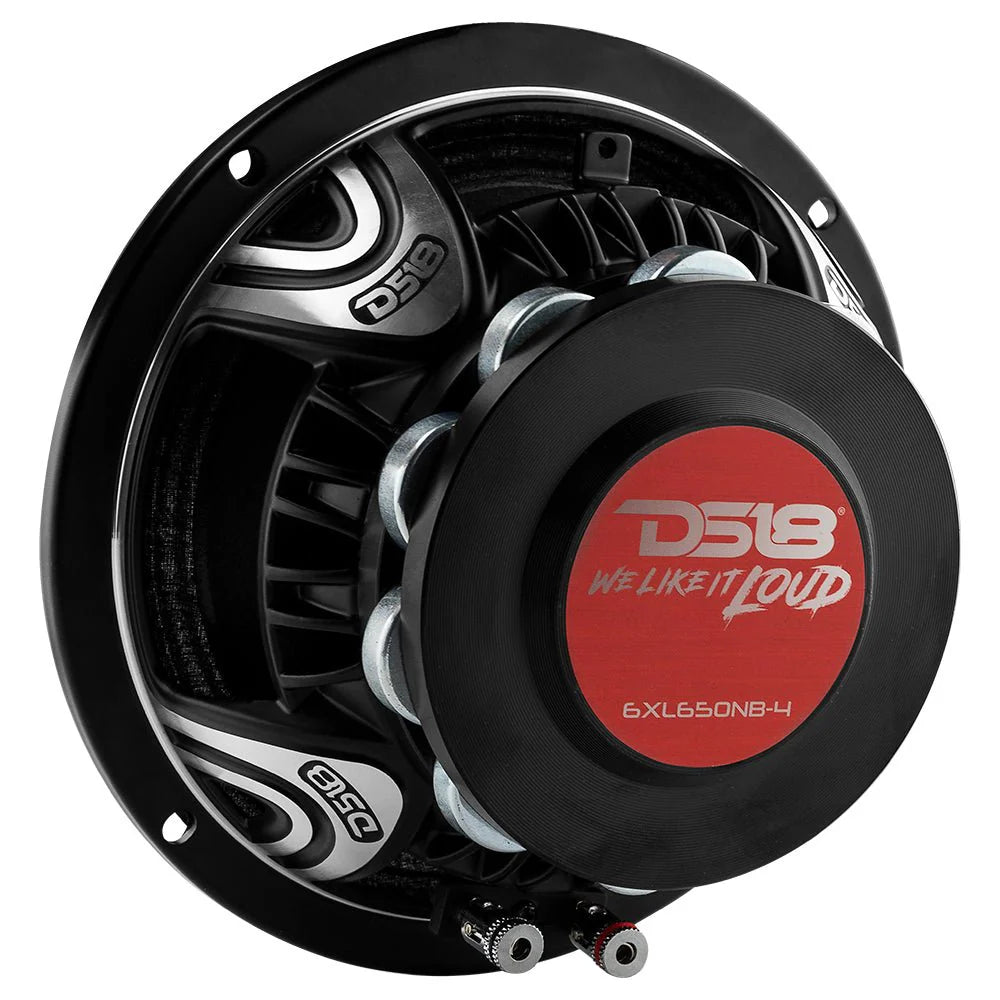

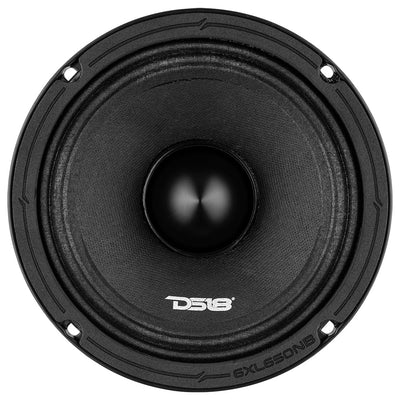

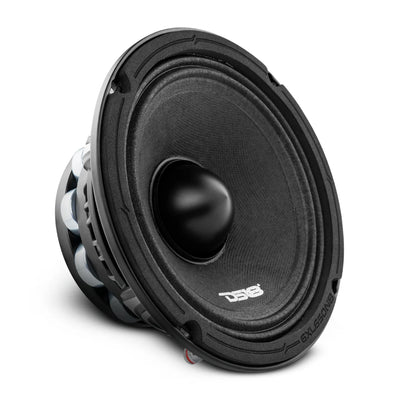

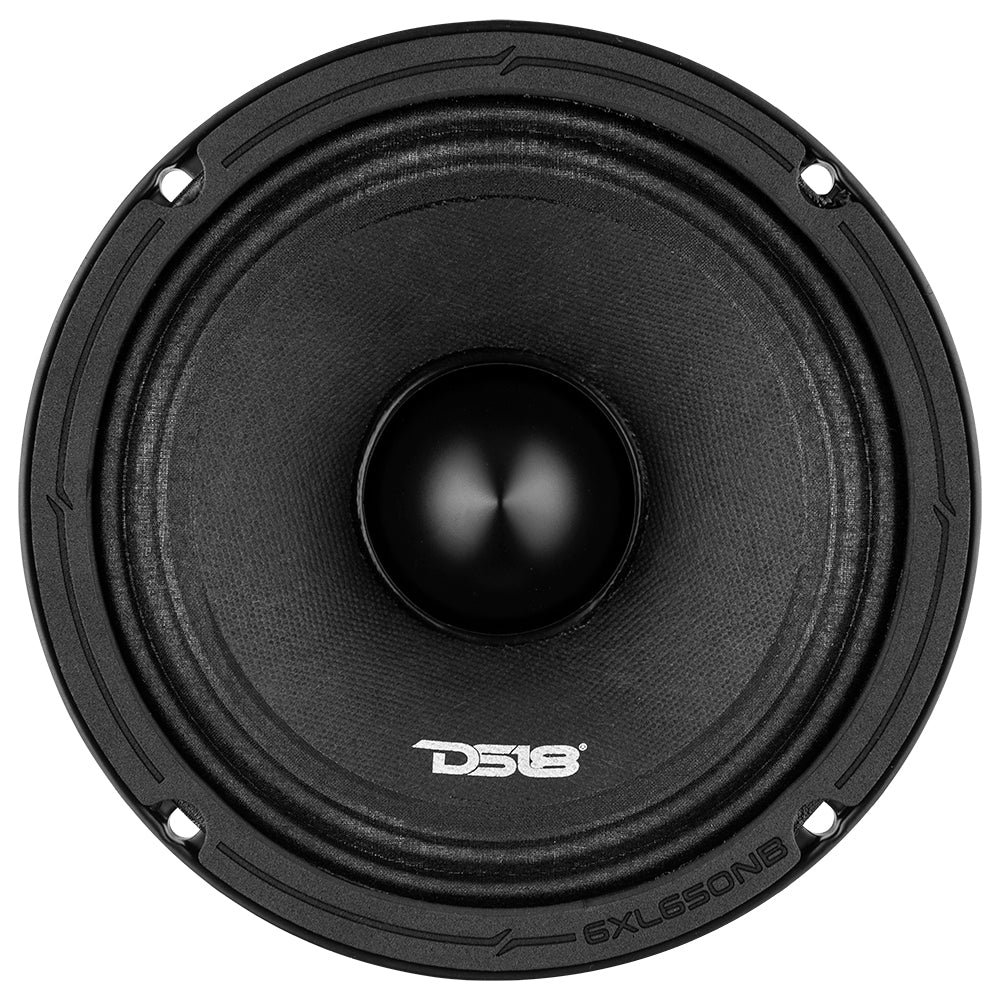

DS18 PRO 6.5" Neodymium Mid-Range Loudspeaker With Bullet 650 Watts 4-Ohm

DS18’s 6XL650NB-4 is a game-changer in the world of car audio. Exceptional sound has never been easier than with this speaker.

This 6.5” 4-ohm loudspeaker has a RMS power handling of 325W and MAX power handling of 650W guaranteeing powerful performance and optimal compatibility with a wide range of audio systems, for an immersive and dynamic sound experience.

DS18’s 6XL650NB-4 has a remarkable sensitivity of 97 dB and a frequency response of 80Hz-12.5KHz, allowing you to enjoy every nuanced detail of your favorite tracks in crystal-clear quality across a wide range of frequencies.

Designed with precision and expertise, DS18’s 6XL650NB-4 has a 2" voice coil and a non-pressed paper cone. The 6XL650NB-4 is equipped with a neodymium magnet weighing 11.4 Oz, offering superior magnetic strength for enhanced audio performance. The aluminum bullet adds a touch of style and sophistication to the overall design, while expanding and dispersing the available frequency response. The cloth surround and satin black aluminum basket not only enhances the speaker's aesthetics but also provides structural integrity.

Upgrade your audio system with the DS18 6XL650NB-4 and experience a new level of sonic excellence.

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
