Product Overview

Description

Key Features

  • 12" Mid-Range
  • MAX Power: 1500 Watts
  • RMS Power: 750 Watts
  • Impedance: 4 or 8-Ohm
  • Ferrite Magnet
  • 98.7dB

SKU

SPECS
12XL1500-8
Nominal Diameter
12" / 305mm
Nominal Impedance
4 or 8 Ohm
RMS Power Handling
750 watts
MAX Power Handling
1500 watts
Sensitivity (1w/1m)
98.7 dB
Frequency Response
45Hz-6.5KHz
Recommended HI Pass Crossover
60Hz
Sold in Pair or Single
Single
Grill Included
No


Motor

Voice Coil Diameter
3.5" / 89mm
Voice Coil Former Material
Kapton
Winding Material
CCAW (2 Layers IN/OUT)
Cone Material
Non-pressed Paper
Dust Cap Material
Paper
Bullet Material
N/A
Bullet Color/Finish
N/A
Surround Material
Cloth
Basket Material
Aluminum
Basket Color/Finish
Satin Black
Magnet Material
Ferrite
Magnet Weight
93 Oz
Displacement Volume
2.2L / 0.09ft3


Thiele & Small Parameters

Equivalent Volume
62.7L / 2.21ft3
Excursion (one way)
4.5mm
Free Air Resonance
54Hz
Mechanical Factor
6.98
Electrical Factor
0.41
Total Factor
0.38
Mechanical Mass
56.4g
Mechanical Compliance
0.16mm/N
BL Factor
16.92
Voice Coil Inductance
0.12mH
Cone Area
526.85cm2
DC Resistance
5.8 ohm
Mechanical Mass w/o air
57g


Measurement

Overall Diameter
12.3" / 312mm
Overall Depth
5.76" / 146.2mm
Front Mount Baffle Cutout
10.9" / 278mm
Mounting Depth
5.23" / 133mm
Motor Diameter
7.48" / 190mm

Product Overview

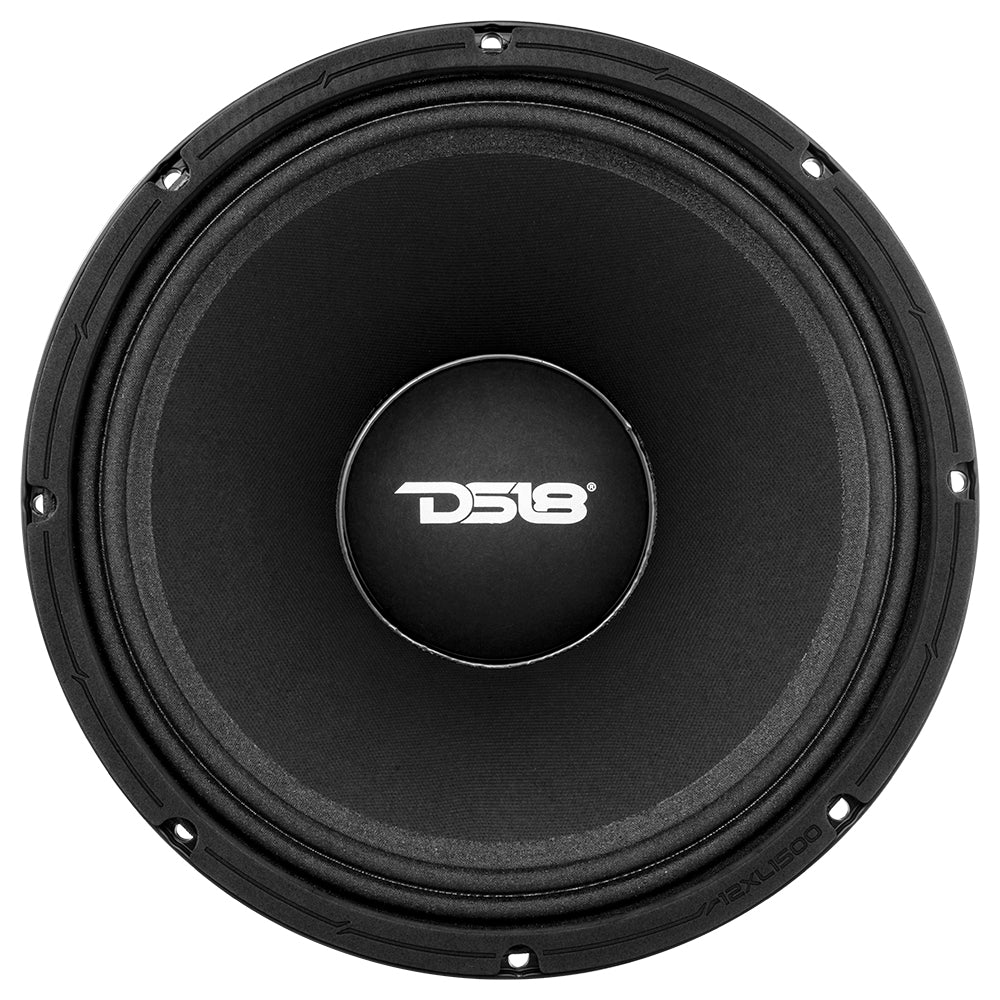

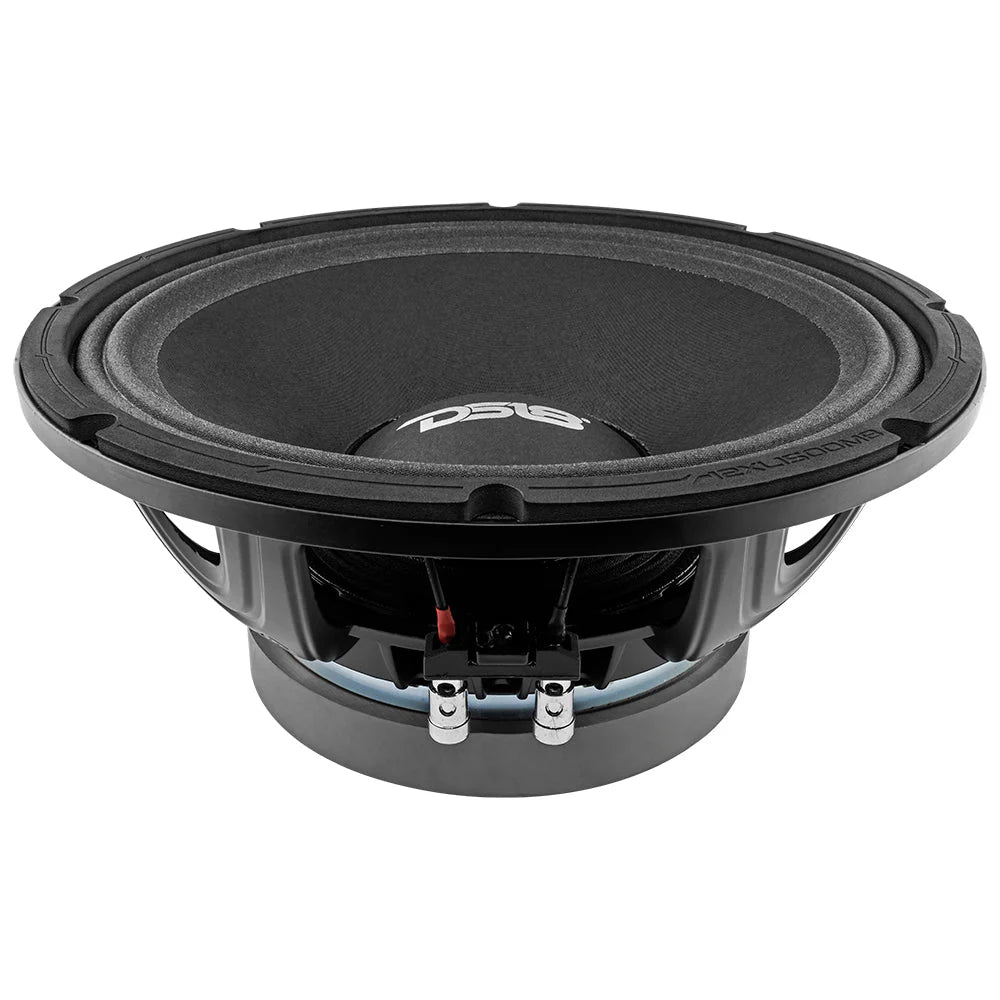

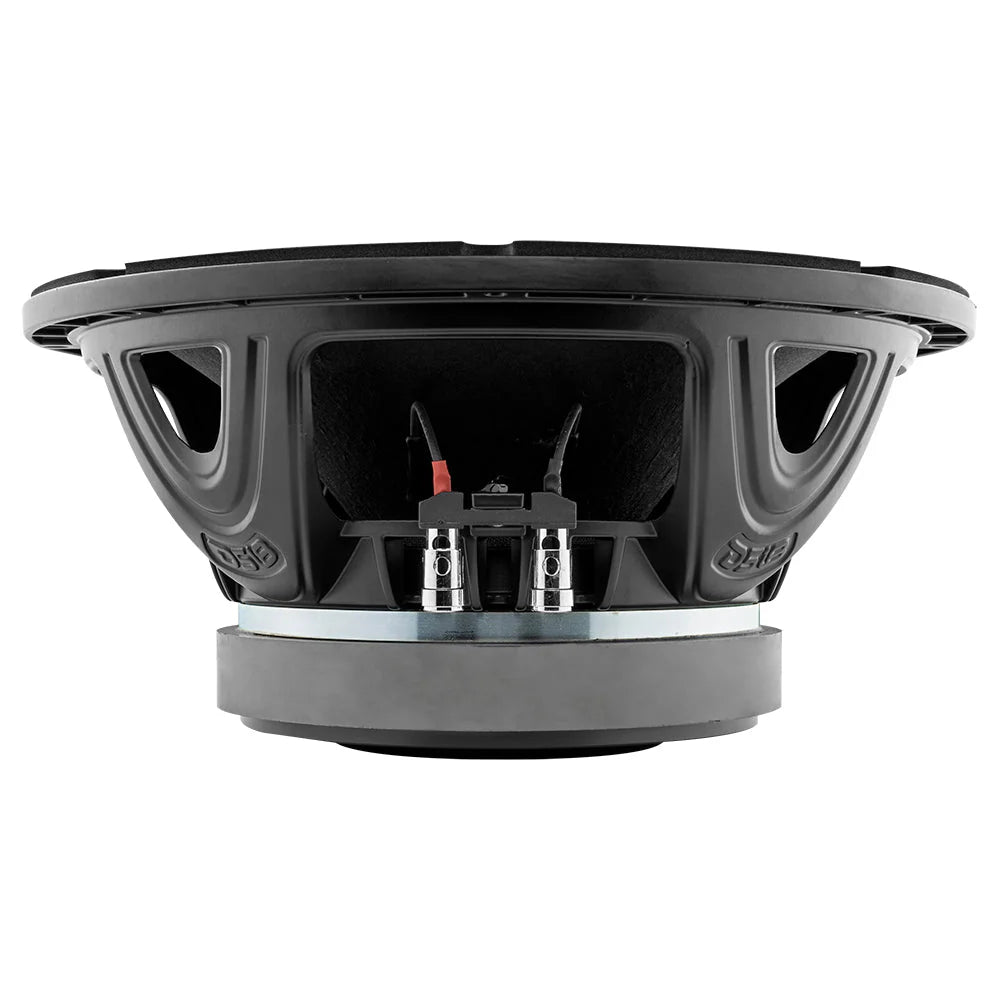

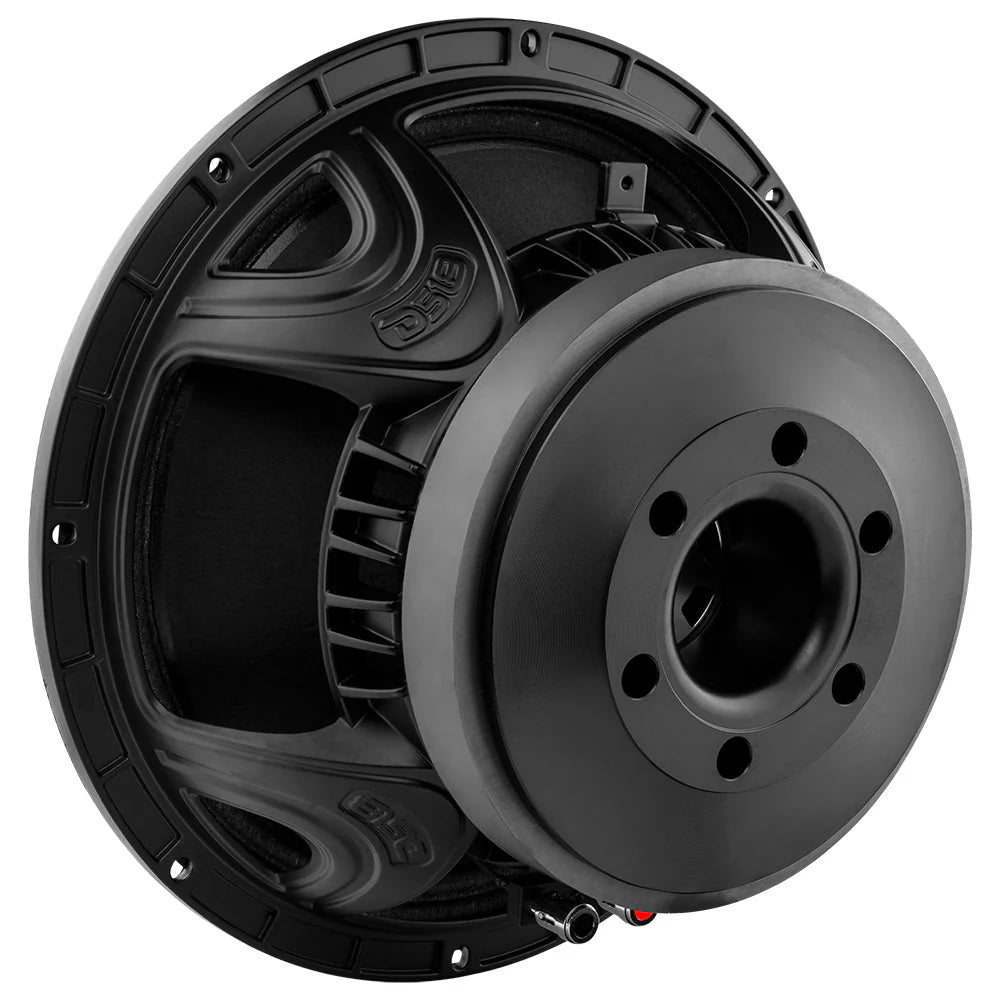

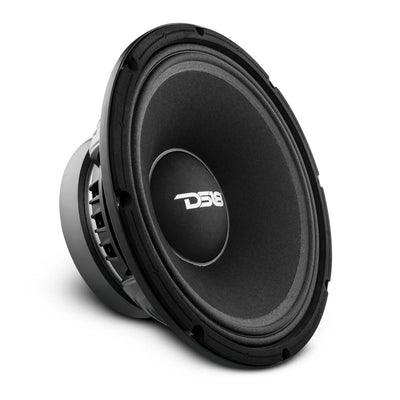

DS18 12XL1500

DS18’s 12XL1500 is power and precision personified. Designed for an unparalleled sound experience, this speaker is sure to change the way you experience music.
DS18’s 12XL1500 stands head and shoulders above the mid-range competition. This 12-inch loudspeaker comes in 4-ohm and 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup.
With power handling of 750W RMS and 1500W MAX these speakers are guaranteed to blow you away. The frequency response of 45Hz-6.5KHz ensures an extensive range that captures every nuance of your favorite music genres while the sensitivity rating of 98.7 dB guarantees crystal-clear sound reproduction, even in large venues.
Crafted with precision, DS18’s 12XL1500 features a 3.5" Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The satin black aluminum basket not only enhances the speaker's aesthetics but also provides structural integrity. The ferrite magnet weighing in at a whopping 93 ounces ensures powerful and accurate bass responses that will leave you amazed.
Elevate your audio game with the DS18 12XL1500-8!

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
