Product Overview

Description

SPECS

SKU
SMD-8500.1D
RMS Power @ 4 ohm (14.4v)
3300W
RMS Power @ 2 ohm (14.4v)
5700W
RMS Power @ 1 ohm (14.4v)
8500W


Audio

Frequency Response
15Hz-250Hz
Signal to Noise Ratio
>98dB
Efficiency @ 4ohm
>86%
Damping Factor
300
Input Impedance
22K ohm
Total Harmonic Distortion (THD)
<0.02%
Low Level Input Range
200mV-6V
High Level Input
NO
Selectable X-Over
Fixed LPF
X-Over Filter Range
35Hz-250Hz
Bass Boost Range
0~9dB
Bass Boost Frequency
30Hz-60Hz
Infrasonic Filter
10Hz-30Hz
Phase Selector
0~180
Operational Voltage
8.5v-16.9v


Features

Amplifier Class
Digital
Amplifier Type
Subwoofer
Number of Channels
1
Minimum Impedance
1 ohm
Led Indicator
Power / Protection / Clip
Power Input Terminal Size
0 AWG
Recommended Fuse Size (Not Included)
740A
Cooling Fan
Yes
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Black
Metal Adjustment Knobs with Click Position
Yes
Professional Tiffany RCA Connectors
Yes
Remote Level Knob with Clip indicator
Yes (Metal Case)
Linkable (Strap mode) Amplifier
Yes
Reliable Heavy Duty Korean Board Design
Yes
Very High Efficiency Digital Circuit Design
Yes

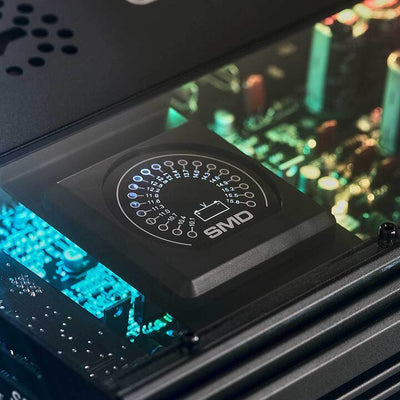

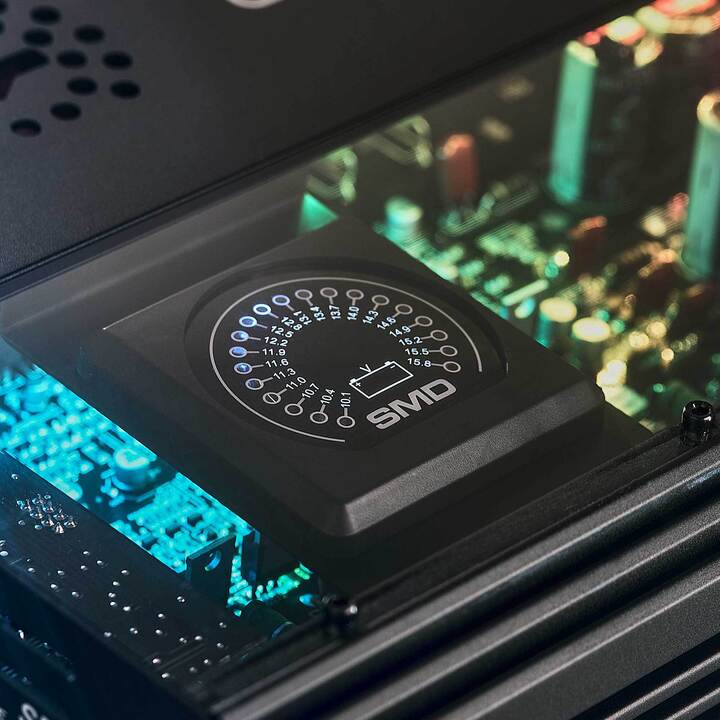

Exclusive SMD design with VM-1 Voltmeter
Yes
Front Acrylic Window and Digital RGB Lighting
Yes
IR Remote Control for LED patterns and colors
Yes


Measurement

Overall Length
23.3" / 562mm
Overall Width
9.15" / 232mm
Overall Height
3" / 76mm
Heatsink Length
21.6" / 550mm
