Product Overview

Description

Key Features

  • 8" Coaxial Water Resistant Mid-Range
  • RMS Power: 275W (550W Peak)
  • Impedance: 4-Ohm
  • Ferrite & Neodymium Magnet
  • Grill with Cloth Shade
  • 98dB

SPECS

SKU
PRO-ZT8
Nominal Diameter
8" (203.2 mm)
Nominal Impedance
4 ohms
RMS Power Handing
275 Watts
Maximum Power Handing
550 Watts
Sensitivity (1w/1m)
98dB
Frequency Response
65Hz-22KHz
Recommended Hi Pass Crossover
80 Hz


SPECS

Voice Coil Diameter
1.5" (38.1 mm)
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Steel
Magnet Weight
27 oz


THIELE & SMALL PARAMETERS

Vas
12.4021 LTR
Xmax
16 mm
Fs
110 Hz
Qms
3.906
Qes
0.76
Qts
0.636
Re
3.2 ohms


MEASUREMENTS

Overall Diameter
214 mm (8.42")
Front Mount Baffle Cutout
181 mm (7.13")
Mounting Depth
91 mm (3.58")
Overall Depth
113 mm (4.44")
Product Weight
5.5 lbs

Product Overview

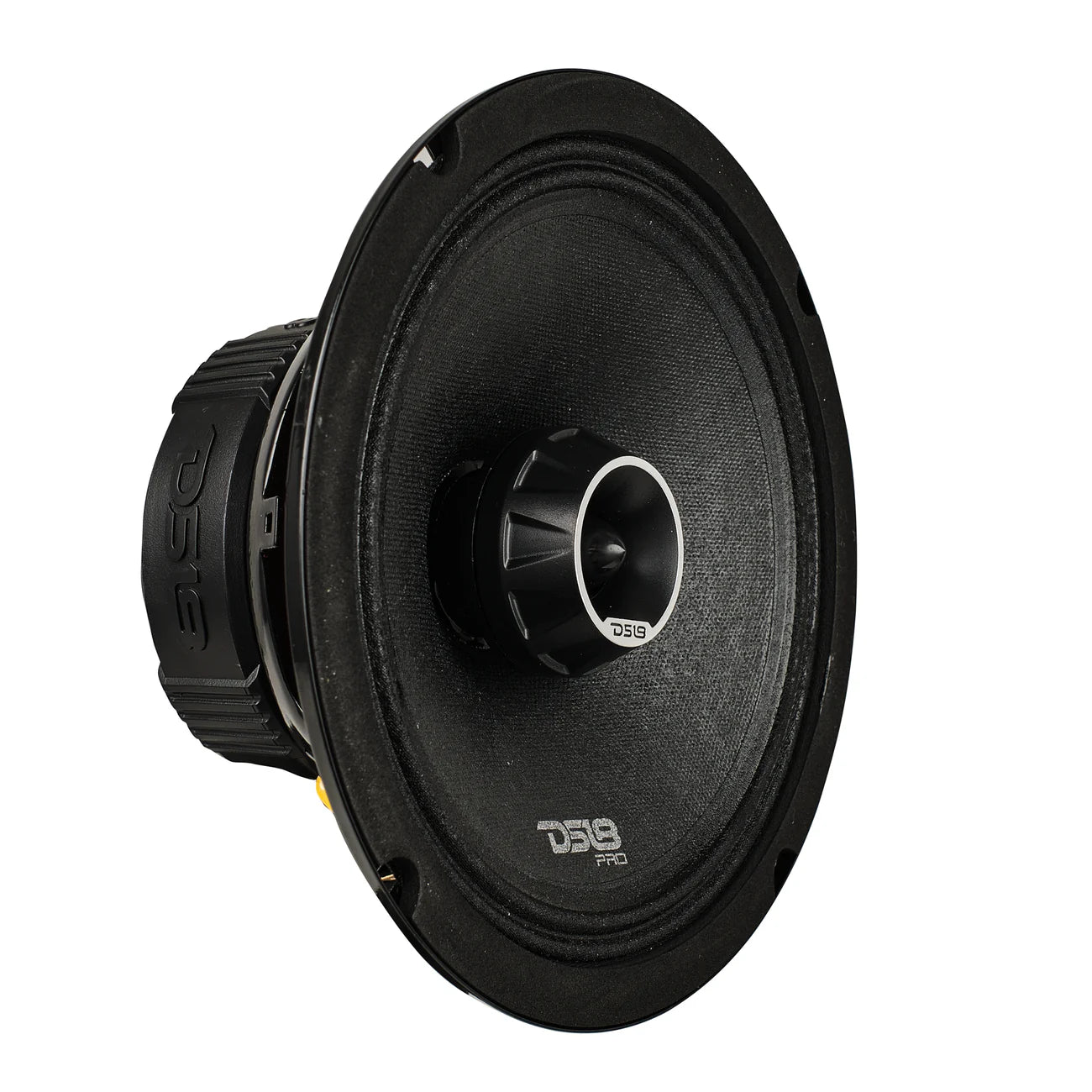

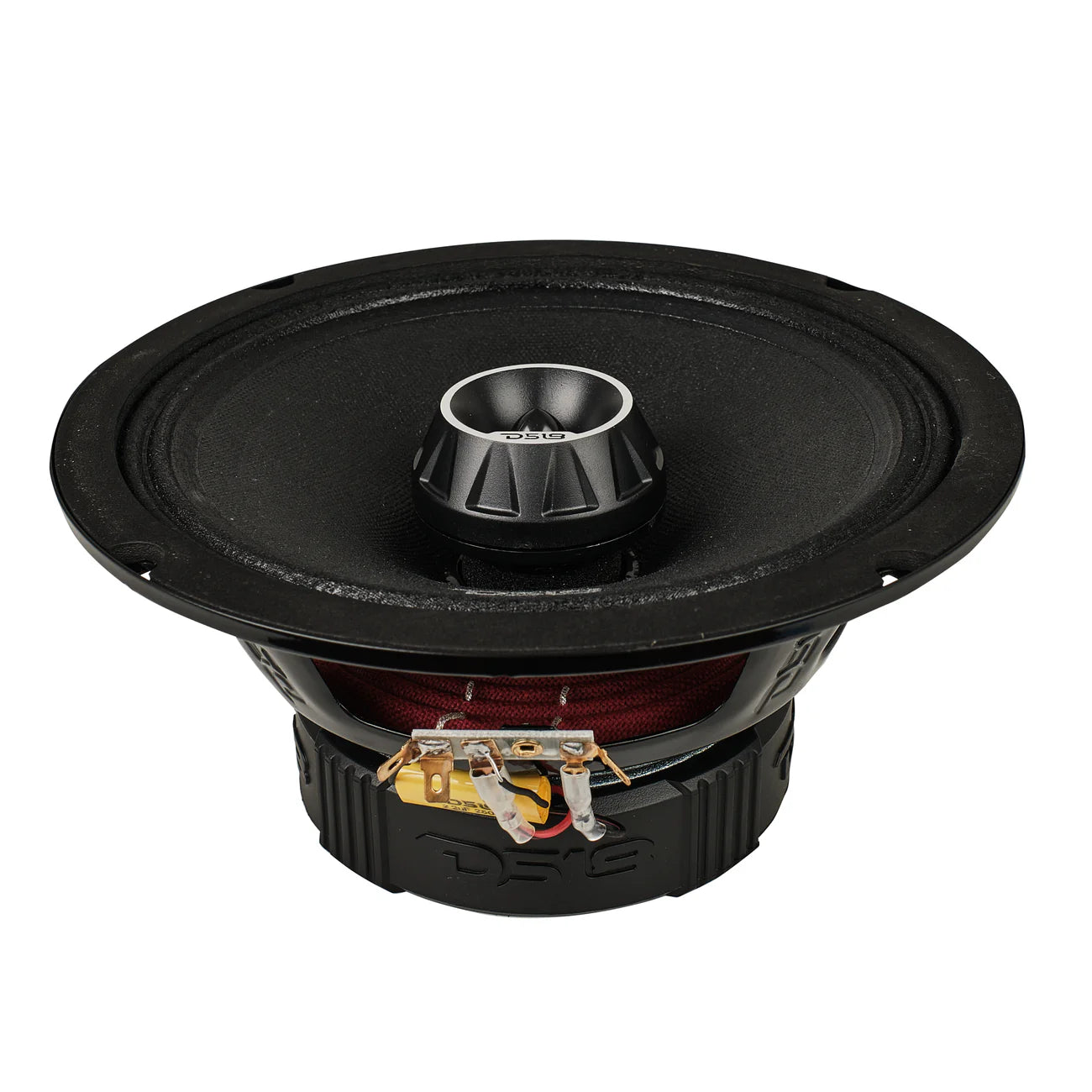

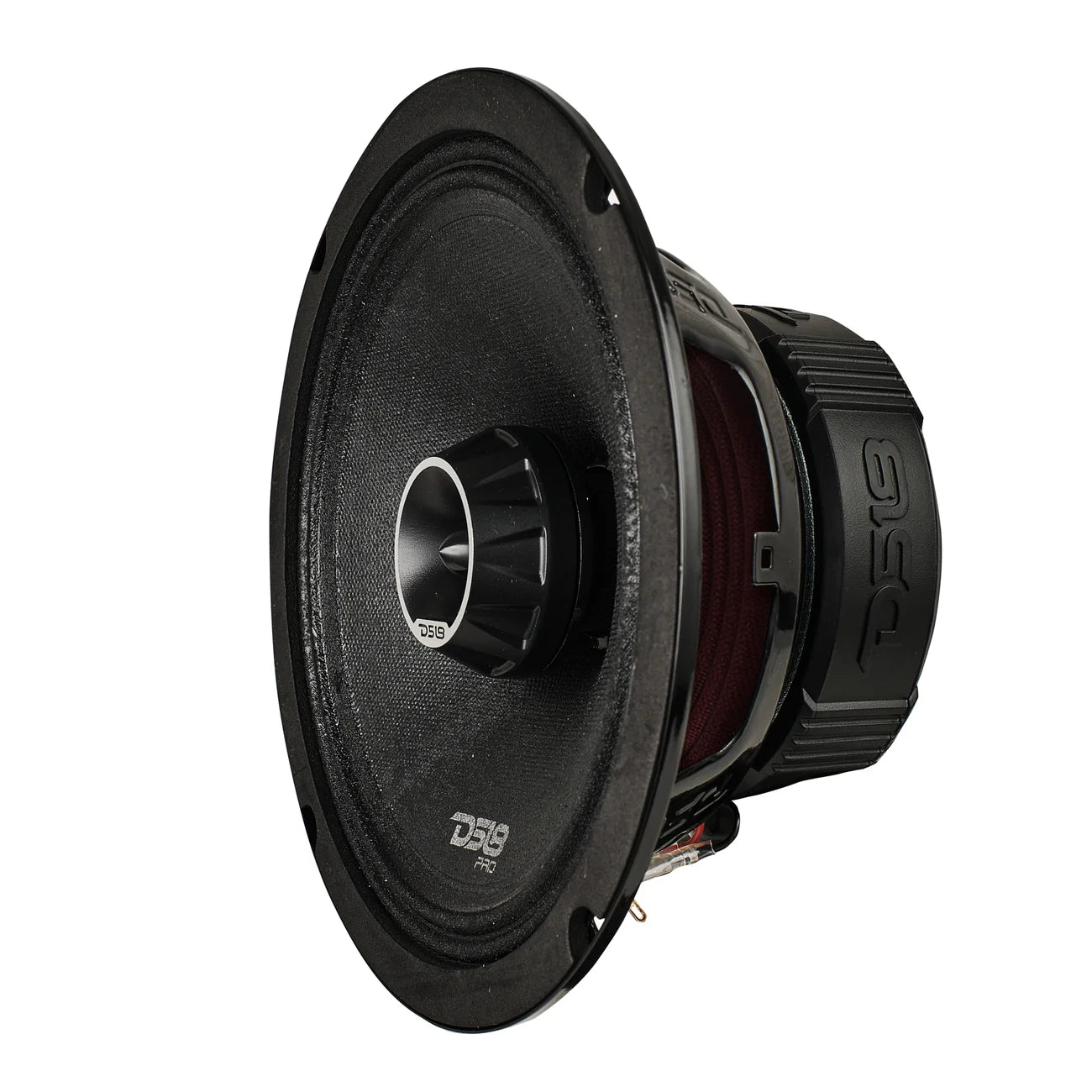

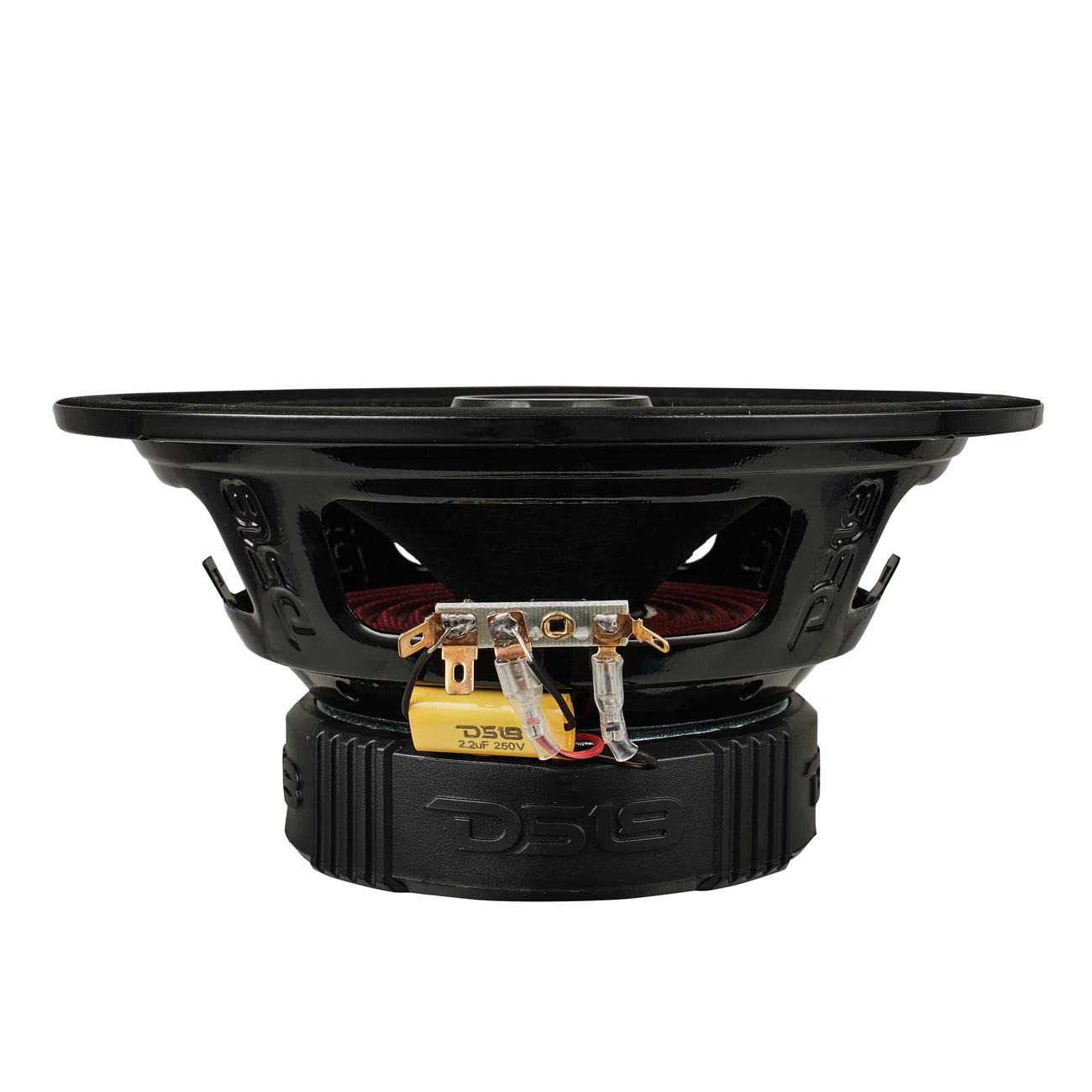

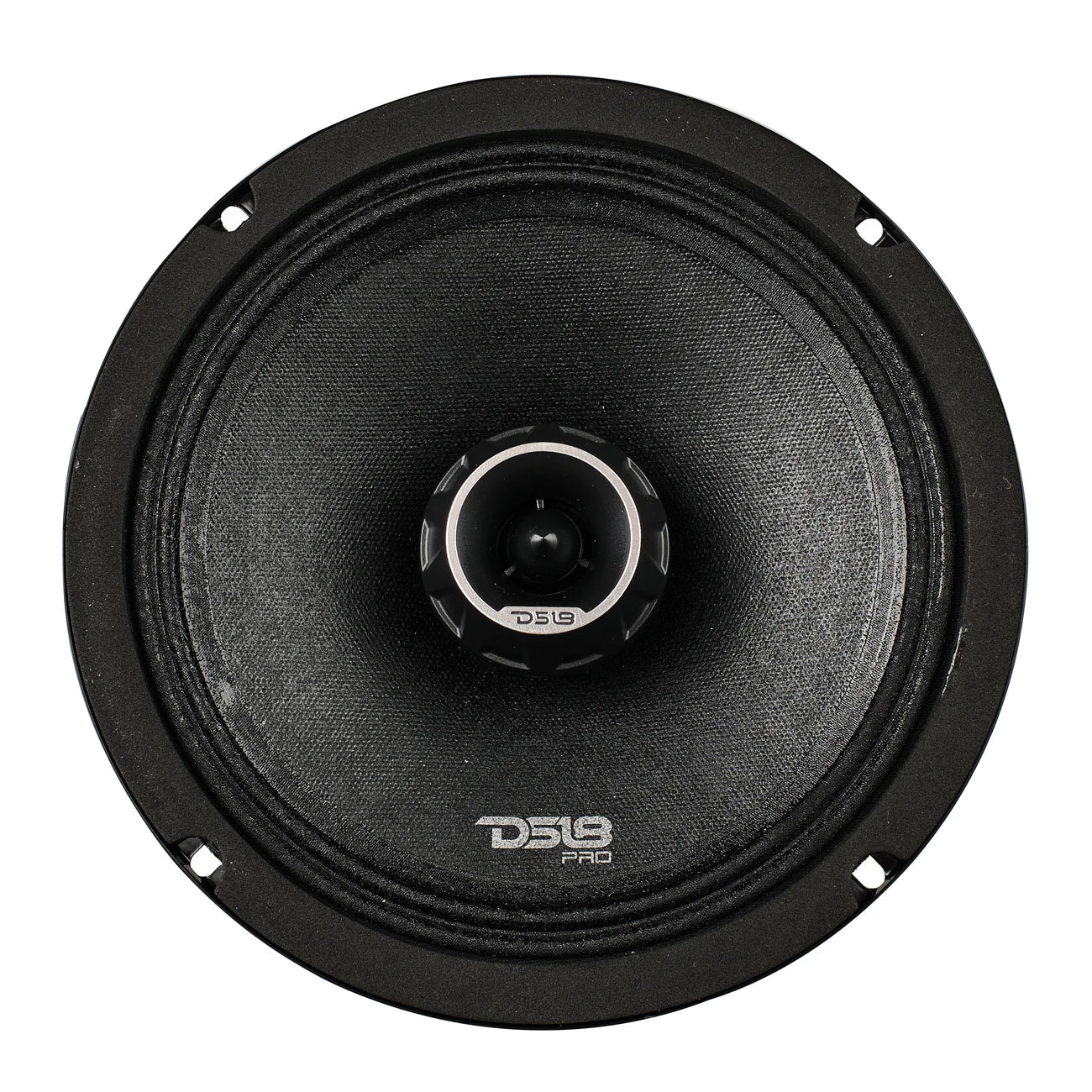

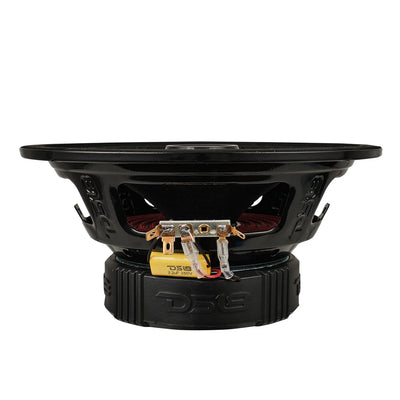

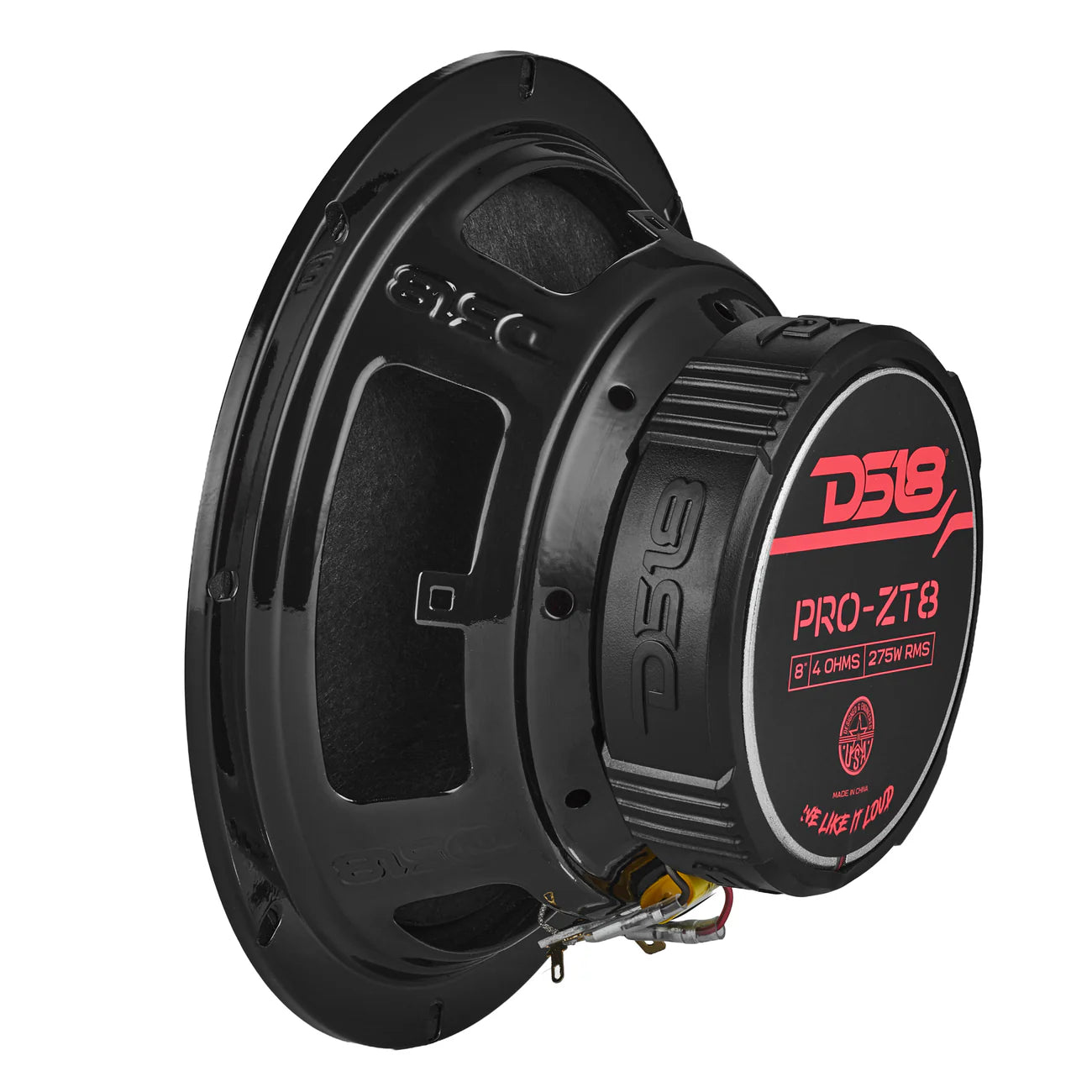

DS18 PRO-ZT8

8” Water Resistant Mid-Range Loudspeaker with Built-in Bullet Tweeter and Grill 550W 4-Ohm

Experience earth-shaking sound with the PRO-ZT8: a 2-way mid-range built for accurate reproduction, and full-range power—all packed into a rugged, water-resistant design.

Insane Power
Handling an RMS power of 275W and a MAX power of 550W, the PRO-ZT8 reaches volumes that will take your breath away. With a 4-Ohm impedance for easy installation and an ultra-high sensitivity rating of 98dB, you’re guaranteed powerful output even at lower power levels.

Wide Frequency Range
With an impressive frequency response of 65Hz - 22KHz, the PRO-ZT8 captures every nuance across the entire audio spectrum. The integrated filter refines the balance between frequencies, creating a smooth audio experience every session.

Deep, Impactful Bass
Engineered with a robust ferrite magnet, the PRO-ZT8 generates a deep low-end punch, for immersive bass you can feel. This powerful magnet structure enhances voice coil action for forceful impact you can feel throughout your system.

Bullet Tweeter Power
The built-in bullet tweeter is powered by a high-performance neodymium magnet, delivering crisp, ultra-clear highs efficiently. This tweeter ensures every detail in your music is brought to life.

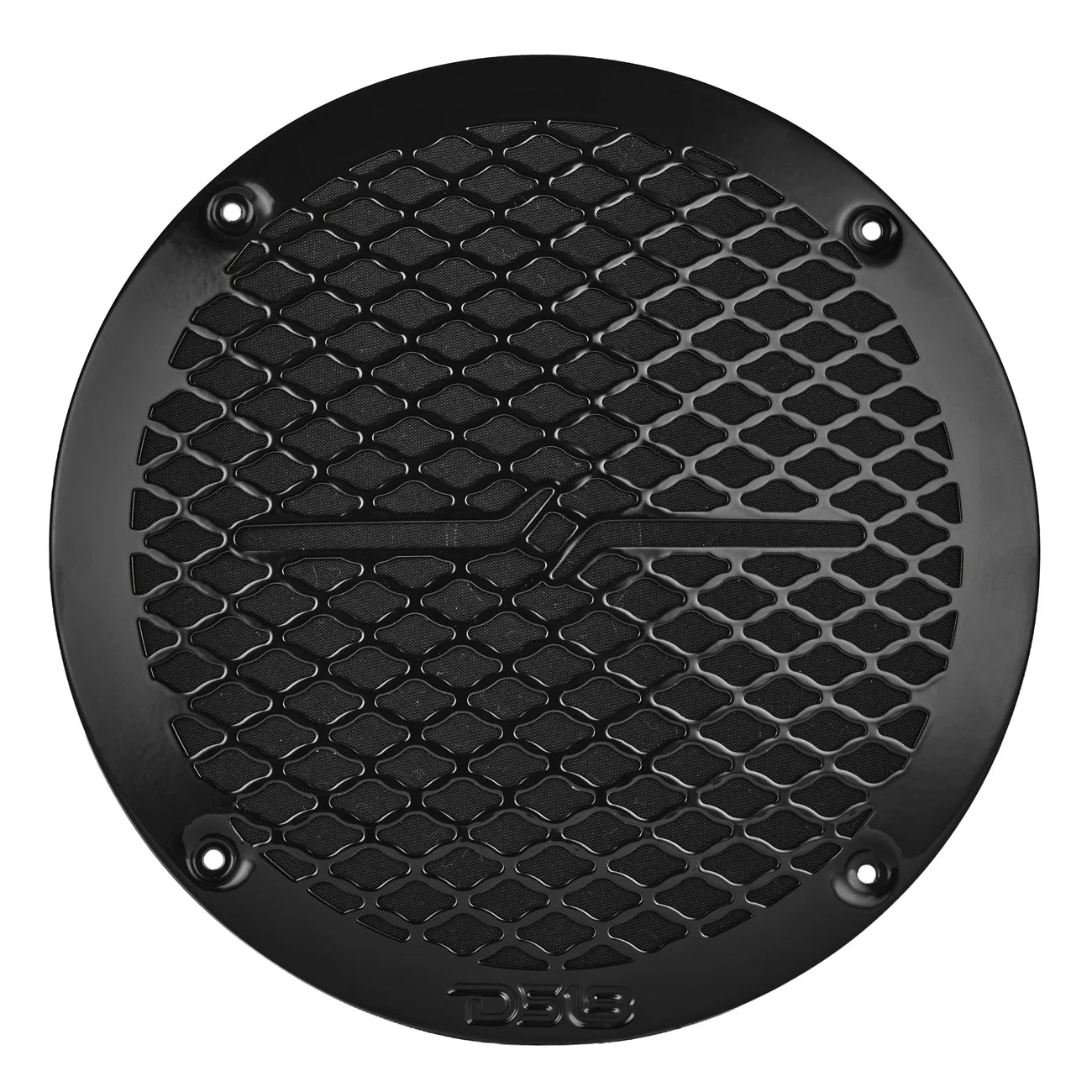

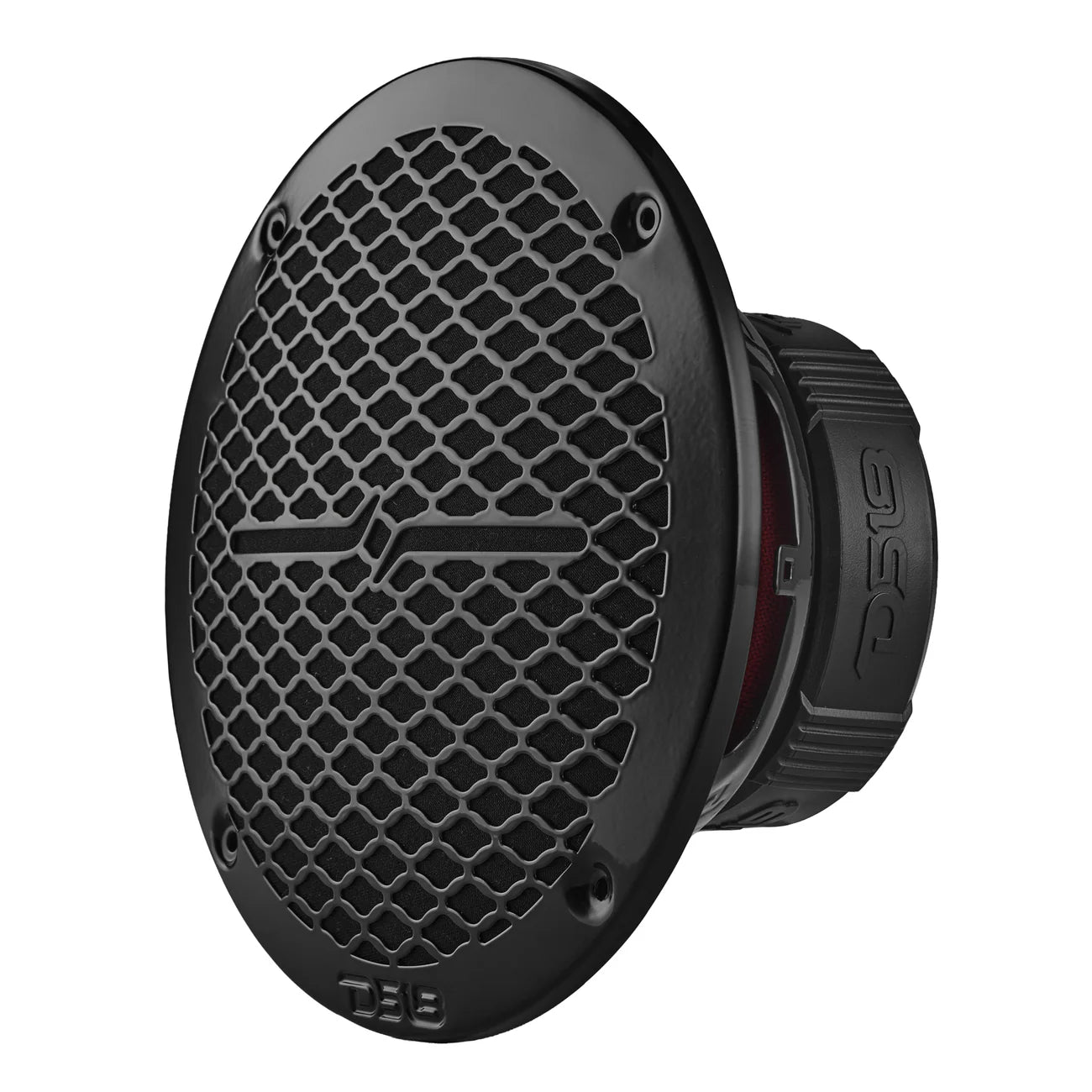

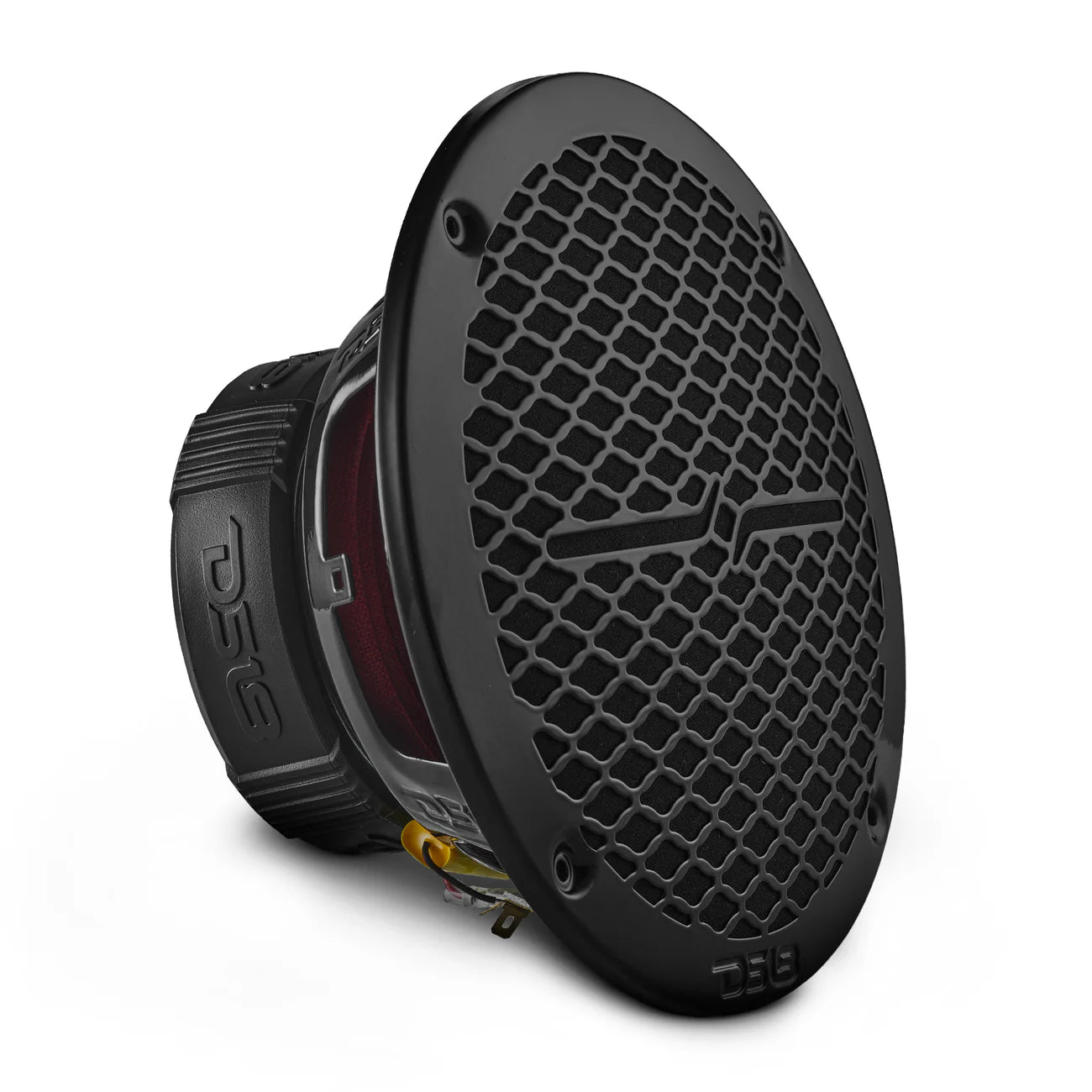

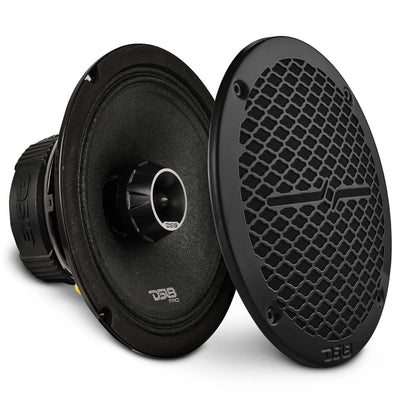

Protective Grill Included
No need to worry about accidental scuffs or kicks—the rugged grill shields against potential damage, while the water-resistant cone guarantees reliable performance even in damp environments.

Transform your system with the PRO-ZT8 and experience music the way it was meant to be heard!

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
