Product Overview

Description

Key Features

  • 8" Mid-Range w/Bullet
  • MAX Power: 550 Watts
  • RMS Power: 275 Watts
  • Impedance: 4-Ohm or 8-Ohm
  • Ferrite Magnet
  • 97dB

SPECS

SKU
PRO-X8.4BM
Nominal Diameter
8"/ 203mm
Nominal Impedance
4 or 8 ohms
RMS Power Handing
275 WATTS
Maximum Power Handing
550 WATTS
Sensitivity (1w/1m)
97dB
Frequency Response
115Hz - 16KHz
Recommended Hi Pass Crossover
120Hz


SPECS

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Steel
Magnet Weight
30 oz



THIELE & SMALL PARAMETERS

Vas
7.67L / 0.271ft3
Xmax
9.3mm
Fs
127Hz
Qms
8.693
Qes
0.776
Qts
0.712
Re
3.3 ohms


MEASUREMENTS

Overall Diameter
8.22" / 209mm
Front Mount Baffle Cutout
7.17" / 182mm
Mounting Depth
3.2" / 82mm
Overall Depth
3.5" / 88.6mm

Product Overview

PRO-X8.4BM

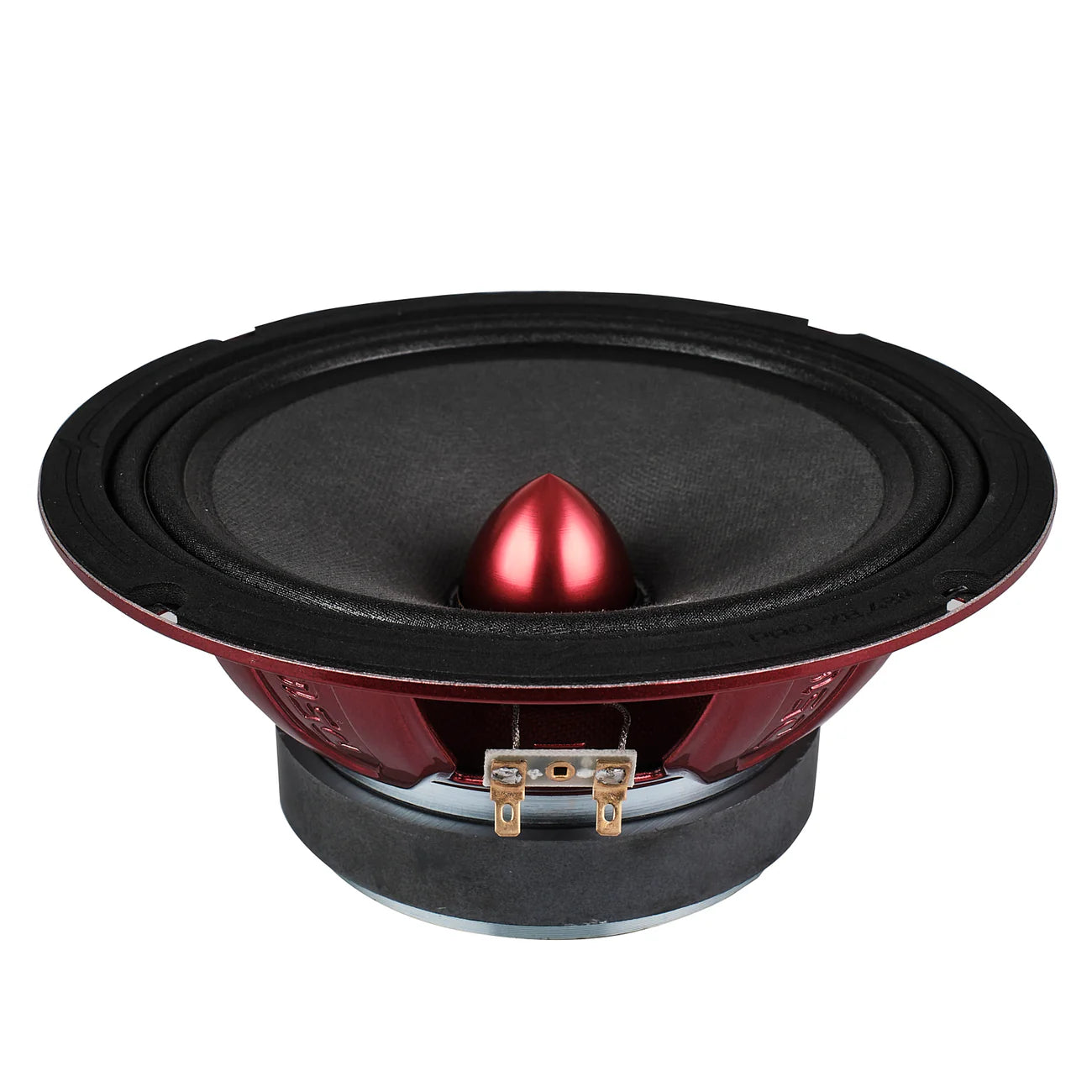

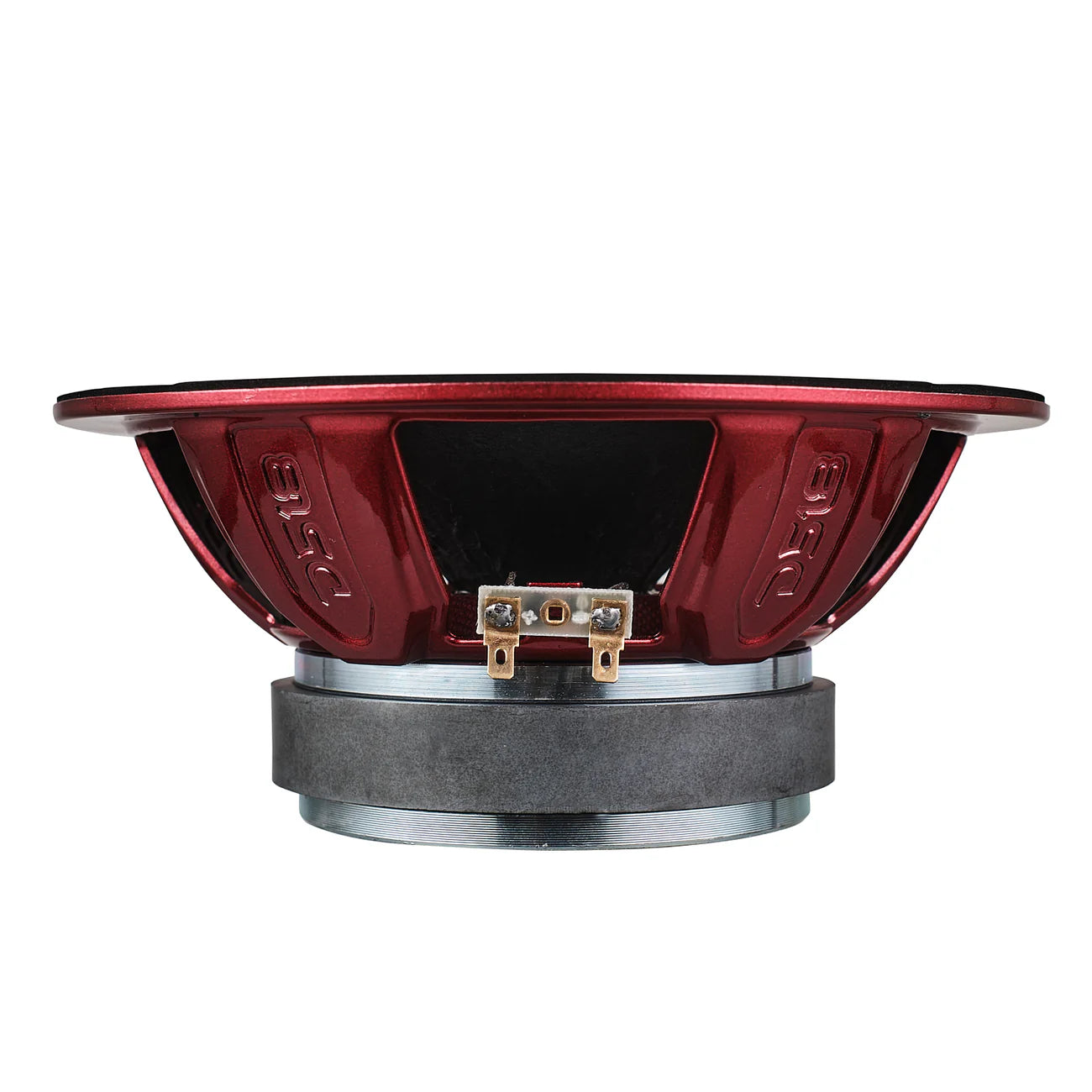

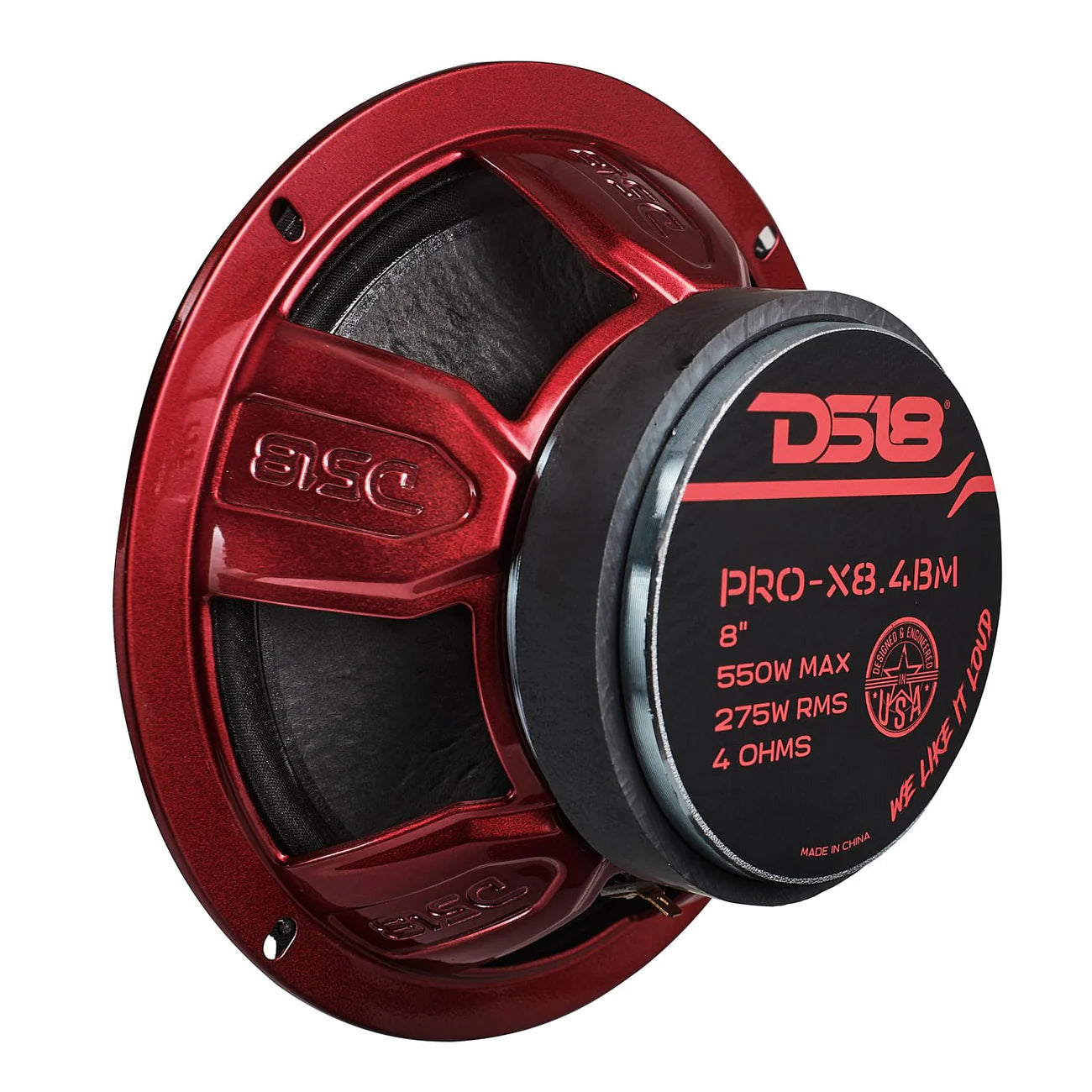

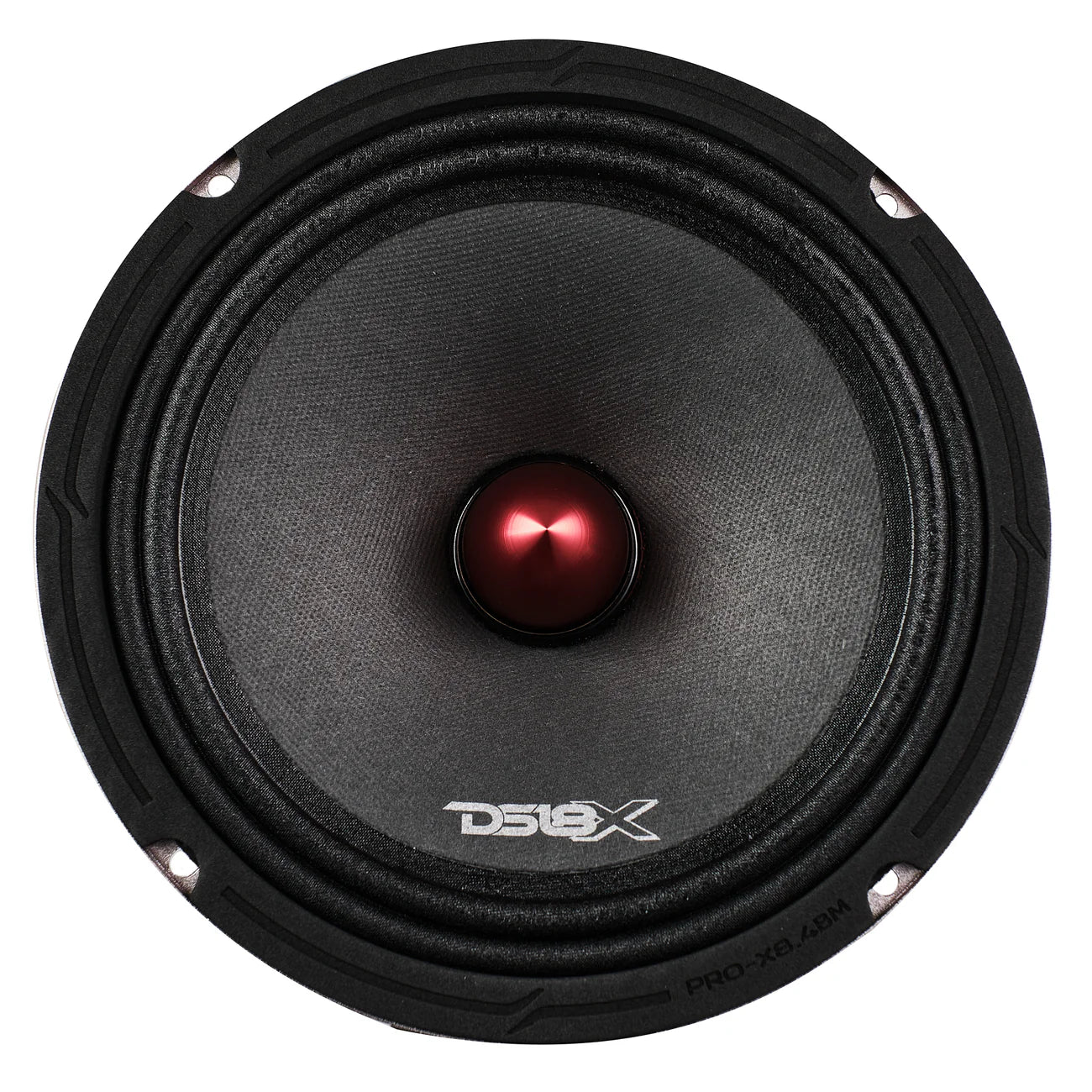

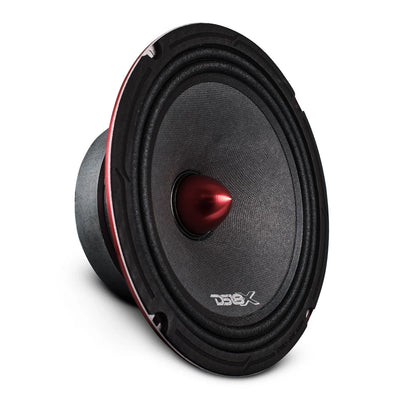

8" Mid-Range Loudspeaker With Bullet 275W RMS 4-Ohm

The PRO-X8.4BM is an 8" mid-range loudspeaker that delivers 275W RMS and 550W MAX power, giving your build raw, punchy sound with pro-level clarity.

Bullet Dust Cap. Bigger Sound.
A high-efficiency bullet-style aluminum dust cap helps project sound further and sharper, giving you hard-hitting midrange your system craves. Its steel basket not only reinforces strength but looks as bold as it sounds.

Push It To The Limit
With a 1.5" 4-ohm (or 8-ohm) voice coil wound on a Kapton former, this speaker handles serious heat. Pair that with a 97 dB sensitivity and you’ve got volume that stays clean — no distortion, no drop-off.

Tuned for Tight Installs. Ready for Power.
The PRO-X8.4BM fits flush with a 3.2" mounting depth and packs a 30 oz ferrite magnet to drive performance and reliability. Covering 115Hz–16KHz, it captures the full midrange with precision and power.

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
