Product Overview

Description

Key Features

  • 8" Mid-Range
  • MAX Power: 550 Watts
  • RMS Power: 275 Watts
  • Impedance: 4-Ohm or 8-Ohm
  • Ferrite Magnet
  • 97dB

SPECS

SKU
PRO-X8M
Nominal Diameter
8 inch (203 mm)
Nominal Impedance
4 or 8 ohms
Max Power Handing
550 WATTS
RMS Power Handing
275 WATTS
Sensitivity
97 dB
Frequency Response
80 Hz - 13 KHz
Recommended Hi Pass
120 Hz



SPECS

Voice Coil Diameter
38.1mm (1.5 inch)
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Non-Pressed Paper
Basket Material
Steel
Magnet Material
Ferrite
Magnet Weight
30 oz



THIELE & SMALL PARAMETERS

Vas
14.27 LTR
Xmax
9.3 mm
Fs
120 Hz
Qms
8.454
Qes
1.037
Qts
0.924
Re
5.2 ohms


MEASUREMENTS

Overall Diameter
8.22" / 209mm
Front Mount Baffle Cutout
7.16" / 182mm
Mounting Depth
3.2" / 82mm
Overall Depth
3.5" / 88.6mm
Product Weight
6 lbs

Product Overview

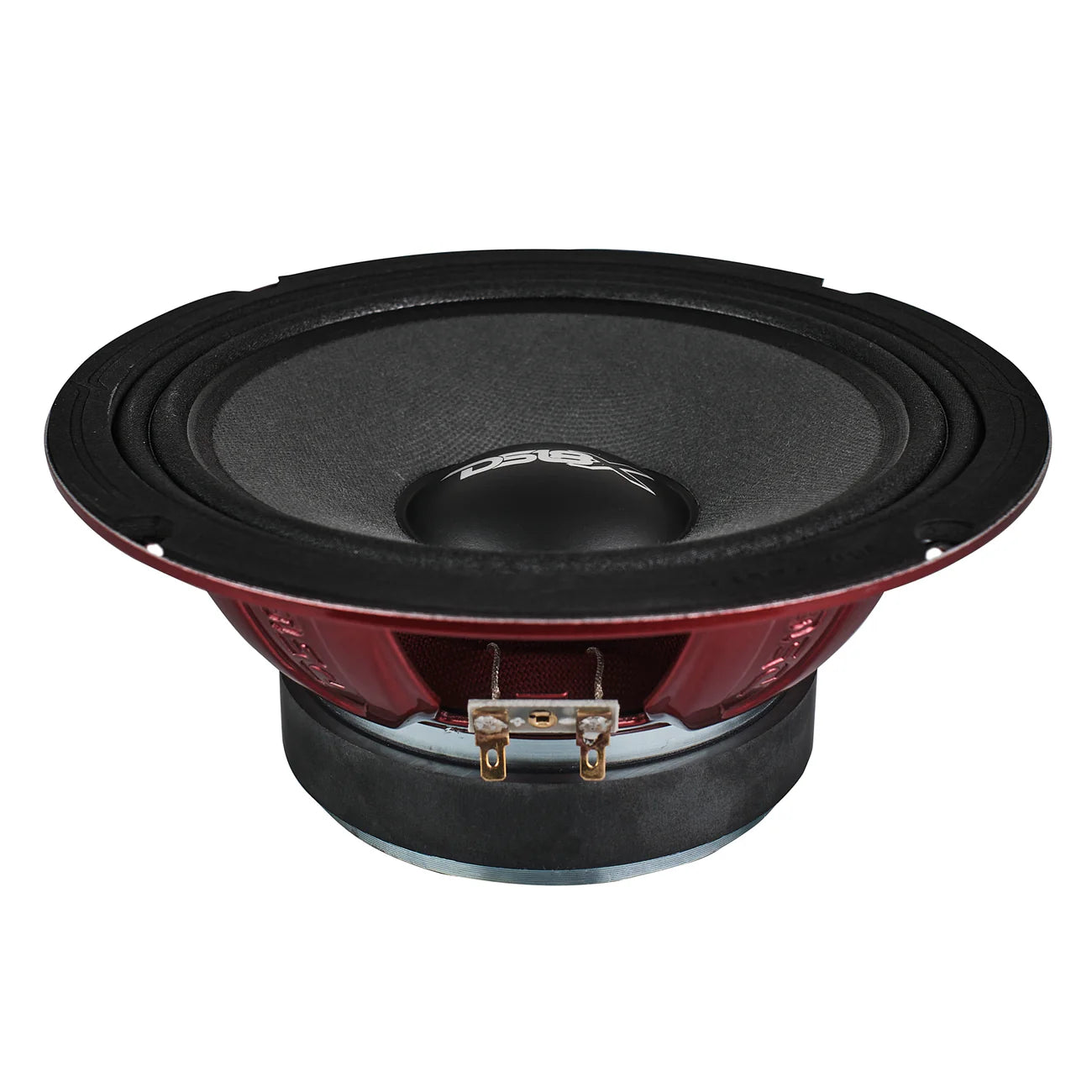

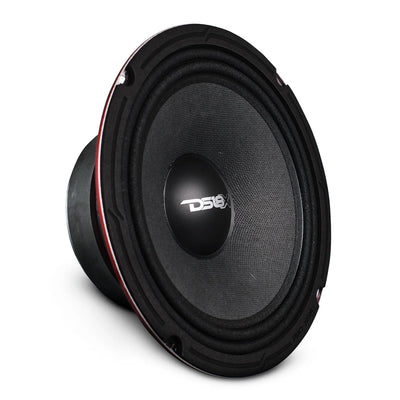

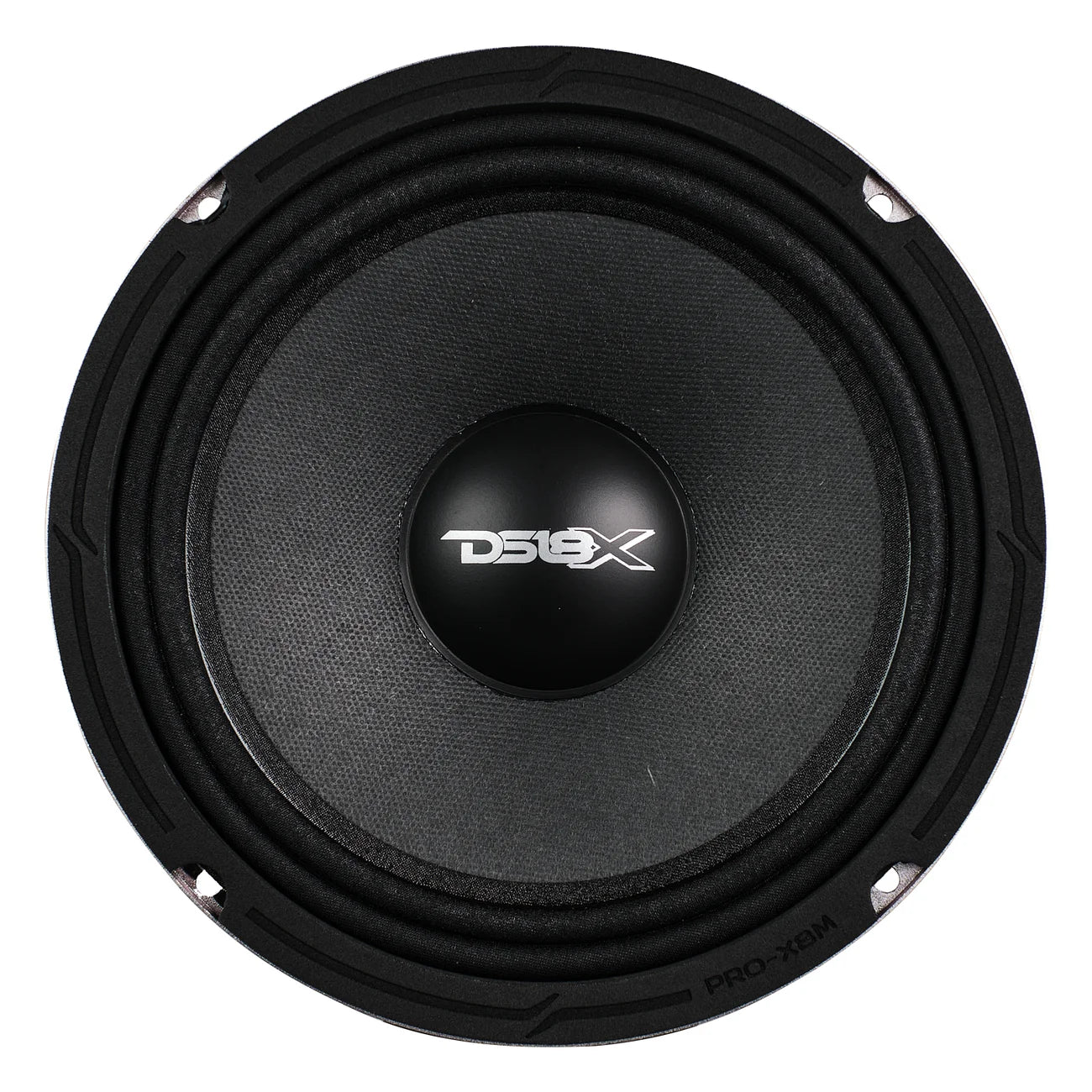

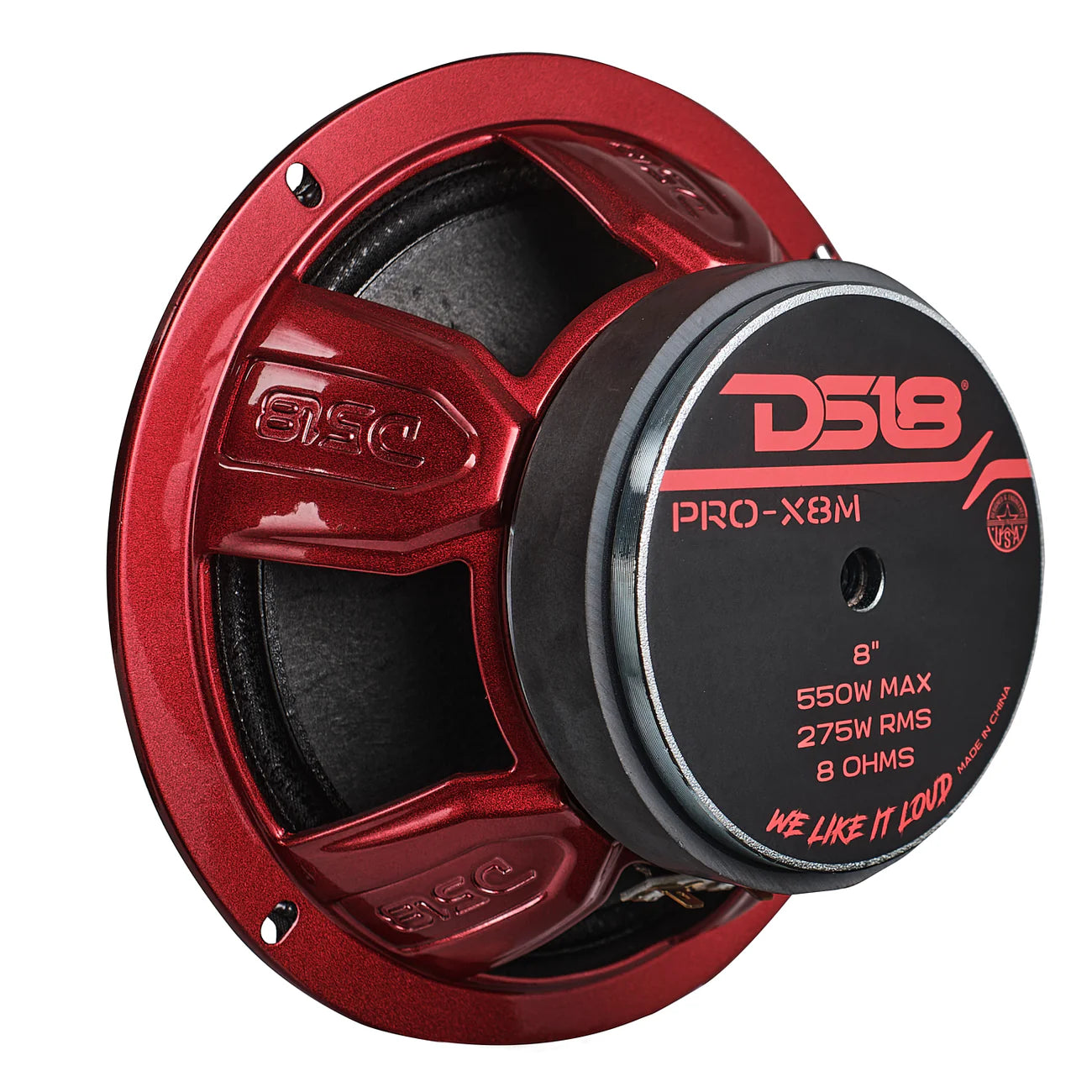

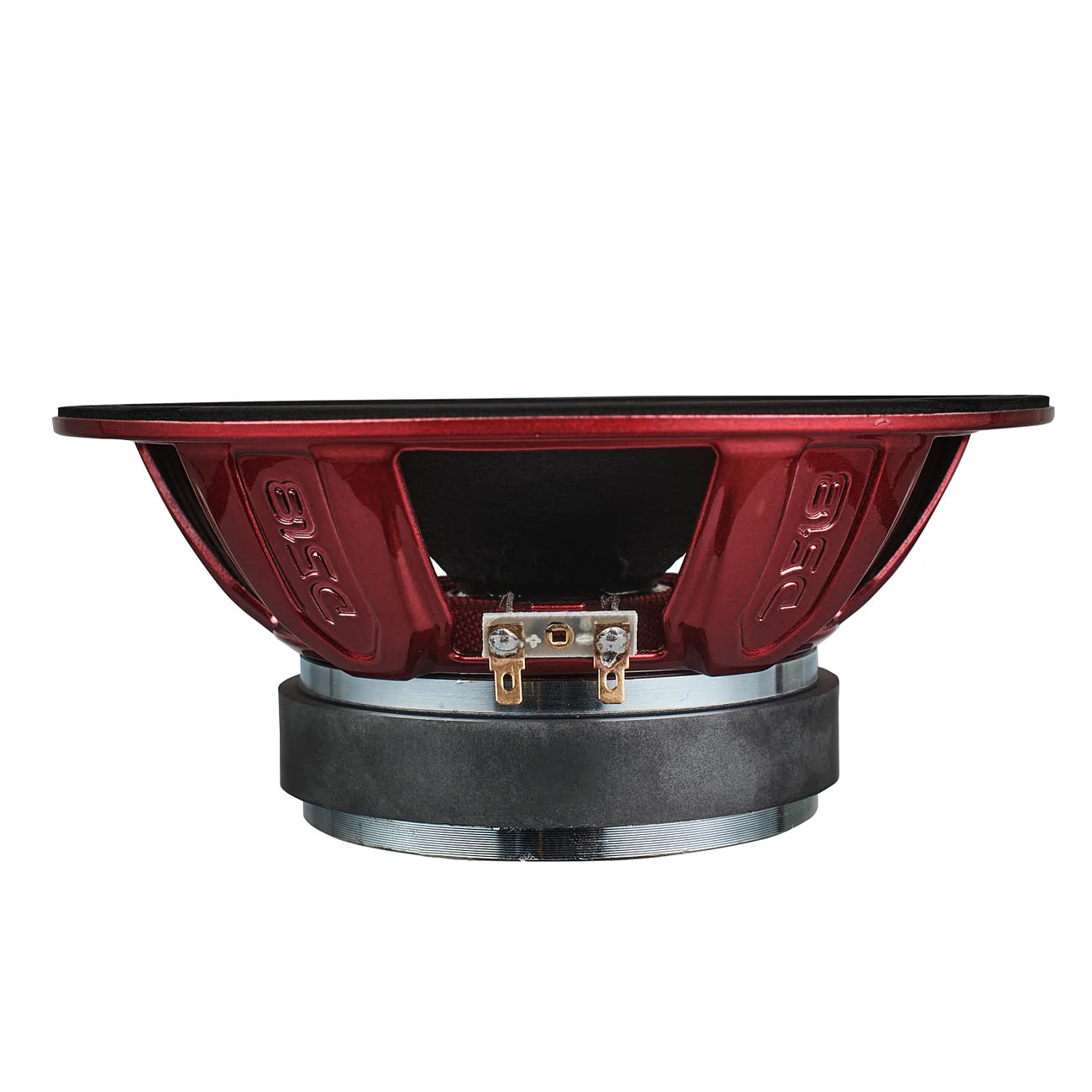

DS18 PRO-X8M

DS18 PRO-X8M
8” Mid-Range Loudspeaker | 275W RMS

Get loud, stay clear—DS18’s PRO-X8M is built for audio lovers who want serious midrange performance. If you’re upgrading a custom build or fine-tuning your daily driver, the PRO-X8M delivers punch and precision.

Primed for Intensity
With 275W RMS and 550W MAX power handling, the PRO-X8M is designed to run strong all day long. Its 97dB sensitivity rating means you get extreme volume with minimal power input—so you’ll hear every note, even over the roar of the road.

Optimized Sound Clarity
Covering a wide frequency response of 80Hz–13KHz, the PRO-X8M captures the sharpest details. Built with a non-pressed paper cone, cloth edge surround, and a 30oz ferrite magnet, the PRO-X8M delivers bold, distortion-free sound with every session.

Made to Fit, Built to Last
The PRO-X8M fits easily into most setups. Its new steel basket is built to take a beating in high-SPL systems and custom installs alike.
