Product Overview

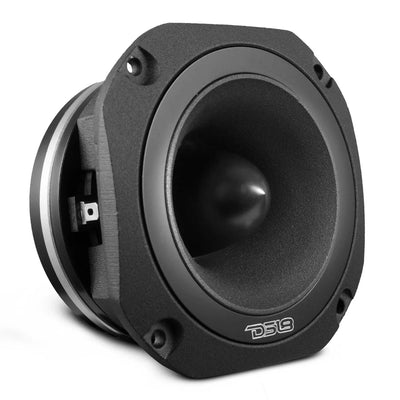

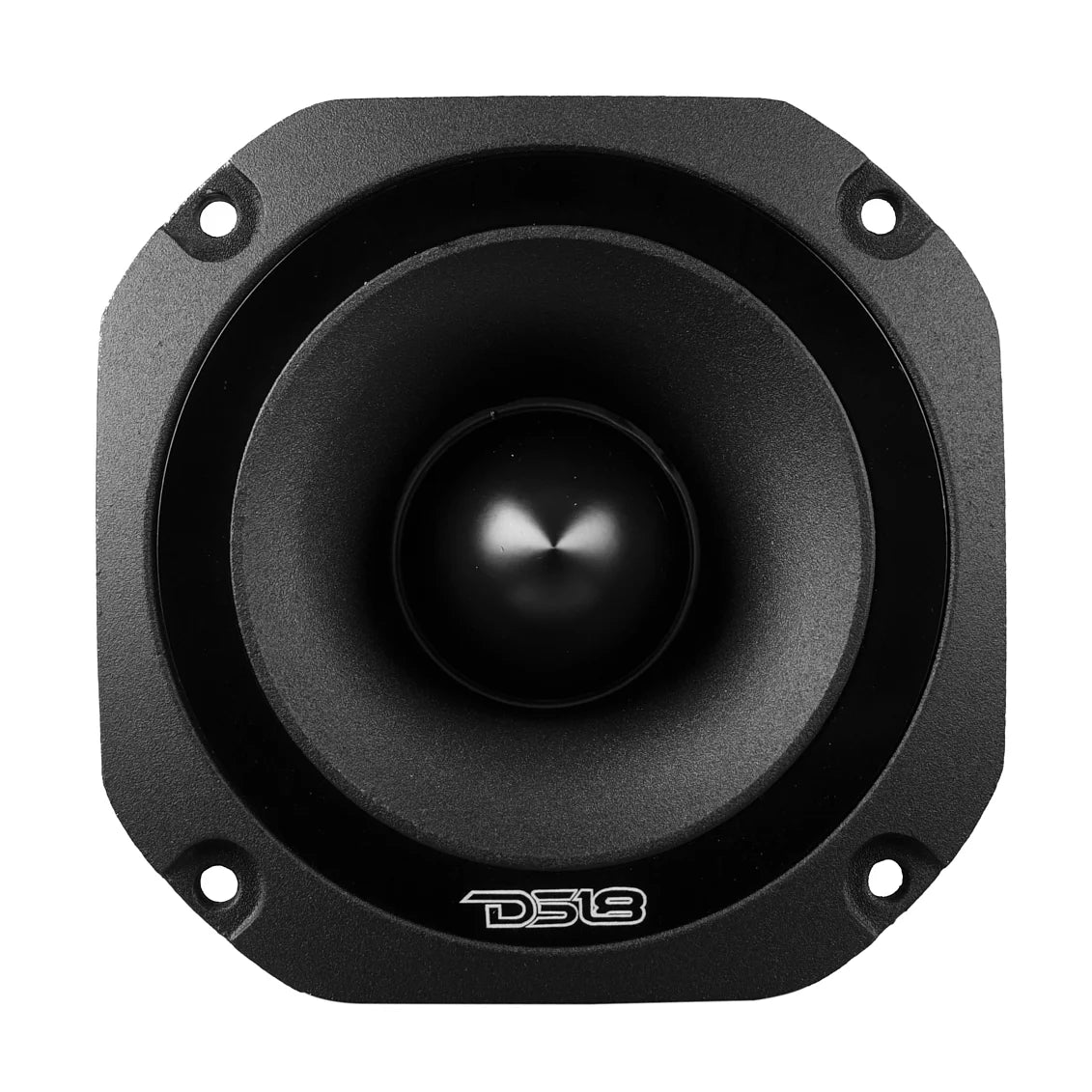

DS18 PRO-TW750CN-8

4” Super Bullet Tweeter with 1.5” Titanium Voice Coil & Neodymium Magnet

DS18’s PRO-TW750CN-8 delivers blistering clarity and volume with a compact footprint that fits almost anywhere.

Crank It Up
With 440W peak power, 110dB sensitivity, and a frequency response from 900Hz to 20kHz, the PRO-TW750CN-8 cuts through any mix.

Built for High Power

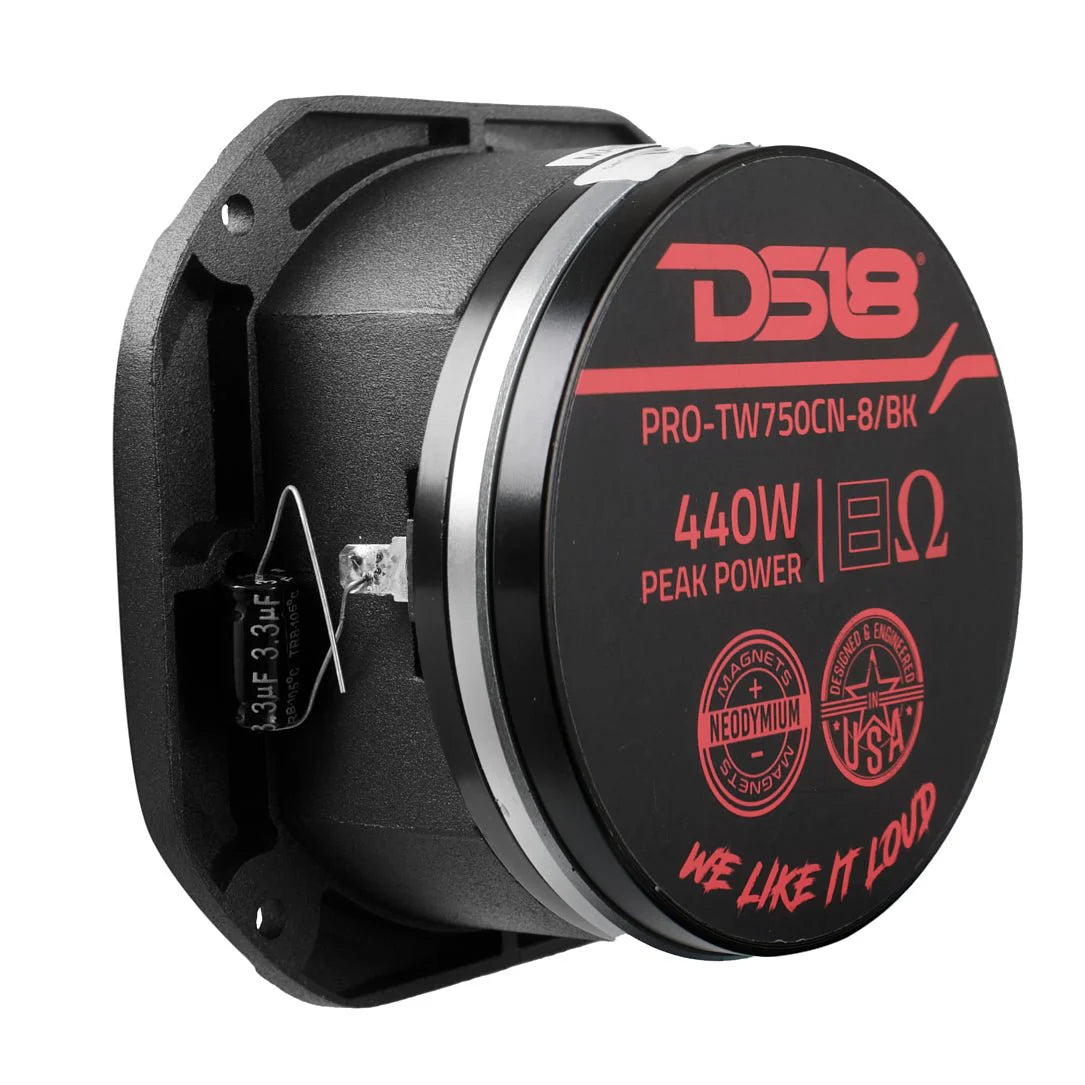

Featuring a 1.5" titanium voice coil and neodymium magnet, this tweeter combines precision and strength for high-output performance without the bulk. The included 3.3uF bass blocker ensures low frequencies don’t interfere.

Engineered for Efficiency
Its CNC aluminum bullet design directs sound forward for better projection and built-in cooling. And with a shallow 1.8" mounting depth, it’s perfect for doors, pillars, dashes, or custom pods.



Specifications

SKU
PRO-TW750CN-8/BK
Nominal Diameter
4" / 101mm
Nominal Impedance
8 ohms
AES Power Handling
160W
Program Power Handling
220W
Peak Power Handling
440W
Sensitivity (1w/1m)
110dB
Frequency Response
900Hz-20KHz
Recommended Hi Pass Crossover
3KHz
Sold In Pair or Single
Single


Body / Features

Filter (Bass Blocker)
3.3uf / 100V
Body Material
Aluminum
Body Color / Finish
Black / Aluminum
Faceplate Color / Finish
Black / Aluminum
Bullet Material
CNC Aluminum


Motor

Voice Coil Diameter
1.5" / 38mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Magnet Size
3.54"x0.19" / 90x5mm
Magnet Weight
5.82 Oz


Measurement

Overall Diameter
4" / 103mm
Overall Depth
2.28" / 58mm
Front Mount Baffle Cutout
3.5" / 90mm
Mounting Depth
1.8" / 46mm
