Product Overview

Description

Product Overview

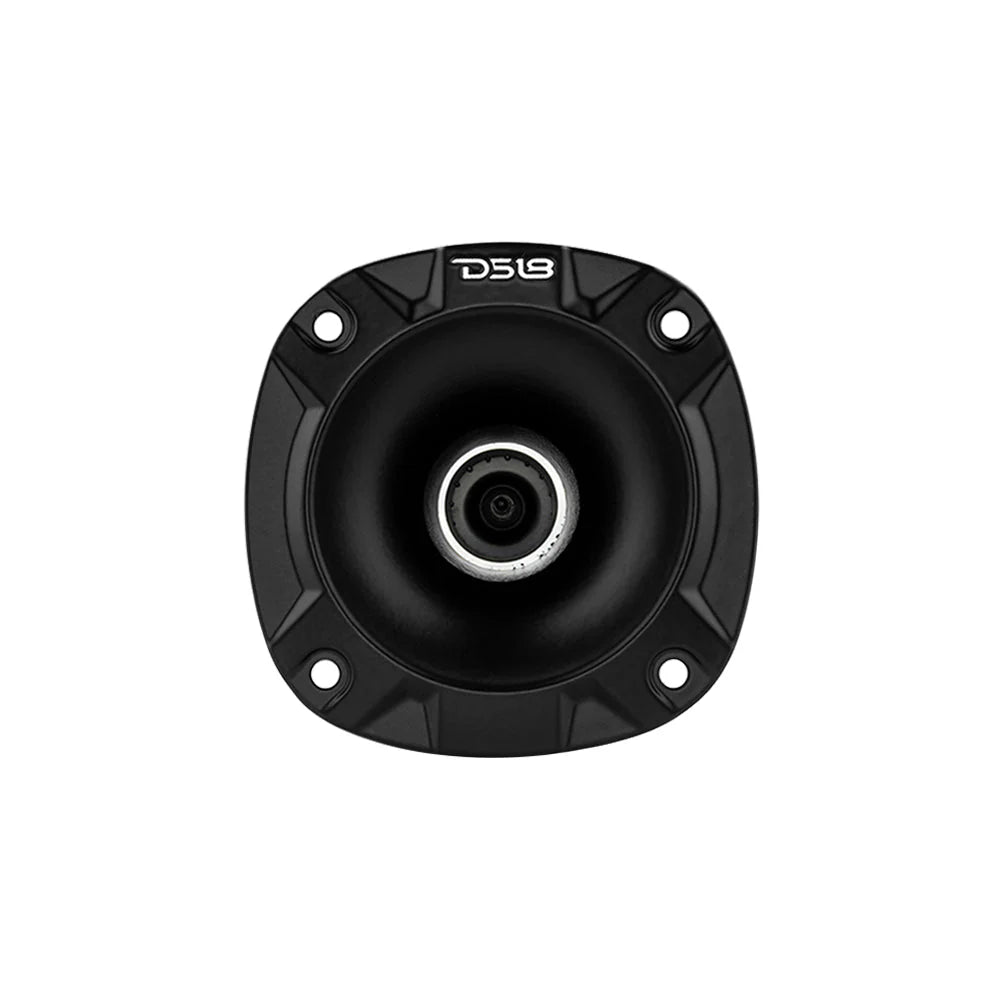

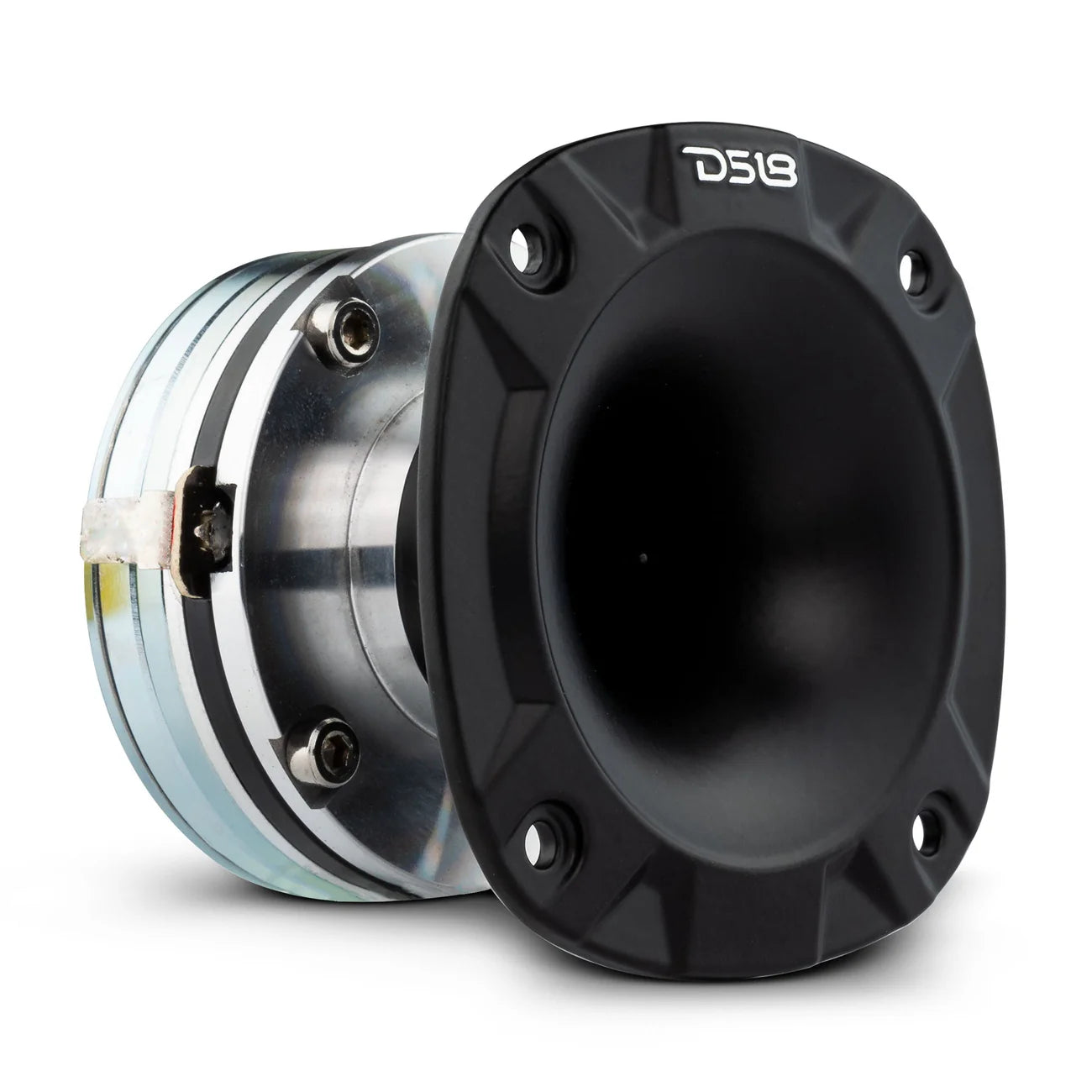

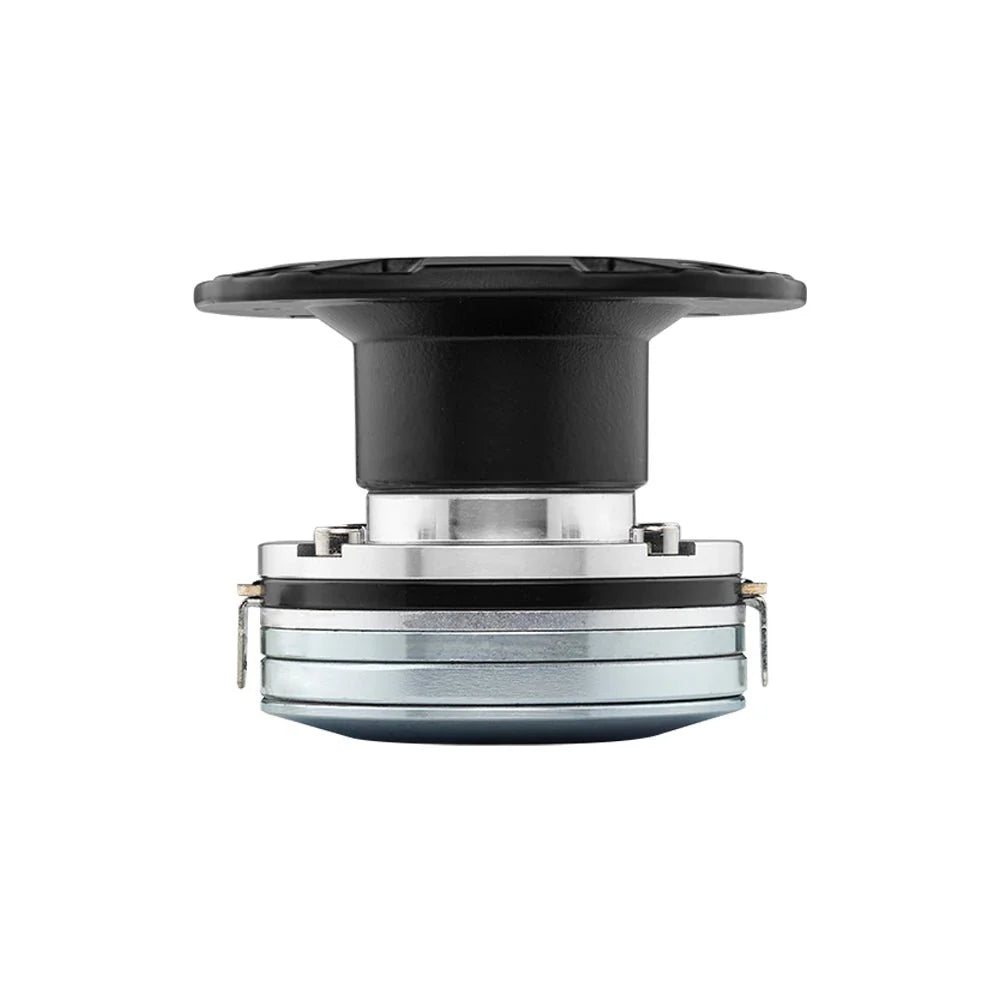

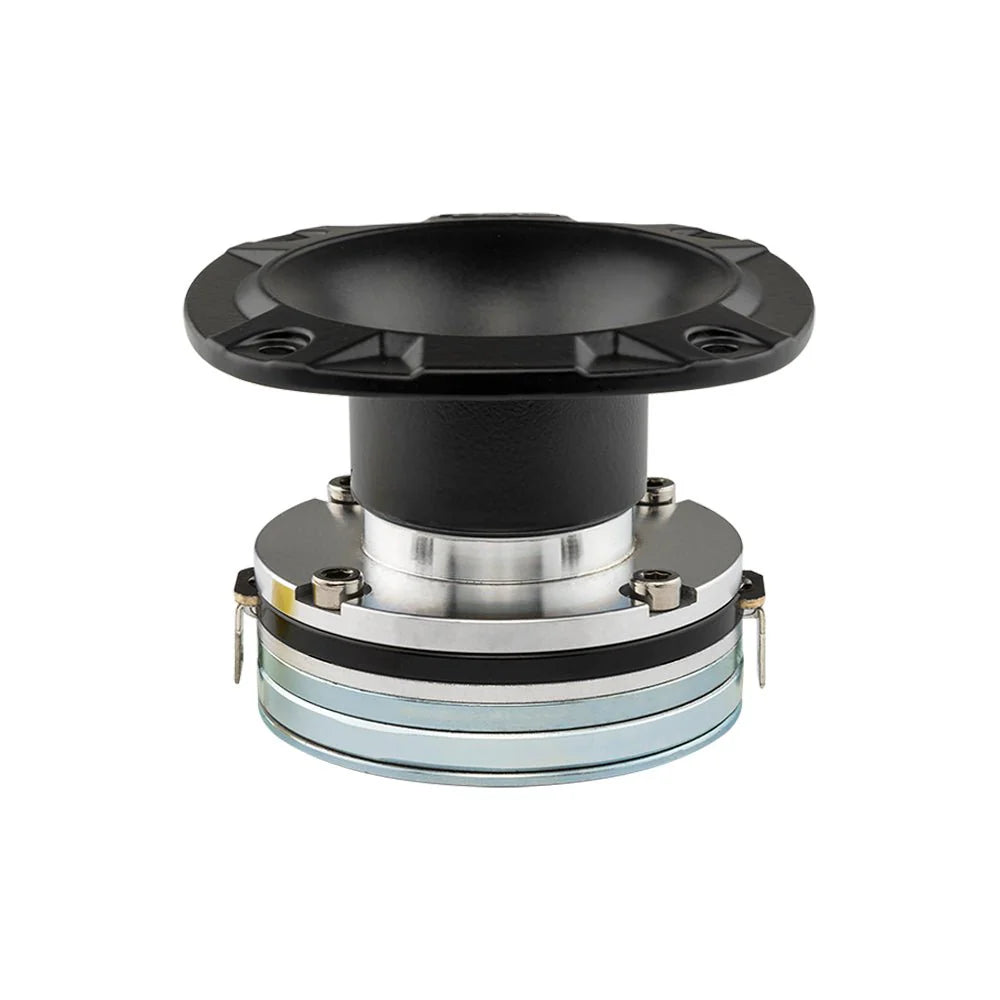

DS18 PRO-DRNSC1.5DK

1” Neodymium Driver With 1.5” Composite Polyimide 8-Ohm VC With Horn

With unmatched power handling capabilities, DS18’s PRO-DRNSC1.5DK guarantees unparalleled performance.
Inspired by our passion for music, the PRO-DRNSC1.5DK was developed to provide car audio enthusiasts with high-quality sound that is unmatched in the industry. Our team of engineers and designers overcame numerous obstacles to create a product that delivers impressive sound with striking clarity and limitless depth.
The PRO-DRNSC1.5DK is equipped with a highly durable 1.5” voice coil, so these drivers perform at their maximum potential throughout any jam session. The drop-in voice coils make for fast and easy repairs in the rare occasion that they are overpowered. Unlike traditional ferrite magnets, the neodymium magnets used in the PRO-DRNSC1.5DK ensure the highest efficiency and power handling without the bulk. The 109dB sensitivity makes it easy to climb to MAX volume.
The PRO-DRNSC1.5DK is made to fit most standard thread-on horn throats, ensuring functionality in spaces that most drivers can't fit. The non-removable horn throat makes for a quick and easy installation,
The 80W AES Power Handling, 160W Program Power Handling, and 320W Peak Power Handling ensures long-lasting performance from your equipment.
The PRO-DRNSC1.5DK is made to last, and we stand behind its quality. Our product has been tested for durability and longevity, ensuring that it will perform at its maximum potential for years to come.
Don't settle for mediocre sound in your system. Upgrade to DS18’s PRO-DRNSC1.5DK and experience the power of unparalleled performance and impressive sound quality.

SPECS

SKU
PRO-DRNSC1.5DK
Nominal Impedance
8 OHM
AES Power Handling
80 Watts
Program Power Handling
160 Wats
Peak Power Handling
320 Watts
Sensitivity (1w/1m)
111 dB
Frequency Response
1K - 20KHz
Recommended Hi Pass Crossover
2 KHz
Pair or Single
Single


MOTOR

Voice Coil Diameter
1.5" / 38 mm
Voice Coil Former Material
Kapton
Winding Material
Aluminum
Diaphragm Material
Polyimide
Magnet Material
Neodymium (N38H)
Magnet Weight
2.4 Oz
Body Color | Finish
Silver | Raw
Body Material
Aluminum


HORN SPECIFICATIONS

Nominal Diameter
3.15" / 180 mm
Throat Diameter
1" / 25.4 mm
Sound Coverage
60° (Round)
Body Material
Aluminum
Color | Finish
Silver | Raw


MEASUREMENTS

Overall Diameter
3.15" / 80 mm
Overall Depth
2.42" / 61.5 mm
Mounting Depth
2.22" / 56.5 mm
Mounting Hole Diameter
2.75" / 70 mm
Bolt Pattern (Horn)
2.13" / 54mm
Product Weight
1.2 lbs
Product Dimensions
3.25 x 3.25 x 3.5
