Product Overview

Description

Product Overview

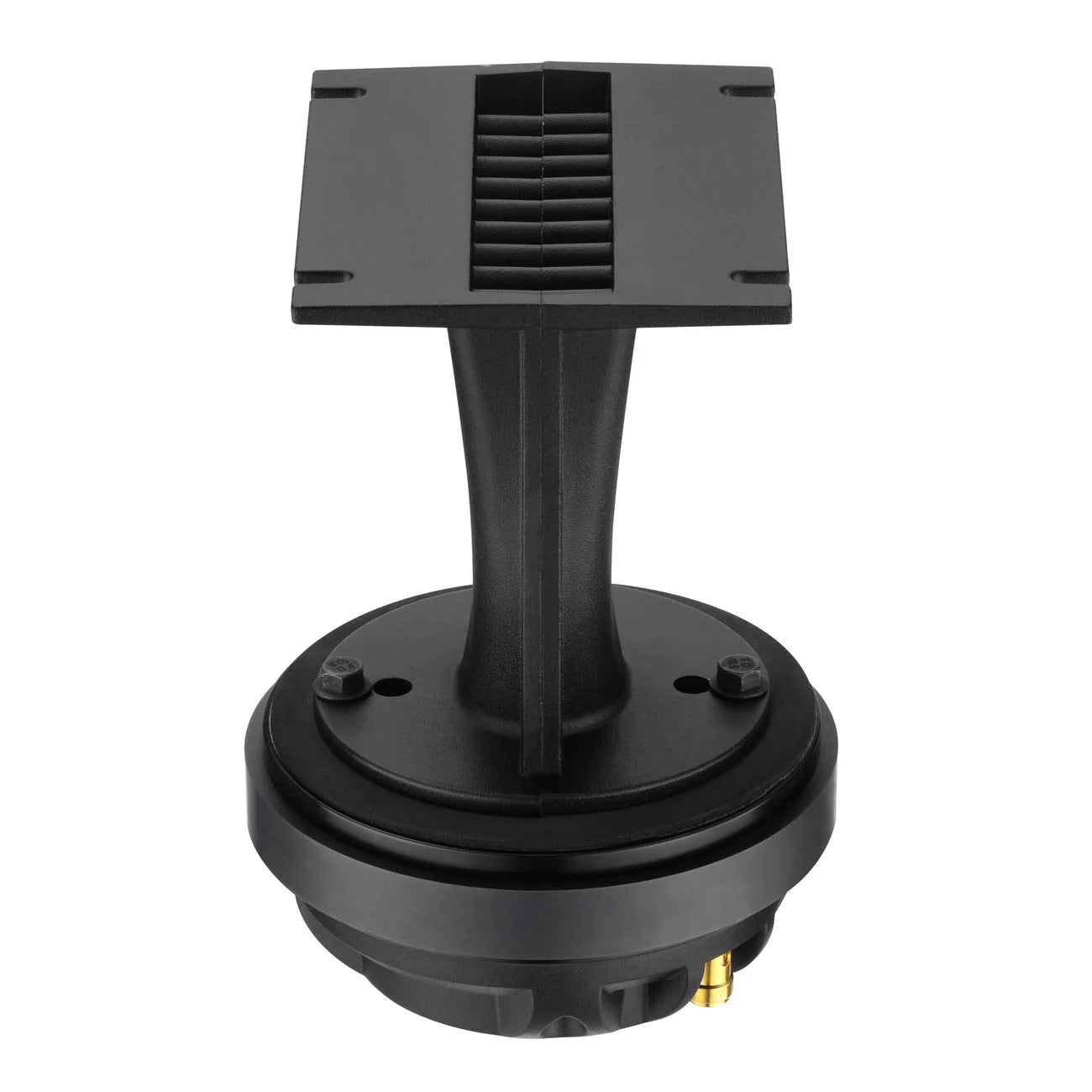

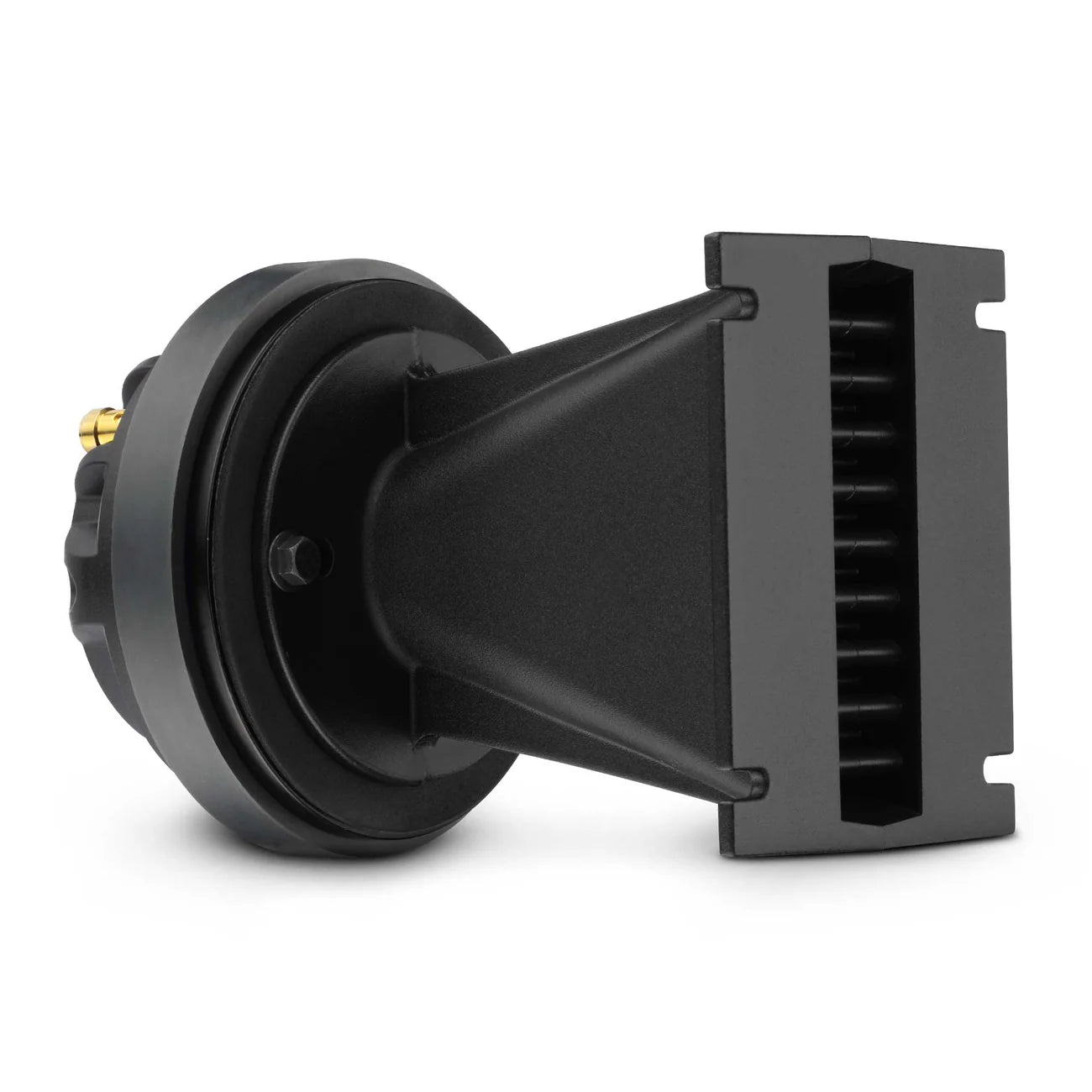

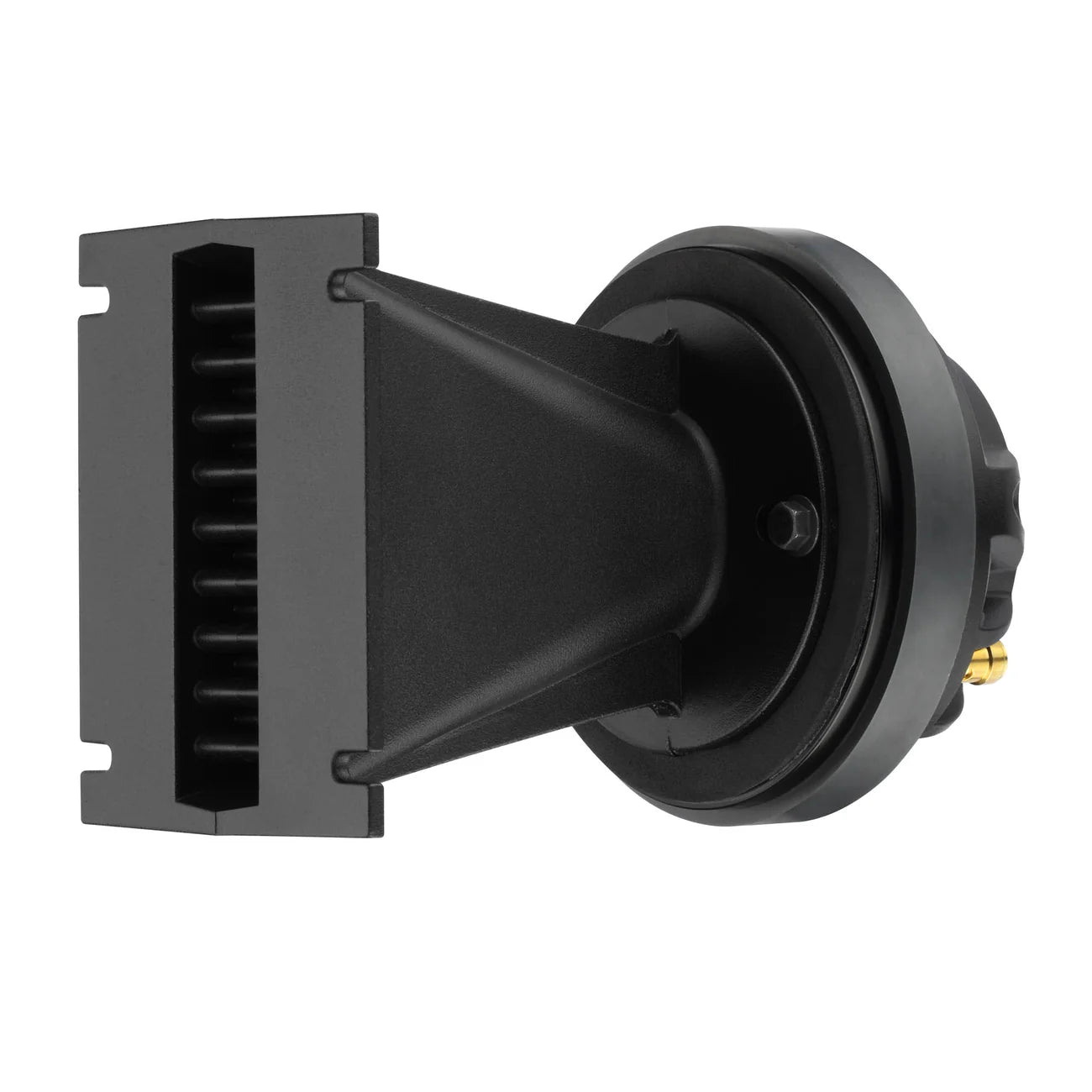

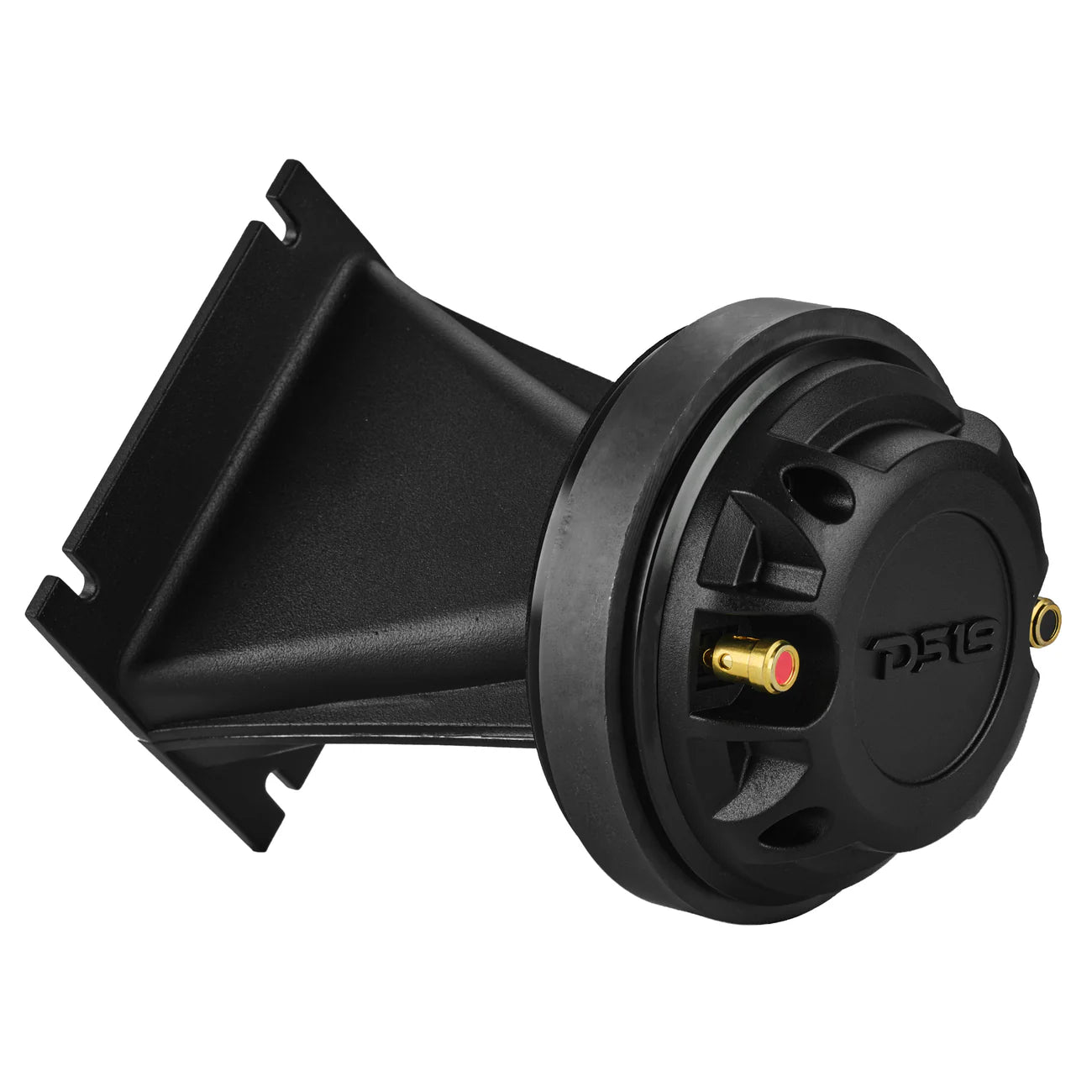

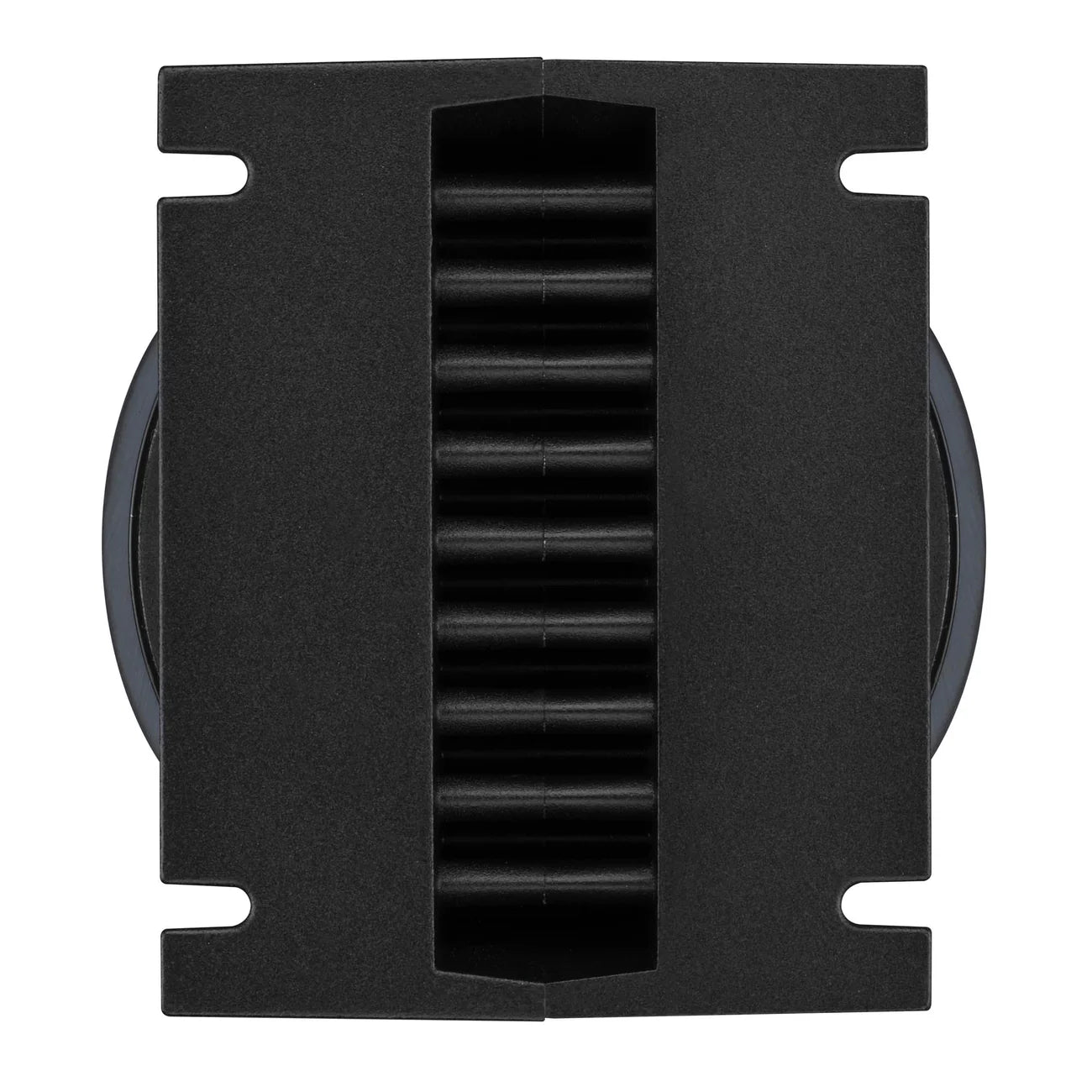

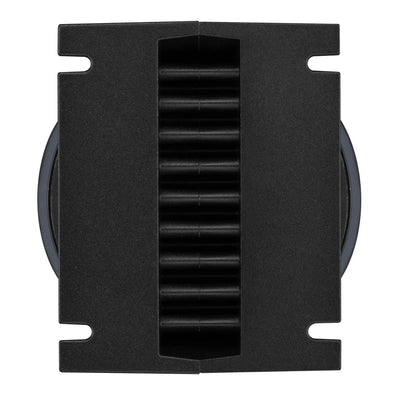

3.5” x 4.4” Wave Guide Horn + 1” Compression Driver Kit (Ferrite Magnet)

The PRO-DK175WG is a compression driver and waveguide combo made to cut through all noise. Offering pinpoint detail at high volume: ideal for pro audio setups, competition systems, and extreme SPL builds.

Ferrite-Powered Punch
This driver uses a ferrite magnet and a 1.75” titanium voice coil to deliver clean, dynamic sound in the 1.5kHz to 20kHz range. Rated at 90W AES, 180W Program, 360W Peak power handling and 101dB sensitivity, the PRO-DK175WG brings volume without distortion.


Wide Coverage
The 3.5” x 4.4” horn guide cuts through all noise with surgical precision, while offering a 140° horizontal x 15° vertical spread.


Built to Last
The cast aluminum waveguide and ABS-backed construction provide long-lasting durability in harsh conditions.



Specifications

Nominal Impedance
8 Ohms
AES Power Handling
90W
Program Power Handling
180W
Peak Power Handling
360W
Sensitivity (1w/1m) With Horn
101dB
Frequency Response
1.5kHz - 20kHz
Recommended High-Pass Crossover
2kHz


Motor

Voice Coil Diameter
1.75" / 44.4mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Ferrite
VC Cover Material
ABS
Magnet Weight
21.9 Oz
Motor Diameter
4.5" / 115mm


Horn Specifications

Nominal Diameter
3.5" x 4.4" / 89 x 111mm
Throat Diameter
1" / 25.4mm
Sound Coverage
140° H x 15° V
Body Material
Aluminum Cast
Color / Finish
Satin Black


Measurement

Overall Diameter
3.5" x 4.4" / 89 x 111mm
Overall Depth
6.6" / 167mm
Mounting Depth
6.4" / 162mm
Mounting Hole Cut-out
1" x 4" / 25.4 x 101.6mm
