Product Overview

Description

Product Overview

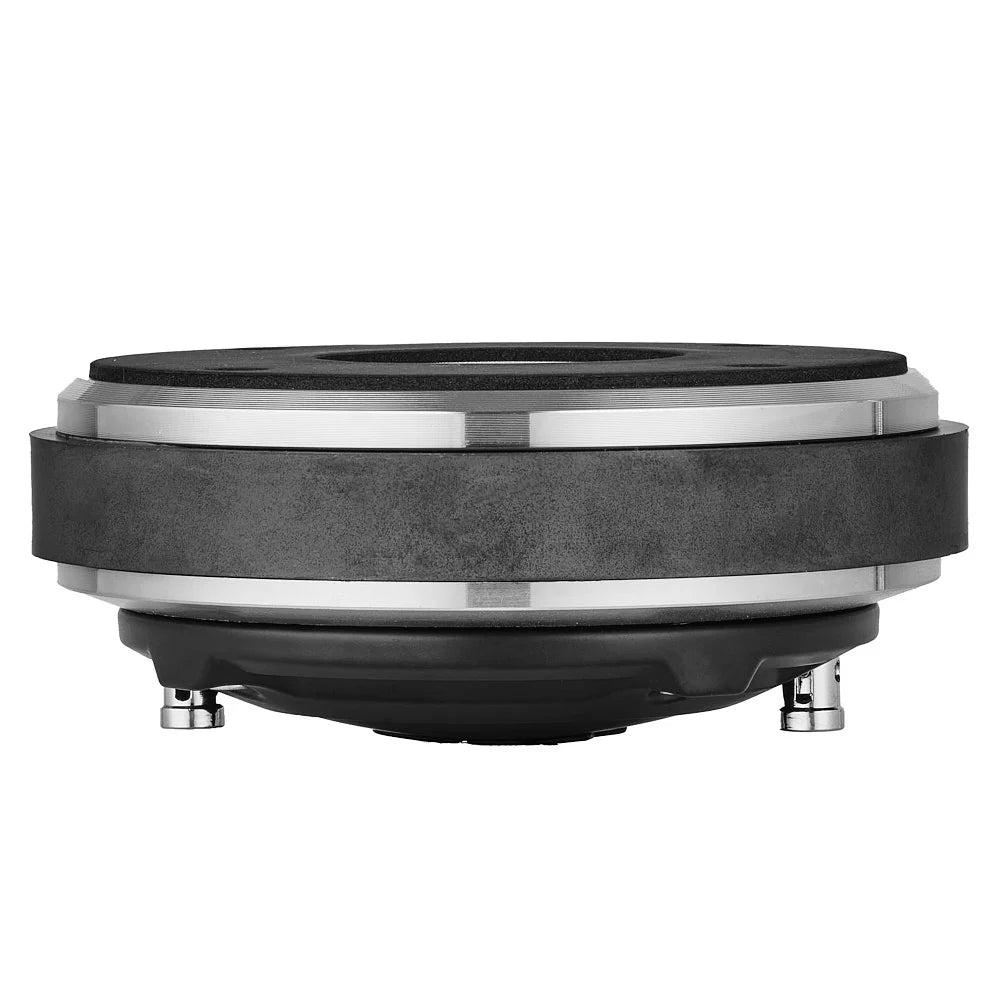

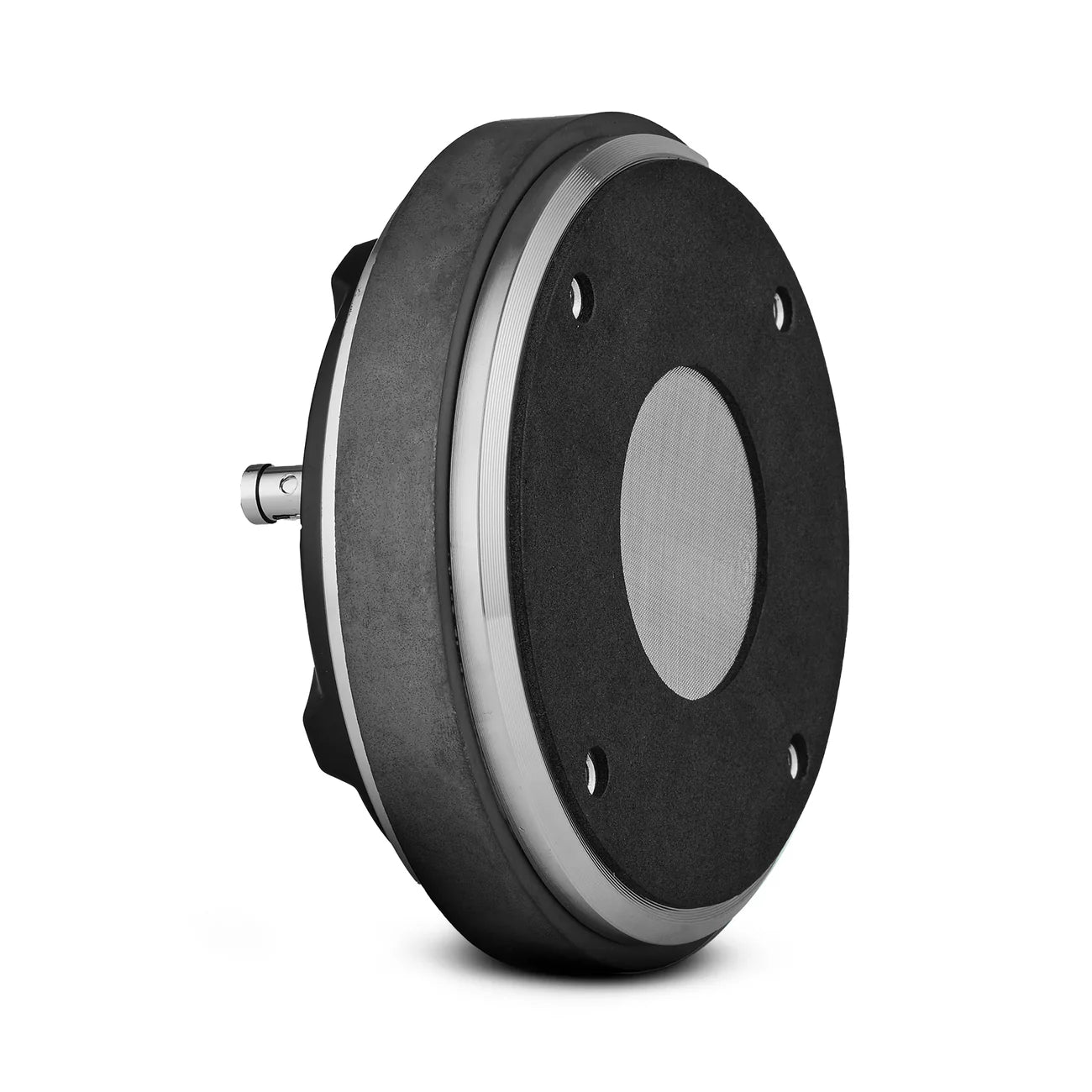

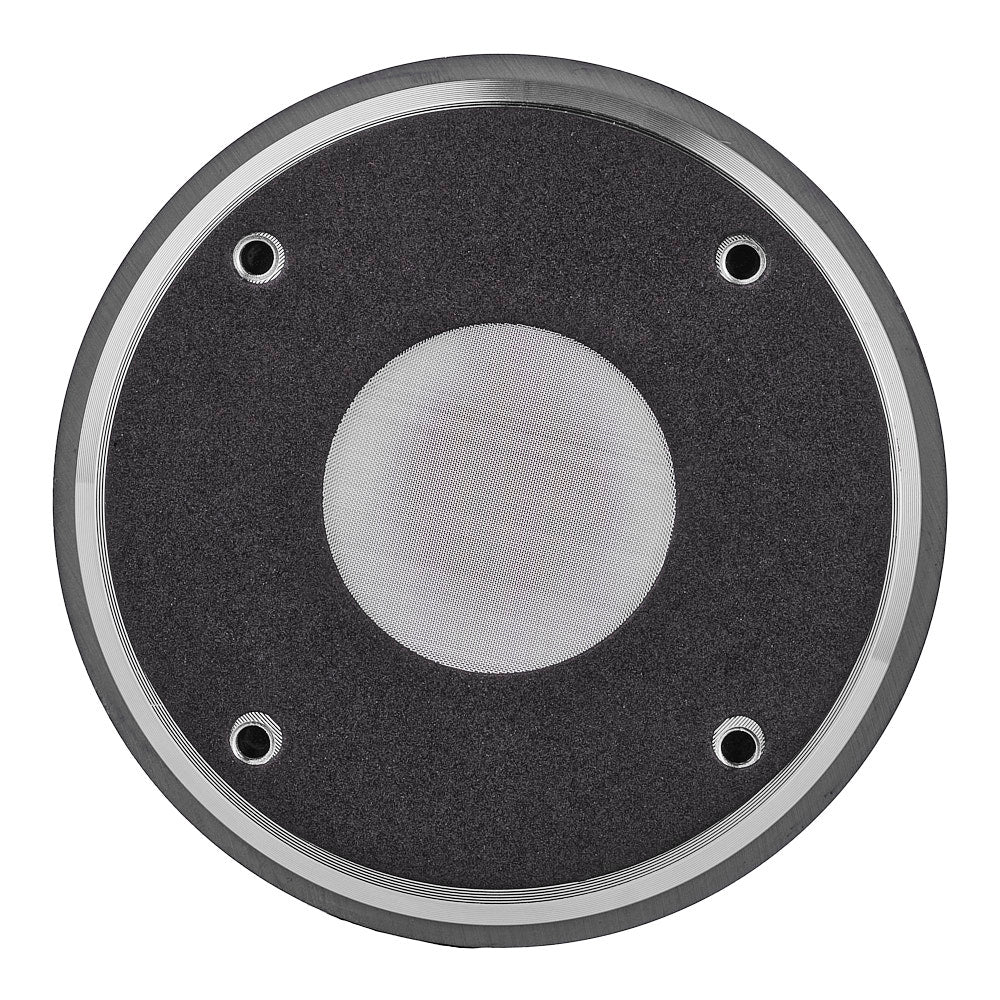

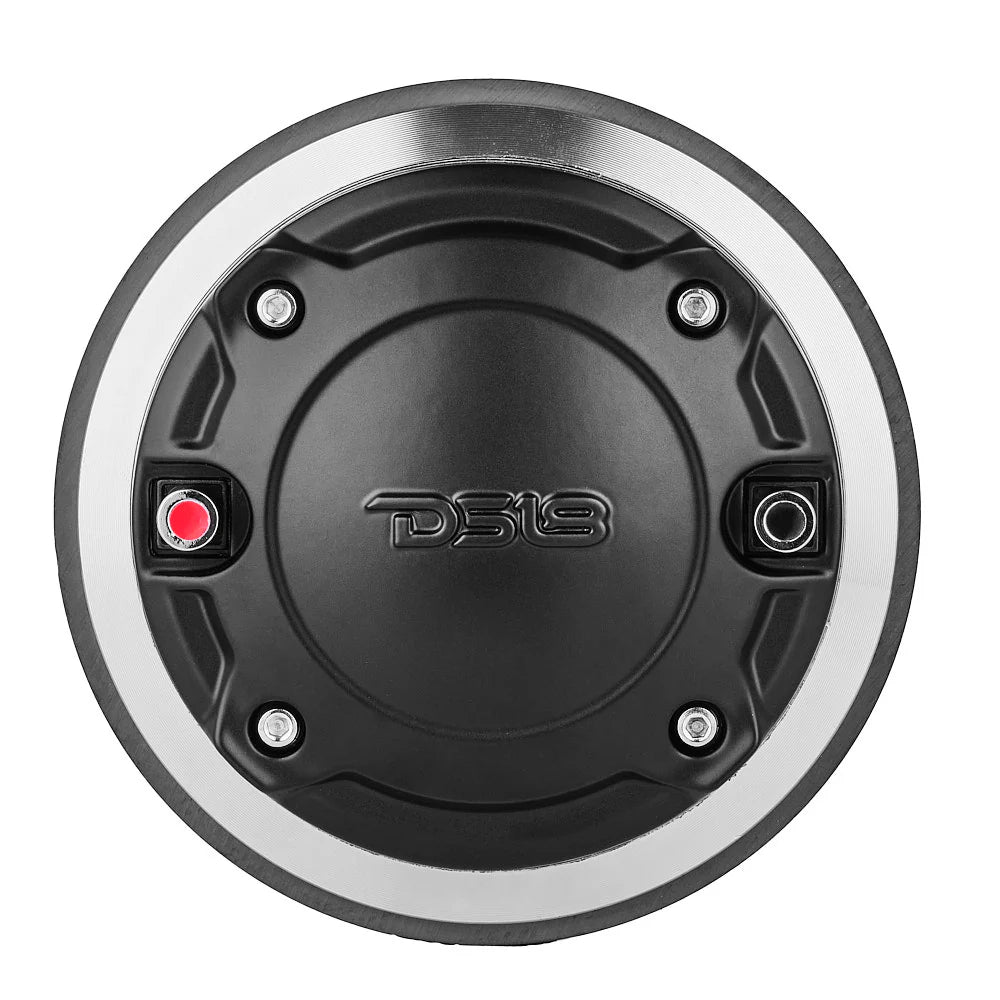

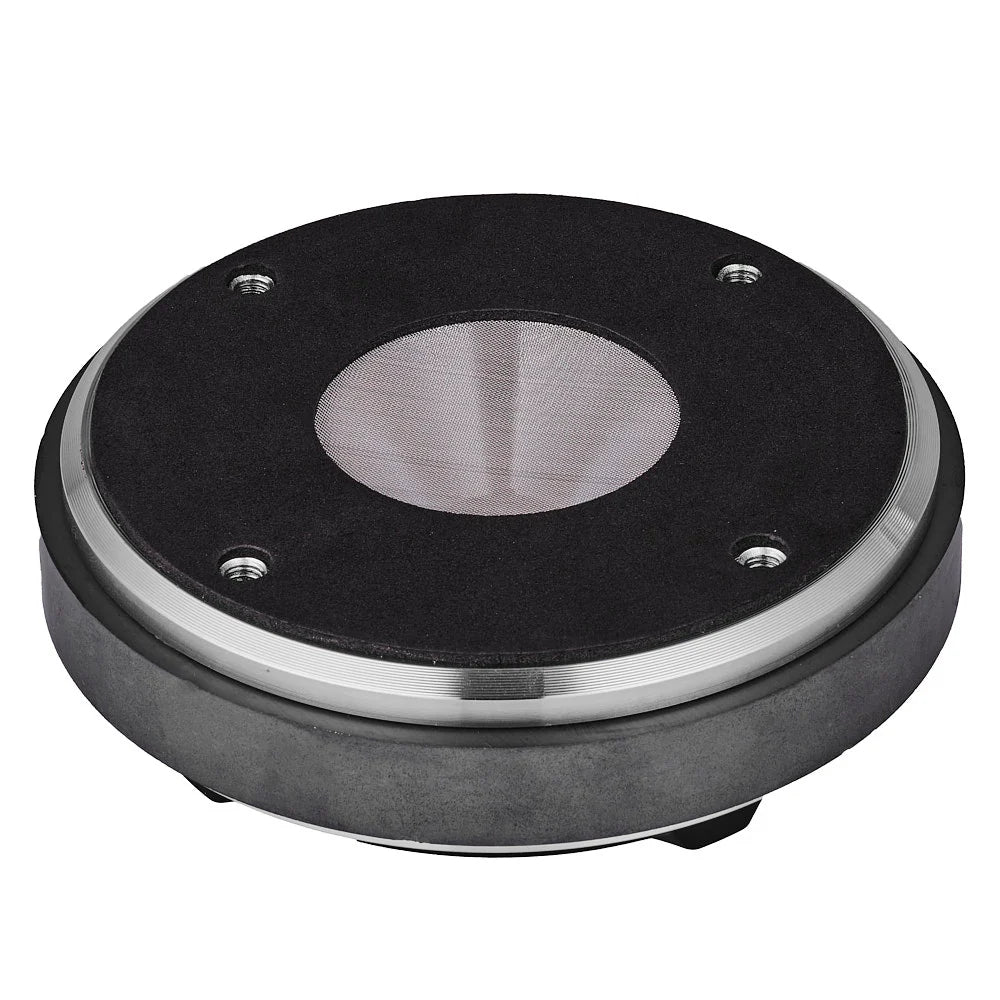

DS18 PRO-D22PH.8

It’s easy to enhance your audio system with DS18’s PRO-D22PH.8!

DS18’s PRO-D22PH.8 is designed to impress even the most discerning audiophiles. This powerful driver features a 2" phenolic voice coil that delivers exceptional sound quality and clarity.  Its 8-ohm nominal impedance ensures compatibility with a wide range of audio setups, while its impressive power handling capabilities (160W AES, 320W program, and 640W peak) guarantee a dynamic sound performance. Thanks to its sensitivity of 110dB (1w/1m), DS18’s PRO-D22PH.8 delivers clear and powerful sound even at high volumes.

The 2" voice coil diameter, made from high-quality Kapton material, ensures durability and optimal performance. The phenolic diaphragm material further enhances the driver's sound reproduction, providing crisp highs and smooth mid-range frequencies. The ferrite magnet contributes to the overall power and efficiency of this state of the art driver.

Crafted with precision, DS18’s PRO-D22PH.8 features an aluminum body in a sleek black finish. Its bolt pattern and type of 4xM6 - 4", ensure you can quickly integrate this compression driver into any existing audio setup.

So, what are you waiting for? Take your sound system to new heights with DS18’s PRO-D22PH.8.



SPECS

SKU
PRO-D22PH.8
Throat Diameter
2" / 50.8mm
Installation Type
Bolt-On
Nominal Impedance
8 Ohms
AES Power handling
160W
Program Power Handling
320W
Peak Power handling
640W
Sensitivity (1w/1m)
110dB
Frequency Response
630Hz-8KHz
Recommended Hi Pass Crossover
800Hz
Sold in Pair or Single
Single


Body / Features

Filter (Bass Blocker)
10Uf/100V
Body Material
Aluminum
Body Color / Finish
Black / Machined


Motor

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Phenolic
Magnet Material
Ferrite
Magnet Weight
35 oz


Measurement

Overall Diameter
5.31" / 135mm
Overall Depth
2.08" / 53mm
Bolt Pattern/Type
4xM6 - 4" /102mm
