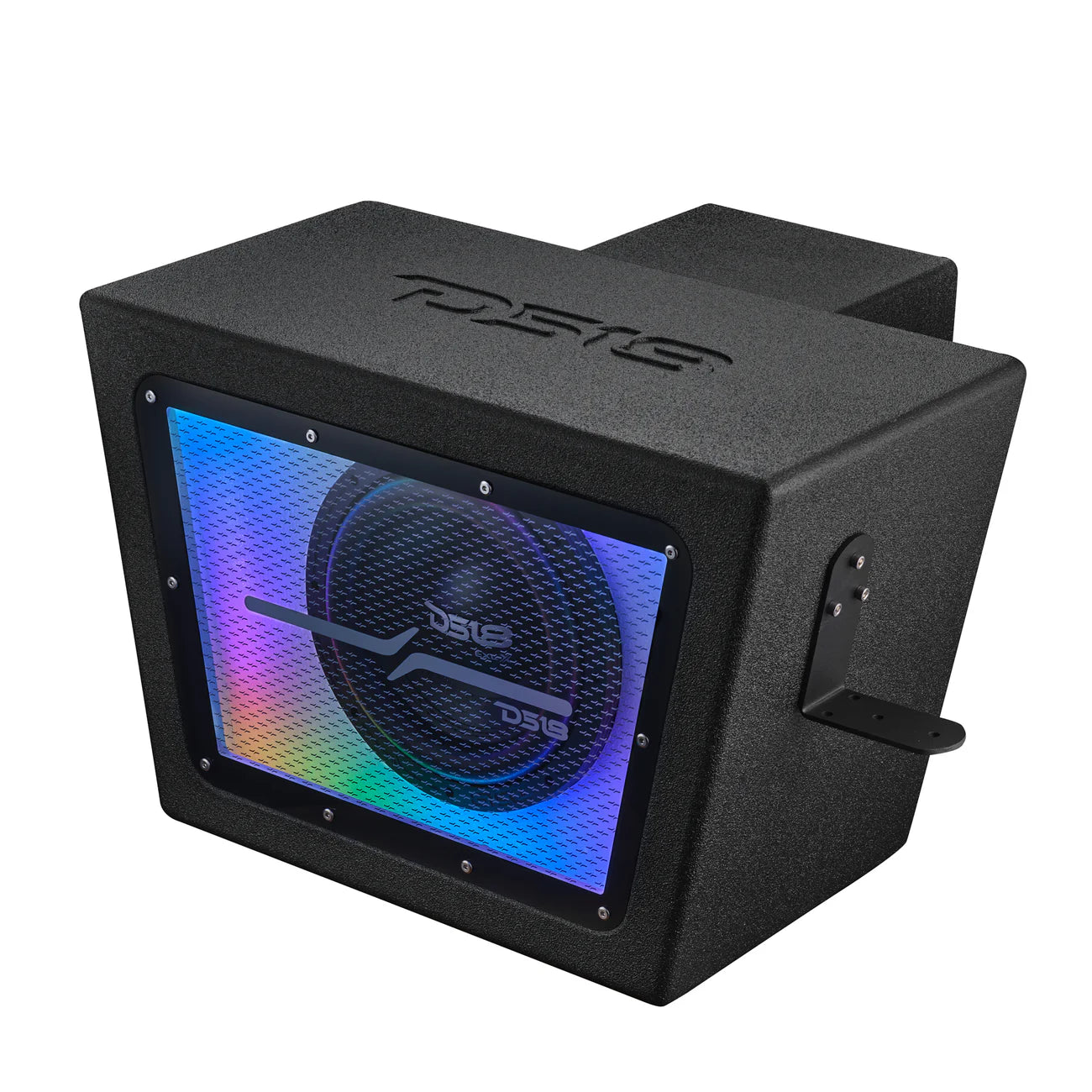

DS18 RZR-RCSUB10LD

Bandpass Subwoofer Enclosure Loaded With EXL-X10.2D For Polaris RZR Rear Cargo Box

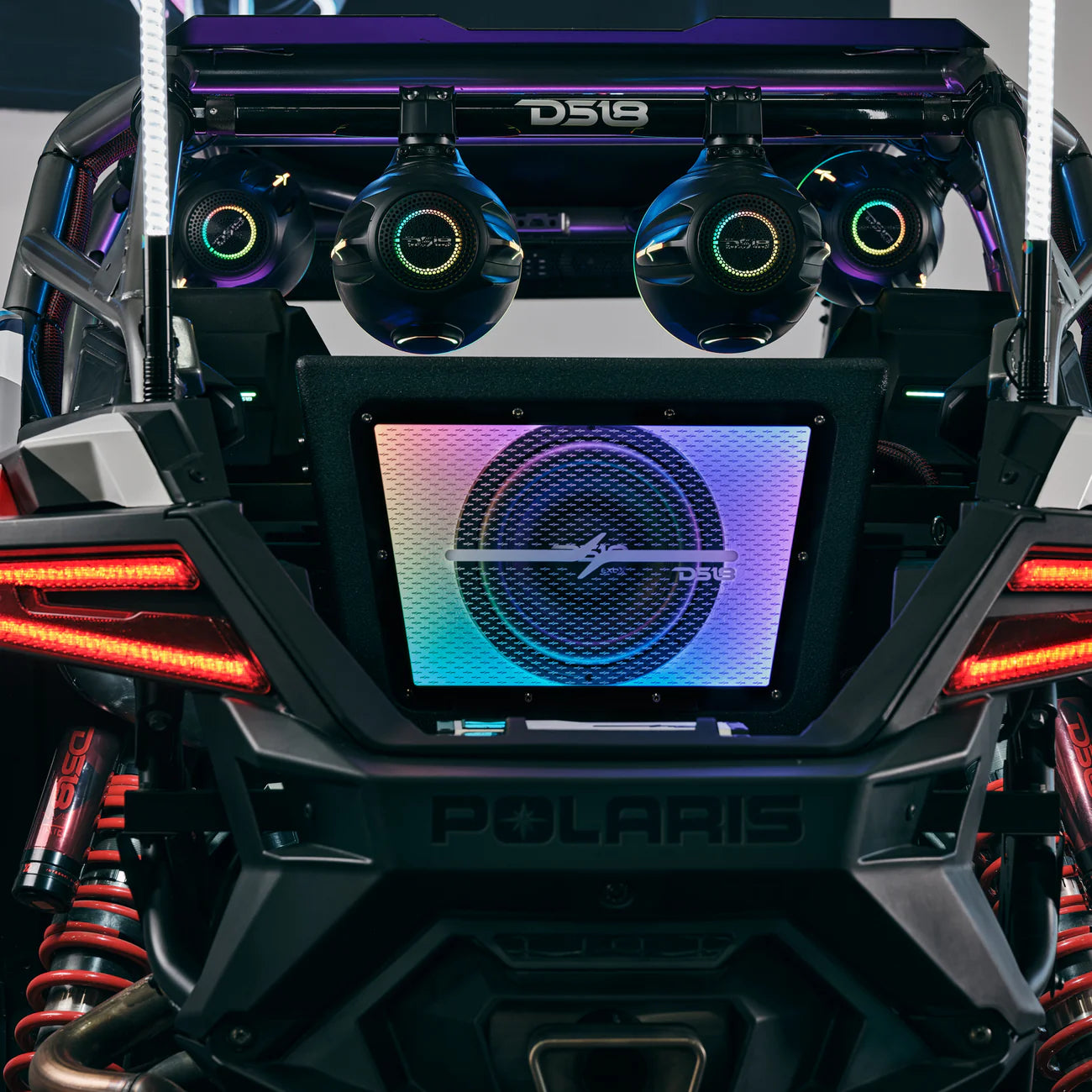

DS18’s RZR-RCSUB10LD is a rear cargo-loaded subwoofer enclosure made for Polaris RZR PRO and XP owners who want serious bass without sacrificing fit. Preloaded with a powerhouse EXL-X10.2D 10” sub, this box offers extremely deep, punchy low output—backed by rugged design and complemented by digital LED lighting.

Drop-In and Get LOUD!
Inside, you’ll find a 10” EXL-X series subwoofer wired to 1 Ohm, pushing up to 850W RMS (1700W MAX). Tuned at 35Hz with a bandpass design and 1.35ft³ internal volume, this system delivers tight bass loud enough for the trails. It includes everything you need—brackets, screws, sub, wiring. Just add an amplifier and you’re ready to dominate the trails.

Engineered For Your Lifestyle!

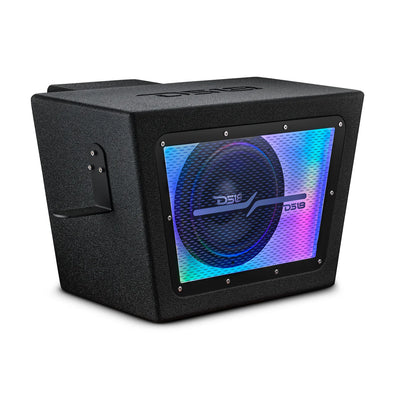

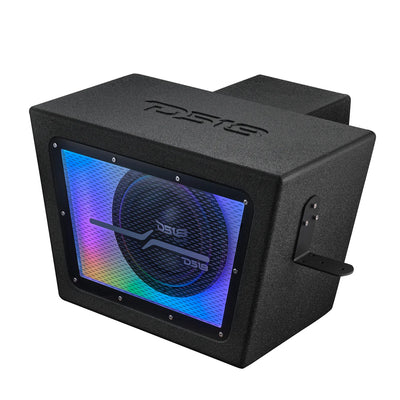

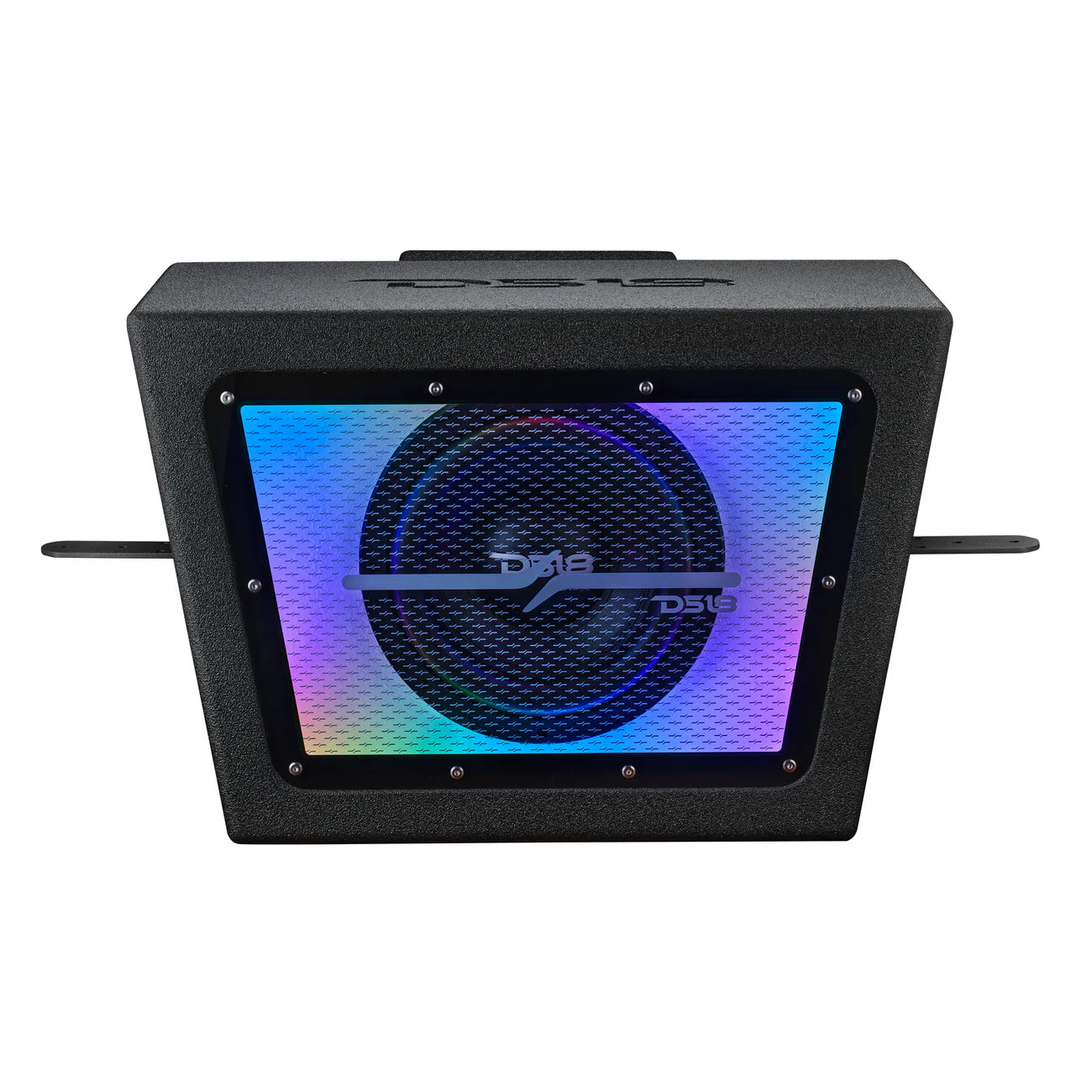

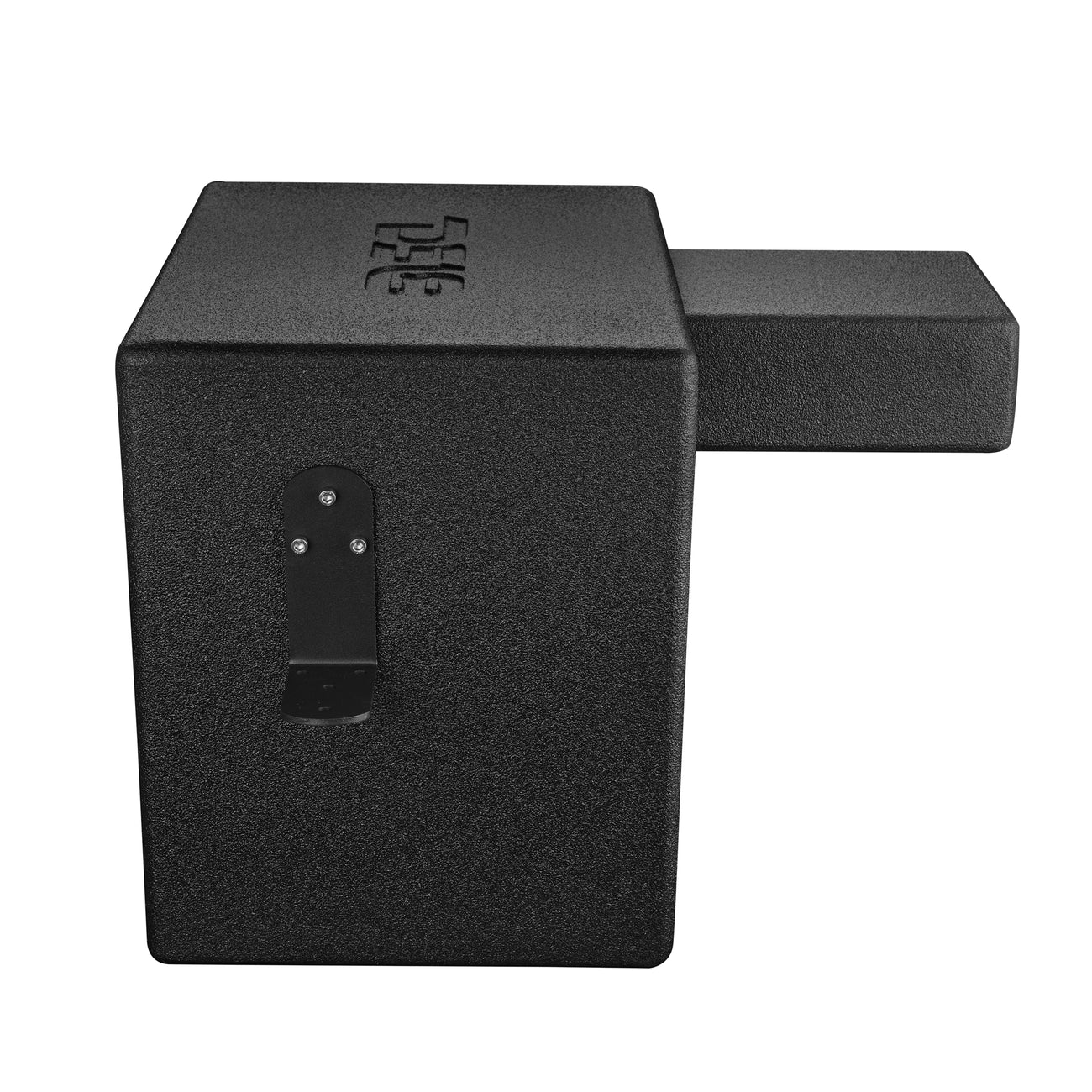

Constructed from ¾” MDF with a black bed-liner finish, this enclosure is ready for your system. A 12mm acrylic viewing window lets you show off the internals and the integrated digital LED lights bring the energy. The entire unit is UV-protected and designed for wet or dry use when paired with DS18’s LC-DRM controller

Get booming bass in the great outdoors with DS18’s RZR-RCSUB10LD: a full-send subwoofer system built for real trail riders!

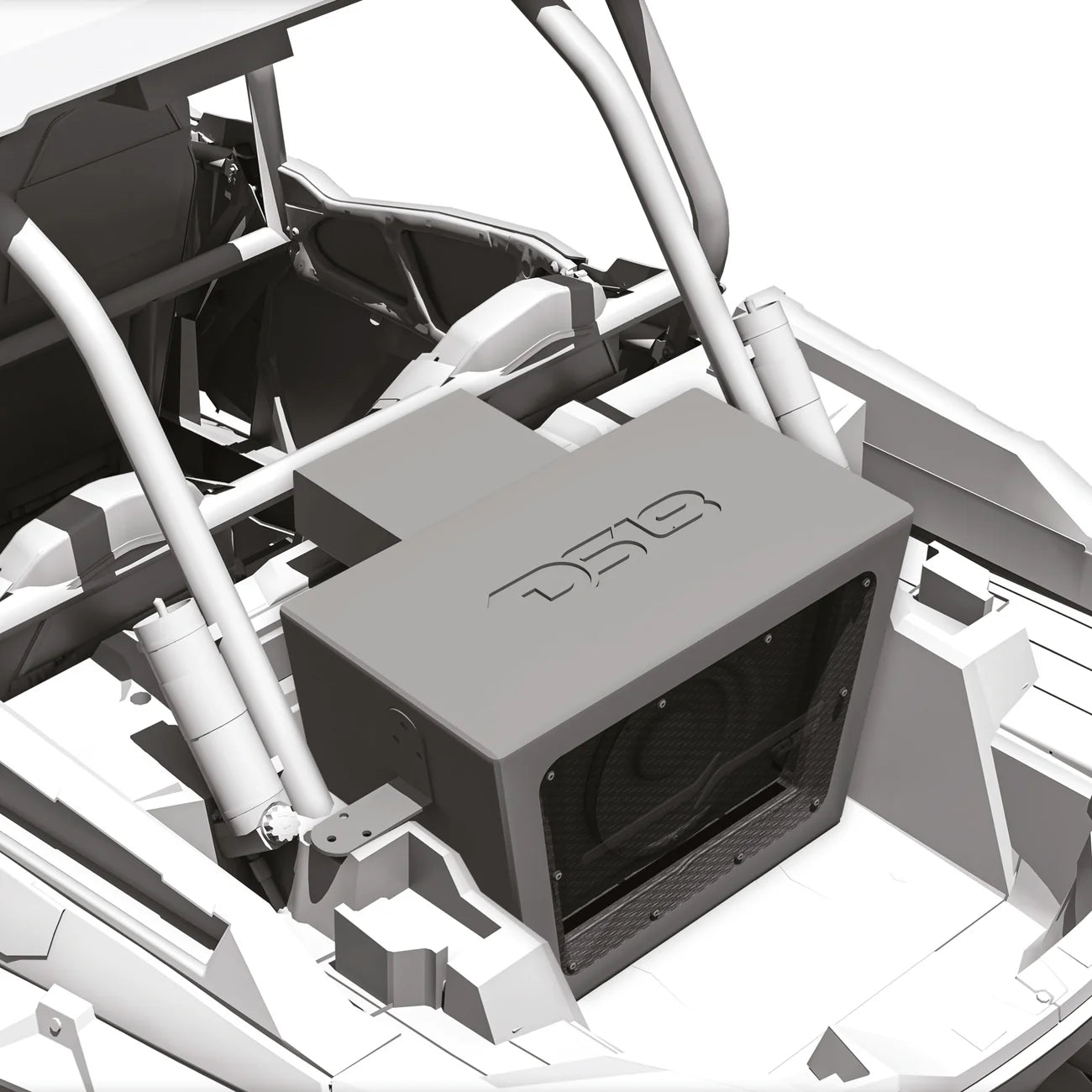

Fitment Guide



Year(s) Models
2022–2025 RZR PRO XP Ultimate / XP Premium / XP 4 Ultimate / XP 4 Premium
2020 RZR PRO XP Ultimate / XP Premium / XP 4 Ultimate / XP 4 Premium
2022–2025 RZR PRO XP Sport / XP 4 Sport
2022–2025 RZR Turbo R Ultimate / Sport / Premium
2022–2025 RZR Turbo R 4 Ultimate / Sport / Premium
2020 RZR PRO XP / XP 4
2021 RZR PRO XP Ultimate / Sport / Premium
2021 RZR PRO XP 4 Ultimate / Sport / Premium
2020 RZR PRO XP LE / XP 4 LE
2014–2022 RZR 900, 900 XC, 2 900 EPS, 4 900 EPS, S 900, S 1000, S4 1000
2014–2022 RZR XP 1000, XP Turbo, XP Turbo S, XP Dynamix Edition
2014–2022 RZR XP 4 1000, XP 4 Turbo, XP 4 Turbo S, XP 4 Turbo Dynamix Edition
2014–2022 RZR XP 1000 Trails and Rocks, XP 1000 High Lifter, XP 4 1000 High Lifter
2014–2022

RZR Trail (Sport / Premium / Ultimate), Trail 5 (Sport / Premium / Ultimate)



Specifications

SKU
RZR-RCSUB10LD
Speaker Type / Size
10" / 254mm
Total Impedance
1 Ohm
Total RMS Power Handling
850W
Total MAX Power Handling
1700W
Sensitivity (1w/1m)
92dB
Frequency Response
35Hz-250Hz
Recommended Low-Pass Crossover
120Hz

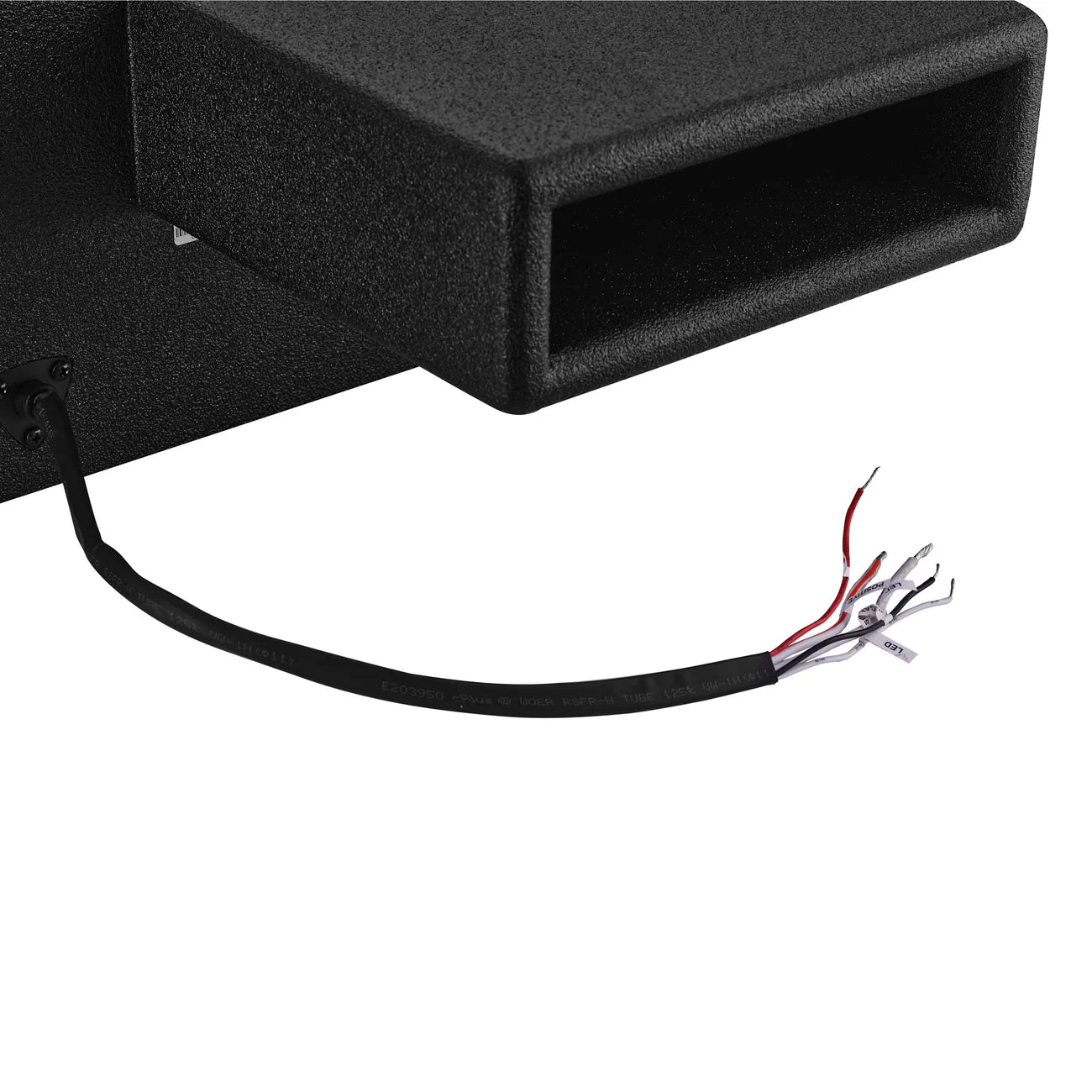

Wiring
5 Core Wires for Lighting and Speaker
UV Protection
Yes, 100% Stable
LED Lights
Yes, Digital LED integrated
Digital LED Connection Type
12V + Digital input
Digital LED Chip Type
WS2811
Acrylic Window
Clear 12mm
Bracket Included for Polaris ZRZ
Yes, PRO and XP models


Subwoofer

SKU
EXL-X10.2D
Voice Coil Diameter
2.57" / 65.2mm
Voice Coil Former Material
Black Aluminum
Winding Material
SV
Cone Material
Non Pressed Paper + Glass fiber
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Aluminum
Magnet Material
Ferrite
Magnet Weight
2 x 90oz

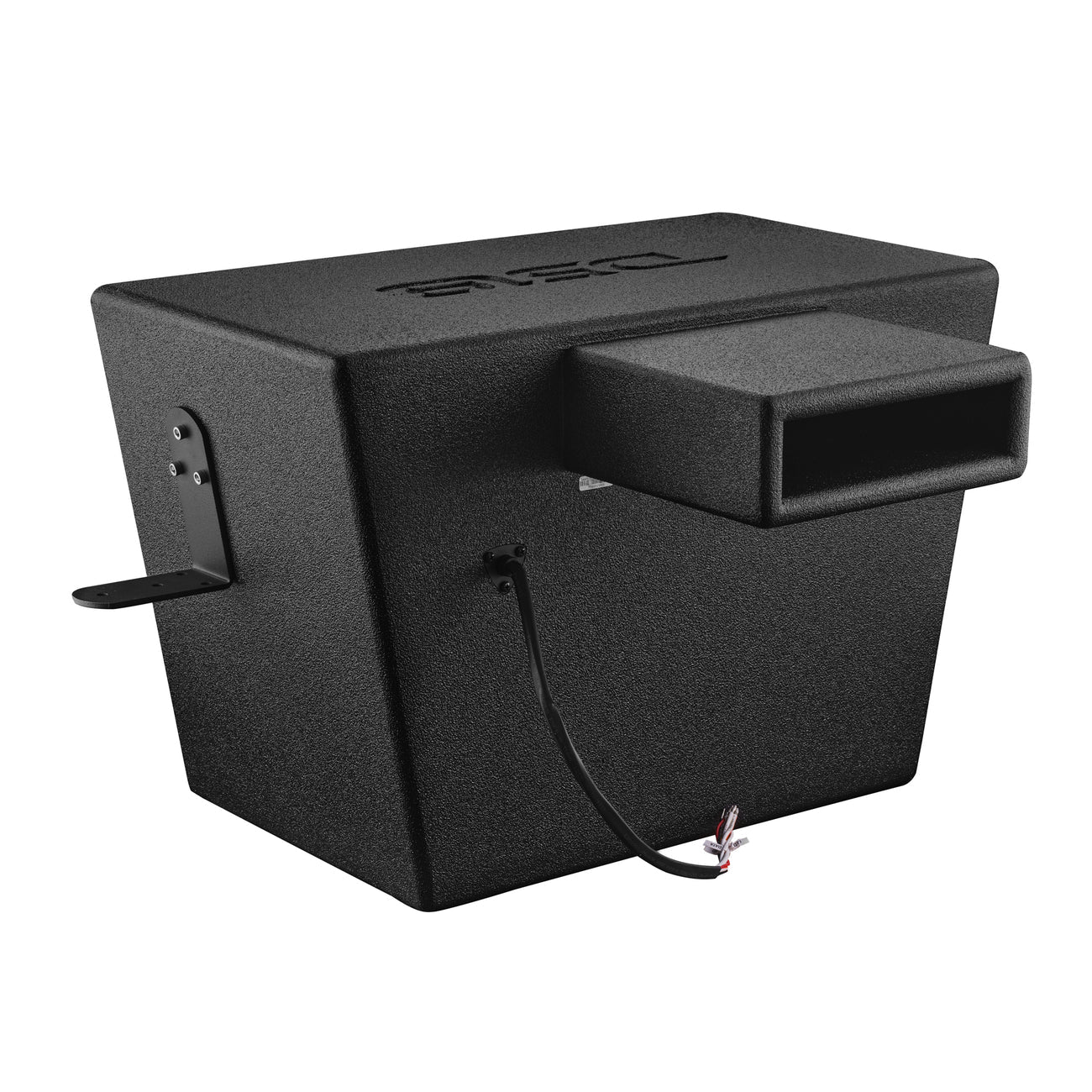

Box Specifications

Internal Volume
38.5L / 1.35ft3
Port Tune (Fb)
35Hz
Load Configuration
Parallel
Box Type
Band-Pass
Box Material
3/4" MDF
Finish Material
Bed-Liner Paint
-3Db Dropping Point (F3)
30Hz


Measurement

Height
16" / 406mm
Width
23.8" / 606.5mm
Depth (Box)
13" / 330mm
Depth (With Port)
21.3" / 542mm

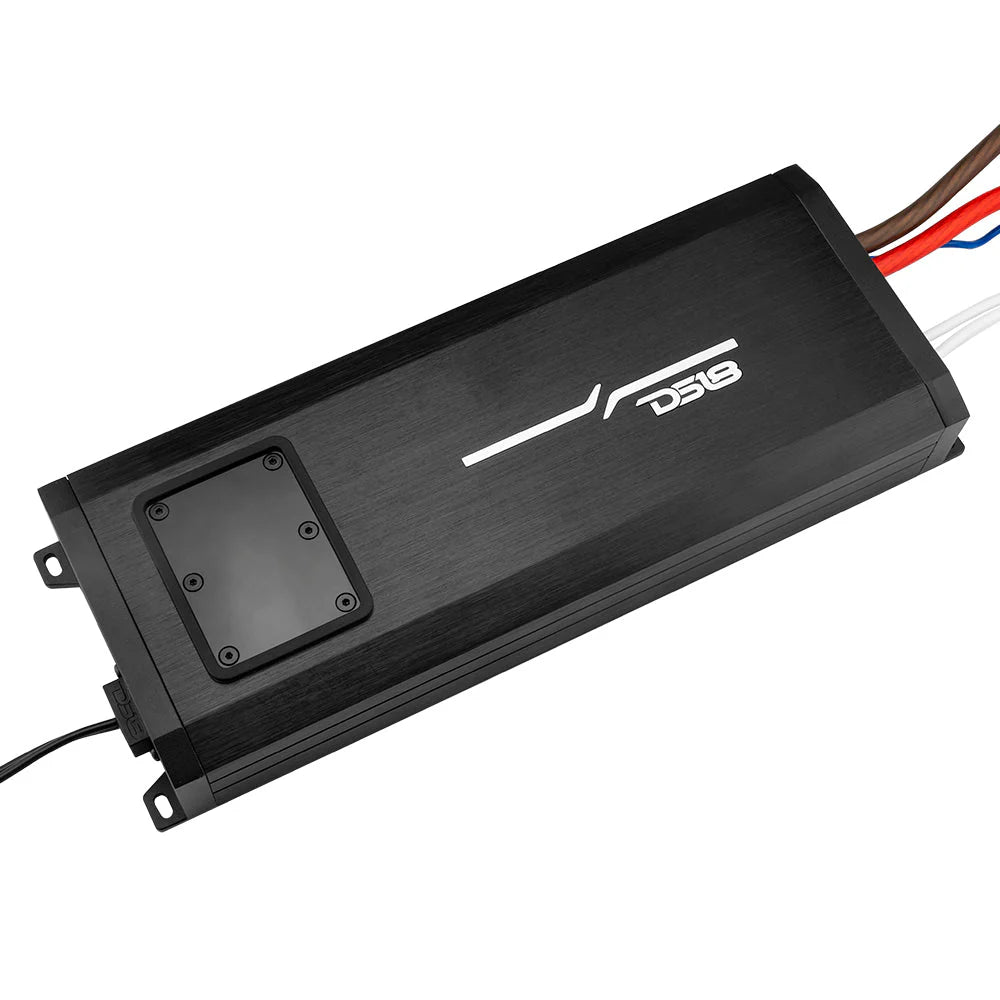

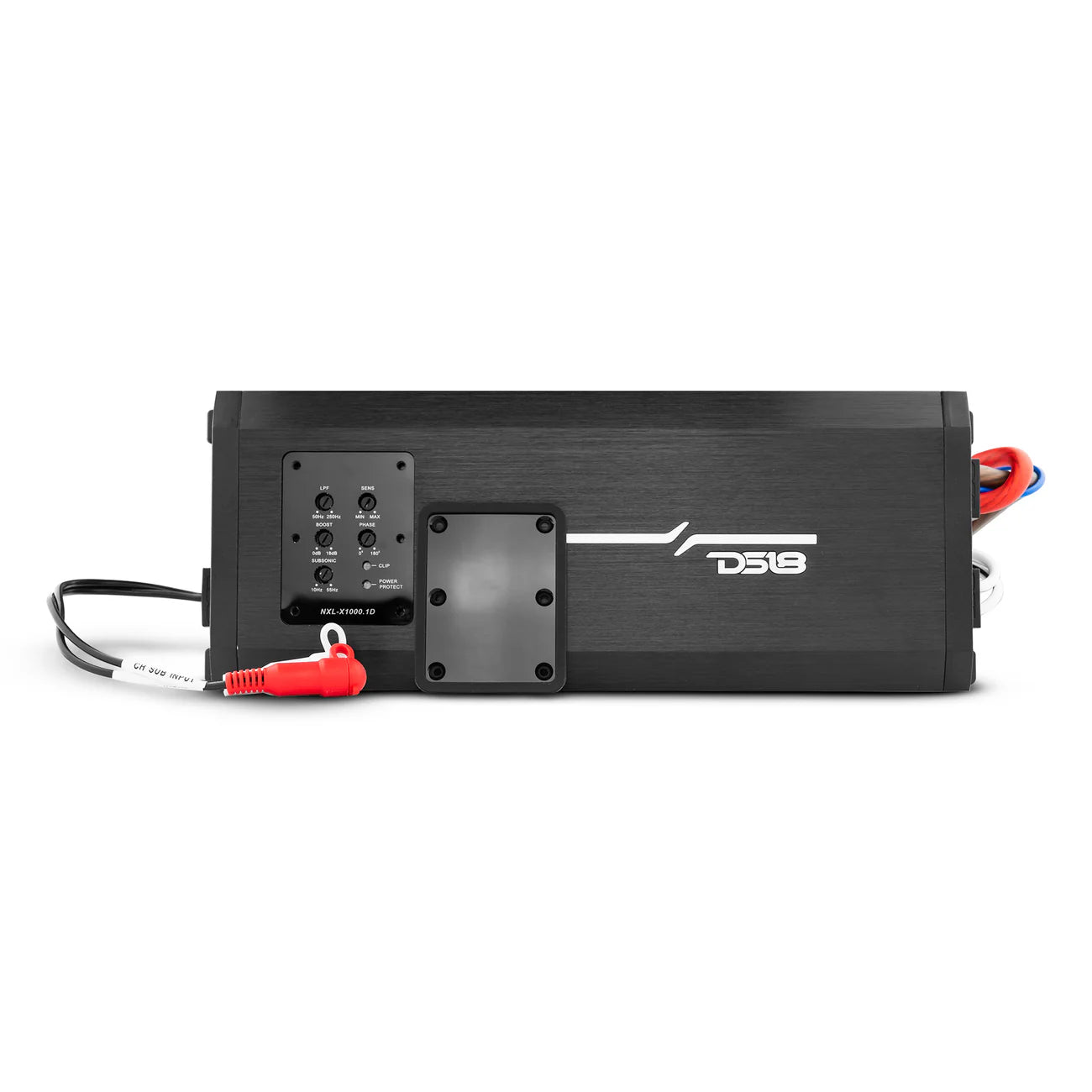

Amplifier (Optional add on)

GENERAL SPECIFICATIONS

SKU
NXL-X1000.1D
Total Watts (Peak)
2000W
RMS Power @ 4 ohm
1 X 350W
RMS Power @ 2 ohm
1 X 600W
RMS Power @ 1 ohm
1 X 1000W


AUDIO

Frequency Response
10Hz-250Hz
Signal to Noise Ratio 1W @ 4Ω
> 82dB
Efficiency @ 4 ohm
83%
Input Impedance
20K OHM
Total Harmonic Distortion (THD)
< 0.05%
Low Level Input Range
200mV-5V
X-Over Filter Range
50Hz-250Hz
Bass Boost Range
0-18dB
Bass Boost Frequency
42Hz
Infrasonic Filter
10Hz-55Hz
Phase Selector
0-180°
Selectable X-Over
LPF Fixed°


FEATURES 1

Amplifier Class
Digital
Amplifier Type
Monoblock Subwoofer
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Power | Protection | Clip
Power Input Size
4GA Tinned OFC


FEATURES 2

Fuse Size
2 x 50A (100A)
Thermal Protection
Yes (75°C)
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (7-16V)
Body Color | Finish
Black Brushed Aluminum


EXTRA FEATURES

RCA Audio Output
No
Waterproof Rating
IP67
UV / Salt Fog Protection
Yes
Direct Power Harness Design
Yes
Quick Connect Plug
Yes
Surface Mount Component Technology
Yes
Marine Grade Fuse Holder
Yes


MEASUREMENT

Overall Length
11.8" / 302mm
Overall Wide
4.4" / 112mm
Overall Height
1.77" / 45mm
Heatsink Length
11" / 281.6mm
Gross Single Unit Weight
2.21kg
Product Weight
6 lbs
Product Dimensions
15.5 x 9 x 3.75
M/C Weight
31 lbs
M/C Dimensions
19.25 x 16.5 x 10
