Product Overview

Description

Key Features

  • 1 Channel Full Range
  • Class D
  • 1 - 4 Ohm Stable
  • 1 X 600 Watts @ 1 Ohm
  • Power / Clip / Protection Indicator
  • Compact

SPECS

SKU
ION600.1D
Total Watts (Peak)
1800W
RMS Power @ 4 ohm
200W
RMS Power @ 2 ohm
400W
RMS Power @ 1 ohm
600W
RMS Power @ 4 ohm Bridge
N/A


Audio

Frequency Response
10Hz-20KHz
Signal to Noise Ratio
>95dB
Efficiency @ 4 ohm
88%
Damping Factor
210
Input Impedance
27Kohms
Channel Separation
N/A
Total Harmonic Distortion (THD)
0.01%
Low Level Input Range
0.2-6V
High Level Input
Yes
Selectable X-Over
Band-Pass

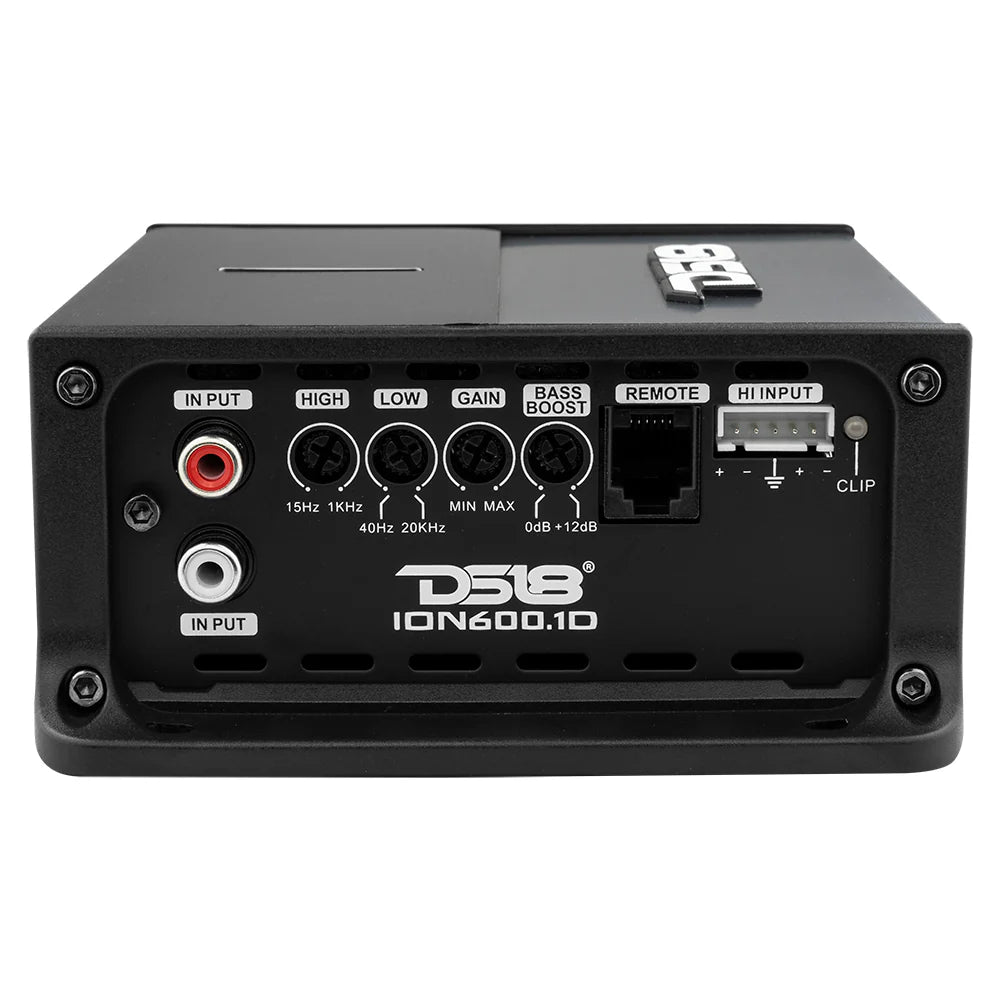

X-Over Filter Range
HP: 15Hz-1KHz / LP: 40Hz-20KHz
Bass Boost Range
0~12dB
Bass Boost Frequency
45Hz


Features

Amplifier Class
Digital
Amplifier Type
Full-Range Monoblock
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Power / Protect / Clipping

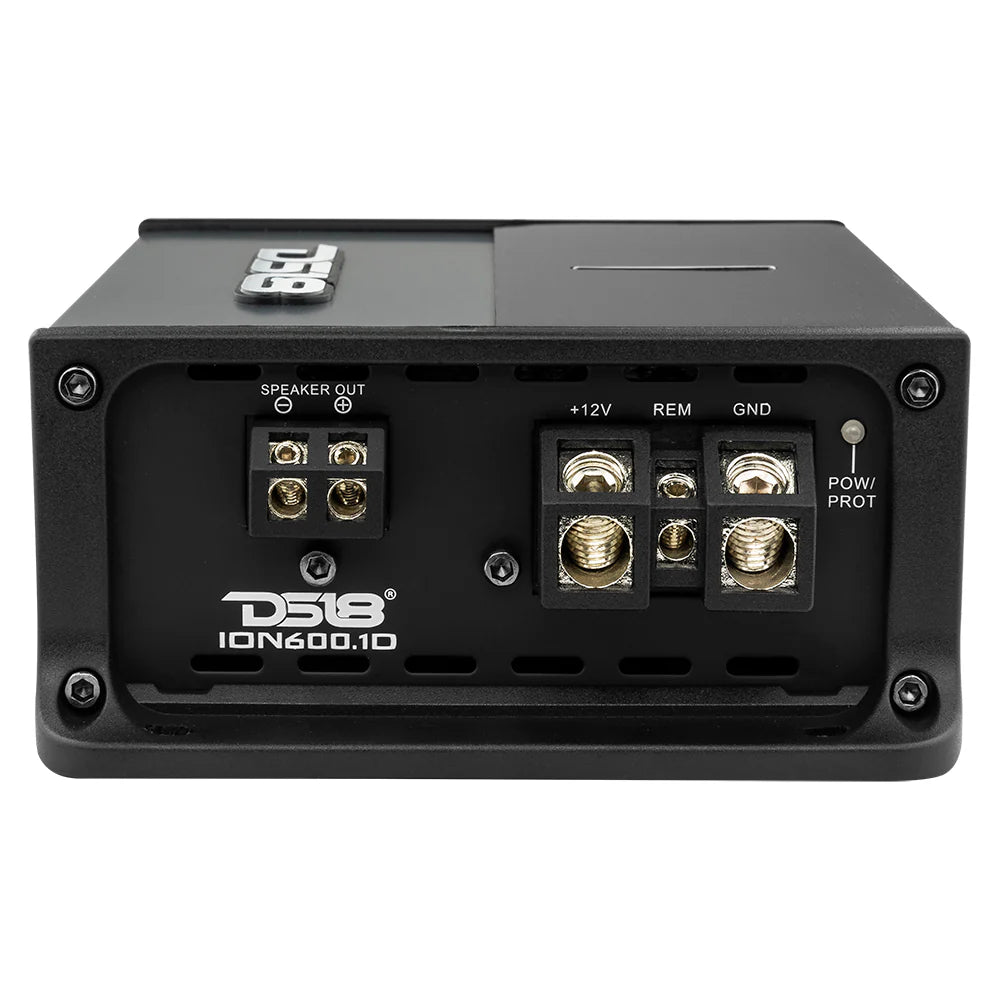

Power Input Terminal Size
4 AWG
Fuse Size
80A (external)

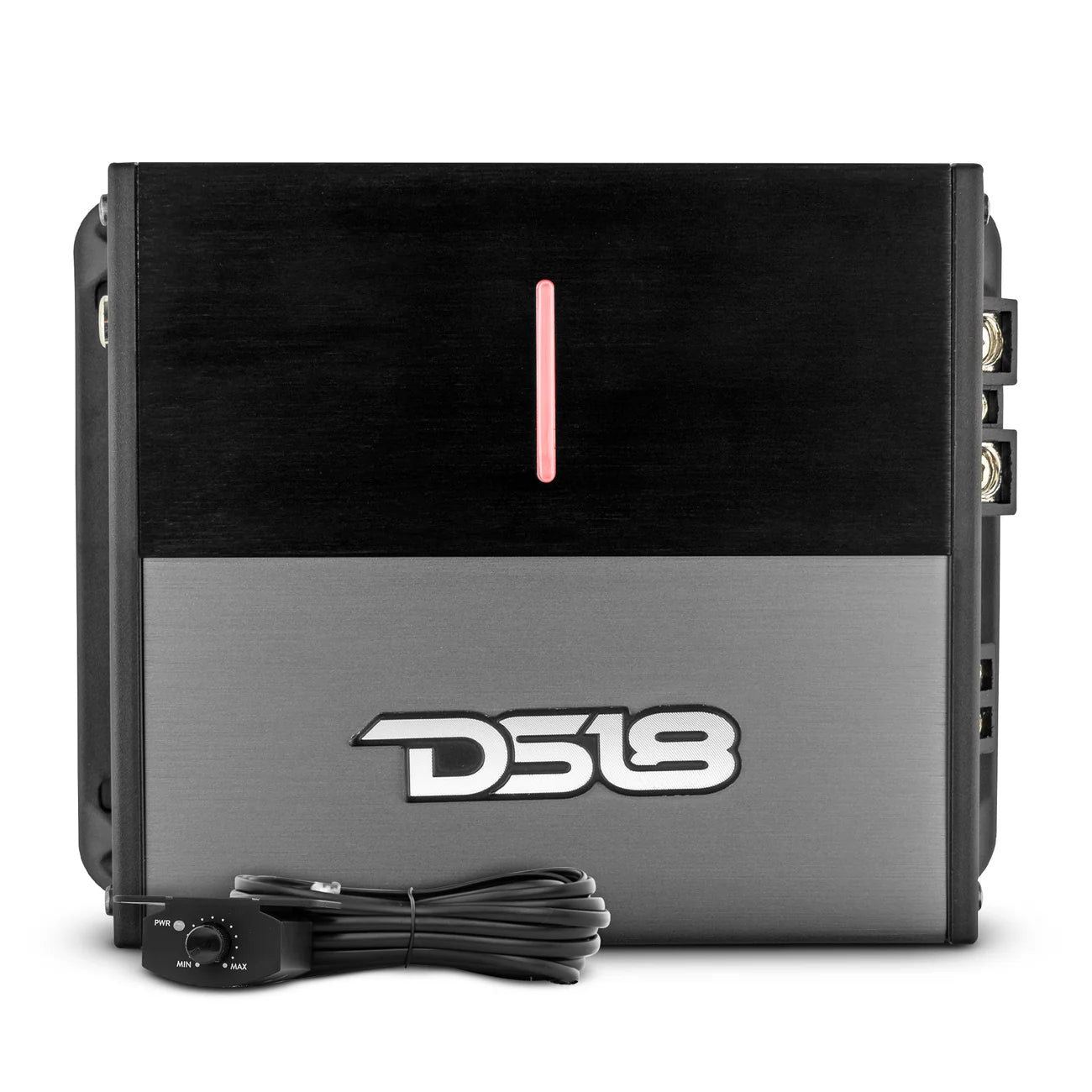

Remote Level Control
Yes
Cooling Fan
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Aluminum Black / Silver


Extra Features

Hi-Level Speaker connector
Yes
Tiffany RCA Terminal
Yes
LED Clip Indicator
Yes
High Efficiency Micro Digital Design
Yes


Measurement

Overall Length
6.14" / 156mm
Overall Wide
4.72" / 120mm
Overall Height
2" / 52mm
Heatsink Length
4.84" / 123mm
Gross Single Unit Weight
0.7Kg
