Product Overview

Description

SPECS

SKU
FX1
Total Watts (Peak)
2700W
RMS Power @ 4 ohm
1 X 400W
RMS Power @ 2 ohm
1 X 650W
RMS Power @ 1 ohm
1 X 900W
RMS Power @ 4 ohm Bridge
N/A





Audio

Frequency Response
15-250Hz
Signal to Noise Ratio
92dB
Efficiency @ 4ohm
82%
Damping Factor
75
Input Impedance
30Kohms
Channel Separation
N/A
Total Harmonic Distortion (THD)
0.08%
Low Level Input Range
0.2-10V
High Level Input
N/A
Selectable X-Over
Fixed LPF
X-Over Filter Range
50-250Hz
Bass Boost Range
0~12dB
Bass Boost Frequency
50Hz
Infrasonic Filter
10-50Hz
Phase Selector
0/180


Features

Amplifier Class
Digital (D)
Amplifier Type
Monoblock / Subwoofer
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Power / Protect / Clip
Power Input Terminal Size
4 Ga
Fuse Size
80A (2x40A)
Remote Level Control
Yes
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (8.8-15.9V)
Clipping Protection
Yes
Body Color / Finish
Black Aluminum


Extra Features

Input Channel Selectable
No

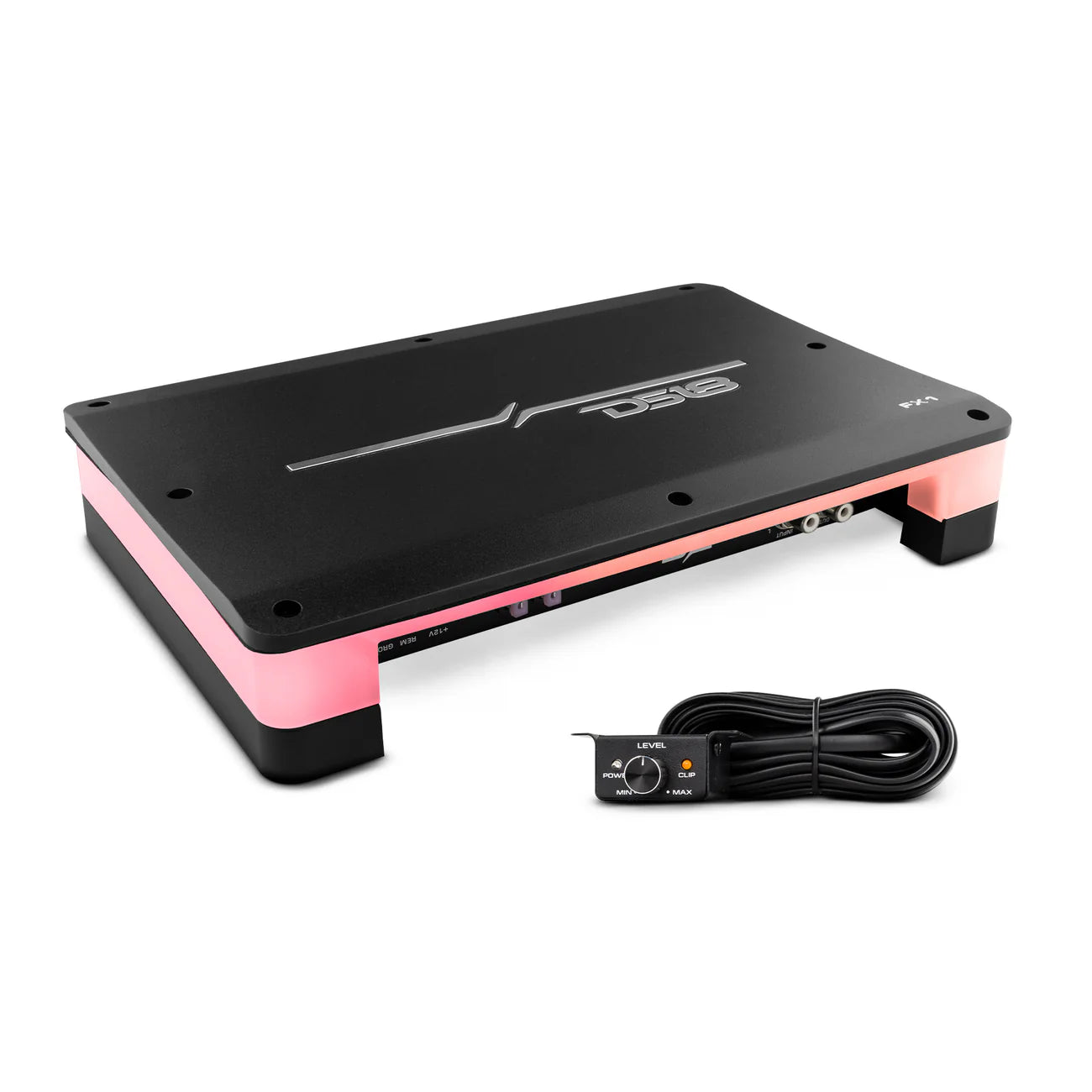

Remote Level Control with Clip Indicator and Metal Case
Yes (Included)
RCA Low Level Output
Yes
Tiffany RCA Connector
Yes
Very High Efficiency Digital Circuit Design
Yes
PCB with Anti-Corrosion Protection Coating
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Surface Mounting with Digital Chasing LED Adapter
Yes (Included)
Waterproof Rating
IP65 (Flush Mounting)


Measurement

Body Length
9" / 228mm
Body Width
4.7" / 120mm
Overall Height
1.85" / 47mm
Heatsink Length
10.8" / 275mm
Heatsink Width
7.2" / 182mm
Mounting Hole
9.2"x5.8" / 233.7x147mm
Mounting Depth
1.5" / 39mm
Gross Single Unit Weight
2.8Kg

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
