Product Overview

Description

SPECS

SKU

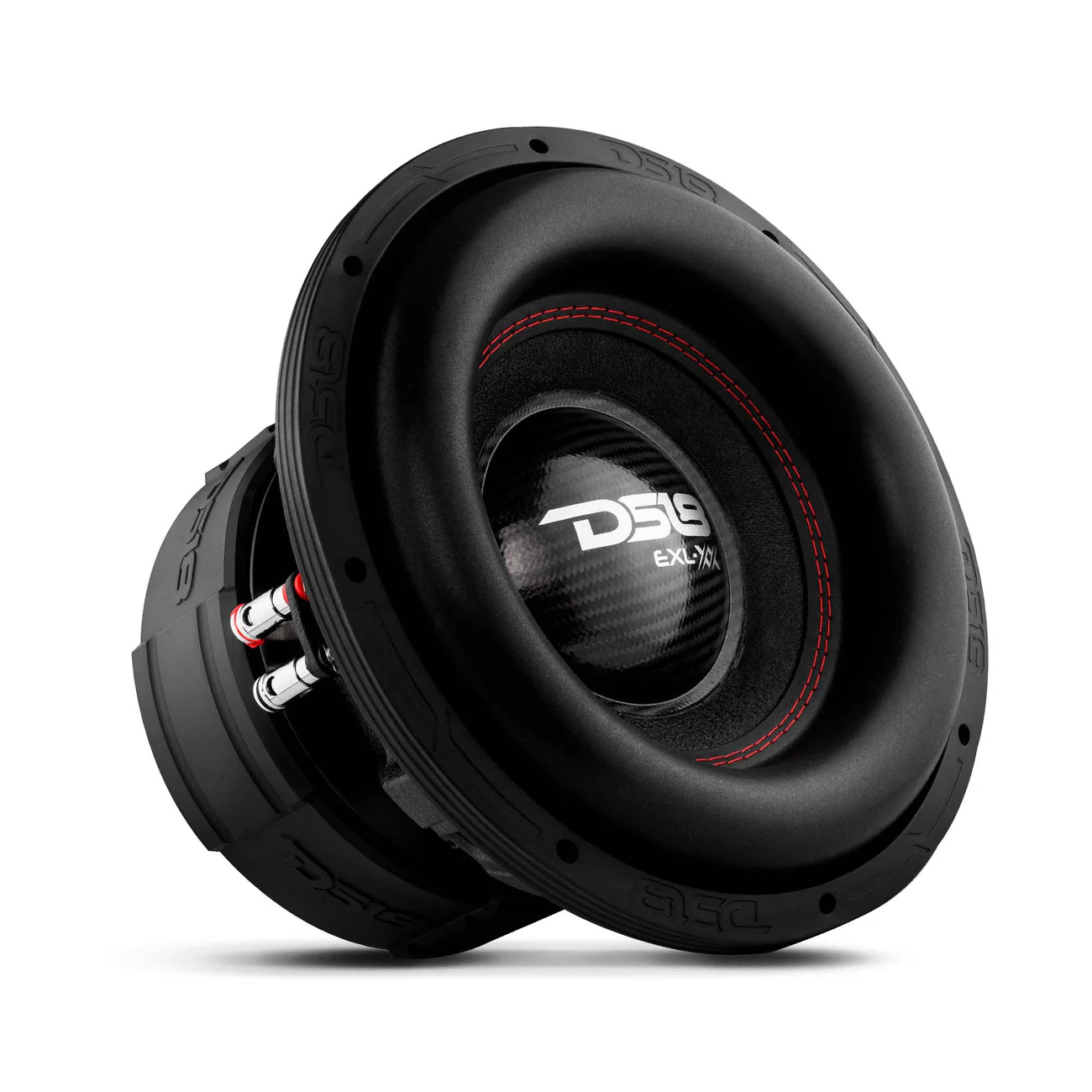

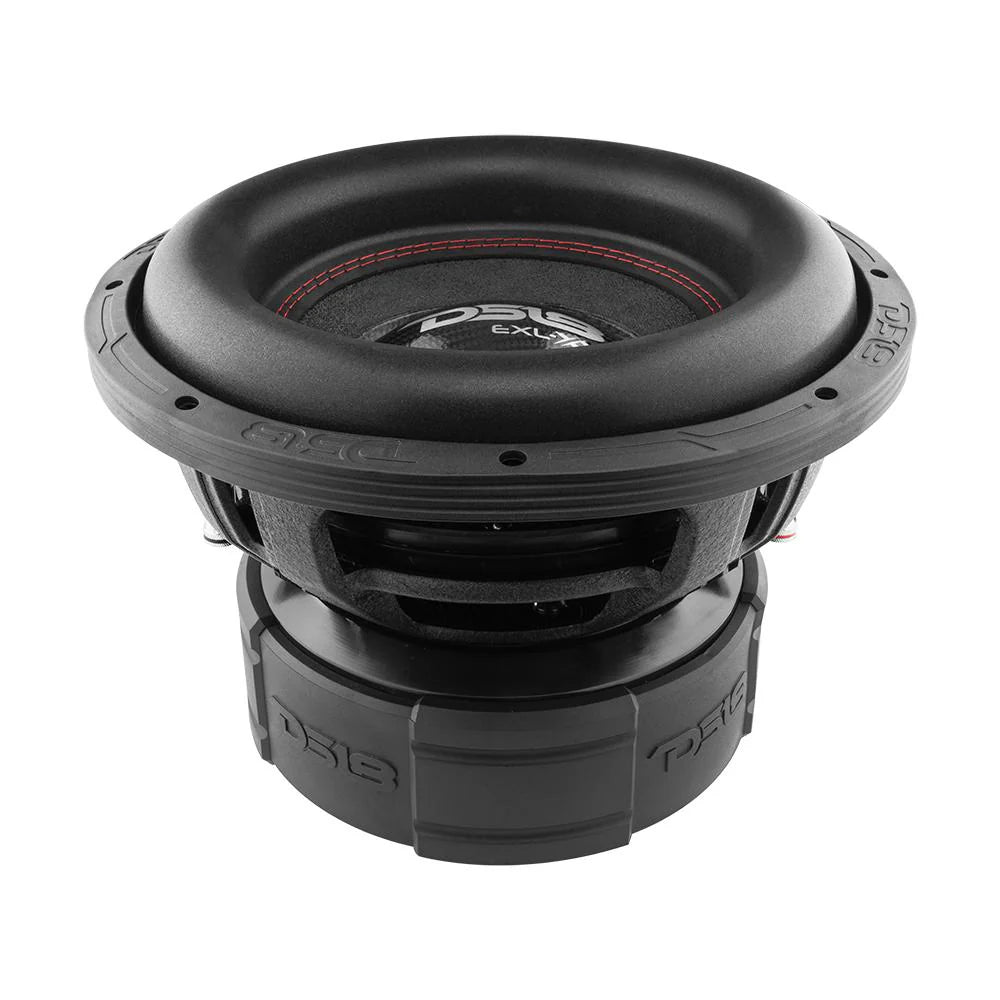

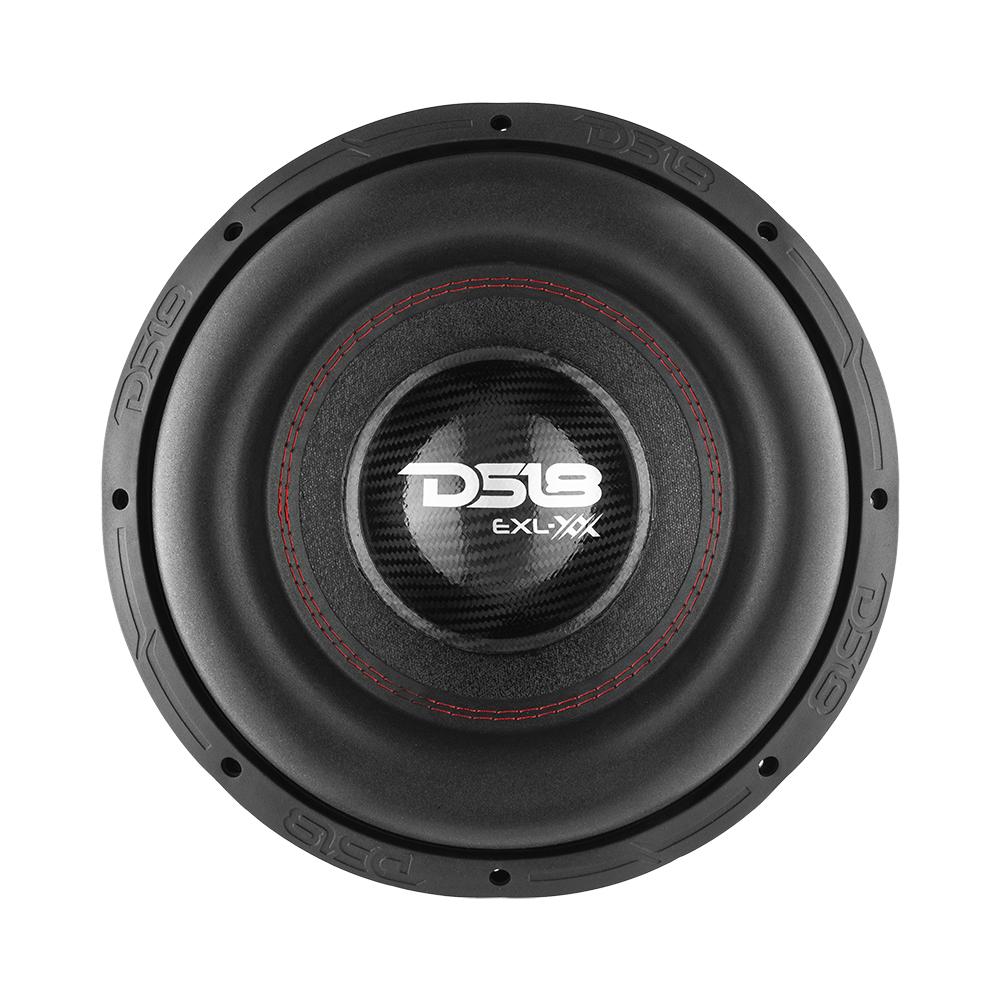

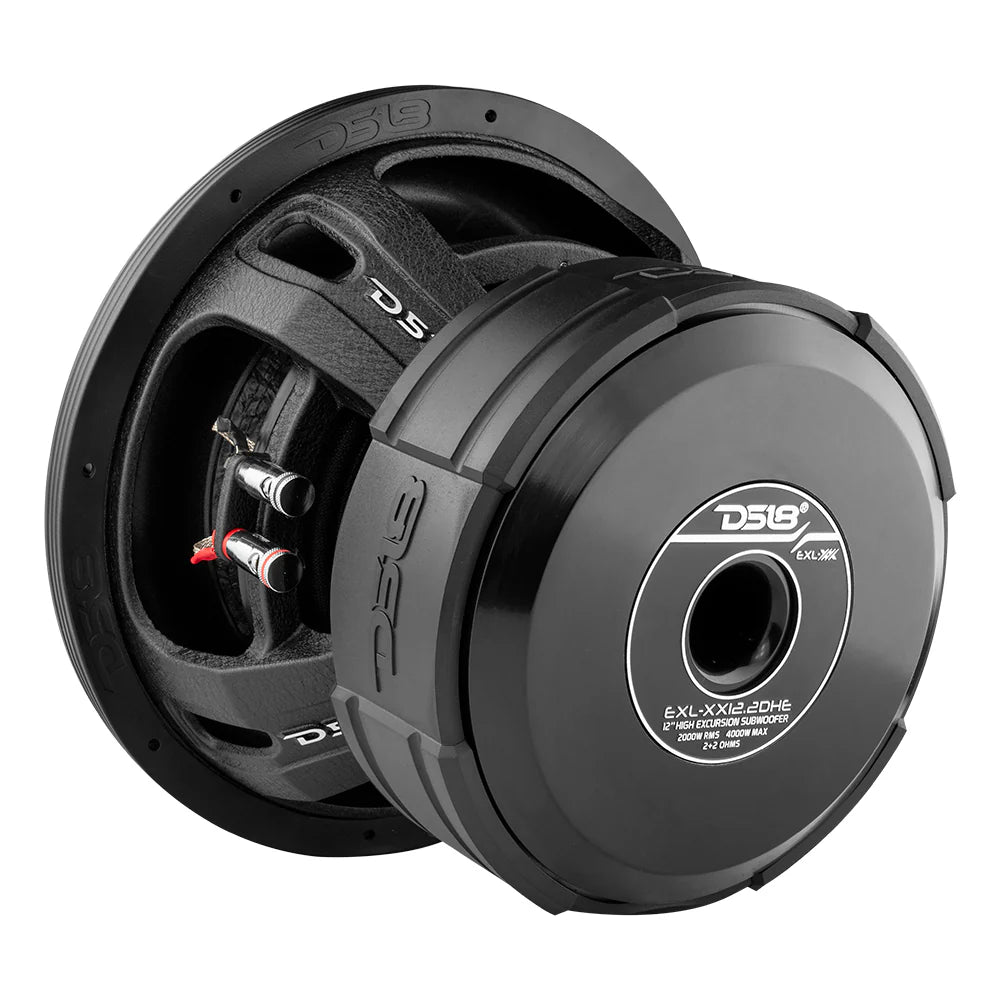

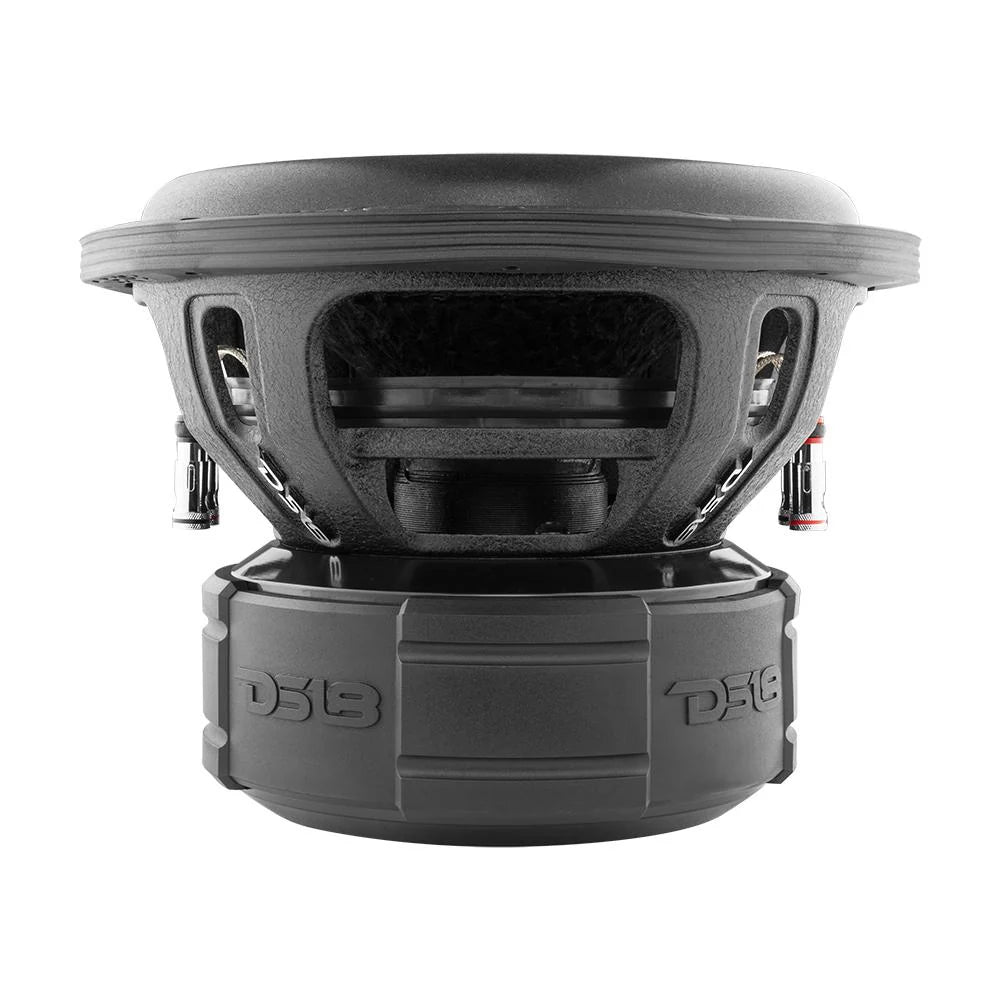

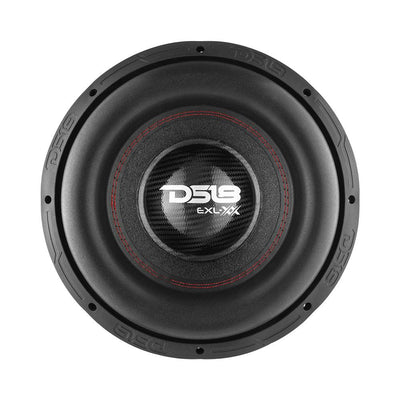

EXL-XX12DHE
Nominal Diameter
12"
Nominal Impedance
2+2 or 4+4 ohms
RMS Power Handling
2000W
Maximum Power Handling
4000W
Sensitivity (1w/1m)
87dB
Frequency Response
20-1.3K Hz
Recommended Lo Pass Crossover
80 Hz


MOTOR

Voice Coil Diameter
3" / 75.6mm
Voice Coil Former Material
Black Aluminum
Winding Material
CCAW
Cone Material
Paper
Dust Cap Material
Glass Fiber
Surround Material
Foam
Basket Material
Aluminum
Basket Color/Finish
Black
Magnet Material
Ferrite
Magnet Weight
306 OZ
Displacement Volume
3.26L


THIELE & SMALL PARAMETERS

Equivalent Volume Vas
21.986L
Free Air Resonance Fs
39.8 Hz
Mechanical Factor Qms
5.128
Electrical Factor Qes
0.529
Total Factor Qts
0.468
Moving Mass Mms
302.158 g
Compliance Cms
0.025 mm/N
Bl Factor Bl
16.523
Voice Coil Inductance Le
6.9 mH
Diaphragm Area Sd
433.74 cm²
Dc Resistance Re
2 + 2 ohms
Efficiency Bandwidth Product EBP
75.2


MEASUREMENTS

Overall Diameter
12.63" / 321mm
Overall Depth
9.25" / 235mm
Front Mount Baffle Cutout
11.1" / 282mm
Mounting Depth
7.87" / 200mm
Motor Diameter
8.89" / 226mm

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
