DS18 ZXI10 10" High-Excursion Subwoofer with Quad Stacked Magnets — 800W RMS / 1600W MAX
Product Overview
Description
Product Overview

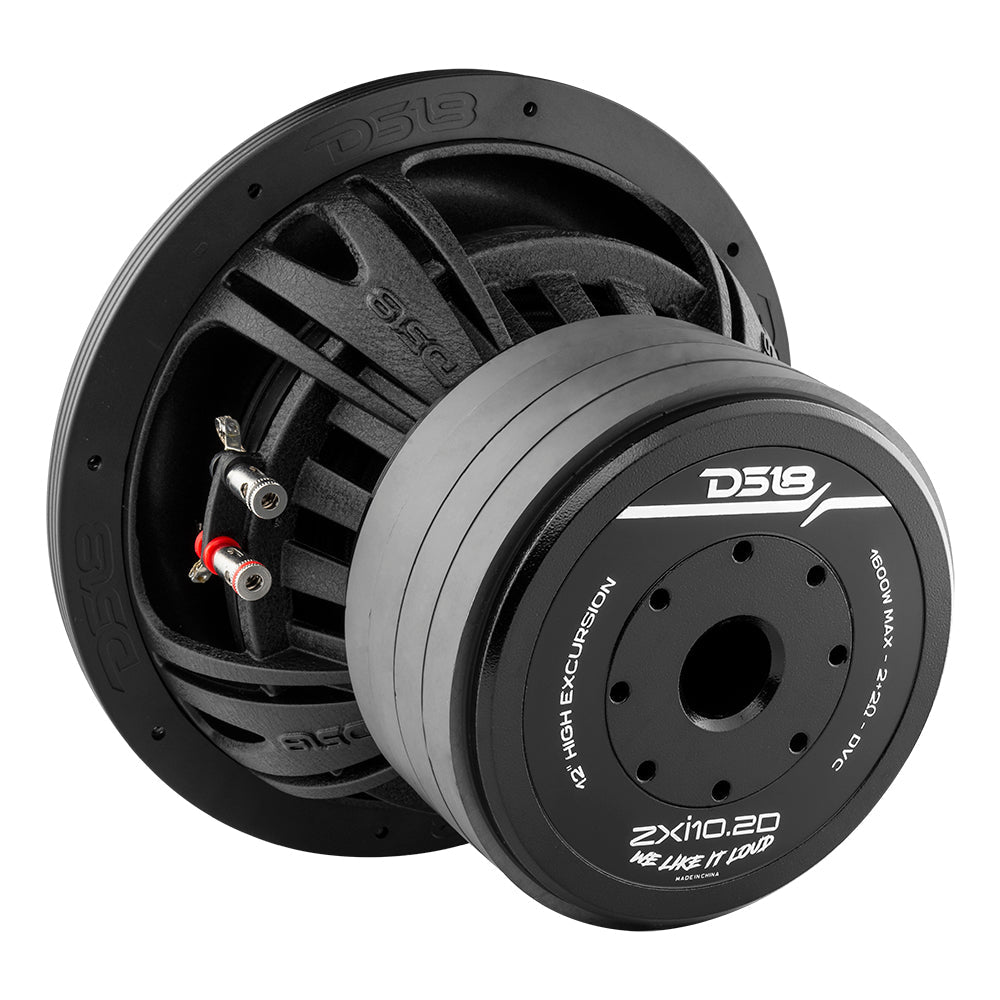

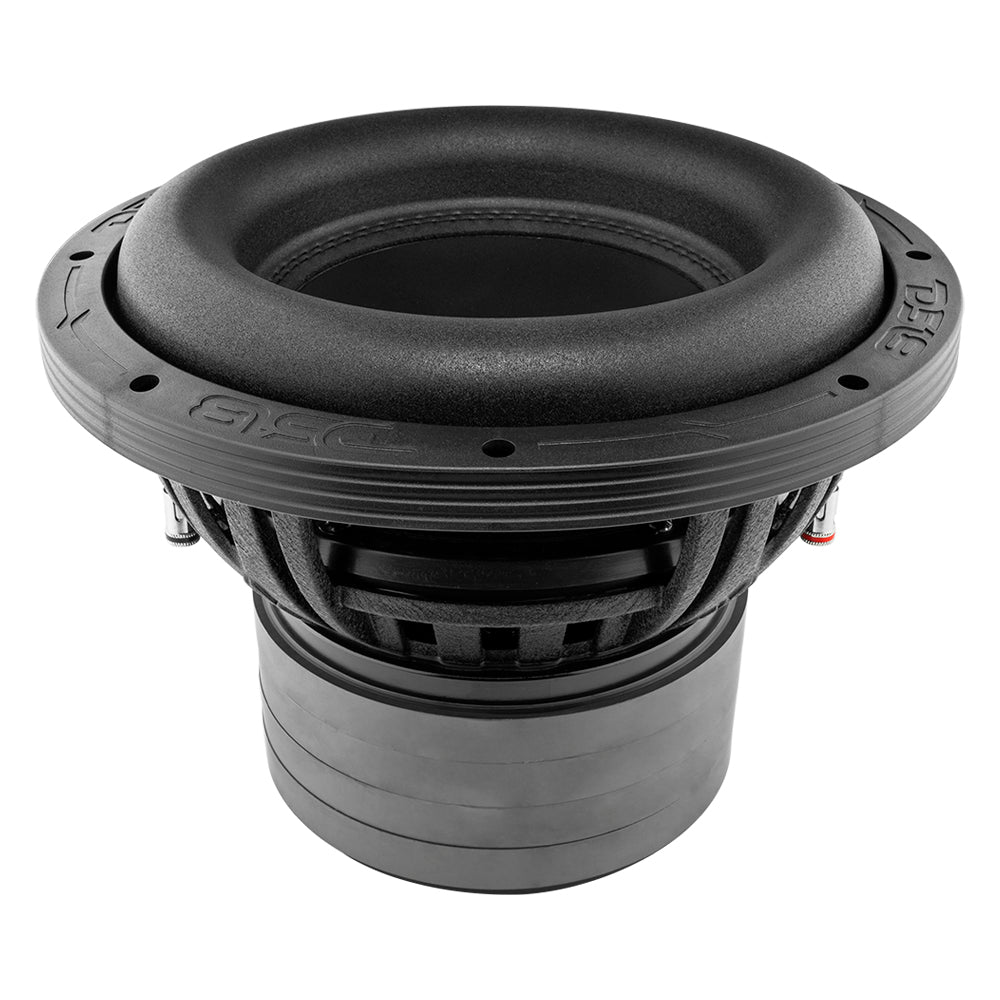

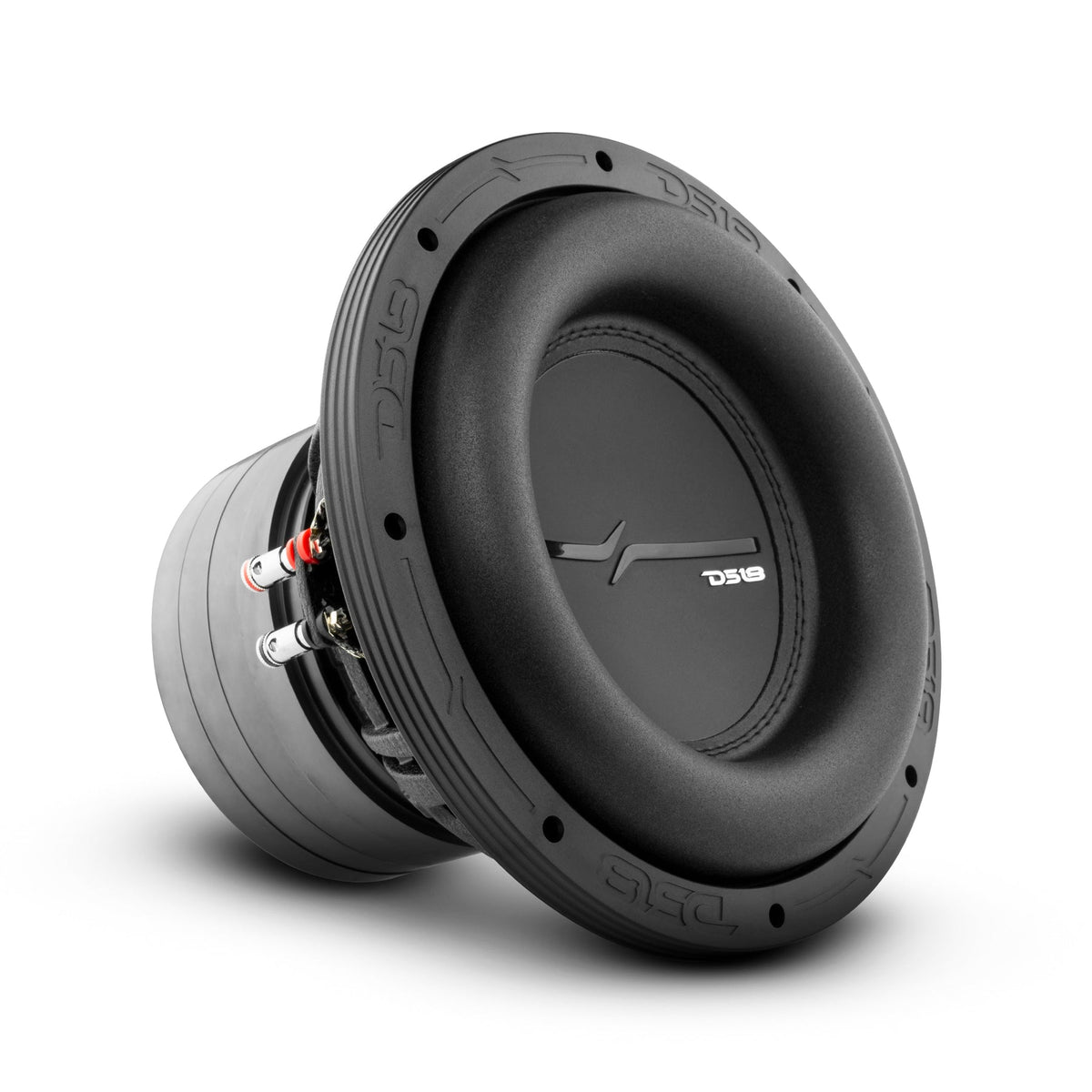

The DS18 ZXI10 is a 10" high-excursion subwoofer built for enthusiasts who want thunderous low end from a compact driver — 800W RMS / 1600W MAX through a 2.5" black aluminum voice coil. Its lower-than-normal resonant frequency lets it perform well in larger boxes with lower tuning, in either sealed or ported configurations. A large foam surround and non-pressed paper cone keep the bass crisp, while the quad stacked ferrite magnets deliver increased magnetic field strength, improved power handling, enhanced cone control, higher excursion capability, greater durability, and superior heat dissipation. Choose Dual 2-Ohm or Dual 4-Ohm voice coil configuration to match your amplifier. Sold individually (each).
Key Features
- 10" High Excursion Subwoofer
- MAX Power: 1600 Watts
- RMS Power: 800 Watts
- Impedance: 2-Ohm or 4-Ohm 2.5" DVC
- Quad Stacked Ferrite Magnet
- 86dB
Specifications
| SKU | ZXI10.2D (Dual 2-Ohm) / ZXI10.4D (Dual 4-Ohm) |
| Nominal Diameter | 10" / 254mm |
| Nominal Impedance | 2 + 2 ohms (ZXI10.2D) / 4 + 4 ohms (ZXI10.4D) |
| RMS Power Handling | 800W |
| Maximum Power Handling | 1600W |
| Sensitivity (1w/1m) | 86dB |
| Frequency Response | 20-900Hz |
| Recommended Lo Pass Crossover | 90Hz |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | CCAW |

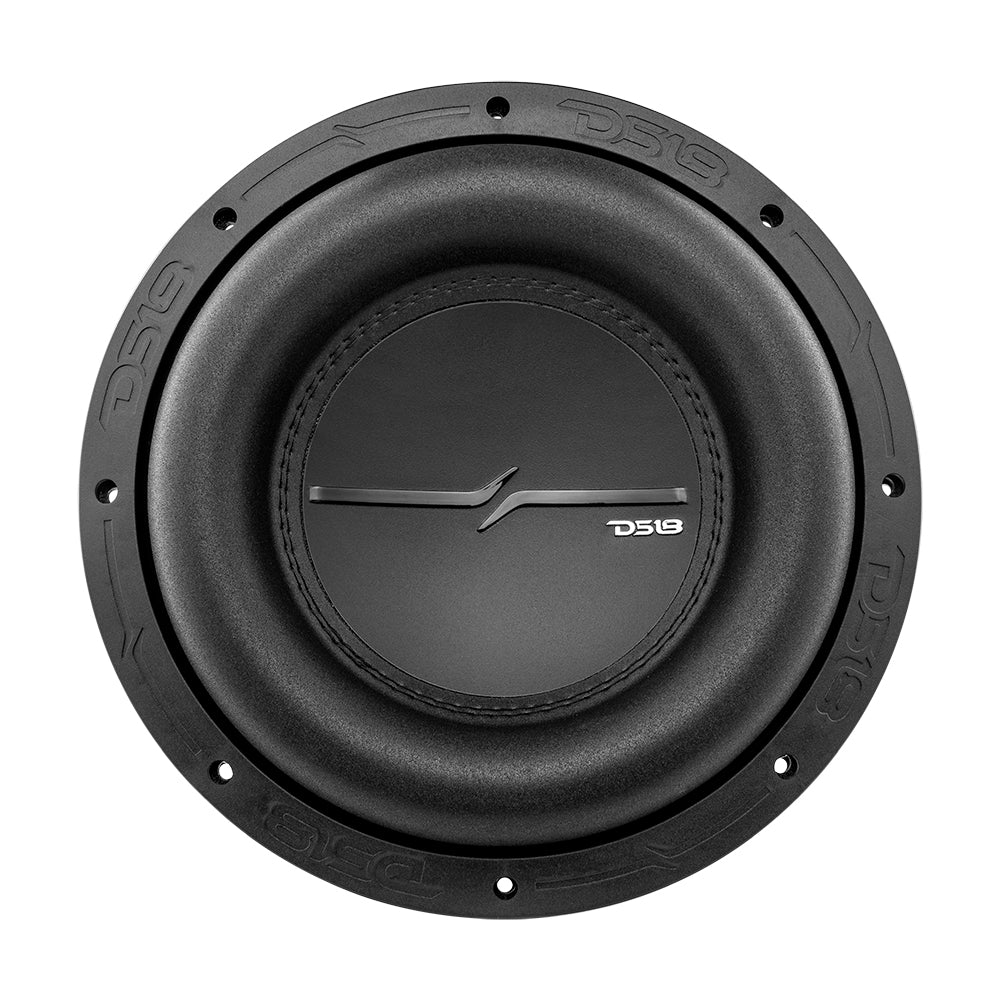

| Cone Material | Non-Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color/Finish | Black Sandblasted |
| Magnet Material | Ferrite |
| Magnet Weight | 196 Oz (4 x 49 oz) |
| Displacement Volume | 2.23L / 0.078ft³ |
| Equivalent Volume Vas | 18.25L / 0.644ft³ (ZXI10.2D) — 16.84L / 0.594ft³ (ZXI10.4D) |
| Free Air Resonance Fs | 29Hz |
| Mechanical Factor Qms | 6.825 (ZXI10.2D) / 5.169 (ZXI10.4D) |
| Electrical Factor Qes | 0.493 (ZXI10.2D) / 0.473 (ZXI10.4D) |
| Total Factor Qts | 0.457 (ZXI10.2D) / 0.432 (ZXI10.4D) |
| Moving Mass Mms | 265.089g (ZXI10.2D) / 237.173g (ZXI10.4D) |
| Compliance Cms | 0.142mm/N (ZXI10.2D) / 0.109mm/N (ZXI10.4D) |
| Bl Factor Bl | 25.146 (ZXI10.2D) / 27.387 (ZXI10.4D) |
| Voice Coil Inductance Le | 51.23 mH (ZXI10.2D) / 63.69 mH (ZXI10.4D) |
| Diaphragm Area Sd | 330.06cm² |
| DC Resistance Re | 2.0+2.0 ohms (ZXI10.2D) / 3.4+3.4 ohms (ZXI10.4D) |
| Efficiency Bandwidth Product EBP | 58.8 (ZXI10.2D) / 61.3 (ZXI10.4D) |
| Sealed Internal Volume | 14.2L / 0.5ft³ |
| Sealed Box Output Response F3 | 41.5Hz |
| Ported Internal Volume | 35.4L / 1.25ft³ |
| Port Size (Square W x H x Long) | 1.16" x 10.31 x 24.49" / 29.5 x 262 x 622.1mm |
| Port Tuning Frequency FB | 30Hz |
| Ported Box Output Response F3 | 24Hz |

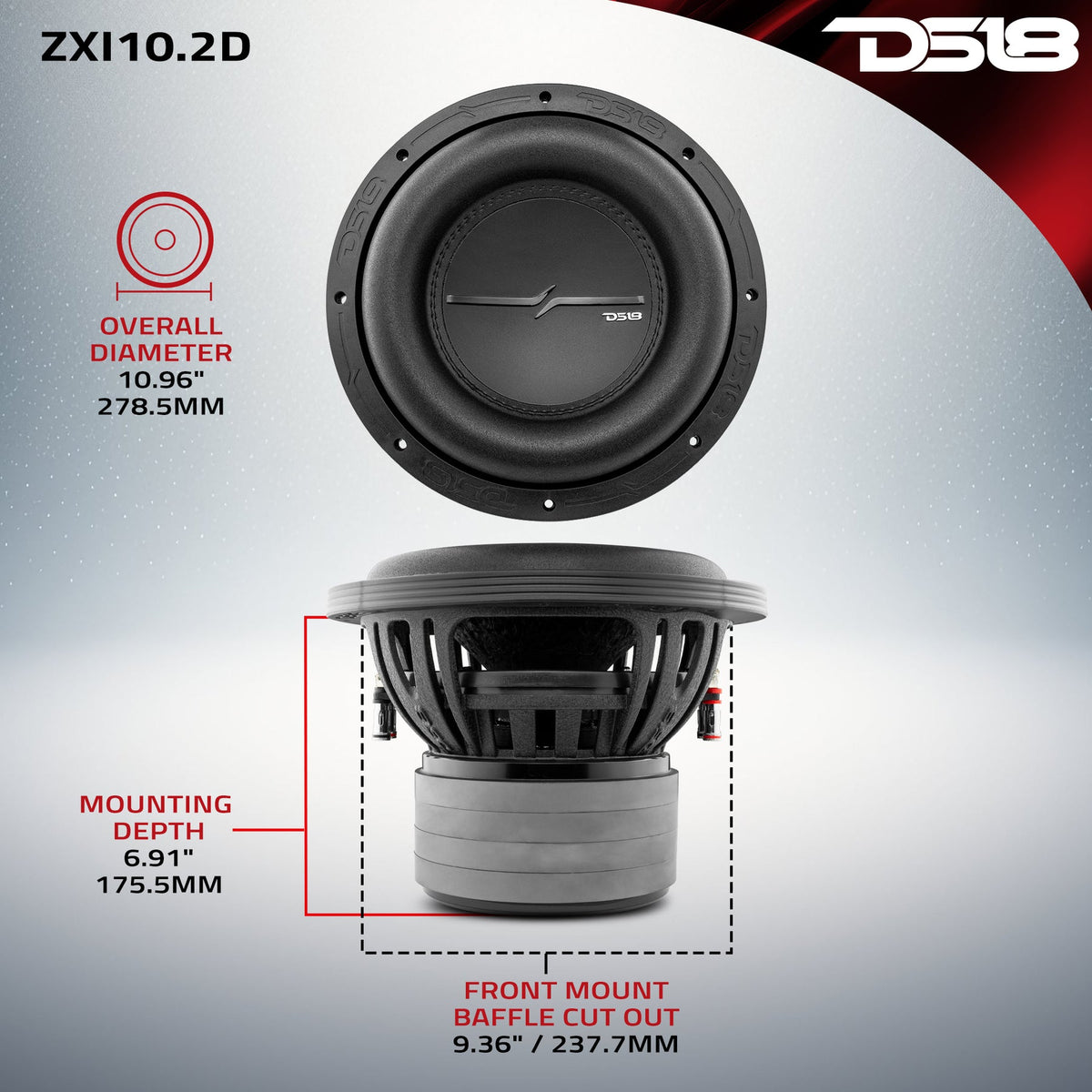

| Overall Diameter | 10.96" / 278.5mm |

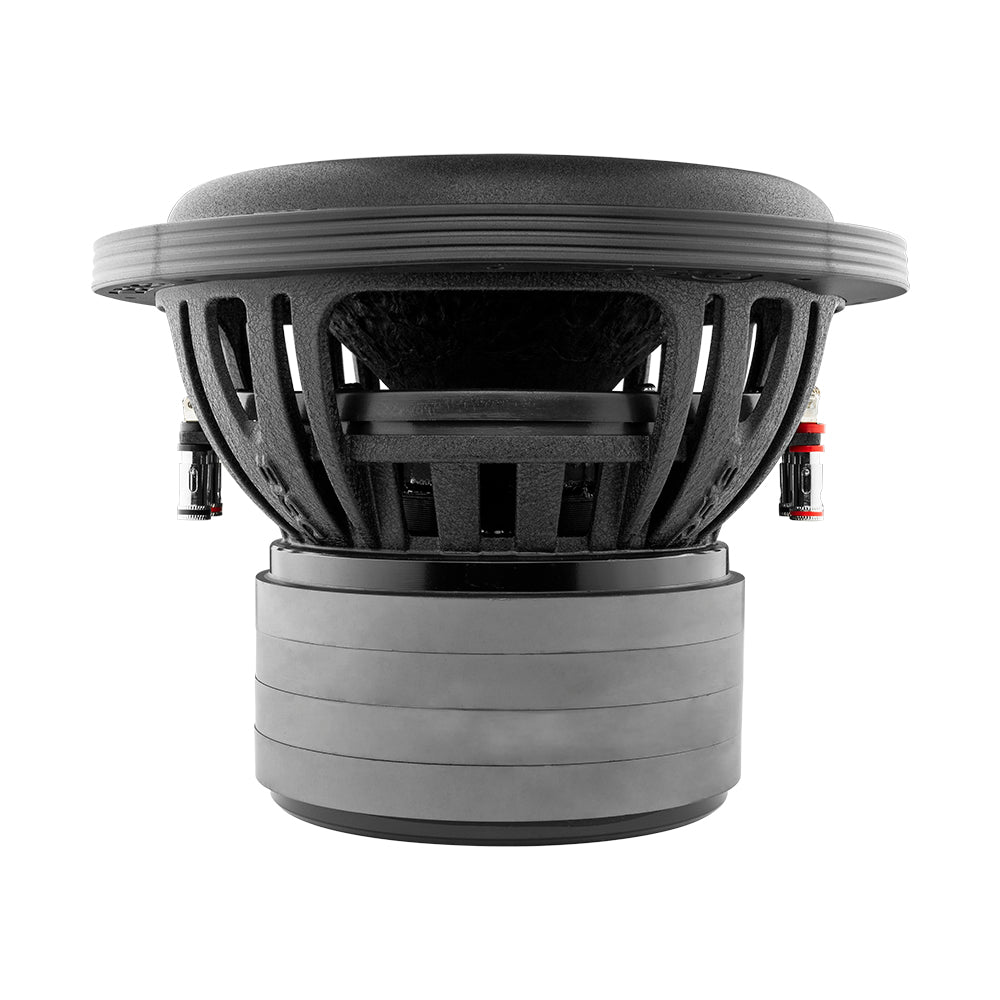

| Overall Depth | 8.34" / 212mm |
| Front Mount Baffle Cutout | 9.36" / 237.7mm |
| Mounting Depth | 6.91" / 175.5mm |
| Motor Diameter | 6.69" / 170mm |
| Gross Single Unit Weight | 26.5 lbs |
| Dimensions (W x L x H) | 12 x 12 x 9.5 inches |
Free shipping on orders $100+
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
FAQs
Please read our FAQs page to find out more.
RMS vs. MAX power — which number do I actually care about?
RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.
What does the IP65 rating on DS18 marine gear actually mean?
It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.
How do I match an amplifier to my speakers without guessing?
Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.
Can I mix marine-grade gear into a standard car audio setup, or the reverse?
You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.
What gauge wiring kit do I need?
It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
