DS18 SMD-300.4AB 4-Channel Class AB Amplifier with VM-1 Voltmeter & Digital LED Lights — 4 x 300W RMS @ 2-Ohm
Product Overview
Description
Key Features
- 4-channel stereo full-range amplifier — exclusive SMD (Steve Meade Designs) Class AB design
- RMS Power: 4 x 200W @ 4Ω · 4 x 300W @ 2Ω · Bridged 600W x 2 @ 4Ω
- Built-in VM-1 voltmeter · dual cooling fans · 2/4-channel input selector

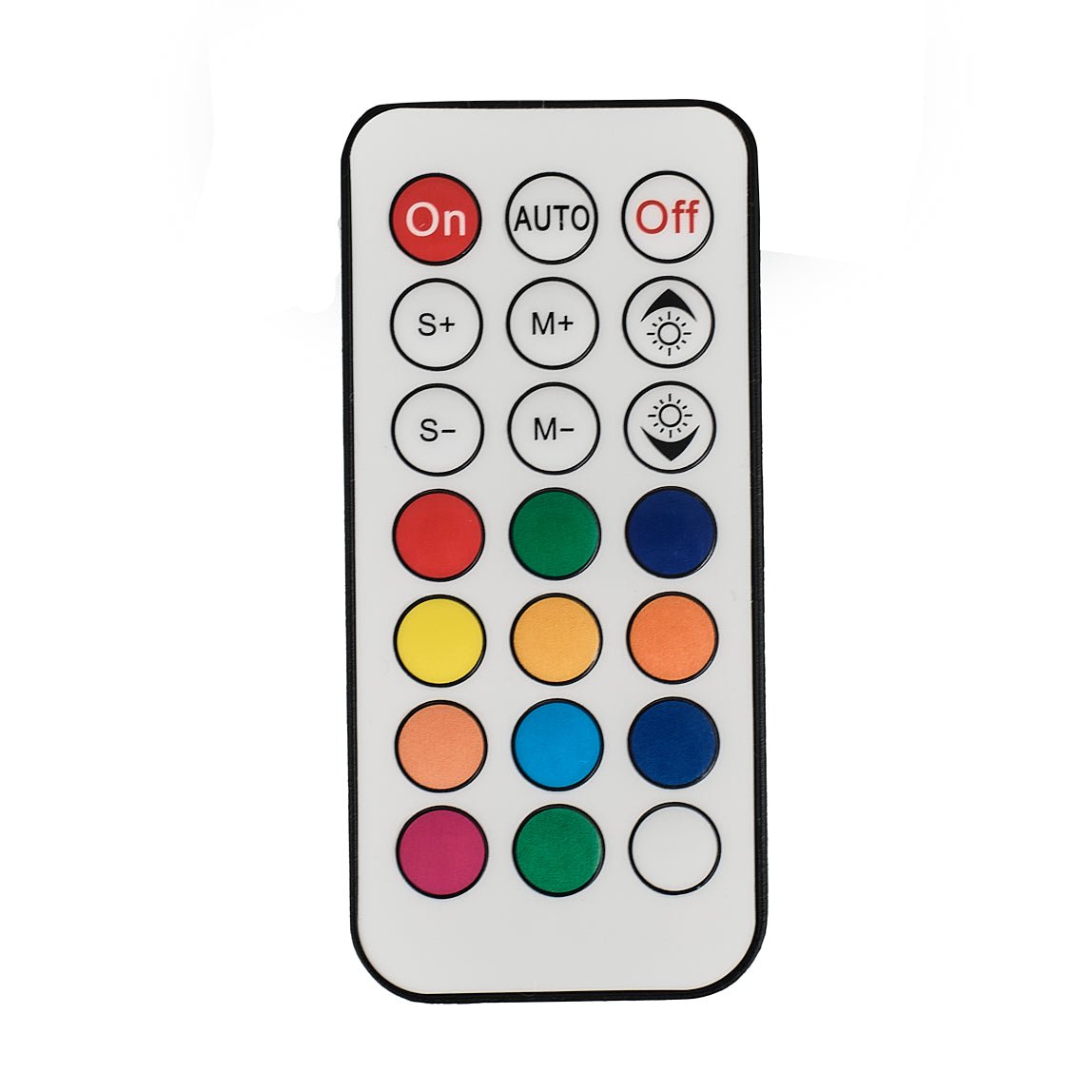

- Acrylic window with digital LED lighting + remote

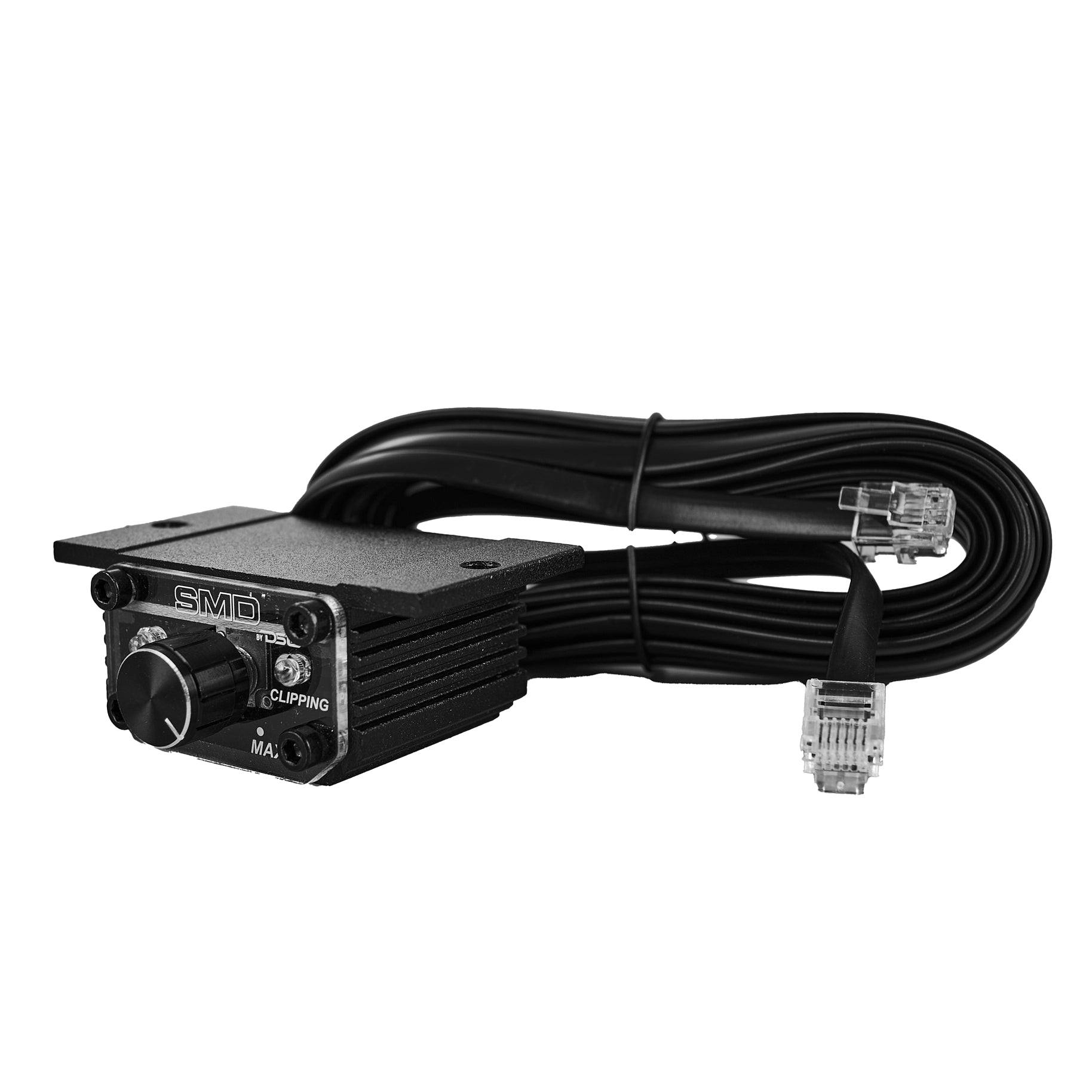

- Remote bass knob · Tiffany RCA connectors
- Made in Korea
- Sold as: single (each)
Product Overview

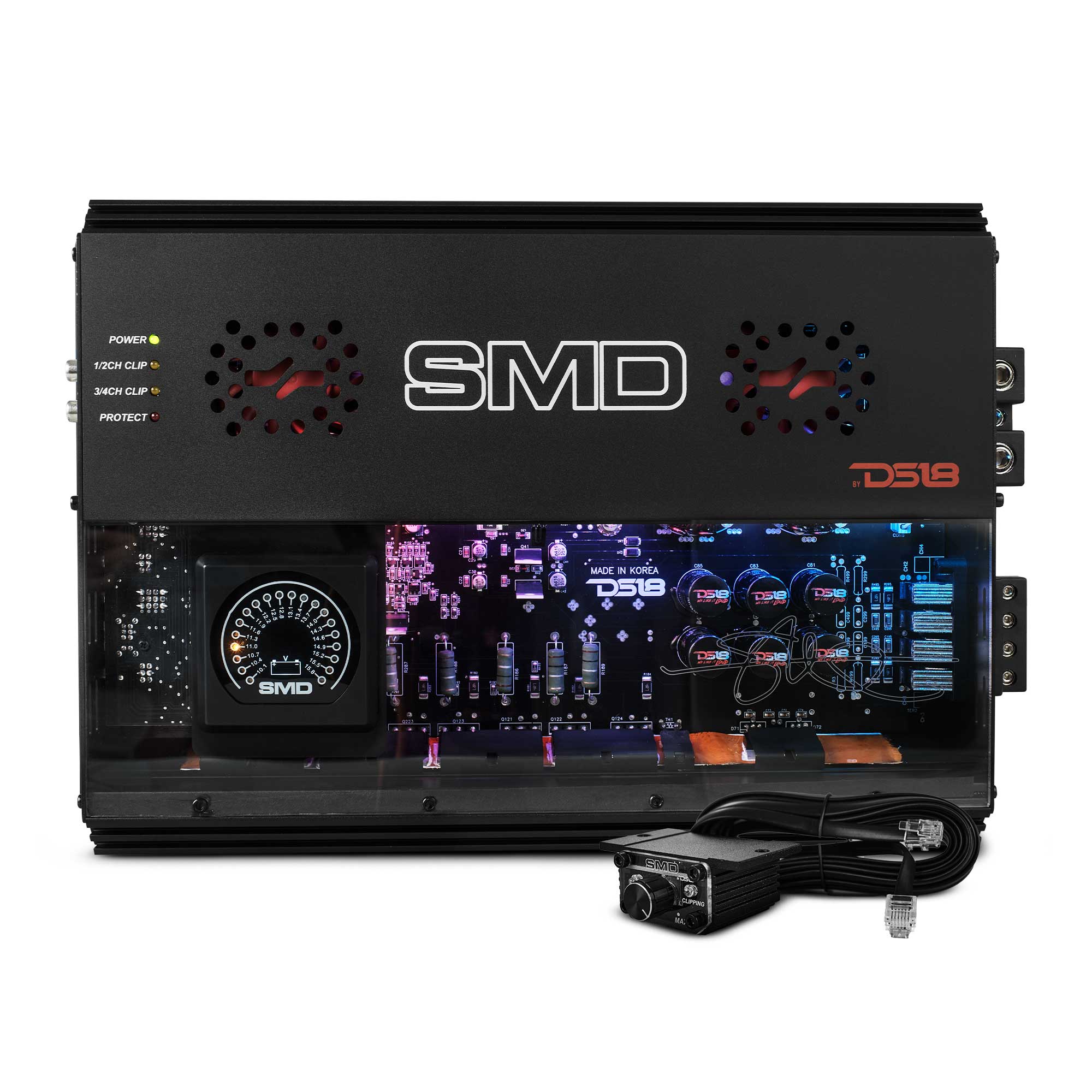

The DS18 SMD-300.4AB is the bigger brother in the Steve Meade Designs 4-channel Class AB line: 300 watts RMS per channel at 2 ohms of clean analog AB power, a built-in VM-1 voltmeter, and the signature acrylic window with remote-controlled digital LED lighting. Selectable crossovers and a remote bass knob handle tuning; dual fans and a full protection suite keep it composed under load.
SPECS
| SKU | SMD-300.4AB |
| RMS Power @ 4 ohms | 4 x 200W |
| RMS Power @ 2 ohms | 4 x 300W |
| RMS Power @ 4 ohm Bridged | 600W x 2 |
| Amplifier Class | Analog AB |
| Channels | 4 (stereo full-range) |

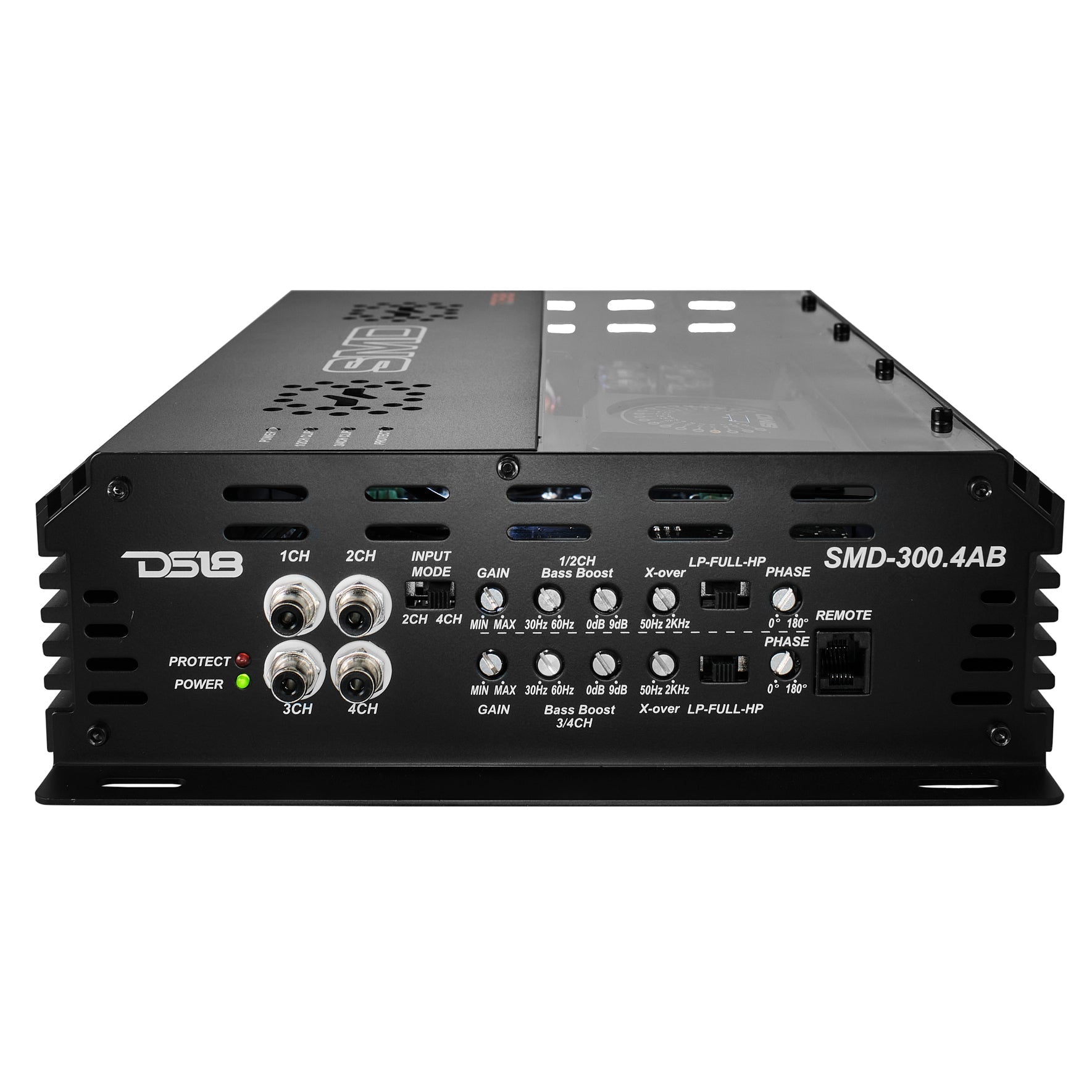

| Crossover Modes | HPF/FULL/LPF |
| Crossover Range | 50Hz–2kHz |
| Voltmeter | VM-1 built-in |
| Input Mode | Selectable 2/4 channel |
| Operational Voltage | 8.5–16.5V |

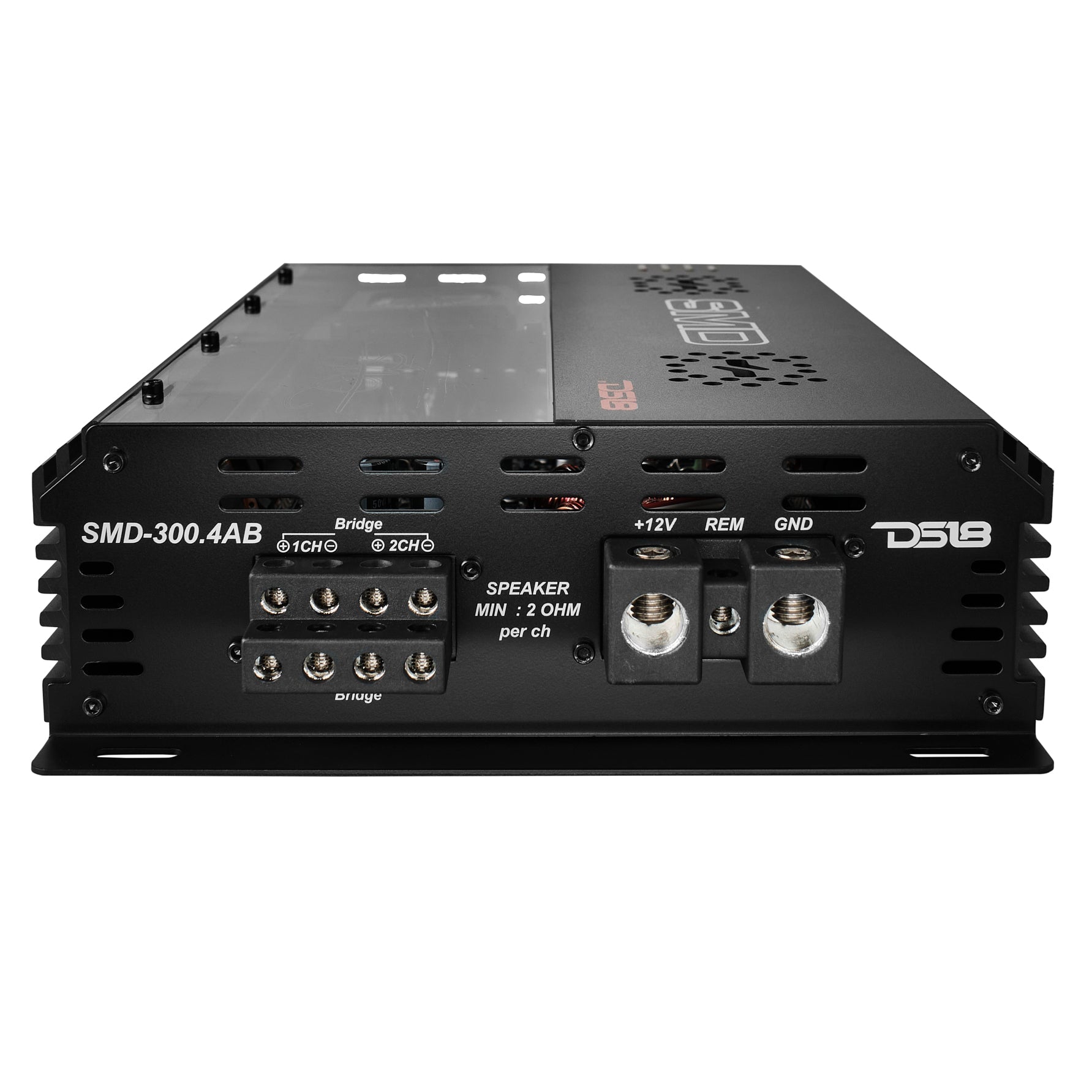

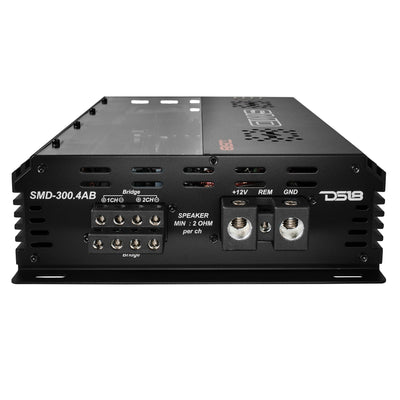

| Power Terminal Size | 0 AWG |
| Fuse Requirement | 150A (not included) |
| Cooling | Dual fans |
| RCA Terminals | Tiffany |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Overall Length | 14.2" / 362mm |
| Overall Width | 9.15" / 232mm |
| Overall Height | 3" / 76mm |
| Heatsink Length | 12.6" / 320mm |
| Finish | Black |
| Made In | Korea |
| Sold As | Single |
