Product Overview

Description

*NOTE- Description will not update when selecting impedance. You will be shipped the Impedance you select.

Continue Scrolling Down for 10" and 8" Sub Specs.

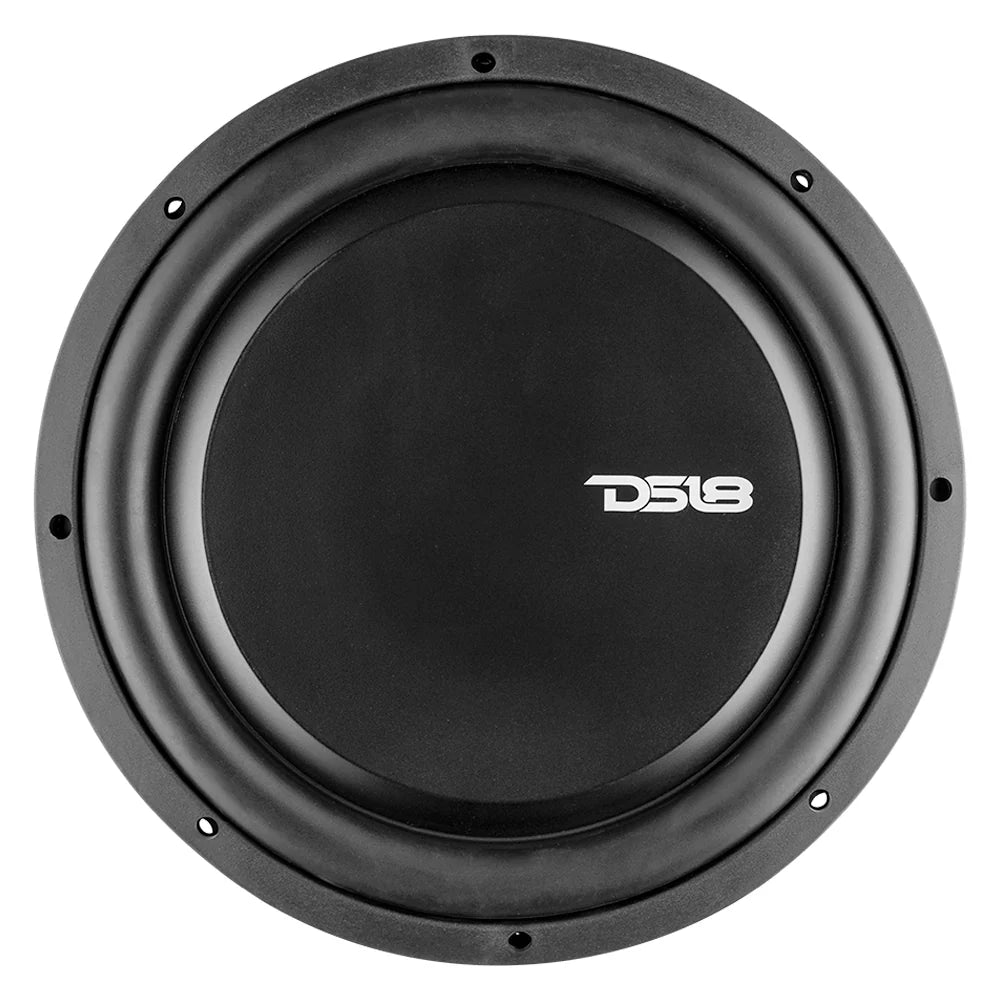

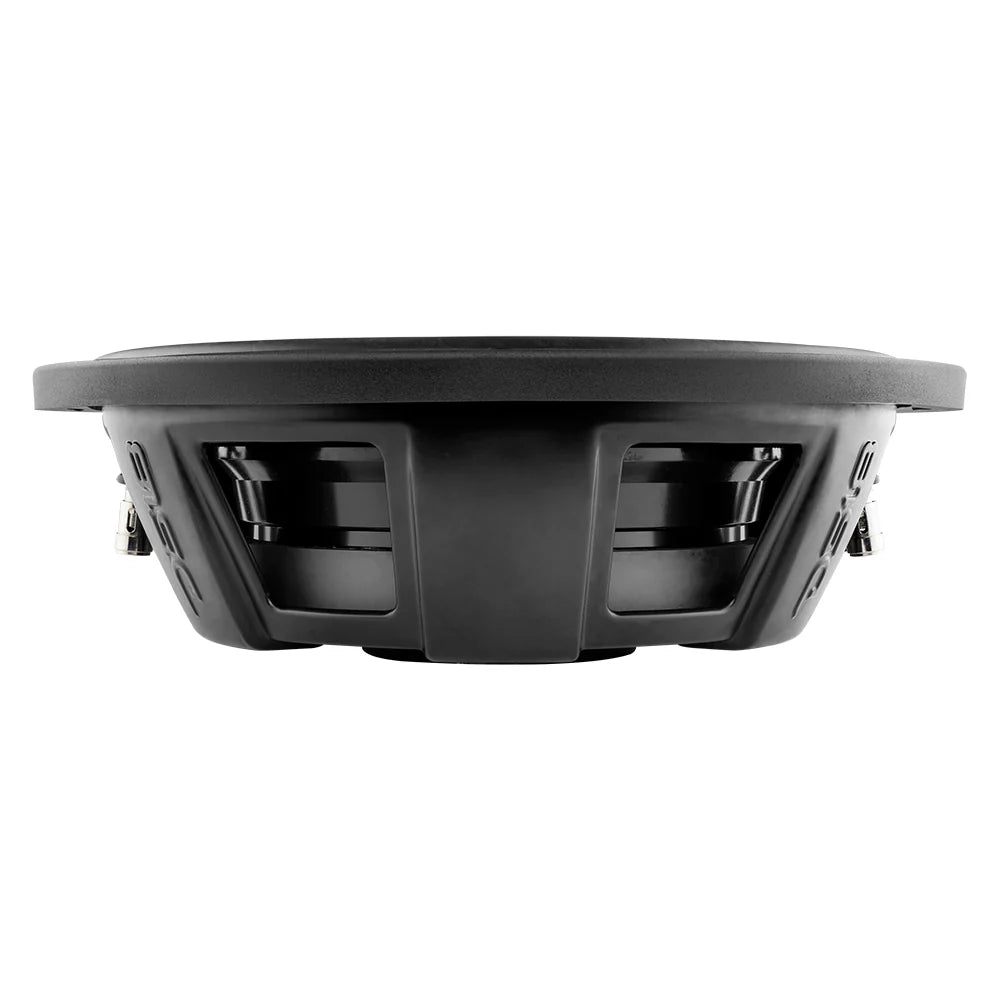

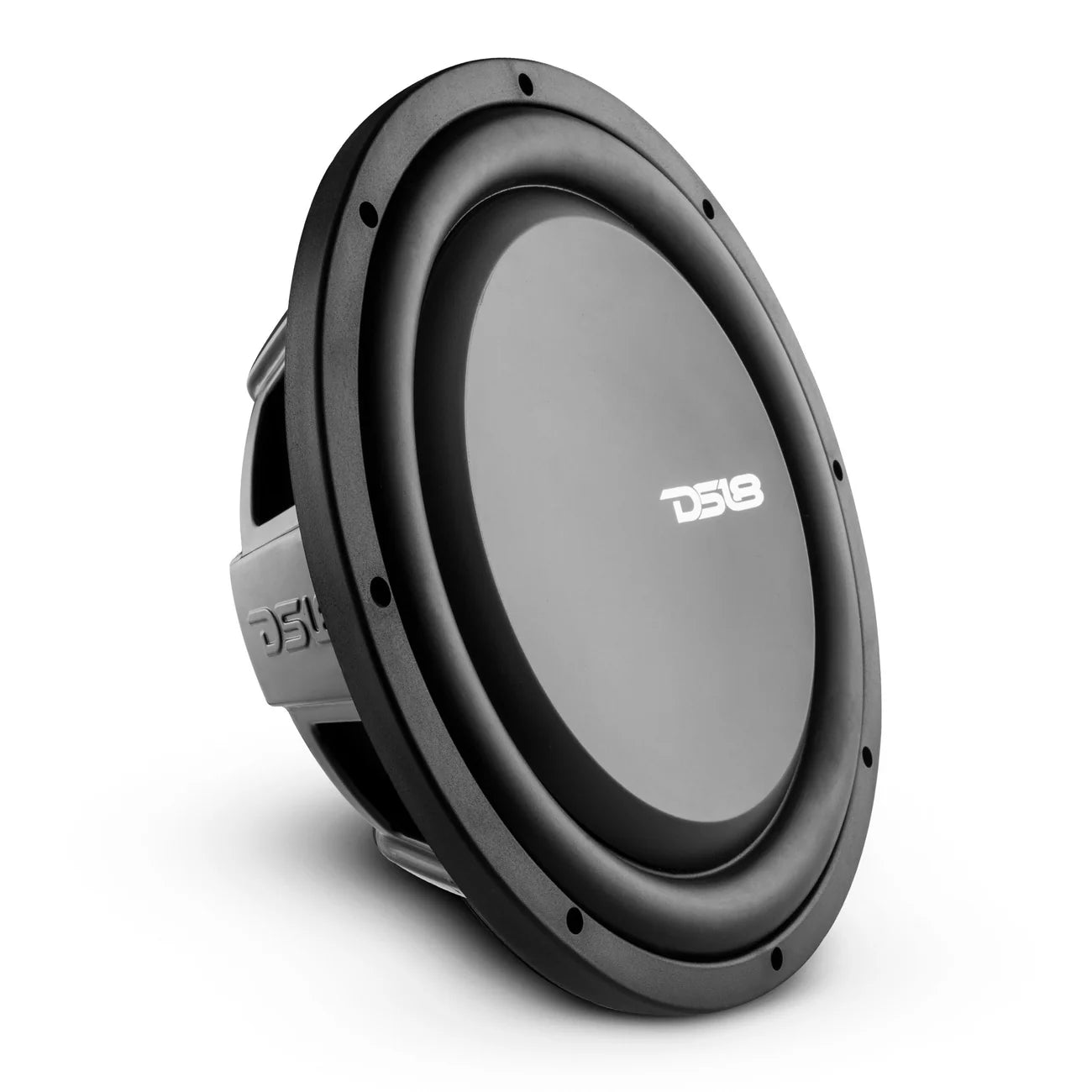

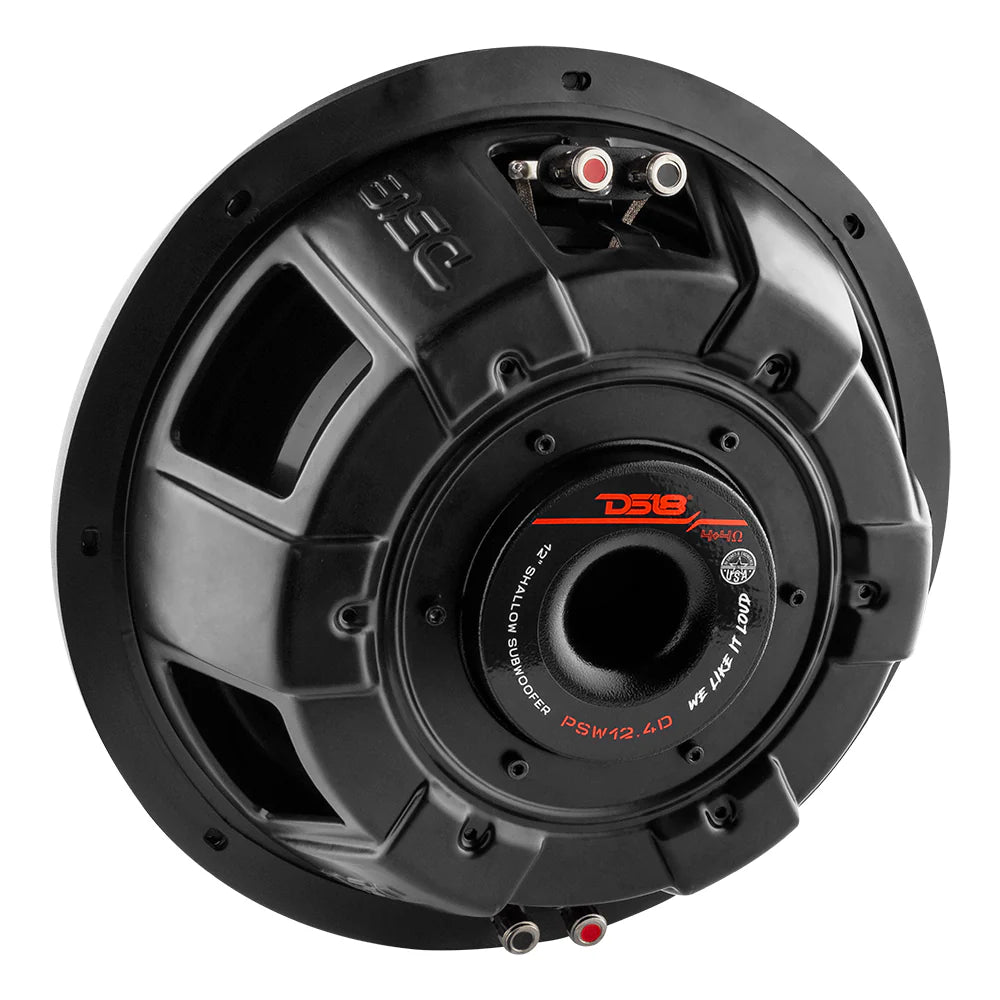

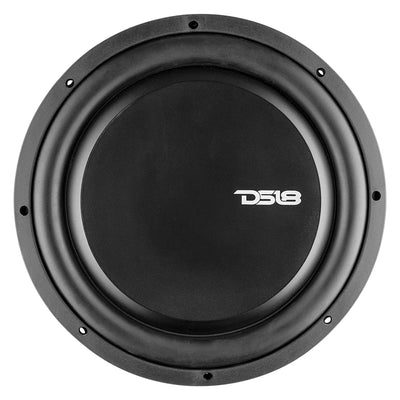

12" Key Features

  • 12" Shallow Subwoofer
  • MAX Power: 1200 Watts
  • RMS Power: 600 Watts
  • Impedance: 4 Ohm 3" SVC
  • Ferrite Magnet ~ 85dB
  • Water Resistant PPI

SPECS

SKU
PSW12.4D
Nominal Diameter
12" / 304.8 mm
Nominal Impedance
4+4 Ohms
RMS Power Handling
600 W
Maximum Power Handling
1200 W
Sensitivity (1w/1m)
85 dB
Frequency Response
20 - 600 Hz
Recommended Lo Pass Crossover
80 Hz


MOTOR

Voice Coil Diameter
3" / 76.2 mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Water Resistant PPI
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Matt Black
Magnet Material
Ferrite
Magnet Weight
68 Oz
Displacement Volume
0.95L / 0.033ft3


THIELE & SMALL PARAMETERS

Equivalent Volume Vas
47.6L / 1.68ft3
Free Air Resonance Fs
31 Hz
Mechanical Factor Qms
3.821
Electrical Factor Qes
0.932
Total Factor Qts
0.749
Moving Mass Mms
201.2 g
Compliance Cms
0.13 mm/N
Bl Factor BI
9
Voice Coil Inductance Le
2.5 mH
Diaphragm Area Sd
510.71 cm2
DC Resistance Re
3.8+3.8 Ohms
Efficiency Bandwidth Product EBP
33.2


RECOMMENDED ENCLOSURES

Sealed Internal Volume
28L / 1ft3
Sealed Box Output Response F3
40 Hz


MEASUREMENT

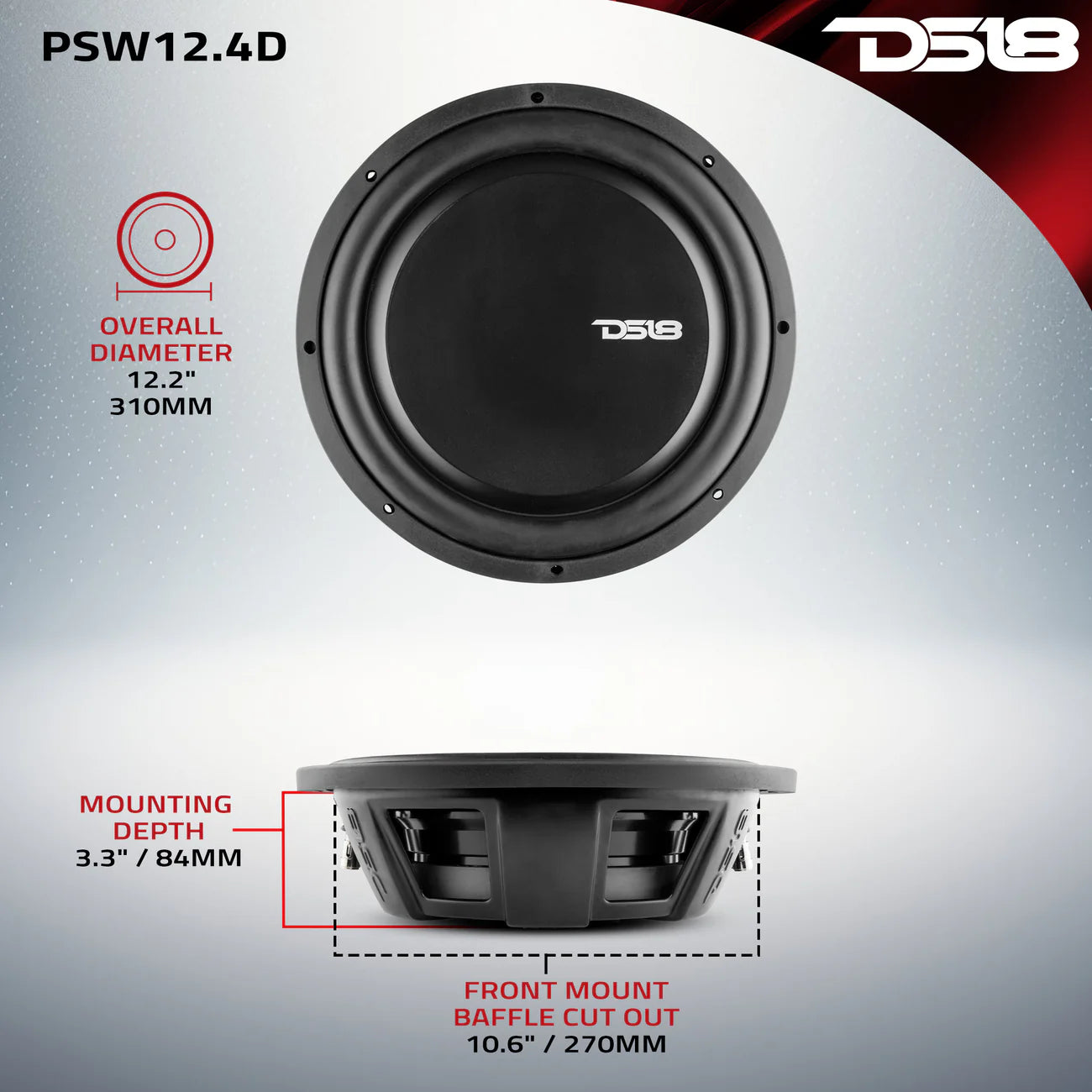

Overall Diameter
12.2" / 310 mm
Overall Depth
3.9" / 100 mm
Front Mount Baffle Cutout
10.6" / 270 mm
Mounting Depth
3.3" / 84 mm
Motor Diameter
8" / 203 mm
Gross Single Unit Weight (lb)
15
Single Unit Box Dimensions W x L x H (Inches)
14.25 x 13 x 5
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
31
Master Carton Dimensions W x L x H (Inches)
14.5 x 13.75 x 10.5

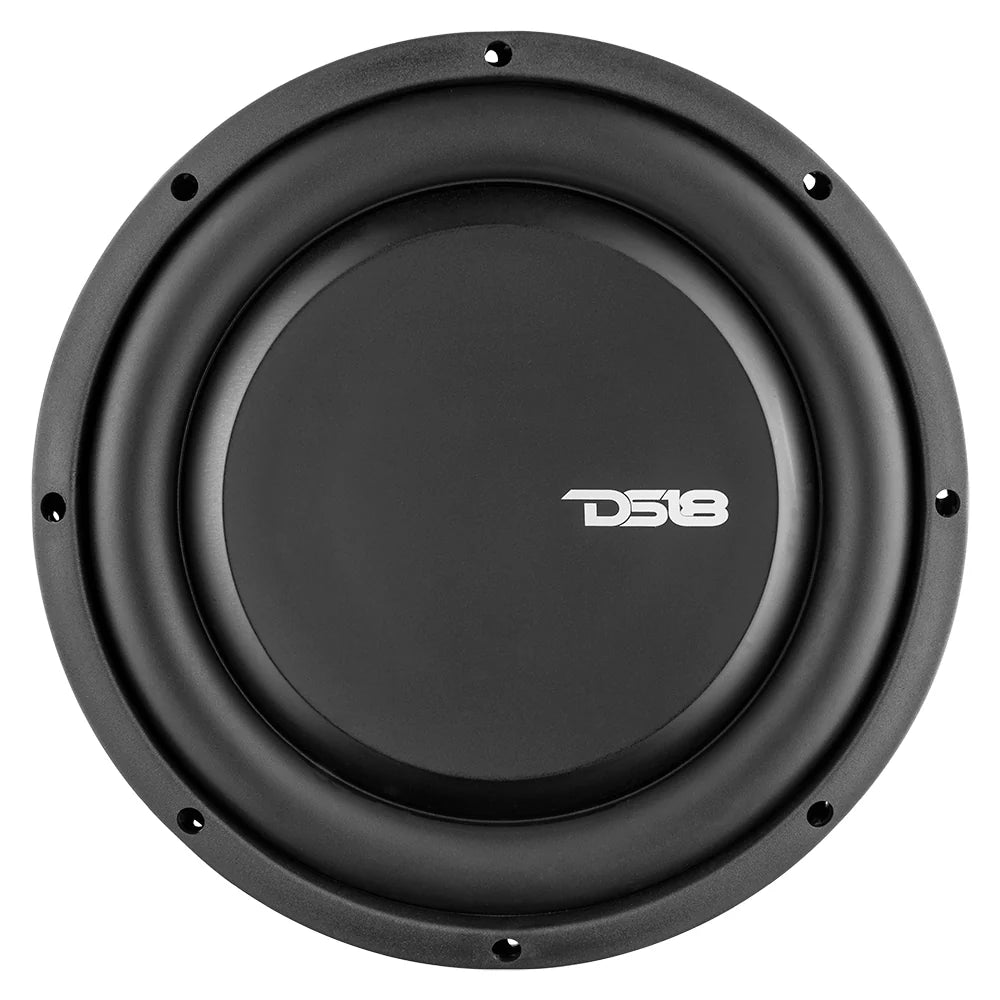

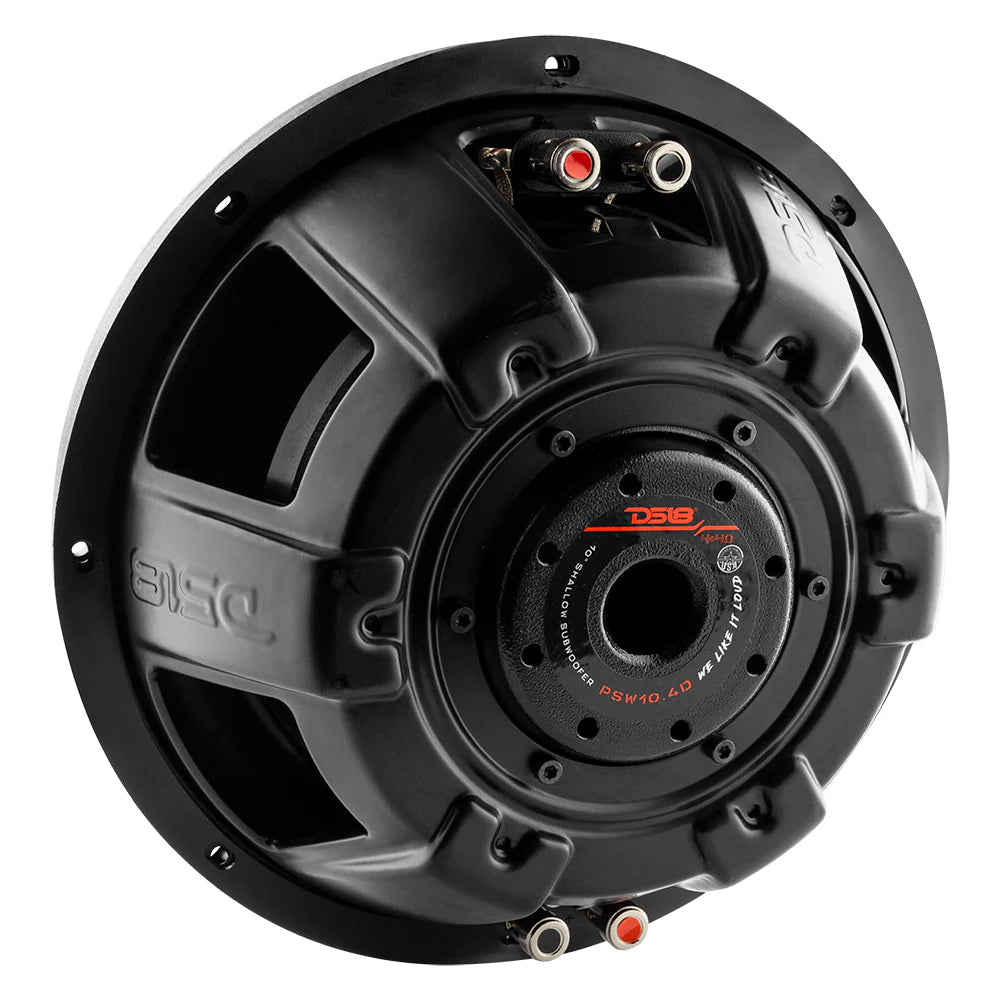

10" Key Features

  • 10" Shallow Subwoofer
  • MAX Power: 1000 Watts
  • RMS Power: 500 Watts
  • Impedance: 4 Ohm 2.5" SVC
  • Ferrite Magnet ~ 84dB
  • Water Resistant PPI

SPECS

SKU
PSW10.4D
Nominal Diameter
10" / 254 mm
Nominal Impedance
4+4 Ohms
RMS Power Handling
500 W
Maximum Power Handling
1000 W
Sensitivity (1w/1m)
84 dB
Frequency Response
20 - 800 Hz
Recommended Lo Pass Crossover
90 Hz


MOTOR

Voice Coil Diameter
2.5" / 63.5 mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Water Resistant PPI
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Matt Black
Magnet Material
Ferrite
Magnet Weight
58 Oz
Displacement Volume
0.8L / 0.028ft3


THIELE & SMALL PARAMETERS

Equivalent Volume Vas
25.6L / 0.9ft3
Free Air Resonance Fs
32 Hz
Mechanical Factor Qms
3.612
Electrical Factor Qes
0.76
Total Factor Qts
0.63
Moving Mass Mms
154 g
Compliance Cms
0.161 mm/N
Bl Factor BI
8.57
Voice Coil Inductance Le
2.1 mH
Diaphragm Area Sd
336.54 cm2
DC Resistance Re
3.6+3.6 Ohms
Efficiency Bandwidth Product EBP
42


RECOMMENDED ENCLOSURES

Sealed Internal Volume (minimum)
14.2L / 0.5ft3
Sealed Box Output Response F3
44 Hz

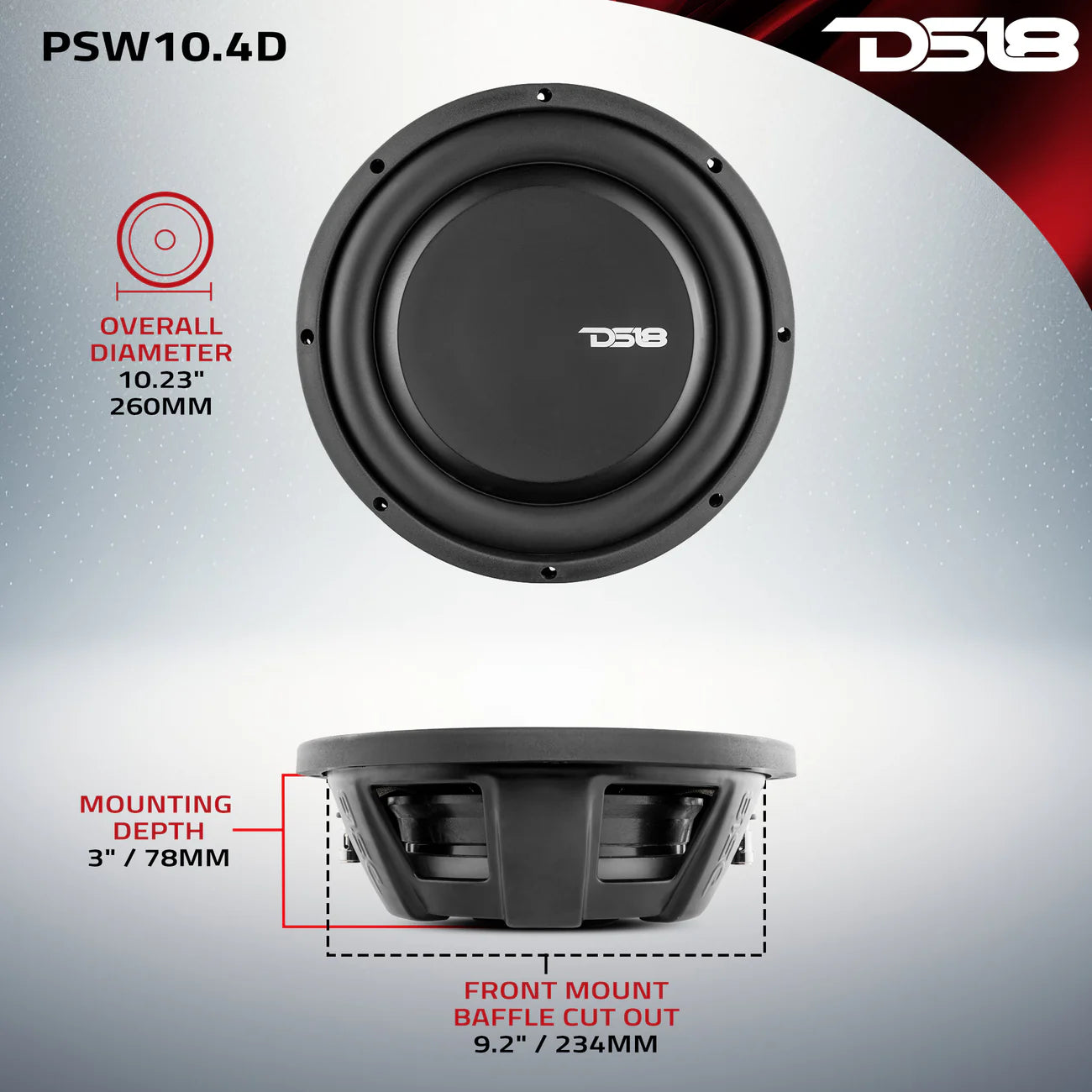

MEASUREMENT

Overall Diameter
10.23" / 260 mm
Overall Depth
3.6" / 92 mm
Front Mount Baffle Cutout
9.2" / 234 mm
Mounting Depth
3" / 78 mm
Motor Diameter
6.5" / 165 mm
Gross Single Unit Weight (lb)
11.5
Single Unit Box Dimensions W x L x H (Inches)
12.25 x 11.5 x 4.75
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
24
Master Carton Dimensions W x L x H (Inches)
12.5 x 12 x 10

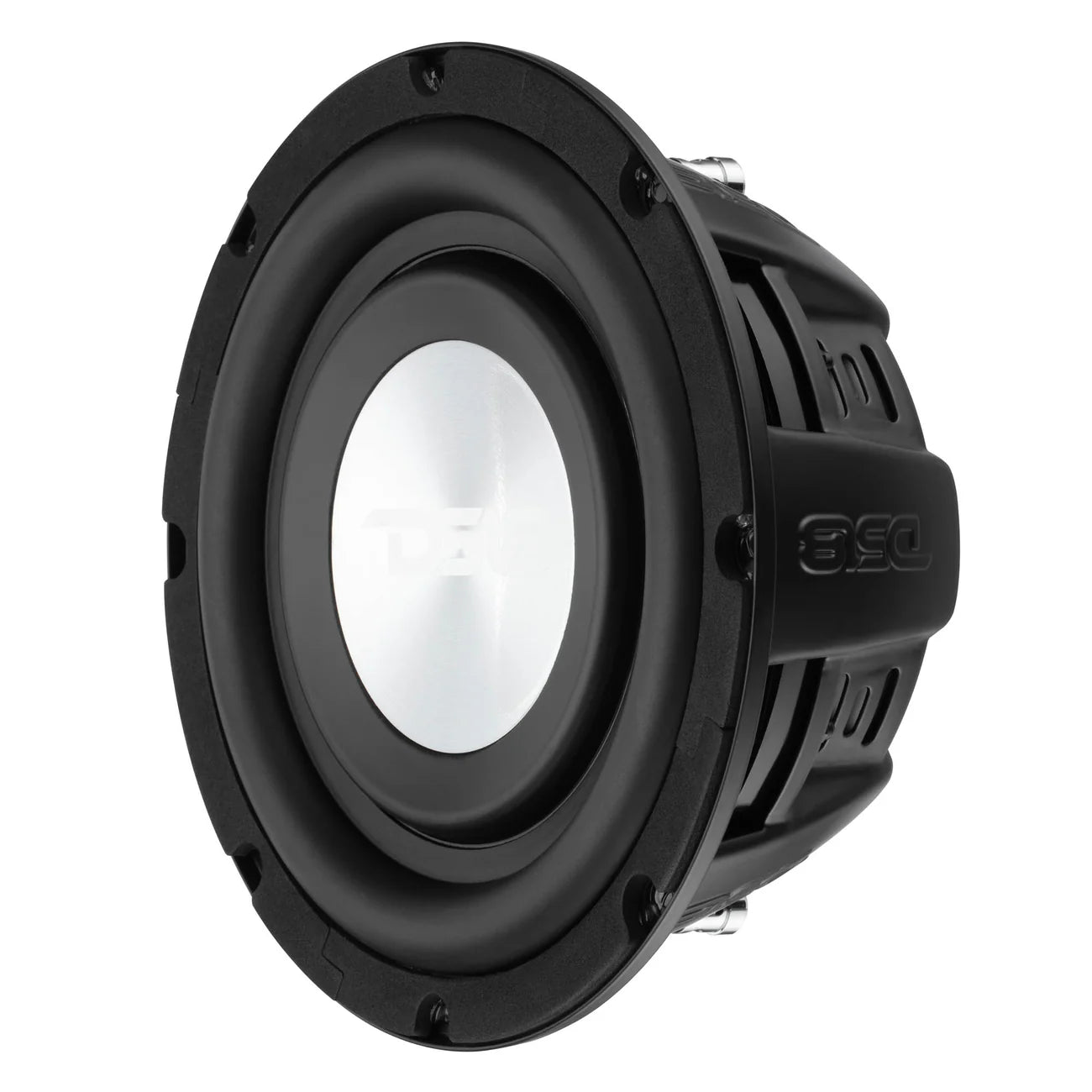

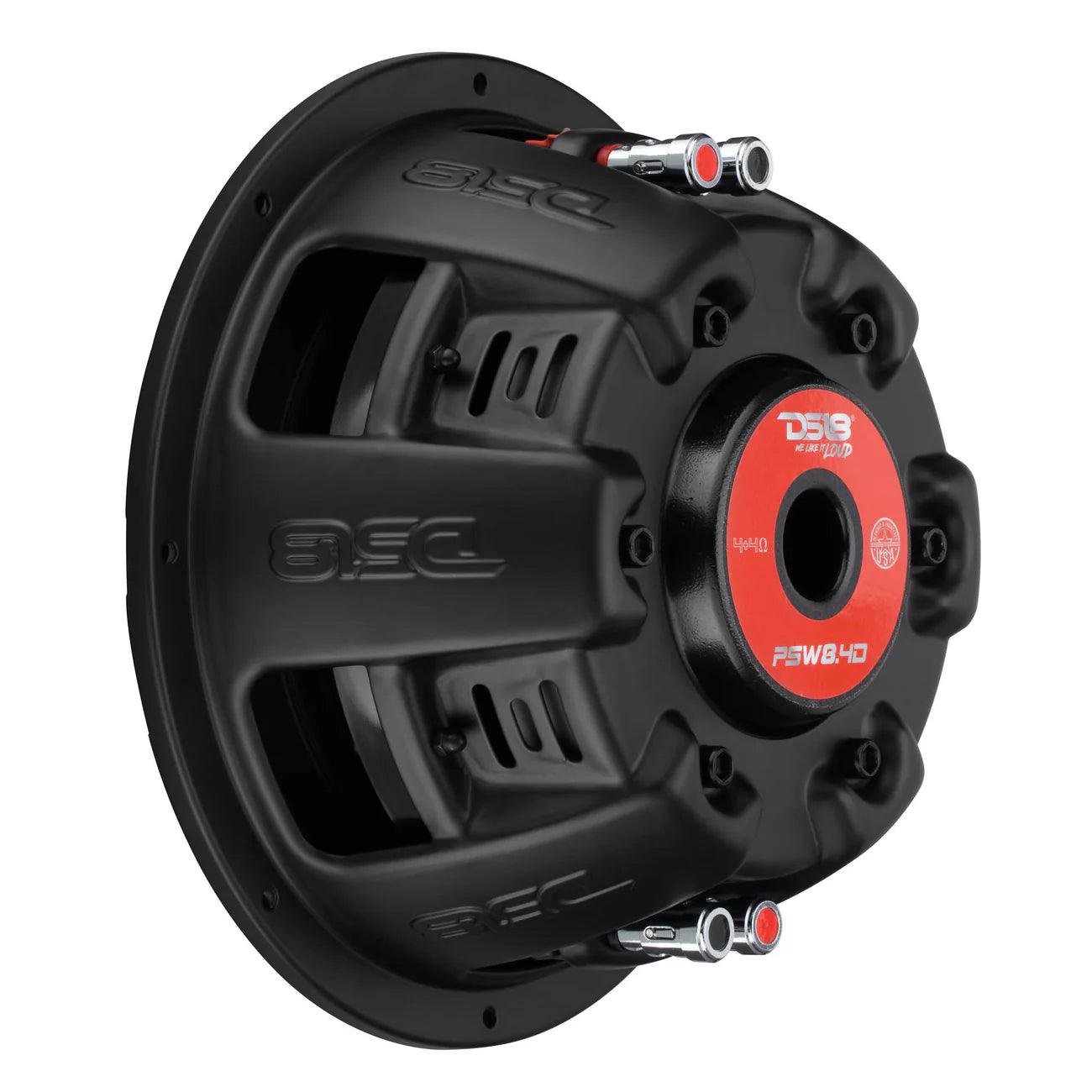

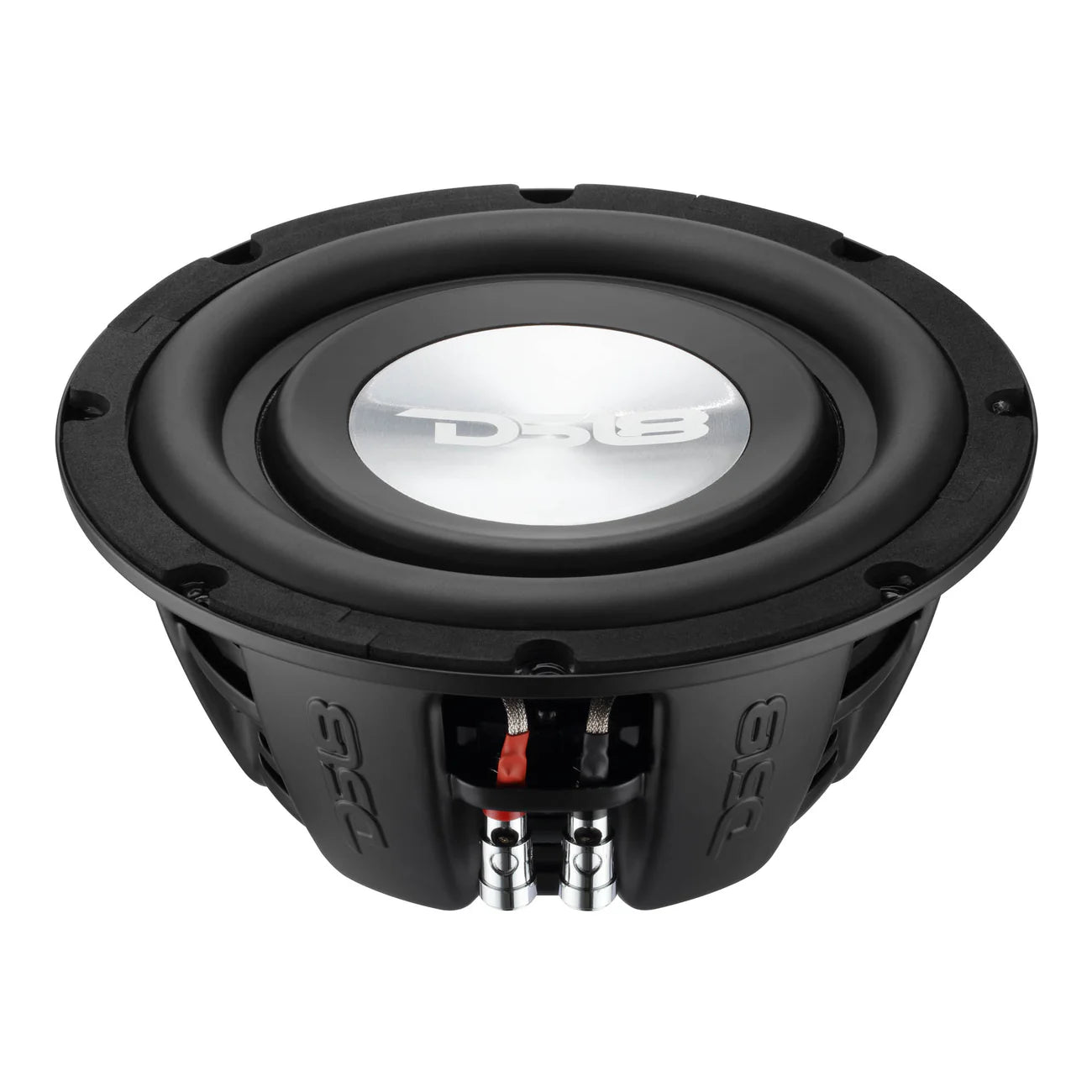

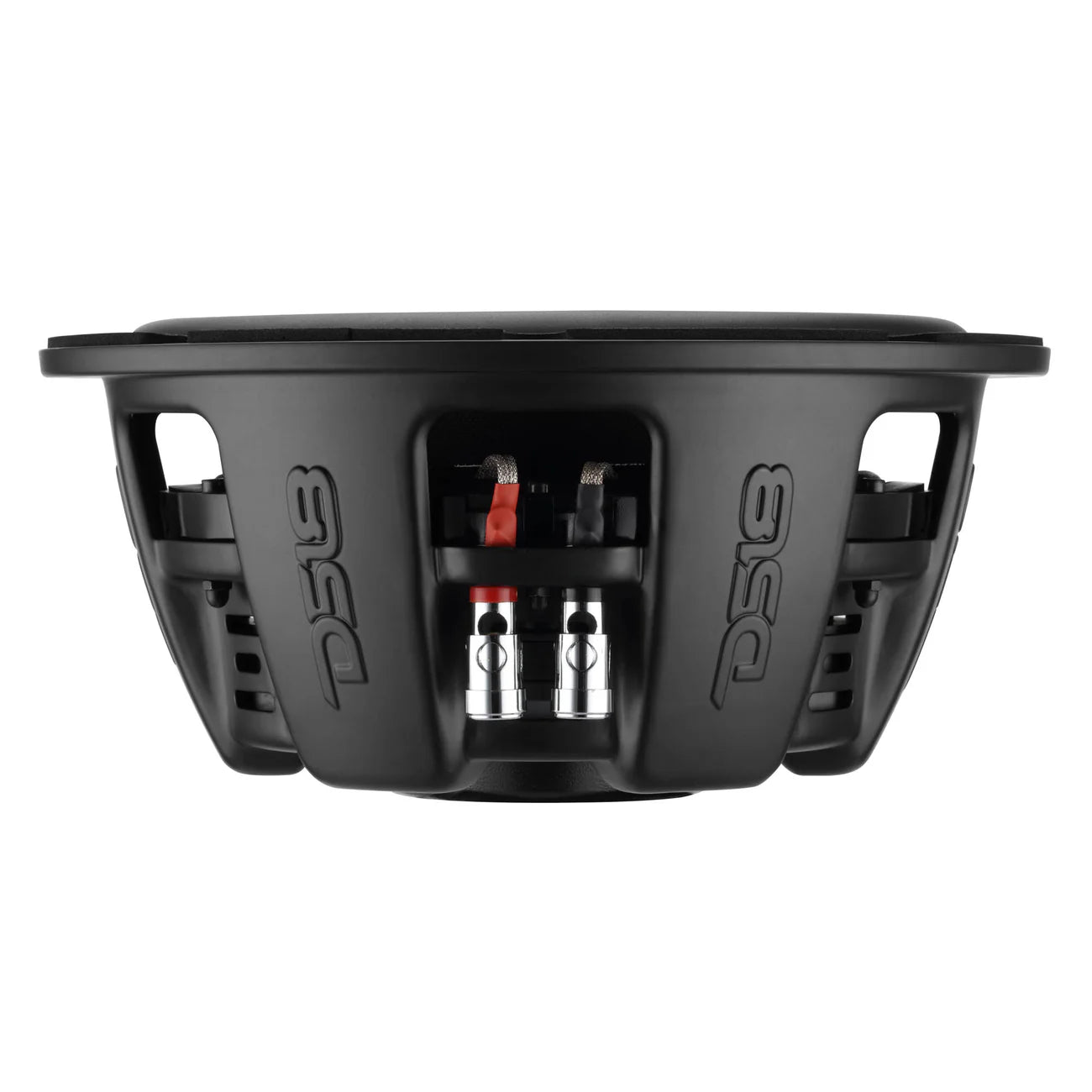

8" Key Features

  • Shallow-mount 8” subwoofer designed for tight installations
  • Dual 4-ohm voice coils for flexible system wiring
  • 400W RMS / 800W MAX power output
  • Water-resistant paper cone with aluminum reinforcement
  • 3.5” mounting depth ideal for compact enclosures



General

Nominal Diameter
8" / 203mm
Nominal Impedance
4 + 4 Ohms
RMS Power Handling
400W
MAX Power Handling
800W
Sensitivity (1W/1M)
81 dB
Frequency Response
20-300 Hz
Recommended Low-Pass Crossover
100 Hz


Motor

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Water-resistant paper with aluminum reinforcement
Surround Material
Rubber
Magnet Material
Ferrite
Magnet Weight
38 oz
Displacement Volume
0.5 L / 0.017 ft3
Basket Material
Steel
Basket Finish
Matte Black


Thiele & Small Parameters

Equivalent Volume (Vas)
9.38 L / 0.33 ft3
Excursion (Xmax, one way)
8.5 mm
Free Air Resonance (Fs)
42 Hz
Mechanical Factor (Qms)
4.08
Electrical Factor (Qes)
1.06
Total Factor (Qts)
0.84
Moving Mass (Mms)
98.43 g
Compliance (Cms)
141.08 mm/N
BL Factor
12.61
Voice Coil Inductance (Le)
1.83 mH
Diaphragm Area (Sd)
216 cm2
DC Resistance (Re)
3.2 + 3.2 Ohms
Efficiency Bandwidth Product (EBP)
39.6


Recommended Enclosure

Sealed Internal Volume Range
10L to 37L / 0.35ft3 to 1.3 ft3
Sealed Box Output Response (F3)
43-38 Hz


Measurement

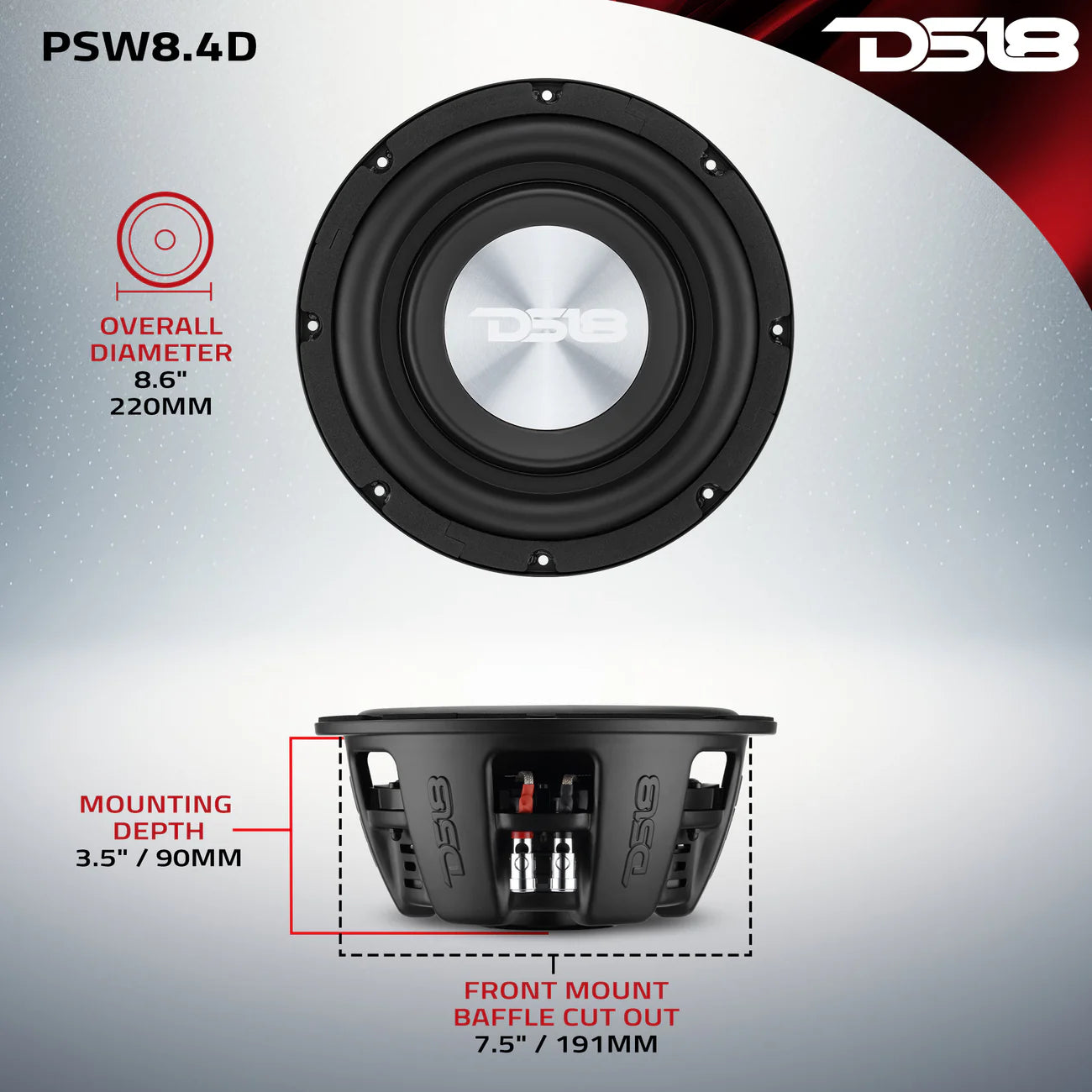

Overall Diameter
8.6" / 220mm
Overall Depth
4" / 102mm
Front Mount Baffle Cutout
7.5" / 191mm
Mounting Depth
3.5" / 90mm
Motor Diameter
5.27" / 134mm
