Product Overview

Description

Key Features

  • 6.5" bullet black-on-black pro-audio loudspeaker
  • 300W RMS / 600W MAX power handling, 4-ohm

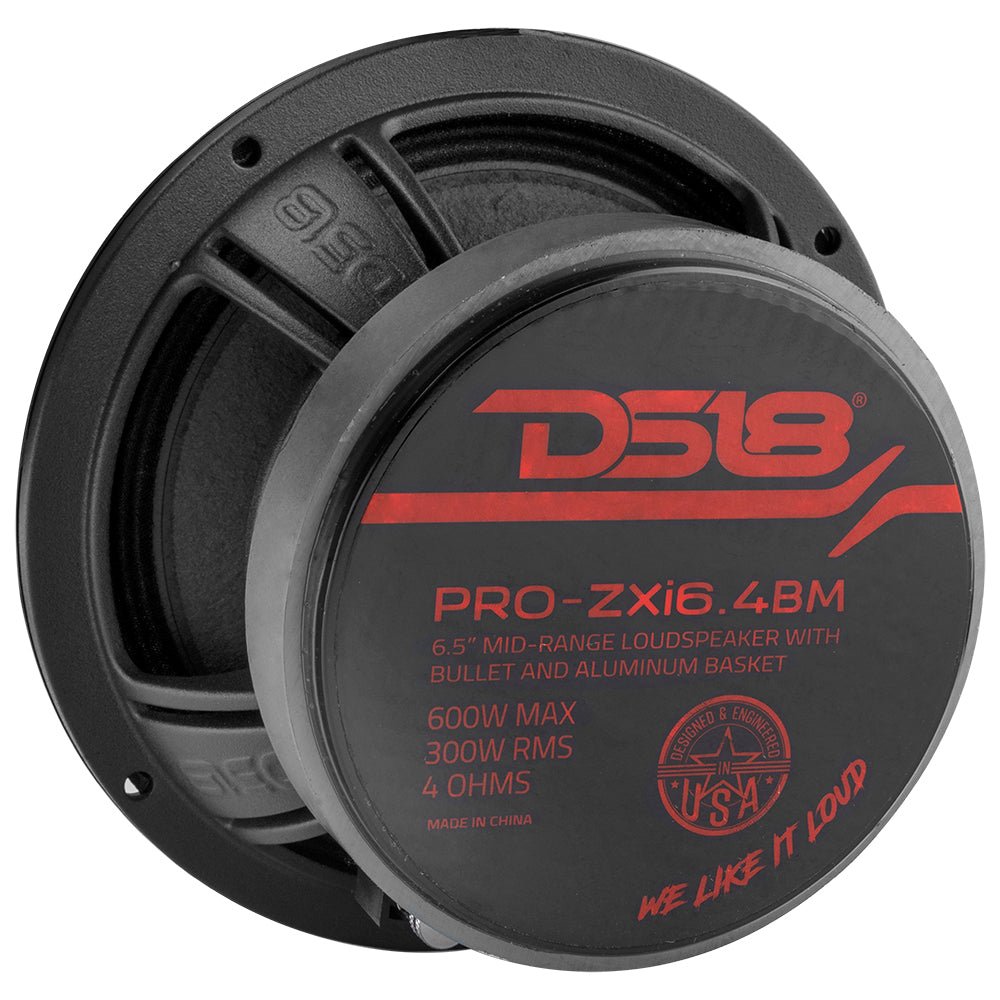

  • Ferrite + neodymium hybrid motor, 30 oz + 3 oz
  • 1.5" glass-fiber voice coil, aluminum basket and bullet
  • 97dB sensitivity, 100Hz–10KHz
  • Sold per each

Overview

The ZXI series brings pro audio to a brighter level of clarity and loudness. The PRO-ZXI6.4BM is built for the enthusiast who wants extreme volume with real sound quality, absorbing power efficiently so it can play loud with authority for extended periods.

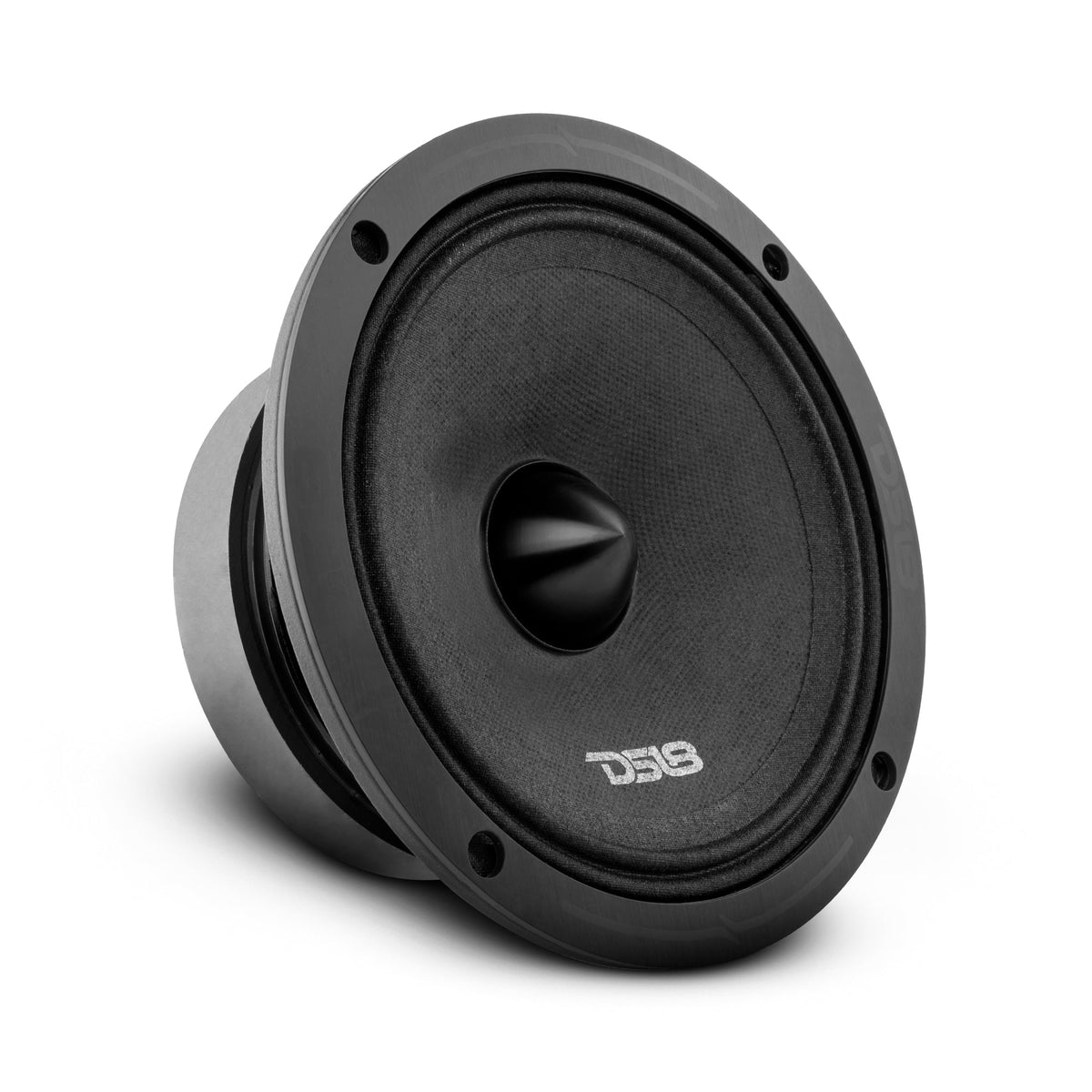

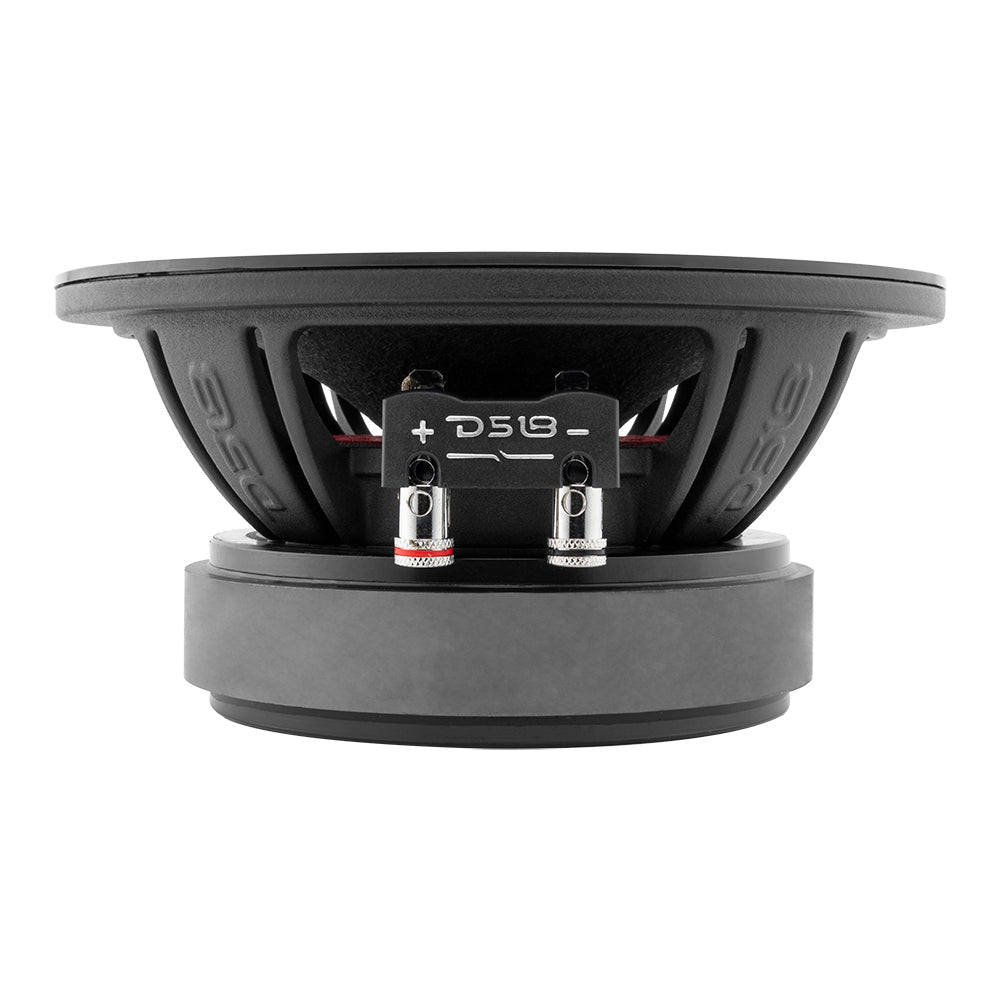

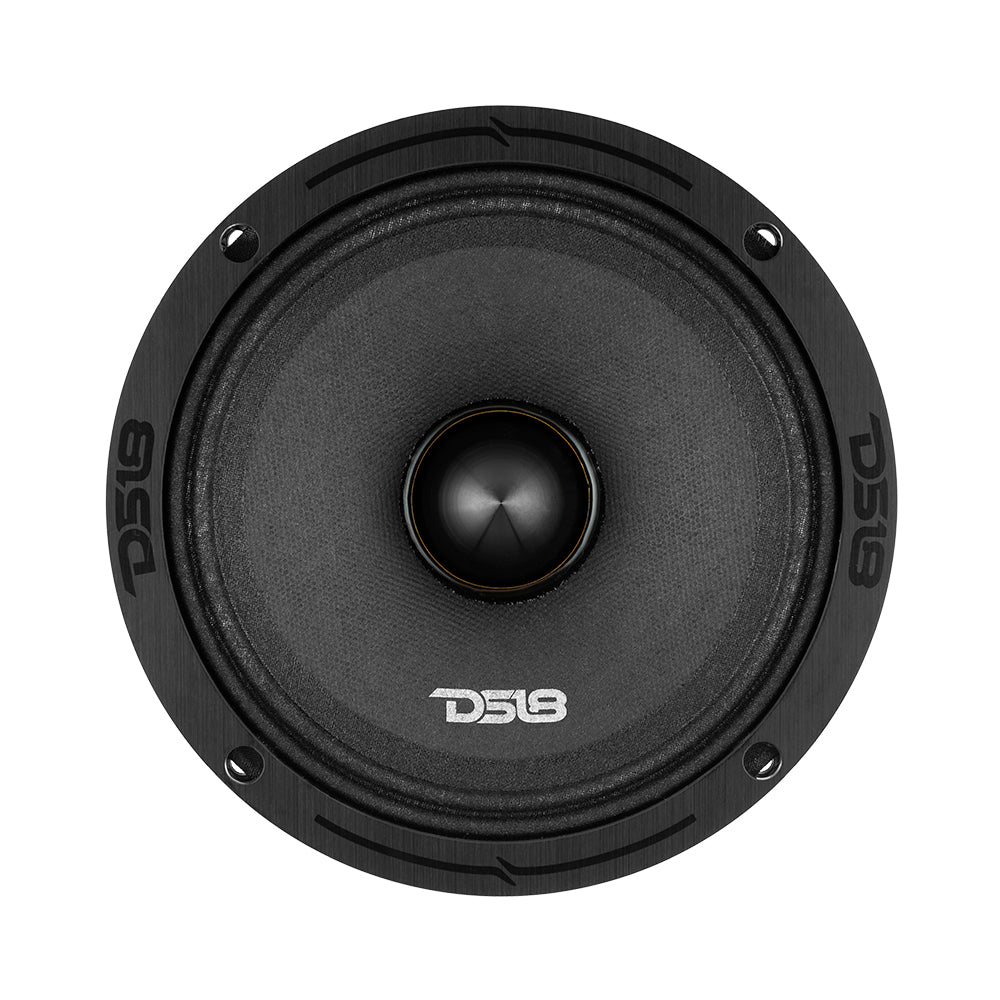

It wears a black sandblasted aluminum basket with a black-on-black bullet dust cap. This 4-ohm 6.5" handles 300 watts RMS and 600 watts MAX, keeping mid and high frequencies acute and clear. Great for car audio, pro audio, motorcycles, home studios, hi-fi installs, stunt walls, and DIY projects.

SPECS

SKU
PRO-ZXI6.4BM
Nominal Diameter
6.5" / 165.1mm
Nominal Impedance
4 OHMS
RMS Power Handing
300 Watts
Maximum Power Handing
600 Watts
Sensitivity (1w/1m)
97dB
Frequency Response
100Hz - 10Khz
Recommended Hi Pass Crossover
160Hz


SPECS

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Basket Material
Aluminum
Magnet Weight
30 + 3 Oz


THIELE & SMALL PARAMETERS

Vas
4.7L / 0.165ft3
Xmax
7.2mm
Fs
150Hz
Qms
9.696
Qes
0.589
Qts
0.556
Re
3 ohm

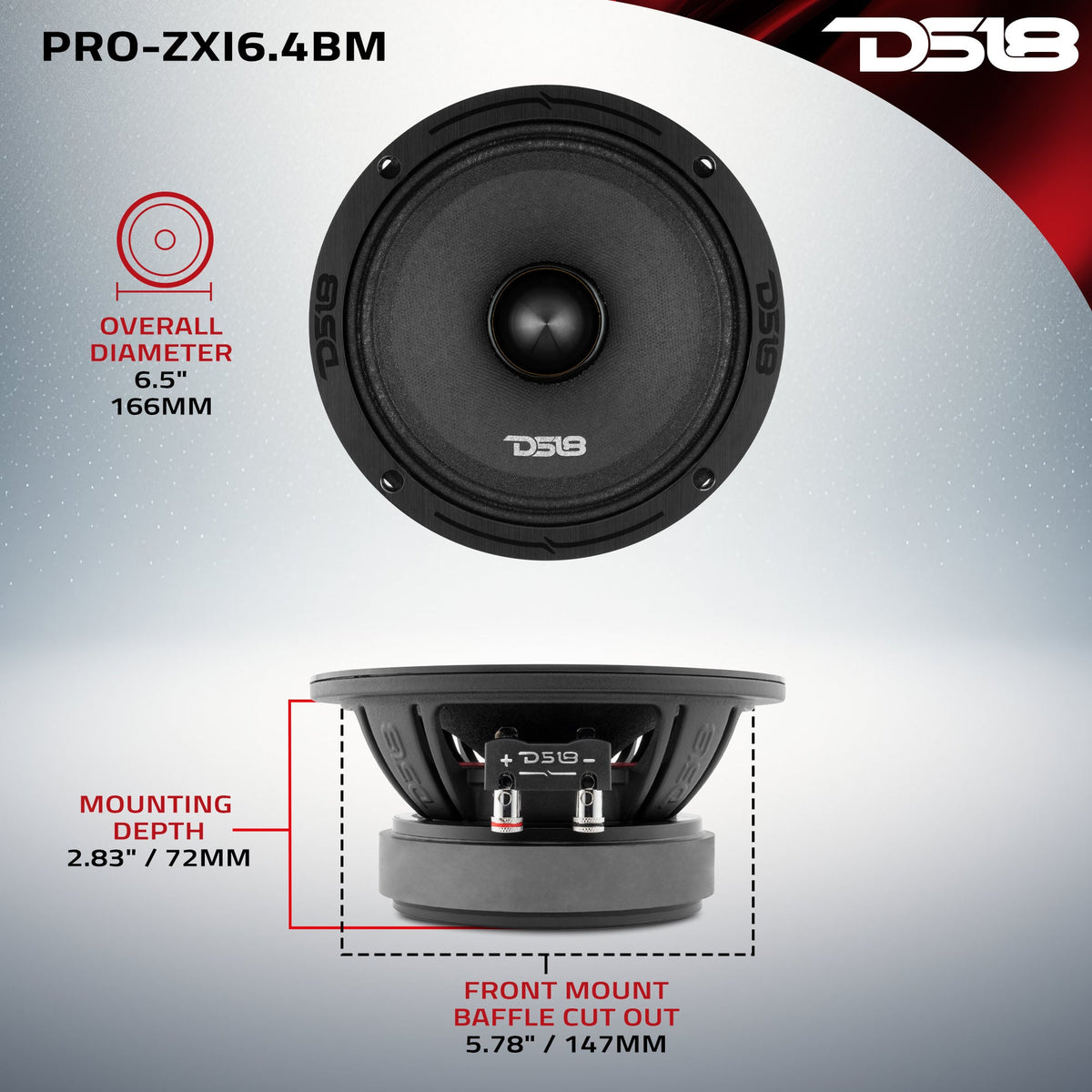

MEASUREMENTS

Overall Diameter
6.5" / 166mm
Front Mount Baffle Cutout
5.78" / 147mm
Mounting Depth
2.83" / 72mm
Overall Depth
3.16" / 80.5mm
Product Weight
5.5 lbs
Product Dimensions
7.25 x 7.25 x 3.75
Sold In
Piece

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
