Product Overview

Description

Key Features

  • 200W RMS / 400W MAX power handling
  • 4-Ohm impedance
  • 96dB sensitivity (1W/1m, with grill)

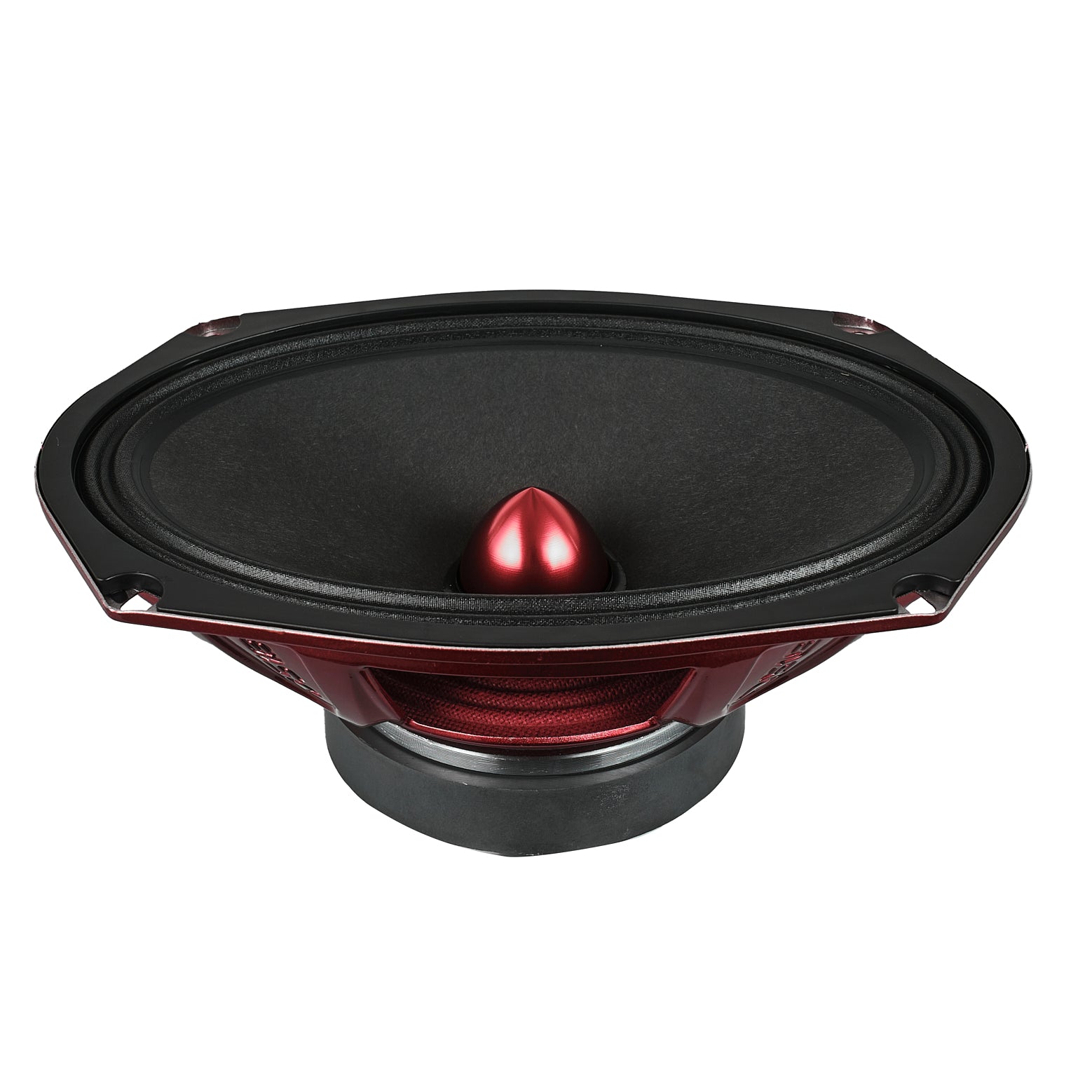

  • Aluminum bullet phase plug widens frequency dispersion

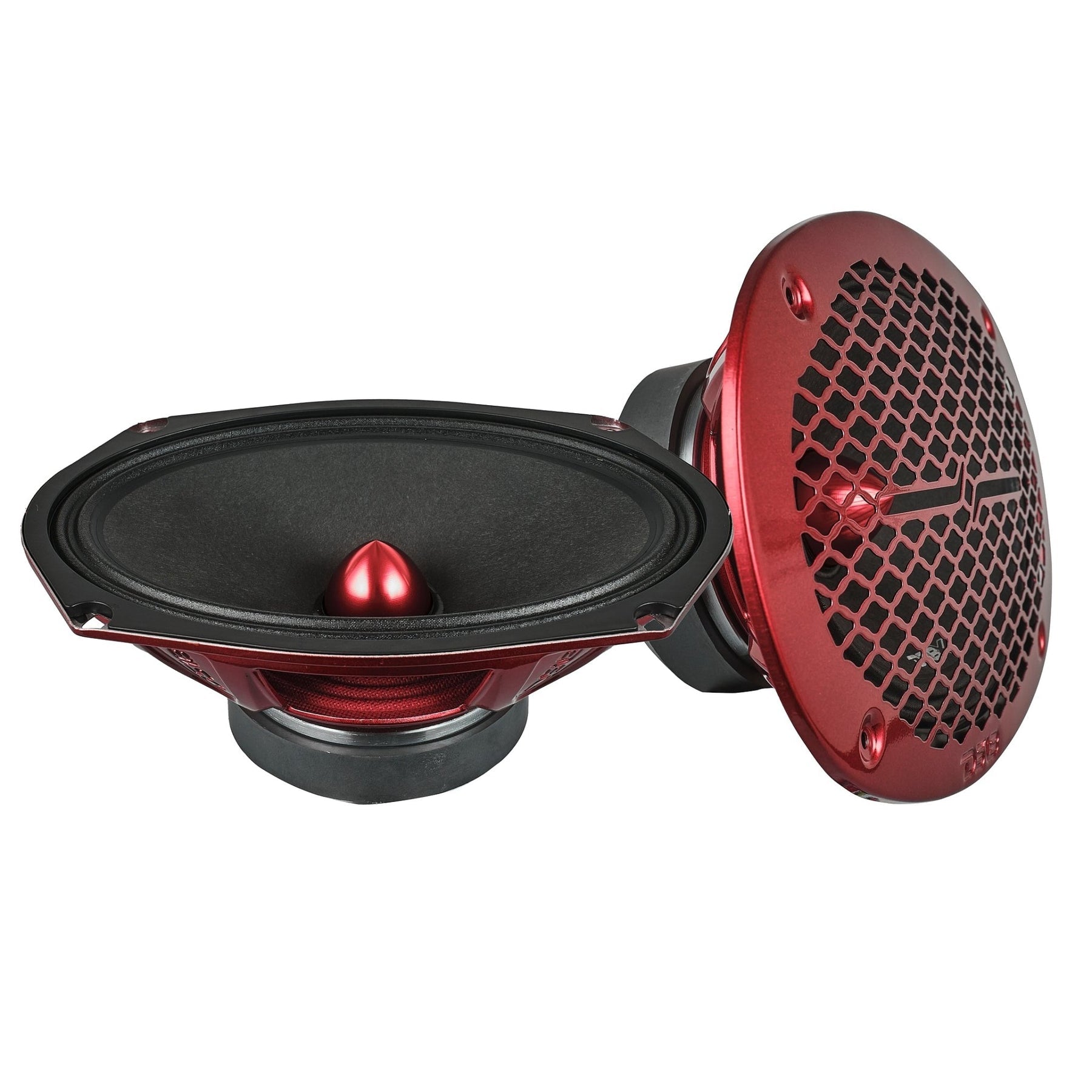

  • Glossy red steel basket with honeycomb grill

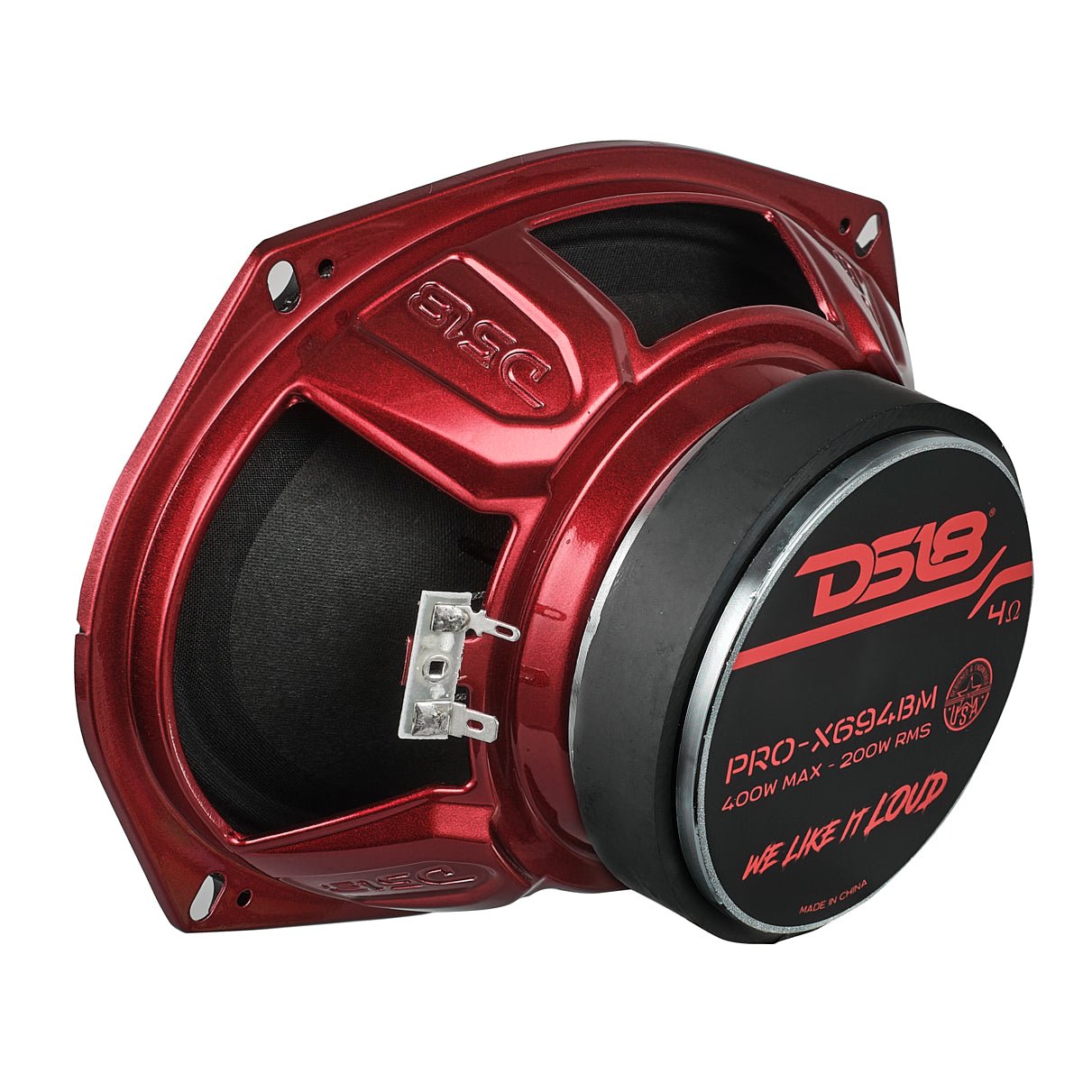

  • 1.5" Kapton voice coil, 27 oz ferrite magnet, non-pressed paper cone

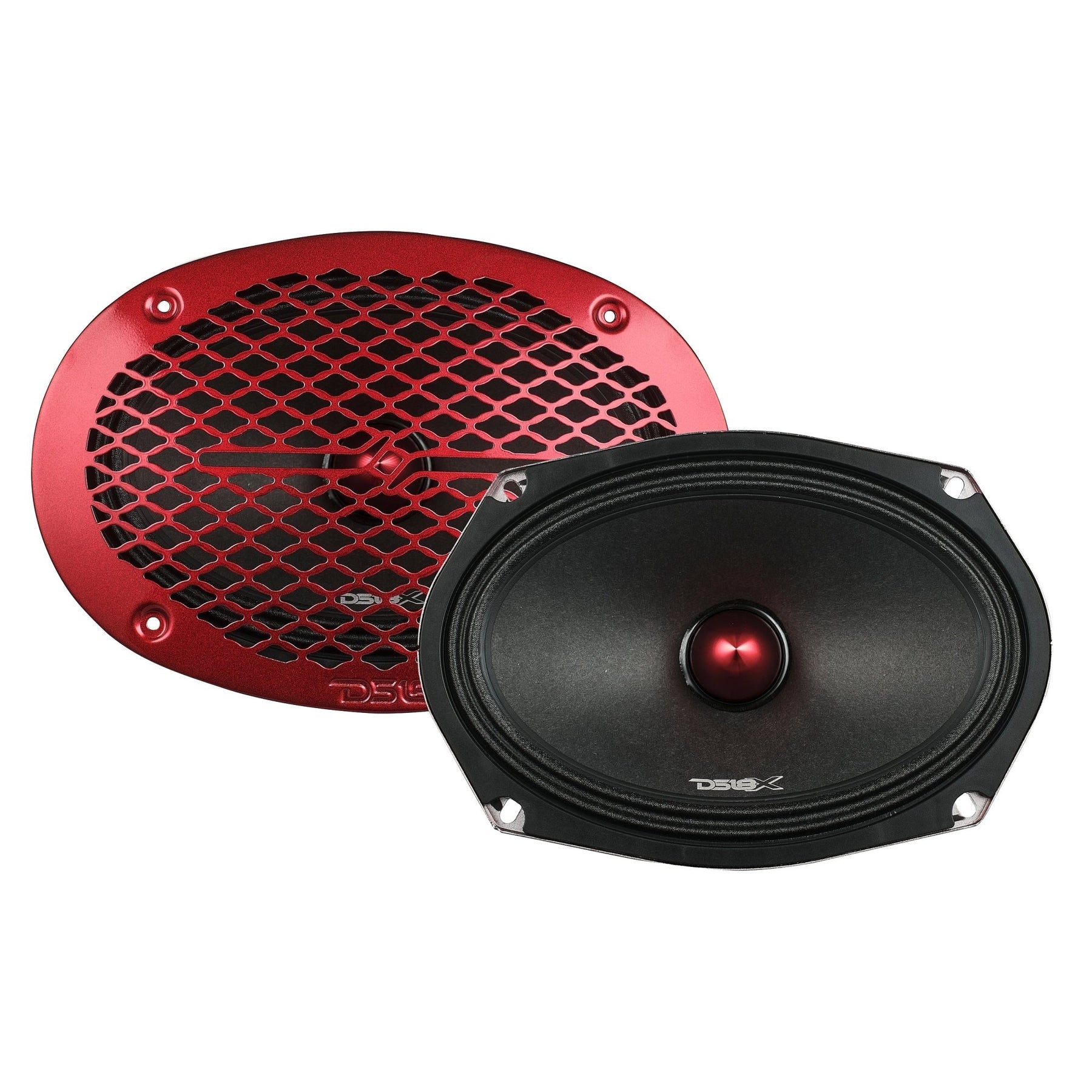

  • Sold as: single (each) — grill included

Product Overview

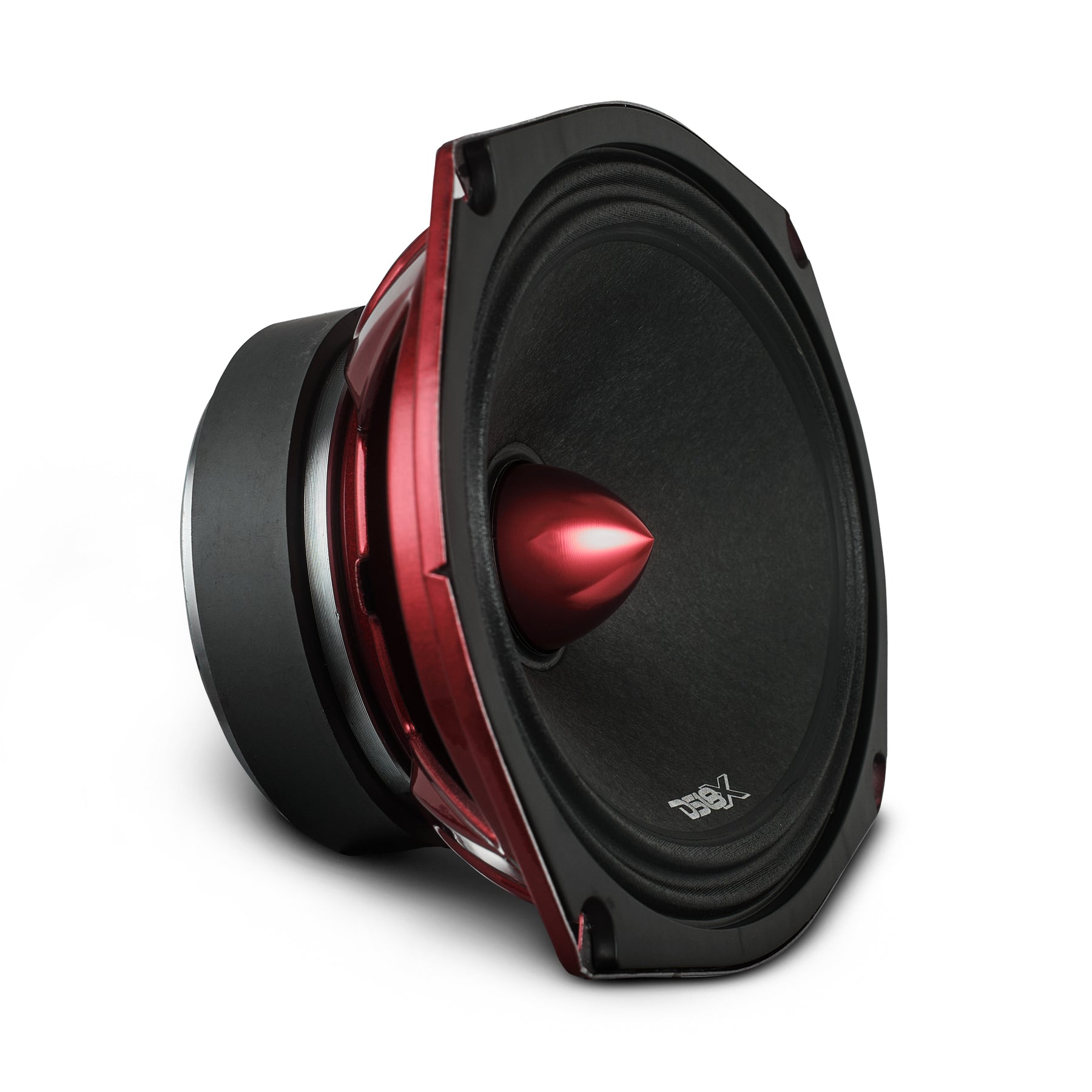

The DS18 PRO-X694BM is a 6x9" mid-range loudspeaker rated at 200W RMS and 400W MAX at 4 ohms. A 1.5" Kapton voice coil, 27 oz ferrite magnet, and non-pressed paper cone deliver clean, punchy mids with 96dB sensitivity across a 100Hz–12.5kHz response. The aluminum bullet phase plug widens frequency dispersion and adds structural strength, while the glossy red steel basket and honeycomb grill give the speaker its PRO-X look. A 3.27" mounting depth suits most standard vehicle installs. Sold as: single (each) — grill included.

SPECS

SKU PRO-X694BM
Nominal Diameter 6 x 9" / 152 x 228mm
Nominal Impedance 4 Ohm
RMS Power Handling 200W
MAX Power Handling 400W
Sensitivity (1w/1m) 96dB
Frequency Response 100Hz-12.5KHz
Recommended HI Pass Crossover 120HZ
Sold in Pair or Single Single
Grill Included Yes
Voice Coil Diameter 1.5" / 38.6mm
Voice Coil Former Material Kapton
Winding Material CCAW
Cone Material Non-Pressed Paper
Bullet Material Aluminum
Bullet Color/Finish Glossy Red
Surround Material Cloth
Basket Material Steel
Basket Color/Finish Glossy Red
Magnet Material Ferrite
Magnet Weight 27Oz
Displacement Volume 0.32L / 0.011ft3
Equivalent Volume 20.38L / 0.719ft3
Excursion (one way) 7.7mm
Free Air Resonance 120Hz
Mechanical Factor 5.166
Electrical Factor 0.731
Total Factor 0.64
Mechanical Mass 8.551g
Mechanical Compliance 0.225mm/N
BL Factor 6.544
Voice Coil Inductance 3.86mH
Cone Area 207.34cm2
DC Resistance 3.2 ohms

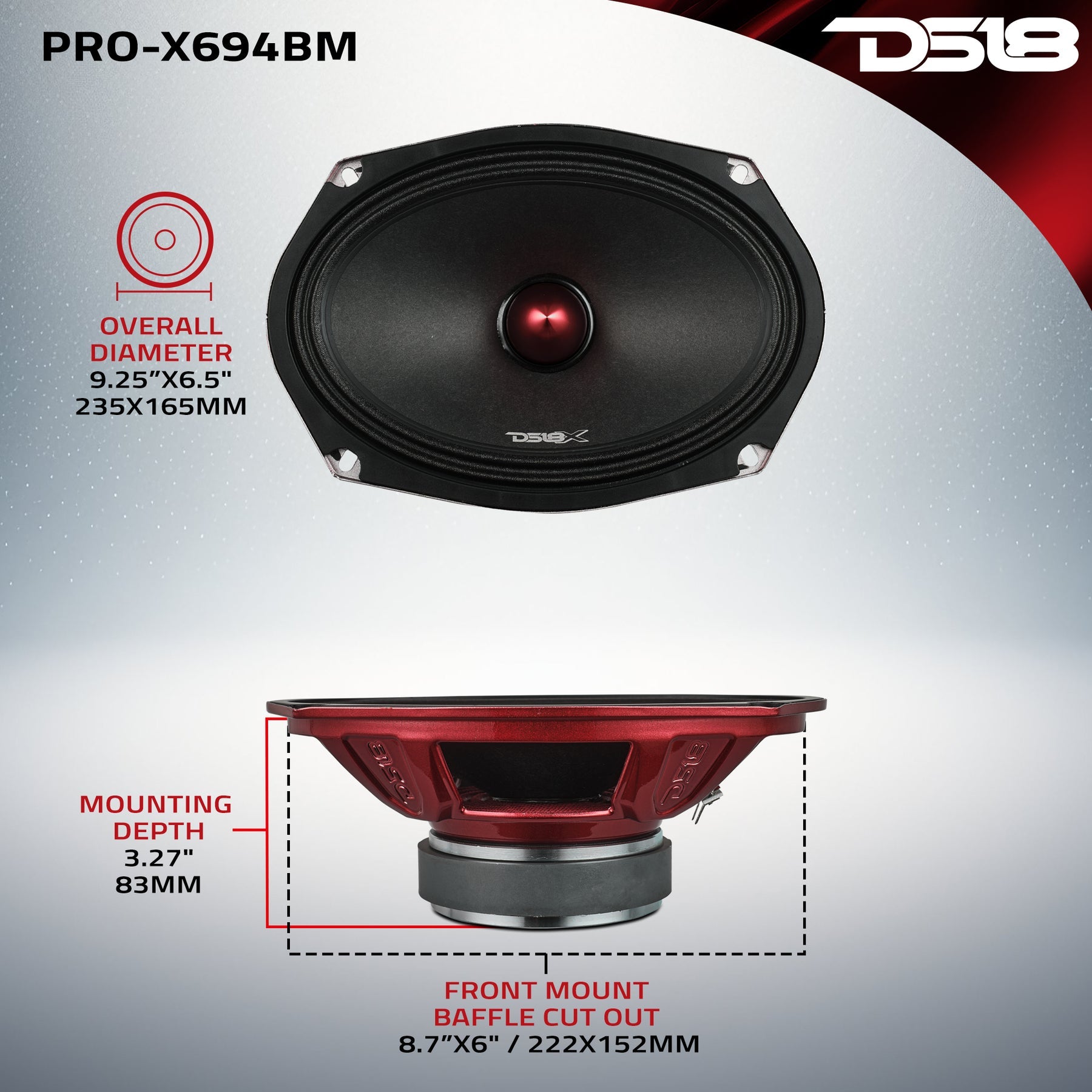

Overall Diameter 9.25 x 6.5" / 235 x 165mm
Overall Diameter With Grill 10.2 x 7.08" / 260 x 180mm
Overall Depth 3.5" / 88.85mm
Overall Depth With Grill 3.9" / 100mm
Front Mount Baffle Cutout 8.7 x 6" / 222 x 152mm

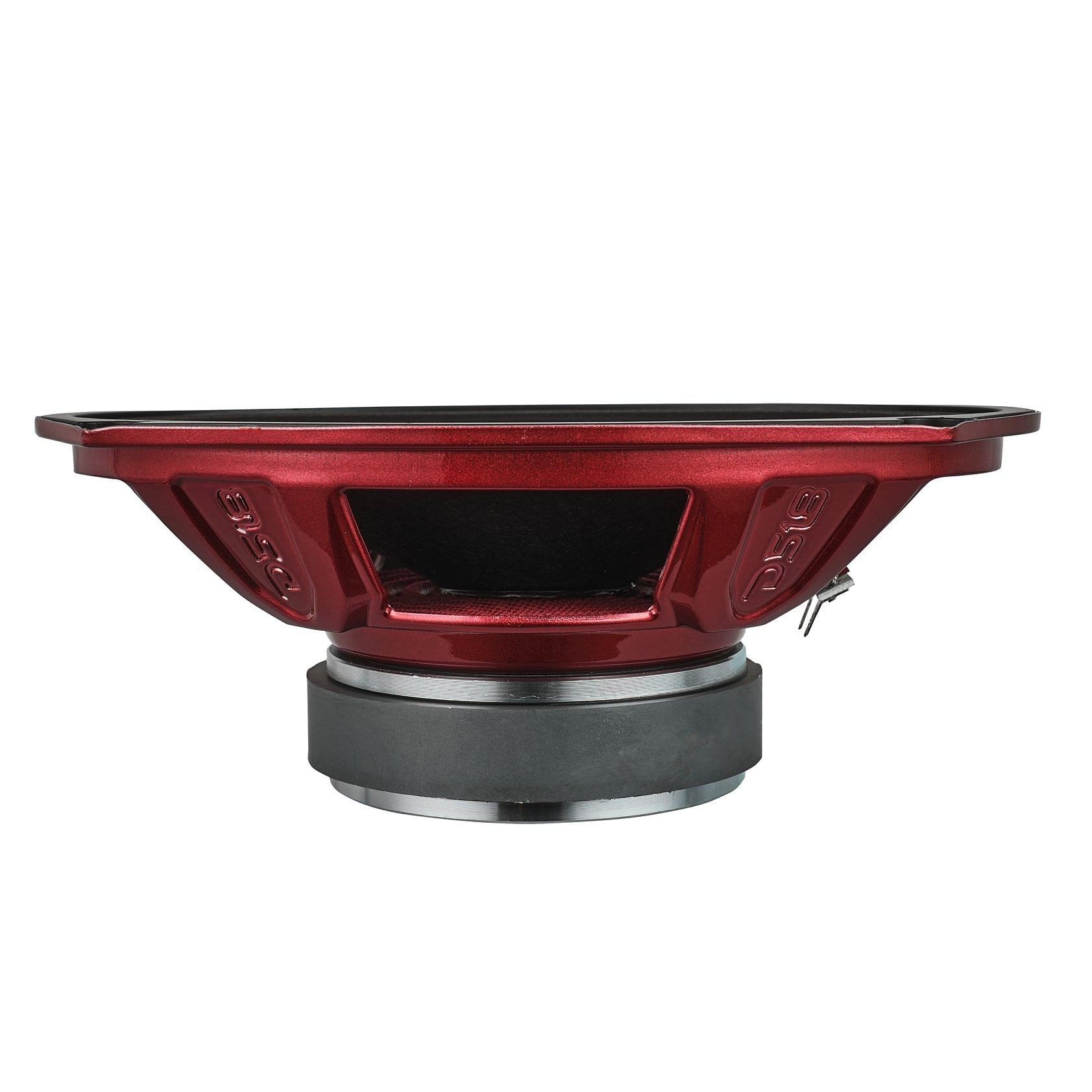

Mounting Depth 3.27" / 83mm
Motor Diameter 4.3" / 110mm

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
