Product Overview

Description

Sold as a single unit — price is per speaker (/each).

Key Features

  • 6.5" shallow mid-range loudspeaker with glossy red aluminum bullet (phase plug)
  • 200W RMS / 400W MAX power handling, 4 ohms

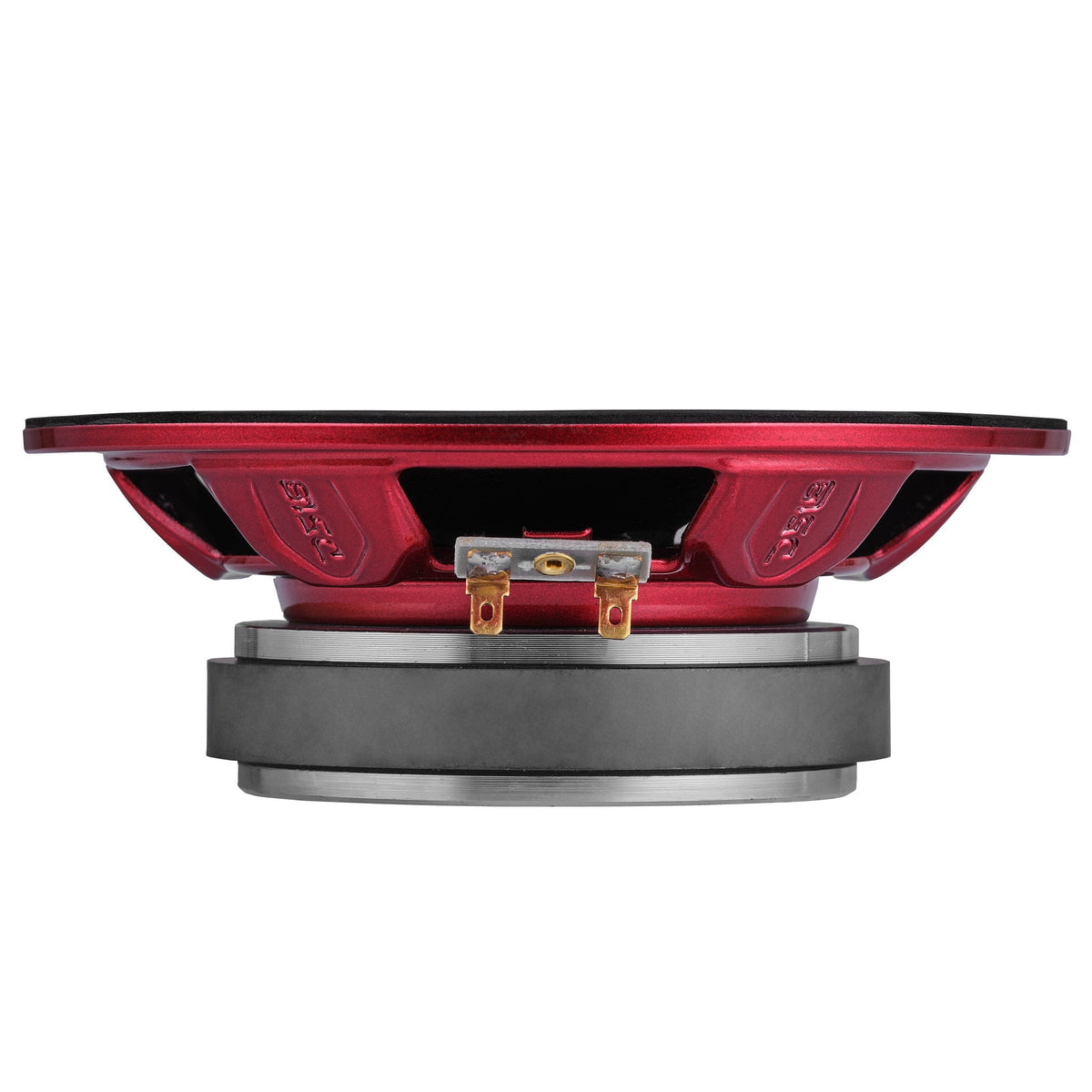

  • Shallow 2.15" (54.5mm) mounting depth for tight door and panel locations
  • 21 oz ferrite magnet, 1.5" Kapton voice coil with CCAW winding
  • 93dB sensitivity, 80Hz – 5KHz frequency response, cloth surround, non-pressed paper cone
  • Red steel basket; grill not included

Overview

The DS18 PRO-X6.4BMSL is the shallow-mount version of the PRO-X 6.5" mid-range bullet loudspeaker. At 2.15" of mounting depth it fits locations the standard-depth PRO-X6BM will not, while keeping the same pro-audio build: a non-pressed paper cone, cloth surround, and a 1.5" voice coil made for sustained volume.

The red aluminum bullet is a phase plug that extends the driver's upper range; it is not a separate tweeter, so pair it with a dedicated tweeter for full high-frequency coverage. Rated 200W RMS and 400W MAX at 4 ohms with 93dB sensitivity. Sold as a single unit.

Specifications

SKU PRO-X6.4BMSL
Nominal Diameter 6.5" / 165mm
Nominal Impedance 4 ohms
RMS Power Handling 200W
MAX Power Handling 400W
Sensitivity (1w/1m) 93db
Frequency Response 80Hz - 5KHz
Recommended HI Pass Crossover 130Hz
Sold as Single Unit
Grill Included No
Motor
Voice Coil Diameter 1.5" / 38.1mm
Voice Coil Former Material Kapton
Winding Material CCAW
Cone Material Non-Pressed Paper
Bullet Material Aluminum
Bullet Color/Finish Glossy Red
Surround Material Cloth
Basket Material Steel
Basket Finish / Color Glossy Red
Magnet Material Ferrite
Magnet Weight 21 Oz
Thiele & Small Parameters
Equivalent Volume Vas 4.51L / 0.159ft3
Excursion (one way) Xmax 6.4mm
Free Air Resonance Fs 140Hz
Mechanical Factor Qms 6.59
Electrical Factor Qes 0.81
Total Factor Qts 0.72
Mechanical Mass Mms 6.92g
Mechanical Compliance Cms 0.19mm/N
BL Factor BL 4.99
Voice Coil Inductance Le 0.03mH
Cone Area Sd 130.7Cm2
DC Resistance Re 3.3ohms

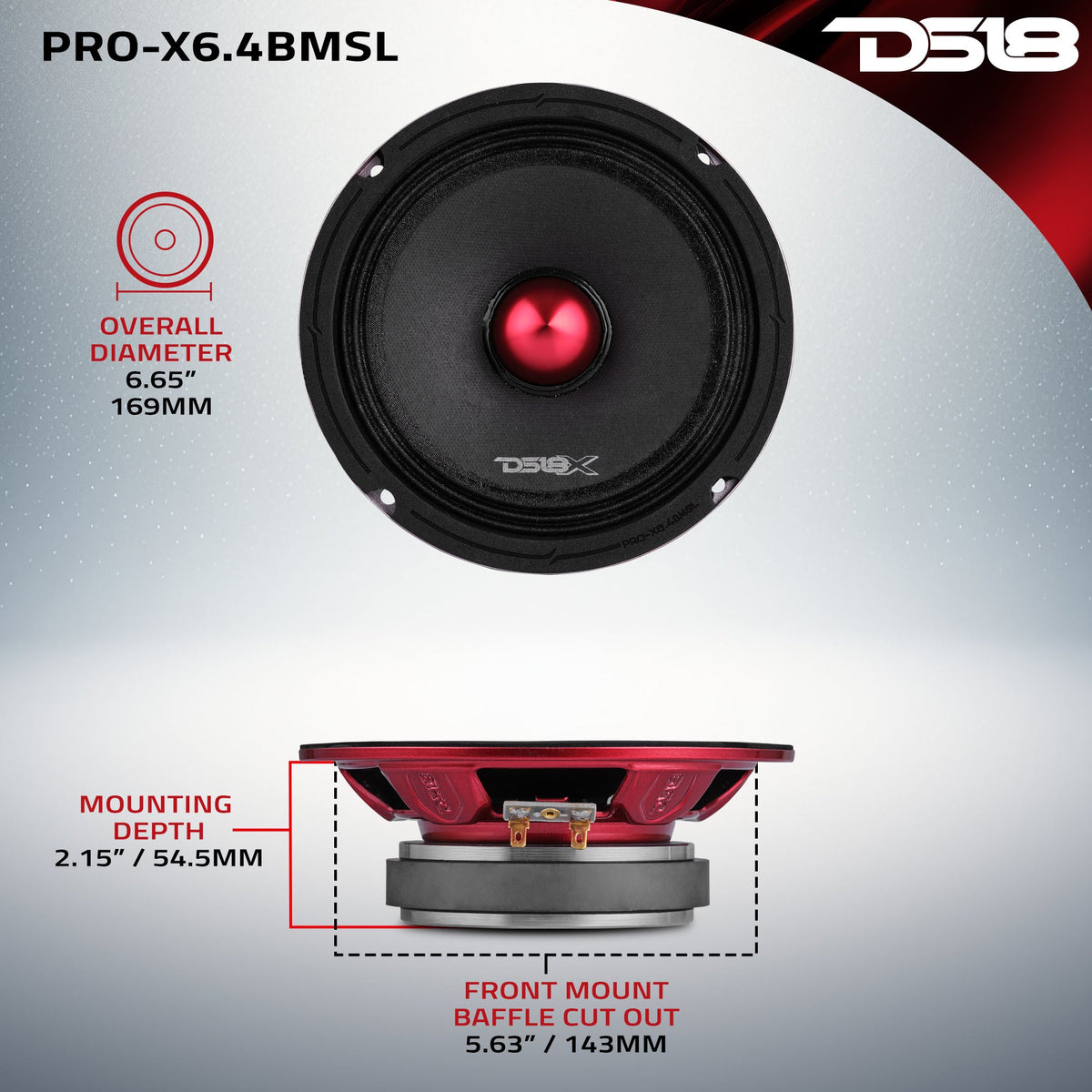

Measurement
Overall Diameter 6.65" / 169mm
Overall Depth 2.36" / 60mm
Front Mount Baffle Cutout 5.63" / 143mm
Mounting Depth 2.15" / 54.5mm
Motor Diameter 4.3" / 110mm

Free shipping on orders $150+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
