DS18 PRO-TWX1 3.8" Super Bullet Tweeter with 1" Aluminum Voice Coil & Capacitor Crossover — 120W RMS, 4-Ohm (Pair)
In stock! Ships within 2 business days.
Award Winning Sound
2-Year Limited Warranty
Variety of Payment Options
DS18 PRO-TWX1 3.8" Super Bullet Tweeter with 1" Aluminum Voice Coil & Capacitor Crossover — 120W RMS, 4-Ohm (Pair)
Product Overview
Description
DS18 PRO-TWX1/BK – 1” PRO Aluminum Super Bullet Tweeter VC – 240 Watts with Capacitor Crossover (Pair)
Deliver Loud & Accurate Sounds at High Frequencies
The DS18 PRO-TWX1/BK are out-of-this-world tweeters and for good reason. With 240W peak power handling and a frequency response of 3.5KHz to 20KHz, these professional grade super tweeters deliver accurate sounds at high frequencies––perfect if you like your highs crisp, bright, and loud! Better yet, the Bullet dust cover protects the voice coil and ensures that your highs cut through the noise.
Product Highlights
- Handles high frequencies with ease so you can enjoy your favorite music with loudness and sound quality combined.
- Powerful and reliable Titanium 4-Ohms 1-inch voice coil rated at 60 watts AES, 120 watts program, and 240 peak power ratings each with a built-in capacitor filter to help prevent failure from harmful frequencies.
- Super tweeter bullet design delivers extremely high range volume that can be heard for great distances with extreme clarity.
- Designed to be repaired quickly and easily with drop-in voice coil kits (PRO-TW1VC) that can be installed in less than 5 minutes.
- Extremely high 103 dB sensitivity for screaming loud high range frequencies delivered at high volumes with great sound quality.
- Ferrite motor structure with a mounting depth of only 1.57 inches — robust yet small enough to fit a nearly limitless number of applications.
Technical Details
| Model: | PRO-TWX1/BK |
| Type: | Super Bullet Tweeter |
| Peak Power Handling | 240 Watts |
| Program Power Handling | 120 Watts |
| AES Power Handling | 60 Watts |
| Diaphragm Material: | Aluminum |
| Sensitivity: | 103dB |
| Impedance: | 4 Ohms |
| Voice Coil Diameter | 1" |
| Frequency Response: | 3.5KHz - 20KHz |
| Package Quantity: | 2 (Sold as a Pair) |
| Replacement Diaphragm: | PRO-TW1VC |

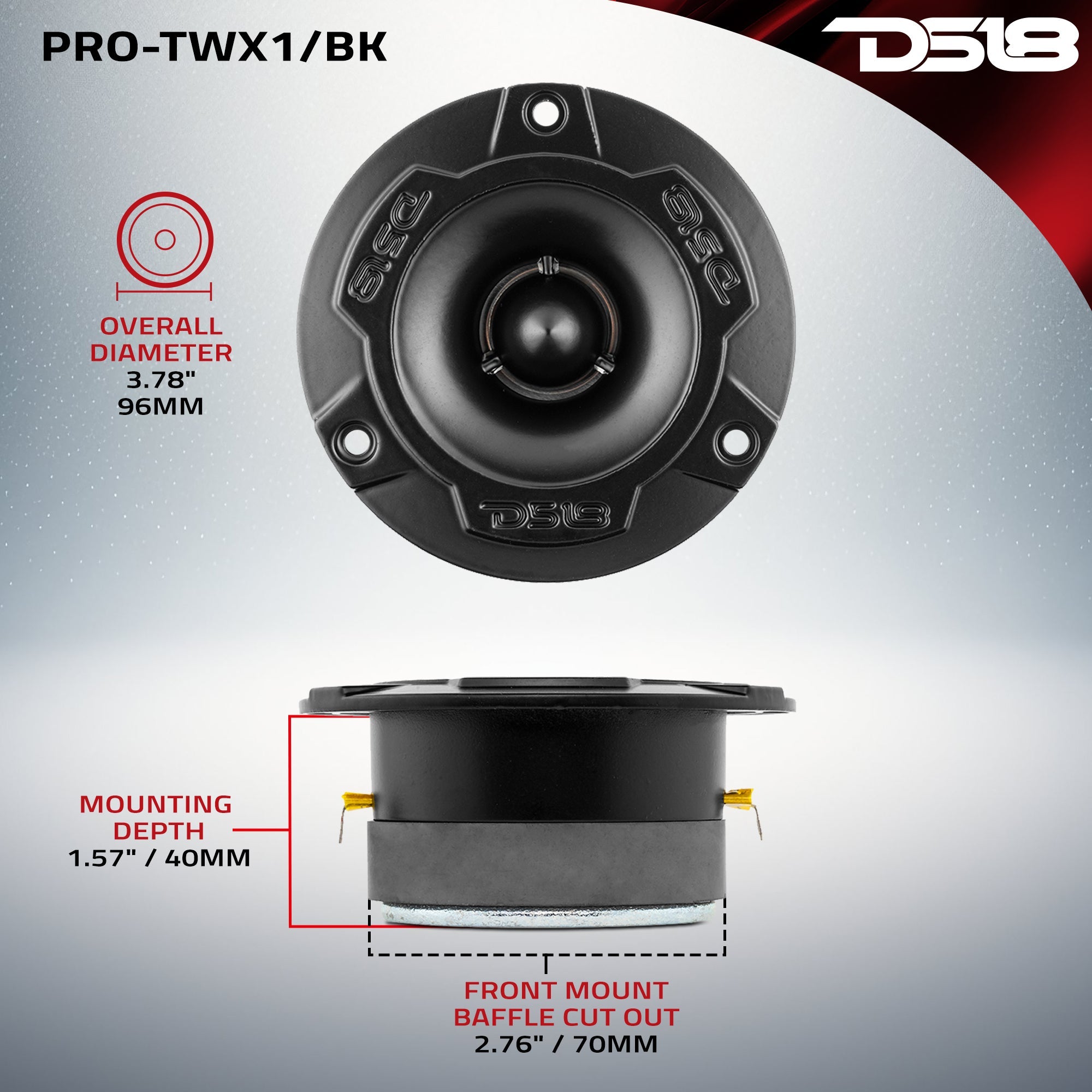

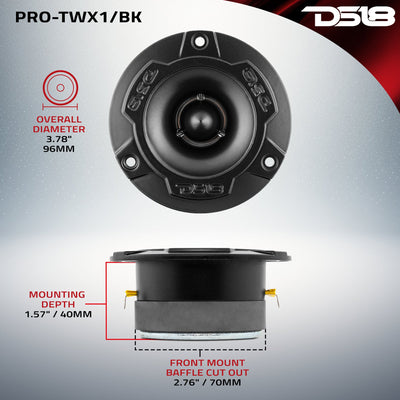

| Overall Diameter | 3.78"/96mm |
| Overall Depth | 1.78"/45mm |
| Front Mount Baffle Cutout | 2.76"/70mm |
| Mounting Depth | 1.57"/40mm |
Rule the Water
King of the COVE
Free shipping on orders $100+
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
FAQs
Please read our FAQs page to find out more.
RMS vs. MAX power — which number do I actually care about?
RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.
What does the IP65 rating on DS18 marine gear actually mean?
It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.
How do I match an amplifier to my speakers without guessing?
Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.
Can I mix marine-grade gear into a standard car audio setup, or the reverse?
You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.
What gauge wiring kit do I need?
It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
