Product Overview

Description

Sold as a pair — price is per pair (/pair).

Key Features

  • 3.8" super bullet tweeter with built-in RGB LED lighting (3.2 ft input wire included)
  • 120W program / 240W peak power handling per tweeter, 4 ohms
  • 103dB sensitivity, 3.5KHz – 20KHz frequency response
  • 1" aluminum diaphragm on a Kapton former with CCA winding; 8 oz Ferrite Y30 magnet
  • Transparent polycarbonate body and bullet; flush mount with a 2.8" (72mm) baffle cutout and 1.57" mounting depth
  • Field-replaceable voice coil (replacement diaphragm PRO-TW1VC)

Overview

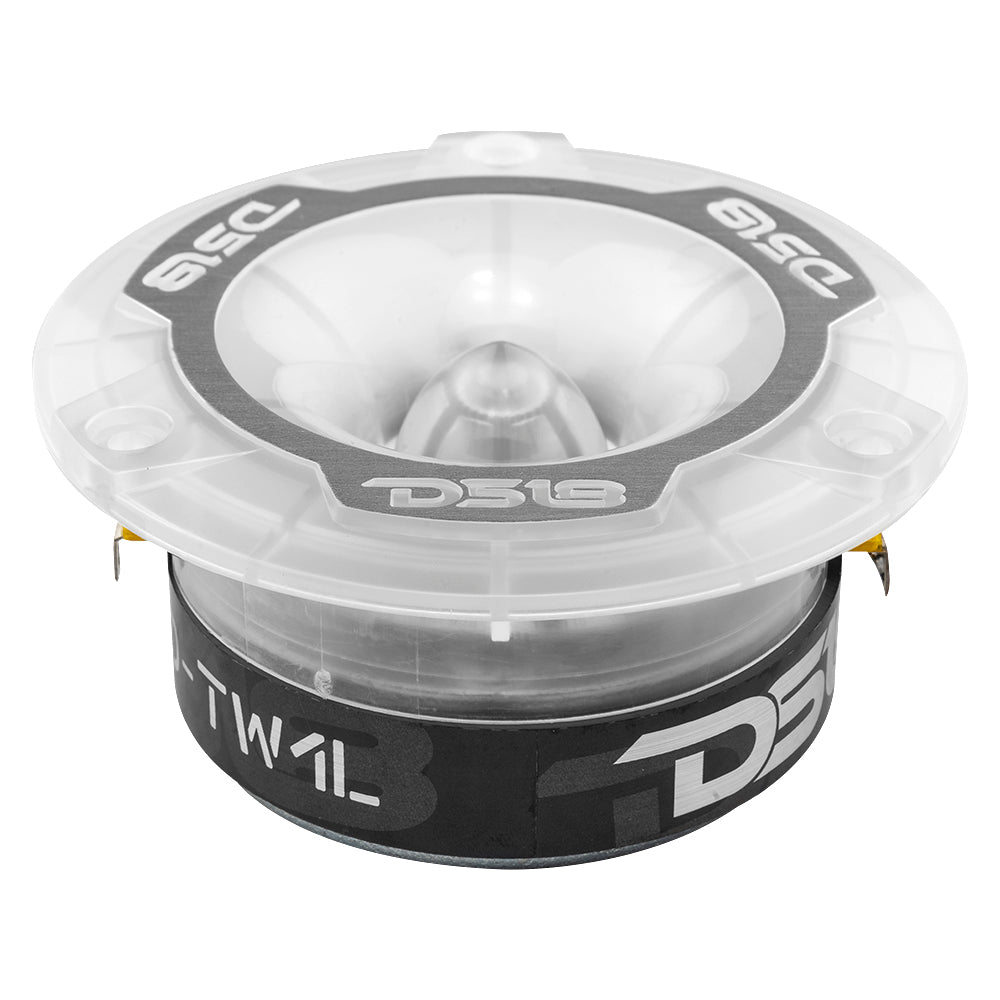

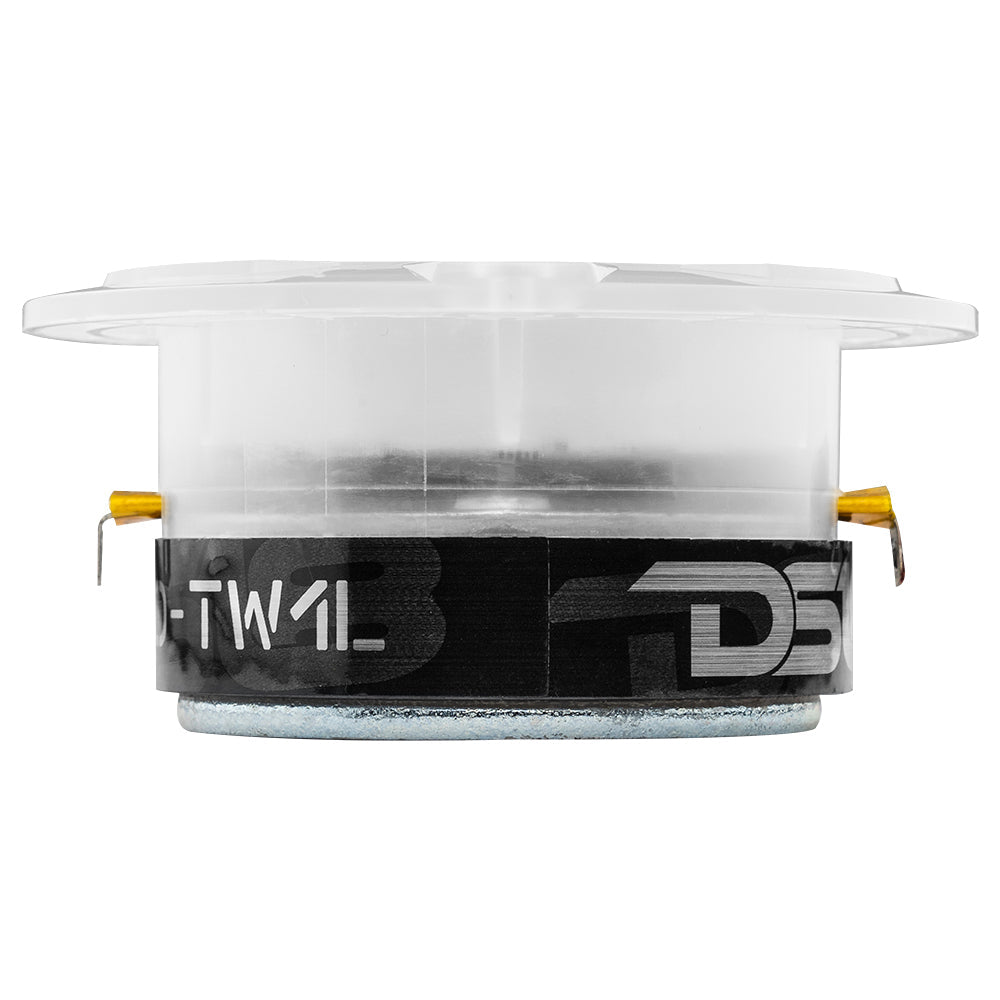

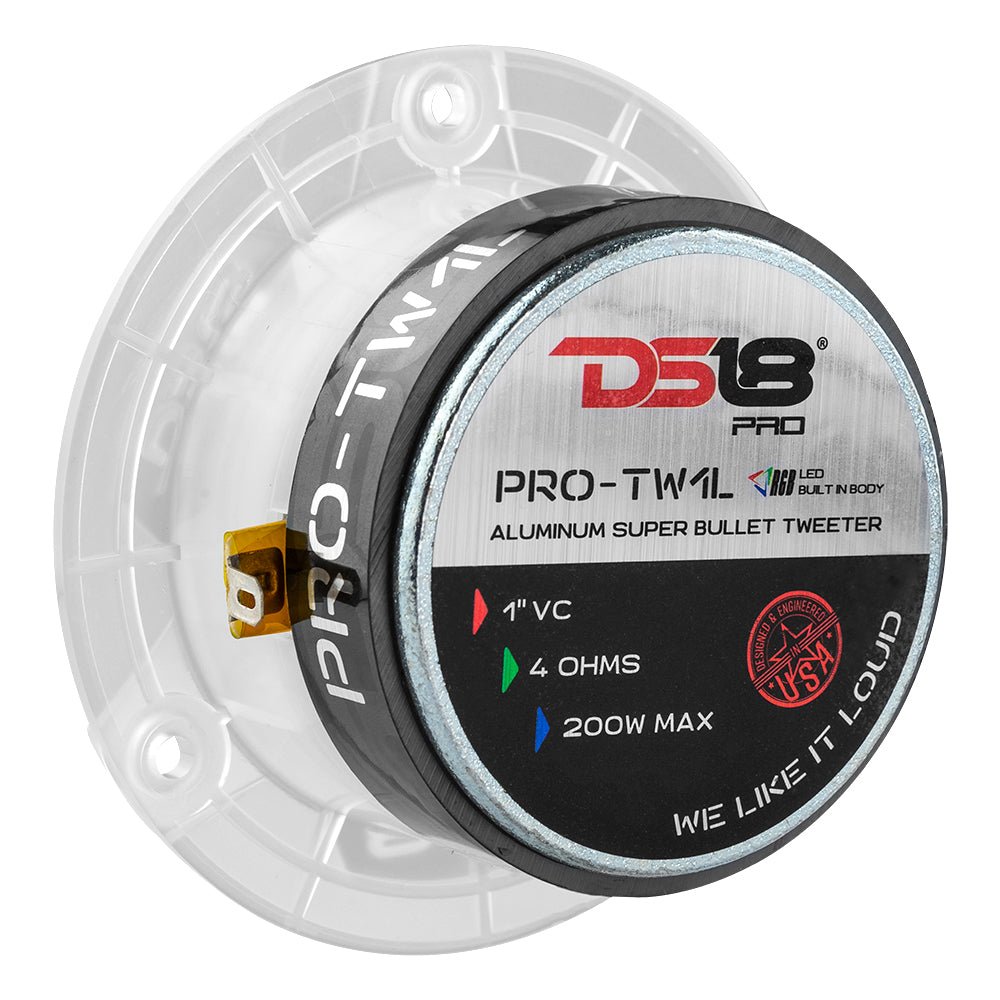

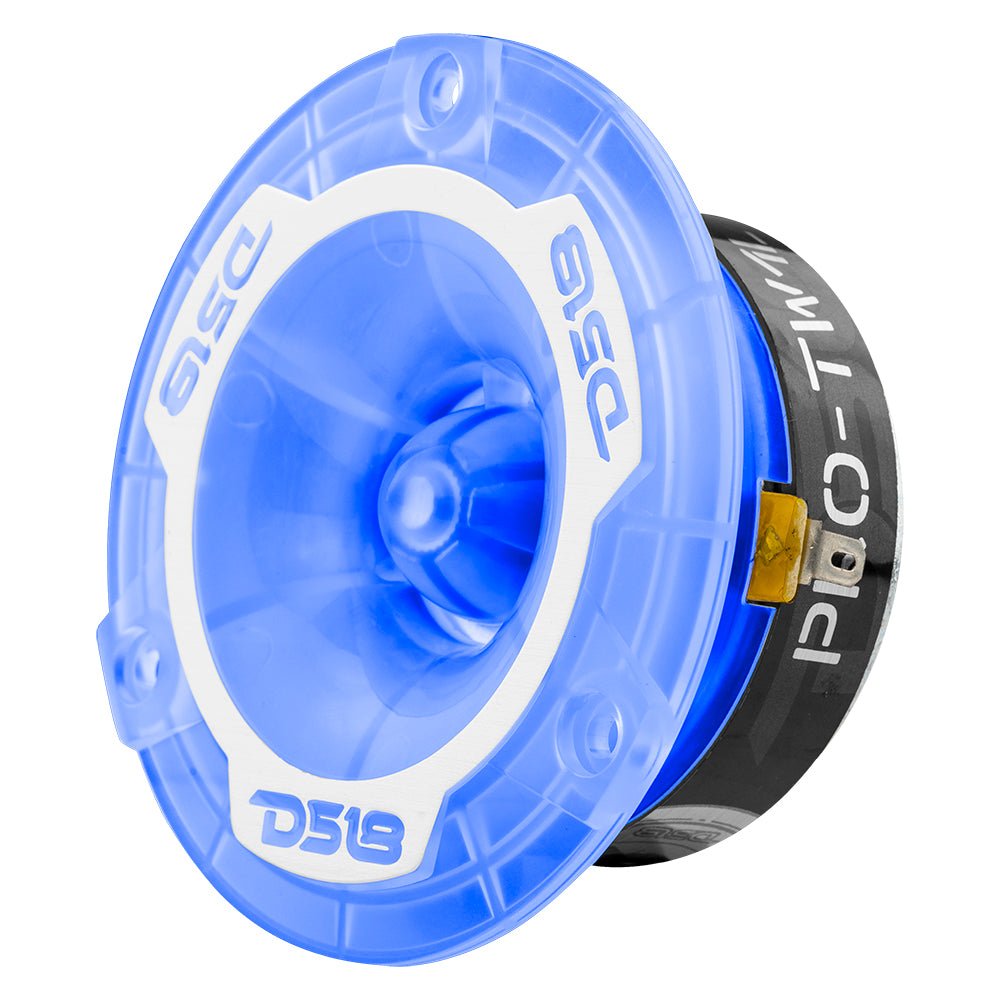

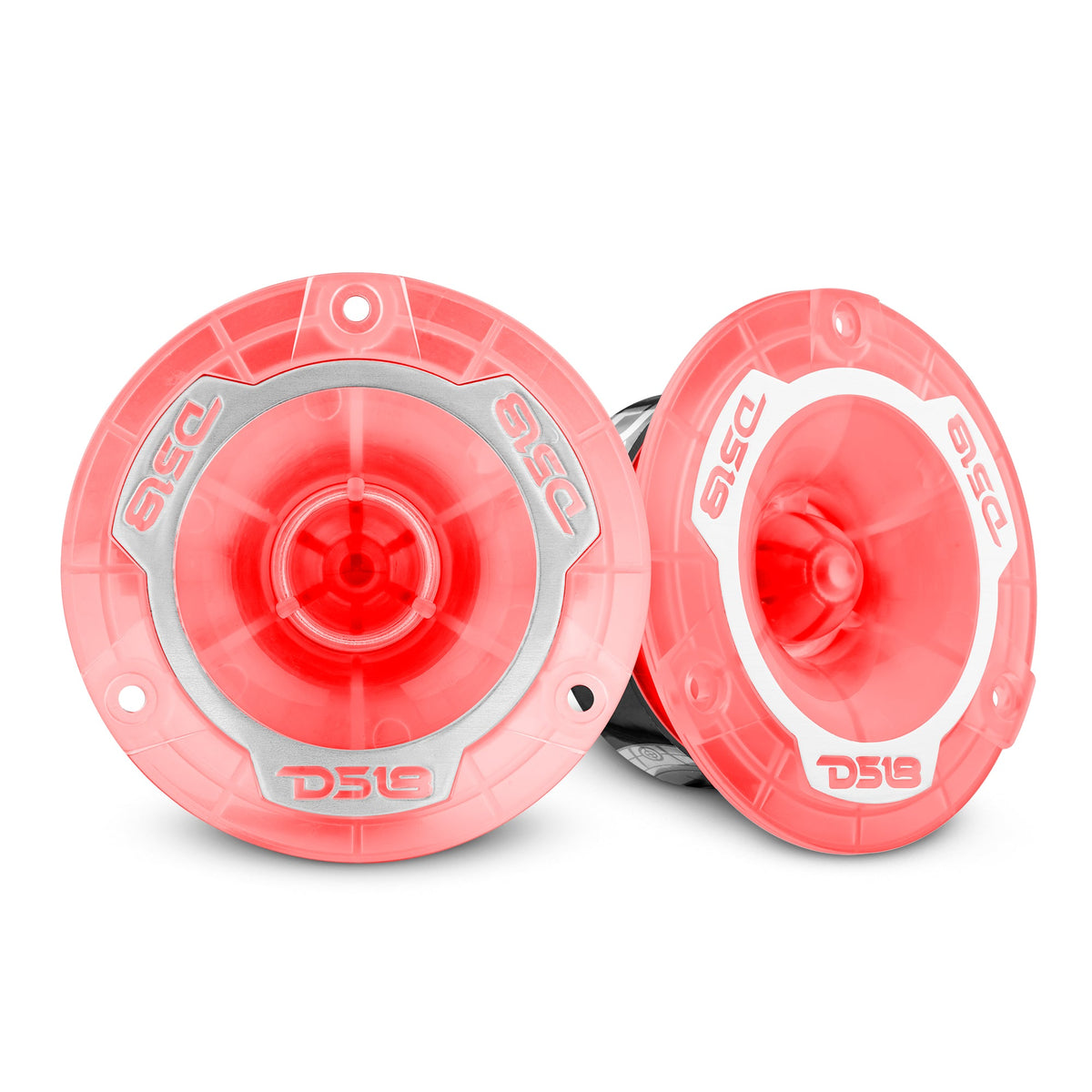

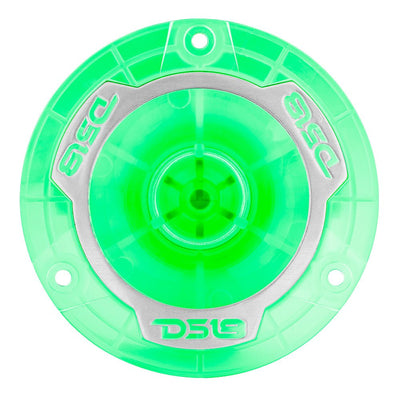

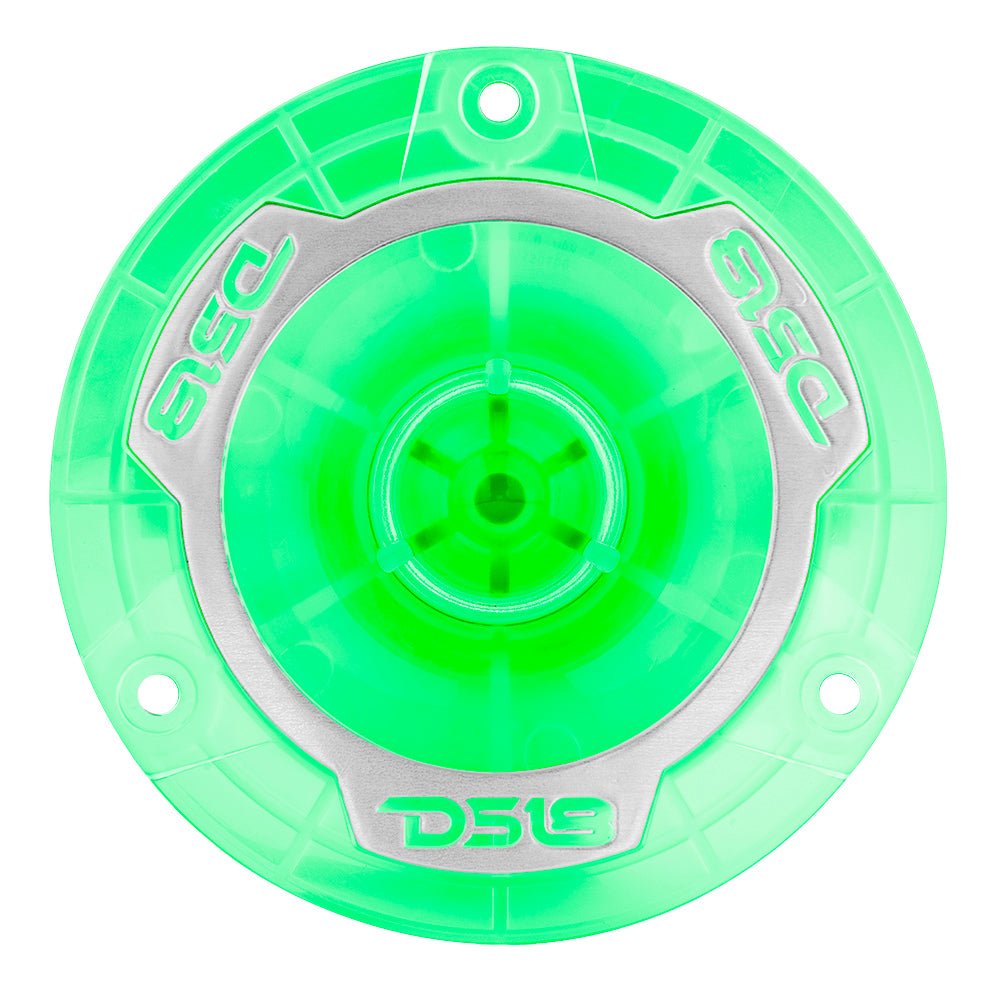

The DS18 PRO-TW1L is the RGB-lit version of DS18's 3.8" PRO super bullet tweeter, built for pro-audio and voceteo setups that need high output in a small footprint. The translucent polycarbonate body carries the LEDs, so the whole tweeter glows in whatever color your RGB controller sends it.

Each tweeter is rated 120W program and 240W peak at 4 ohms with 103dB sensitivity, and DS18 includes a capacitor crossover to keep low frequencies out. Note the mounting cutout is 2.8" (72mm), not the 3.8" nominal size. If a voice coil ever fails it swaps out in minutes with the PRO-TW1VC. Sold as a pair.

Specifications

SKU PRO-TW1L
Nominal Diameter 3.8" / 96.5mm
Nominal Impedance 4 Ohm
AES Power Handling 60W
Program Power Handling 120W
Peak Power Handling 240W
Sensitivity (1w/1m) 103 dB
Frequency Response 3.5K - 20KHz
Recommended Hi Pass Crossover 4KHz
BODY / FEATURES
Pair or Single Pair
Body Material Transparent Polycarbonate
Body Color / Finish Translucid RGB Illuminated
Bullet Material Transparent Polycarbonate
RGB LED YES with 3.2ft input Wire
MOTOR
Voice Coil Diameter 1" / 25.4mm
Voice Coil Former Material Kapton
Winding Material CCA
Diaphragm Material Aluminum
Magnet Material Ferrite Y30
Magnet Weight 8 Oz

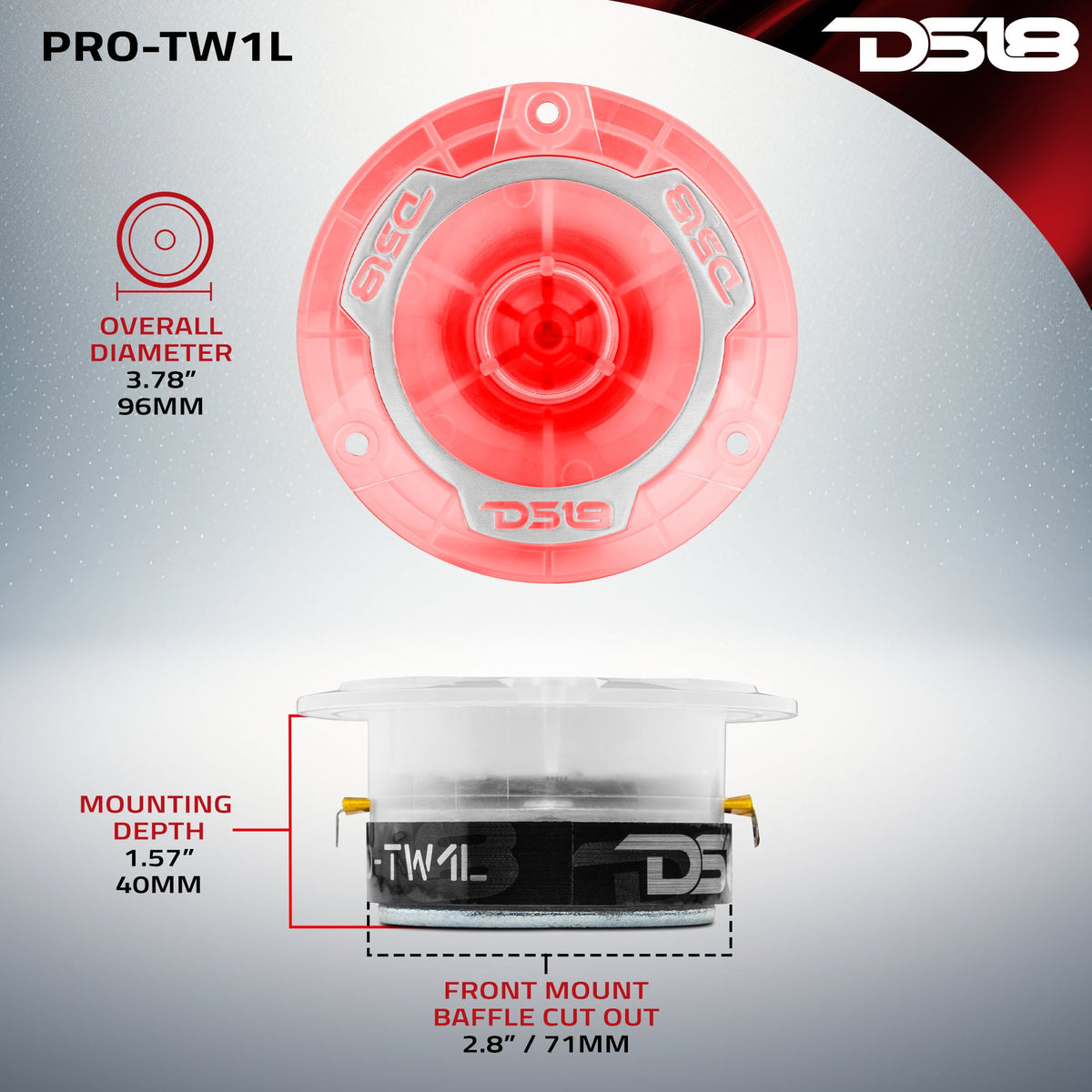

MEASUREMENT
Overall Diameter 3.78" / 96mm
Overall Depth 1.78" / 45mm
Front Mount Baffle Cutout 2.8" / 72mm
Mounting Depth 1.57" / 40mm
Magnet Diameter 2.76" / 70mm
Gross Single Unit Weight (lb) 2.5
Single Unit Box Dimensions W x L x H (Inches) 8.25 x 4.25 x 2
Quantity of Units in Master Carton 12
Gross Master Carton Weight (lb) 30.5
Master Carton Dimensions W x L x H (Inches) 17.25 x 9.25 x 7.25

Free shipping on orders $150+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
