Product Overview

Description

Product Overview

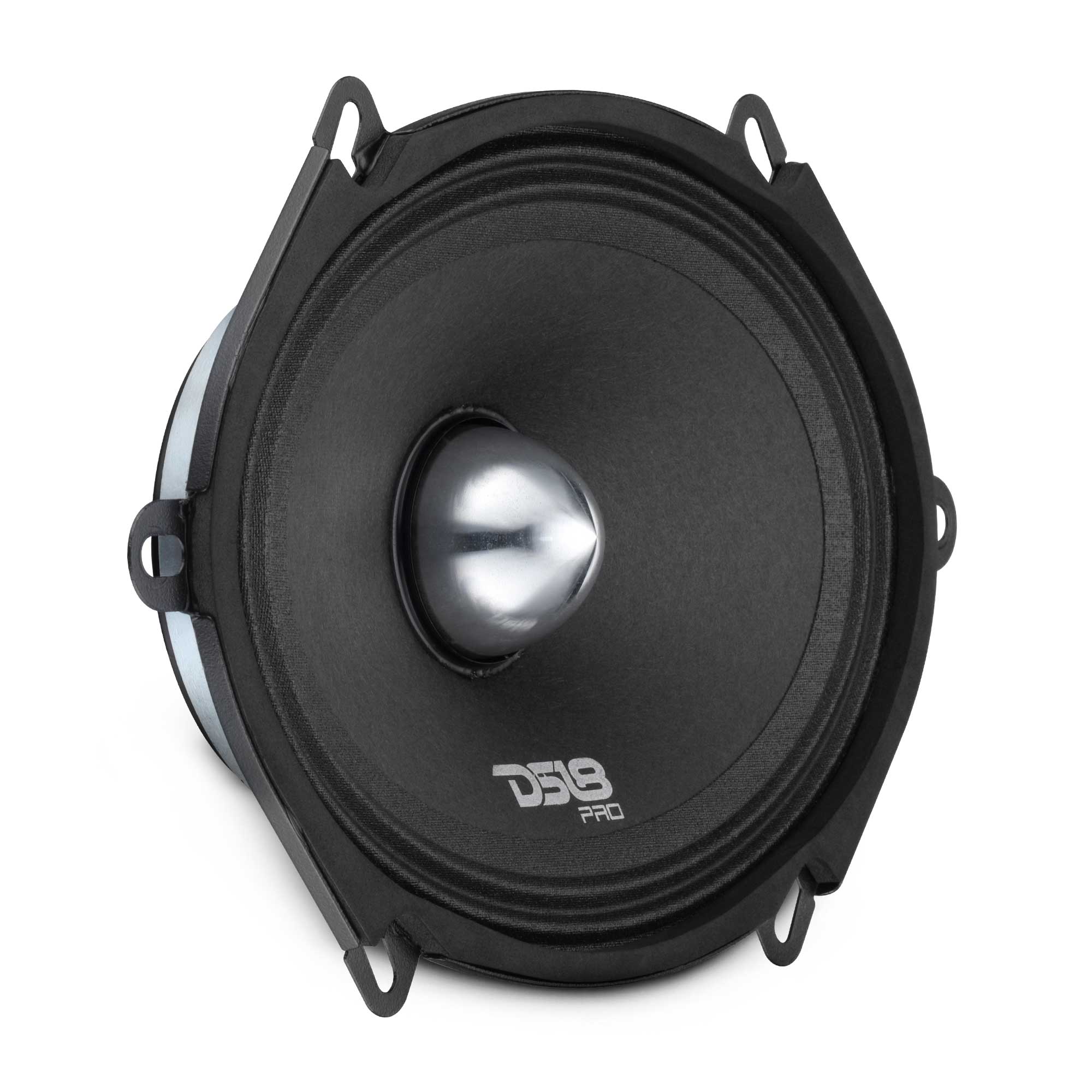

The DS18 PRO-FR57NEO delivers 225W RMS / 450W MAX at 4-Ohm with a 90Hz–20kHz frequency range and 97.5dB sensitivity. The aluminum bullet provides better and clearer audio, giving you a more direct sound with minimal distortion, and combined with its neodymium magnet and black steel finish this unit offers both performance and aesthetic appeal for loud, clean PRO-series sound. Sold individually (each).

Key Features

  • 5x7" Full-Range w/Bullet
  • MAX Power: 450 Watts
  • RMS Power: 225 Watts
  • Impedance: 4 Ohm
  • Neodymium Magnet
  • 97.5dB Sensitivity

Specifications

Nominal Diameter 5x7" / 142x190mm
Nominal Impedance 4 Ohms
RMS Power Handling 225W
MAX Power Handling 450W
Sensitivity (1w/1m) 97.5dB
Frequency Response 90Hz–20kHz
Recommended High-Pass Crossover 120Hz
Voice Coil Diameter 1.5" / 38.3mm
Voice Coil Former Material Kapton
Winding Material CCAW
Cone Material Paper
Bullet Material Aluminum
Surround Material Cloth
Basket Material Steel
Magnet Material Neodymium
Magnet Weight 7.6 Oz
Overall Diameter 5.6x7.5" / 142x190mm
Overall Depth 2.37" / 60.3mm
Front Mount Baffle Cutout 5x7.1" / 127x181mm
Mounting Depth 2.15" / 54.5mm
Motor Diameter 3.54" / 90mm

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
