Product Overview

Description

Product Overview

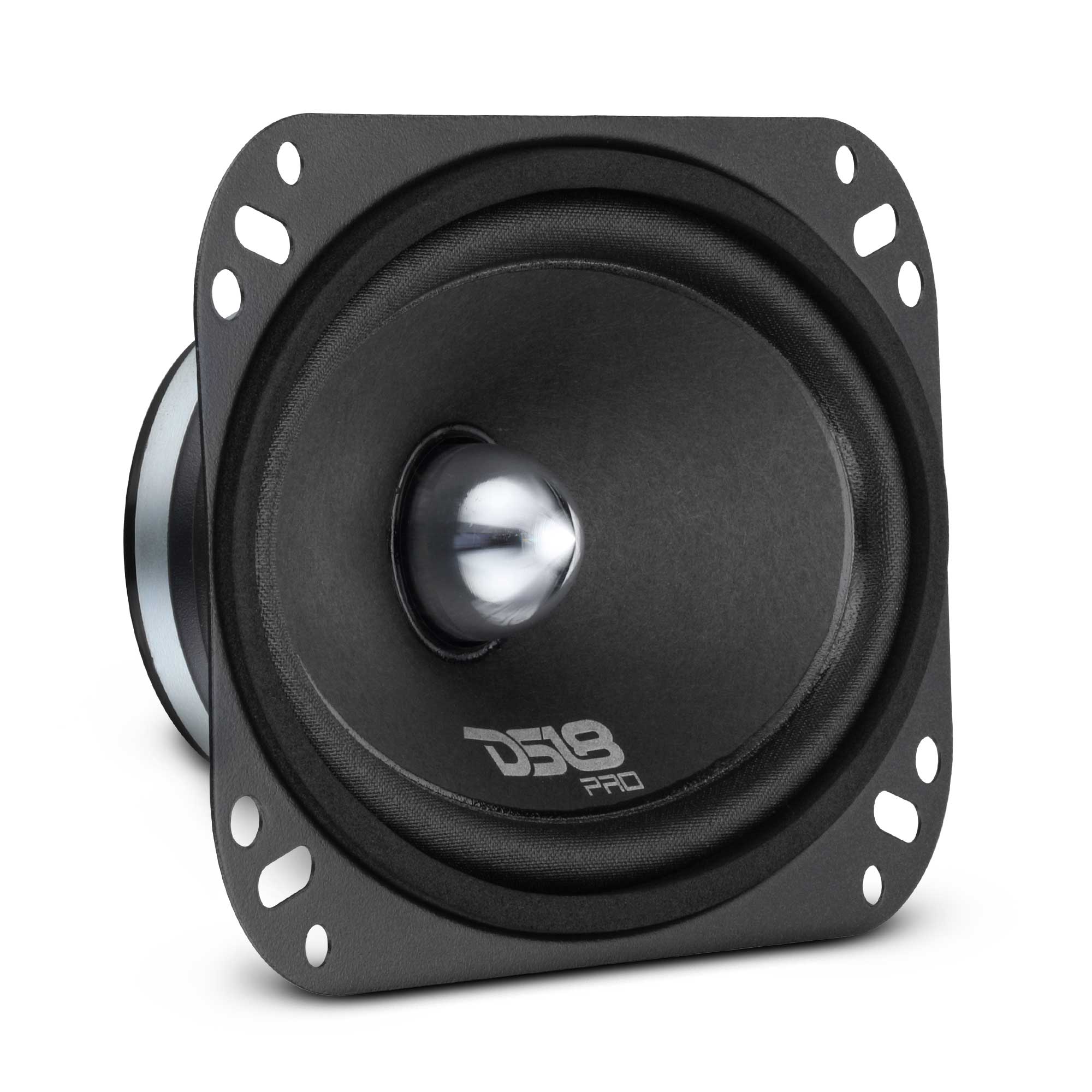

Experience true quality with the DS18 PRO-FR46NEO loudspeaker. The aluminum bullet provides better and clearer audio, giving you a more direct sound with minimal distortion, and combined with the neodymium magnet design it delivers a powerhouse of sound — 150W RMS / 300W MAX at 4-Ohm with 95dB sensitivity. Black steel basket finish, built PRO-series tough for loud, quality sound. Sold individually (each). Grill not included.

Key Features

  • 4x6" Full-Range w/Bullet
  • MAX Power: 300 Watts
  • RMS Power: 150 Watts
  • Impedance: 4 Ohm
  • Neodymium Magnet
  • 95dB Sensitivity

Specifications

Nominal Diameter 4x6" / 104x155mm
Nominal Impedance 4 Ohms
RMS Power Handling 150W
MAX Power Handling 300W
Sensitivity (1w/1m) 95dB
Frequency Response 125Hz–20kHz
Recommended High-Pass Crossover 140Hz
Sold as Single unit
Grill Included No
Voice Coil Diameter 1" / 26mm
Voice Coil Former Material Kapton
Winding Material CCAW
Cone Material Paper
Bullet Material Aluminum
Surround Material Cloth
Basket Material Steel
Basket Color/Finish Black
Magnet Material Neodymium
Magnet Weight 3.4 Oz
Displacement Volume 0.55L / 0.019ft³
Equivalent Volume (Thiele-Small) 1.85L / 0.065ft³
Excursion (one way) 0.22mm
Free Air Resonance 157Hz
Mechanical Factor 8.723
Electrical Factor 0.56
Total Factor 0.526
Mechanical Mass 5.239g
Mechanical Compliance 0.196mm/N
BL Factor 5.580
Voice Coil Inductance 0.036mH
Cone Area 86.59cm²
DC Resistance 3.2 Ohms
Overall Diameter 4.1x6.1" / 104x155mm
Overall Depth 2.17" / 55mm
Front Mount Baffle Cutout 3.4x5.6" / 86.4x142mm
Mounting Depth 1.94" / 49.3mm
Motor Diameter 2.44" / 62mm

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
