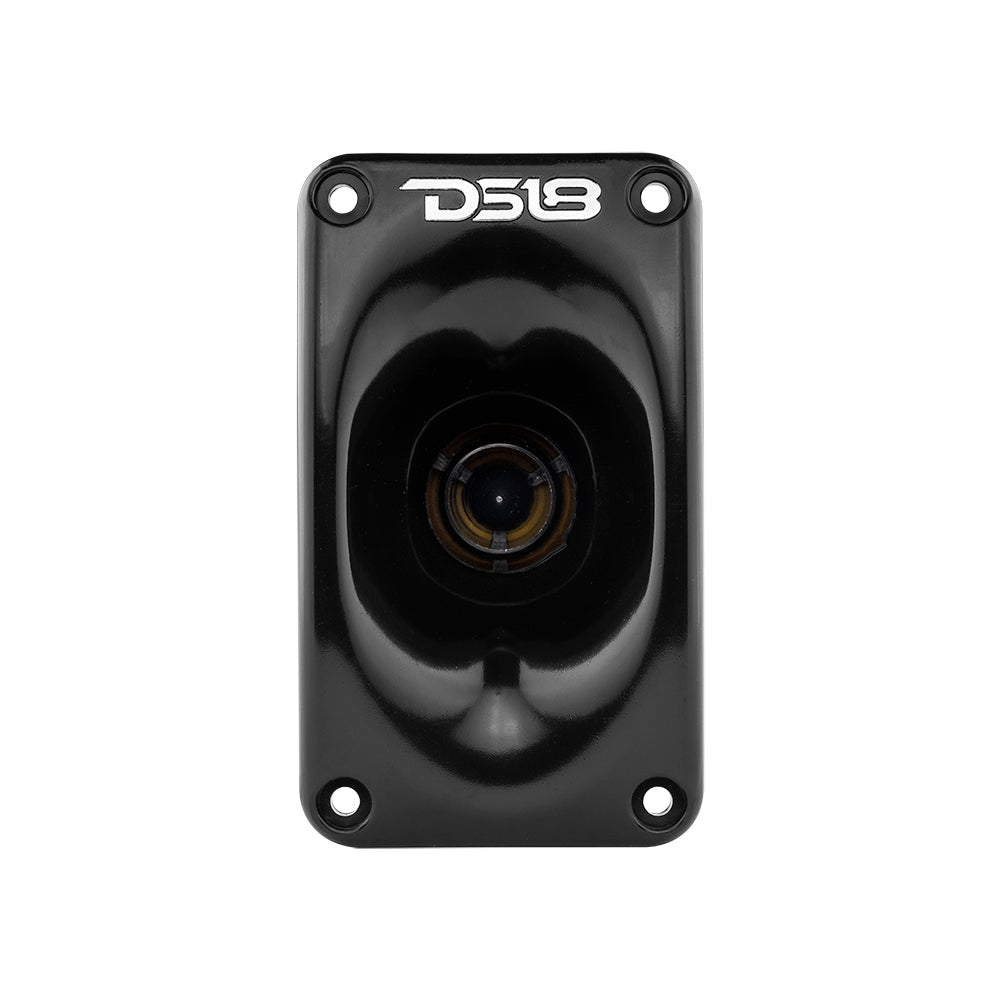

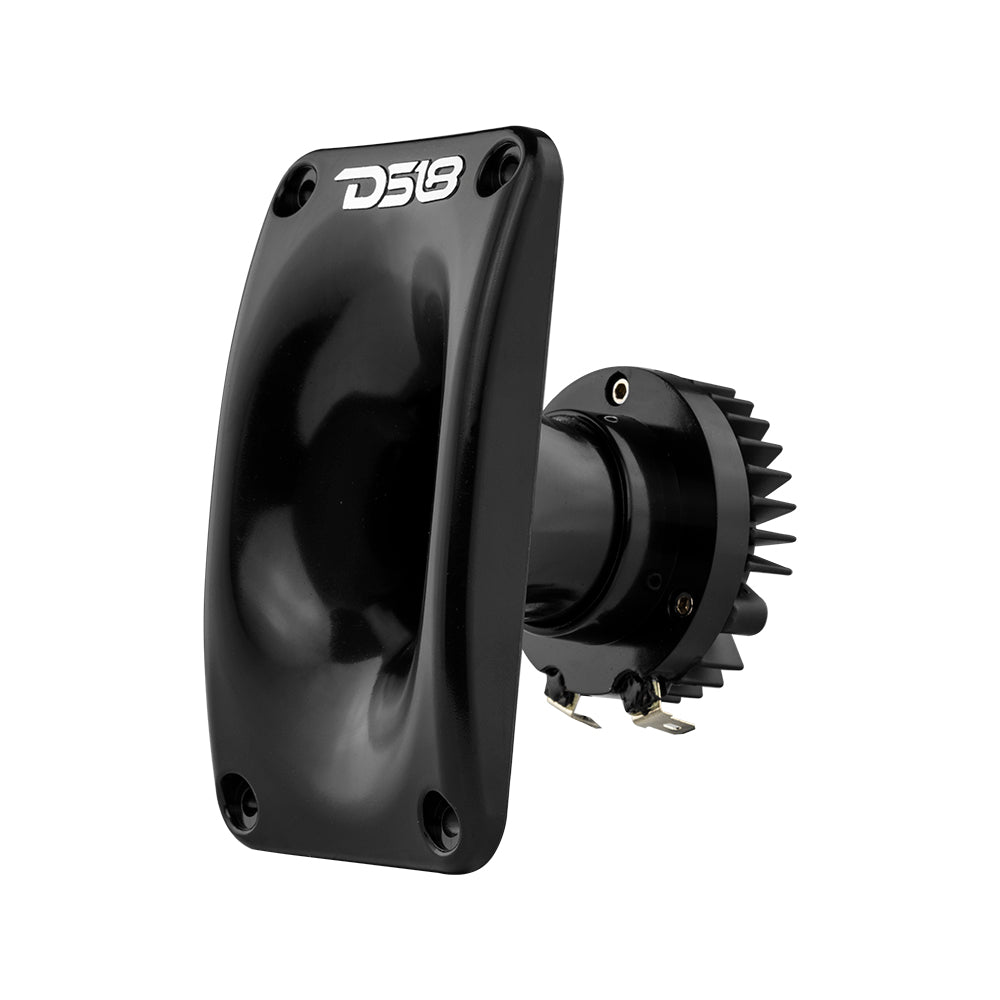

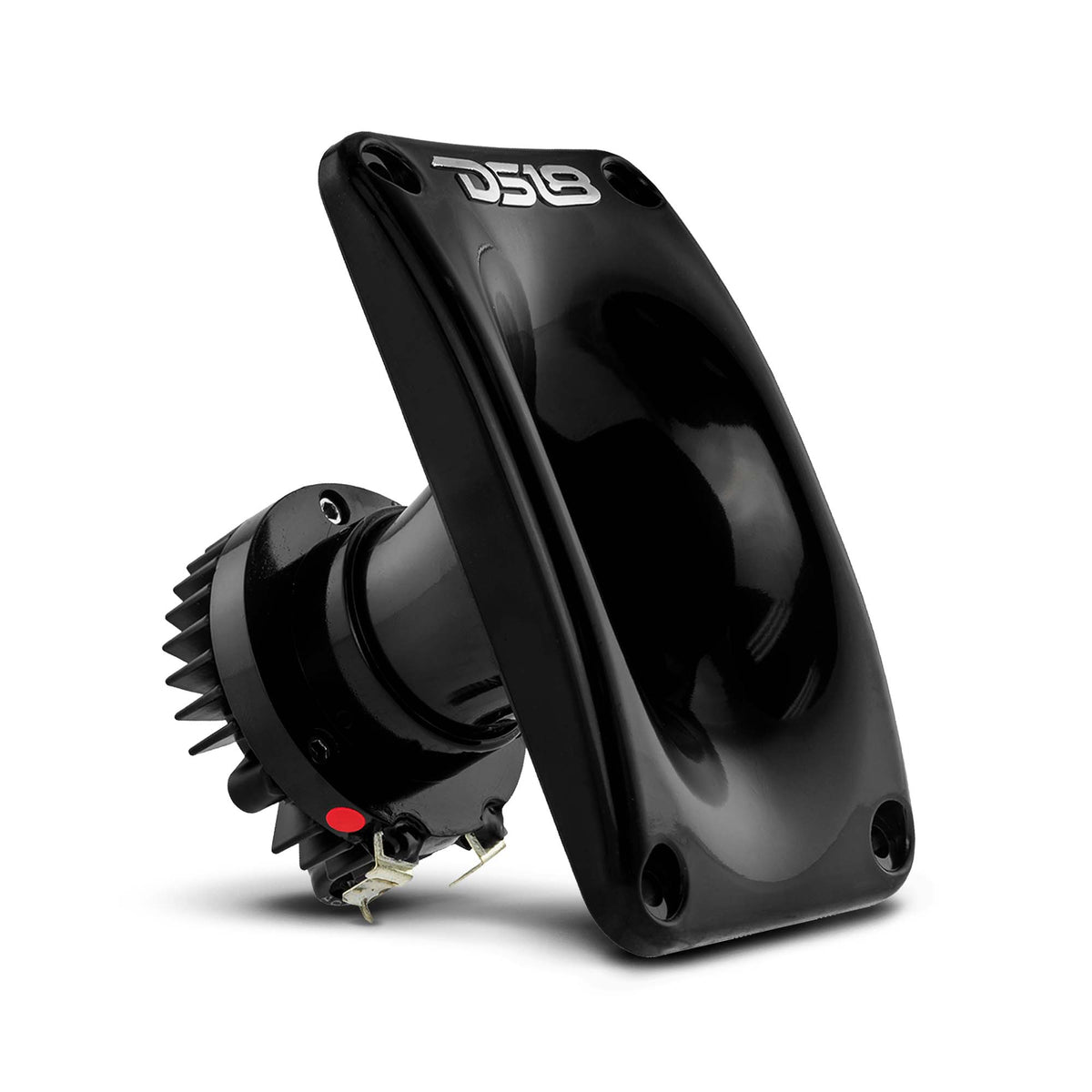

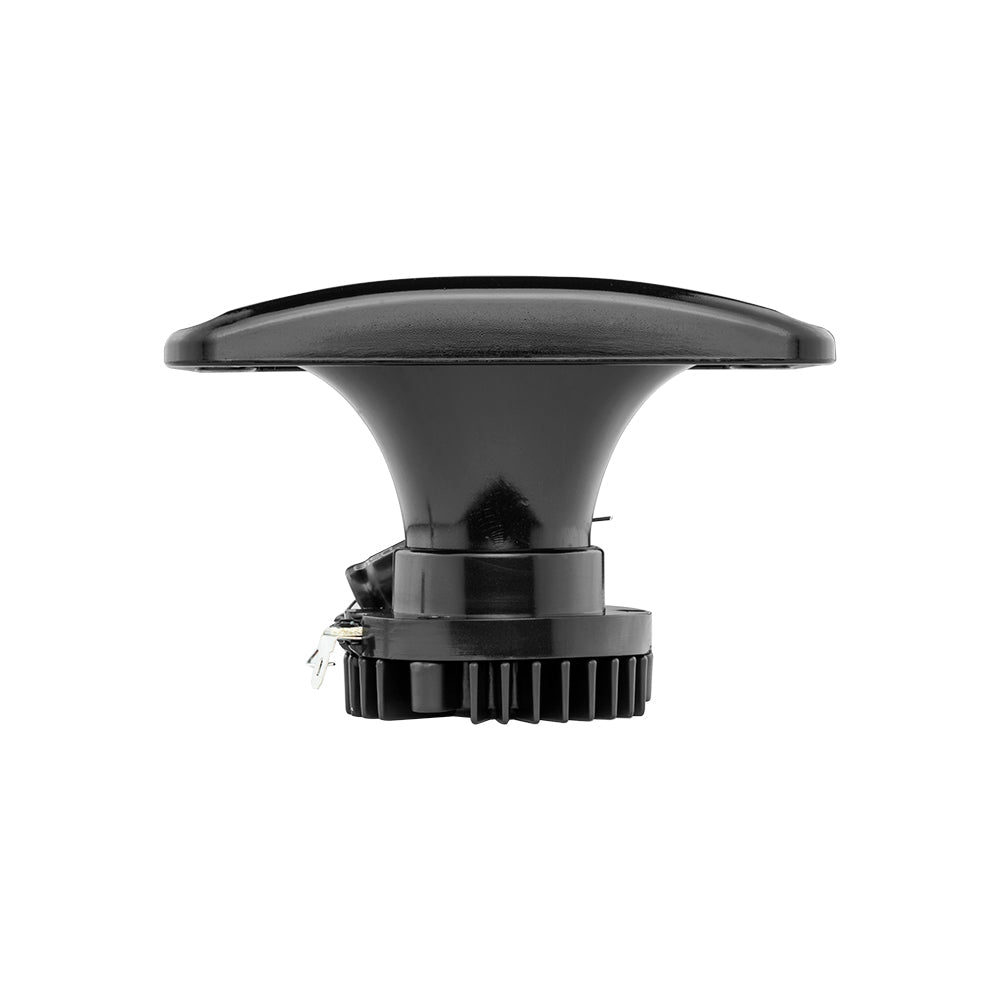

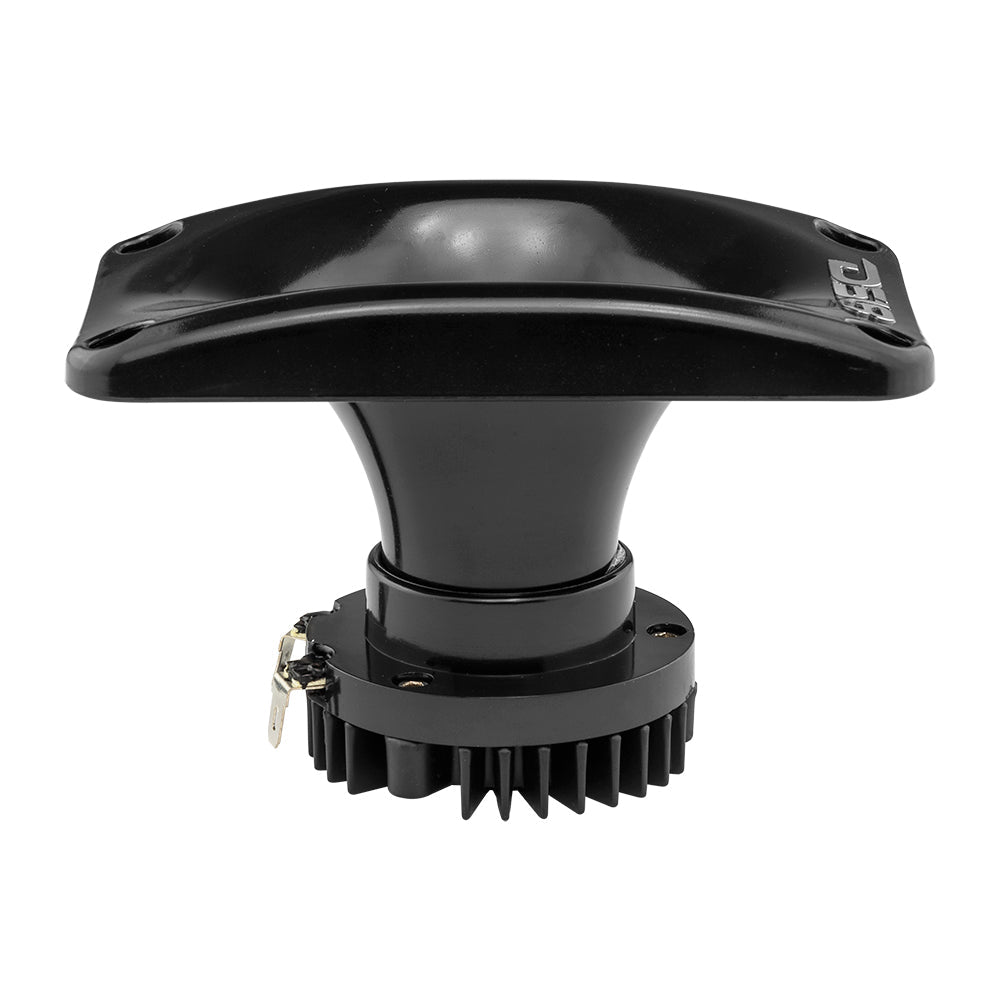

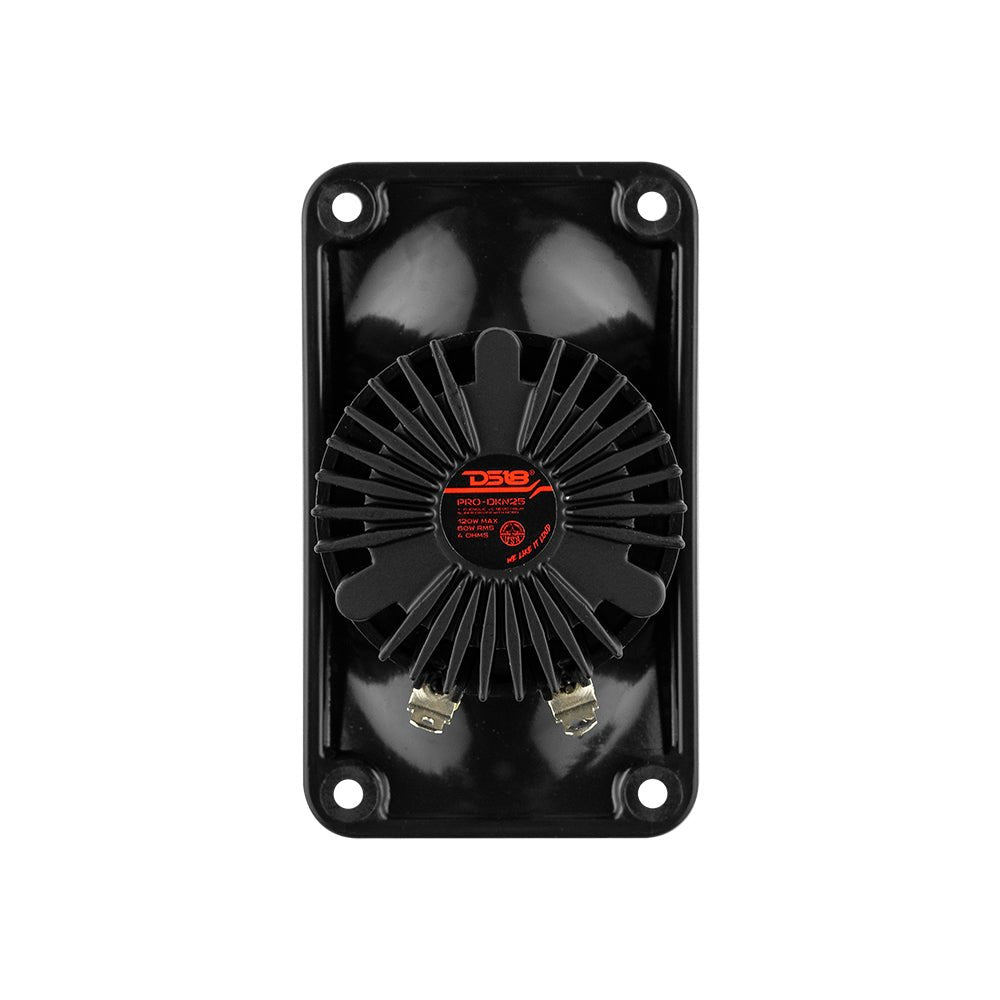

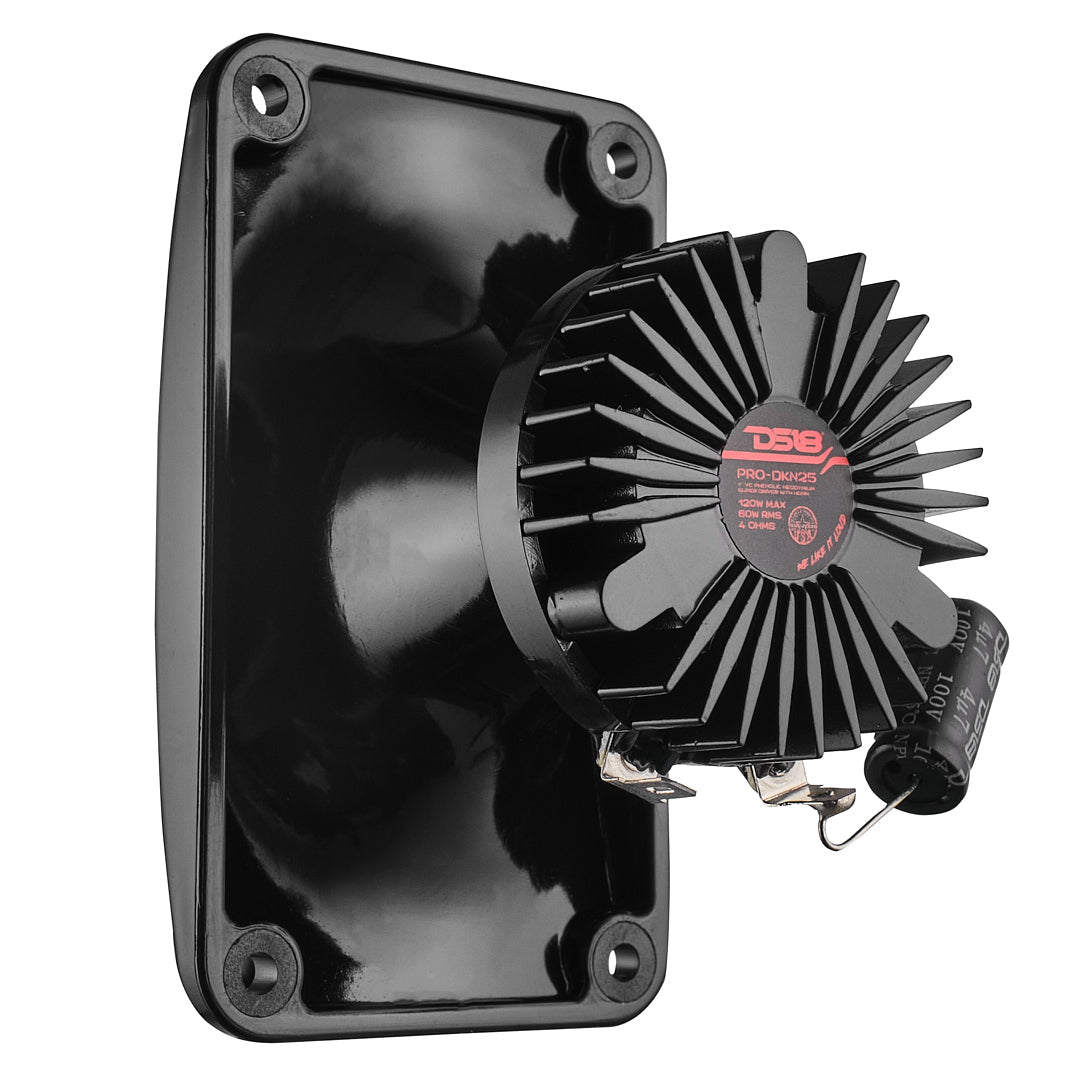

DS18 PRO-DKN25 1" Throat Neodymium Driver 1" Phenolic VC and Horn 120 Watts 108dB 8 Ohm

Engineered and Designed in the US, the DS18 Compression Drivers with aluminum horns are the top of the line high frequency driver/tweeter/horns in the market. These bad boys deliver so much power that you'd think with one horn your whole sound system is ready to deploy for a major concert.

Key Features

  • Great power to size ratio pro audio tweeter that gives amazing sound while not taking up a lot of space.
  • Square throat design that amplifies even more Decibels.
  • Easily mountable in any location that has the right mounting depth.

Specifications

SKU PRO-DKN25
Type Super Driver with Horn
RMS Power 60W
MAX Power 120W
Sensitivity 108dB
Voice Coil Size 1"
Impedance 8 Ohms
Frequency Response 1.5KHz - 18KHz
Magnet Neodymium
Diaphragm Material Phenolic
Throat Diameter 1"
Replacement Diaphragm Model PRO-DKN25VC

Price is each.

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
