Product Overview

Description

Overview

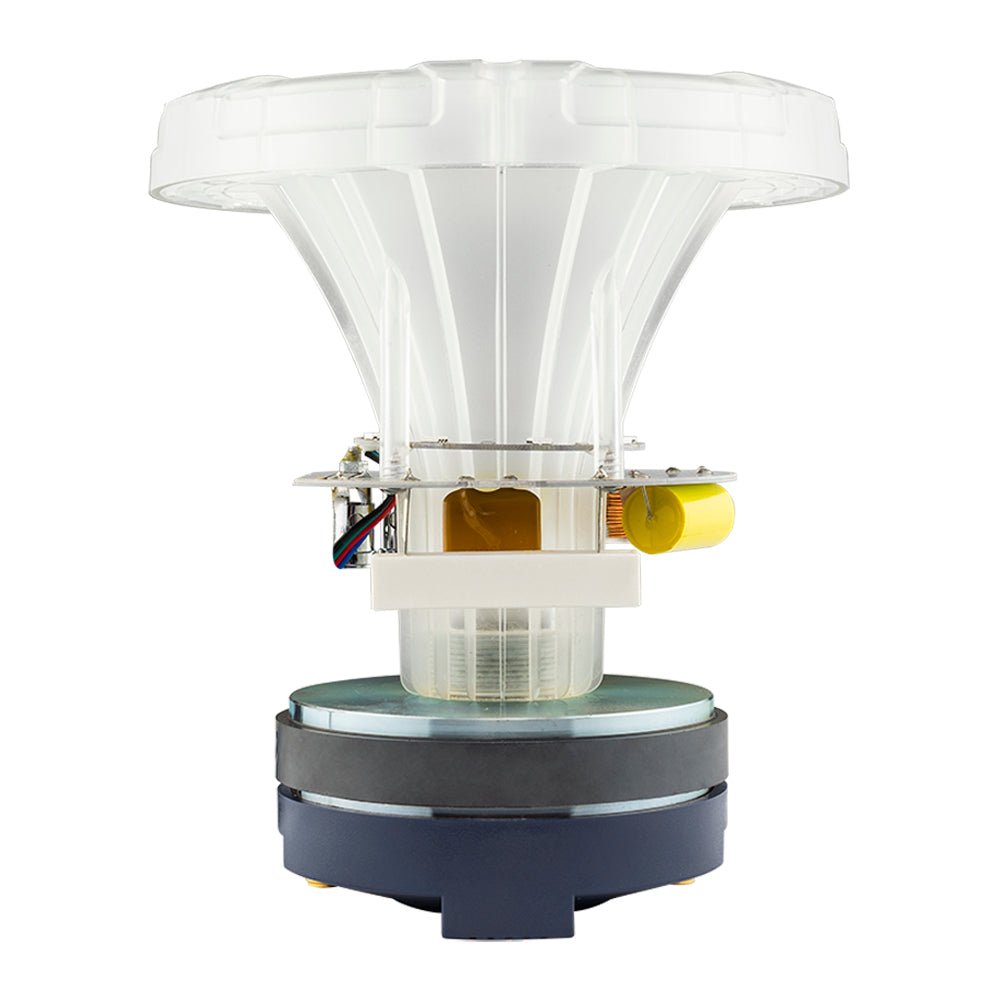

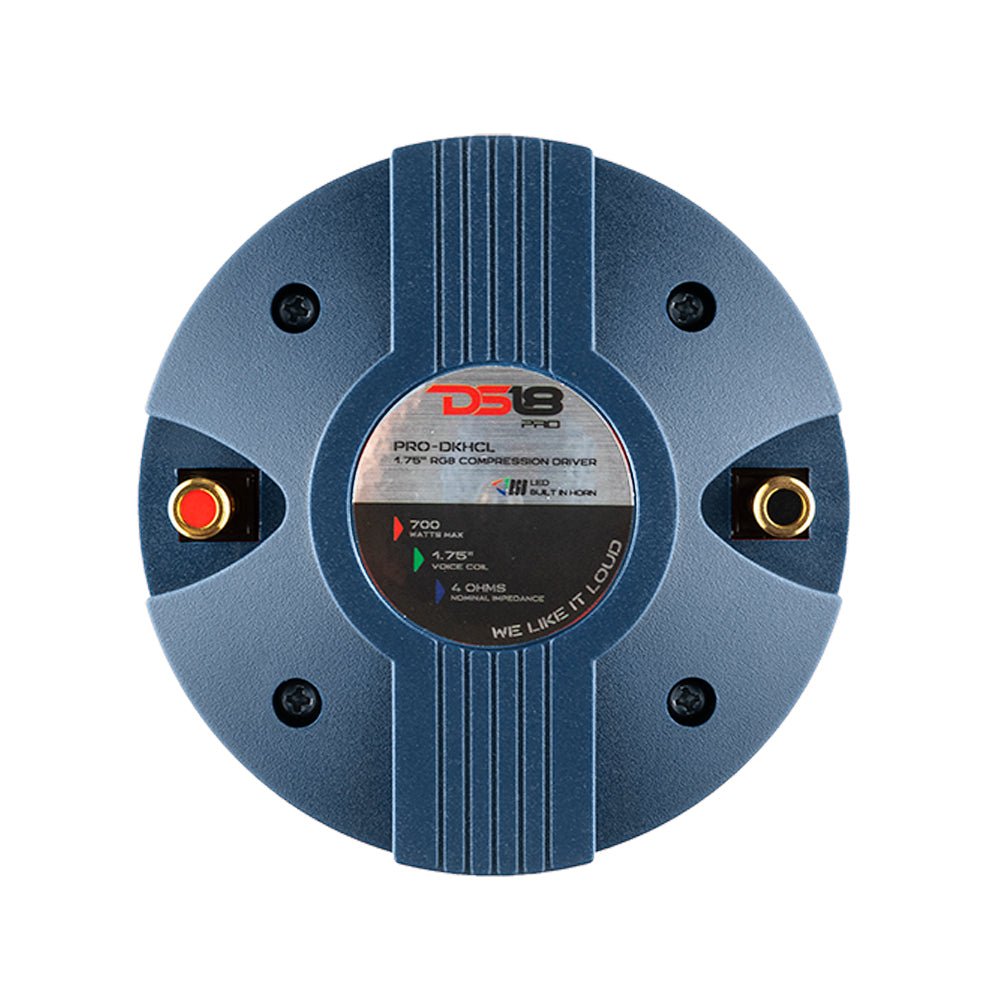

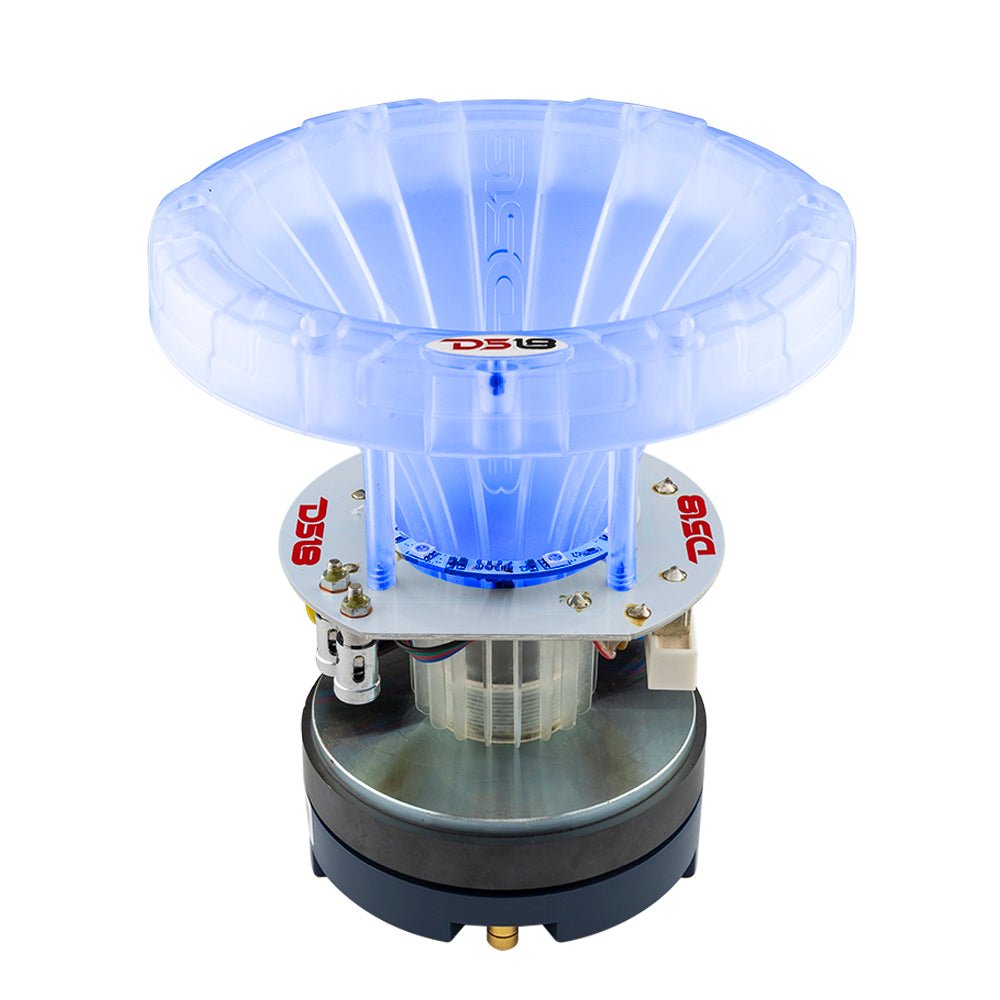

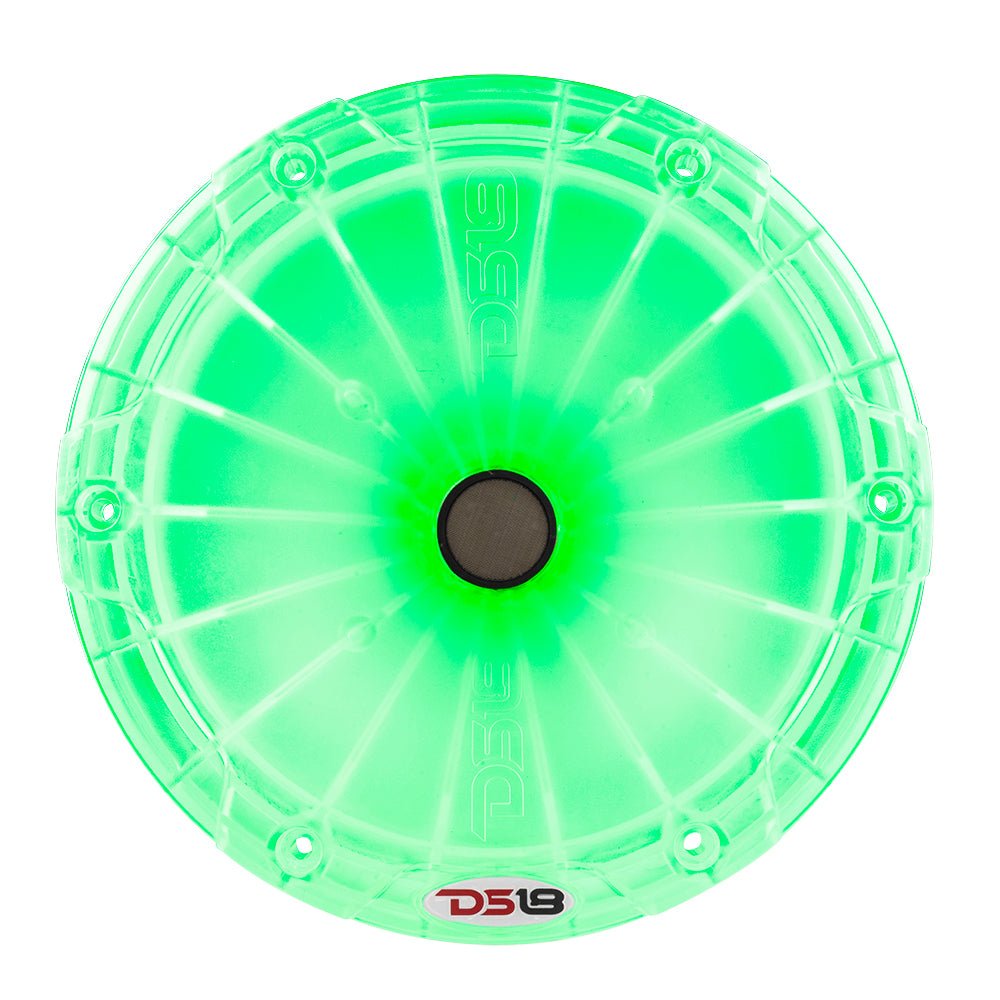

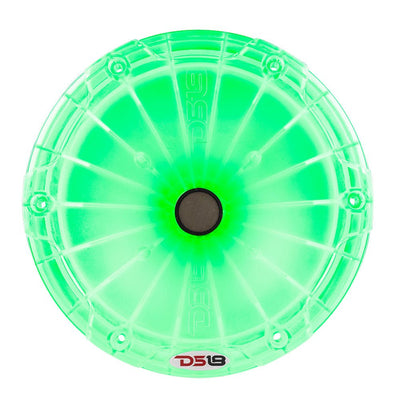

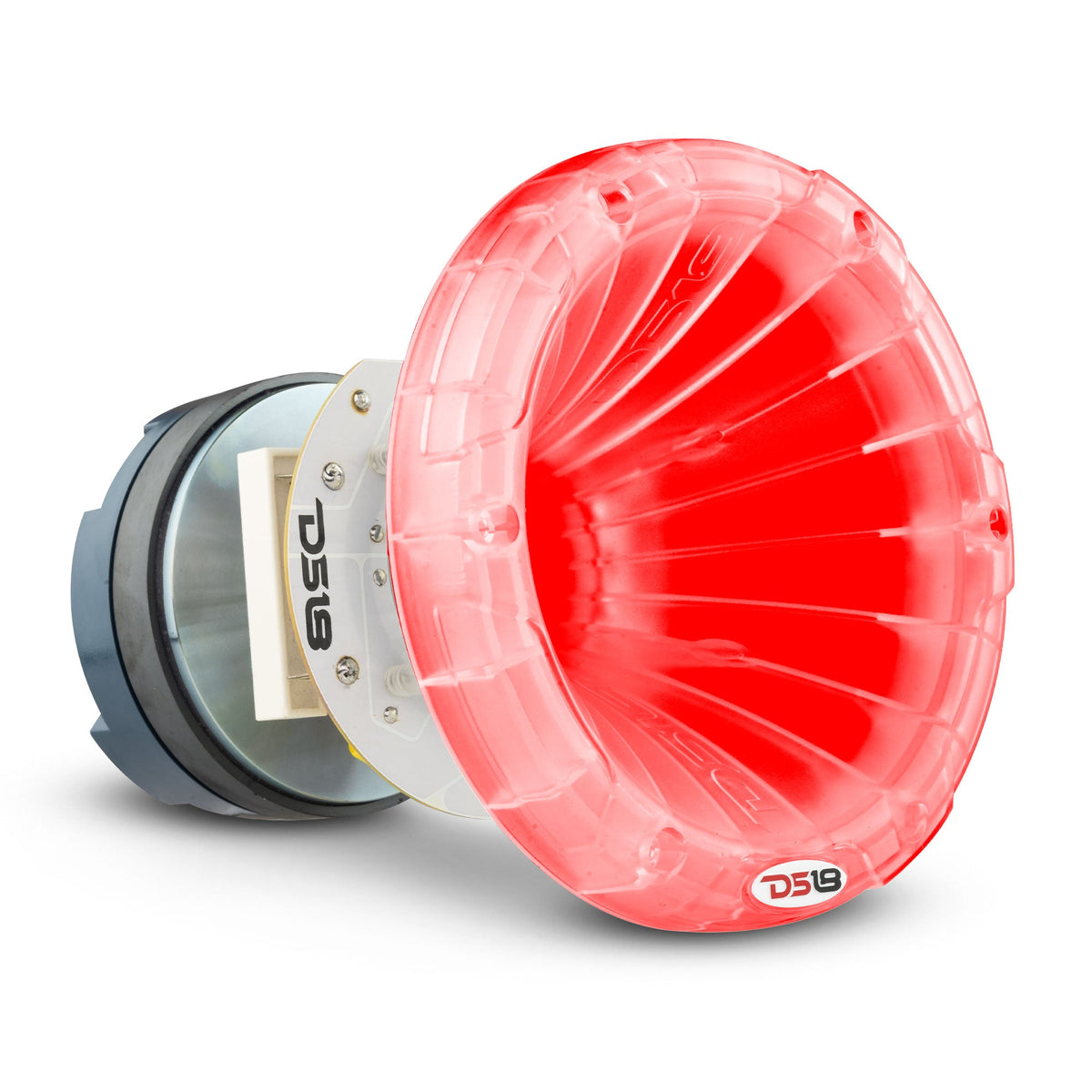

DS18 PRO-DKHCL PRO 1" Twist On Throat Compression Driver 1.75" Titanium VC with RGB Led Light Horn and Built-in Crossover 700 Watts 4 Ohms

Engineered and Designed in the US, the DS18 Compression Drivers with aluminum horns are the top of the line high-frequency driver/tweeter/horns in the market. These bad boys deliver so much power that you'd think with one horn your whole sound system is ready to deploy for a major concert. Simply put, there are no compression drivers that can compare to the sophistication, beauty, and precision of these horns especially in the Pro Audio/Voceteo World.

Key Features

  • This driver incorporates the highly popular and loud DKH1 design and gives it brilliant RGB functionality.
  • The 1.75 inch voice coil will provide amazing power handling with great high frequency output.
  • Designed to bring brightly lit RGB LEDs along with amazing high frequencies for the all in one audio and show driver.

Specifications

SKU PRO-DKHCL
Type Compression
RMS Power 350W
MAX Power 700W
Sensitivity 101 dB
Voice Coil Size 1.75"
Impedance 4 Ohms
Frequency Response 1KHz - 20KHz
Diaphragm Material Titanium
Magnet Weight 21 oz
Horn Dimensions 6.93" x 6.93" (176 x 176mm)
Throat Diameter 1"
Overall Depth 203mm/8"

Price is each.

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
