Product Overview

Description

Key Features

  • 10" shallow-mount subwoofer — only 3.66" mounting depth
  • 600W RMS / 1200W MAX
  • Available in Dual 2-Ohm, Dual 4-Ohm or Single 4-Ohm voice coil
  • 2.5" aluminum voice coil former, copper winding
  • Paper cone with fiberglass dust cap and stitched rubber surround

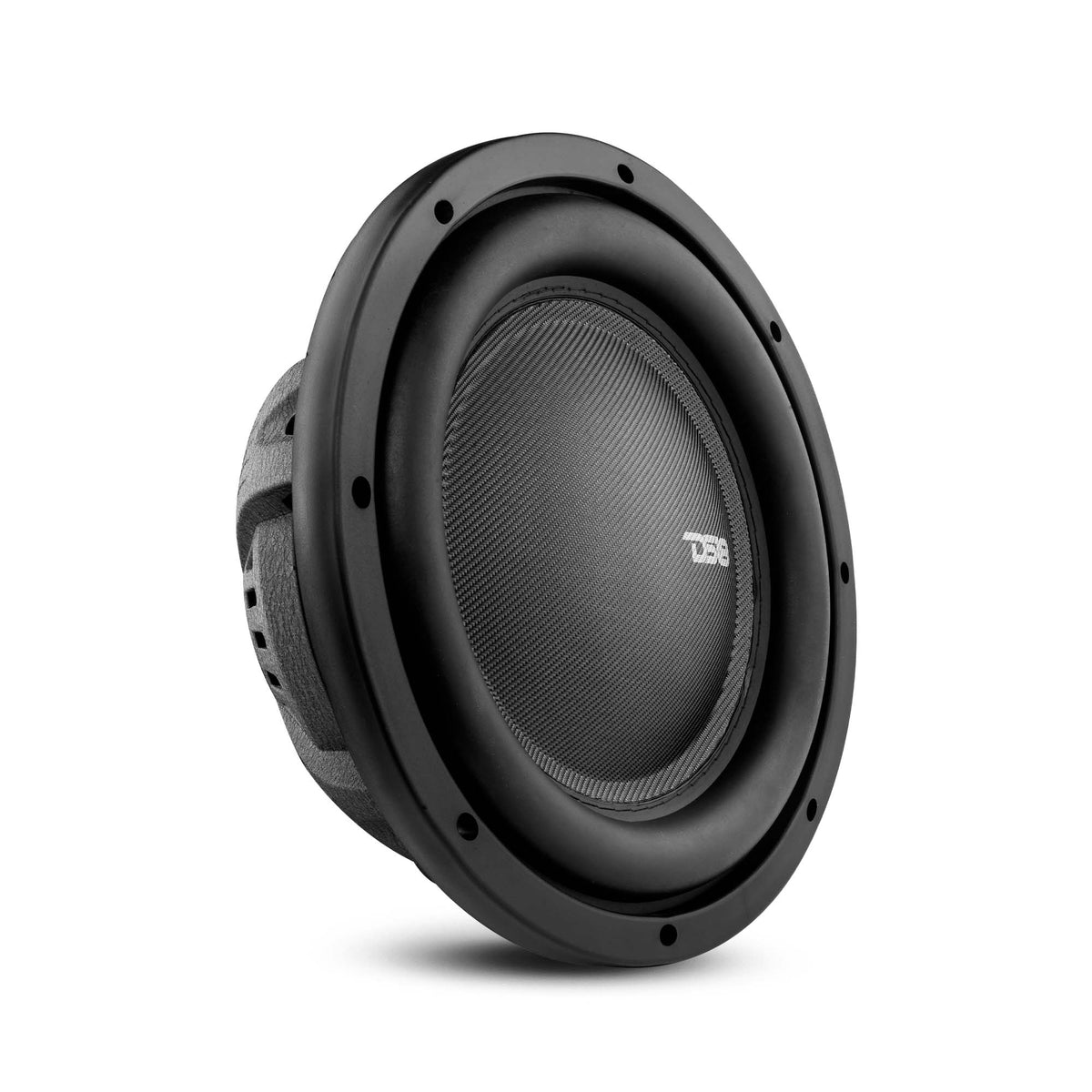

  • Corrugated black aluminum basket
  • 62 oz ferrite magnet
  • Sold individually (each)

Product Overview

Bass for the space you actually have. At 3.66" mounting depth the IXS10 fits behind seats and under consoles where a conventional 10" simply will not go, while still handling 600W RMS. A 2.5" voice coil on an aluminum former with copper winding sits in a 62 oz ferrite motor, and the paper cone runs a fiberglass dust cap on a stitched rubber surround. Pick the voice coil configuration that matches your amplifier — Dual 2-Ohm, Dual 4-Ohm, or Single 4-Ohm. Needs only 0.5 ft³ sealed. Sold individually (each).

SPECS

SKU IXS10.2D (Dual 2-Ohm) / IXS10.4D (Dual 4-Ohm) / IXS10.4S (Single 4-Ohm)
Nominal Diameter 10" / 254mm
Nominal Impedance 2+2 ohms (IXS10.2D) / 4+4 ohms (IXS10.4D) / 4 ohms (IXS10.4S)
RMS Power Handling 600w
Maximum Power Handling 1200w
Sensitivity (1w/1m) 84 dB
Frequency Response 20 - 800 Hz
Recommended Lo Pass Crossover 90 Hz
Voice Coil Diameter 2.5" / 63.5mm
Voice Coil Former Material Aluminum
Winding Material Copper
Cone Material Paper
Dust Cap Material Fiberglass
Surround Material Stitched rubber
Basket Material Aluminum
Basket Color/Finish Corrugated Black
Magnet Material Ferrite
Magnet Weight 62 Oz
Displacement Volume 0.9L / 0.032ft³
Equivalent Volume Vas 13.95L (IXS10.2D) / 18.67L (IXS10.4D) / 20L / 0.7ft³ (IXS10.4S)
Free Air Resonance Fs 38 Hz
Mechanical Factor Qms 5.88 (IXS10.2D) / 4.418 (IXS10.4D) / 4.661 (IXS10.4S)
Electrical Factor Qes 0.87 (IXS10.2D) / 1.001 (IXS10.4D) / 0.691 (IXS10.4S)
Total Factor Qts 0.76 (IXS10.2D) / 0.816 (IXS10.4D) / 0.602 (IXS10.4S)
Moving Mass Mms 200 g (IXS10.2D) / 149.83 g (IXS10.4D) / 145.6 (IXS10.4S)
Compliance Cms 88.46 mm/N (IXS10.2D) / 0.12 mm/N (IXS10.4D) / 121.4 mm/N (IXS10.4S)
Bl Factor BI 13.97 (IXS10.2D) / 8.43 (IXS10.4D) / 13.4 (IXS10.4S)
Voice Coil Inductance Le 4.58 mH (IXS10.2D) / 1.569 mH (IXS10.4D) / 4.58 mH (IXS10.4S)
Diaphragm Area Sd 333.29 cm²
DC Resistance Re 1.8+1.8 ohms (IXS10.2D) / 4+4 ohms (IXS10.4D) / 3.6 ohms (IXS10.4S)
Efficiency Bandwidth Product EBP 43.6 (IXS10.2D) / 37.9 (IXS10.4D) / 54.9 (IXS10.4S)
Sealed Internal Volume (minimum) 14.2L / 0.5ft³
Sealed Box Output Response F3 44Hz

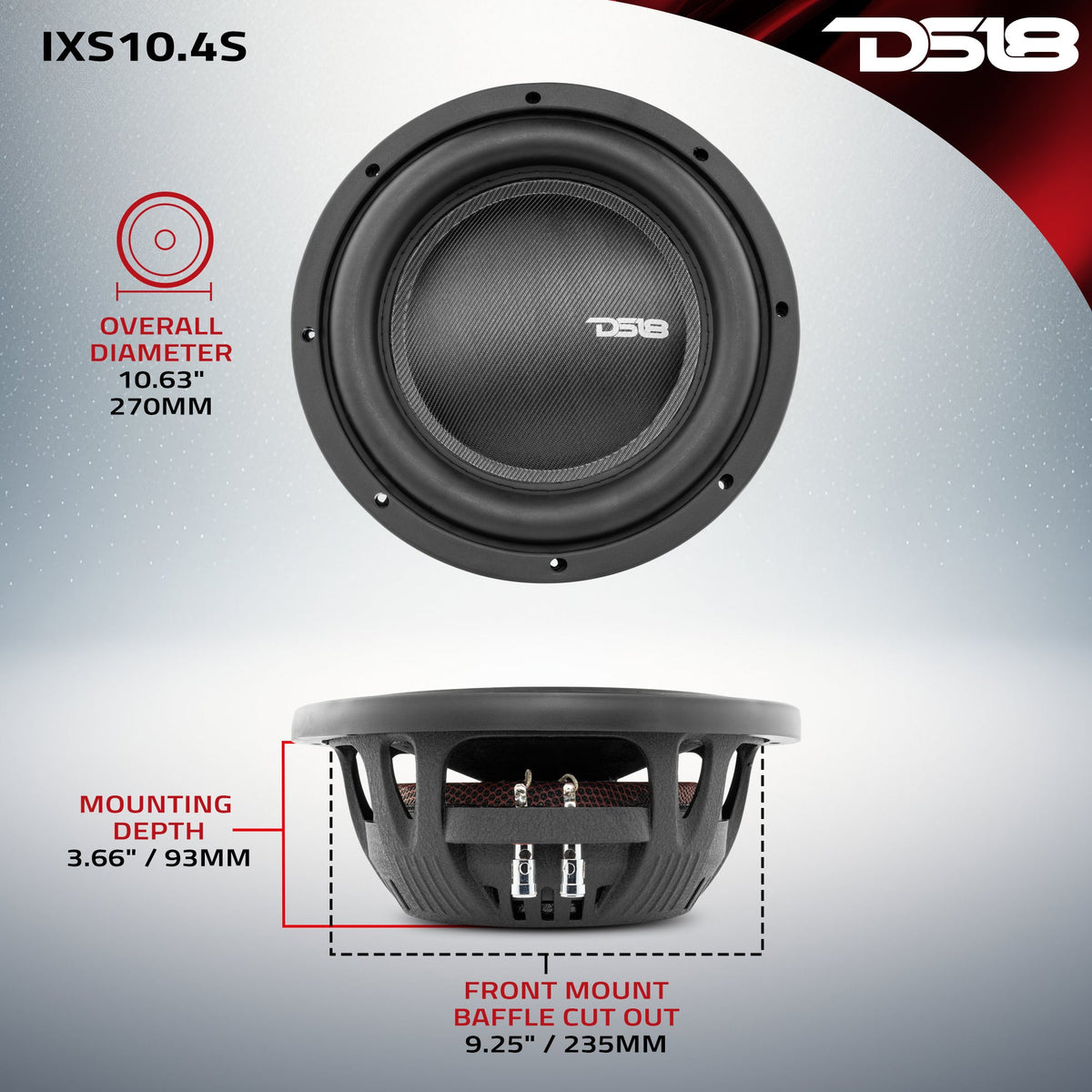

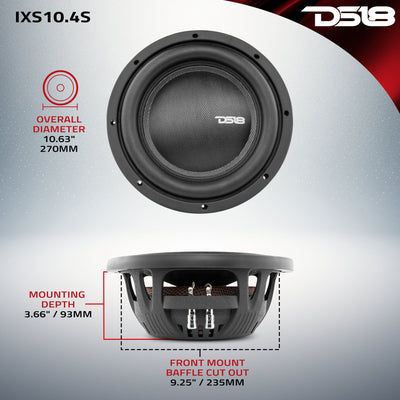

Overall Diameter 10.63" / 270 mm
Overall Depth 4.48" / 114 mm
Front Mount Baffle Cutout 9.25" / 235 mm

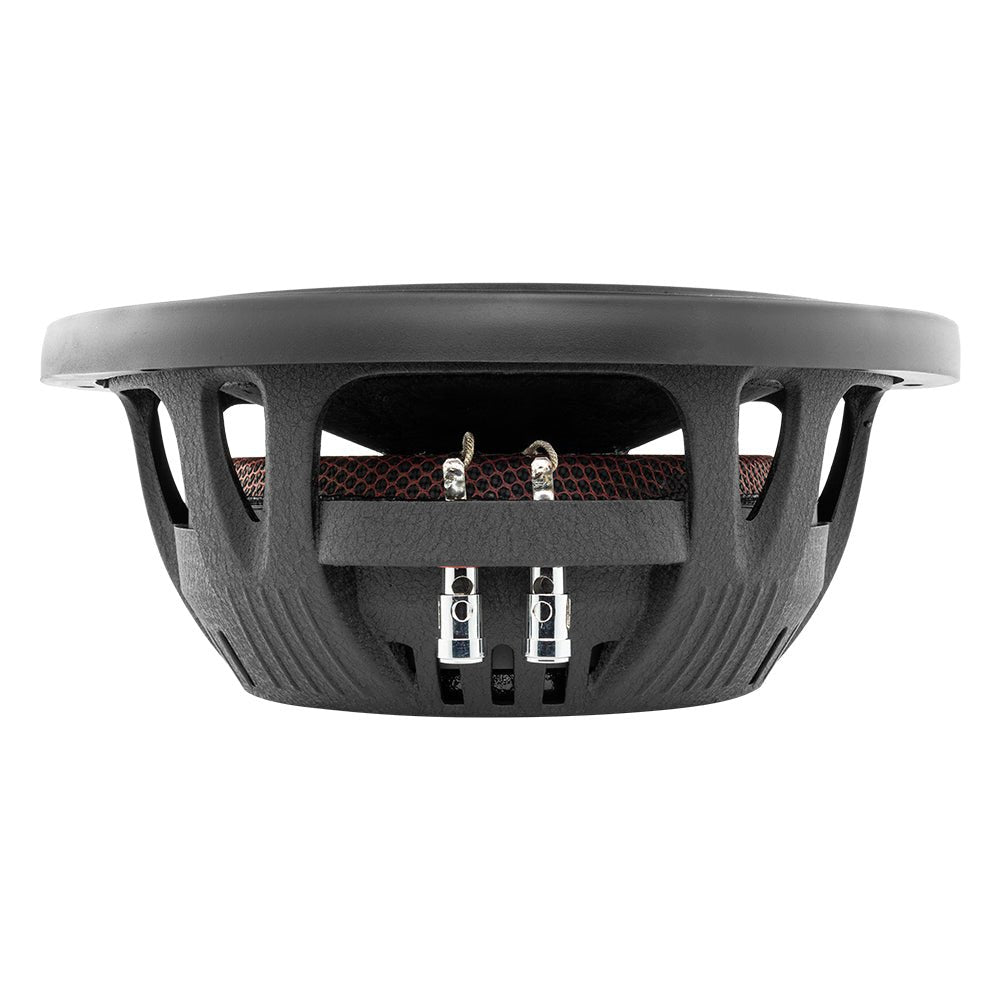

Mounting Depth 3.66" / 93 mm
Motor Diameter 6" / 154 mm
Gross Single Unit Weight 15 lb

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
