Product Overview

Description

Key Features

  • 6-Channel Full-Range Class D Amplifier
  • 200W RMS x 6 @ 4-Ohm · 250W RMS x 6 @ 2-Ohm · 500W RMS x 3 bridged @ 4-Ohm
  • 3600W Peak Power
  • 2-Ohm stereo / 4-Ohm bridged stable
  • Variable crossovers — HPF / LPF / Full Range
  • Input Selector (2CH / 4CH / 6CH)
  • Remote Level Control
  • Clipping, thermal, overload, DC, short-circuit and voltage protection
  • Compact — 12.8" long, 1.96" tall

Product Overview

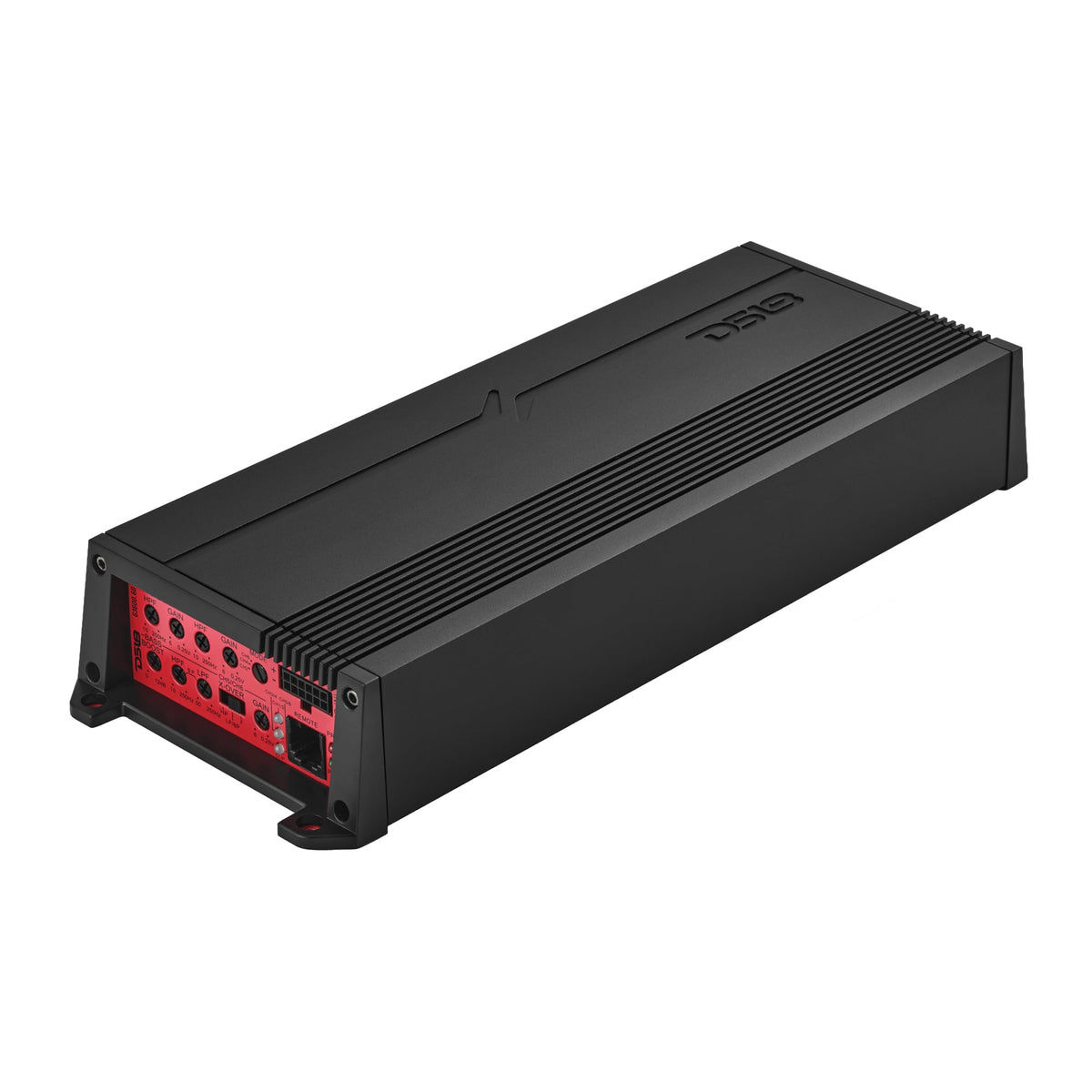

Six channels of full-range Class D in a chassis under 13 inches long, so one amplifier can carry a whole system rather than stacking two. The G3600.6D puts out 200W RMS per channel at 4 ohms, 250W per channel at 2 ohms, or 500W across three bridged pairs, and its input selector lets you feed it from a 2, 4 or 6-channel source without adapters. Adjustable HPF, LPF and Full Range crossovers handle the tuning; onboard clipping, thermal, overload, DC, short-circuit and voltage protection handle everything else. Remote level control is supported. Sold individually (each).

SPECS

SKU G3600.6D
Series GEN-X
Amplifier Class Digital Class D
Amplifier Type Full Range
Number of Channels 6CH
Total Watts (Peak) 3600W
RMS Power @ 4 Ohm 6 x 200W
RMS Power @ 2 Ohm 6 x 250W
RMS Power @ 4 Ohm Bridged 3 x 500W
Minimum Impedance 2 Ohm Stereo / 4 Ohm Bridged
Frequency Response 20Hz–20kHz
Signal-to-Noise Ratio >90dB
Efficiency @ 4 Ohm 75%
Damping Factor 75
Input Impedance 22K Ohm
Channel Separation 57dB
Total Harmonic Distortion (THD) 0.01%
Low-Level Input Range 0.25–6V
High-Level Input No

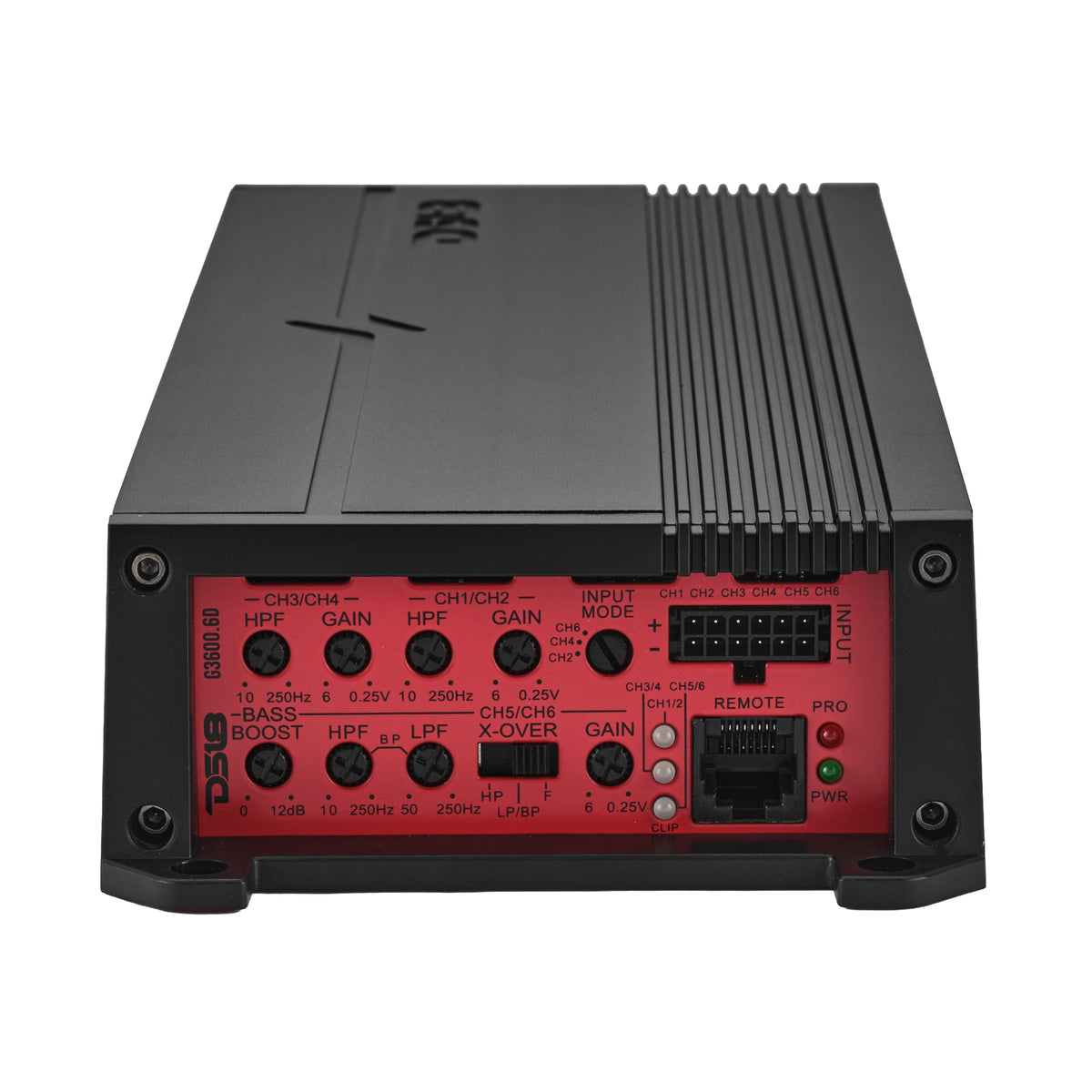

Selectable Crossover Variable HPF / HPF-BPF-FULL (5/6CH)
Crossover Filter Range HPF: 10–250Hz / LPF: 50–250Hz
Bass Boost Range 0–12dB
Bass Boost Frequency Fixed @ 45Hz
Phase Selector No
LED Indicators Power / Protection / Clip

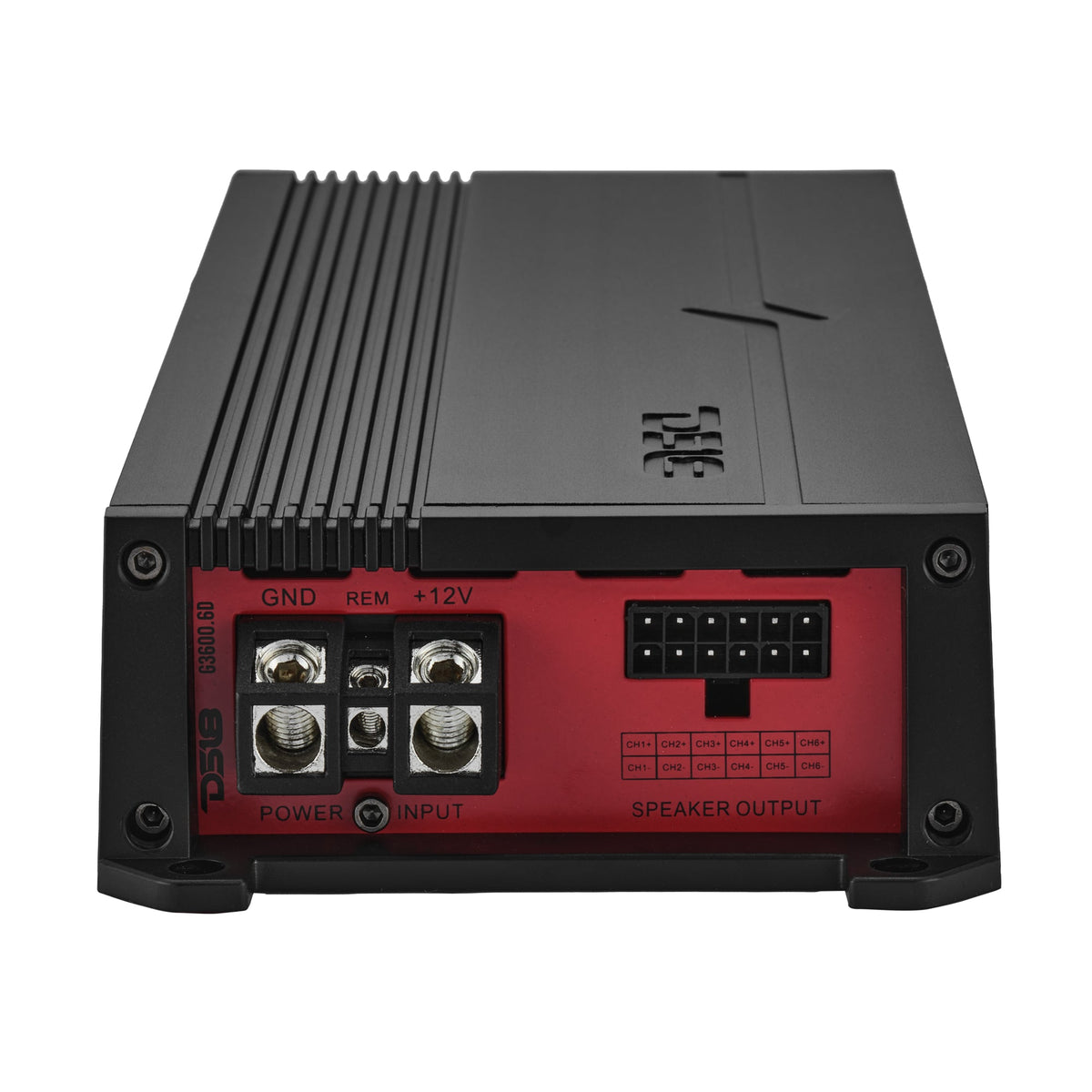

Power Input Terminal Size 4ga
Fuse Size 3 x 40A

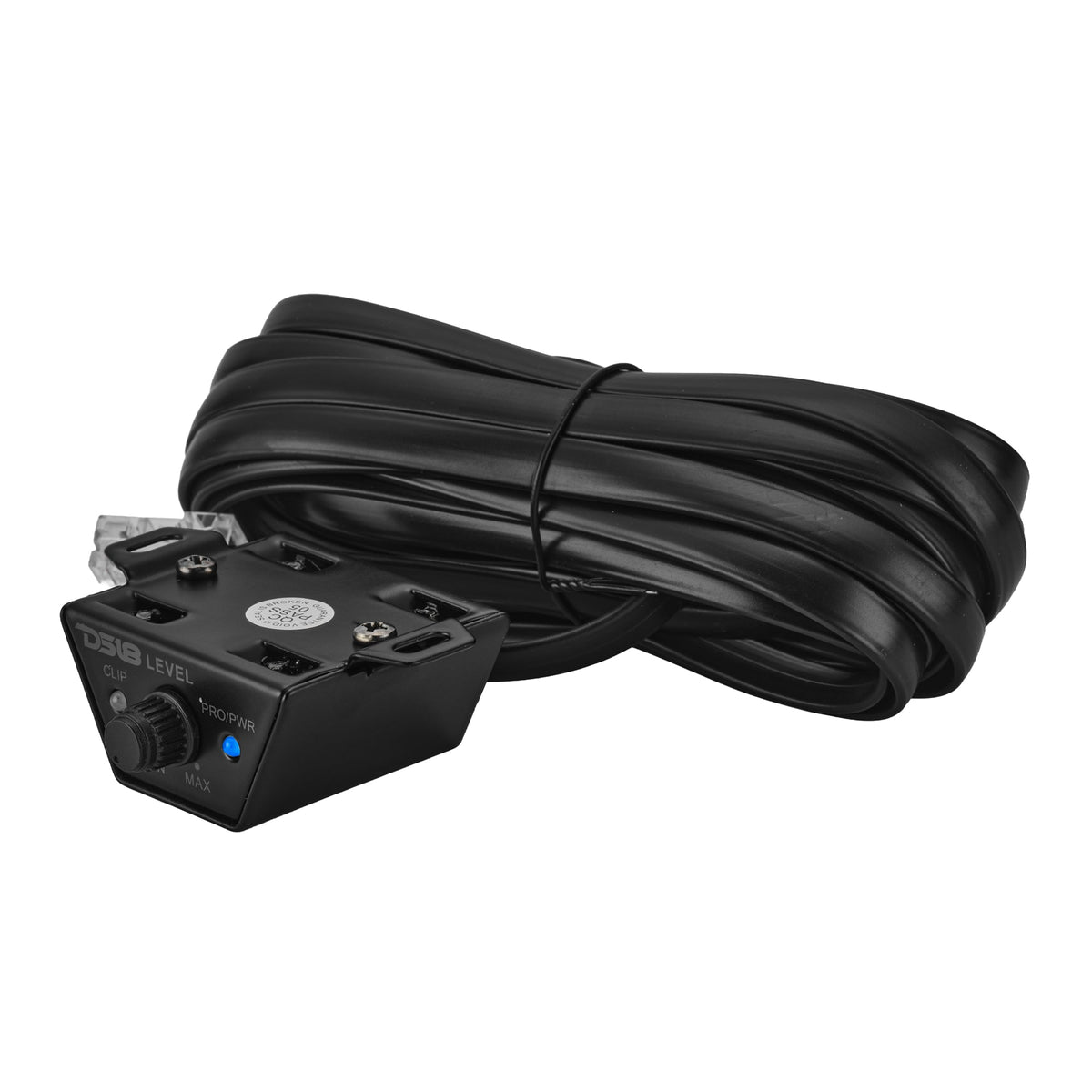

Remote Level Control Yes
Input Selector Yes (2CH / 4CH / 6CH)
Cooling Fan No
Body Color / Finish Matte Black
Overall Length 12.8" / 325mm
Overall Width 4.72" / 120mm
Overall Height 1.96" / 50mm
Heatsink Length 10.9" / 278mm
Gross Single Unit Weight 2.2kg

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
