Product Overview

Description

Product Overview

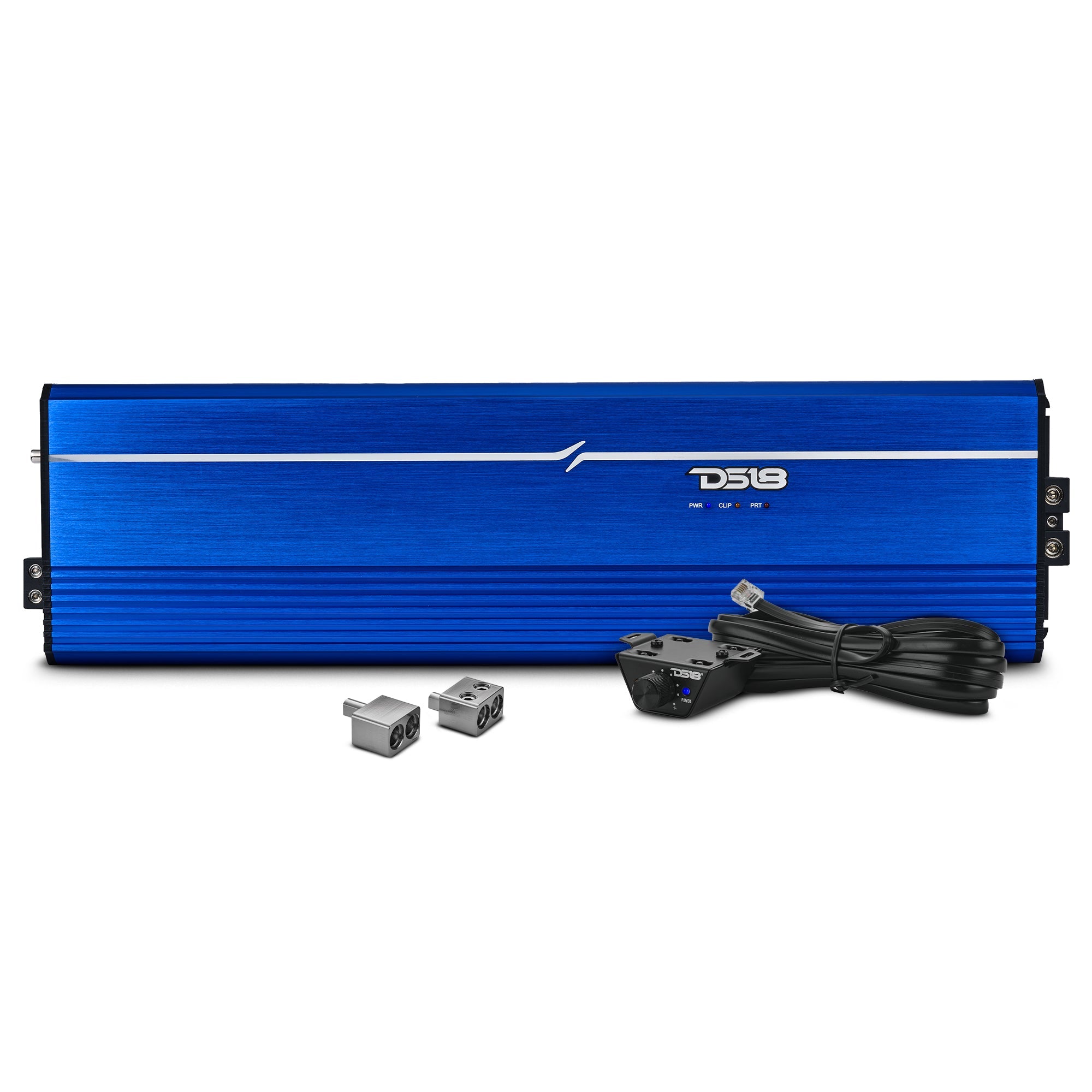

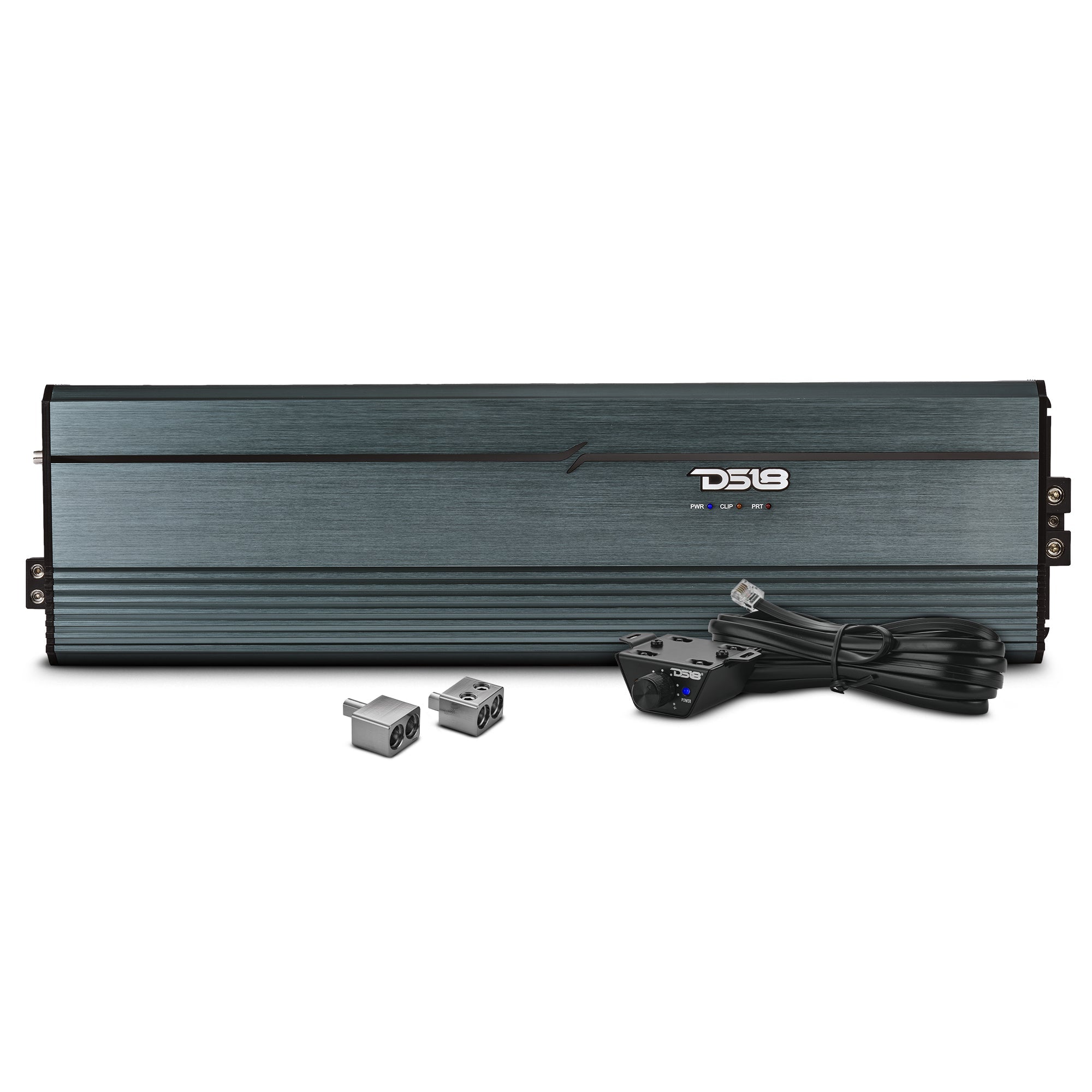

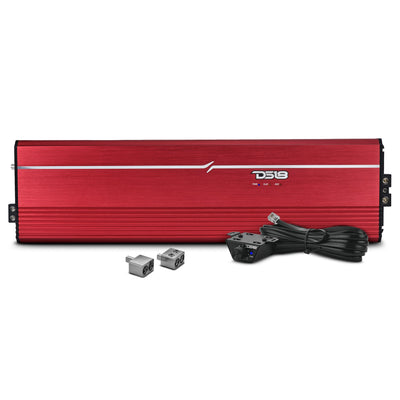

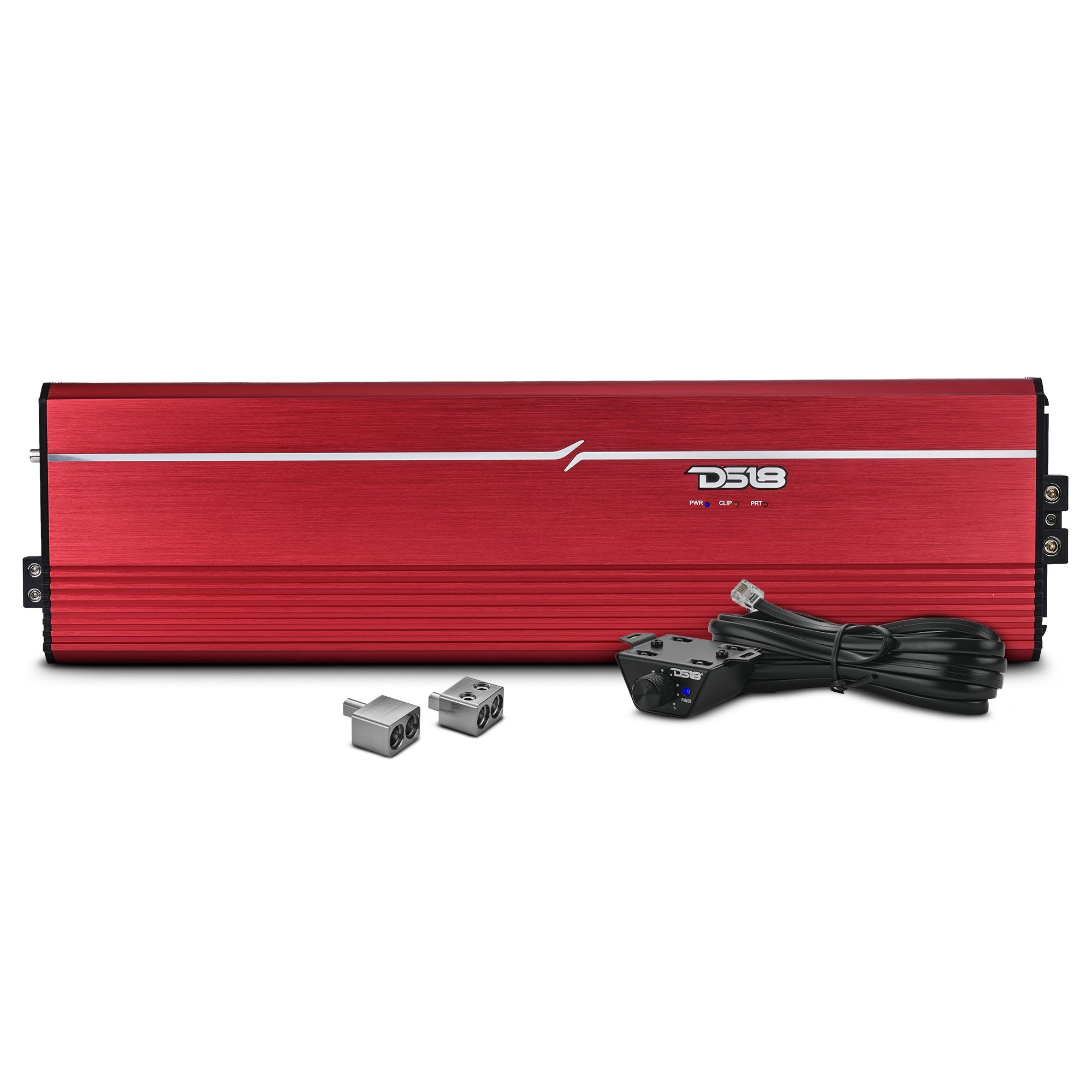

The DS18 FRP-12K combines substantial power output with compact dimensions — a full-range Class D monoblock delivering 12,000W RMS at 1-Ohm (13,000W burst). Frequency response spans 10Hz–15kHz, accommodating both subwoofers and full-range speakers. A Smart Cooling System with three fans prevents thermal stress during sustained operation, while comprehensive protection circuitry safeguards against clipping, short circuit, overload, thermal, DC output, and voltage input faults. Remote level control included. Sold individually (each).

Key Features

  • Full-Range Class D Monoblock Design
  • 12,000W RMS @ 1-Ohm — 13,000W MAX (Burst)
  • Compact High-Power Construction for Flexible Installation
  • Smart Cooling System (x3 Fans) with LED Power/Protect/Clip Indicators
  • Crossover Filters: HPF 10Hz–2kHz / LPF 40Hz–15kHz · Bass Boost 0–12dB @ 50Hz
  • Remote Level Control Included

Specifications

RMS Power @ 4 ohms 4,000W
RMS Power @ 2 ohms 7,500W
RMS Power @ 1 ohm 12,000W
MAX Power @ 1 ohm (Burst) 13,000W
Frequency Response 10Hz–15kHz
Signal to Noise Ratio 90dB
Efficiency @ 4ohm 92%
Channels 1CH
Amplifier Class Digital
Minimum Impedance 1 Ω
Fuse Size (Recommended) 1300A
Overall Length 24" (610mm)
Overall Width 6.5" (167mm)
Overall Height 2.4" (62.5mm)
Weight 7.3kg
Cooling Smart Cooling System (x3 fans)

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
