DS18 FRP-1.2K4-BL 4-Channel Compact Full-Range Class-D Amplifier — 1200W RMS
Product Overview
Description
Key Features
- Compact 4-channel full-range Class-D amplifier
- RMS Power: 4 x 120W @ 4Ω, 4 x 200W @ 2Ω, 4 x 300W @ 1Ω
- Bridged Power: 2 x 350W @ 4Ω | 2 x 500W @ 2Ω

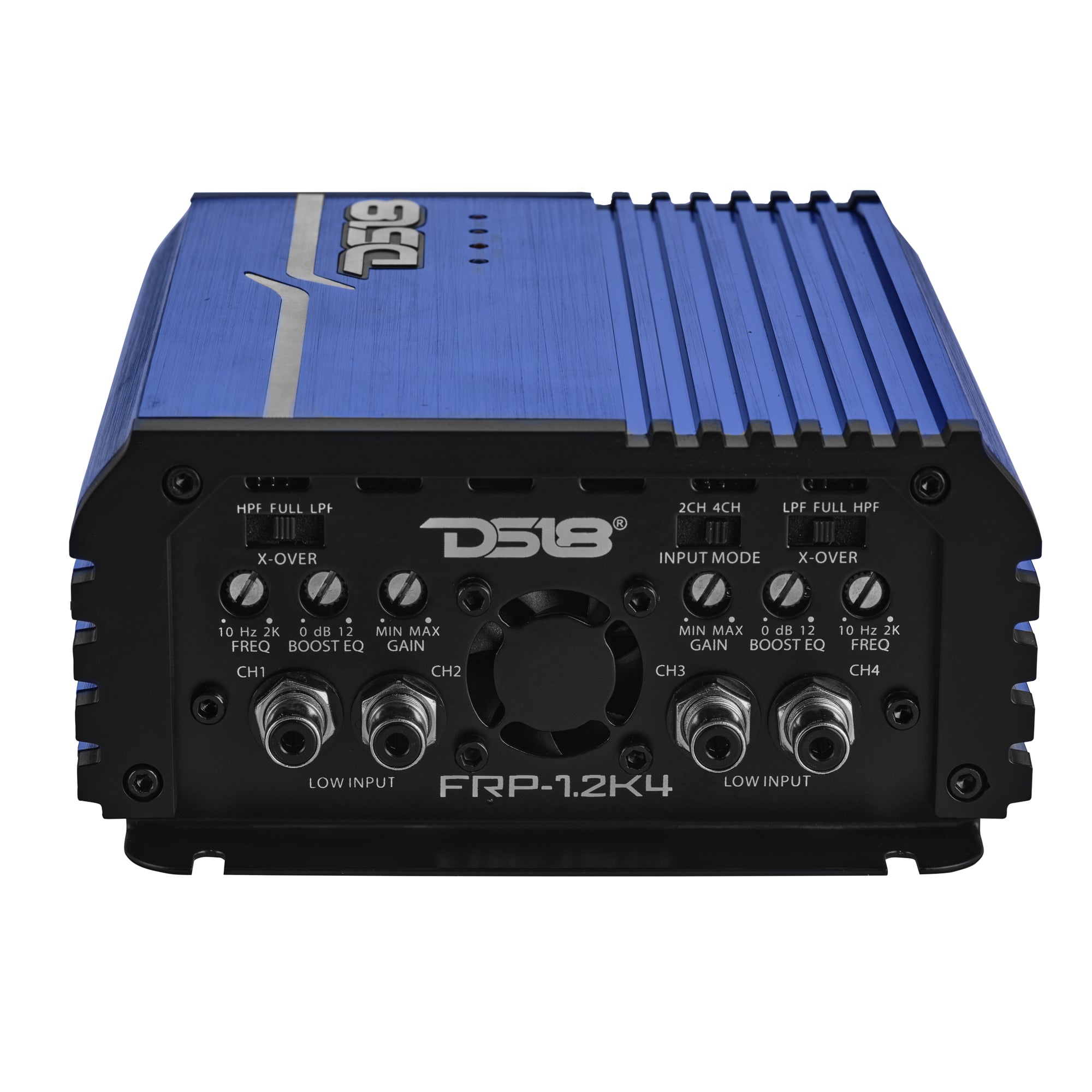

- Selectable HPF / LPF / Full crossover
- Bass Boost: 0–12dB at 50Hz

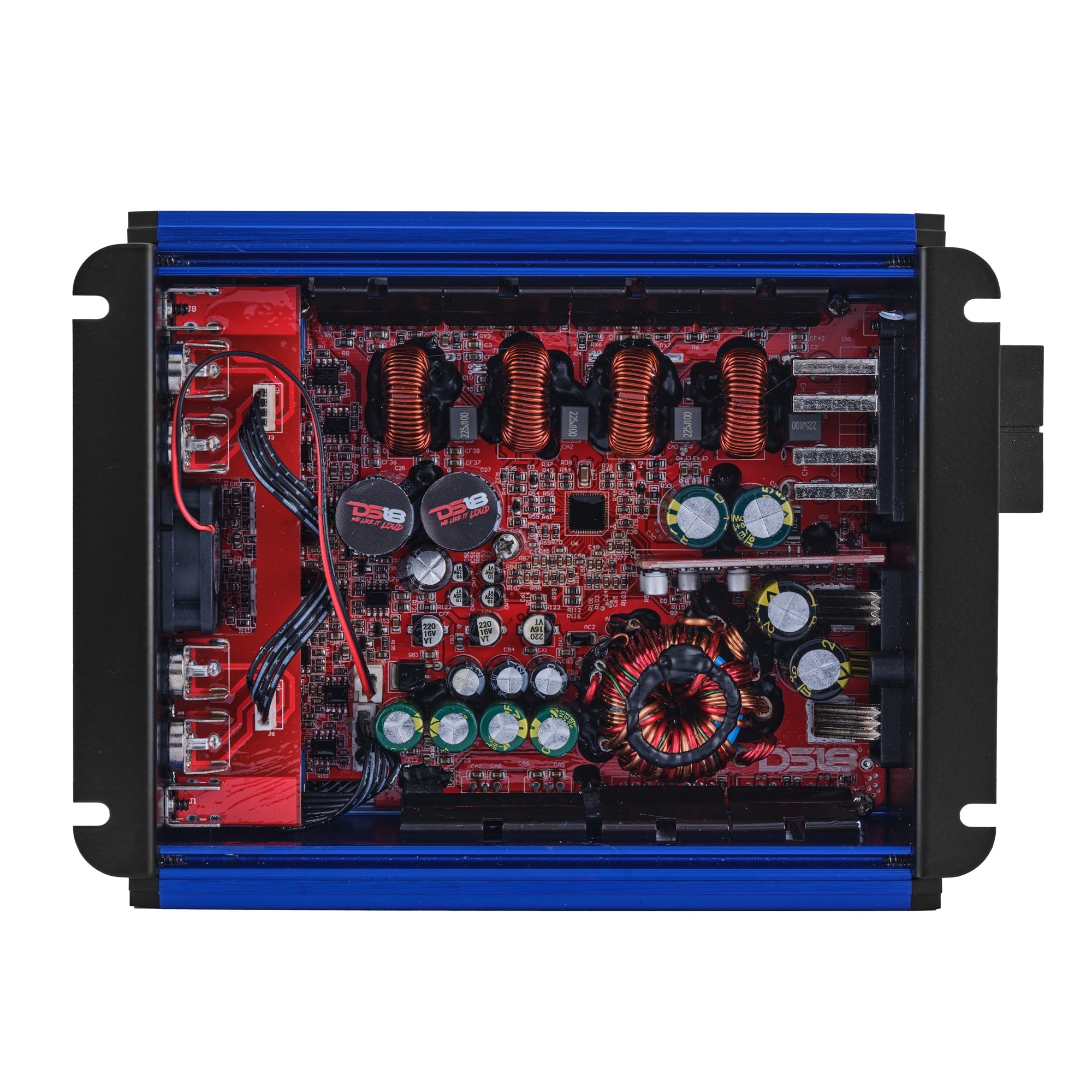

- Smart cooling fan + 4-layer PCB

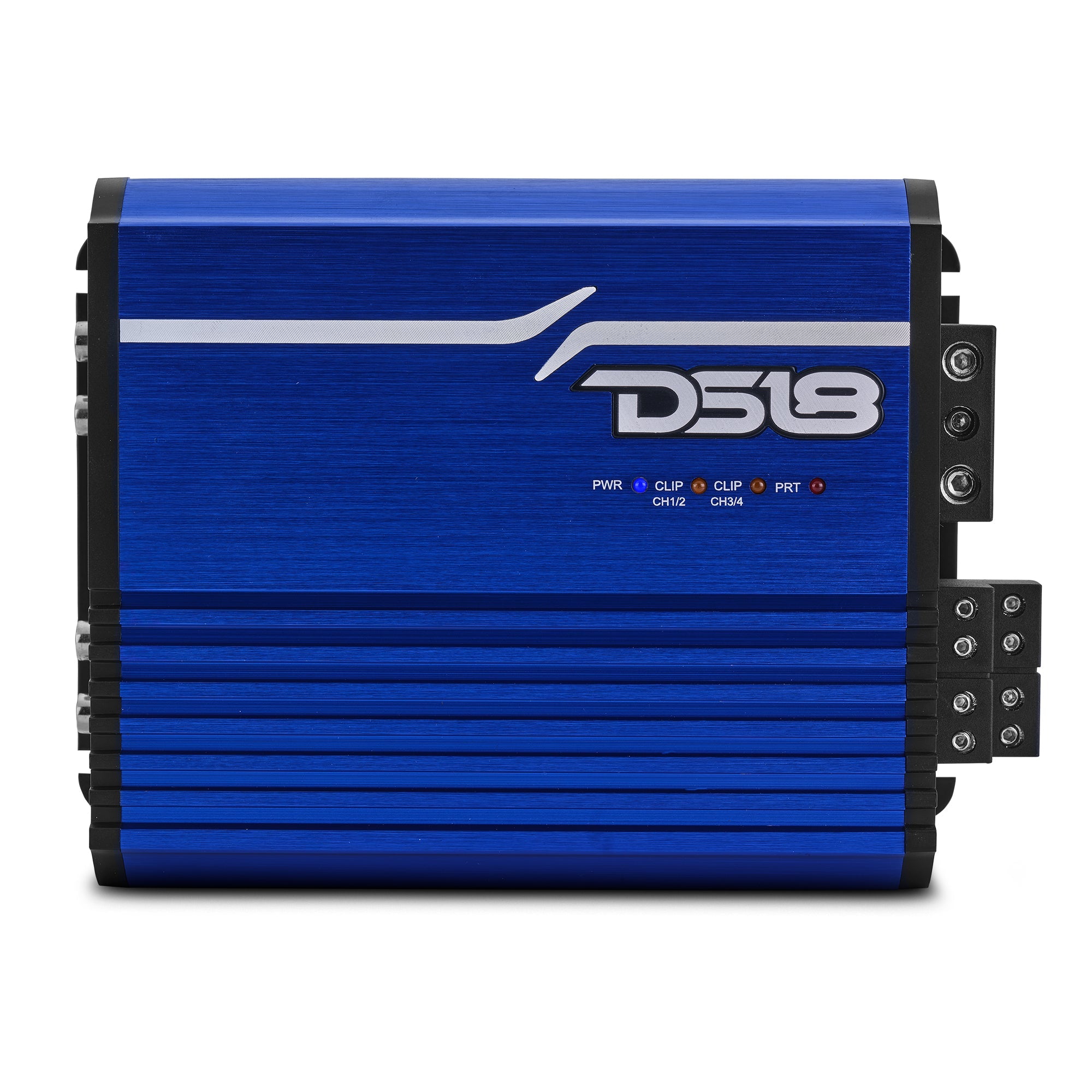

- Power, Protect, Clip LED indicators
- Blue finish
- Sold as: single (each)
Product Overview
The DS18 FRP-1.2K4-BL delivers serious power for high-efficiency performance across your entire system: this compact 4-channel amp drives mids, highs, or subs with clarity and punch — all while staying cool under pressure. Stable at 1-Ohm per channel or 2-Ohm bridged, it adapts to your build, and fully variable HPF, LPF, and full-range crossover options plus up to 12dB of bass boost at 50Hz give you full control of your sound. Thanks to its digital Class D design, Tiffany RCA terminals, smart cooling fan, and surface-mount tech, the FRP-1.2K4 stays efficient and clean while pushing up to 1200W RMS.
SPECS
| SKU | FRP-1.2K4-BL |
| RMS Power @ 4 ohms | 4 x 120W |
| RMS Power @ 2 ohms | 4 x 200W |
| RMS Power @ 1 ohm | 4 x 300W |
| RMS Power @ 4 ohm Bridge | 2 x 350W |
| RMS Power @ 2 ohm Bridge | 2 x 500W |
| Frequency Response | 10Hz-20KHz |
| Signal to Noise Ratio | 90dB |
| Efficiency @ 4ohm | 97% |
| Damping Factor | 90 |
| Input Impedance | 10KΩ |
| Channel Separation | 50dB |
| Total Harmonic Distortion (THD) | 0.5% |
| Low Level Input Range | 400mv-6V |
| High Level Input | No |
| Selectable X-Over | Yes, HPF/FULL/LPF |
| X-Over Filter Range | 10Hz-2KHz |
| Bass Boost Range | 0-12dB |
| Bass Boost Frequency | 50Hz |
| Phase Selector | No |
| Amplifier Class | Digital |
| Amplifier Type | Full-Range Multi-Channel |
| Number of Channels | 4CH |
| Minimum Impedance | 1ohm St / 2ohm Bridge |
| LED Indicator | Power / Protect / Clipping |
| Power Input Terminal Size | 4GA |
| Fuse Size (Recommended) | 140A |
| Cooling Fan | Yes (Smart Cooling x 1) |
| Voltmeter | No |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Body Color / Finish | Blue |
| Compact Size to Easy Installation | Yes |
| 4-Layer PCB Design | Yes |
| Surface Mount Component Technology | Yes |
| Audio Precision Quality Control | Yes |
| Tiffany RCA Terminal | Yes |
| LED Clip Indicator | Yes |
| Metal Knobs with Click Steps | Yes |
| Input Selector | Yes (2ch/4ch) |
| Remote Level Control w/ Clip Indicator | No |
| Remote Level w/ Voltmeter | No |
| Overall Length | 7.2" / 183mm |
| Overall Width | 5.5" / 140mm |
| Overall Height | 2.4" / 63.5mm |
| Heatsink Length | 6" / 152mm |
| Gross Weight | 1.6Kg |
| Sold As | Single |
Rule the Water
King of the COVE
Free shipping on orders $100+
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
FAQs
Please read our FAQs page to find out more.
RMS vs. MAX power — which number do I actually care about?
RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.
What does the IP65 rating on DS18 marine gear actually mean?
It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.
How do I match an amplifier to my speakers without guessing?
Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.
Can I mix marine-grade gear into a standard car audio setup, or the reverse?
You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.
What gauge wiring kit do I need?
It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
