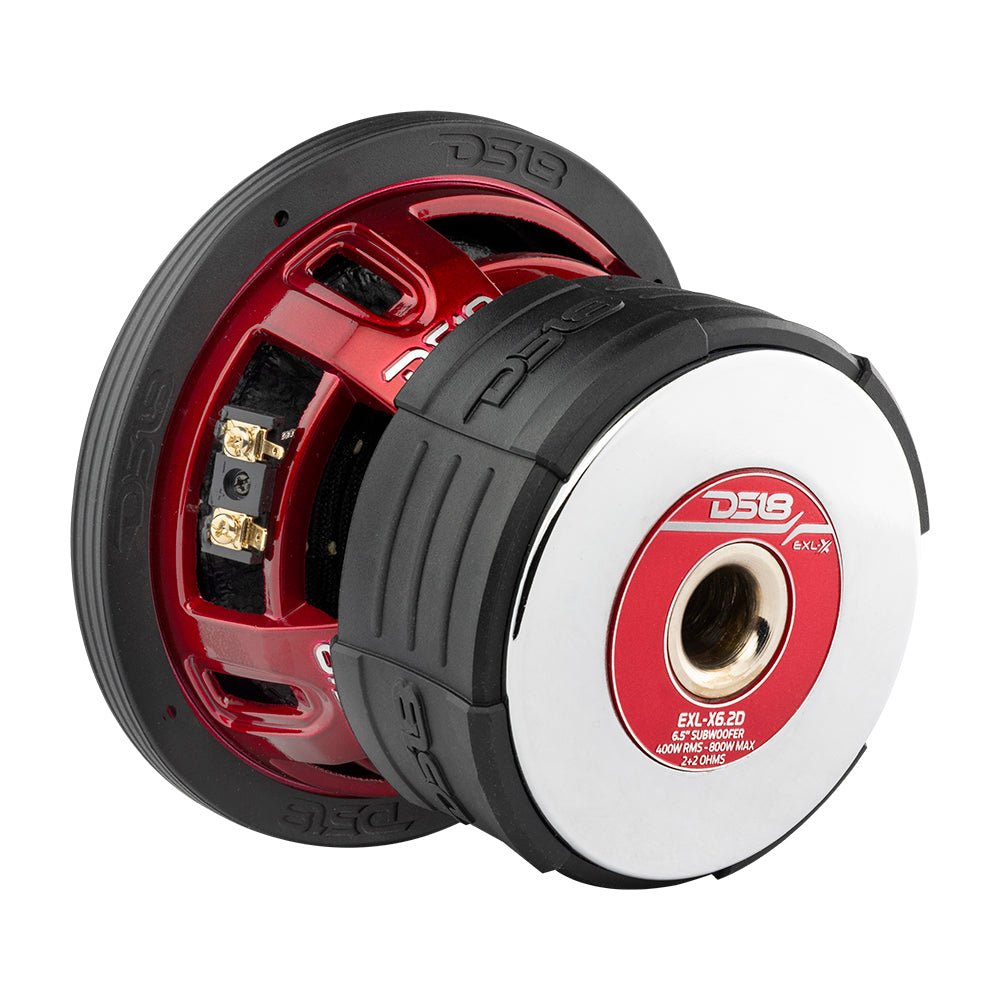

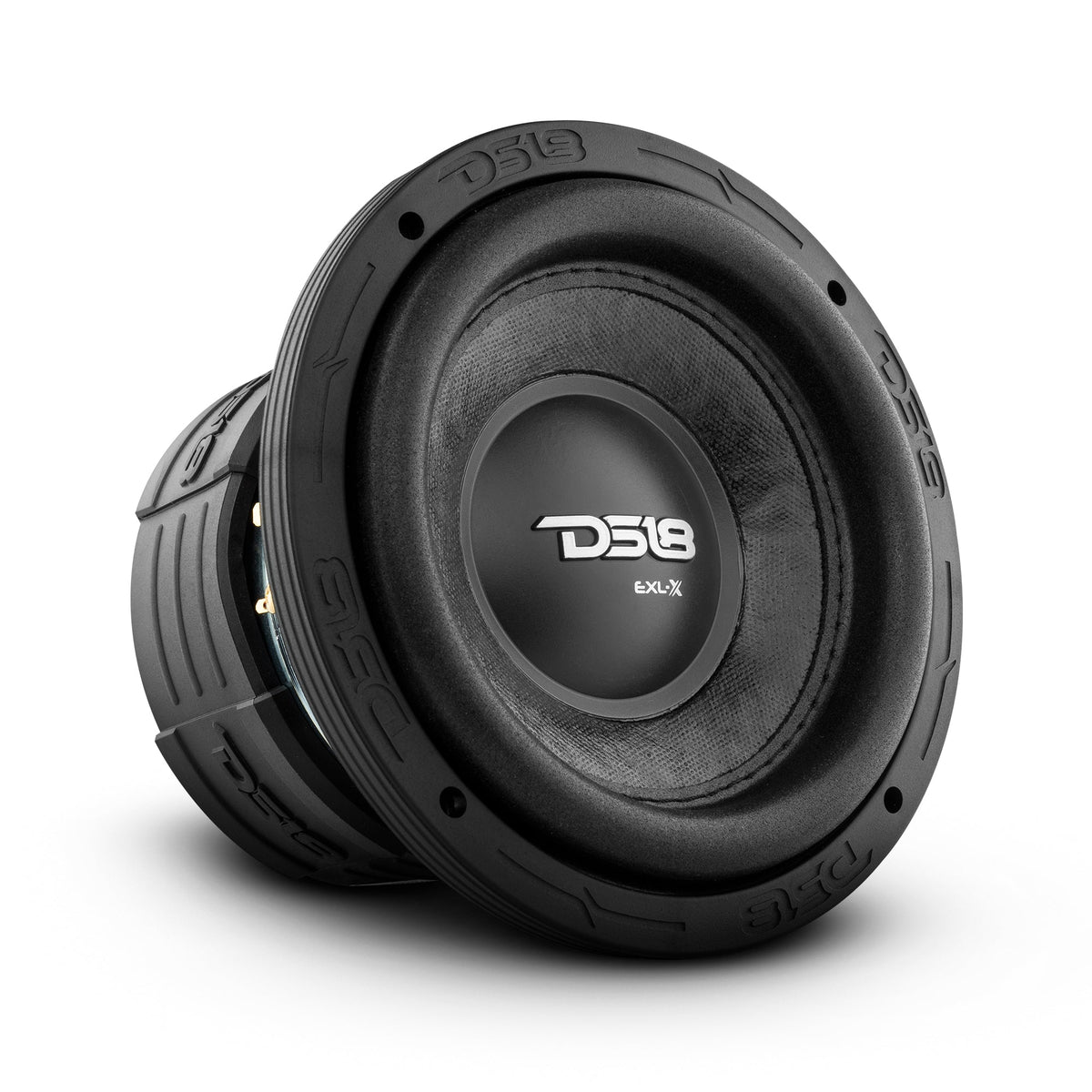

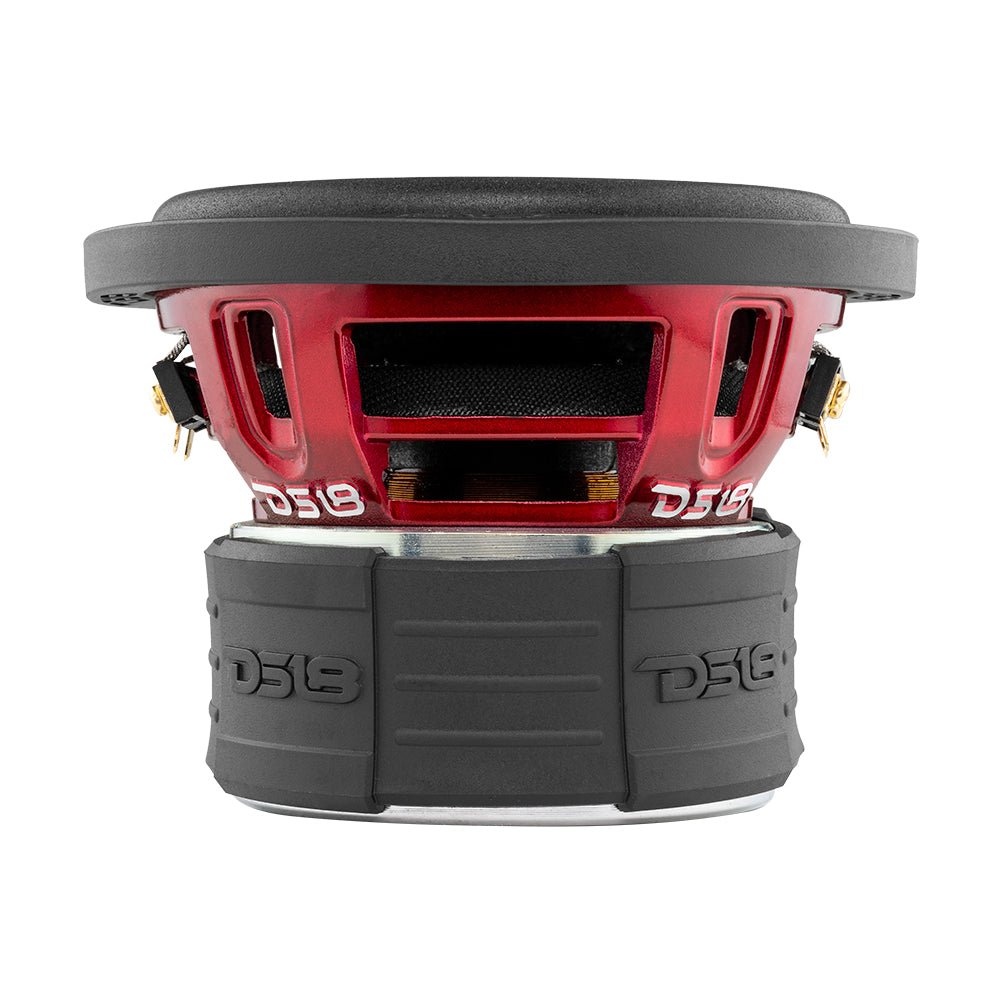

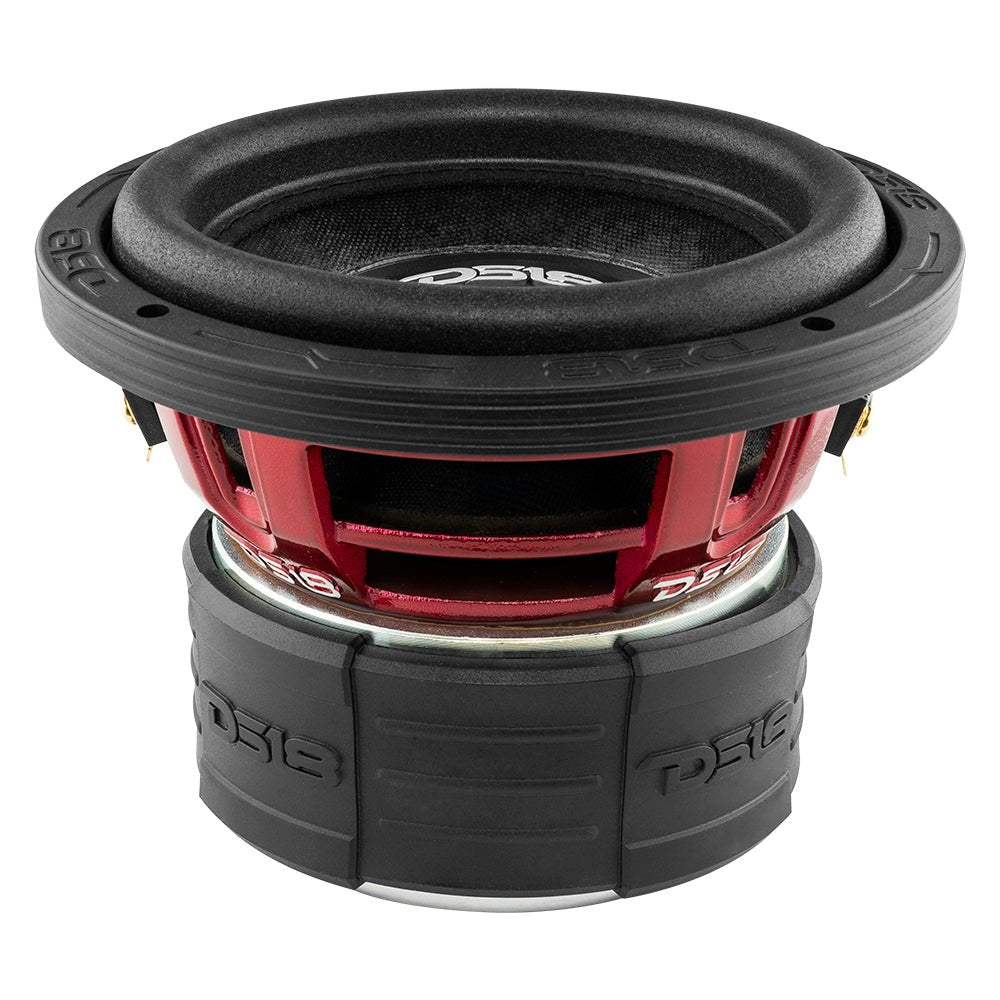

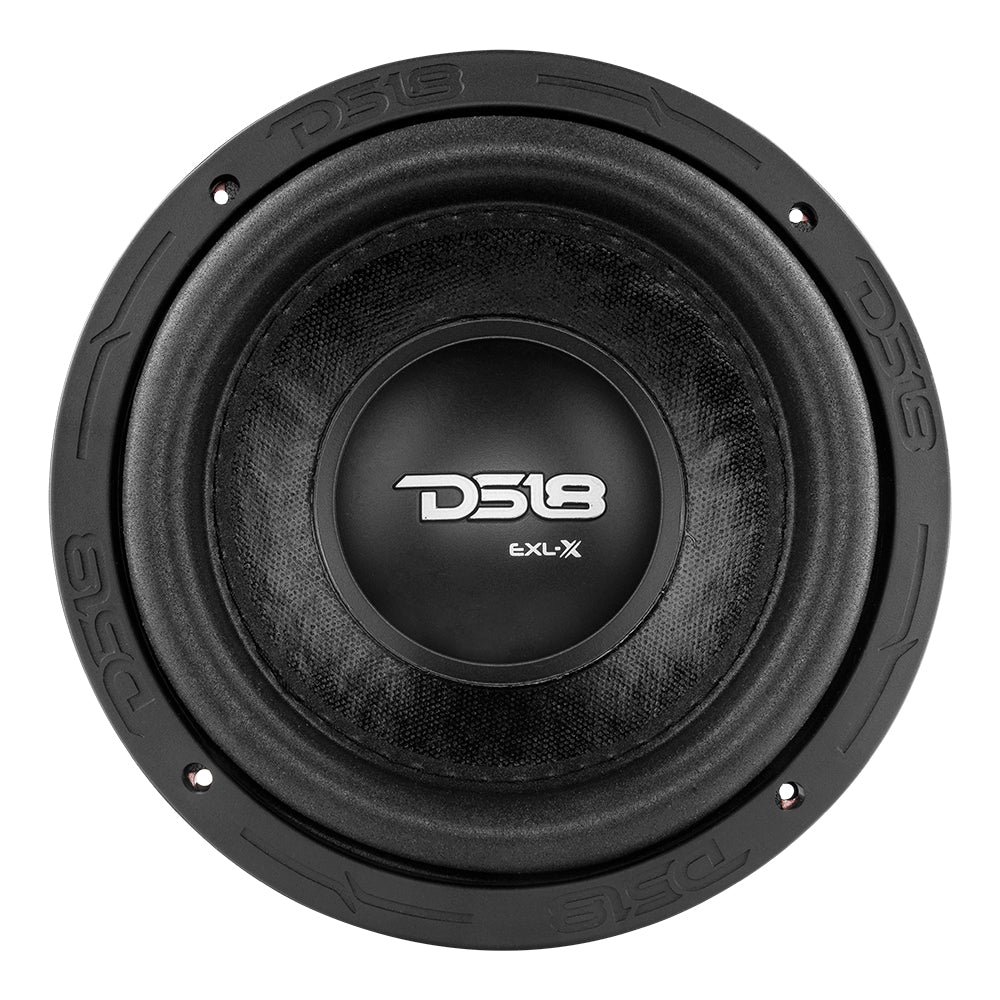

DS18 EXL-X6 6.5" Subwoofer — 400W RMS / 800W MAX, DVC (2Ω / 4Ω)
Product Overview
Description
Key Features
- 6.5" subwoofer rated 400W RMS / 800W MAX with a 2" aluminum-former voice coil
- Dual voice coil — choose 2+2 ohm (EXL-X6.2D) or 4+4 ohm (EXL-X6.4D) to match your amplifier's load
- Cast aluminum basket in glossy red with a 90 oz ferrite motor
- Non-pressed paper and glass-fibre cone with a foam surround
- 4.25" mounting depth and 5.78" front-mount cutout — sized for compact under-seat and under-dash enclosures
Overview
The EXL-X6 is DS18's 6.5" subwoofer for installs where a full-size sub will not go: under-seat and under-dash enclosures, Gladiator and Slingshot boxes, and compact custom builds. It carries a 2" voice coil and a 90 oz ferrite magnet behind a 6.5" cone, so it handles 400W RMS and plays down to 40Hz from a small sealed chamber.
Both versions are dual voice coil. The EXL-X6.2D wires to 1 ohm or 4 ohms per sub and the EXL-X6.4D to 2 ohms or 8 ohms, so a pair or a set of four can be matched to a monoblock's optimum load. DS18 names this sub as its recommended 6.5" driver for the JT-S64 Gladiator under-seat enclosure.
Specifications
| SKU | EXL-X6.2D / EXL-X6.4D |
| Nominal Diameter | 6.5" / 165.1mm |
| Nominal Impedance | 2+2 ohms (EXL-X6.2D) / 4+4 ohms (EXL-X6.4D) |
| RMS Power Handling | 400W |
| Maximum Power Handling | 800W |
| Sensitivity (1w/1m) | 89.8dB |
| Frequency Response | 40-820Hz |
| Recommended Lo Pass Crossover | 90Hz |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Non Pressed Paper + Glass fiber |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 90 oz |

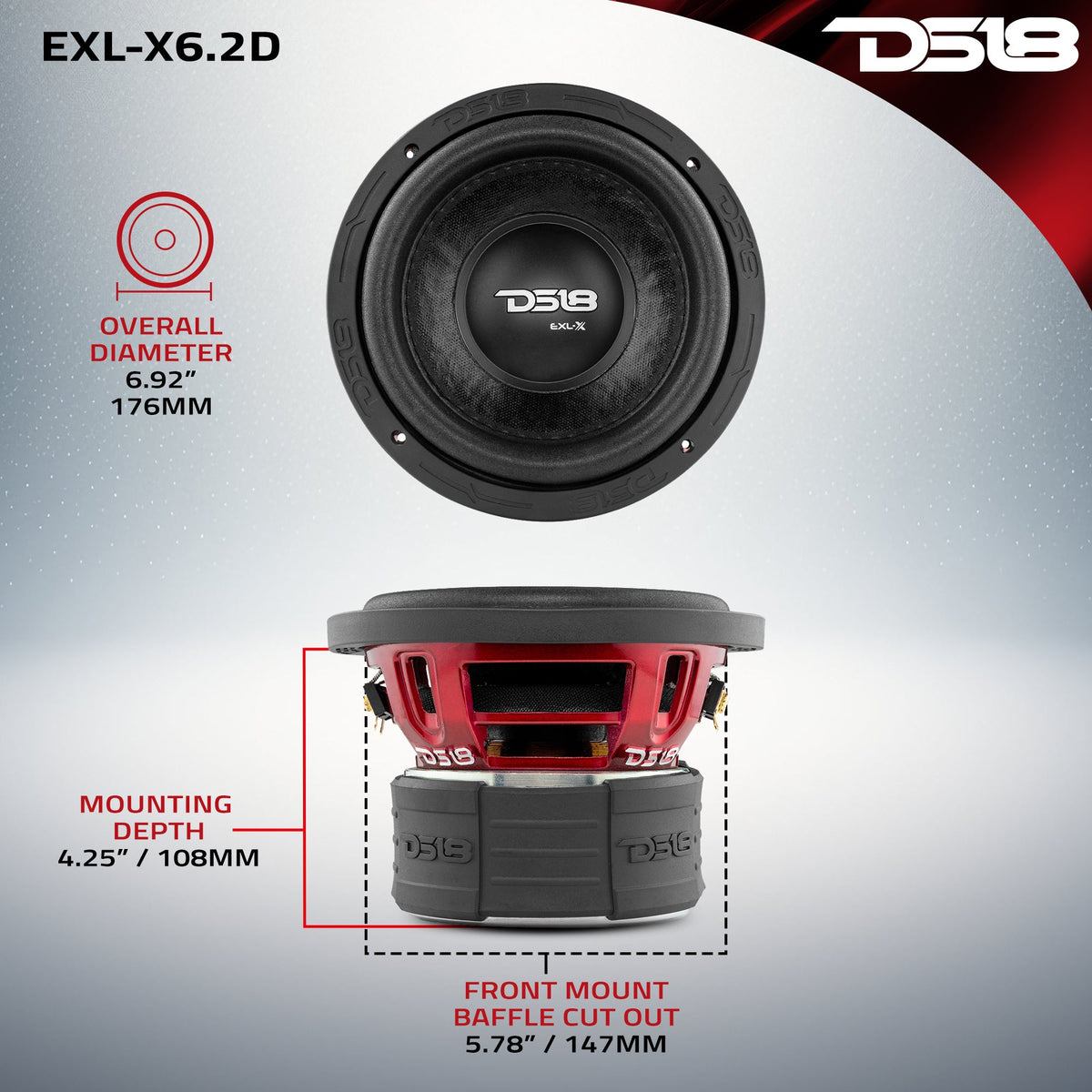

| Mounting Depth | 4.25" / 108mm |
| Front Mount Baffle Cut Out | 5.78" / 147mm |
| Overall Diameter | 6.92" / 176mm |
Price is each.
Free shipping on orders $150+
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
FAQs
Please read our FAQs page to find out more.
RMS vs. MAX power — which number do I actually care about?
RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.
What does the IP65 rating on DS18 marine gear actually mean?
It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.
How do I match an amplifier to my speakers without guessing?
Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.
Can I mix marine-grade gear into a standard car audio setup, or the reverse?
You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.
What gauge wiring kit do I need?
It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
