Product Overview

Description

Key Features

  • 4" 2-Way Coaxial
  • MAX Power: 260 Watts
  • RMS Power: 60 Watts
  • Impedance: 3 Ohm
  • Strontium & Neodymium Magnets
  • Pair ~ 85dB
  • Grill Included

SPECS

SKU
EXL-SQ4.0
Nominal Diameter
4" / 101.6mm
Nominal Impedance
3 ohm
RMS Power Handling
60W
MAX Power Handling
260W
Sensitivity (1w/1m)
85 dB
Frequency Response
115Hz - 22KHz
Recommended HI Pass Crossover
140Hz
Number of ways
2-way
Pair or Single
Pair
Grill Included
Yes

WOOFER

Voice Coil Diameter
1" / 25.5mm
Voice Coil Former Material
BASV
Winding Material
CCAW
Cone Material
Glass Fiber
Surround Material
Rubber
Basket Material
Aluminum
Basket Color/Finish
Granite Silver
Magnet Material
Strontium
Magnet Weight
9 Oz

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
1.2L / 0.043ft3
Free Air Resonance Fs
113Hz
DC Resistance Re
2.8 ohm
Mechanical Factor Qms
4.889
Electrical Factor Qes
0.873
Total Factor Qts
0.741

TWEETER

Nominal Diameter
0.8" / 20.3mm
Voice Coil Diameter
0.5" / 13mm
Diaphragm Material
PEI Dome
Magnet Material
Neodymium

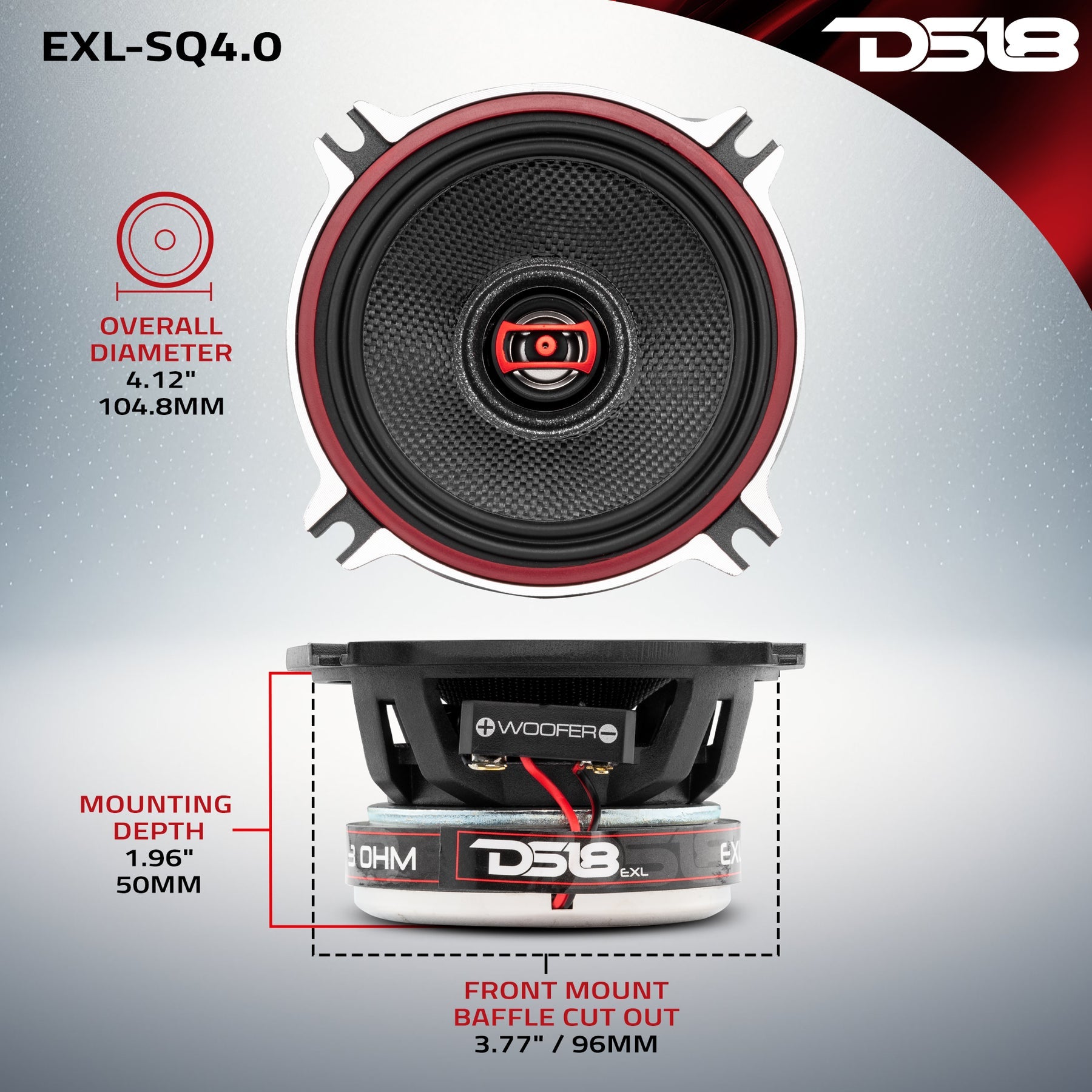

MEASUREMENTS

Overall Diameter
4.12" / 104.8mm
Overall Depth
2.14" / 54.5mm
Front Mount Baffle Cutout
3.77" / 96mm
Mounting Depth
1.96" / 50mm
Motor Diameter
3.14" / 80mm

Product Overview

EXL-SQ4.0

4" 2-Way Coaxial Speaker with Fiber Glass Cone — 60W RMS, 3-Ohm

Instantly increase the sound quality in your car with powerful, clear sound that fills any space. The 2-way design of the EXL-SQ4.0 equips it with both a woofer and a tweeter, which work together to produce a full and dynamic sound — from soaring vocals to deep, thumping bass lines, you'll hear every nuance and detail of your favorite songs.

The 3-ohm impedance makes these speakers extremely easy to incorporate into any high-powered audio system.

The glass fiber cone provides stiffness, ensures accurate sound reproduction, and minimizes distortion. Its lightweight design enables faster and more responsive changes to the signal, while also maximizing energy efficiency.

Every component, from the advanced PEI dome tweeter to the neodymium magnets and black glass fiber cone, has been carefully chosen and tuned to deliver the best possible audio performance — incredible accuracy and fidelity on every note.

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
