Product Overview

Description

Product Overview

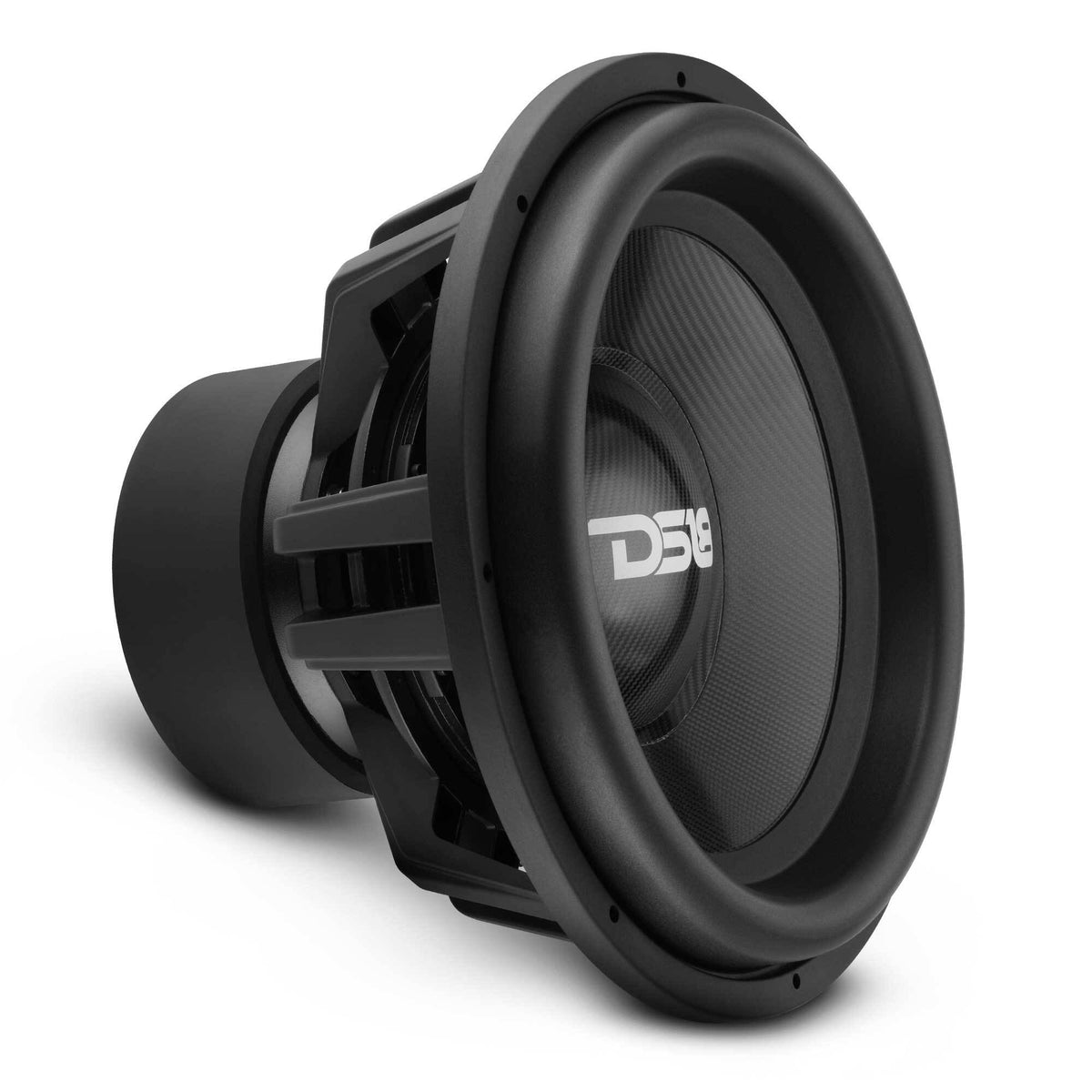

The DS18 CARBON18 is an 18" high-excursion subwoofer built for the biggest bass builds — 3,500W RMS / 7,000W MAX power handling through a 3.5" aluminum voice coil with improved heat dissipation. The carbon fiber cone and dust cap keep the massive 1164cm² diaphragm rigid through 22.5mm of one-way Xmax, on an aluminum basket with a 425 Oz ferrite motor. Choose Dual 1-Ohm or Dual 2-Ohm voice coil configuration to match your amplifier. Sold individually (each).

Key Features

  • 3500W RMS / 7000W MAX Power Handling
  • Carbon Fiber Cone & Dust Cap
  • 3.5" Aluminum Voice Coil with Improved Heat Dissipation
  • 22.5mm Xmax High-Excursion Design
  • Dual 1-Ohm or Dual 2-Ohm Voice Coil Configurations

Specifications

RMS Power 3500W
MAX Power 7000W
Nominal Impedance Dual 1-Ohm (CARBON18.1D) / Dual 2-Ohm (CARBON18.2D)
Voice Coil Diameter 3.5" / 89mm
Voice Coil Former Aluminum
Winding Material CCAR
Voice Coil Inductance 0.95mH (CARBON18.1D) / 1.76mH (CARBON18.2D)
Sensitivity (1W/1m) 85dB
Frequency Response 10–200Hz
Free Air Resonance (Fs) 33Hz (CARBON18.1D) / 35Hz (CARBON18.2D)
Xmax (one way) 22.5mm
Equivalent Volume (Vas) 56.38L / 1.991ft³ (CARBON18.1D) — 50.62L / 1.787ft³ (CARBON18.2D)
Mechanical Factor (Qms) 6.778 (CARBON18.1D) / 7.128 (CARBON18.2D)
Electrical Factor (Qes) 1.005 (CARBON18.1D) / 1.1 (CARBON18.2D)
Total Factor (Qts) 0.87 (CARBON18.1D) / 0.958 (CARBON18.2D)
Moving Mass 779.1g (CARBON18.1D) / 746.2g (CARBON18.2D)
Compliance 29.3mm/N (CARBON18.1D) / 26.1mm/N (CARBON18.2D)
BL Factor 18.01 (CARBON18.1D) / 24.6 (CARBON18.2D)
Efficiency Bandwidth Product 31.8
Cone Material Carbon Fiber
Dust Cap Carbon Fiber, 8" / 200mm
Surround Material Foam
Diaphragm Area 1164cm²
Basket Material Aluminum (Aluminum/Black)
Magnet Ferrite, 425 Oz
Spider Diameter 9" / 228mm
Speaker Terminals Push Terminals 4ga
Leads Connection Spider Crossed
Nominal Diameter 18" / 457mm
Overall Diameter 18.5" / 470mm
Overall Depth 14" / 355mm
Mounting Depth 12.15" / 309mm
Front Mount Baffle Cutout 16.75" / 426mm
Motor Diameter 9" / 230mm
Sealed Enclosure (Recommended) 90L / 3.2ft³ — output response 32Hz
Ported Enclosure (Recommended) 212L / 7.5ft³ — port 4"×18"×20", tuned 30Hz, output response 22Hz
Low-Pass Crossover (Recommended) 60Hz

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
