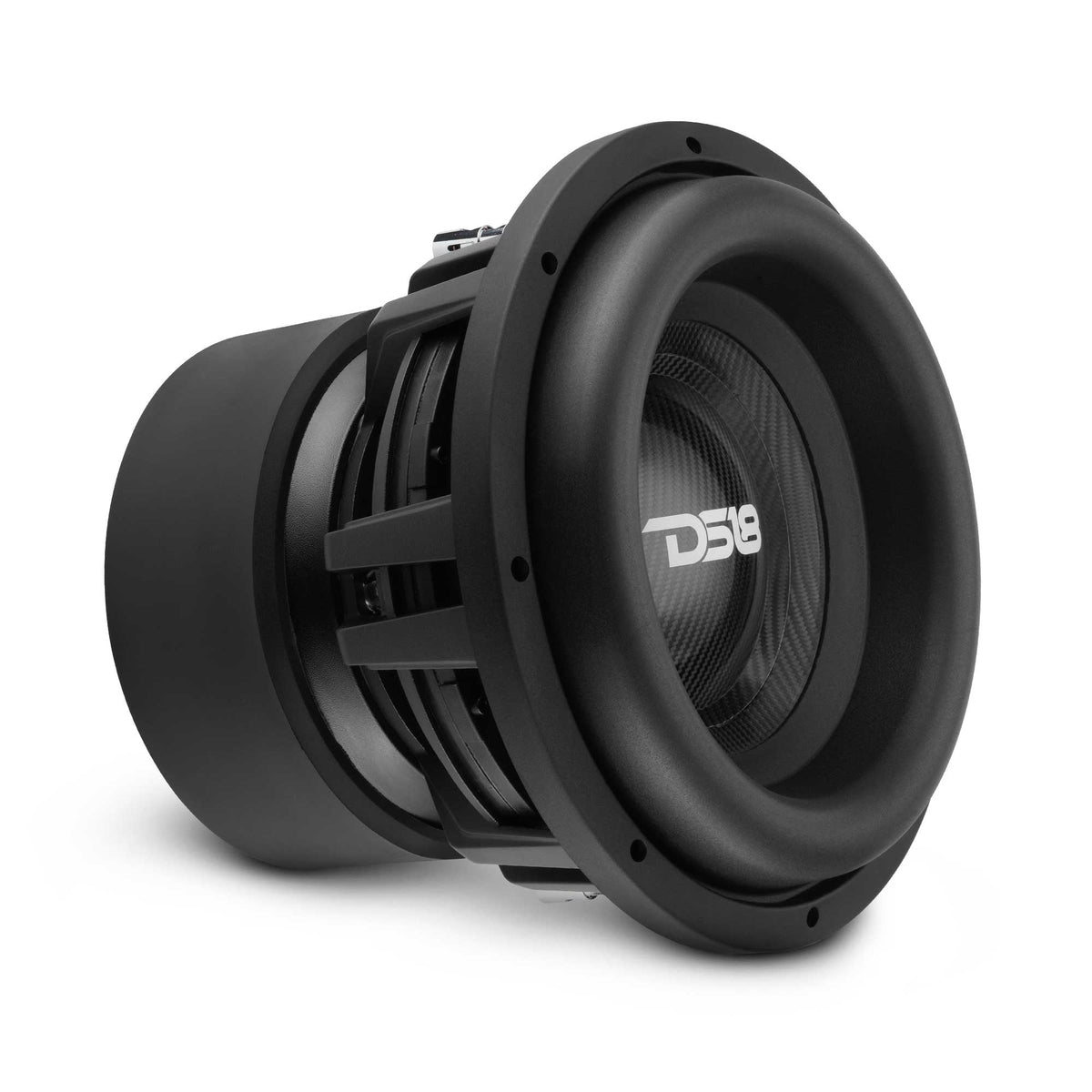

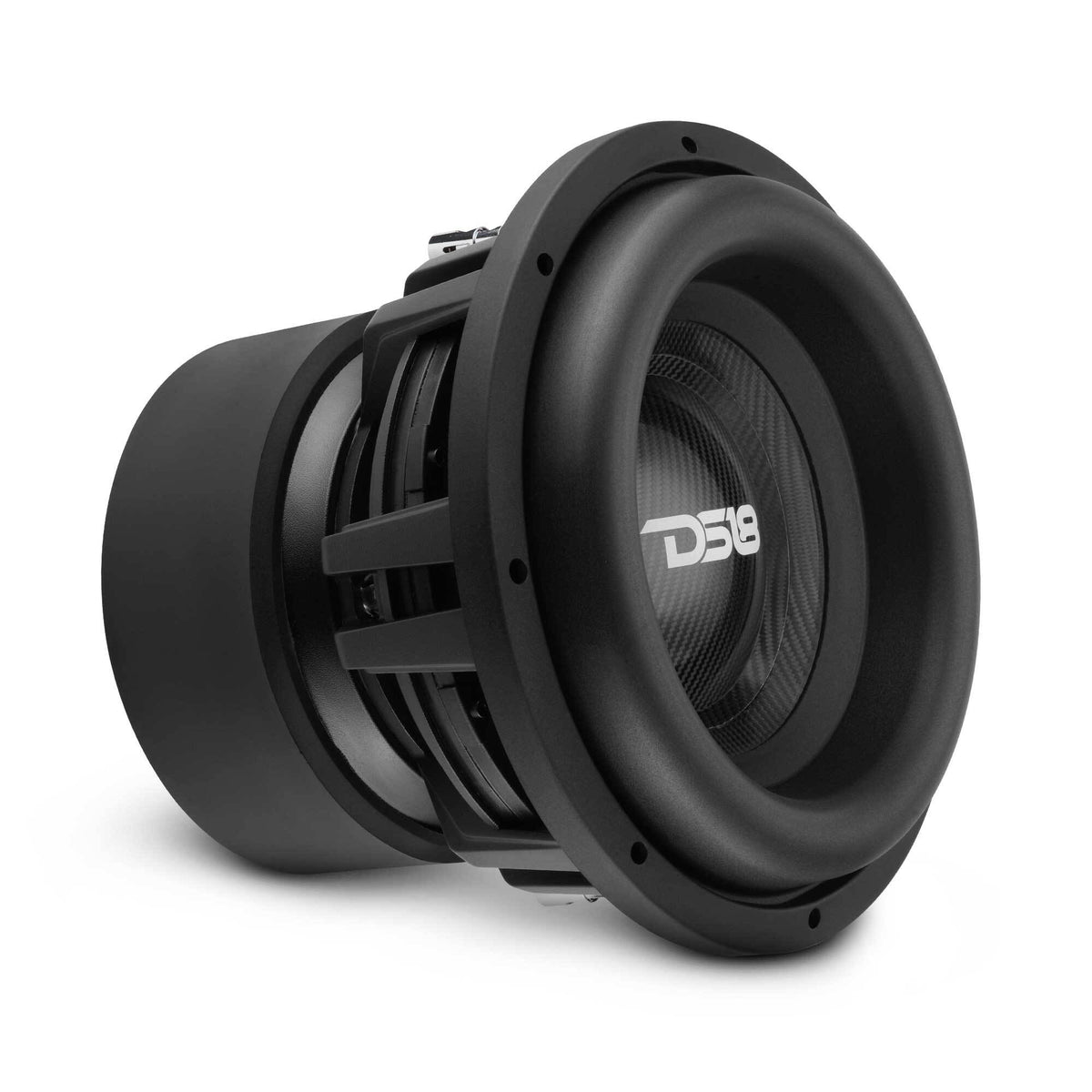

The DS18 CARBON12 is a 12" high-excursion subwoofer built for serious bass in tighter installs — 3,500W RMS / 7,000W MAX power handling through a 3.5" aluminum voice coil with improved heat dissipation. The carbon fiber cone and dust cap keep the 471.4cm² diaphragm rigid through 22.5mm of one-way Xmax, on an aluminum basket with a 425 Oz ferrite motor. Choose Dual 1-Ohm or Dual 2-Ohm voice coil configuration to match your amplifier. Sold individually (each).

Key Features

  • 3500W RMS / 7000W MAX Power Handling
  • Carbon Fiber Cone & Dust Cap
  • 3.5" Aluminum Voice Coil with Improved Heat Dissipation
  • 22.5mm Xmax High-Excursion Design
  • Dual 1-Ohm or Dual 2-Ohm Voice Coil Configurations

Specifications

RMS Power 3500W
MAX Power 7000W
Nominal Impedance Dual 1-Ohm (CARBON12.1D) / Dual 2-Ohm (CARBON12.2D)
Voice Coil Diameter 3.5" / 89mm
Voice Coil Former Aluminum
Winding Material CCAR
Voice Coil Inductance 0.98mH (CARBON12.1D) / 1.86mH (CARBON12.2D)
Sensitivity (1W/1m) 82dB
Frequency Response 10–200Hz
Free Air Resonance (Fs) 38Hz (CARBON12.1D) / 40Hz (CARBON12.2D)
Xmax (one way) 22.5mm
Equivalent Volume (Vas) 15.8L / 0.557ft³ (CARBON12.1D) — 10.55L / 0.372ft³ (CARBON12.2D)
Mechanical Factor (Qms) 4.878 (CARBON12.1D) / 4.93 (CARBON12.2D)
Electrical Factor (Qes) 0.816 (CARBON12.1D) / 0.89 (CARBON12.2D)
Total Factor (Qts) 0.699 (CARBON12.1D) / 0.75 (CARBON12.2D)
Moving Mass 349.305g (CARBON12.1D) / 468.183g (CARBON12.2D)
Compliance 50.114mm/N (CARBON12.1D) / 33.45mm/N (CARBON12.2D)
BL Factor 14.3 (CARBON12.1D) / 23.01 (CARBON12.2D)
Efficiency Bandwidth Product 46.5 (CARBON12.1D) / 44.9 (CARBON12.2D)
Cone Material Carbon Fiber
Dust Cap Carbon Fiber, 6" / 150mm
Surround Material Foam
Diaphragm Area 471.4cm²
Basket Material Aluminum (Aluminum/Black)
Magnet Ferrite, 425 Oz
Spider Diameter 9" / 228mm
Speaker Terminals Push Terminals 4ga
Nominal Diameter 12" / 305mm
Overall Diameter 12.8" / 326mm
Overall Depth 11.65" / 296mm
Mounting Depth 9.75" / 248mm
Front Mount Baffle Cutout 11.15" / 283mm
Motor Diameter 9" / 230mm
Sealed Enclosure (Recommended) 37L / 1.3ft³ — output response 38Hz
Ported Enclosure (Recommended) 56.6L / 2ft³ — port 2"×12"×20.7", tuned 35Hz, output response 27Hz
Low-Pass Crossover (Recommended) 60Hz
