DS18 8PRO400MR-4 8" High-Sensitivity Midrange Loudspeaker (104dB) — 400W MAX
Product Overview
Description
Key Features
- Professional High-Power Performance — 200W RMS / 400W MAX
- Ultra-High Sensitivity (104dB)
- Wide Frequency Range (100Hz–12.5KHz)
- Copper Demodulating Rings for Lower Distortion
- Curvilinear Paper Cone with Cloth Surround
- 1.5" Voice Coil on a 40 Oz Ferrite Motor
Overview
Get superior sound with DS18's 8PRO400MR-4. With its 8" nominal diameter and 4-ohm nominal impedance, the 8PRO400MR-4 delivers exceptional performance and clarity. The RMS power handling of 200W and MAX power handling of 400W guarantee powerful sound reproduction.
One standout feature is its high sensitivity rating of 104 dB, allowing it to effortlessly fill any space with rich, immersive sound. The frequency response range of 100Hz-12.5KHz ensures that every beat is reproduced accurately.
What sets the 8PRO400MR-4 apart is its demodulating rings made of copper. These rings substantially reduce harmonic and intermodulation distortion associated with voice coil displacement, and minimize the modulation of magnetic flux during the movement of the voice coil, resulting in a cleaner sound output.
The curvilinear cone shape enhances overall dispersion while maintaining optimal performance. The push speaker terminals make installation hassle-free, allowing for secure connections without compromising on sound quality. Its 1.5" voice coil diameter ensures excellent heat dissipation for extended playtime.
Sold individually. Grill not included.
Specifications
| SKU | 8PRO400MR-4 |
| Nominal Diameter | 8" / 203mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 200W |
| MAX Power Handling | 400W |
| Sensitivity (1w/1m) | 104dB |
| Frequency Response | 100Hz-12.5KHz |
| Recommended HI Pass Crossover | 160Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
Features
| Interleaved Sandwich Voice coil (ISV) | No |
| Demodulating Rings | Copper Ring |
| Improved Heat Dissipation | No |
| Cone Shape | Curvilinear |
| Speaker Terminals | Push 8ga |
Motor
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | Til |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Spider Diameter | 4" / 102mm |
| Leads Connection Type | Spider Crossed |
| Basket Material | Steel |
| Basket Color / Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 40 Oz |
| Displacement Volume | 0.56L / 0.02ft3 |
Thiele & Small Parameters
| Equivalent Volume Vas | 37.3L / 1.31ft3 |
| Excursion (one way) Xmax | 0.75mm |
| Free Air Resonance Fs | 70Hz |
| Mechanical Factor Qms | 4.31 |
| Electrical Factor Qes | 0.34 |
| Total Factor Qts | 0.32 |
| Mechanical Mass Mms | 12.72g |
| Mechanical Compliance Cms | 0.43mm/N |
| BL Factor BL | 7.44 |
| Voice Coil Inductance Le | 0.03mH |
| Cone Area Sd | 246.06cm2 |
| DC Resistance Re | 3.5ohms |
| Mechanical Mass w/o air Mmd | 12.5g |

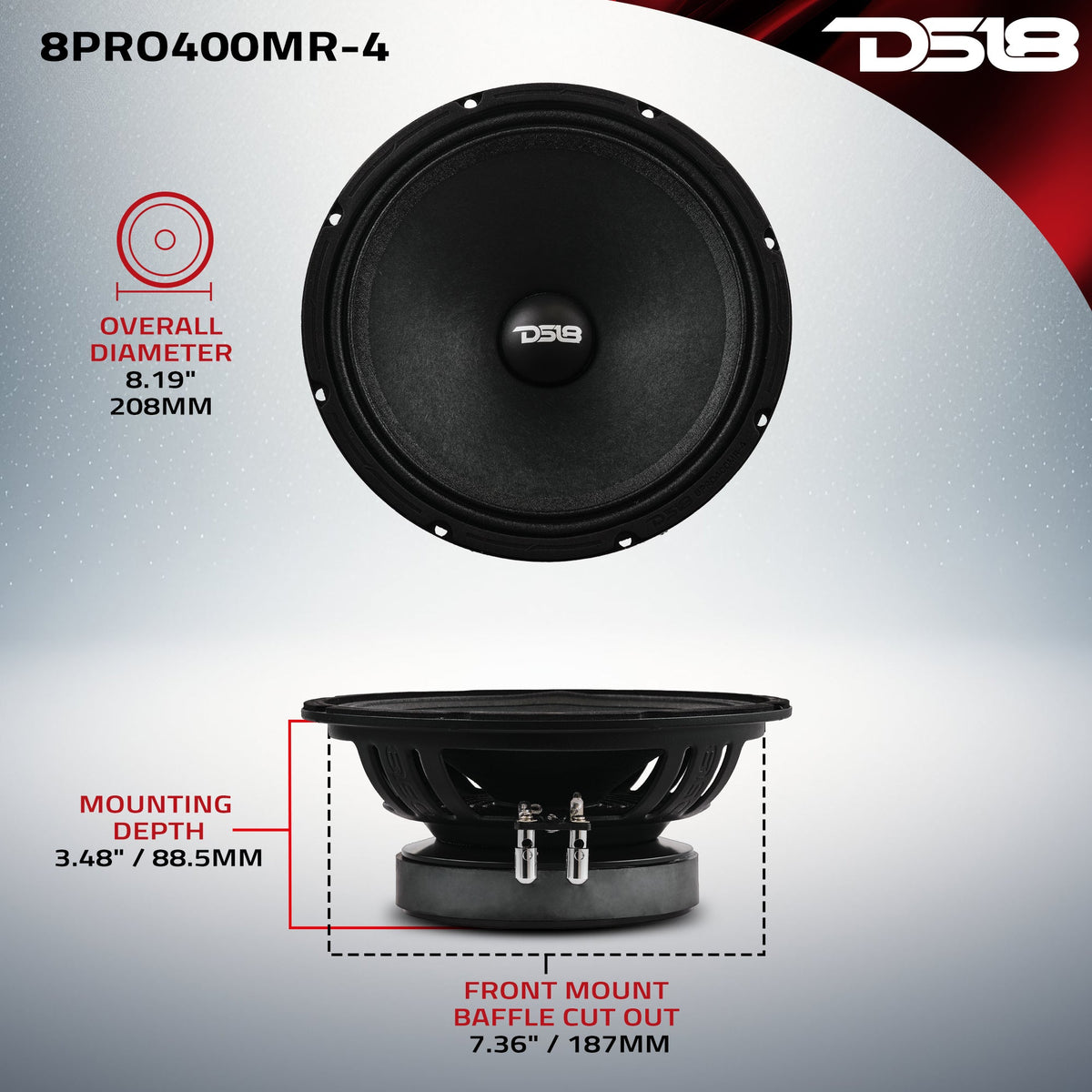

Measurement
| Overall Diameter | 8.19" / 208mm |
| Overall Depth | 3.72" / 94.6mm |
| Front Mount Baffle Cutout | 7.36" / 187mm |
| Mounting Depth | 3.48" / 88.5mm |
| Motor Diameter | 5.1" / 130mm |
