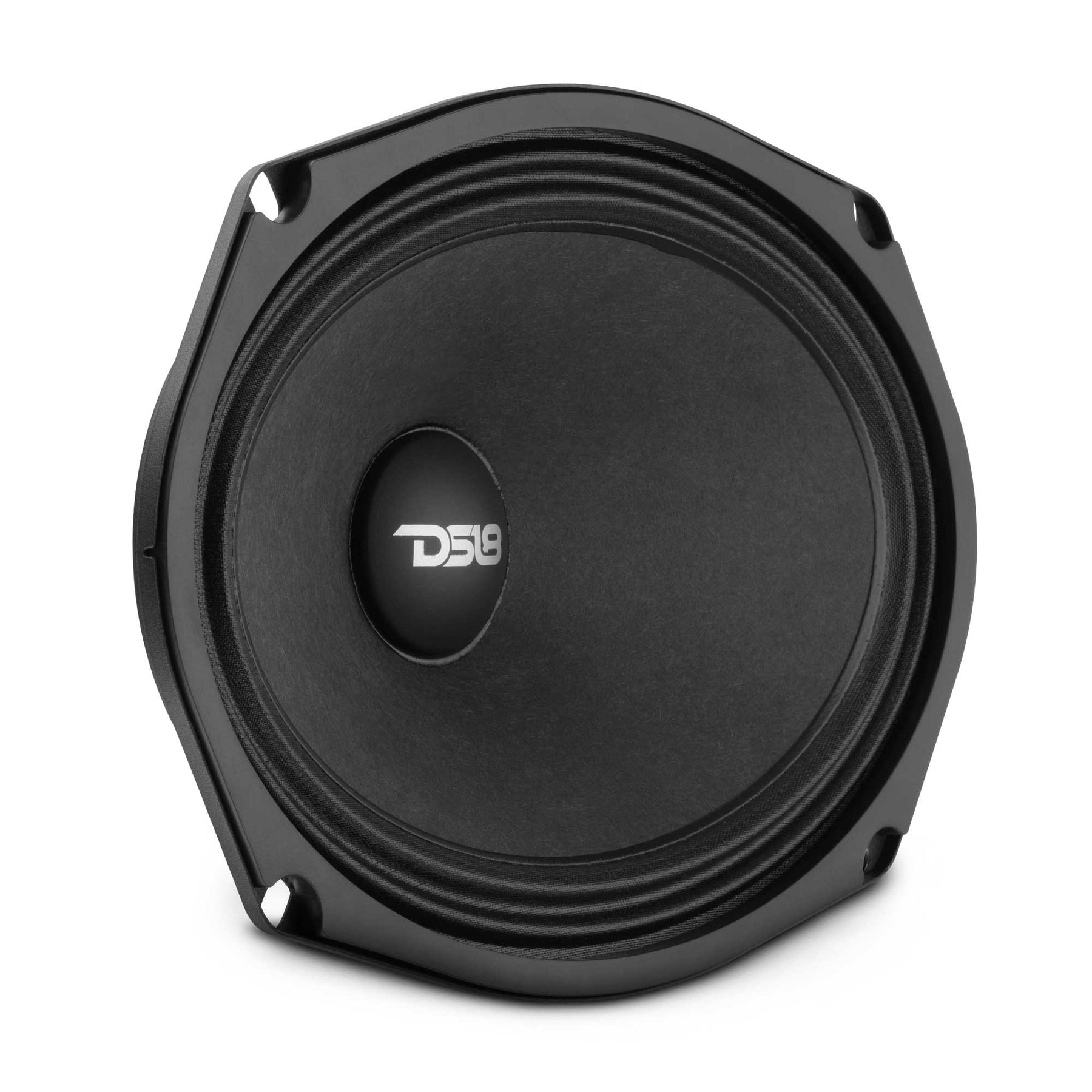

DS18 69PRO400NMR-4 6x9" High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet — 400W MAX
Free shipping on orders over $150
Continental US · processed within 1–2 business days
In stock! Ships within 2 business days.
Award Winning Sound
2-Year Limited Warranty
Variety of Payment Options
DS18 69PRO400NMR-4 6x9" High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet — 400W MAX
Product Overview
Description
The DS18 69PRO400NMR-4 is a 6x9" pro midrange rated 200W RMS and 400W MAX, with 100dB sensitivity that turns modest amplifier power into serious volume. The neodymium magnet keeps the weight down and the mounting depth to 2.9", so it fits doors and rear decks that deeper drivers will not. Sold as a single, grill not included.
Key Features
- 6x9" high-sensitivity midrange speaker (100dB output)
- 200W RMS / 400W MAX power handling
- Neodymium magnet — lightweight, high efficiency
- 100Hz–17kHz frequency range for clear vocals
- Aluminum basket with Kapton voice coil and CCAW winding
- Copper demodulating ring reduces distortion

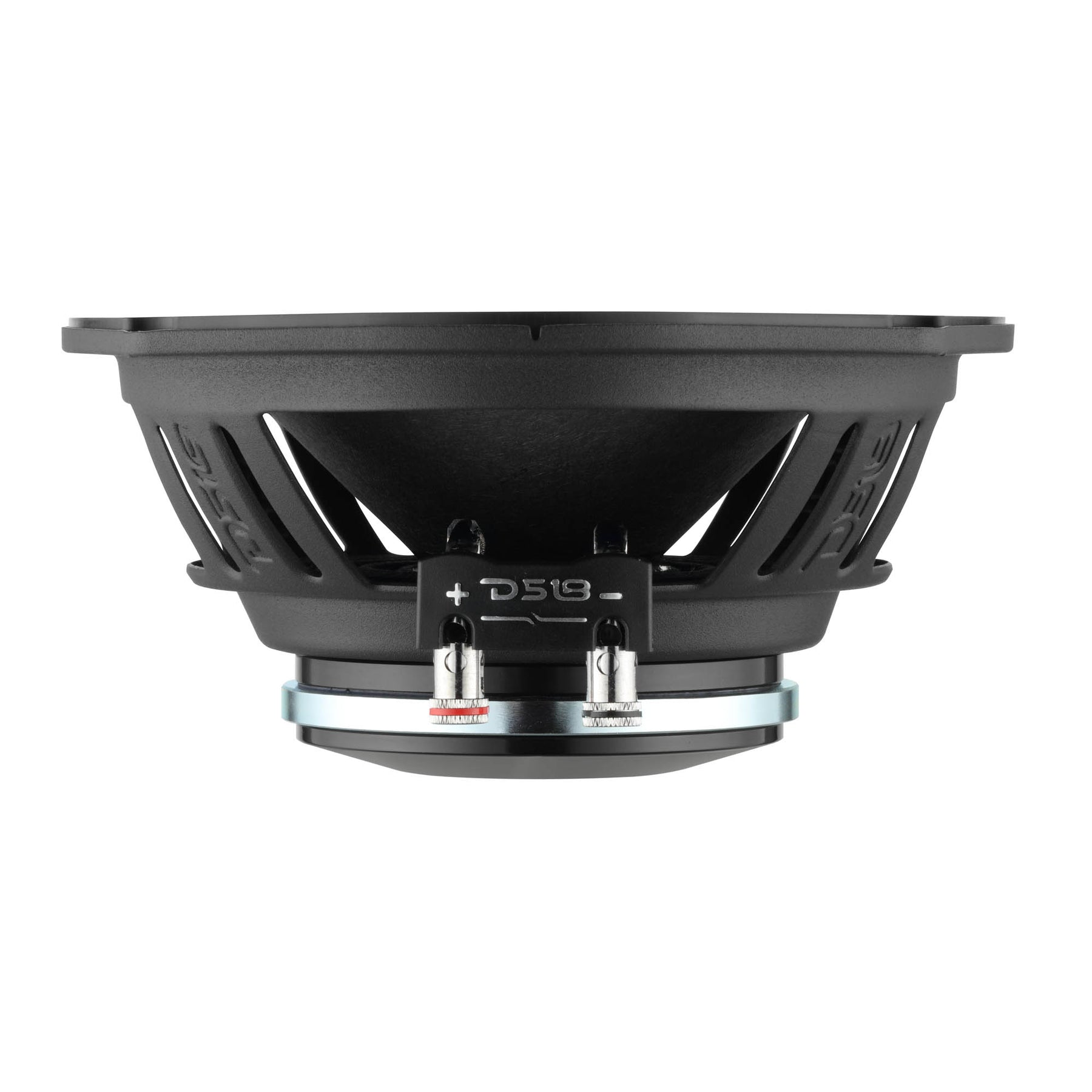

- Shallow 2.9" mounting depth
- Sold as: single (each) — grill not included
Product Overview
The DS18 69PRO400NMR-4 brings PRO-series high-sensitivity output to the 6x9" footprint. The neodymium motor keeps weight down while pushing 100dB sensitivity across a 100Hz–17kHz range, and the Kapton voice coil with CCAW winding manages heat under demanding loads. A copper demodulating ring cuts distortion, and the shallow 2.9" mounting depth fits where deeper drivers won't.
SPECS
| SKU | 69PRO400NMR-4 |
| Nominal Diameter | 6x9" / 152 x 228mm |
| Nominal Impedance | 4-Ohm |
| RMS Power Handling | 200 Watts |
| MAX Power Handling | 400 Watts |
| Sensitivity (1W/1m) | 100dB |
| Frequency Response | 100Hz–17kHz |
| Recommended High-Pass Crossover | 120Hz |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former | Kapton |
| Winding Material | CCAW |

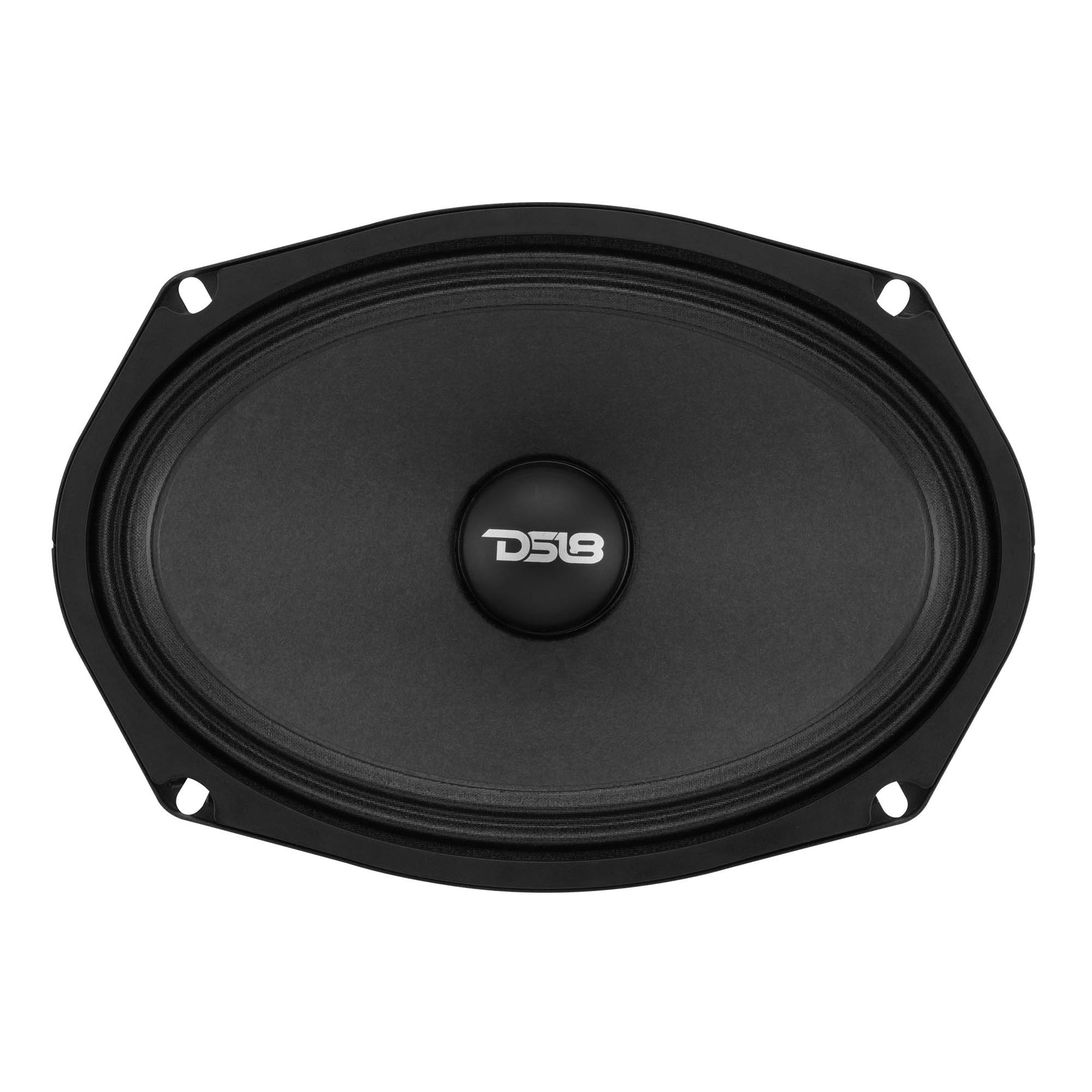

| Cone Material | Paper (Curvilinear) |
| Dust Cap Material | Paper |
| Surround Material | Cloth |

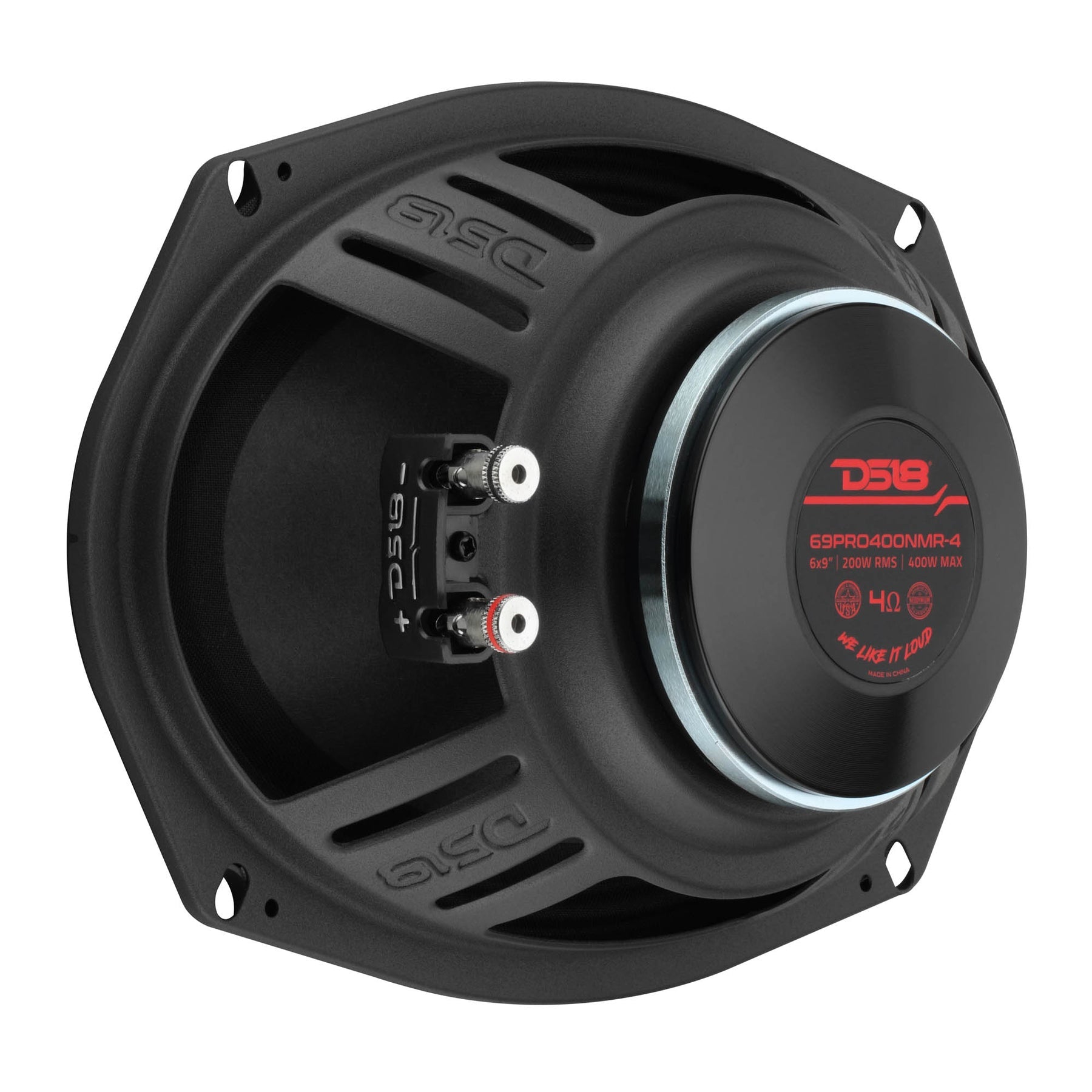

| Basket Material | Aluminum |
| Magnet Material | Neodymium |
| Magnet Weight | 8 Oz |
| Demodulating Rings | Copper Ring |
| Speaker Terminals | Push 16ga |
| Overall Diameter | 6.4" x 9.2" / 164 x 234mm |
| Overall Depth | 3.1" / 79mm |
| Mounting Depth | 2.9" / 74.8mm |
| Front Mount Baffle Cutout | 5.7" x 8.5" / 145 x 218mm |
| Motor Diameter | 3.5" / 90mm |
| Sold As | Single |
| Grill Included | No |
Free shipping on orders $150+
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
FAQs
Please read our FAQs page to find out more.
RMS vs. MAX power — which number do I actually care about?
RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.
What does the IP65 rating on DS18 marine gear actually mean?
It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.
How do I match an amplifier to my speakers without guessing?
Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.
Can I mix marine-grade gear into a standard car audio setup, or the reverse?
You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.
What gauge wiring kit do I need?
It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
