DS18 CA-X3DS6LDV2

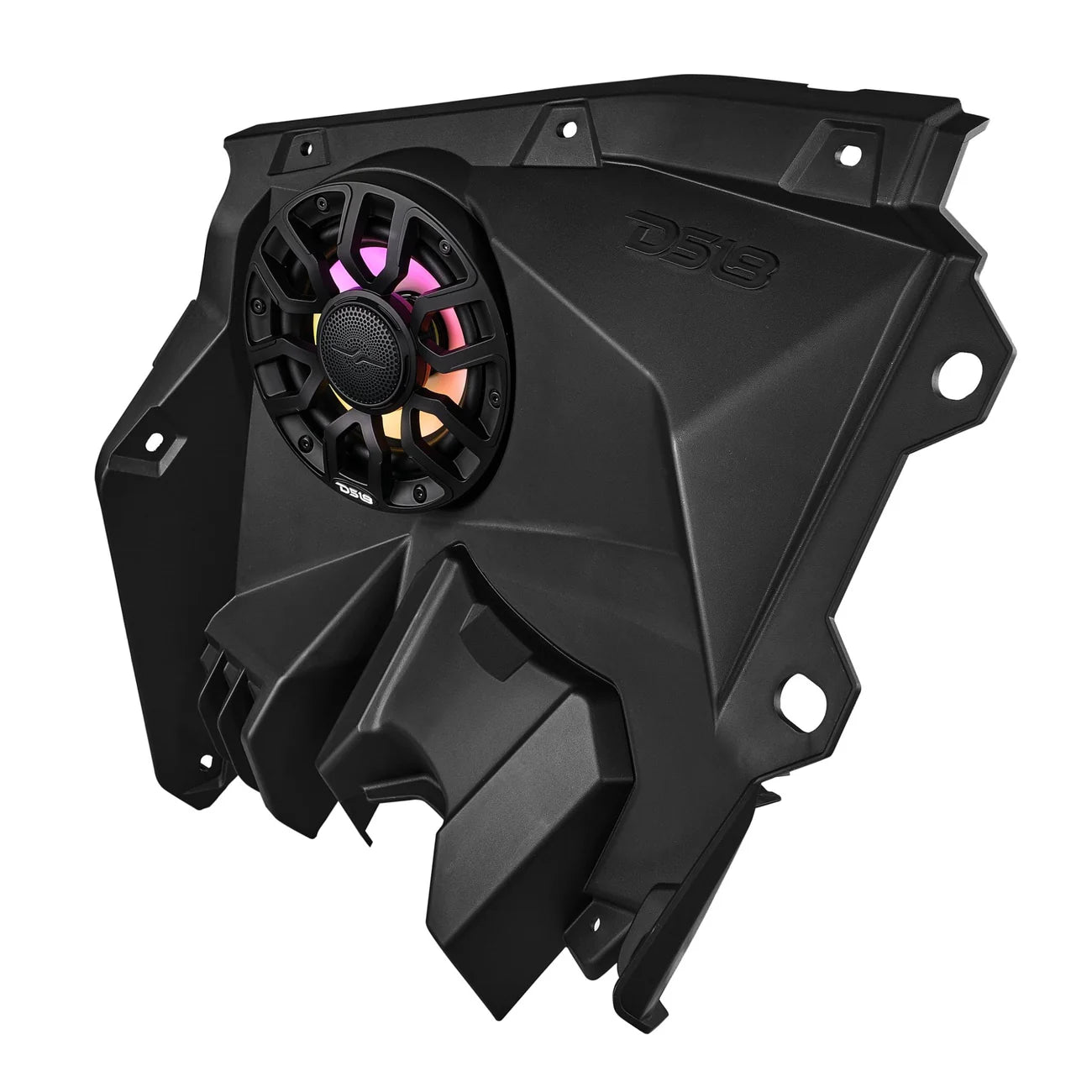

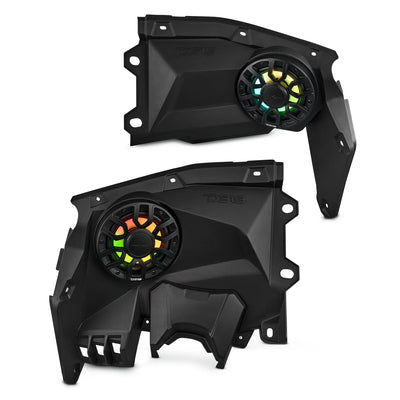

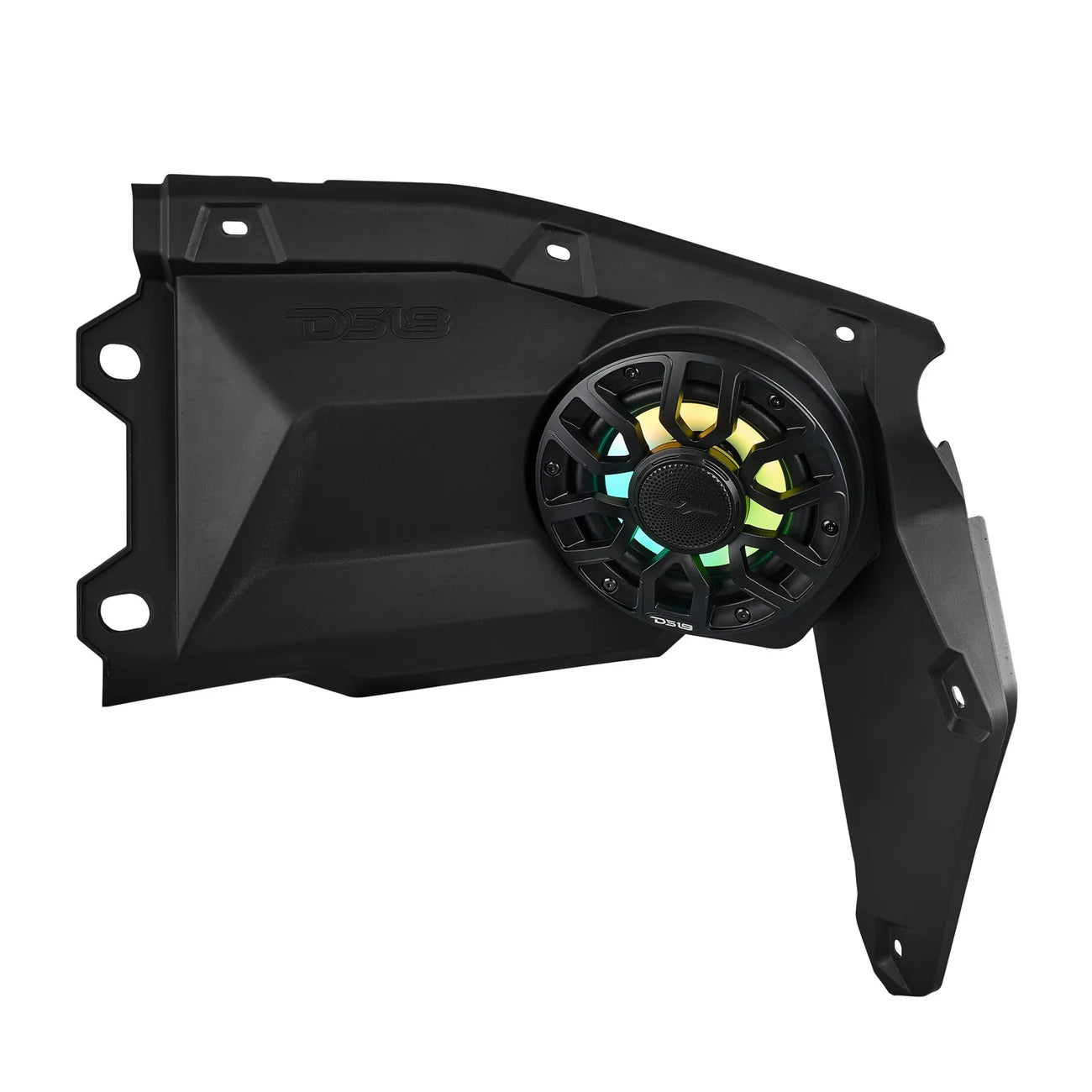

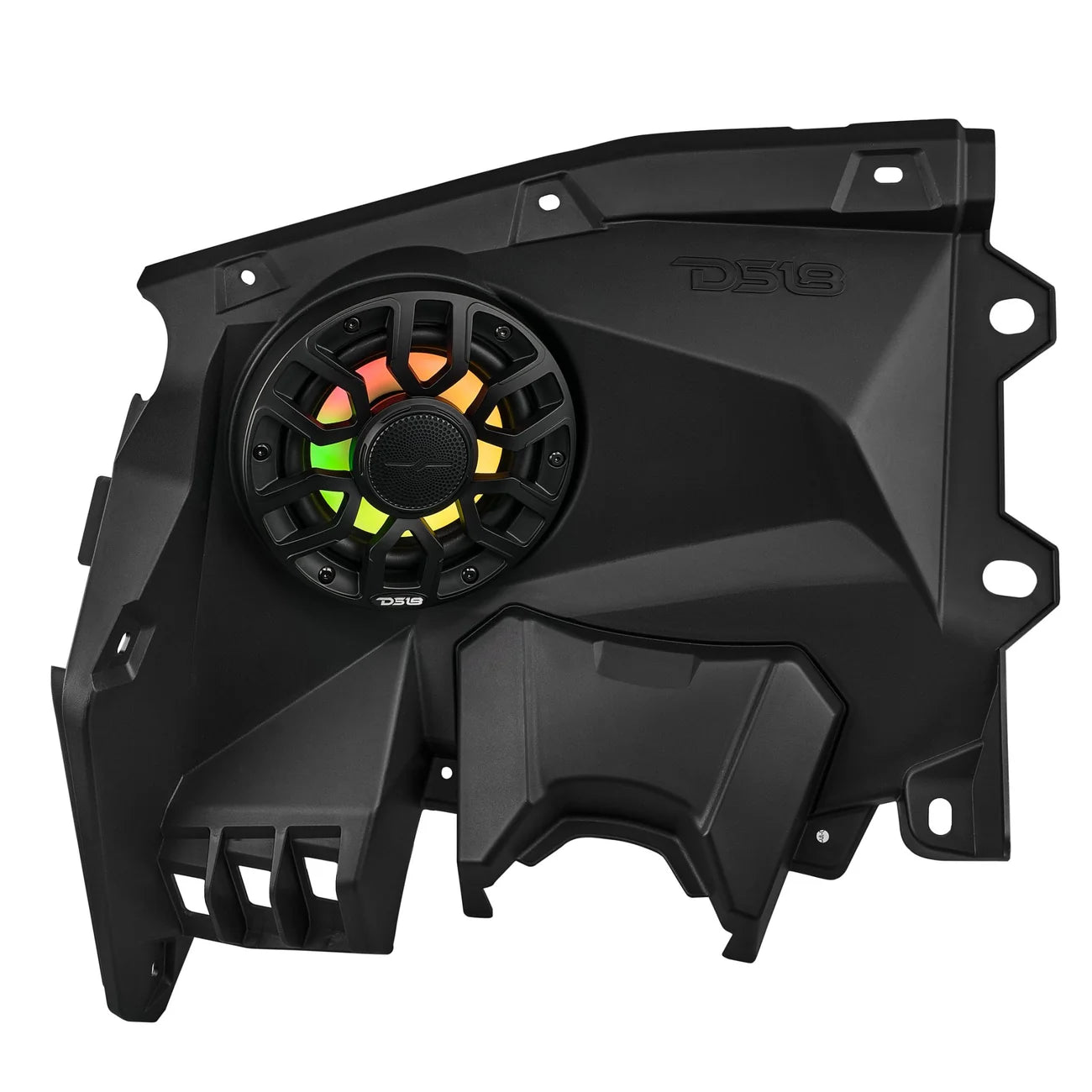

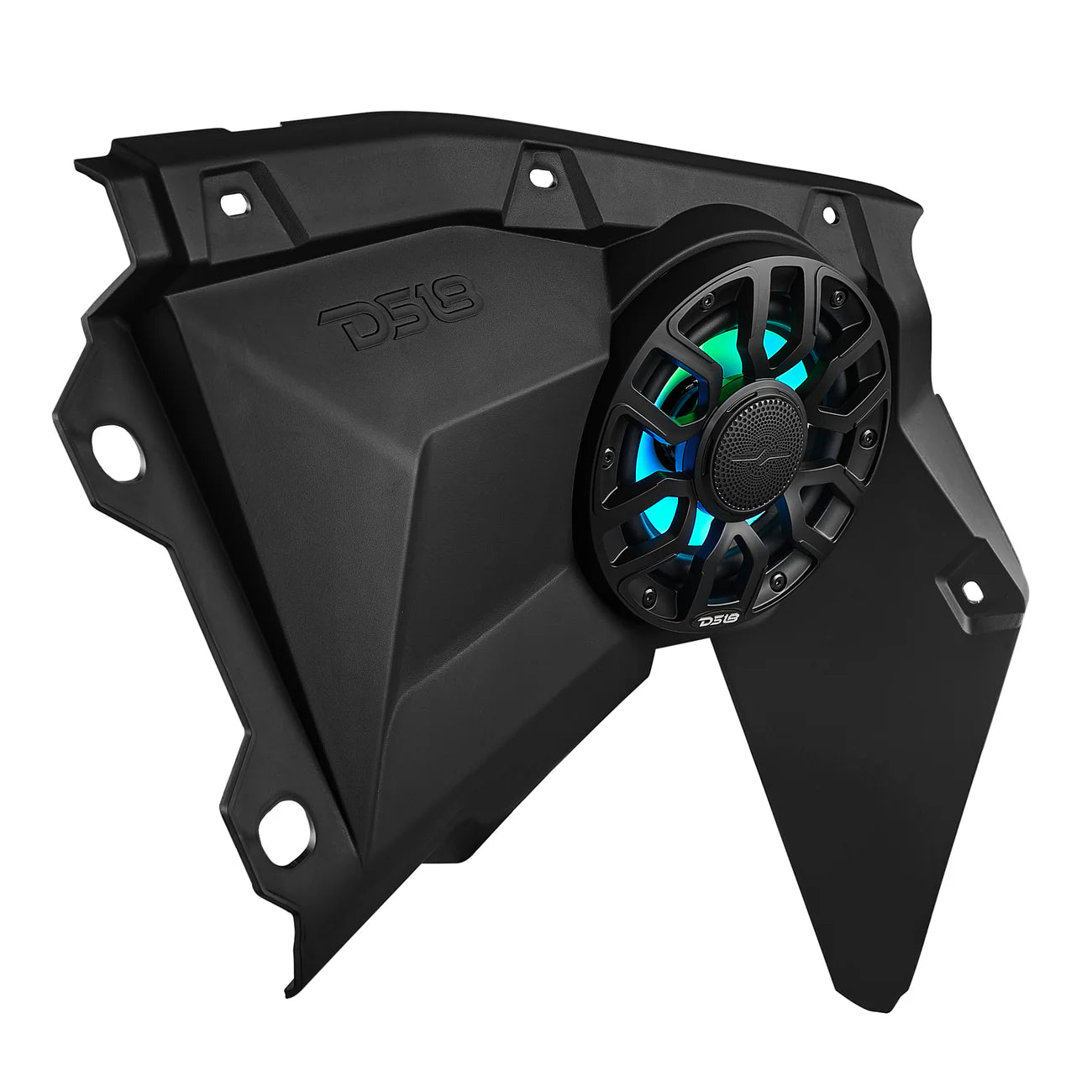

CAN-AM X3 6.5” Dashboard Panels Loaded With NXL-IQ6/BK Speakers

Crank up the volume on the trails with DS18’s CA-X3DS6LDV2—the ultimate off-road audio upgrade for CAN-AM X3’s (2017-2026). This setup takes your adventure to the next level by fitting 6.5-inch waterproof speakers and Digital LED lighting right into your dashboard.

Sound For Every Terrain

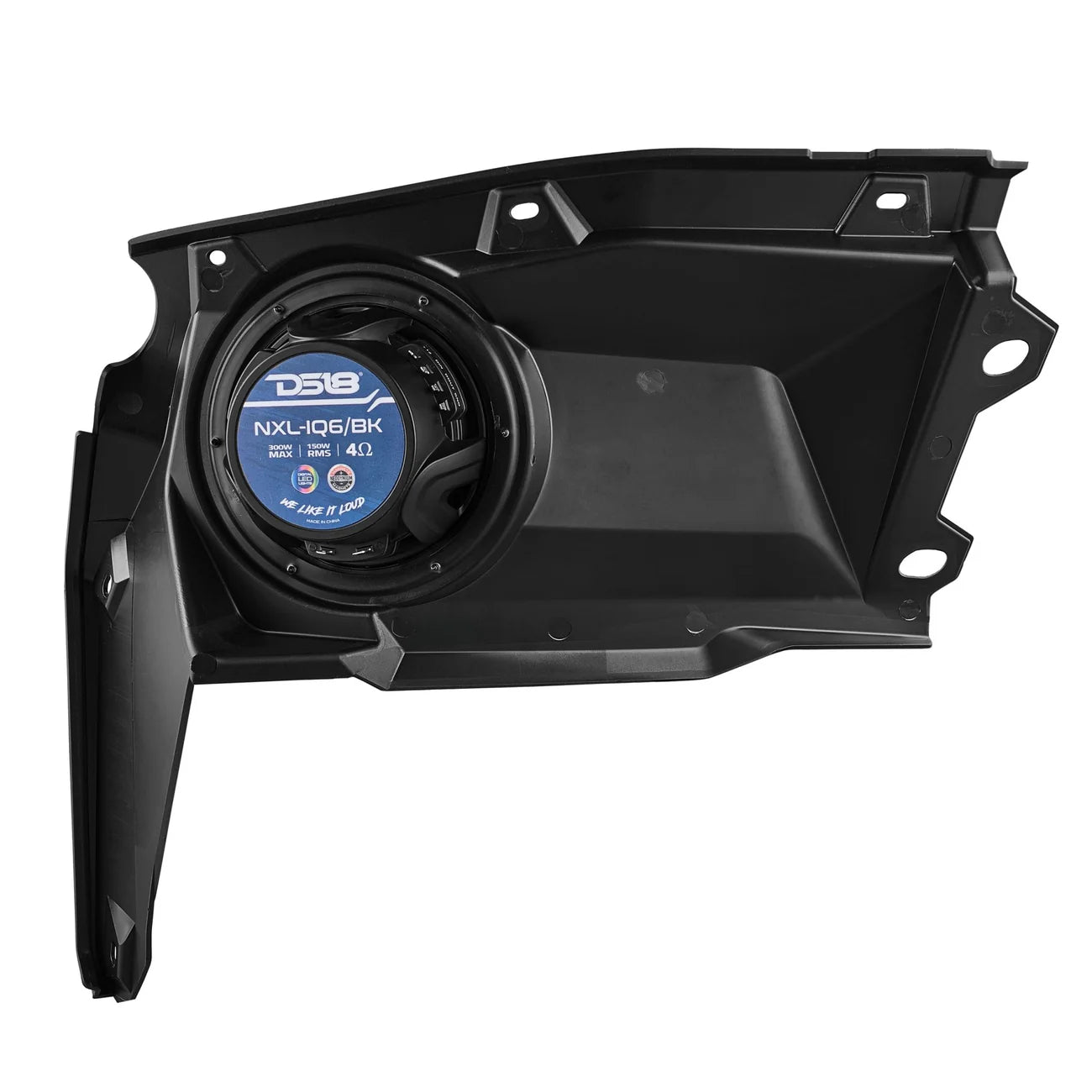

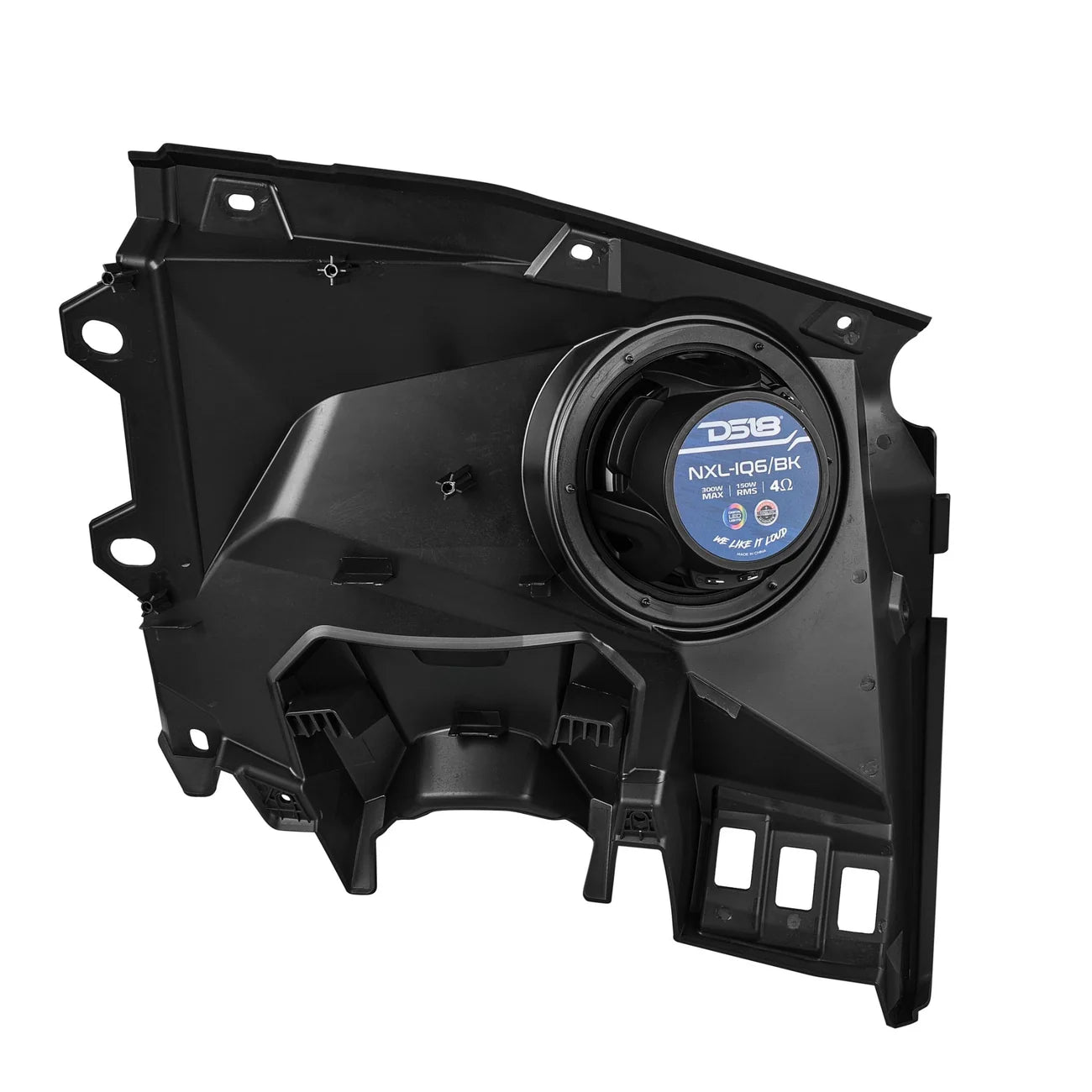

Built to handle the elements, these speaker pods house two IP65-rated DS18 NXL-IQ6/BK coaxial speakers: designed to resist water, dust, and dirt while delivering crisp highs and punchy bass. Each speaker has an RMS power rating of 150W and peak power rating of 300W at a nominal impedance of 4 ohms. The open baffle design improves airflow and sound projection.

Custom Fit, Easy Install

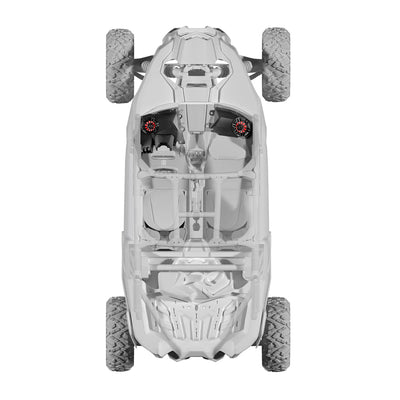

Designed for plug-and-play compatibility, these panels bolt directly into your CAN-AM X3’s factory dash locations—no cutting or modifications required. The rugged polyethylene panels feature a UV-resistant black textured finish, seamlessly blending with your vehicle’s OEM styling.

Light Up the Night

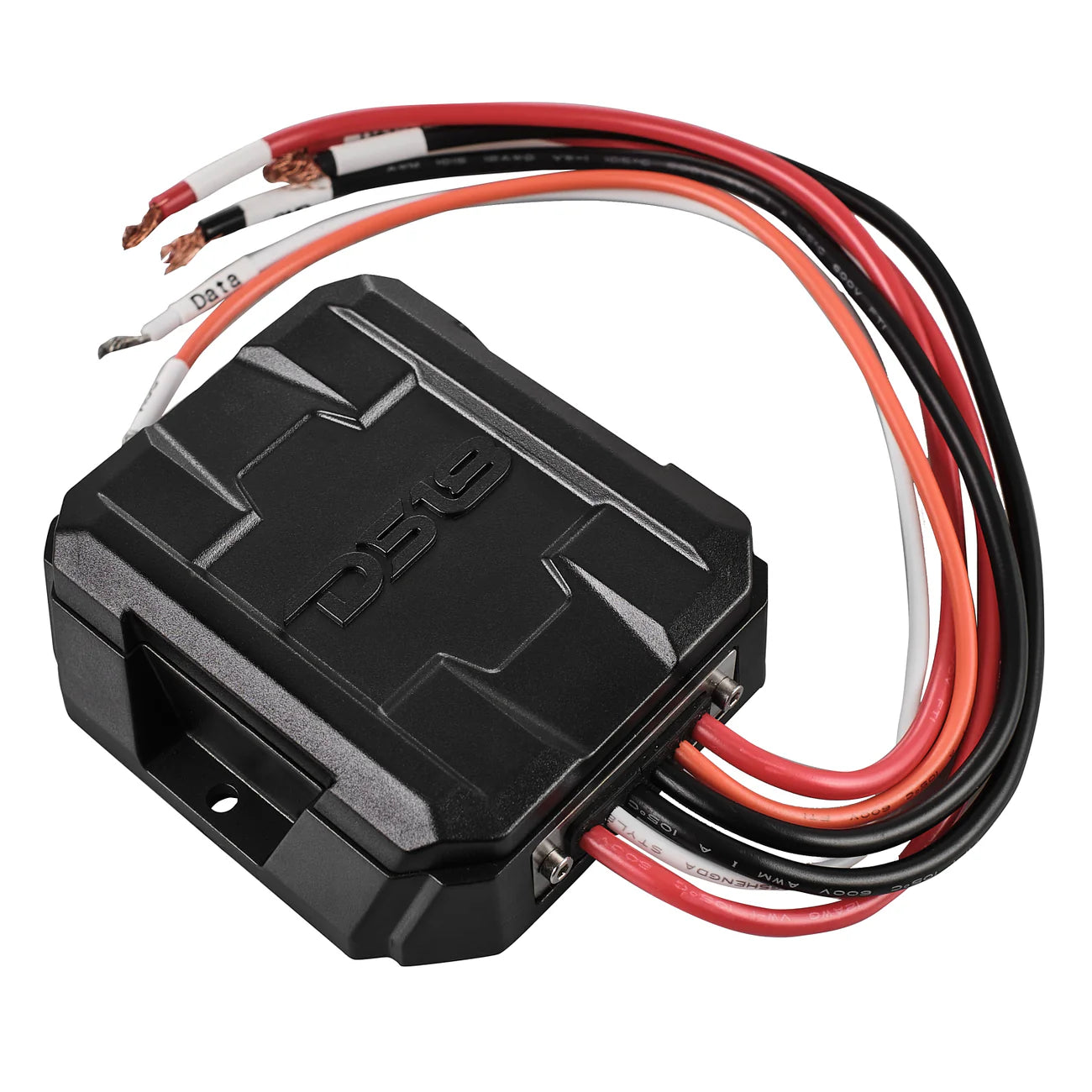

Equipped with exclusive digital LED lighting, the CA-X3DS6LDV2 adds a personalized light show to your setup. To unlock full functionality, pair it with DS18’s LC-DRM controller (sold separately) and control your lights via the DS18 LC App on iOS or Android.

Smart-Lok ready
If your Can-Am X3 is equipped with Smart-Lok, DS18 provides relocation instructions to ensure everything fits properly while keeping all your vehicle’s key features functional.

If you want bold, high-performance audio with a factory-fit look, DS18’s CA-X3DS6LDV2 is an easy and stylish upgrade.



General

SKU
CA-X3DS6LDV2
Box Type
Front Bafle
Box Material
Polyethylene (PE)
Finish Material
Black
UV Protection
Yes
Waterproof Rating
IP65
Total Impedance
4+4 Ohms (Left & Right)

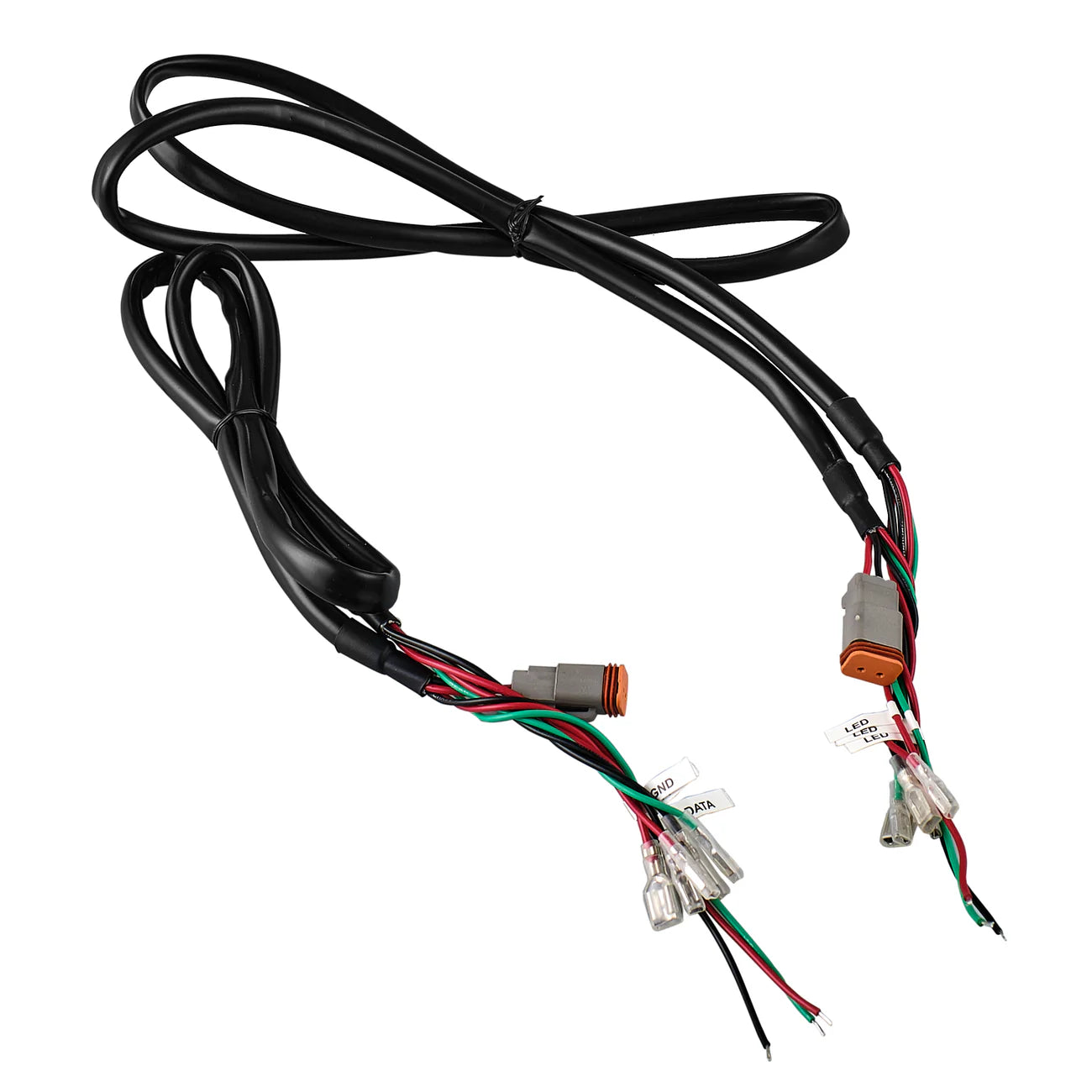

Input Wire (Harness)
2 x 6 Core OFC Tinned (2ft / 0.6m)


Speaker Specs

Model
NXL-IQ6/BK
Speaker Type / Size
6.5" Waterproof Coaxial with Digital LED
RMS Power Handling
150W
MAX Power Handling
300W
Sensitivity (1w/1m)
95dB
Frequency Response
45Hz-20KHz
Recommended Hi Pass Crossover
60Hz
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Cone Material
Injection Molded Polypropylene + UV Compliant
Surround Material
Butyl (Rubber)
Basket Material
Injection Molded Composite PC with UV Protection coating
Magnet Material
Ferrite+Neodymium
Magnet Weight
13 oz + 1.1oz


Tweeter Specs

Model
NXL-IQ6/BK
Type
Floating Bullet Tweeter
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminium
Bullet Material
Injection Molded Composite PC with UV Protection coating
Magnet Material
Neodymium (N35H)
Magnet Weight
0.4 oz


Measurement

Overall Height (Driver Side)
5.86" / 149mm
Overall Width (Driver Side)
20" / 506mm
Overall Depth (Driver Side)
20.4" / 520mm
Overall Height (Passenger Side)
6.1" / 155mm
Overall Width (Passenger Side)
20" / 518mm
Overall Depth (Passenger Side)
19.3" / 490mm
Speaker Mounting Hole
5.7" / 145mm
