Product Overview

Description
  • SPECIFICATIONS
  • Nominal Diameter: 8" / 203mm
  • Nominal Impedance: 8 Ohms
  • RMS Power Handling: 300 W
  • MAX Power Handling: 600 W
  • Sensitivity (1w/1m): 100.2 dB
  • Frequency Response: 95Hz – 17kHz
  • Recommended High-Pass Crossover: 120 Hz
  • Sold as: Single Unit
  • Grill Included: No
  • Demodulating Rings: Yes
  • Improved Heat Dissipation: Yes
  • Cone Shape: Curvilinear

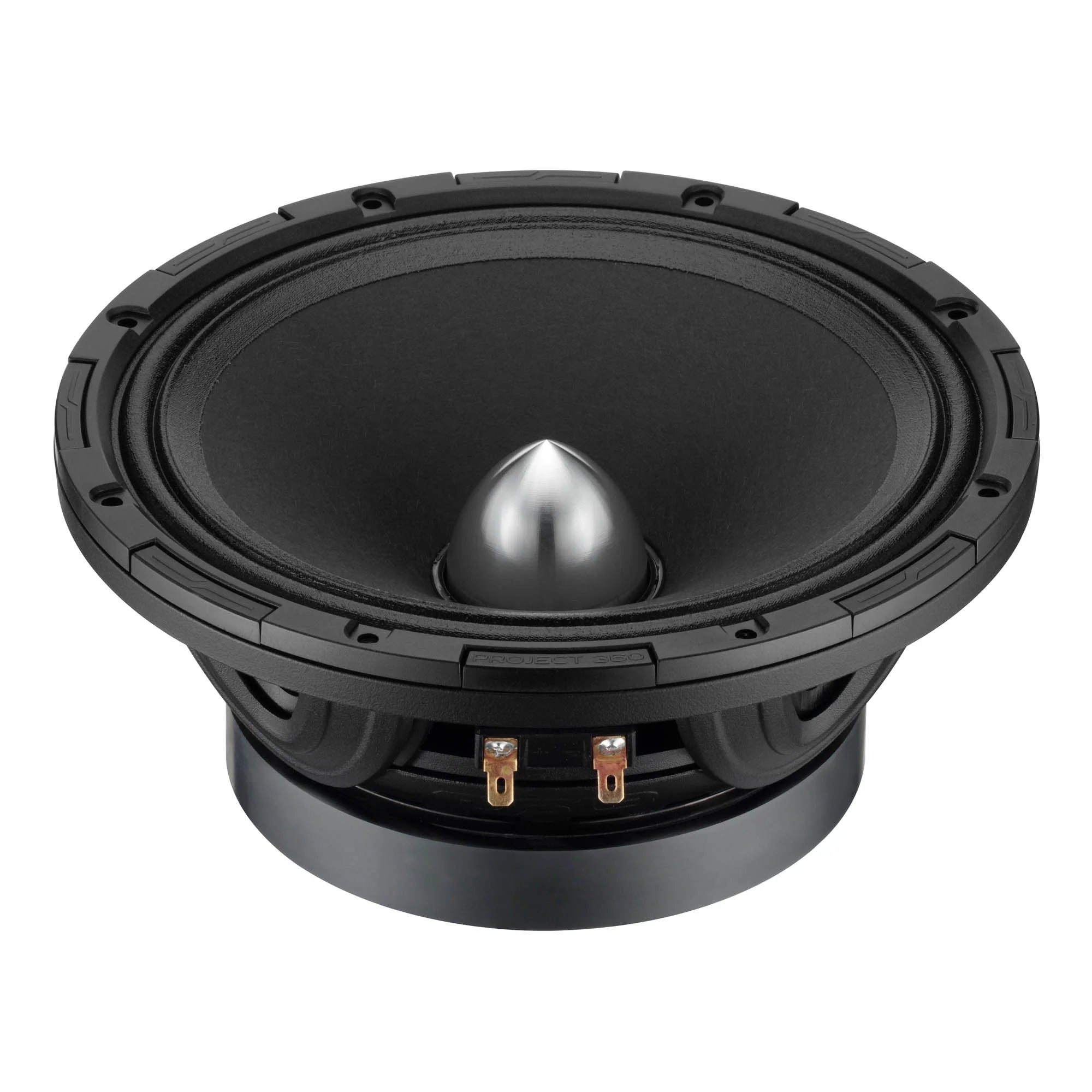

  • Speaker Terminals: Spade

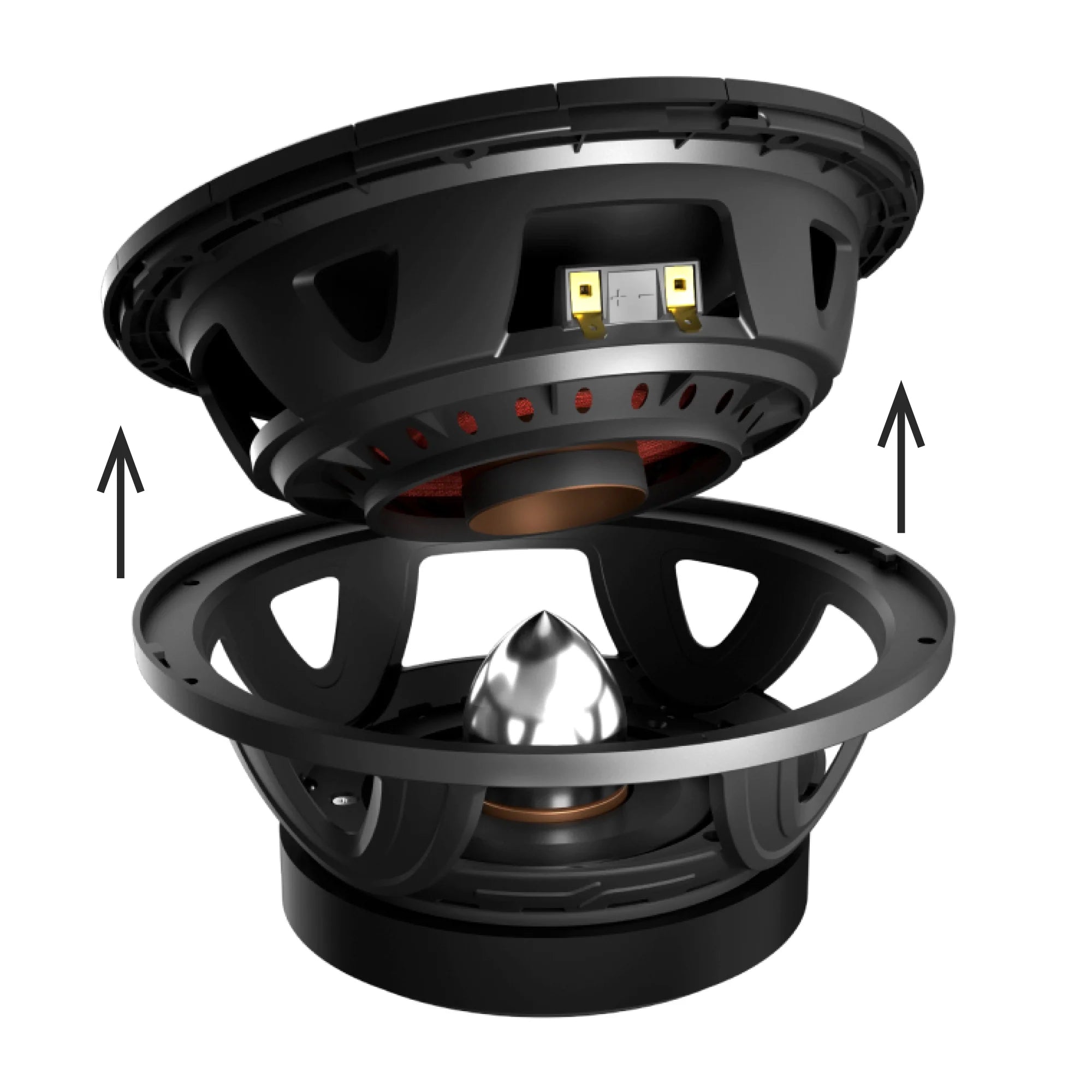

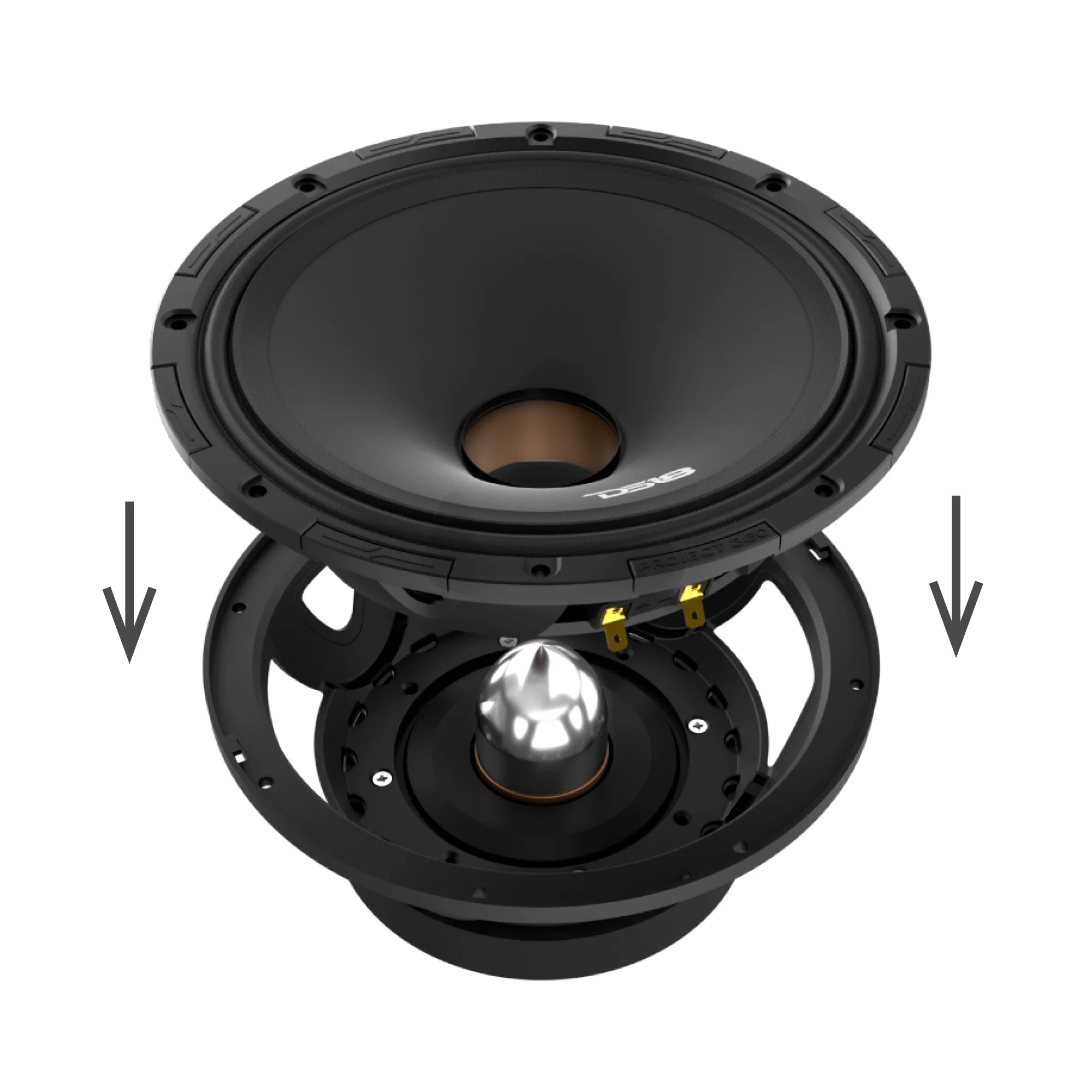

  • Easy Recone Design: Yes
  • Bullet Material: CNC Aluminum
  • Bullet Color: Silver



  • MOTOR
  • Voice Coil Diameter: 1.75" / 44.5mm
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Cone Material: Paper
  • Dust Cap Material: Paper
  • Surround Material: Cloth
  • Spider Diameter: 4.5" / 114mm
  • Leads Connection Type: Round Crossed
  • Basket Material: Aluminum
  • Basket Color / Finish: Black
  • Magnet Material: Ferrite
  • Magnet Weight: 48 oz



  • THIELE & SMALL PARAMETERS
  • Equivalent Volume: 4.34L / 0.153ft3
  • Excursion (one way): 0.85 mm
  • Free Air Resonance: 167 Hz
  • Mechanical Factor: 4.232
  • Electrical Factor: 0.626
  • Total Factor: 0.545
  • Moving Mass: 17.020g
  • Mechanical Compliance: 0.053 mm/N
  • BL Factor: 12.015
  • Voice Coil Inductance: 0.041 mH
  • Cone Area: 240.53 cm2
  • DC Resistance: 5 Ohms



  • MEASUREMENT
  • Overall Diameter: 8.19" / 208mm
  • Overall Depth: 3.9" / 99mm
  • Front Mount Baffle Cutout: 7.13" / 181mm
  • Mounting Depth: 3.35" / 85mm
  • Motor Diameter: 5.5" / 140mm

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
