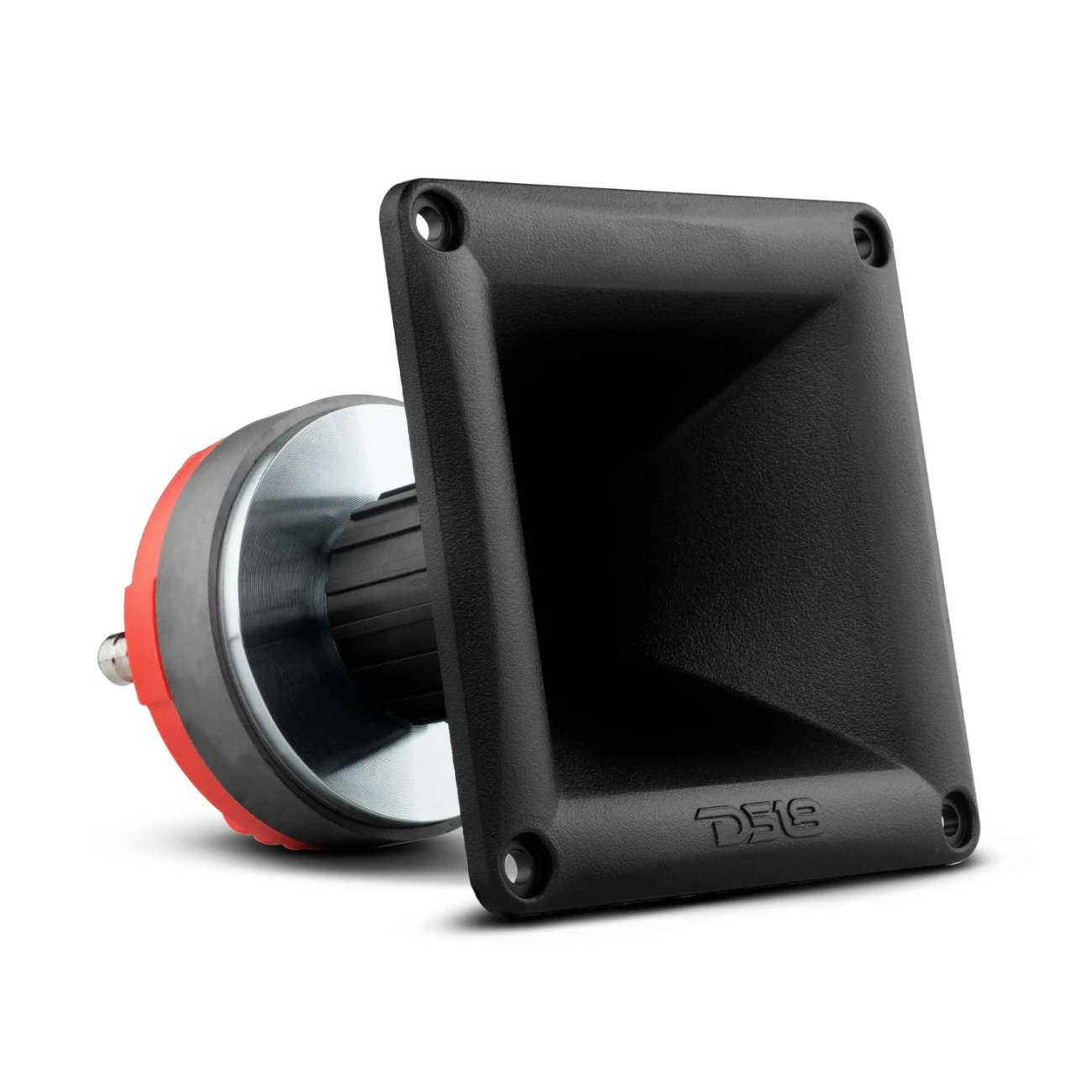

Product Overview

Description

Key Features

  • Compression Driver with Horn
  • 1 X PRO-DR1P
  • 1 X PRO-H44/BK
  • RMS Power: 120 Watts(240 Watts Peak)
  • Impedance: 8 Ohm ~ 107.3dB
  • Ferrite Magnet

SPECS

SKU
PRO-DR1PK44
Nominal Impedance
8 Ohm
AES Power handling
60W
Program Power Handling
120W
Peak Power handling
240W
Sensitivity (1w/1m) With Horn
107.3dB
Frequency Response
800Hz - 20Khz
Recommended Hi Pass Crossover
1KHz


MOTOR

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCA
Diaphragm Material
Phenolic
Magnet Material
Ferrite
Magnet Weight
0.38 Oz / 11g
Body Material
Aluminum + ABS


HORN SPECIFICATIONS

Nominal Diameter
4.5" / 115mm
Throat Diameter
1" / 25.4mm
Sound Coverage
45 x 45 (square)
Body Material
ABS/PC Injected
Color/Finish
Black


MEASUREMENT

Overall Diameter
4.52" / 115mm
Overall Depth
4.88" / 124mm
Mounting Depth
4.5" / 116mm
Mounting Hole Diameter
3.26 x 3.26" / 83 x 83mm
Bolt Pattern (Horn)
4 x 5.5mm / 100.5mm
