Product Overview

Description

Key Features

  • 10" subwoofer — 700W RMS / 1400W MAX power handling
  • Available in dual 4-Ohm (ZR10.4D) or dual 2-Ohm (ZR10.2D) voice coil configurations
  • 2.5" high-strength aluminum voice coil, copper winding
  • 100 Oz ferrite magnet
  • Non-pressed paper cone with foam surround
  • Stamped steel basket, matte black finish
  • Sold as: single (each)

Product Overview

The DS18 ZR10 delivers serious low end with flexible amplifier matching: choose the dual 4-Ohm or dual 2-Ohm voice coil version to hit your amp's happy load. A 2.5" aluminum former voice coil and 100 Oz ferrite motor keep 700W RMS composed from 27Hz up, and the show-quality stamped basket looks as good as it hits.

SPECS

SKU ZR10.4D (dual 4-Ohm) / ZR10.2D (dual 2-Ohm)
Nominal Diameter 10" / 254mm
Nominal Impedance ZR10.4D: 4+4 Ohm · ZR10.2D: 2+2 Ohm
RMS Power Handling 700 Watts
MAX Power Handling 1400 Watts
Sensitivity (1W/1m) 81dB
Frequency Response 27–200Hz
Recommended Low-Pass Crossover 100Hz
Voice Coil Diameter 2.5" / 61.6mm
Voice Coil Former Aluminum
Winding Material Copper
Cone Material Non-Pressed Paper
Dust Cap Material PPI
Surround Material Foam
Basket Material Steel
Magnet Material Ferrite
Magnet Weight 100 Oz
Displacement Volume 0.05 ft³
Vas 8.18 L (ZR10.4D) · 8.26 L (ZR10.2D)
Fs 37 Hz (ZR10.4D) · 34 Hz (ZR10.2D)
Qms 4.86 (ZR10.4D) · 4.3 (ZR10.2D)
Qes 0.93 (ZR10.4D) · 0.8 (ZR10.2D)
Qts 0.78 (ZR10.4D) · 0.67 (ZR10.2D)
Mms 216.3g (ZR10.4D) · 252g (ZR10.2D)
Cms 52.8 µm/N (ZR10.4D) · 53.37 µm/N (ZR10.2D)
Bl Factor 10.7 (ZR10.4D) · 8.78 (ZR10.2D)
Le 823.5 mH (ZR10.4D) · 546.4 mH (ZR10.2D)
Sd 333.29 cm²
EBP 39.78 (ZR10.4D) · 42.5 (ZR10.2D)
DC Resistance (Re) 3.4 + 3.4 Ohm (ZR10.4D) · 1.8 + 1.8 Ohm (ZR10.2D)

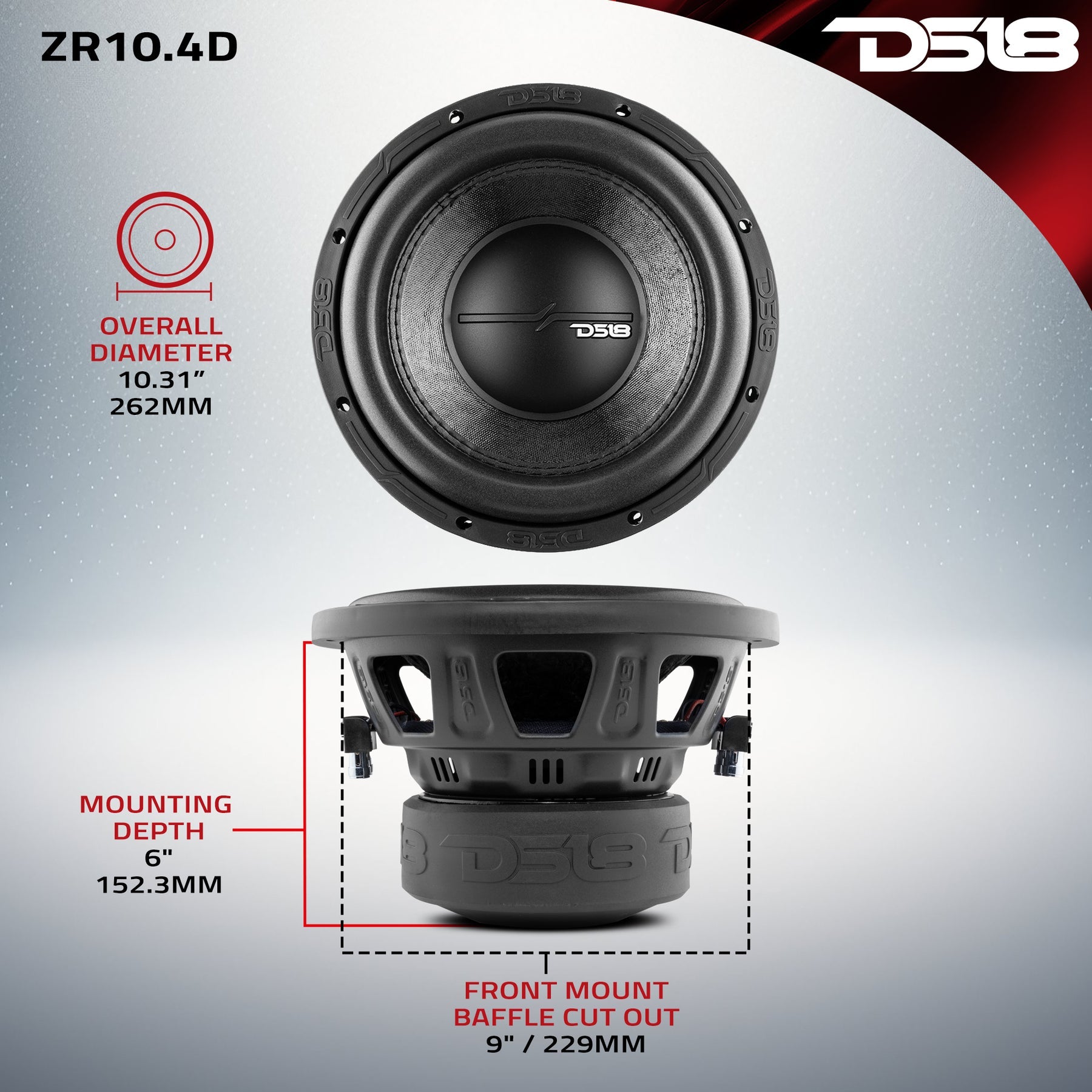

Overall Diameter 10.31" / 262mm
Overall Depth 6.92" / 176mm
Front Mount Baffle Cutout 9" / 229mm
Mounting Depth 6" / 152.3mm
Motor Diameter 6.1" / 155mm
Weight 17.5 lbs
Sold As Single

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
