Product Overview

Description

Key Features

  • 300W RMS / 600W MAX power handling
  • 4-Ohm impedance
  • 98dB high sensitivity (1W/1m)

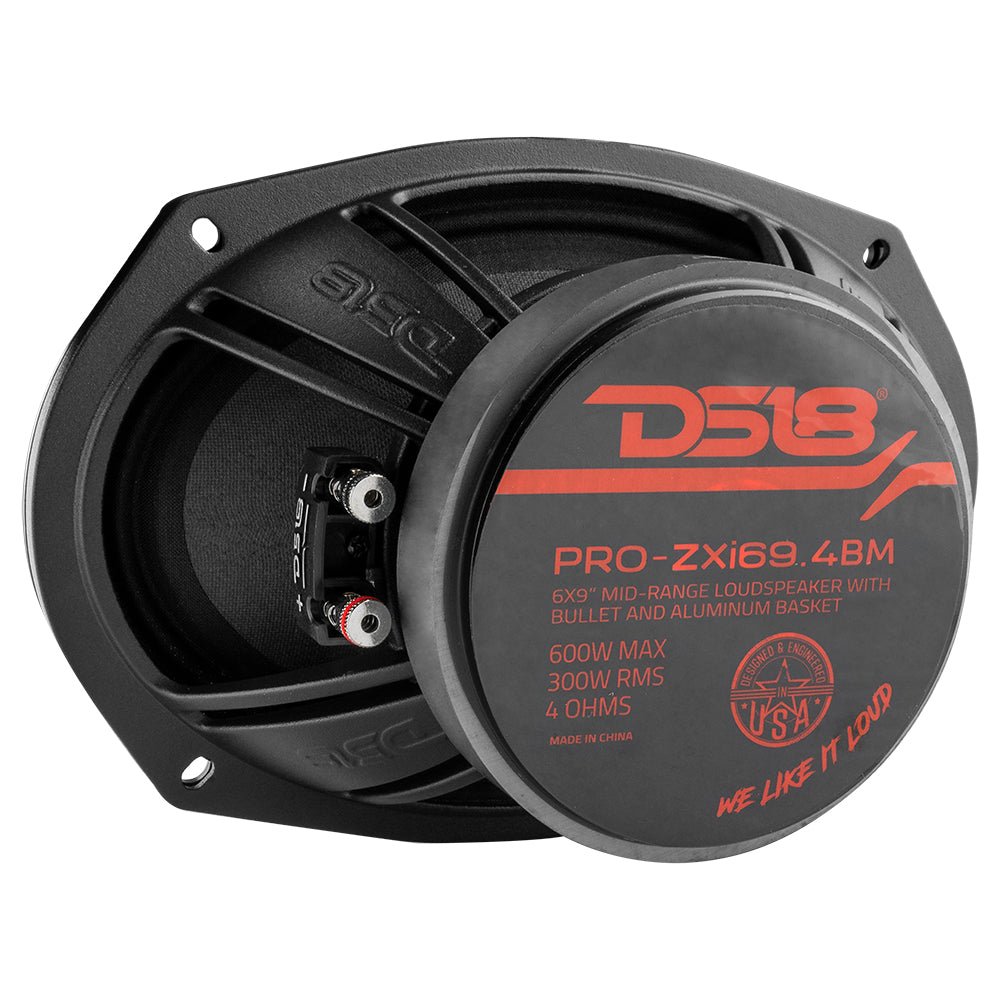

  • Combined ferrite and neodymium magnets (30 + 3 oz)

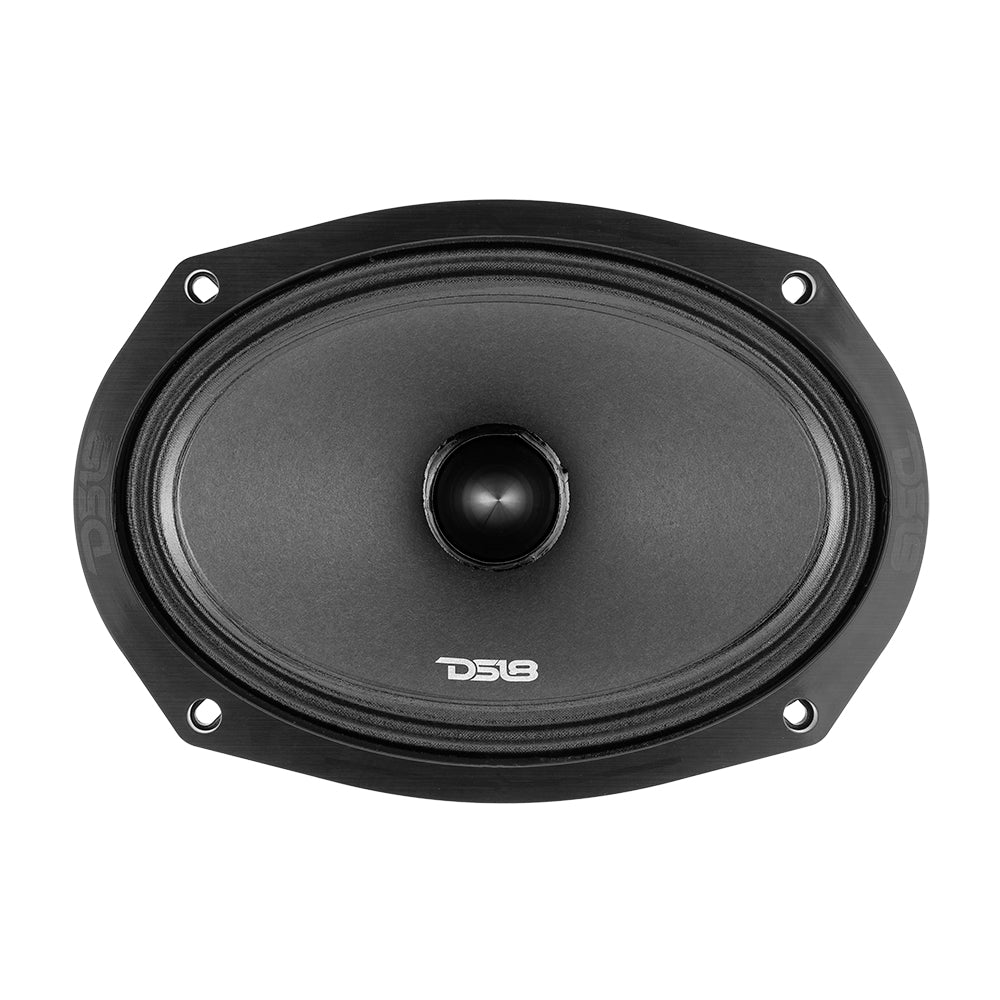

  • Bullet dust cap for smoother, more efficient sound dispersion

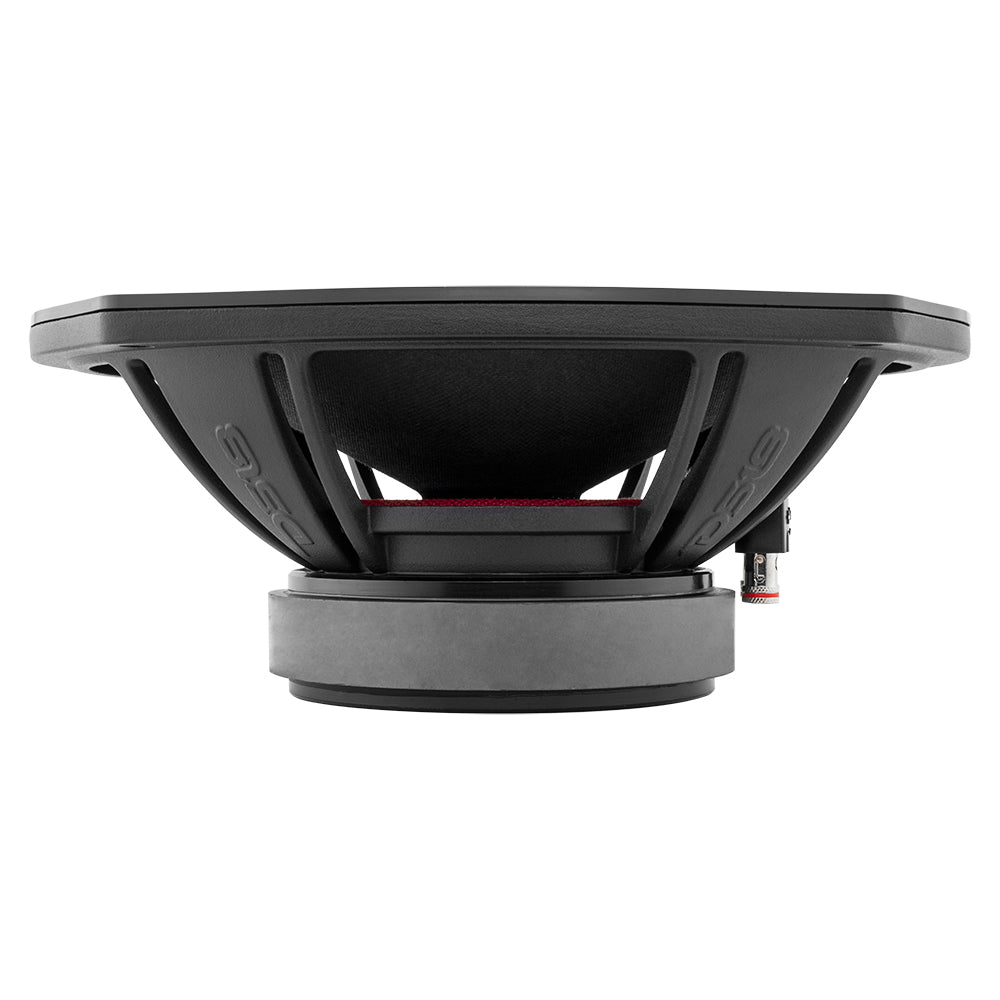

  • 1.5" voice coil on glass fiber former, black-face aluminum basket
  • Sold as: single (each)

Product Overview

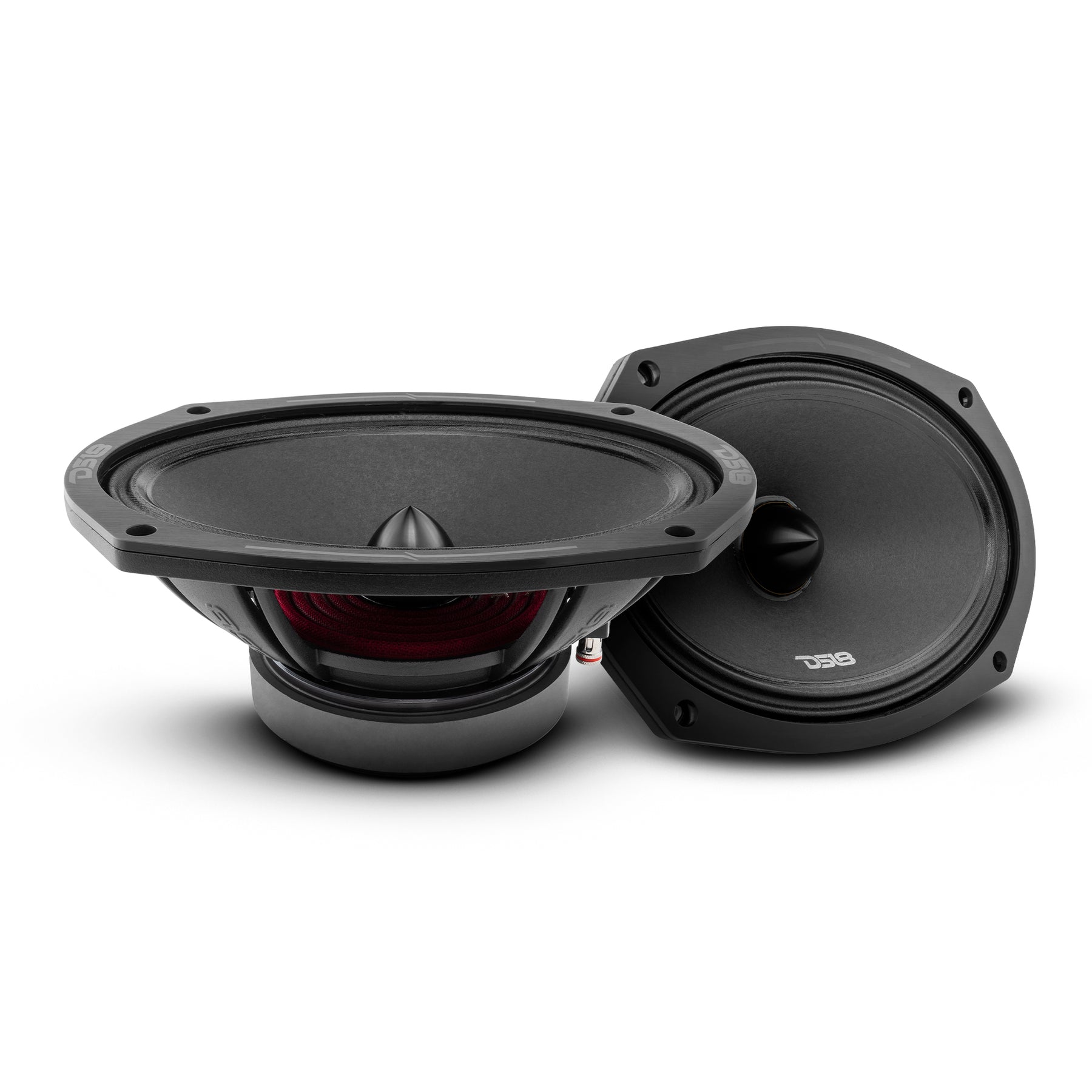

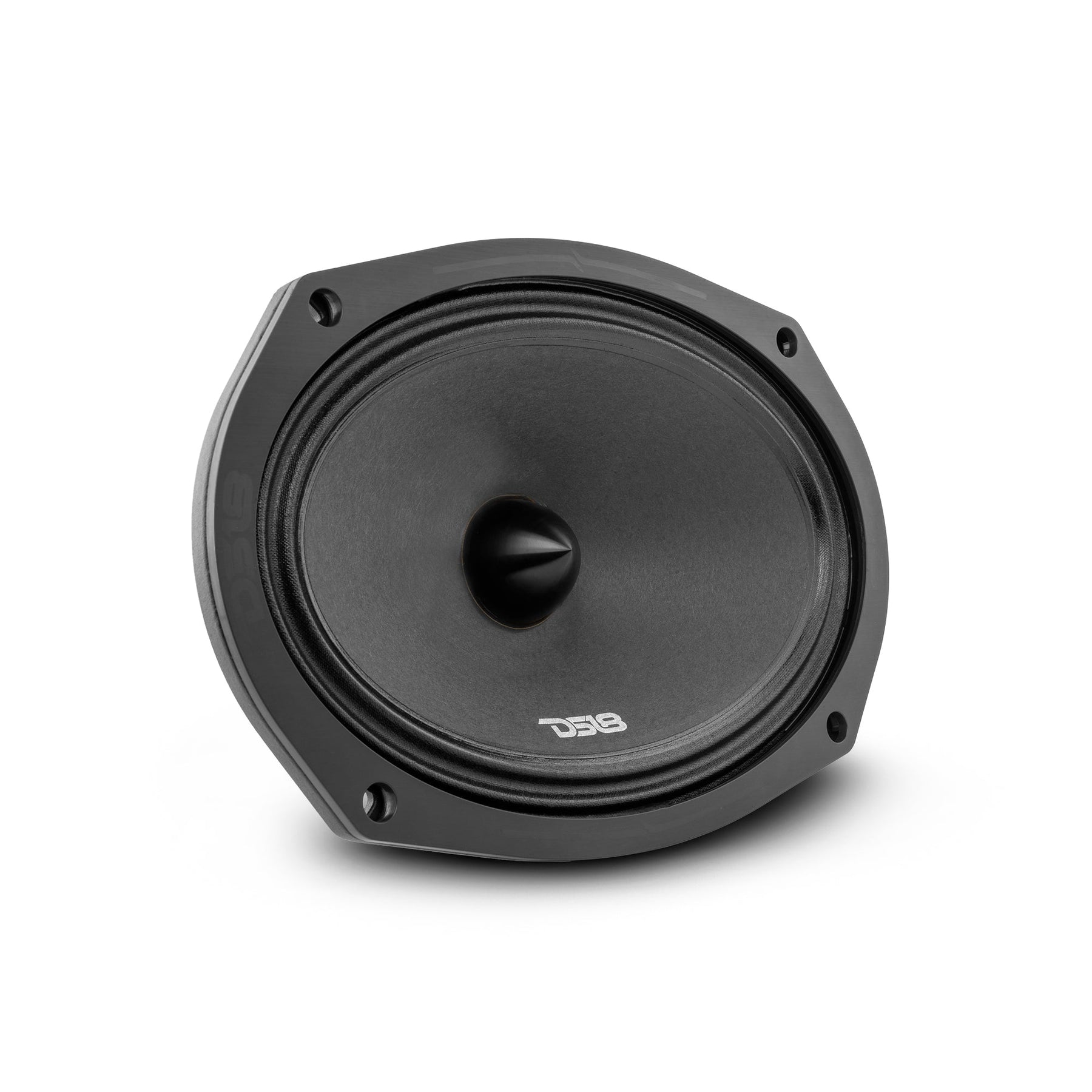

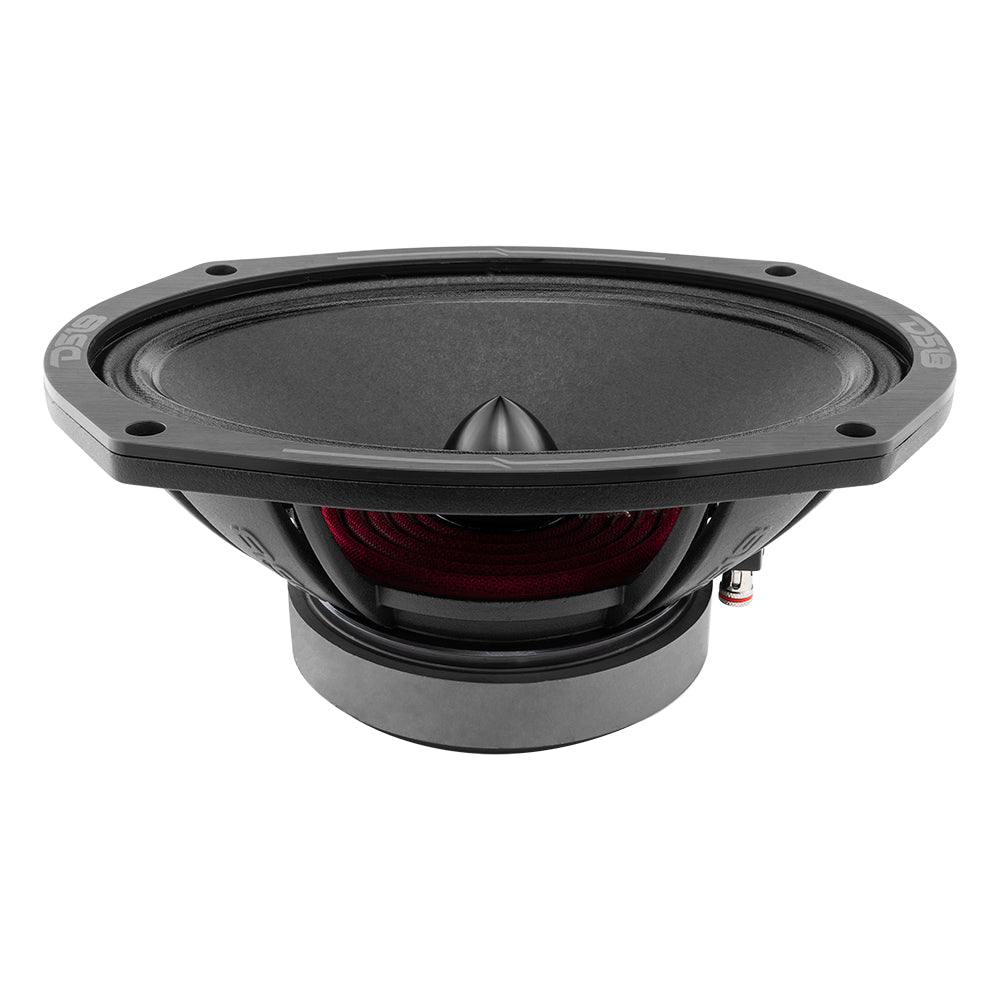

The DS18 PRO-ZXI694BM is a 6x9" mid-range bullet loudspeaker from the ZXI series, rated at 300W RMS and 600W MAX at 4 ohms. A combined ferrite and neodymium magnet structure (30 + 3 oz) drives a 1.5" voice coil on a glass fiber former, delivering 98dB sensitivity across an 80Hz–12.5kHz response. The bullet dust cap smooths sound dispersion to minimize distortion and preserve clarity at high volume, and the black-face aluminum basket with a 3.38" mounting depth keeps installation straightforward. Sold as: single (each).

SPECS

SKU PRO-ZXI694BM
Nominal Diameter 6x9" / 152.4 x 228.6mm
Nominal Impedance 4 OHMS
RMS Power Handling 300 Watts
Maximum Power Handling 600 Watts
Sensitivity (1w/1m) 98dB
Frequency Response 80Hz - 12.5KHz
Recommended Hi Pass Crossover 100 Hz
Voice Coil Diameter 1.5" / 38.6mm
Voice Coil Former Material Glass Fiber
Winding Material CCAW
Basket Material Aluminum
Magnet Weight 30 + 3 Oz
Vas 14.9L / 0.5271f
Xmax 7.2mm
Fs 100Hz
Qms 10.64
Qes 0.439
Qts 0.421
Re 3.6 ohms

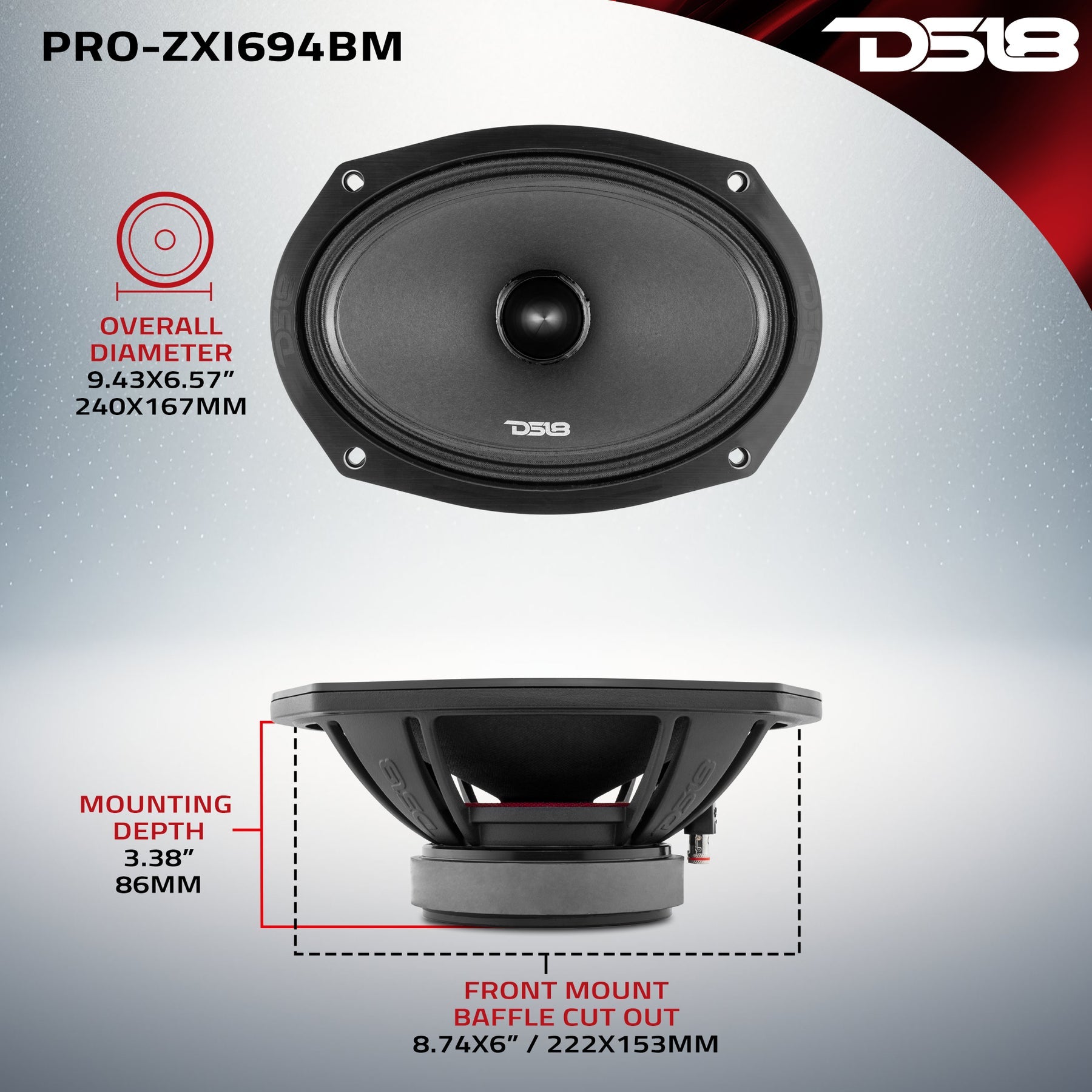

Overall Diameter 9.43x6.57" / 240x167mm
Front Mount Baffle Cutout 8.74x6" / 222x153mm
Mounting Depth 3.38" / 86mm
Overall Depth 3.7" / 94mm
Product Weight 6 lbs
Product Dimensions 10.25 x 7.25 x 4.25
M/C Weight 49 lbs
M/C Dimensions 21 x 15.25 x 9.5
M/C QTY 8
Sold In Piece

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
