Product Overview

Description

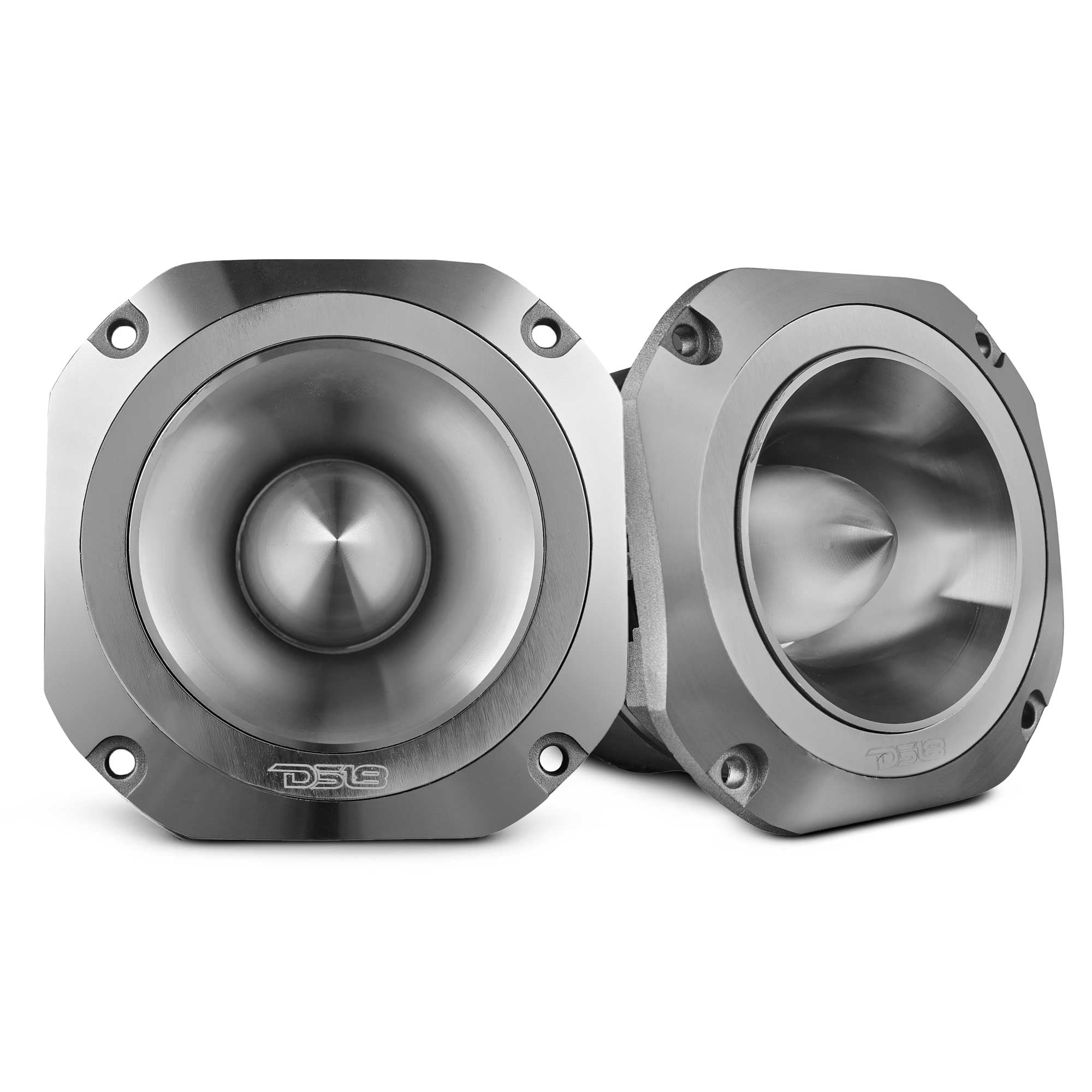

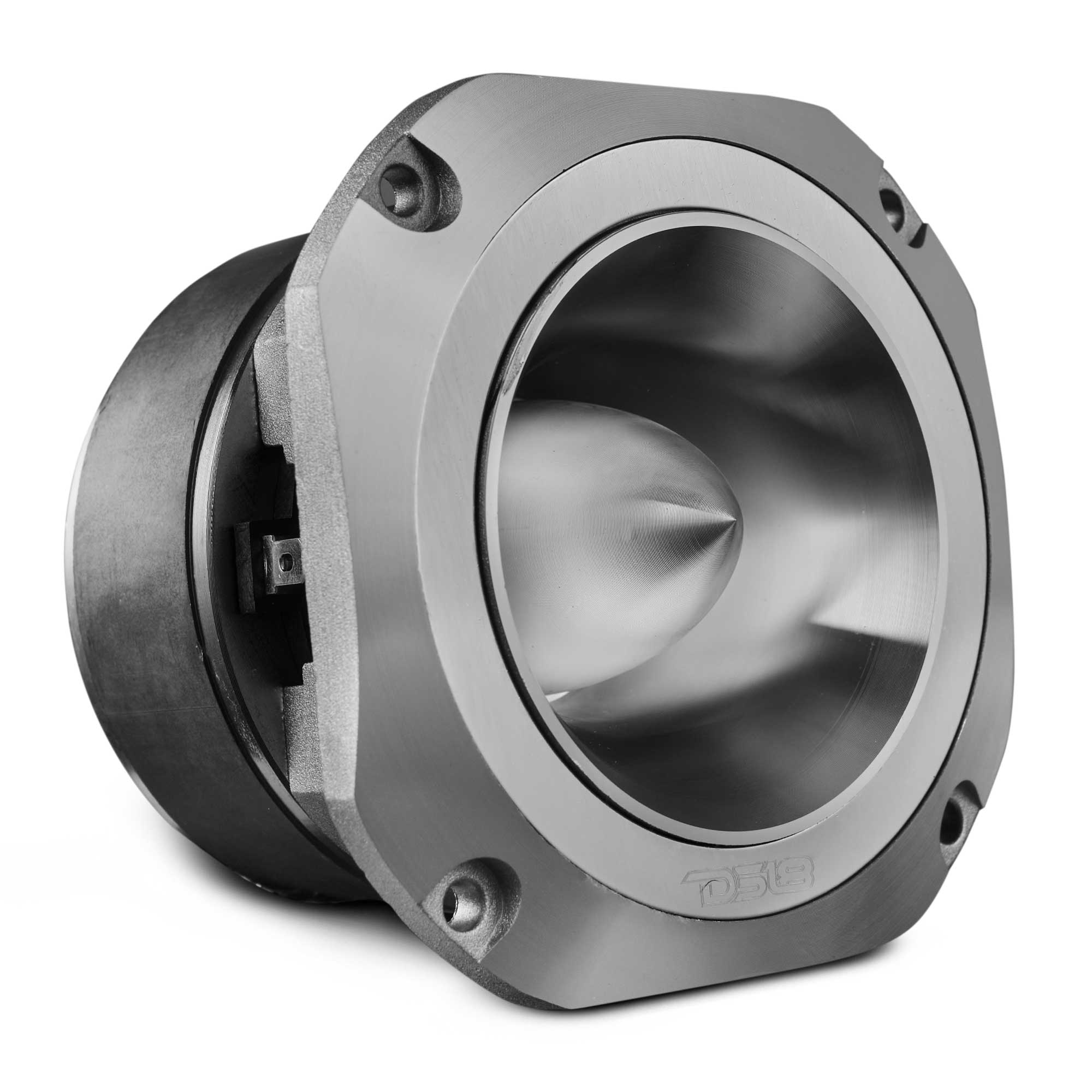

DS18 PRO-TW750C-4/SL
4” Super Bullet Tweeter with 1.5” Titanium Voice Coil And Oversized Ferrite Magnet

Next level quality is possible with DS18’s PRO-TW750C-4, a 4-inch bullet tweeter designed for precision. Built for detailed high frequencies, the PRO-TW750C-4 transforms every audio setup into a masterpiece.

Featuring a robust titanium voice coil, the PRO-TW750C-4 offers premium sound reproduction with AES Power Handling at 150W and Program Power Handling at 200W. Its oversized ferrite magnet ensures high sensitivity and consistent performance across a wide frequency range of 900Hz–20KHz. To optimize its performance, we’ve paired it with a 3.3uF bass blocker that filters out low-frequency sounds, preventing distortion and protecting the tweeter from damage.

Crafted for durability, this tweeter features a CNC aluminum bullet and sandblasted body in sleek silver. With an impressive sensitivity of 109dB, 4-ohm impedance, and a compact 2.5" mounting depth, the PRO-TW750C-4 integrates effortlessly into various systems for a seamless audio upgrade.

For those who demand the best in sound and design, DS18’s PRO-TW750C-4 is the ultimate choice.

SPECS

Specifications
SKU PRO-TW750C-4/SL
Nominal Diameter 4" / 103mm
Nominal Impedance 4 ohms
AES Power Handling 150W
Program Power Handling 200W
Peak Power Handling 400W
Sensitivity (1w/1m) 109dB
Frequency Response 900Hz-20KHz
Recommended Hi Pass Crossover 3KHz
Sold In Pair or Single Single
Body / Features
Filter (Bass Blocker) 6.8uf / 100V
Body Material Aluminum
Body Color Available / Finish Aluminum / Machined
Sandblaster Black
Faceplate Color Available / Finish Aluminum / Machined
Sandblaster Black
Bullet Material CNC Aluminum
Motor
Voice Coil Diameter 1.5" / 38mm
Voice Coil Former Material KSV
Winding Material CCAW
Diaphragm Material Titanium
Magnet Material Ferrite
Magnet Size 3.5"x1" / 90x25mm
Magnet Weight 20.1 Oz

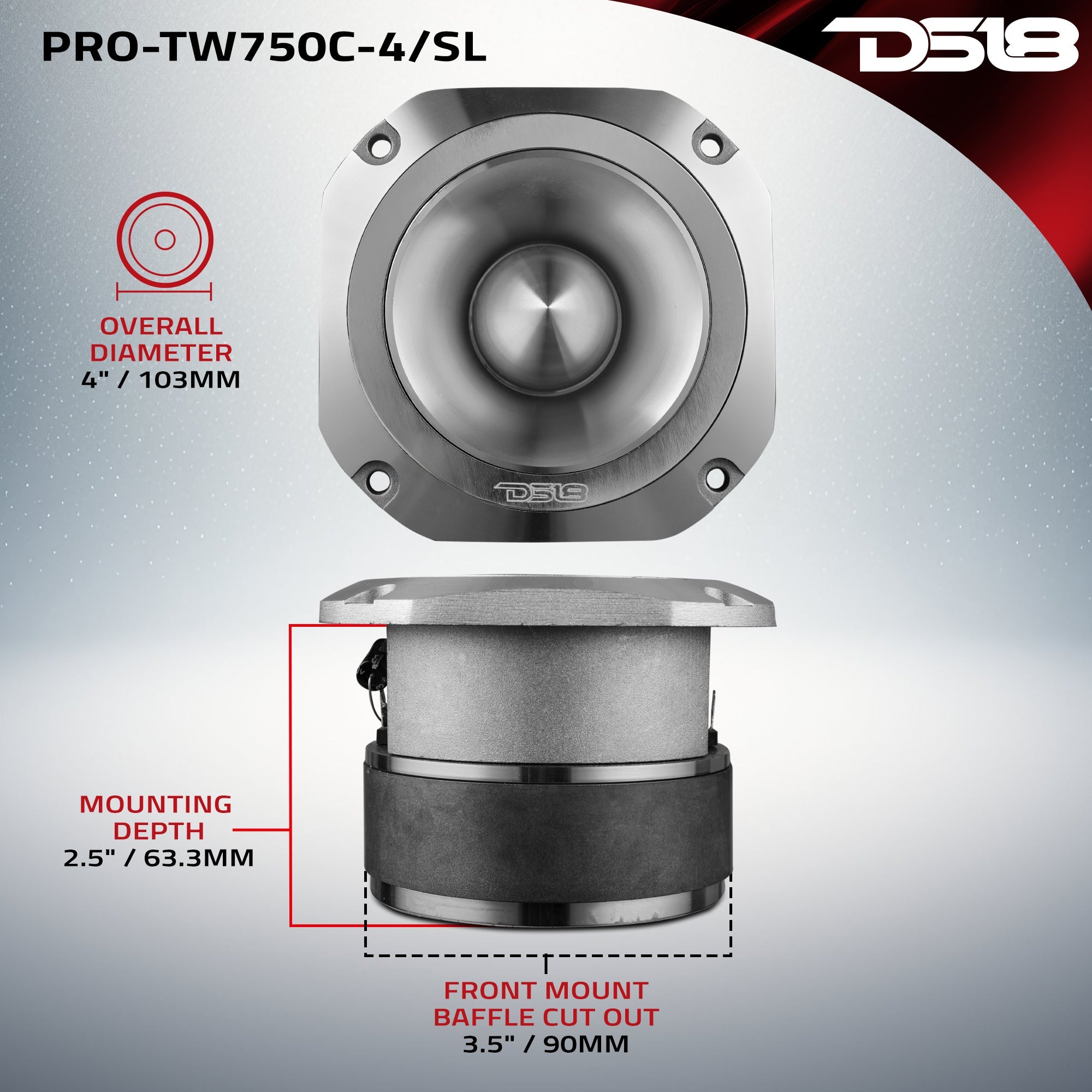

Measurement
Overall Diameter 4" / 103mm
Overall Depth 3" / 75.3mm
Front Mount Baffle Cutout 3.5" / 90mm
Mounting Depth 2.5" / 63.3mm

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
