Product Overview

Description

Key Features

  • 250W RMS / 500W MAX power handling
  • 2-Ohm impedance for easy amplifier matching
  • 96dB high sensitivity (1W/1m)

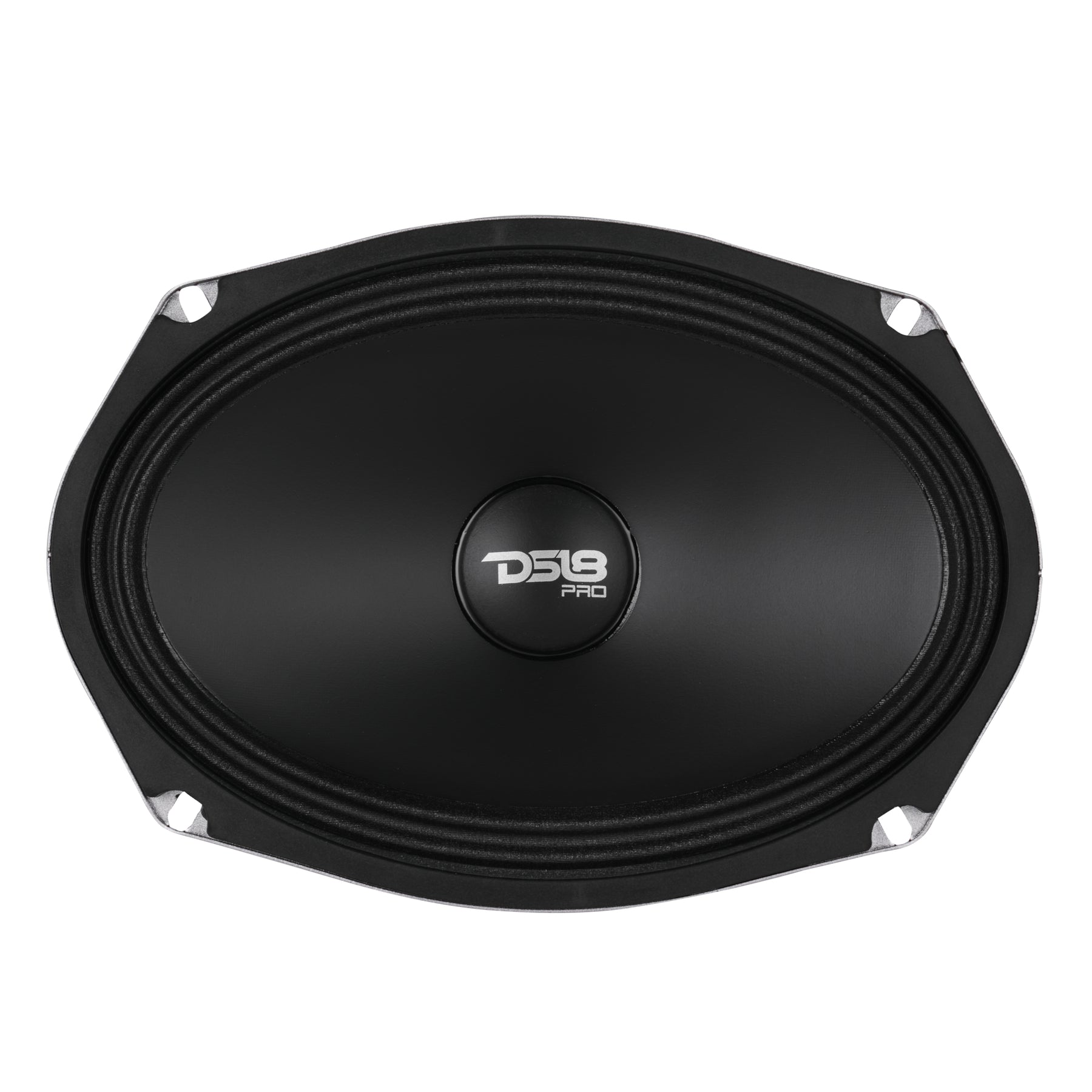

  • Water-resistant cone, coated dust cap, and cloth surround
  • Shallow 2.68" mounting depth for fairings, doors, and custom pods
  • 1.5" Kapton voice coil with CCAW winding
  • Sold as: single (each)

Product Overview

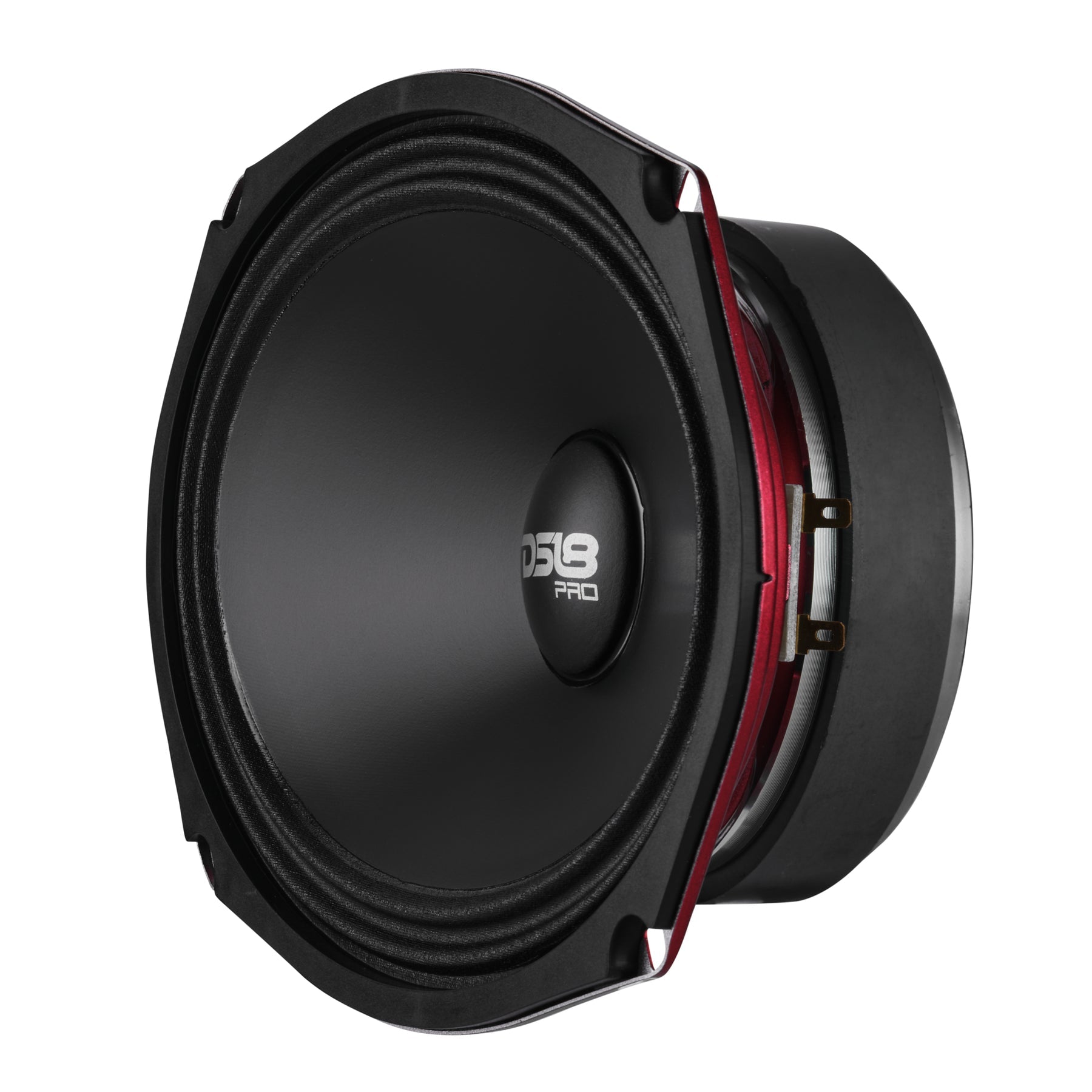

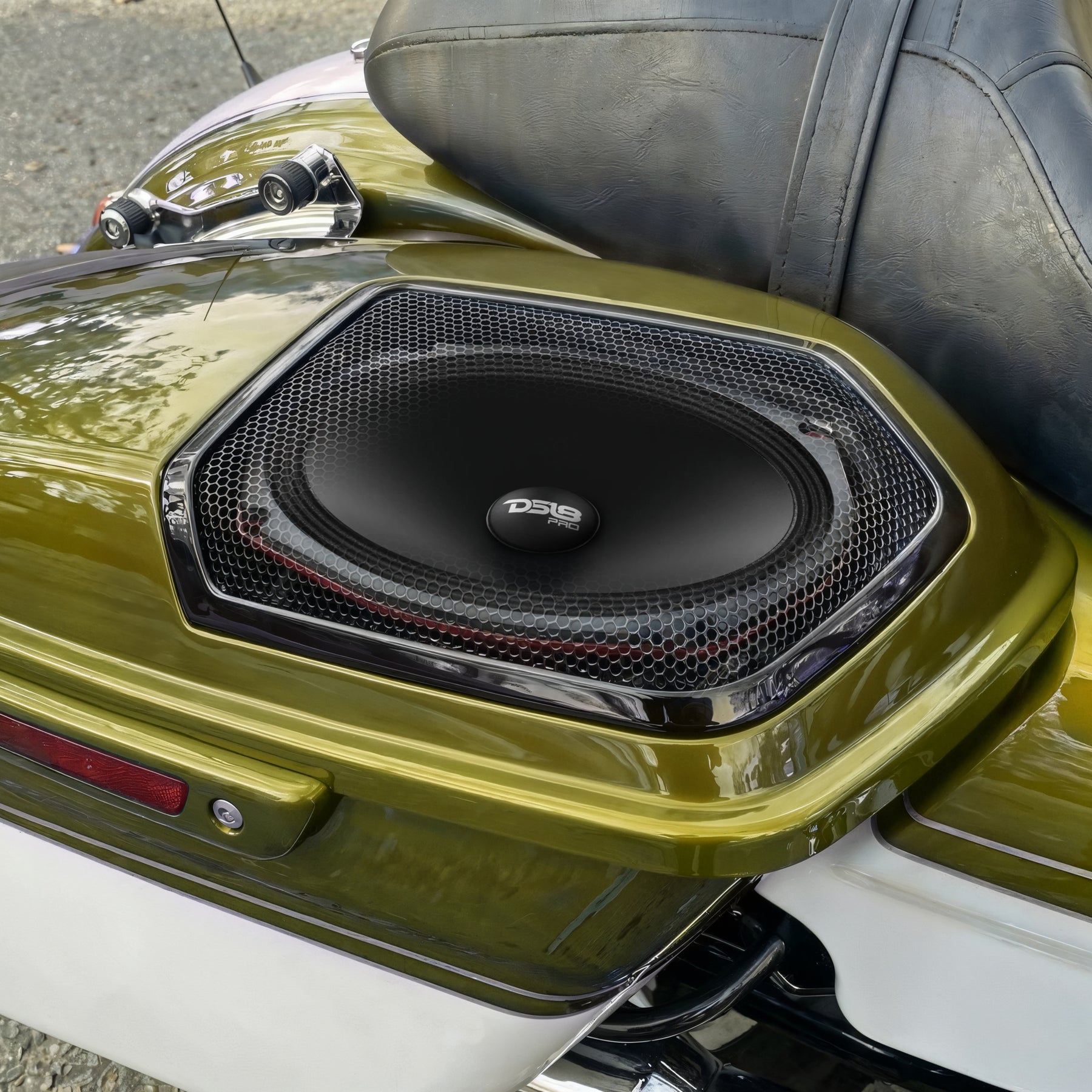

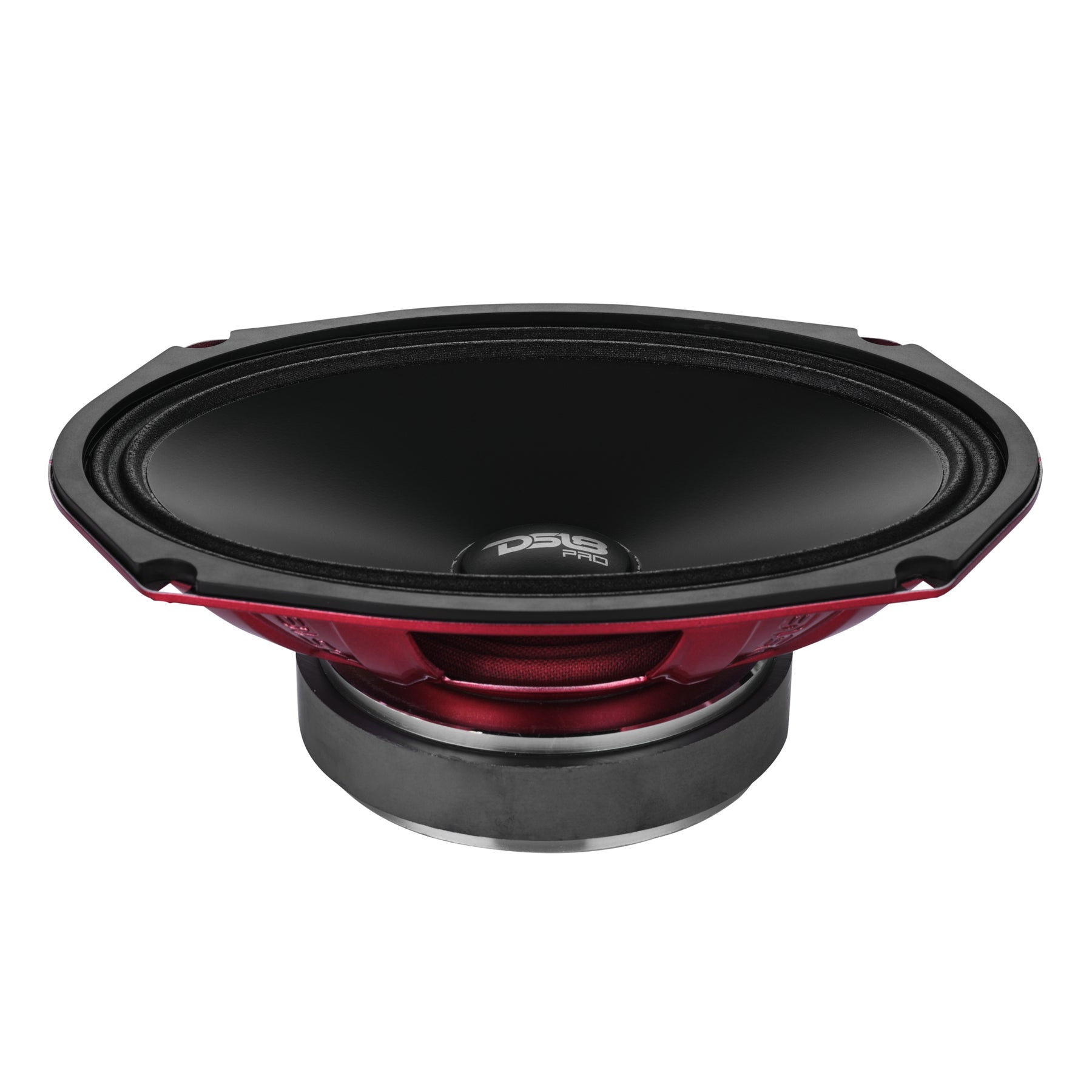

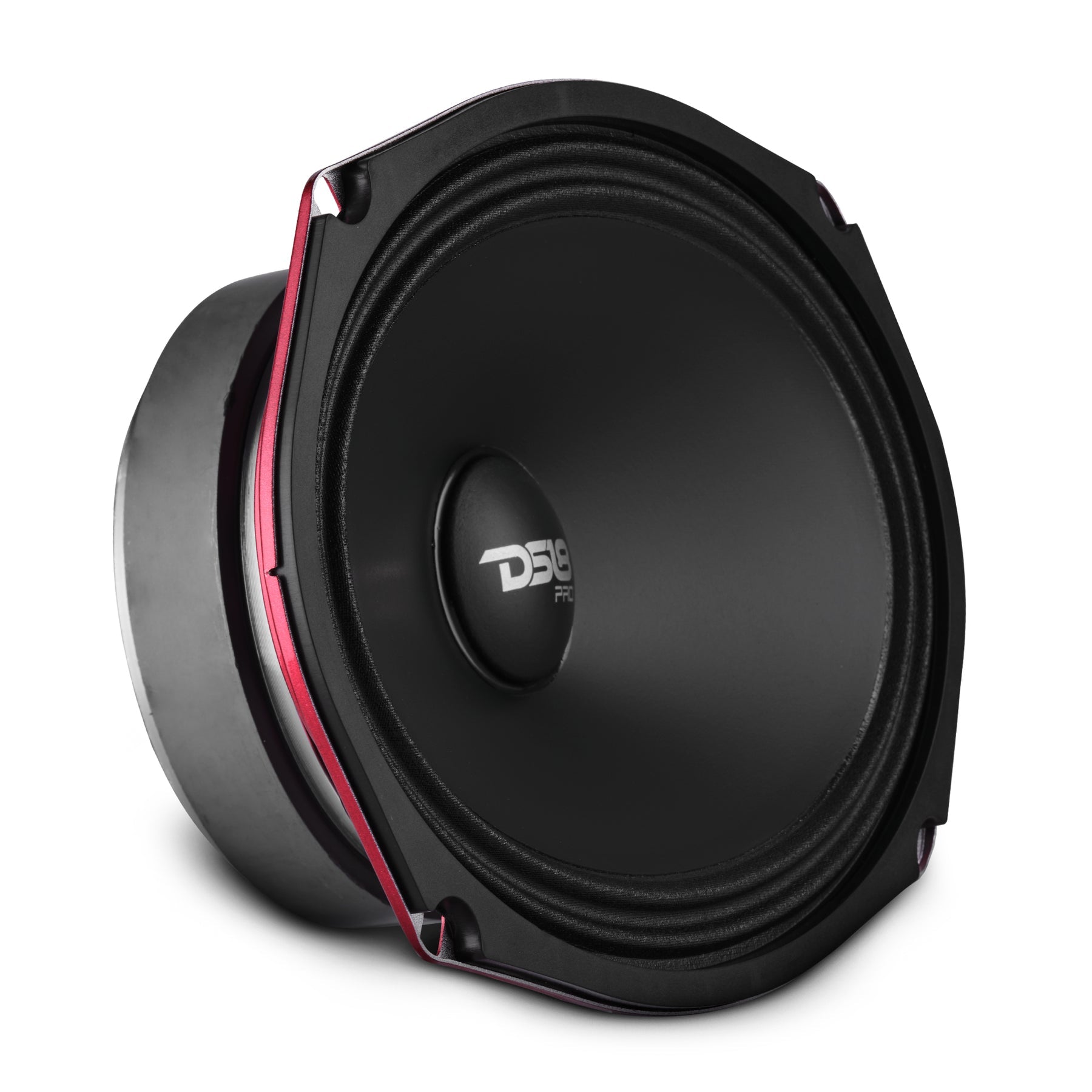

The DS18 PRO-SM69.2 is a shallow-mount 6x9" mid-range loudspeaker tuned for motorcycle and off-road applications where volume and clarity have to cut through wind and engine noise. Rated at 250W RMS and 500W MAX with 96dB sensitivity, it covers a 60Hz–5kHz range for solid midbass punch and clear vocals. The water-resistant paper cone, coated dust cap, and cloth edge surround are built to handle the elements, while the shallow 2.68" mounting depth fits most fairings, doors, and custom pods. Sold as: single (each).

SPECS

SKU PRO-SM69.2
Nominal Diameter 6x9" / 152.4 mm x 228.6 mm
Nominal Impedance 2 OHMS
RMS Power Handing 250 Watts
Maximum Power Handing 500 Watts
Sensitivity (1w/1m) 96 dB
Frequency Response 60 Hz-5 Khz
Recommended Hi Pass Crossover 120 Hz
Voice Coil Diameter 1.5" / 38.1 mm
Voice Coil Former Material Kapton
Winding Material CCAW

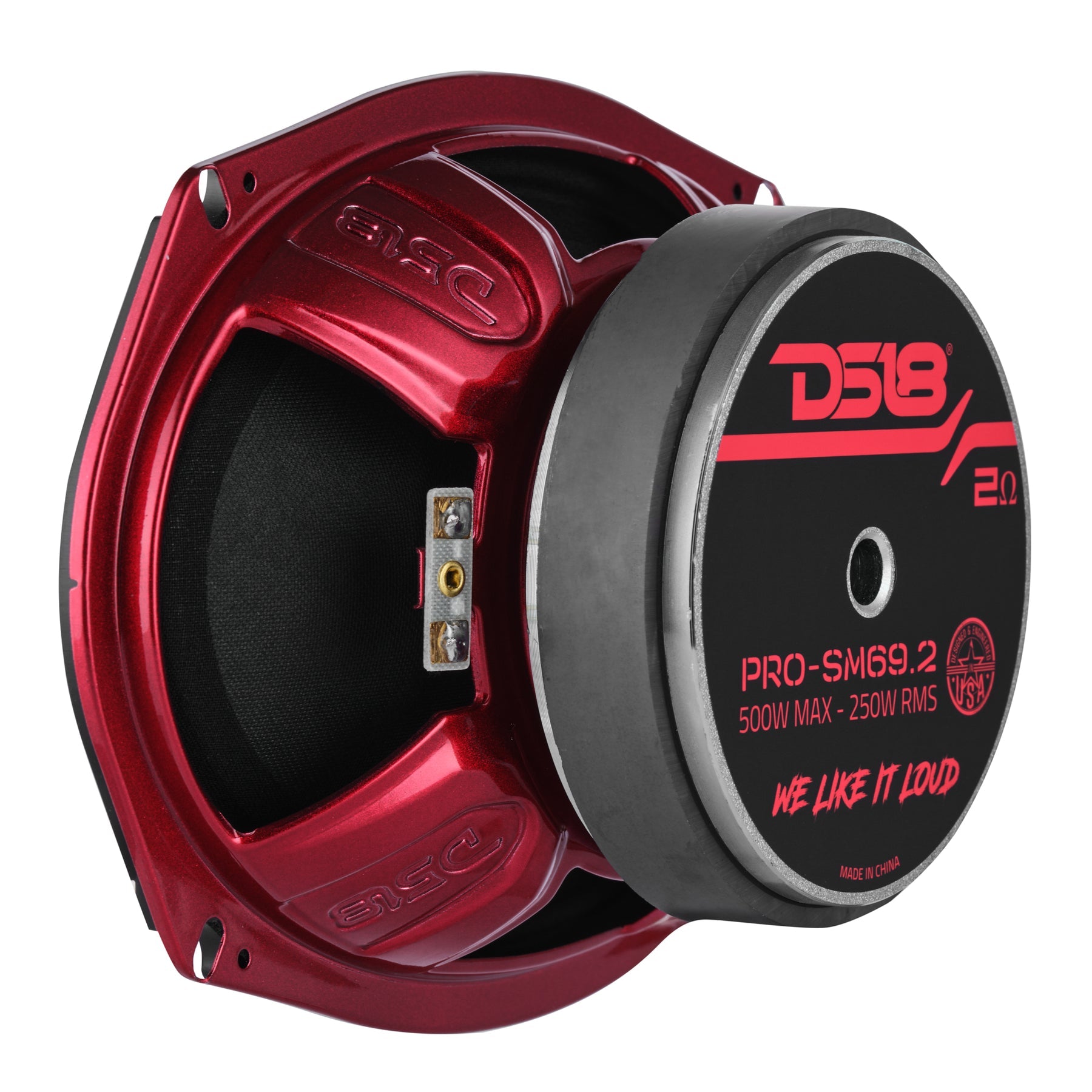

Basket Material Steel
Magnet Weight 33 Oz
Vas 10.147 L
Xmax 6.7 mm
Fs 110 Hz
Qms 7.358
Qes 0.959
Qts 0.848
Re 2 OHMS

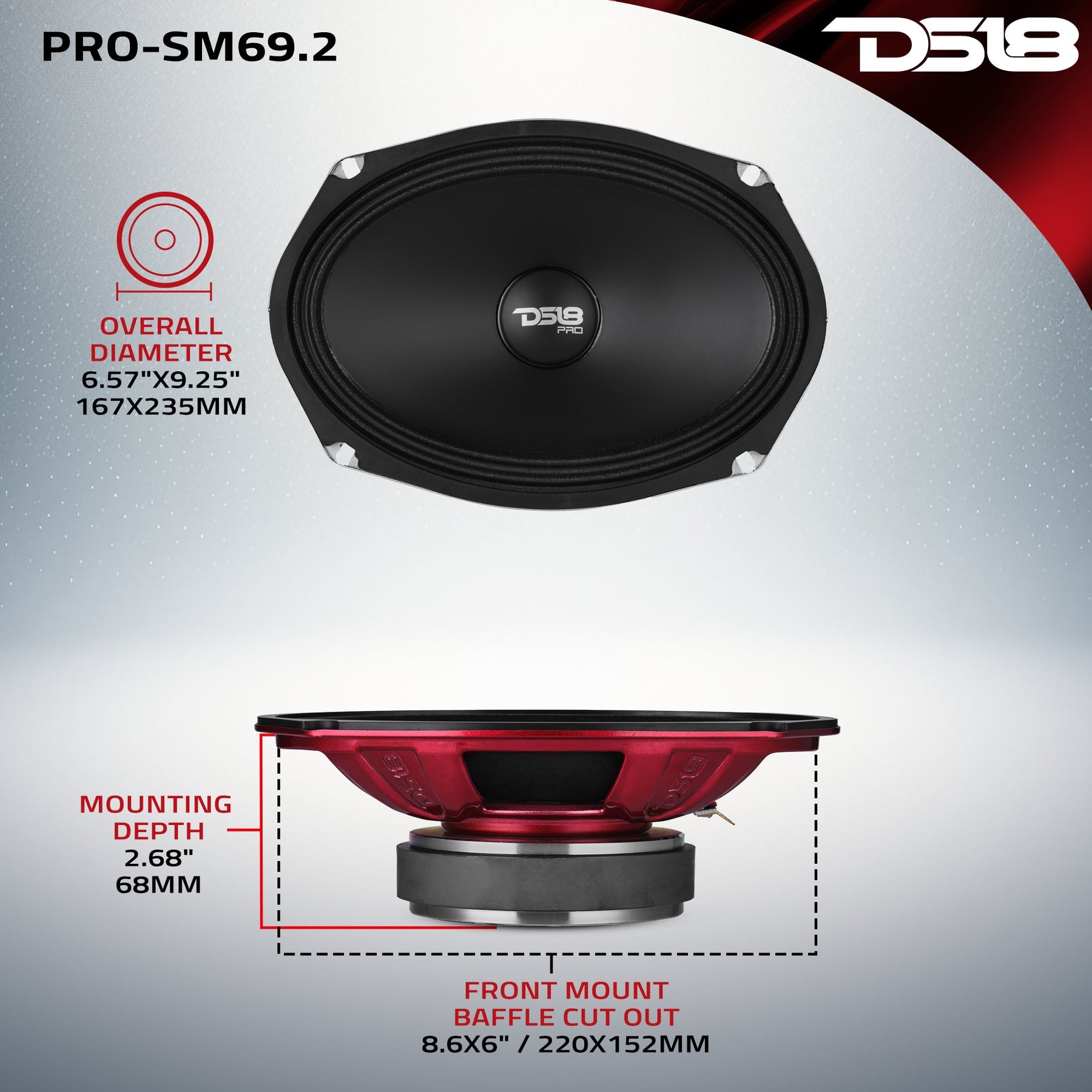

Overall Diameter 9.25" x 6.57" / 235 mm x 167 mm
Front Mount Baffle Cutout 8.6" x 6" / 220 mm x 152 mm

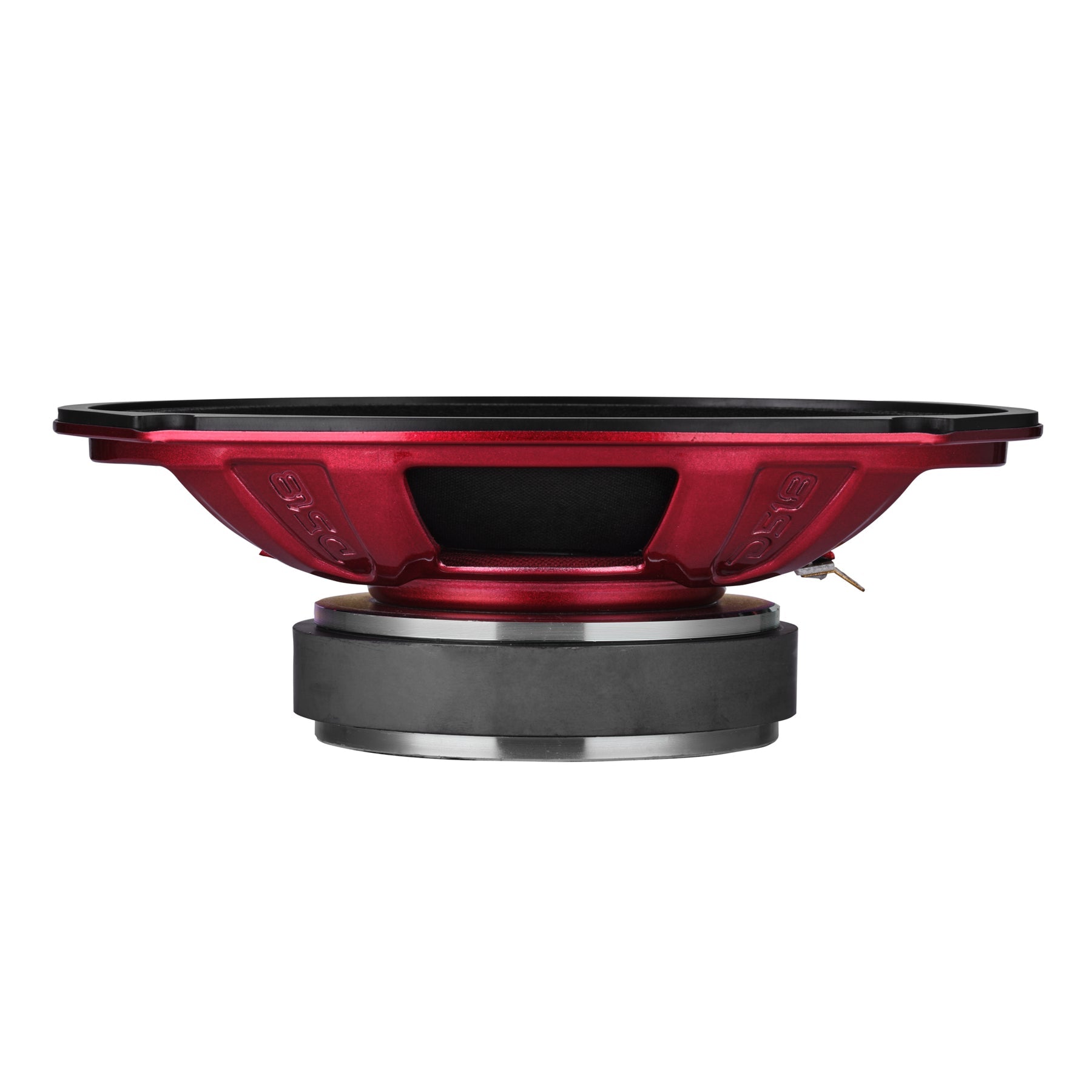

Mounting Depth 2.68" / 68 mm
Overall Depth 2.91" / 74 mm
Product Weight 5.5 lbs
Product Dimensions 10 x 7.25 x 4
M/C Weight 44.5 lbs
M/C Dimensions 20.75 x 15.25 x 9
M/C QTY 8
Sold In Piece

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
