Product Overview

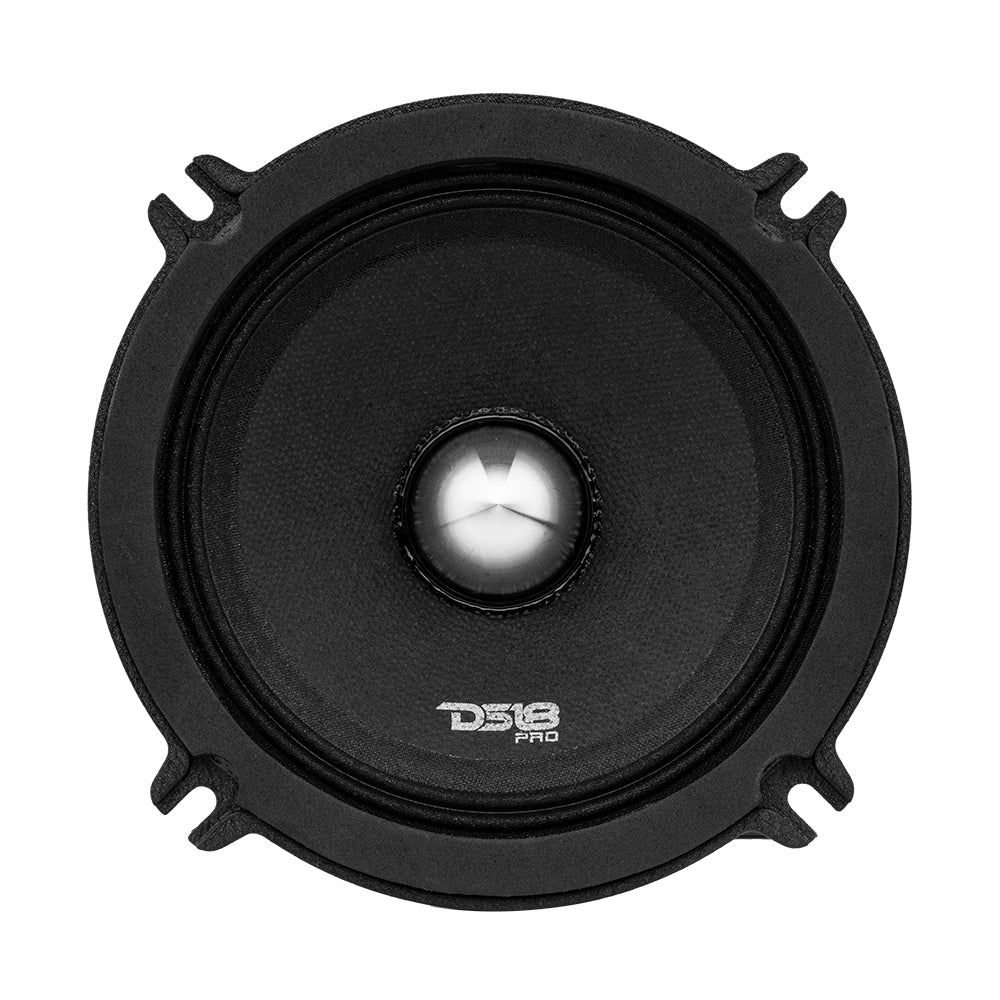

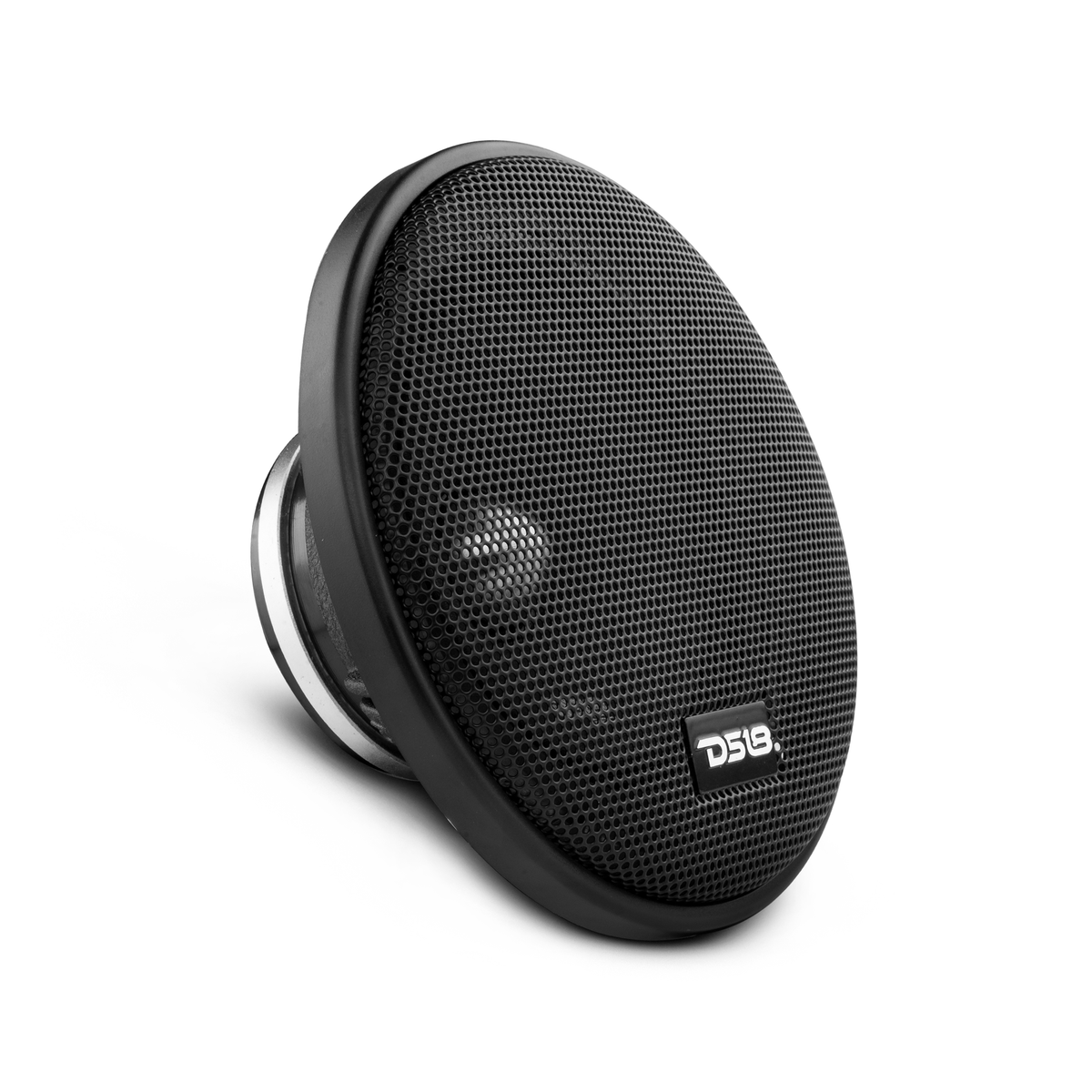

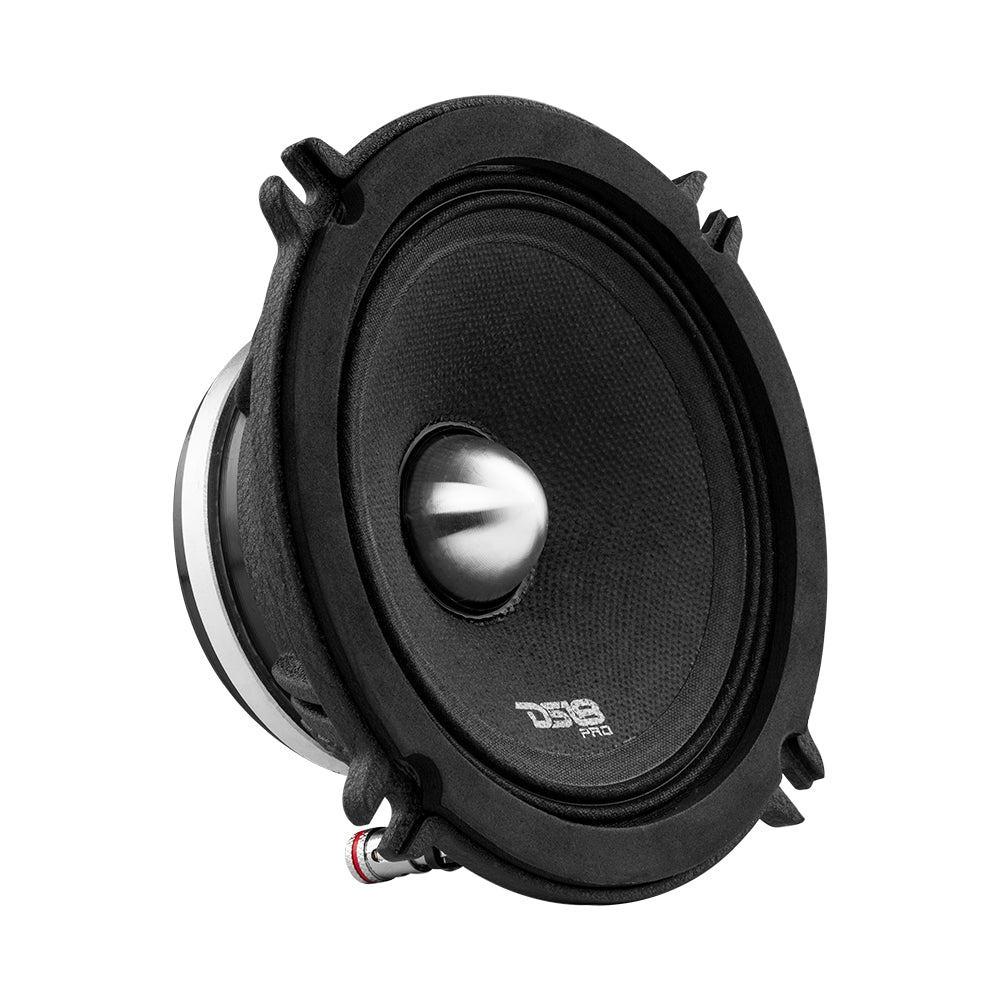

The DS18 PRO-FR5NEO is a 5.25" neodymium full-range loudspeaker rated 200W RMS / 400W MAX at 4-Ohm. Its high-powered neodymium magnet generates a much greater action force in the voice coil, providing higher magnetic flux density in the air gap. Neodymium is the strongest permanent magnet of all commercially available speakers. The integrated Silver Bullet widens the upper end of its range, and with a 250Hz–16kHz frequency response and 94dB sensitivity it delivers clear, distortion-free output. Built on a tooled aluminum brushed-accent basket with a cloth-edge surround, non-pressed paper cone, and high-quality terminals. Sold individually (each).

Key Features

  • 5.25" Full-Range w/Bullet
  • MAX Power: 400 Watts
  • RMS Power: 200 Watts
  • Impedance: 4 Ohm

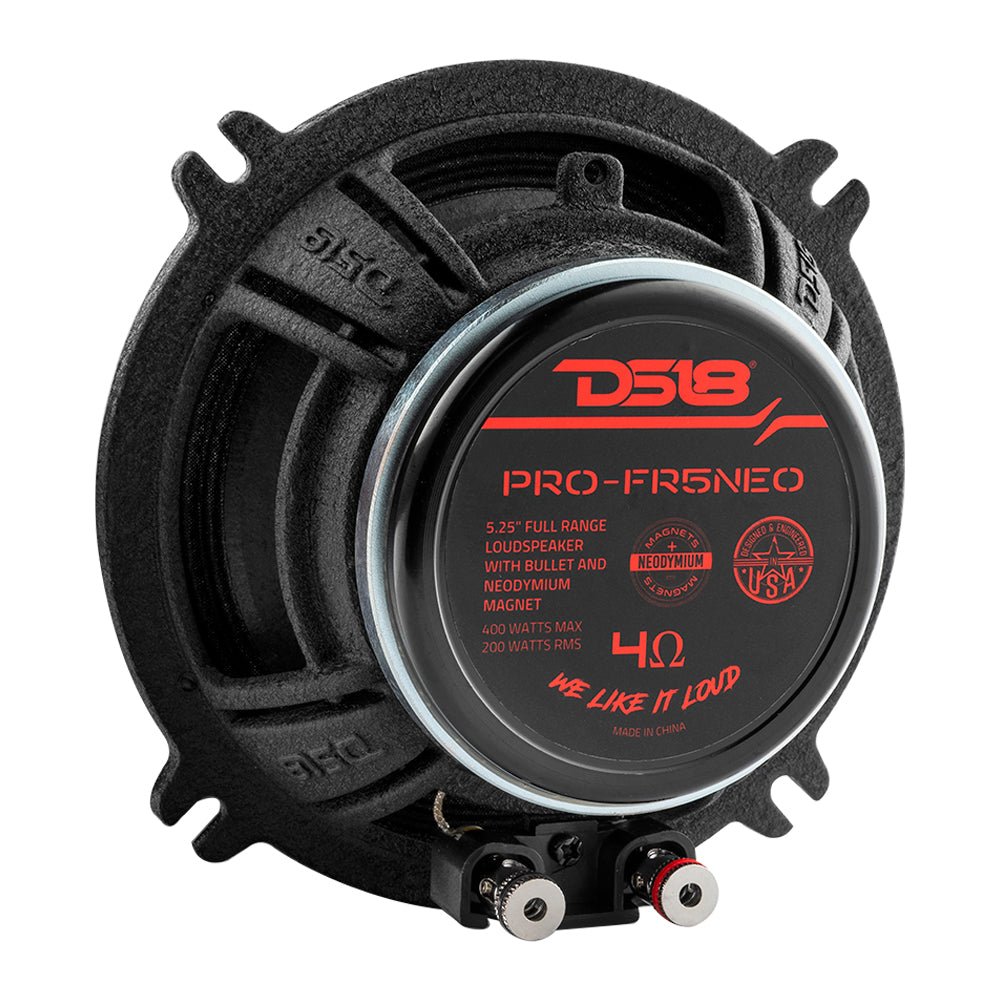

  • Neodymium Magnet

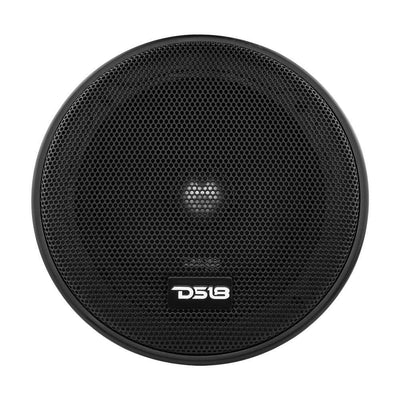

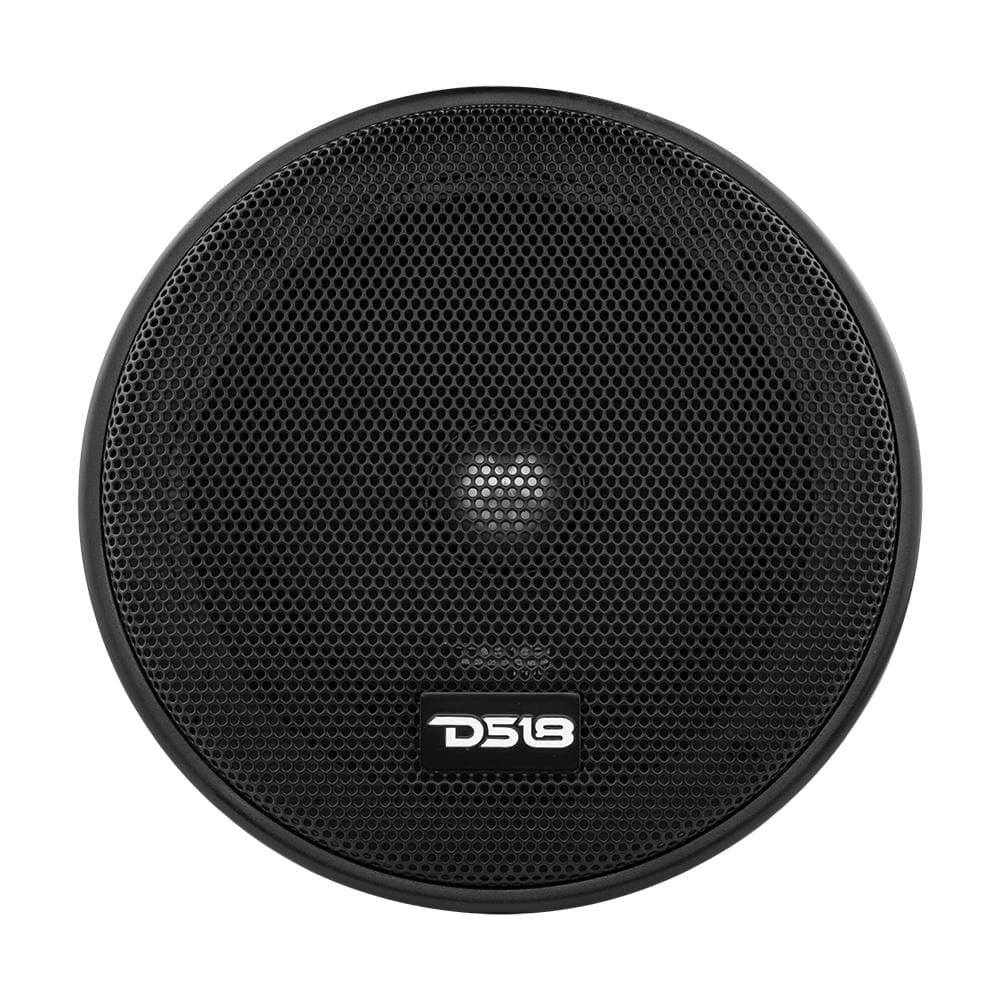

  • 94dB ~ w/Grill

Specifications

SKU PRO-FR5NEO
Nominal Diameter 5.25"
Nominal Impedance 4 ohms
RMS Power Handling 200 Watts
Maximum Power Handling 400 Watts
Sensitivity (1w/1m) 94 dB
Frequency Response 250Hz - 16KHz
Recommended Hi Pass Crossover 260 Hz
Voice Coil Diameter 1.2" (30.5 mm)
Voice Coil Former Material Kapton
Winding Material CCAW
Basket Material Aluminum
Magnet Weight 5.52 Oz
Vas 0.722L / 0.025ft³
Xmax 6.7 mm
Fs 237Hz
Qms 7.158
Qes 0.619
Qts 0.569
Re 3.15 ohms

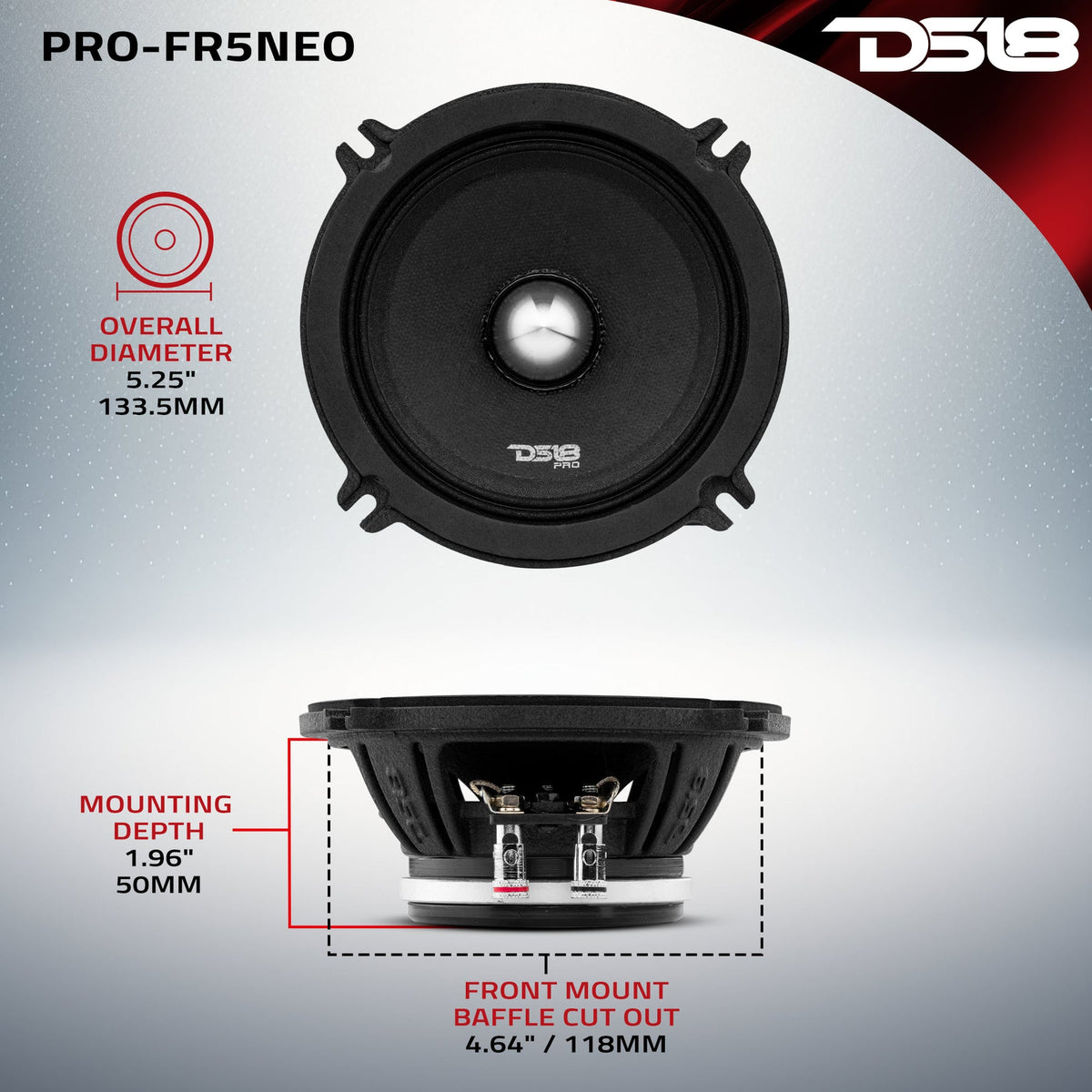

Overall Diameter 5.25" / 133.5 mm
Front Mount Baffle Cutout 4.64" / 118 mm
Mounting Depth 1.96" / 50 mm

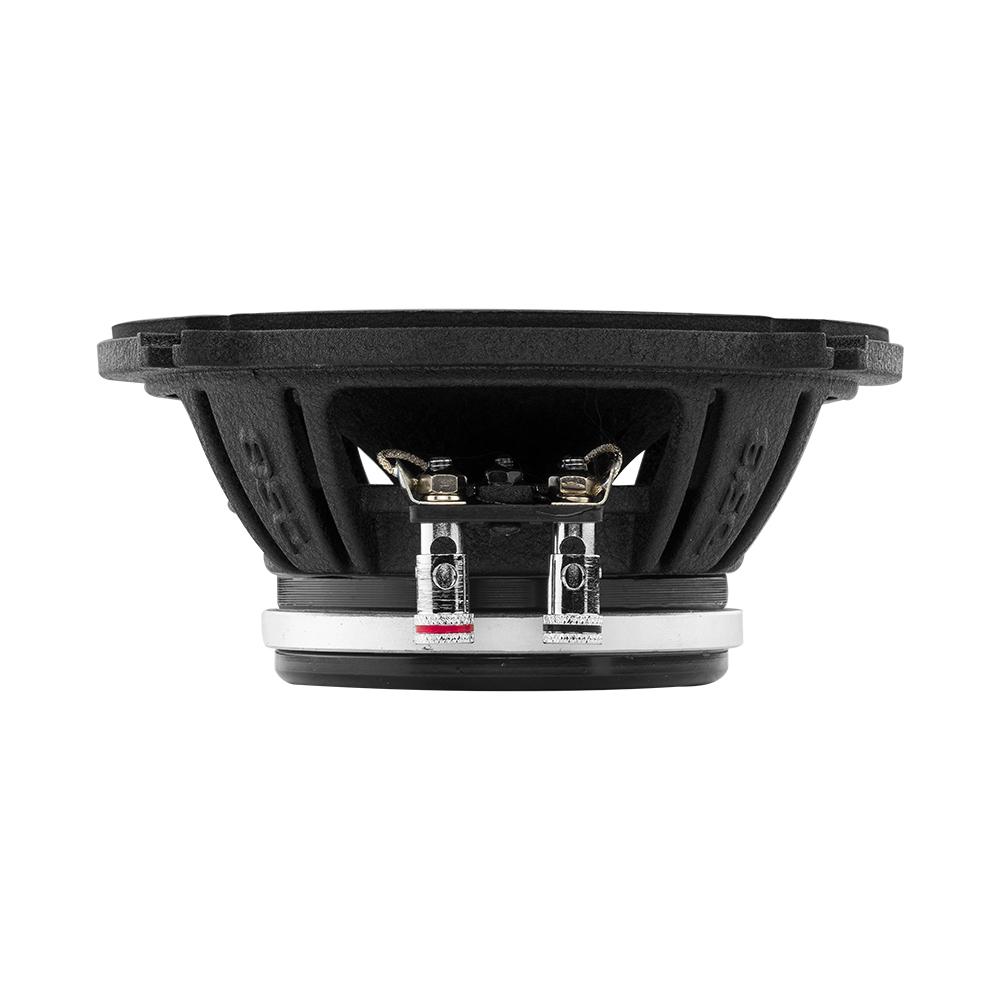

Overall Depth 2.24" / 57 mm
Product Weight 2.14 lbs
Product Dimensions 7.25 x 7.25 x 2.75
Sold In Piece

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
