Product Overview

Description

Product Overview

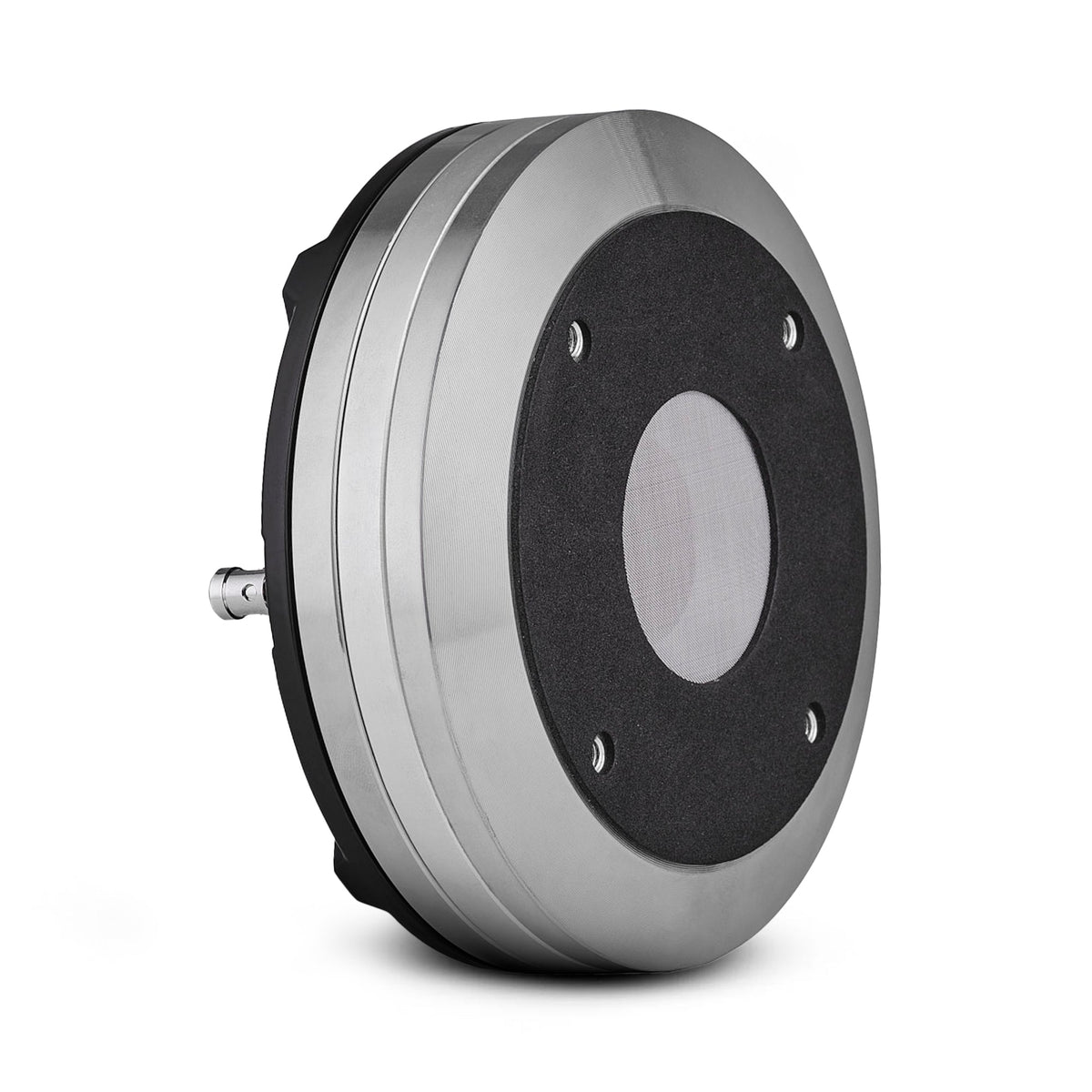

The DS18 PRO-DN24TI.8 is a 2" throat bolt-on compression driver built for serious PA and pro-audio horns — a massive 4" titanium voice coil on a Kapton former, driven by a 21.8oz neodymium magnet for 109dB sensitivity. Rated 250W AES / 500W program / 1,000W peak at 8-Ohm with a 500Hz–20kHz response, in a machined aluminum body with a standard 4-bolt M6 pattern. Includes a 10µF/100V bass-blocker filter. Sold individually (each).

Key Features

  • 2" Throat Bolt-On Compression Driver
  • 4" Titanium Voice Coil on Kapton Former
  • Neodymium Magnet — 109dB Sensitivity (1W/1m)
  • 250W AES / 500W Program / 1,000W Peak @ 8-Ohm
  • Machined Aluminum Body with 4×M6 Bolt Pattern

Specifications

Throat Diameter 2" / 50.8mm
Installation Type Bolt-On
Nominal Impedance 8 Ohms
AES Power Handling 250W
Program Power Handling 500W
Peak Power Handling 1000W
Sensitivity (1W/1m) 109dB
Frequency Response 500Hz–20kHz
Recommended High-Pass Crossover 600Hz
Voice Coil Diameter 4" / 101.6mm
Voice Coil Former Material Kapton
Winding Material CCAW
Diaphragm Material Titanium
Magnet Material Neodymium
Magnet Weight 21.8 Oz
Overall Diameter 6.06" / 154mm
Overall Depth 2.56" / 65mm
Bolt Pattern 4×M6 — 4" / 102mm
Filter (Bass Blocker) 10µF / 100V
Body Material Aluminum
Body Color Black / Machined

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
