Product Overview

Description

Product Overview

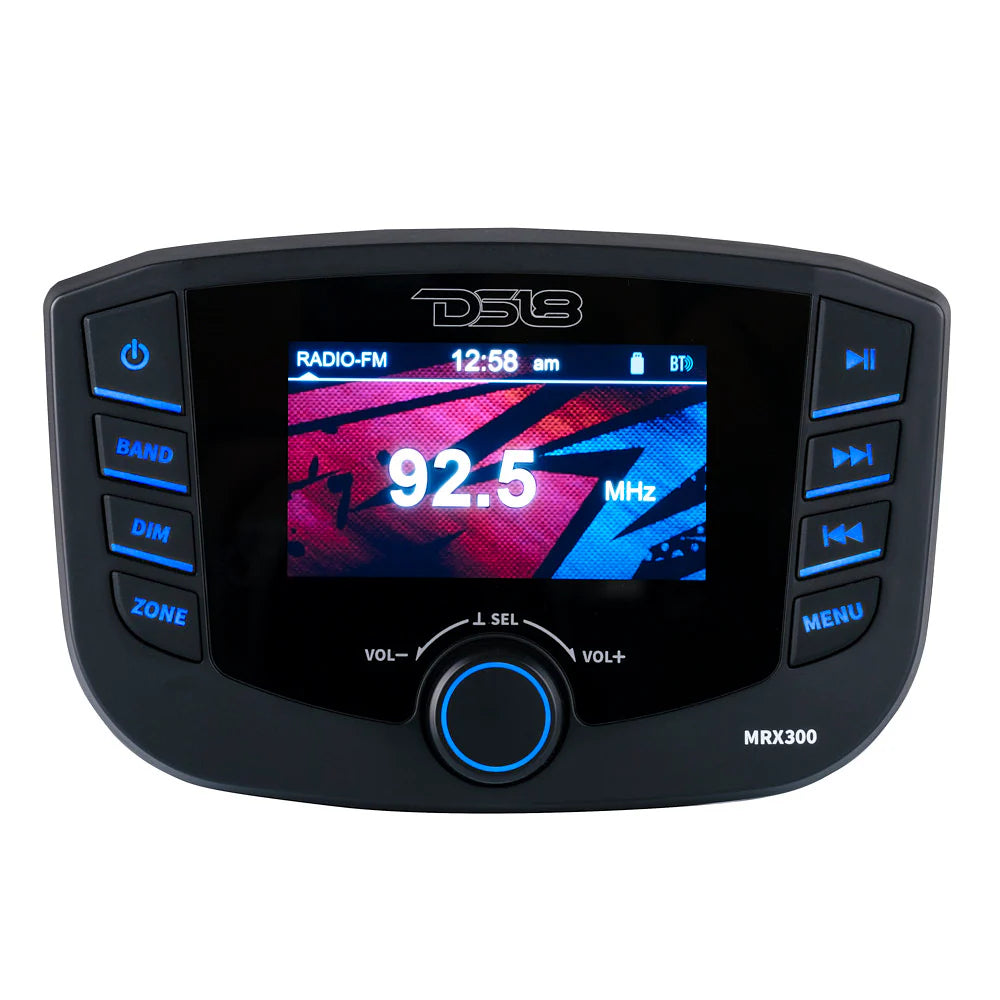

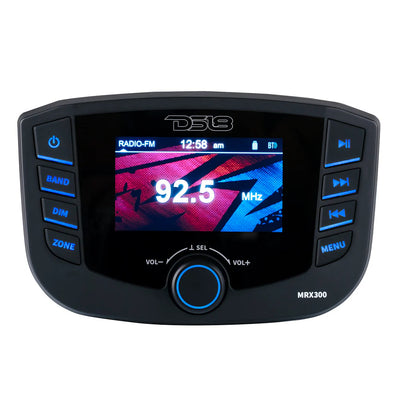

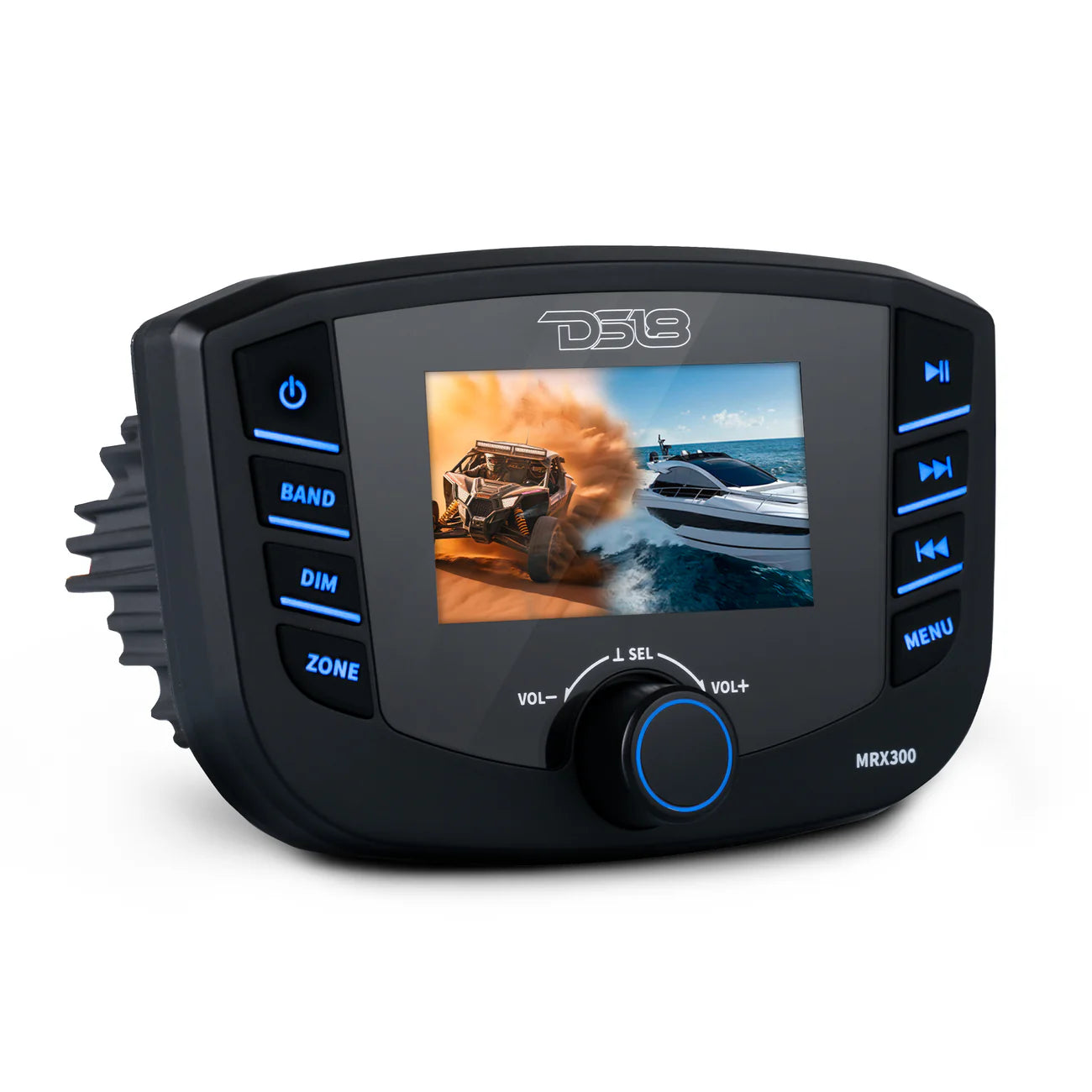

DS18 MRX300

DS18’s MRX300 is the ultimate control center for ANY marine audio system.
Offering 3 independent audio zones with separate volume and tone controls, a 2-band EQ (Bass and Treble): the MRX300 lets you fine-tune your audio to your preferences.
With features like an AM/FM tuner with RDS Weather Alert Radio, 37 radio presets, including 18 FM, 12 AM, and 7 WB channels: you gain easy access to your preferred stations.

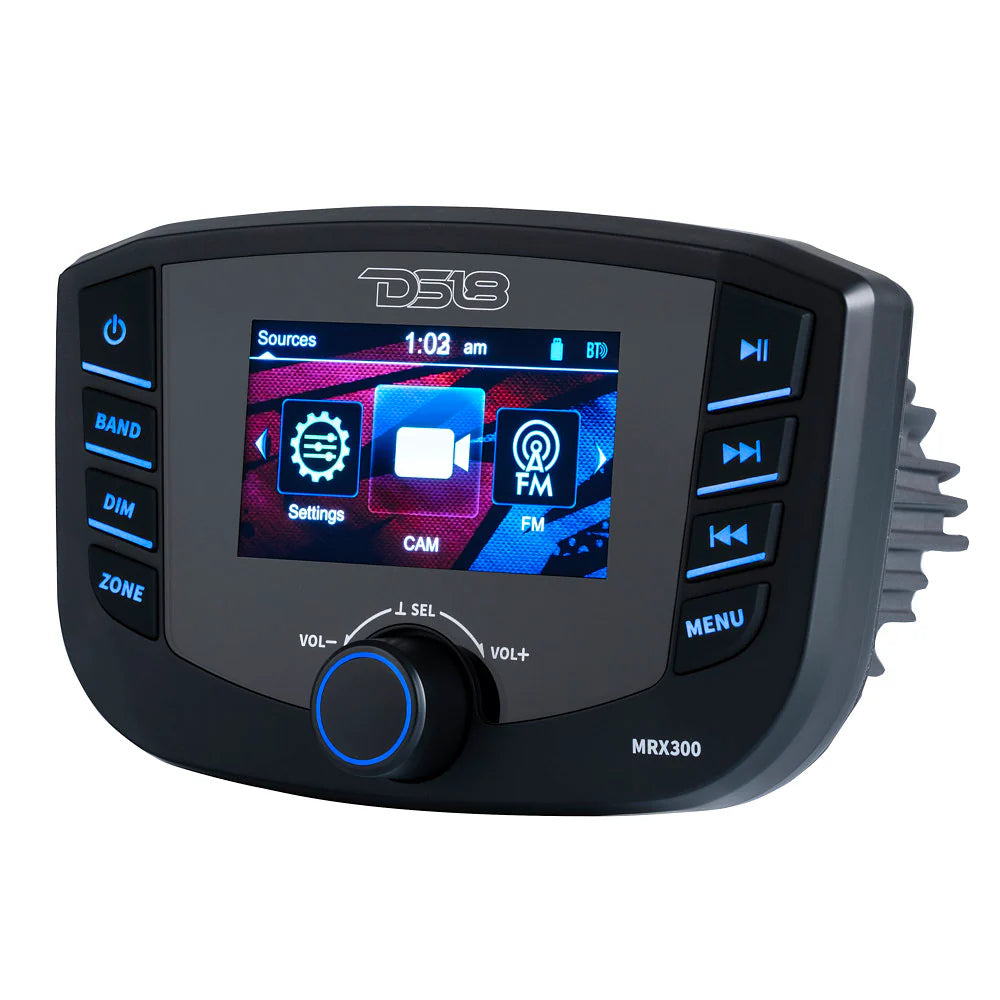

The 3" full-color TFT display provides a crystal-clear view of all your settings. Thanks to the Gorilla Glass and Wet Bonded screen, it's resistant to scratches and water damage. The MRX300 also comes with selectable wallpapers and day and night themes. The adjustable 7-color backlit buttons add a touch of customization to match your boat's aesthetic.
With 4 x 25W RMS power output at 2 ohms stable, the MRX300 delivers impressive sound quality. The 4.5V pre-amp output ensures clean signal when connecting external amplifiers or subwoofers.

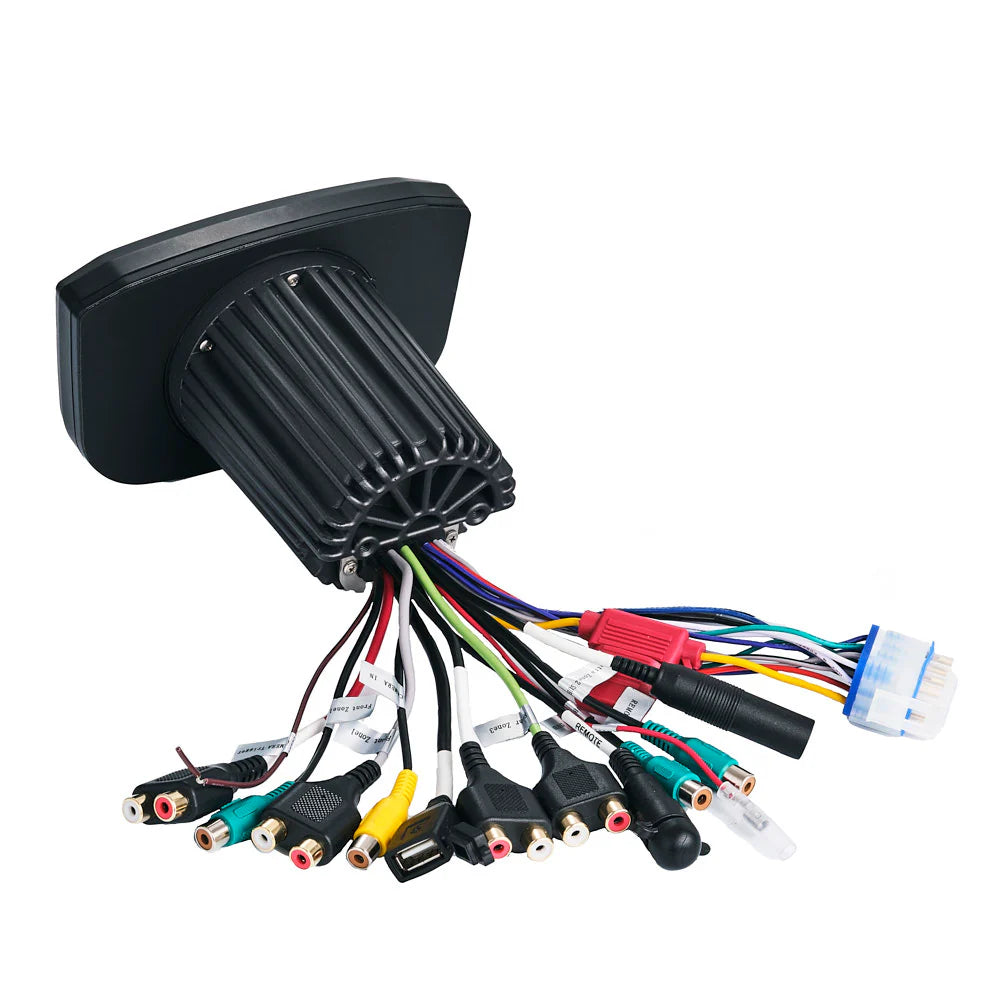

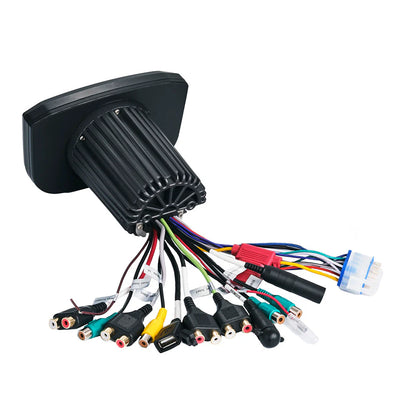

In addition to Bluetooth V5.0 streaming; the MRX300 features a USB port for playback and charging: and up to 64GB of storage for MP3 and WMA files: giving you plenty of storage for all your favorite tracks. The AUX input, rearview camera input, and wired remote control input provide even more convenience.

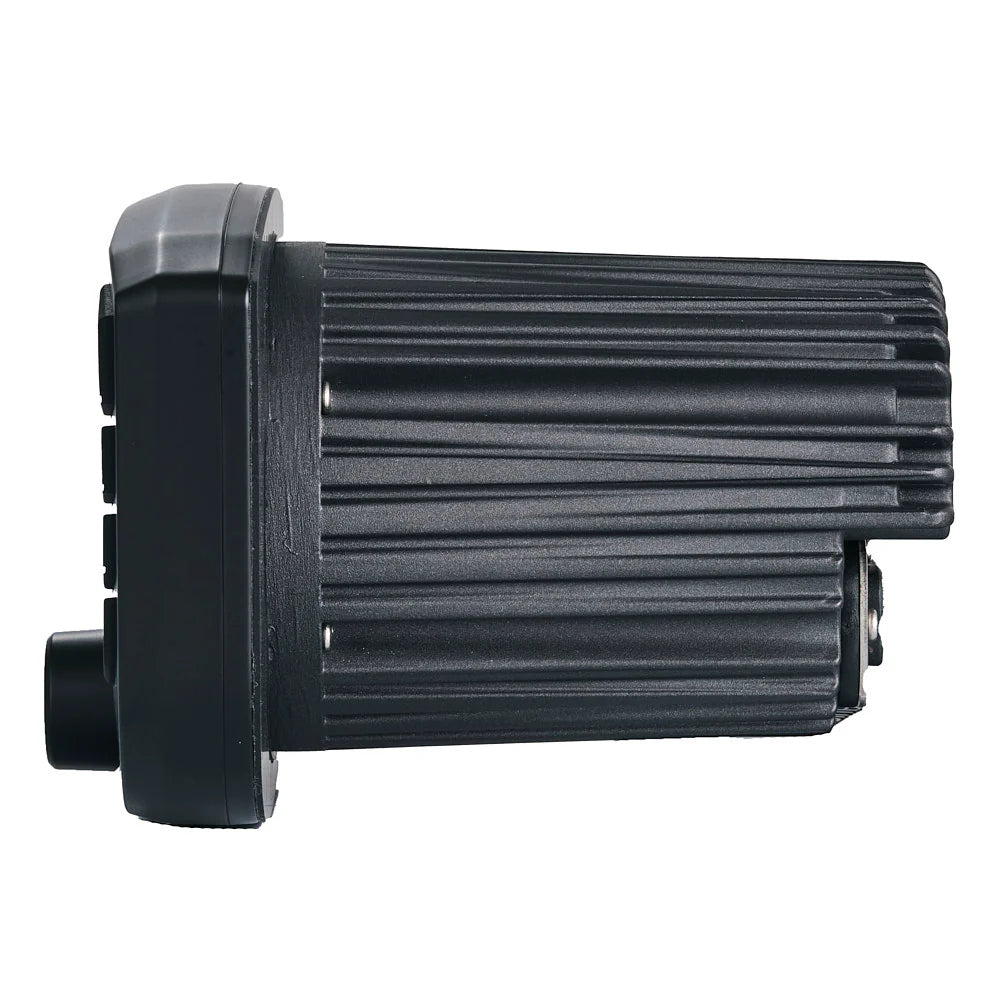

Built to withstand the marine environment, the MRX300 has an IPX6 water-resistance rating and is UV and salt-resistant. Its universal round mounting hole makes installation a breeze.
Don't just settle for any marine head unit – prioritize performance with the MRX300!

SPECS

SKU
MRX300
Operating Voltage
10.5 - 16 Volts
Low Voltage Warning Alert
YES (< 10.5V)
Waterproof Rating
IP65
UV/Salt Protection
YES, B117 Salt Fog & D4329 UV Exposure Tested
Buttons
Rubber + RGB Backlit 7 Colors Selectable (Auto/White/Red/Blue/Green/Purple/Cyan/Yellow)
Screen Panel
Gorilla Glass with Wet Bonded Display
EEPROM
Yes (all settings are saved when power is disconnected)
Display Type
Thin Film Transistor (TFT) Display
Resolution
640*360 pixel, IPS


Audio

RMS
4 x 18W @ 4ohm, 4 x 25W @ 2ohm
Max
4 x 50W @ 2ohm
Min Load
2 ohm Stable per Channel
Frequency Response
20Hz to 20Khz
RCA Pre-Out Voltage
4.5 Volts
Output Impedance
500ohm
Equalizer
2 Bands (Bass 80Hz, Treble 12Khz)
Presets
YES (S-Bass/Vocal/Powerful/clarity)
Subwoofer Control
Level (0 to 40)
Audio Zones
3 Zones (Stereo + Subwoofer each)
Independent Zone Control
YES (Level/Tone)
Audio Input
L+R RCA (Aux Input)


Tuner

FM Frequency Range
87.5 - 108 MHz
AM Frequency Range
522 - 1620 KHz
Tuner Presets
18 FM / 12 AM
Radio Data System
YES (AF/TA/NEWS) Selectable
Frequency Range
174.928-239.200 MHz
Sensitivity
93 dB
Stereo separation
50 dB at 1 kHz
Signal/noise ratio(S/N)
65 dB


Connectivity

Bluetooth Version
5.0 + EDR
Audio Streaming
A2DP
USB Compatibility
v2.0
USB Capacity
64 Gb Max
USB Charge Capacity
2.1Amp
Audio Files Compatibility
MP3, WMA
Remote Control
Wired 3.5mm Jack Input, (Compatible with MXRC)

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
