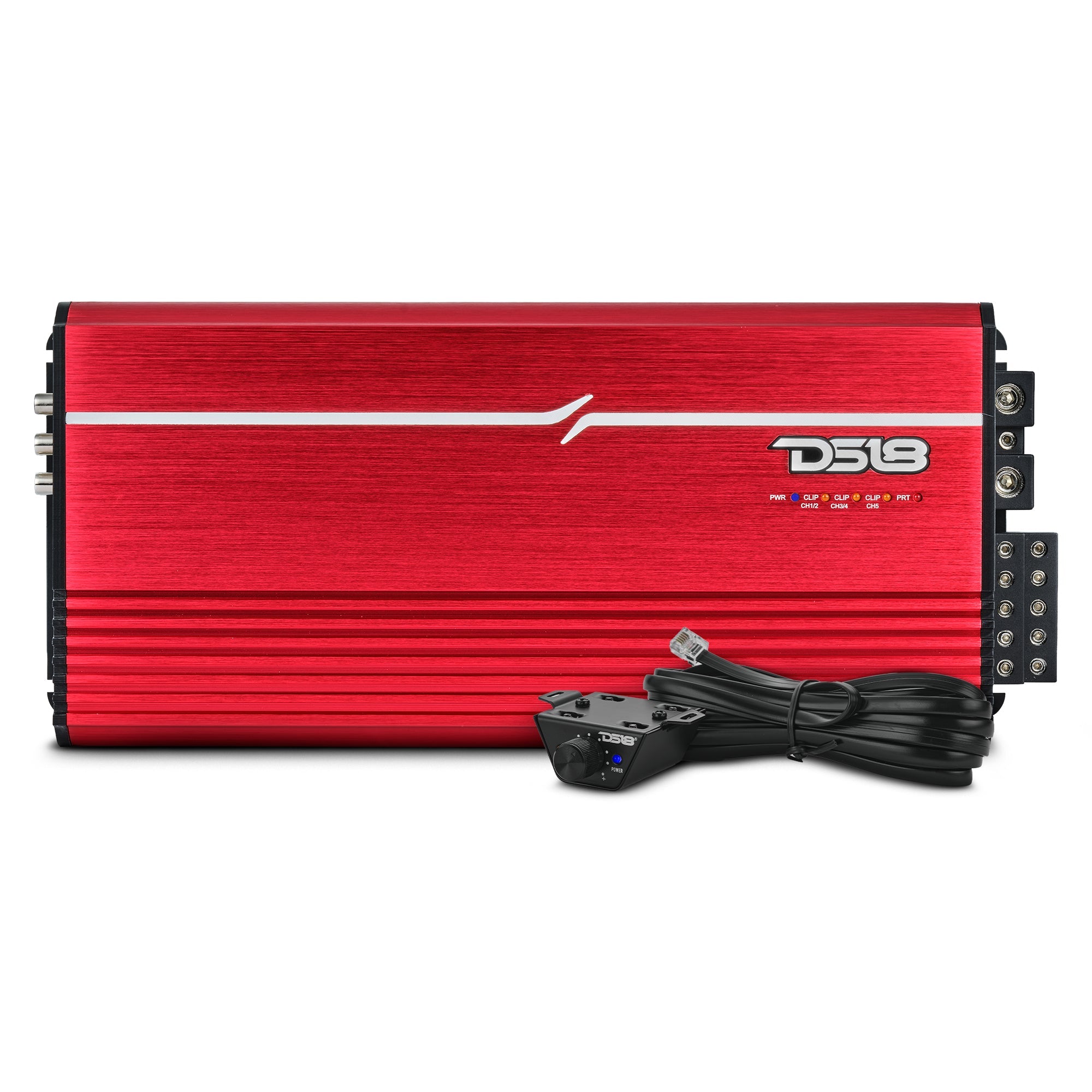

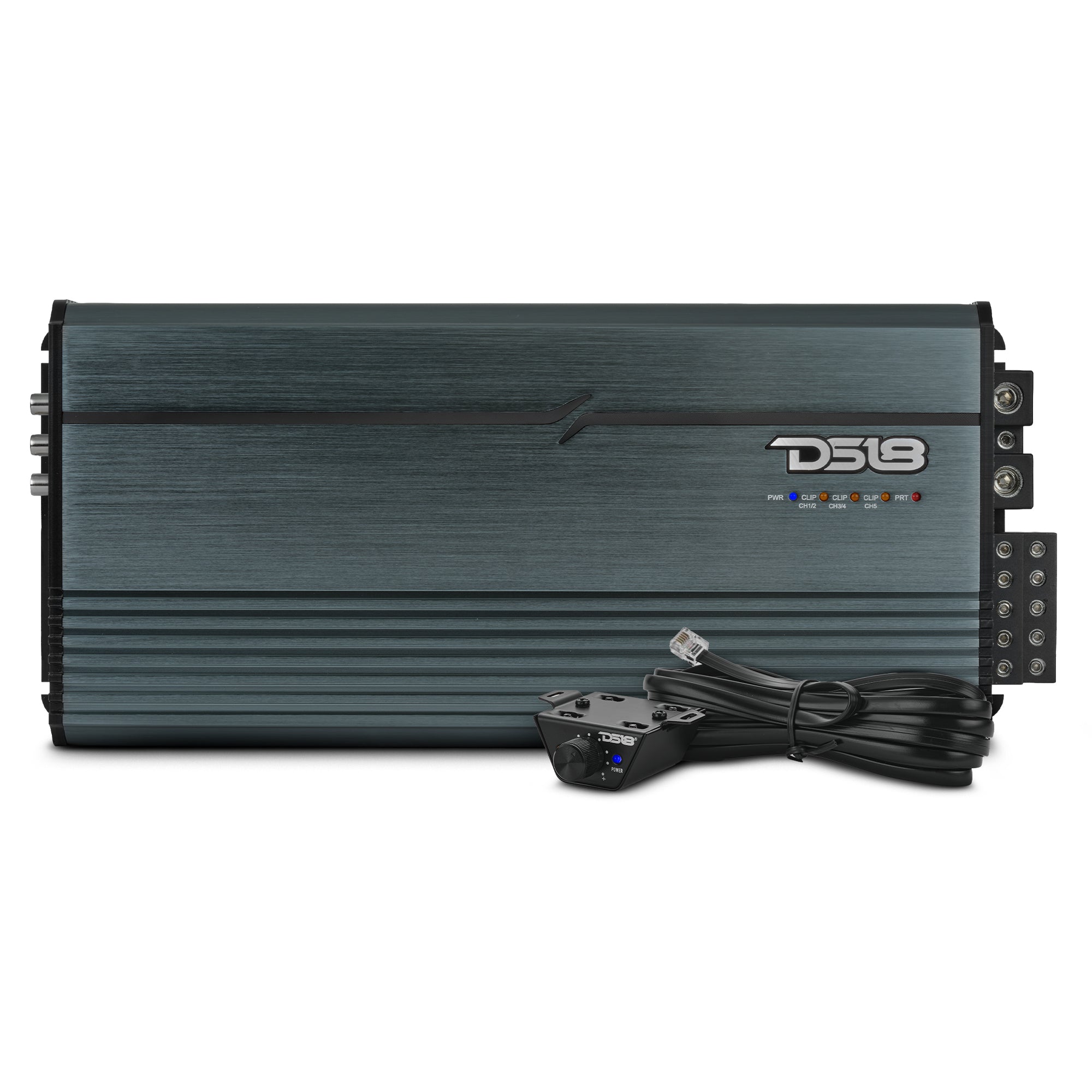

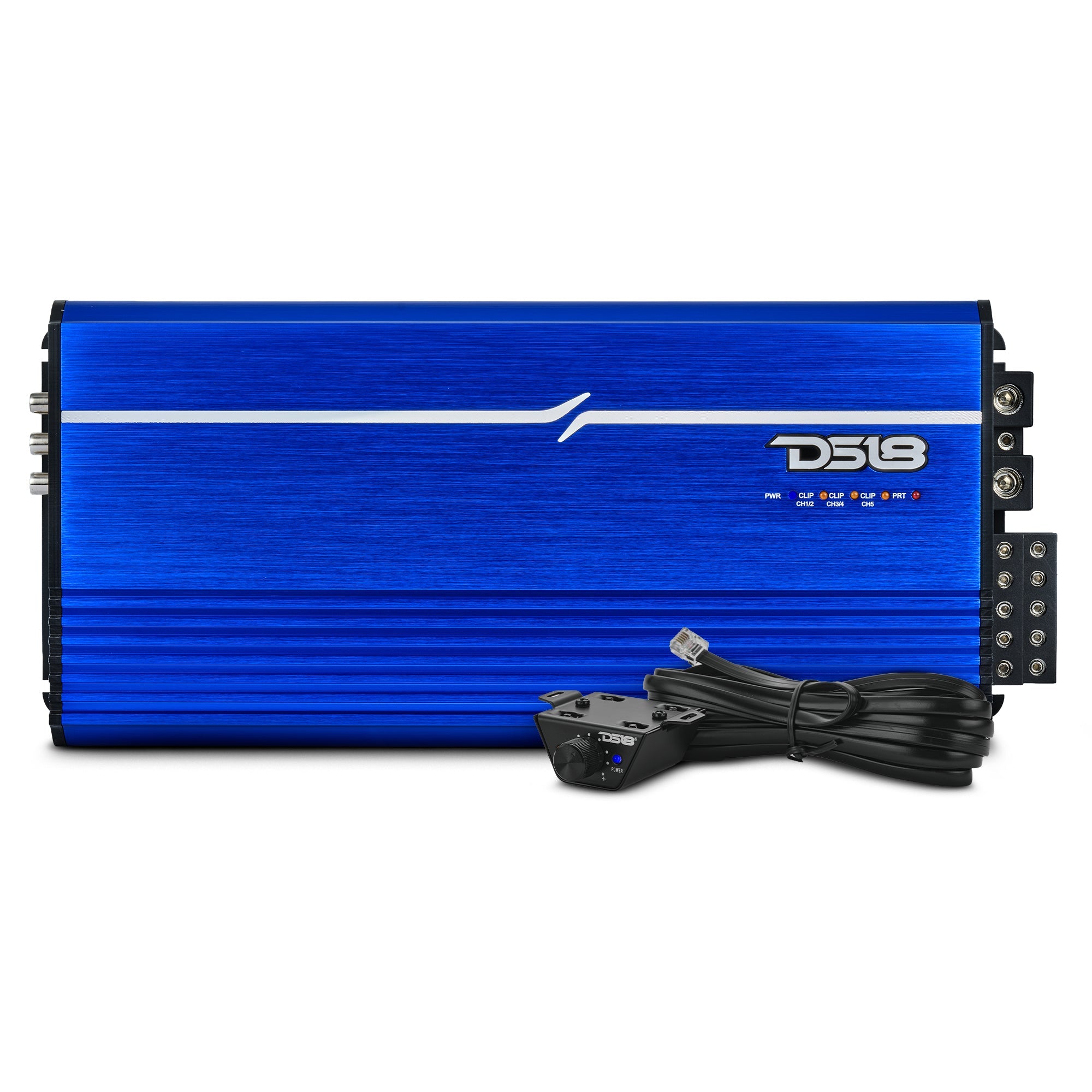

DS18 FRP-2.5K5 Compact Full-Range Class D 5-Channel Amplifier — 2800W MAX
Product Overview
Description
Product Overview
The DS18 FRP-2.5K5 delivers comprehensive audio amplification in a compact form factor. It produces up to 2800W peak power with a flexible channel configuration for full-range speakers plus a dedicated subwoofer output — 250W x 4 (CH1–CH4) and up to 1,200W RMS at 1-Ohm on the subwoofer channel. Integrated thermal management and multi-layer protection circuitry safeguard against clipping, overcurrent, and voltage faults. Includes a remote level control with clip indicator, and a metal-knob input selector supporting four- or five-channel operation. Sold individually (each).
Key Features
- Full-Range 5-Channel Class D Amplifier
- 2800W MAX Power Output
- 1200W RMS Subwoofer Channel at 1 Ohm
- Bridgeable 550W x 2 at 4 Ohms
- Smart Cooling with LED Clip Indicator
Specifications
| Power (RMS @ 4Ω) | 250W × 4 (CH1–CH4) + 500W (SUB) |
| Power (RMS @ 2Ω) | 325W × 4 (CH1–CH4) + 800W (SUB) |
| Power (RMS @ 1Ω) | 1200W (SUB) |
| Power (Bridge @ 4Ω) | 550W × 2 (CH1–CH4) |
| Max Power | 2800W |
| Channels | 5 |
| Frequency Response | 10Hz–20kHz (CH1–CH4) / 10Hz–250Hz (SUB) |
| Signal-to-Noise Ratio | 90dB |
| Efficiency @ 4Ω | 92% |
| Damping Factor | 90 (CH1–CH4) / 250 (SUB) |
| Input Impedance | 10K Ω |
| Channel Separation | 50dB |
| THD | 0.5% |
| Low Level Input Range | 400mV–6V |
| X-Over Filter (HPF/LPF) | 10Hz–2kHz (CH1–CH4) / 10Hz–250Hz (SUB) |
| Bass Boost | 0–18dB @ 50Hz (SUB only) |
| Infrasonic Filter | 10Hz–55Hz (SUB only) |
| Amplifier Class | Digital |
| Min Impedance | 2Ω Stereo / 4Ω Bridge + 1Ω (Sub) |
| Fuse (Recommended) | 300A |
| Power Input Terminal | 0Ga |
| LED Indicators | Power / Protect / Clipping |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Protection | Yes |
| Voltage Input Protection | Yes |
| Color Options | Blue / Red / Titanium |
| Length | 14.5" (370mm) |
| Width | 6.5" (167mm) |
| Height | 2.4" (63.5mm) |
| Heatsink Length | 13.3" (338mm) |
| Weight | 4.22kg |
Rule the Water
King of the COVE
Free shipping on orders $100+
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
FAQs
Please read our FAQs page to find out more.
RMS vs. MAX power — which number do I actually care about?
RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.
What does the IP65 rating on DS18 marine gear actually mean?
It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.
How do I match an amplifier to my speakers without guessing?
Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.
Can I mix marine-grade gear into a standard car audio setup, or the reverse?
You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.
What gauge wiring kit do I need?
It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
