Product Overview

Description

Key Features

  • Compact 4-channel full-range Class-D amplifier
  • RMS Power: 4 x 250W @ 4Ω, 4 x 400W @ 2Ω, 4 x 600W @ 1Ω
  • Bridged Power: 2 x 750W @ 4Ω | 2 x 1000W @ 2Ω
  • Selectable HPF / LPF / Full crossover
  • Bass Boost: 0–12dB at 50Hz
  • Smart cooling fan
  • Power, Protect, Clip LED indicators
  • Titanium finish
  • Sold as: single (each)

Product Overview

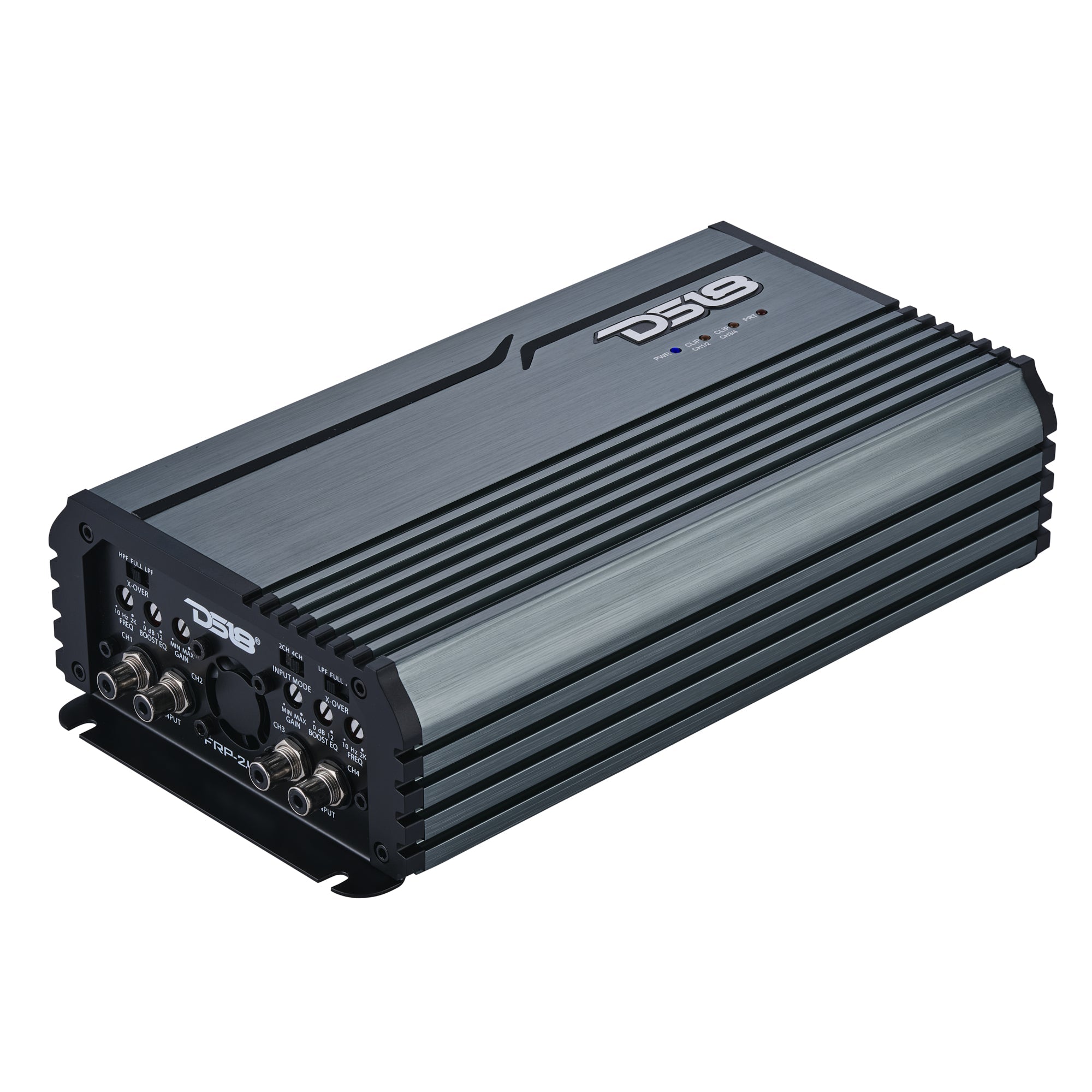

The DS18 FRP-2.4K4-TI doubles down on what DS18 built with the FRP-1.2K4 — more power, more headroom, same compact footprint. Stable at 1-Ohm per channel or 2-Ohm bridged, it drives mids, highs, or subs with clean, efficient power that stays cool under pressure. Fully adjustable HPF, LPF, and full-range crossover options plus up to 12dB of bass boost at 50Hz put the tuning in your hands, while the smart cooling fan and surface-mount tech keep performance rock-solid. The digital Class D layout and Tiffany-style RCA inputs keep output efficient and noise low — up to 2400W RMS from a titanium-finished compact chassis.

SPECS

SKU FRP-2.4K4-TI
RMS Power @ 4 ohms 4 x 250W
RMS Power @ 2 ohms 4 x 400W
RMS Power @ 1 ohm 4 x 600W
RMS Power @ 4 ohm Bridge 2 x 750W
RMS Power @ 2 ohm Bridge 2 x 1000W
Frequency Response 10Hz-20KHz
Signal to Noise Ratio 90dB
Efficiency @ 4ohm 97%
Damping Factor 90
Input Impedance 10KΩ
Channel Separation 50dB
Total Harmonic Distortion (THD) 0.5%
Low Level Input Range 400mv-6V

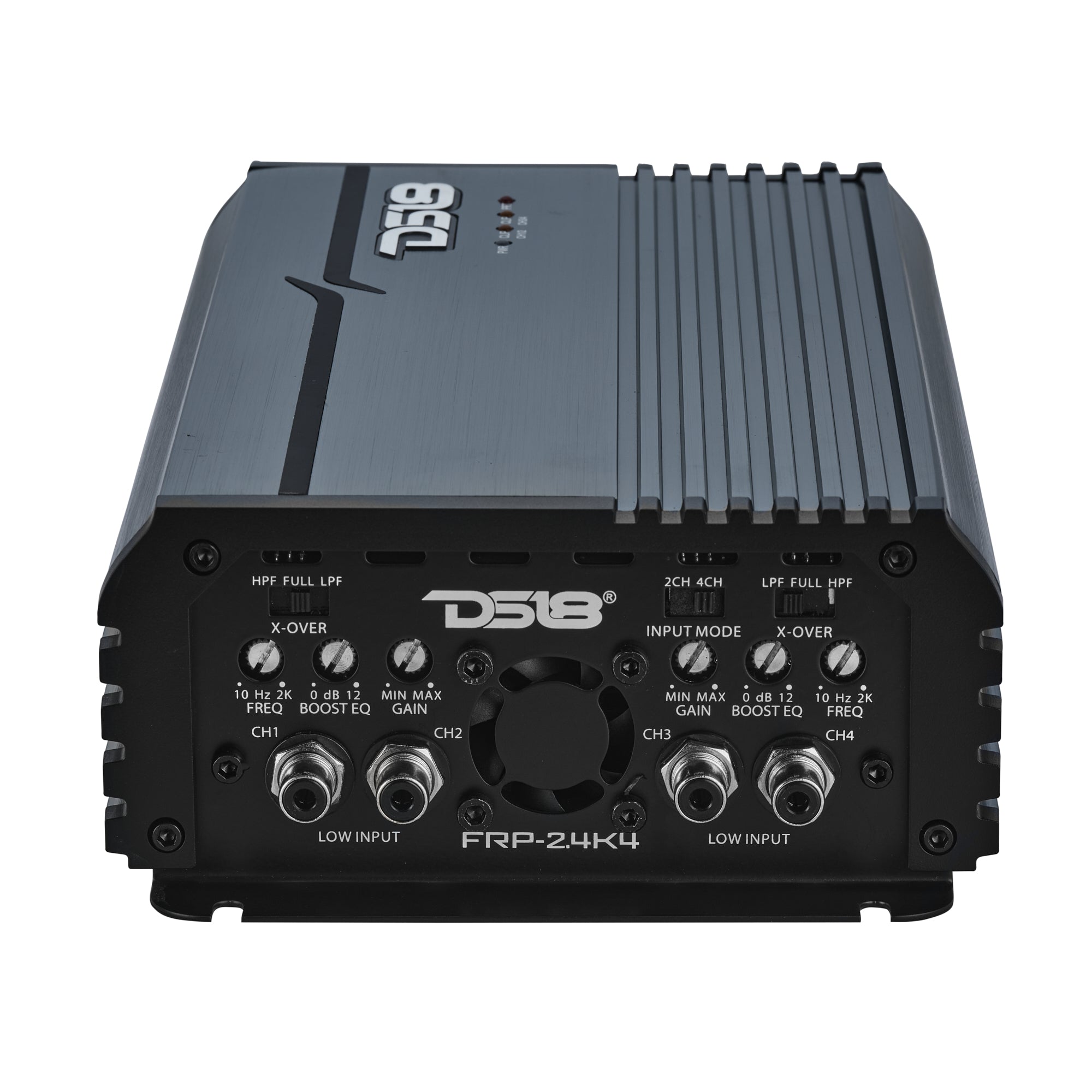

Selectable X-Over Yes, HPF/FULL/LPF
X-Over Filter Range 10Hz-2KHz
Bass Boost Range 0-12dB
Bass Boost Frequency 50Hz
Amplifier Class Digital
Number of Channels 4CH
Minimum Impedance 1ohm St / 2ohm Bridge
LED Indicator Power / Protect / Clipping
Power Input Terminal Size 0GA
Fuse Size (Recommended) 240A
Cooling Fan Yes (Smart Cooling x 1)
Thermal Protection Yes
Over-Load Protection Yes
DC Output Protection Yes
Short Circuit Output Protection Yes
Voltage Input Protection Yes
Body Color/Finish Titanium
Tiffany RCA Terminal Yes
Metal Knobs with Click Steps Yes
Input Selector Yes (2ch/4ch)
Overall Length 10.3" / 262mm
Overall Width 5.5" / 140mm
Overall Height 2.4" / 63.5mm
Heatsink Length 9" / 230mm
Weight 5Lbs / 2.3Kgs
Sold As Single

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
