Product Overview

Description

Key Features

  • Premium Yellow Straw and Composite Foam Cone
  • Neodymium Magnets
  • High Power Handling 180W RMS / 360W Peak
  • Wide Frequency Response
  • 2x Woofers / 2x Midranges / 2x Tweeters / 2x Crossovers

SPECS

SKU
DXQ6C3N
Nominal Diameter
6.5" + 3.5" / 165 + 91mm
Nominal Impedance
4 ohms
MAX Power Handling
360W
RMS Power Handling
180W
Sensitivity (1w/1m)
91dB
Frequency Response
35Hz-20KHz
Recommended HI Pass Crossover
60Hz
Number of ways
3
Sold in Pair or Single
Pair
Grill Included
No

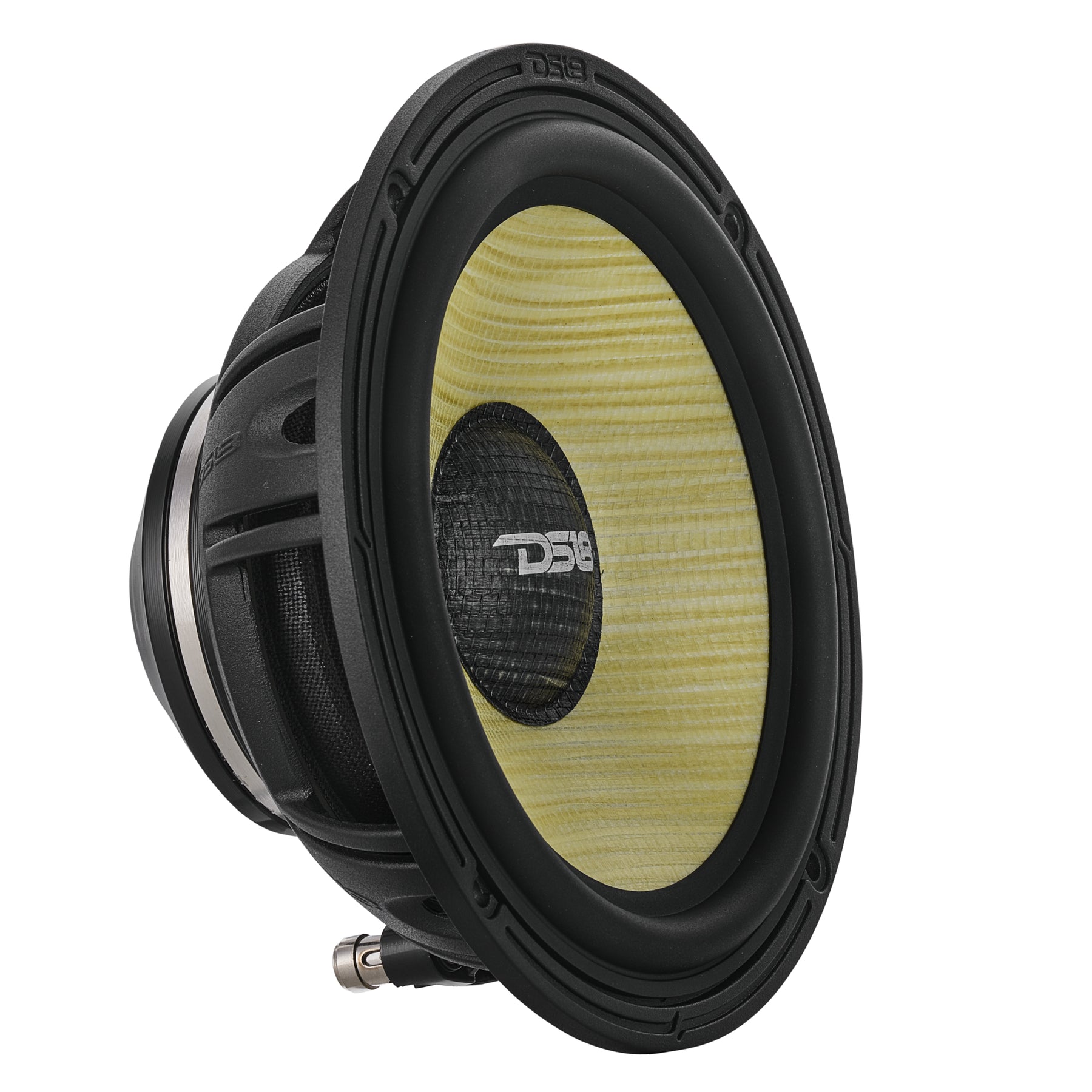

WOOFER

Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 ohms
MAX Power Handling
360W
RMS Power Handling
180W
Sensitivity (1w/1m)
91dB
Frequency Response
35Hz-12KHz
Voice Coil Diameter
1.4" / 35.5mm
Voice Coil Former Material
Kapton
Winding Material
SV
Cone Material
Yellow Straw + Composite Foam
Dust Cap Material
Black Straw
Surround Material
Rubber Edge
Basket Material
Aluminum
Basket Color/Finish
Black
Magnet Material
Neodymium
Magnet Weight
3.1 oz
Improved Heat Dissipation
Yes
Cone Shape
Curvilinear
Speaker Terminals
Push / 14Ga

WOOFER THIELE & SMALL PARAMETERS

Equivalent Volume
10.8L
Excursion (one way)
5mm
Free Air Resonance
55Hz
Mechanical Factor
13.087
Electrical Factor
0.428
Total Factor
0.414
Mechanical Mass
21.504g
Mechanical Compliance
0.396 mm/N
BL Factor
7.764
Voice Coil Inductance
0.085 mH
Cone Area
138.93 cm2
DC Resistance
3.5 ohms
Mechanical Mass w/o air
19.654g

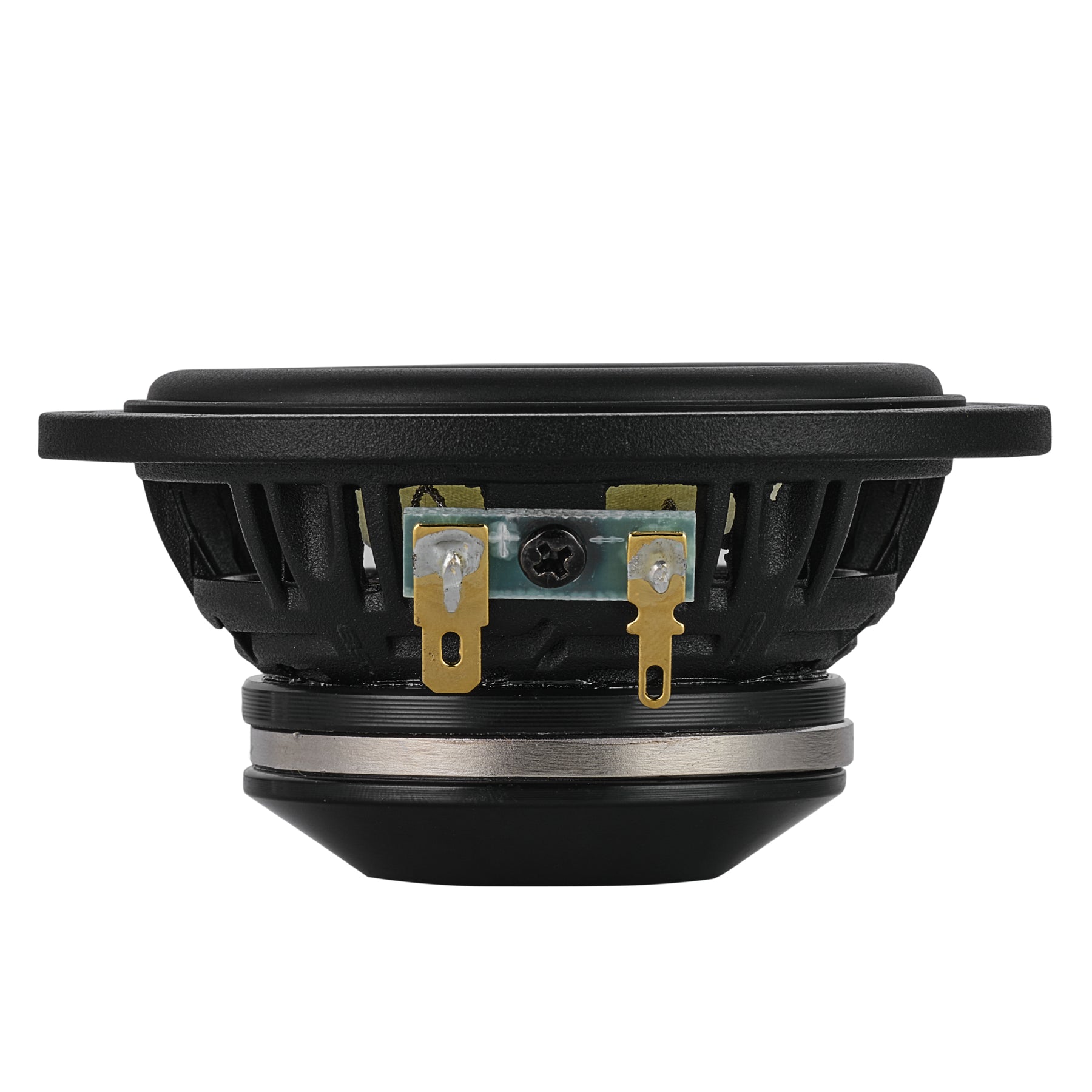

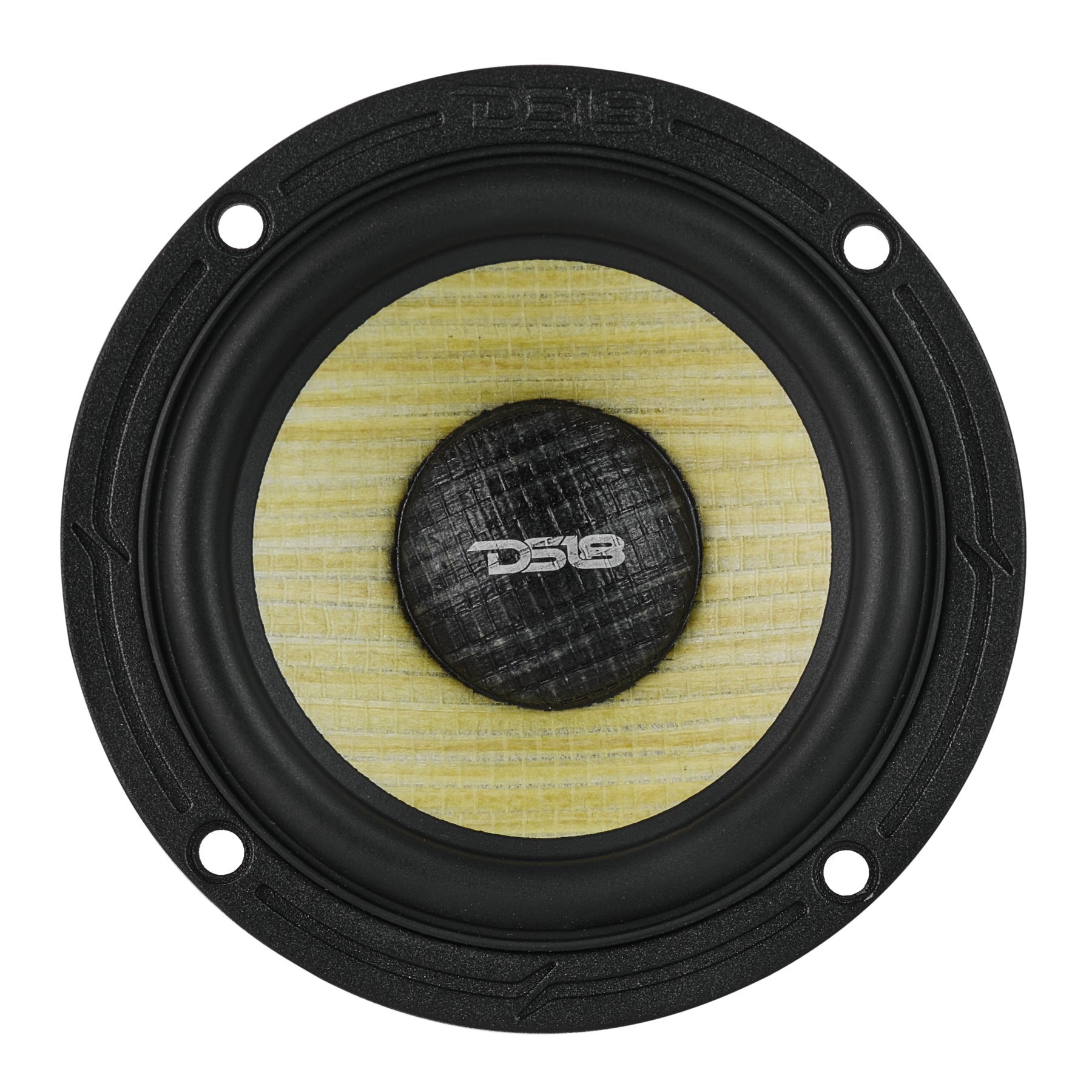

MIDRANGE

Nominal Diameter
3.5" / 91mm
Nominal Impedance
4 ohms
MAX Power Handling
160W
RMS Power Handling
80W
Sensitivity (1w/1m)
88dB
Frequency Response
120Hz-20KHz
Voice Coil Diameter
1" / 25mm
Voice Coil Former Material
TIL
Winding Material
CCAW
Cone Material
Yellow Straw + Composite Foam
Dust Cap Material
Black Straw
Surround Material
Rubber Edge
Basket Material
Aluminum
Basket Color/Finish
Black
Magnet Material
Neodymium
Magnet Weight
1.1 oz

MIDRANGE THIELE & SMALL PARAMETERS

Equivalent Volume
1.413L
Excursion (one way)
2mm
Free Air Resonance
86Hz
Mechanical Factor
8.112
Electrical Factor
0.407
Total Factor
0.387
Mechanical Mass
3.765g
Mechanical Compliance
0.907mm/N
BL Factor
4.062
Voice Coil Inductance
0.066 mH
Cone Area
33.18 cm2
DC Resistance
3.3 ohms
Mechanical Mass w/o air
3.549g

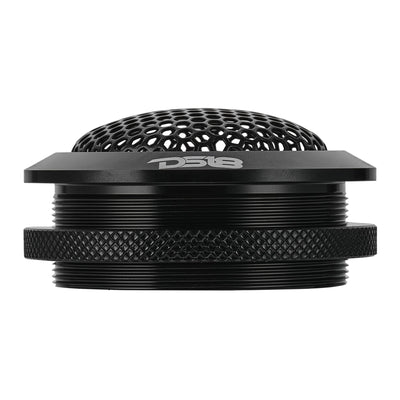

TWEETER

Nominal Diameter
2.2" / 58mm
Nominal Impedance
4 ohms
MAX Power Handling
80W
RMS Power Handling
40W
Sensitivity (1w/1m)
95.2dB
Frequency Response
920Hz-20KHz
Voice Coil Diameter
1.1" / 28mm
Voice Coil Former Material
KVC
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Magnet Weight
0.4 oz / 11.3g
Body Material / Color
Aluminum / Black

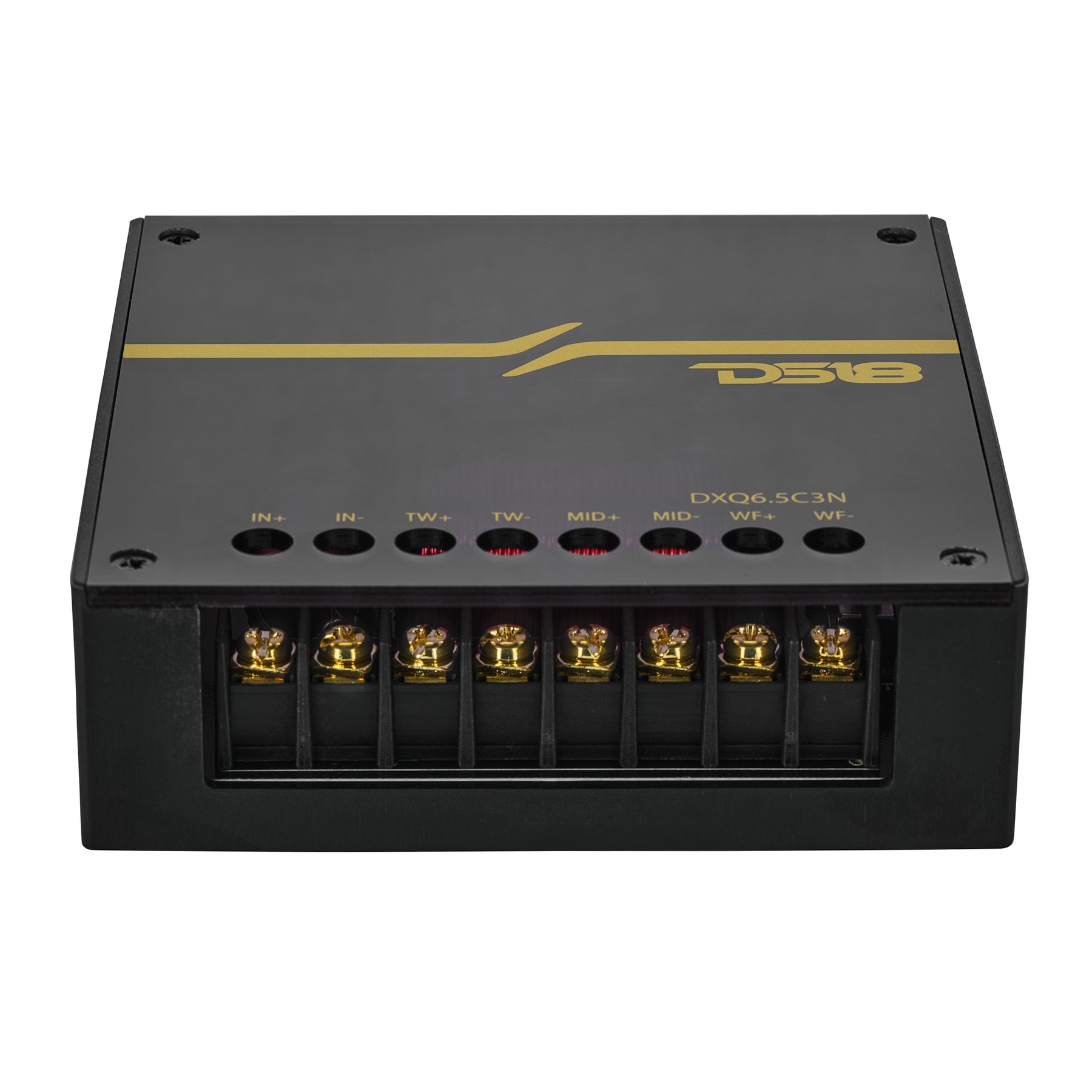

CROSSOVER

Passive Crossover Ways
3-Ways
Frequency Crossover Point
800Hz (Mid) / 3.8KHz (TW)
Power Handling
300W
Cut-Off Slope
6dB/Oct (Mid) 12dB/Oct (TW)
Tweeter Attenuation
(+/-) 3dB
Capacitor Type
METAC Film
Coil Type
Inductor
Terminal Type
Screw Terminals
Housing Material
ABS + Acrylic
Adjustments
TW Att
Extra Features
Speaker Phase Selector

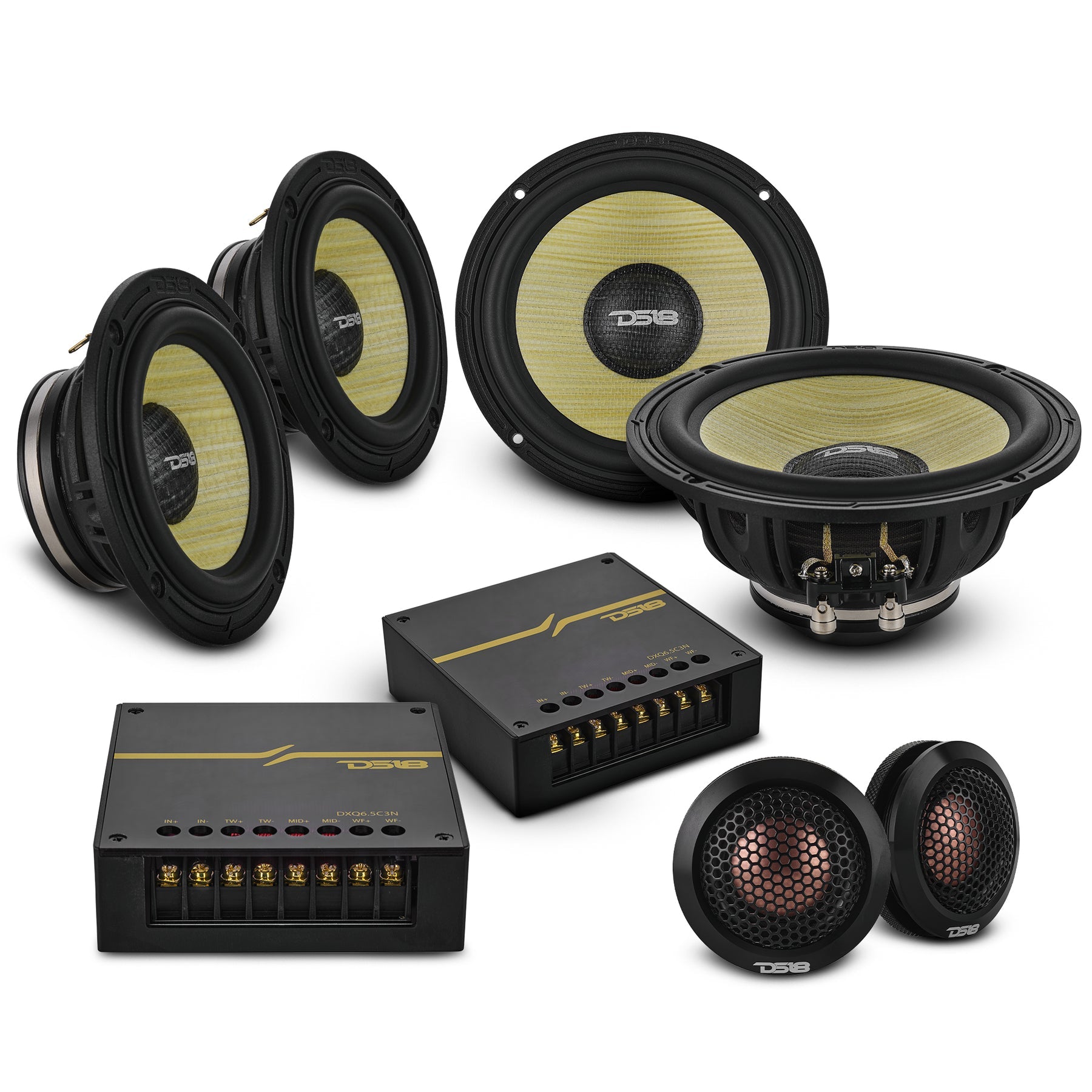

Product Overview

DXQ6C3N

6.5" 3-Way Component Speaker Set with Neodymium Magnet and Yellow Straw + Composite Foam Cone — 180W RMS, 4-Ohm

The DXQ6C3N is a complete audio solution for professional-grade sound. This 3-way system — 2x woofers, 2x midranges, 2x tweeters, and 2x crossovers — covers a wide frequency range from 35Hz to 20kHz for an immersive, detailed listening experience.

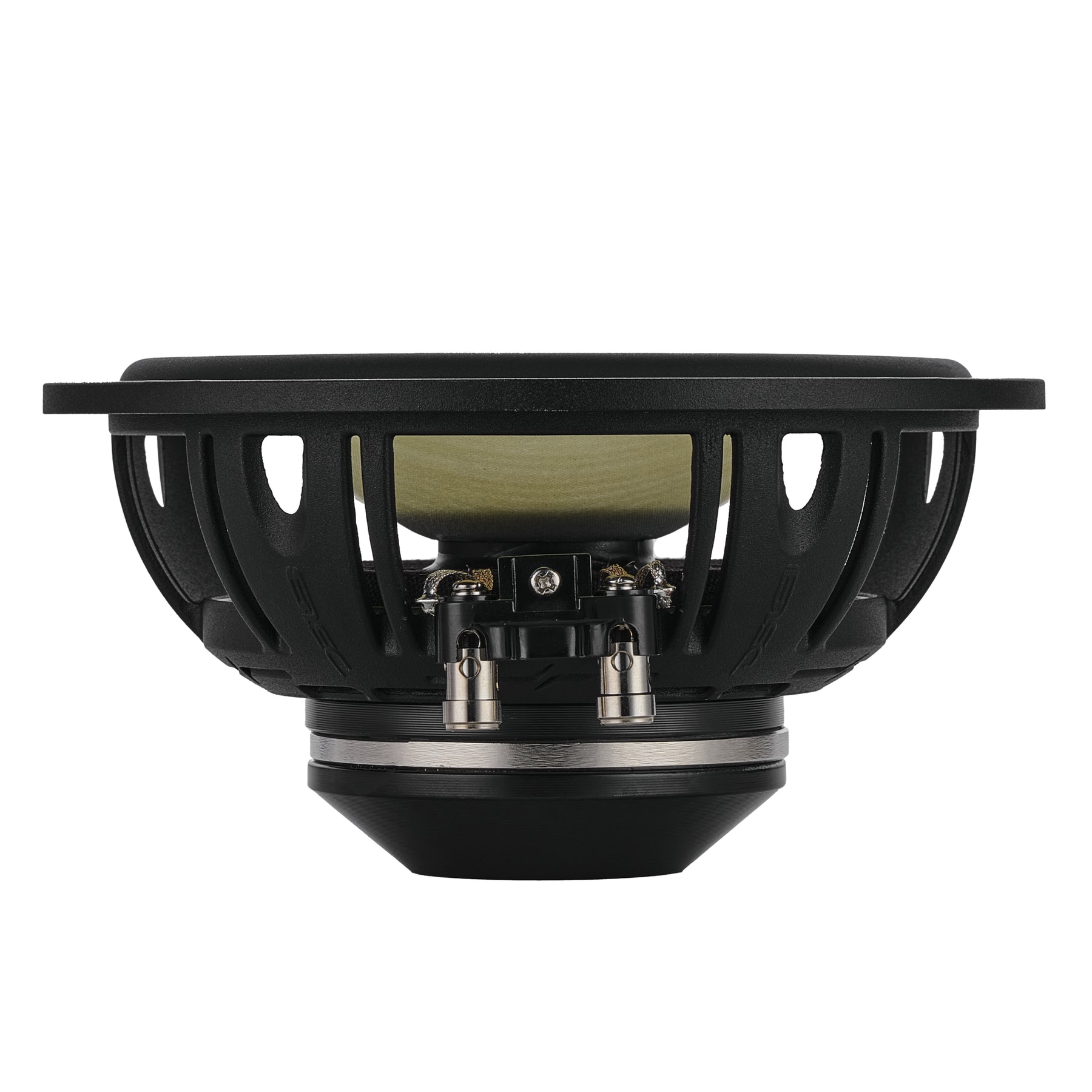

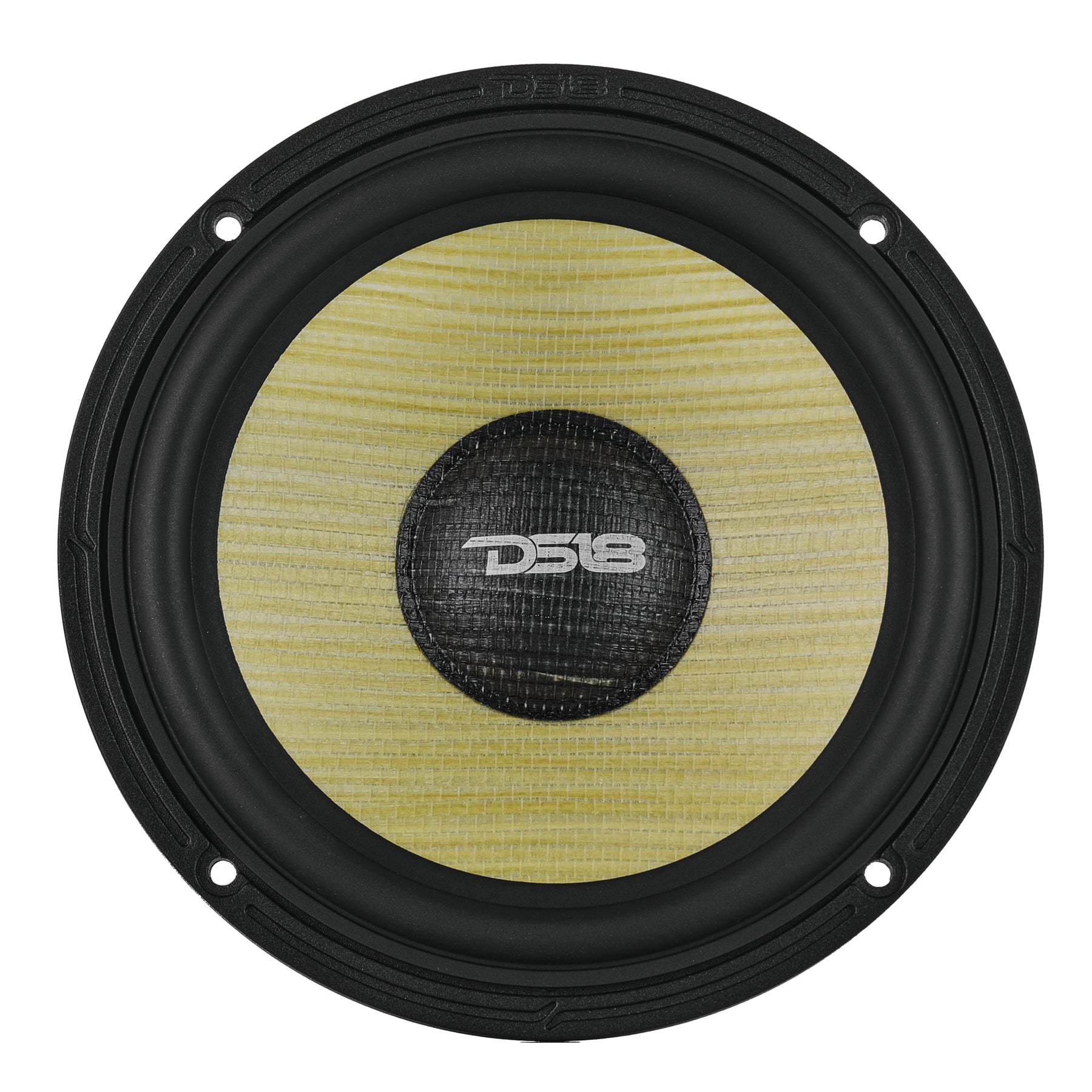

The foundation of this system is the 6.5-inch woofer, crafted with a yellow straw and composite foam cone designed for a lightweight yet rigid diaphragm. This combination provides tight, accurate bass and mid-bass response while minimizing distortion and maximizing durability.

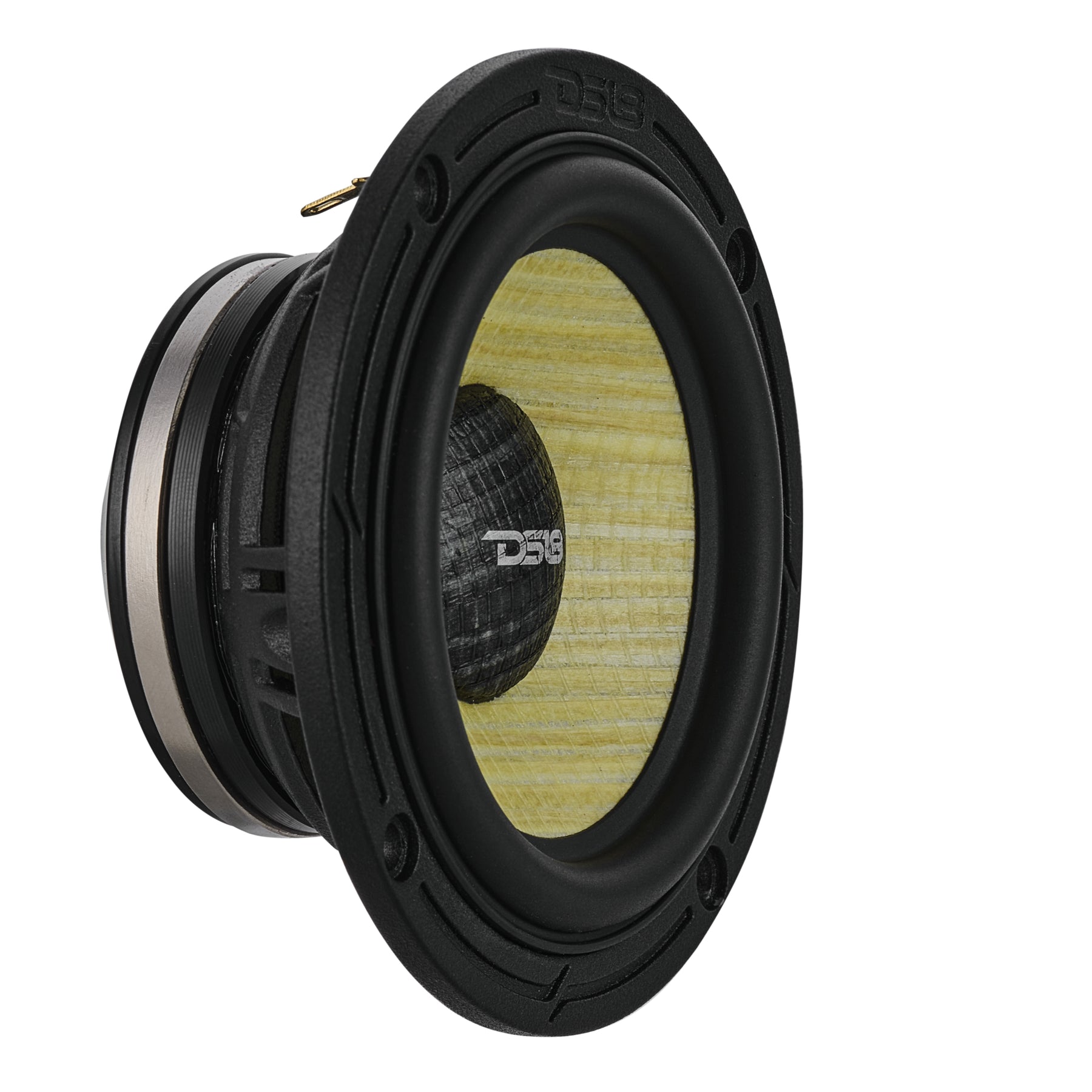

The 3.5-inch neodymium midrange driver bridges the gap perfectly. Its composite cone delivers smooth, natural sound that reproduces vocals and instruments with incredible clarity.

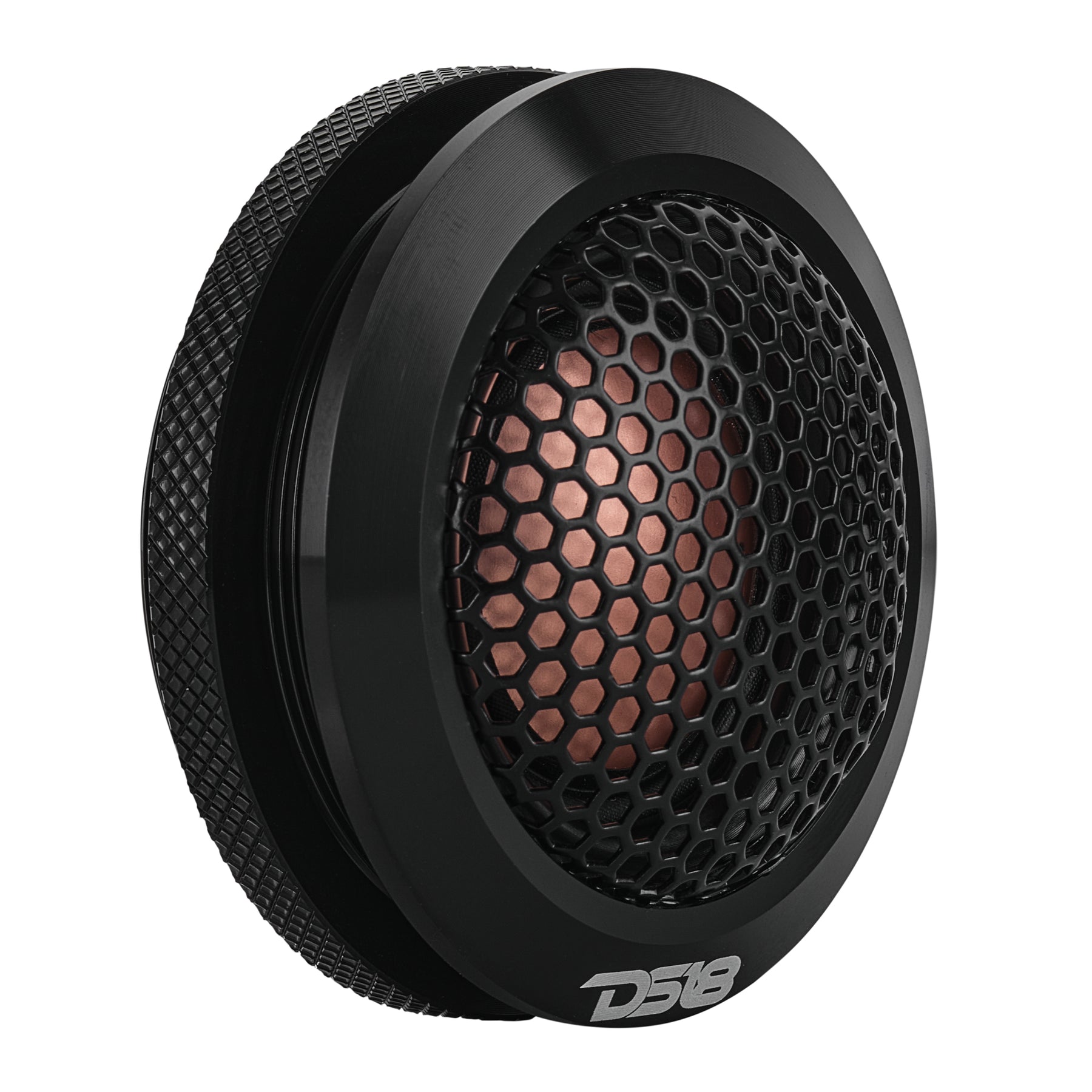

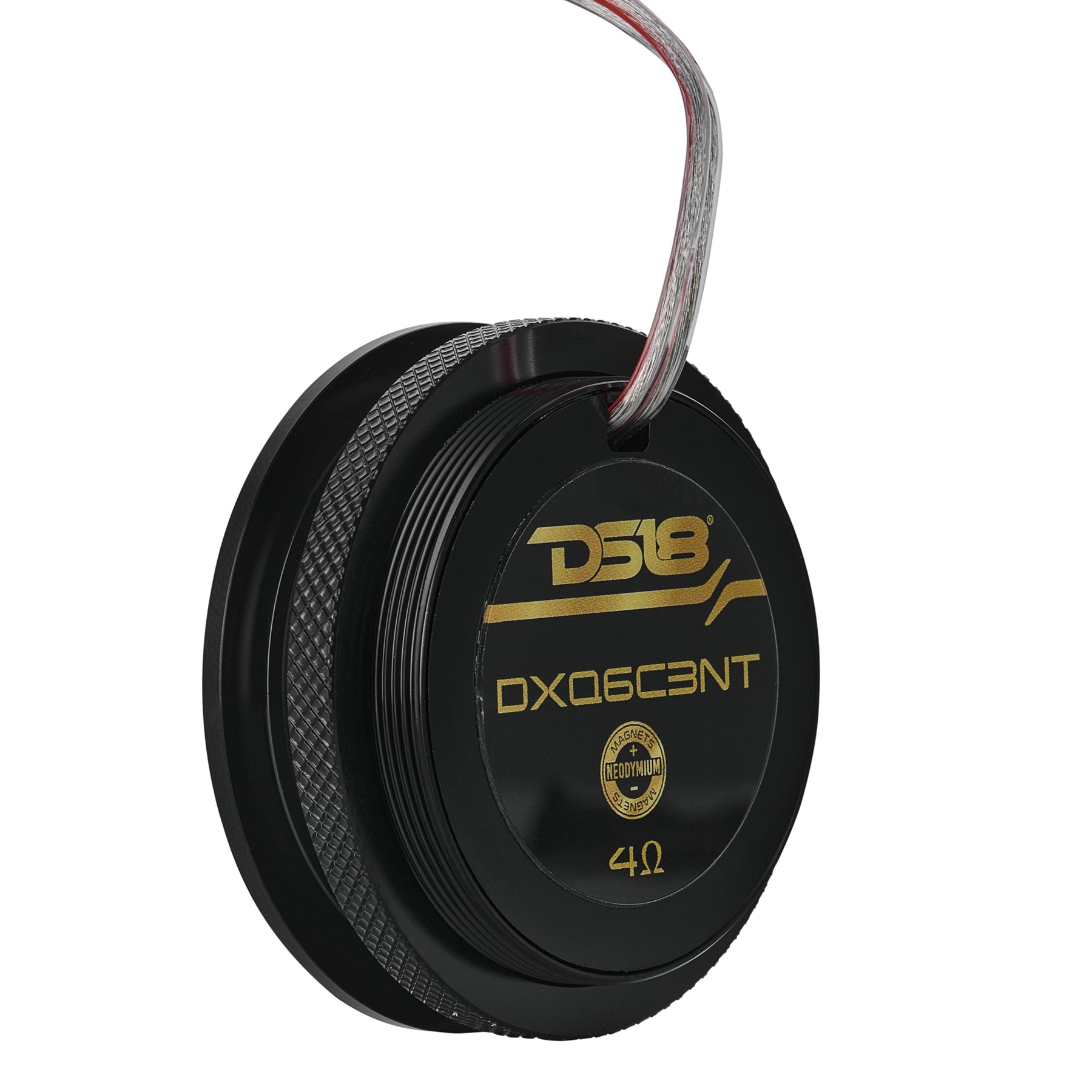

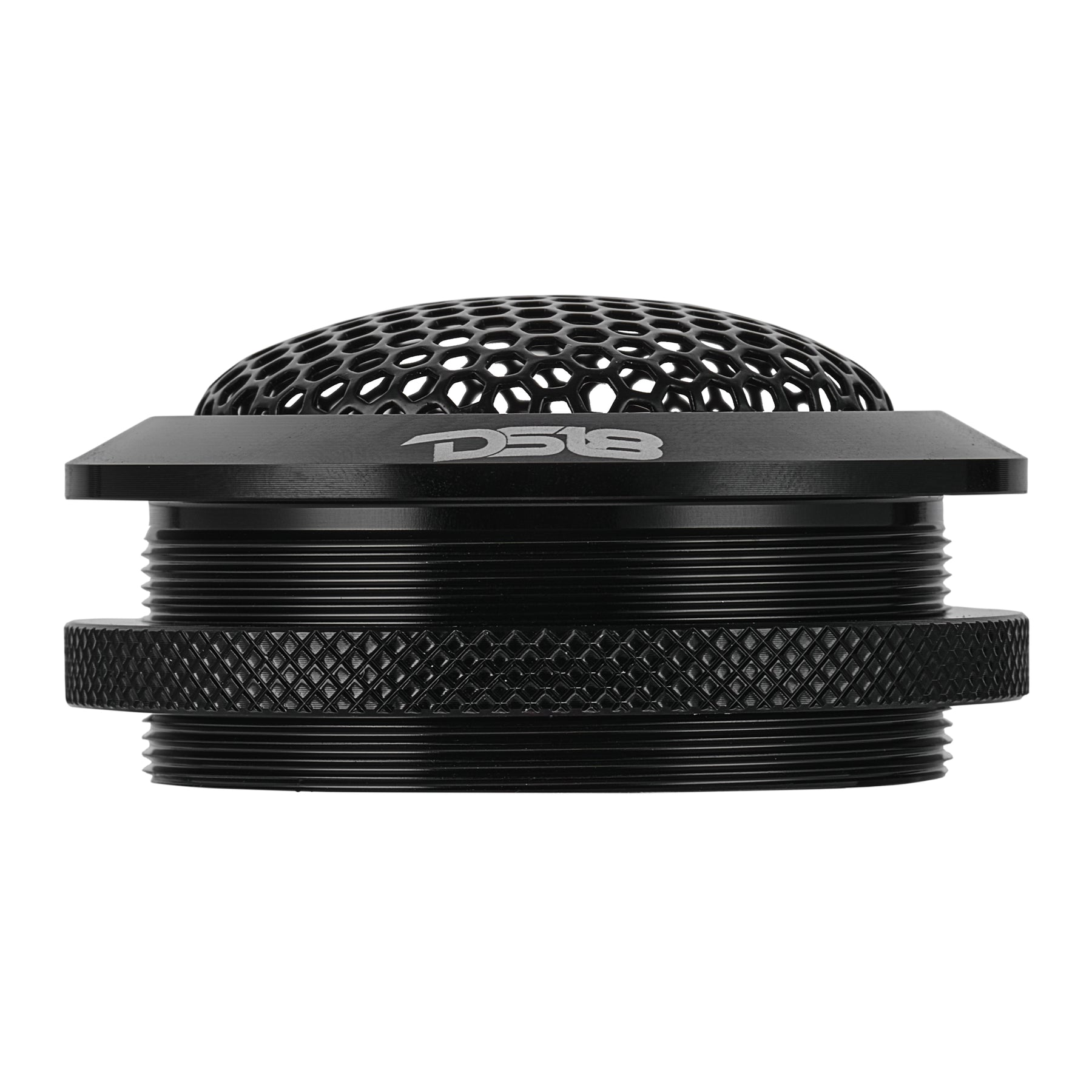

Completing the set is the 2.2-inch titanium-diaphragm tweeter with a powerful neodymium magnet. Its lightweight design allows for fast transient response and crisp detail that cuts through road noise.

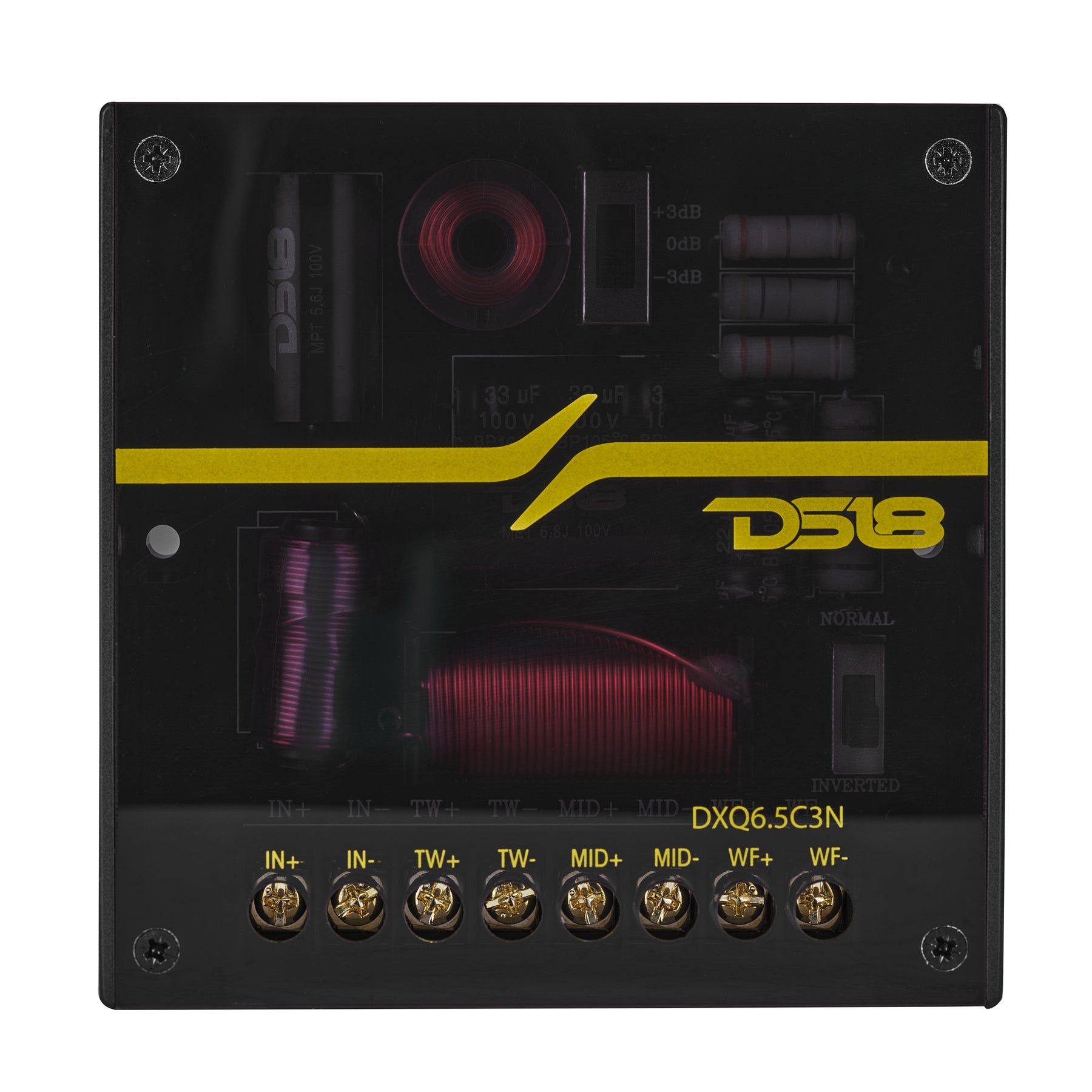

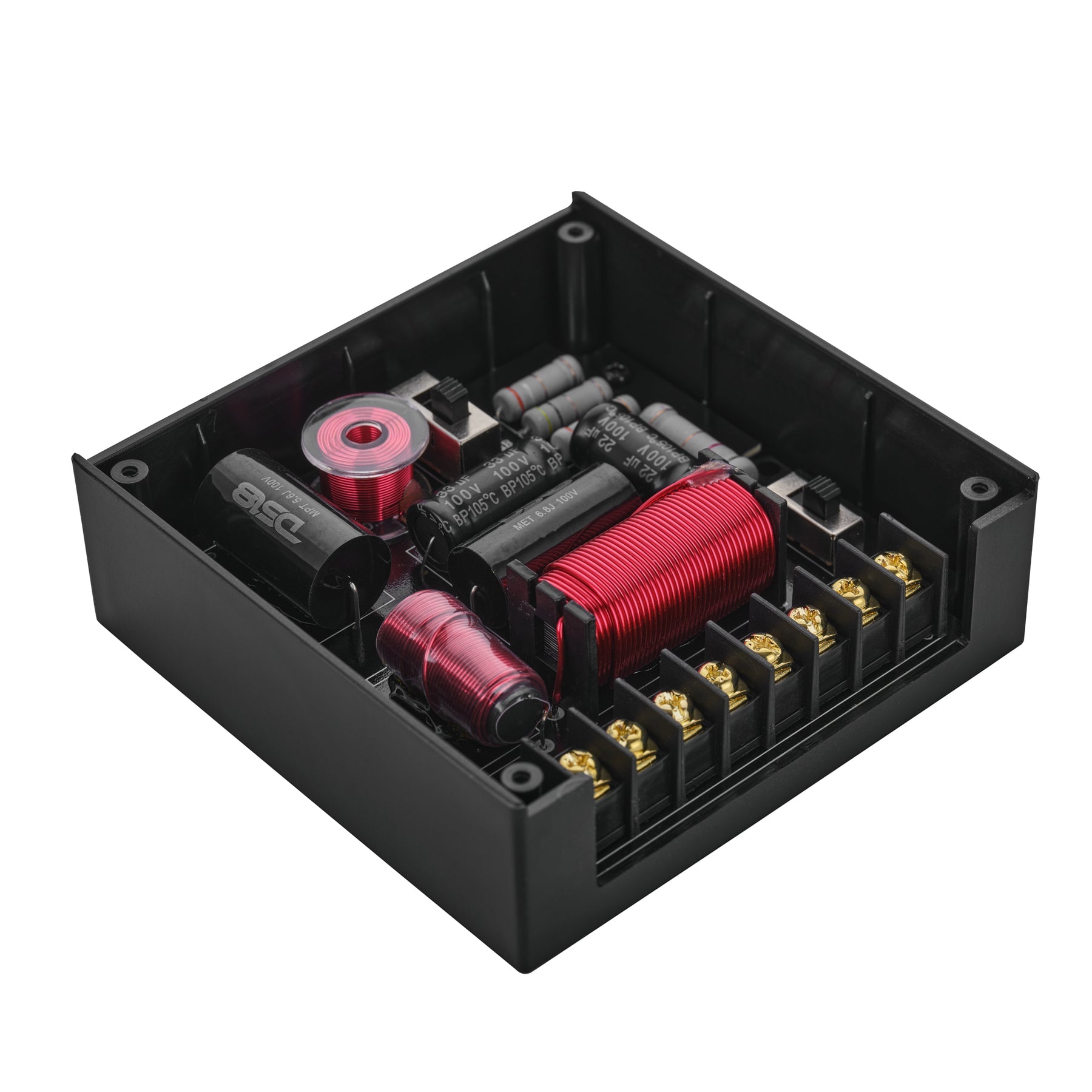

A carefully designed 3-way passive crossover separates the frequencies between the woofer, midrange, and tweeter. With points at 800Hz and 3.8kHz, the crossover ensures each driver performs optimally across the entire spectrum.

With a mounting depth of just 3.4" for the woofer, and compact sizes for the midrange and tweeter, the DXQ6C3N fits most factory locations and custom setups effortlessly — instantly boosting your soundstage's quality.

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
