Product Overview

Description

Key Features

  • Premium Yellow Straw and Composite Foam Cone
  • Ferrite + Neodymium Magnets
  • High Power Handling 150W RMS / 300W Peak
  • Wide Frequency Response
  • 2x Woofers / 2x Midranges / 2x Tweeters / 2x Crossovers

SPECS

SKU
DXQ6C3
Nominal Diameter
6.5" + 3.5" / 165 + 91mm
Nominal Impedance
4 ohms
MAX Power Handling
300W
RMS Power Handling
150W
Sensitivity (1w/1m)
90dB
Frequency Response
35Hz-20KHz
Recommended HI Pass Crossover
60Hz
Number of ways
3
Sold in Pair or Single
Pair
Grill Included
No

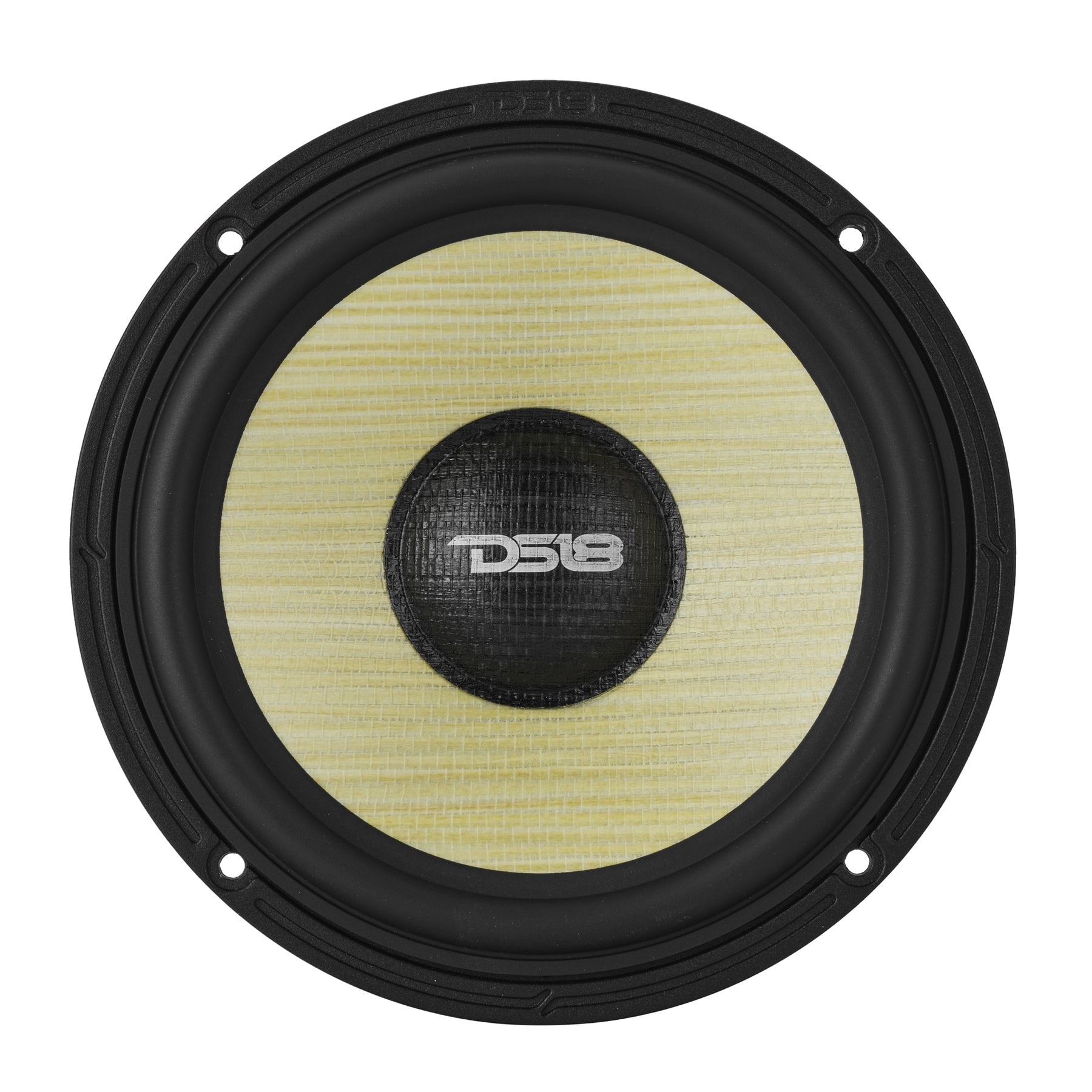

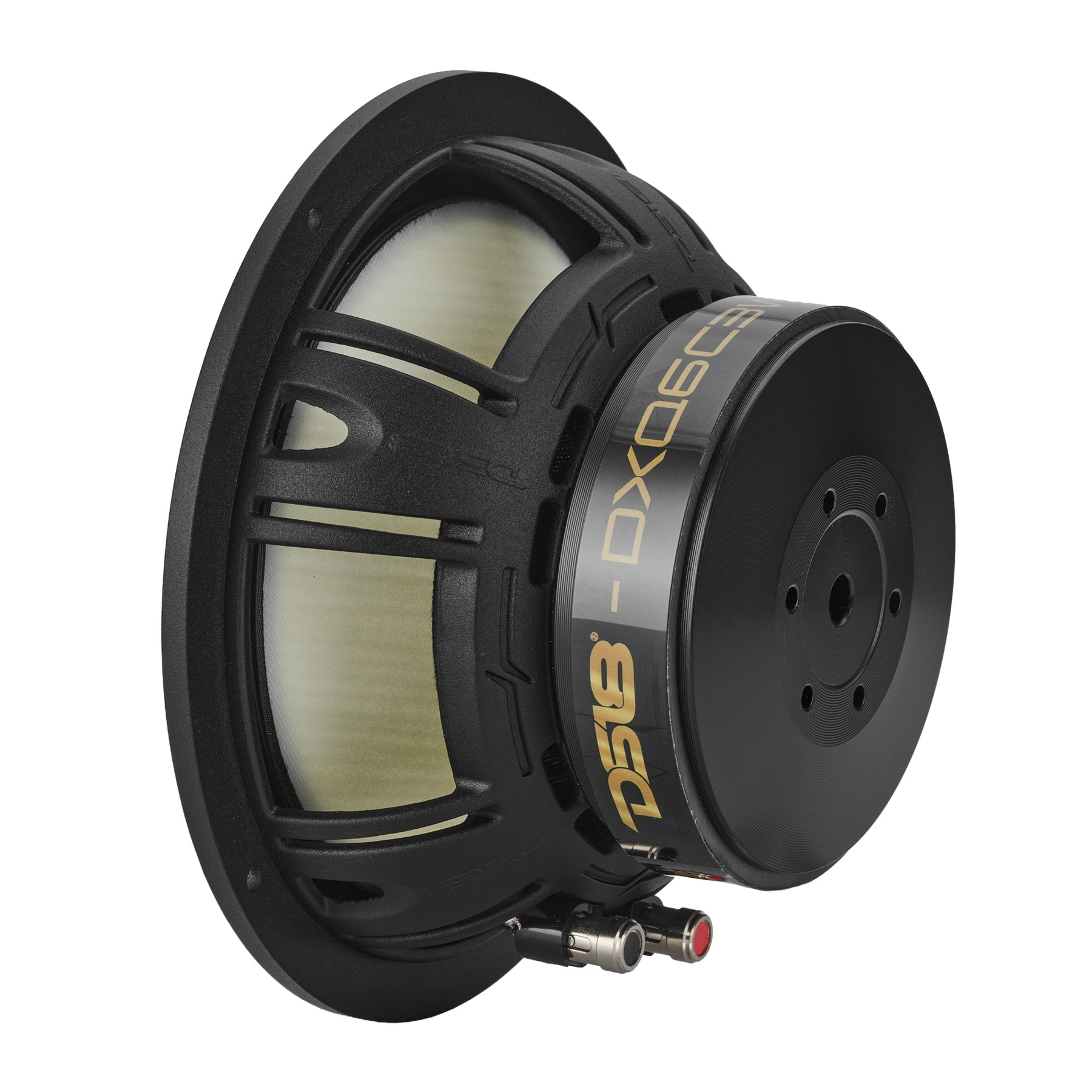

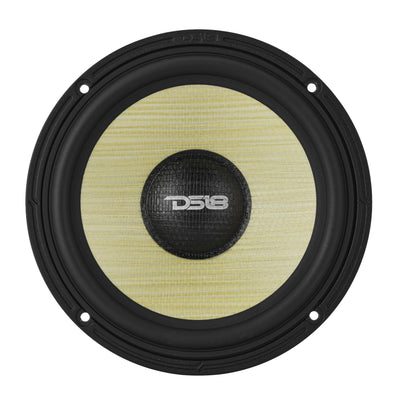

WOOFER

Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 ohms
MAX Power Handling
300W
RMS Power Handling
150W
Sensitivity (1w/1m)
90dB
Frequency Response
35Hz-12KHz
Voice Coil Diameter
1.2" / 30.5mm
Voice Coil Former Material
TL
Winding Material
SV
Cone Material
Yellow Straw + Composite Foam
Dust Cap Material
Black Straw
Surround Material
Rubber Edge
Basket Material
Aluminum
Basket Color/Finish
Black
Magnet Material
Ferrite
Magnet Weight
20.2 oz
Improved Heat Dissipation
Yes
Cone Shape
Curvilinear
Speaker Terminals
Push / 14Ga

WOOFER THIELE & SMALL PARAMETERS

Equivalent Volume
18.29L
Excursion (one way)
5mm
Free Air Resonance
46Hz
Mechanical Factor
9.998
Electrical Factor
0.583
Total Factor
0.551
Mechanical Mass
19.008g
Mechanical Compliance
0.631 mm/N
BL Factor
5.853
Voice Coil Inductance
0.299 mH
Cone Area
143.14 cm2
DC Resistance
3.64 ohms
Mechanical Mass w/o air
17.073g

WOOFER MEASUREMENTS

Overall Diameter (Without Grill)
6.57" / 167mm
Overall Depth (Without Grill)
3.4" / 85.4mm
Front Mount Baffle Cutout
5.7" / 145mm
Mounting Depth
3" / 76.5mm
Motor Diameter
3.9" / 100mm

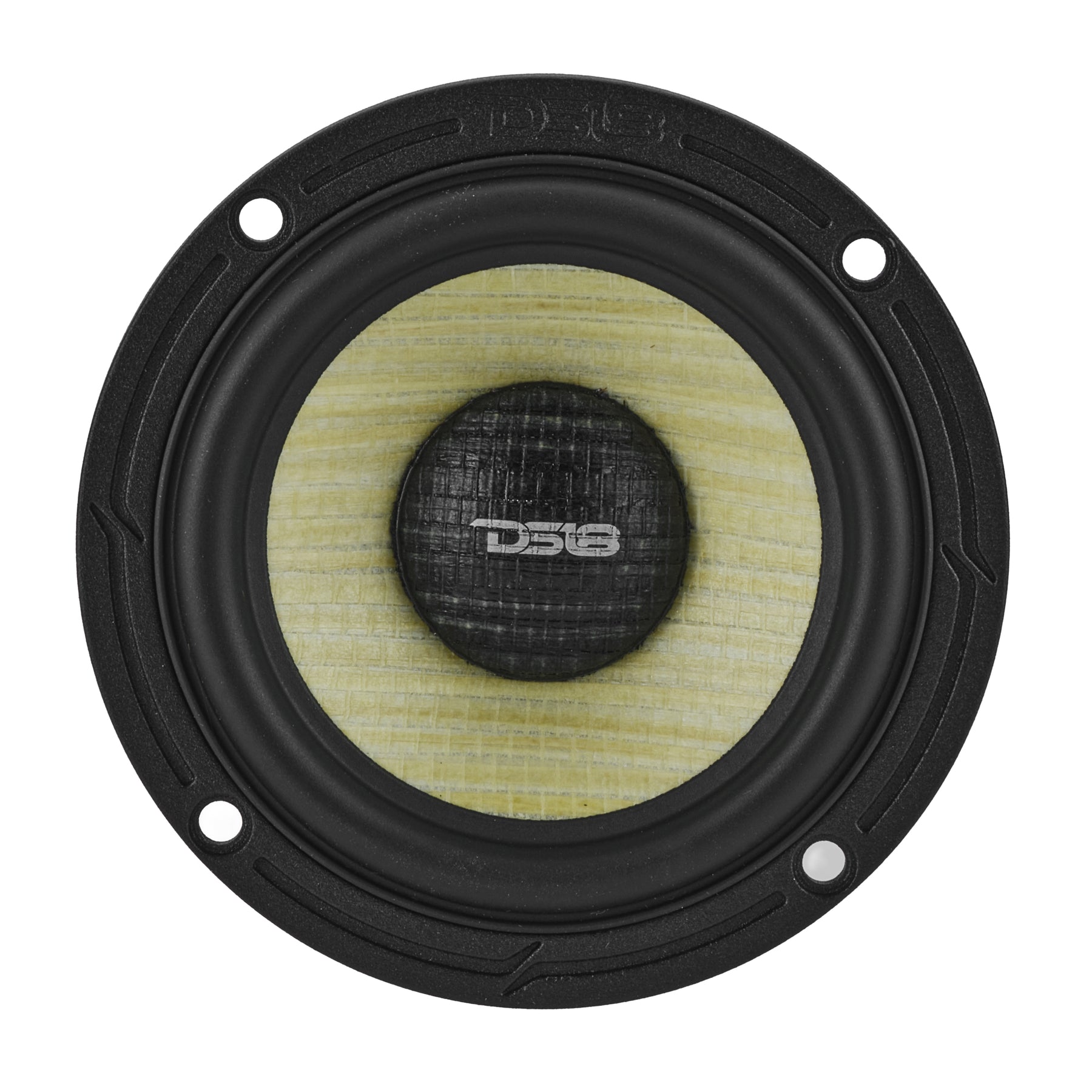

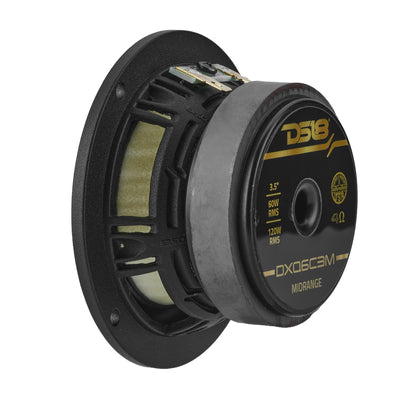

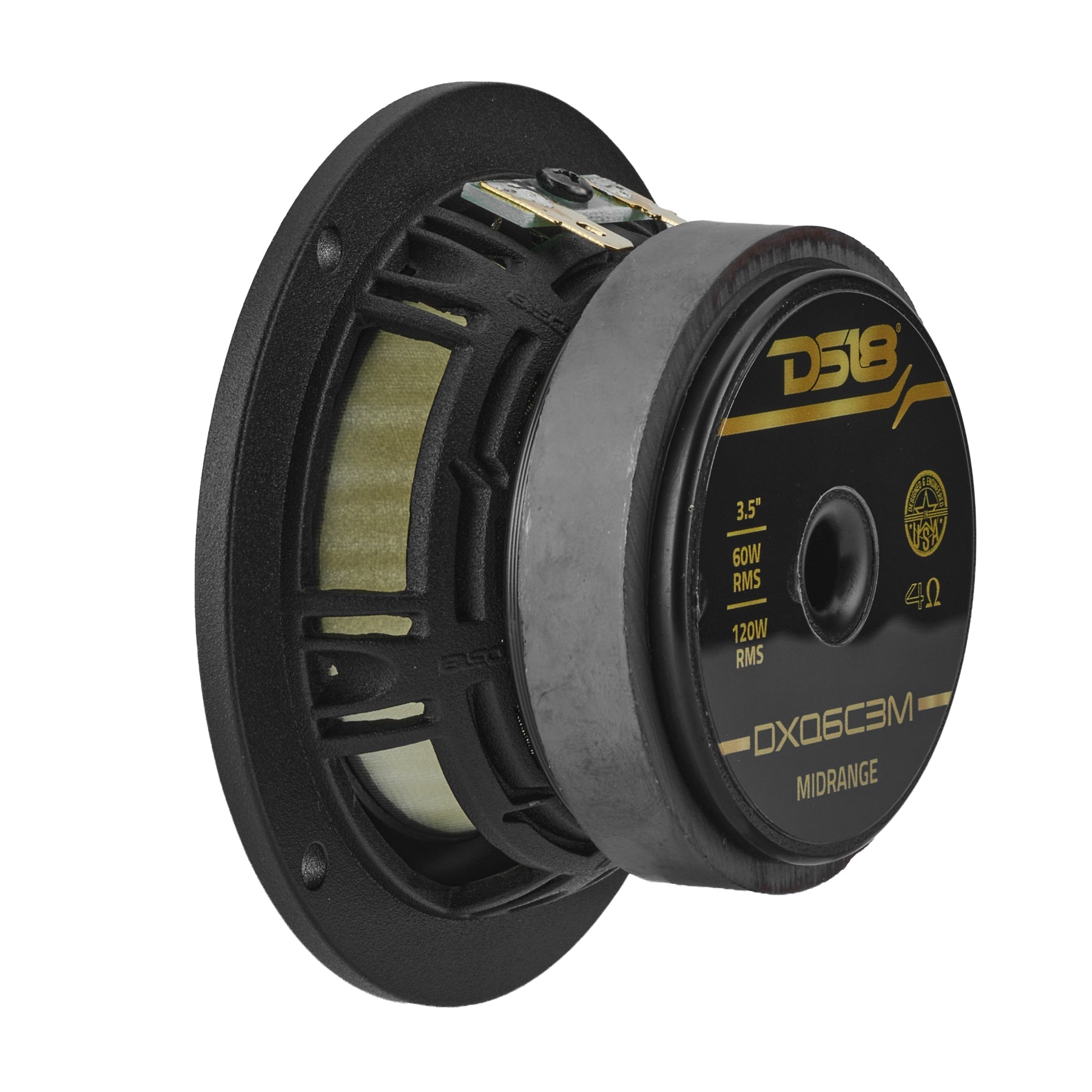

MIDRANGE

Nominal Diameter
3.5" / 91mm
Nominal Impedance
4 ohms
MAX Power Handling
120W
RMS Power Handling
60W
Sensitivity (1w/1m)
87dB
Frequency Response
120Hz-20KHz
Voice Coil Diameter
1" / 25mm
Voice Coil Former Material
TIL
Winding Material
CCAW
Cone Material
Yellow Straw + Composite Foam
Dust Cap Material
Black Straw
Surround Material
Rubber Edge
Basket Material
Aluminum
Basket Color/Finish
Black
Magnet Material
Ferrite
Magnet Weight
5.5 oz

MIDRANGE THIELE & SMALL PARAMETERS

Equivalent Volume
1.338L
Excursion (one way)
2mm
Free Air Resonance
88.7Hz
Mechanical Factor
9.688
Electrical Factor
0.856
Total Factor
0.794
Mechanical Mass
3.746g
Mechanical Compliance
0.859 mm/N
BL Factor
2.833
Voice Coil Inductance
0.133 mH
Cone Area
33.18 cm2
DC Resistance
3.3 ohms
Mechanical Mass w/o air
3.53g

MIDRANGE MEASUREMENTS

Overall Diameter
3.6" / 91.5mm
Overall Depth
1.8" / 47.8mm
Front Mount Baffle Cutout
2.9" / 74.3mm
Mounting Depth
1.6" / 40mm
Motor Diameter
2.5" / 65mm

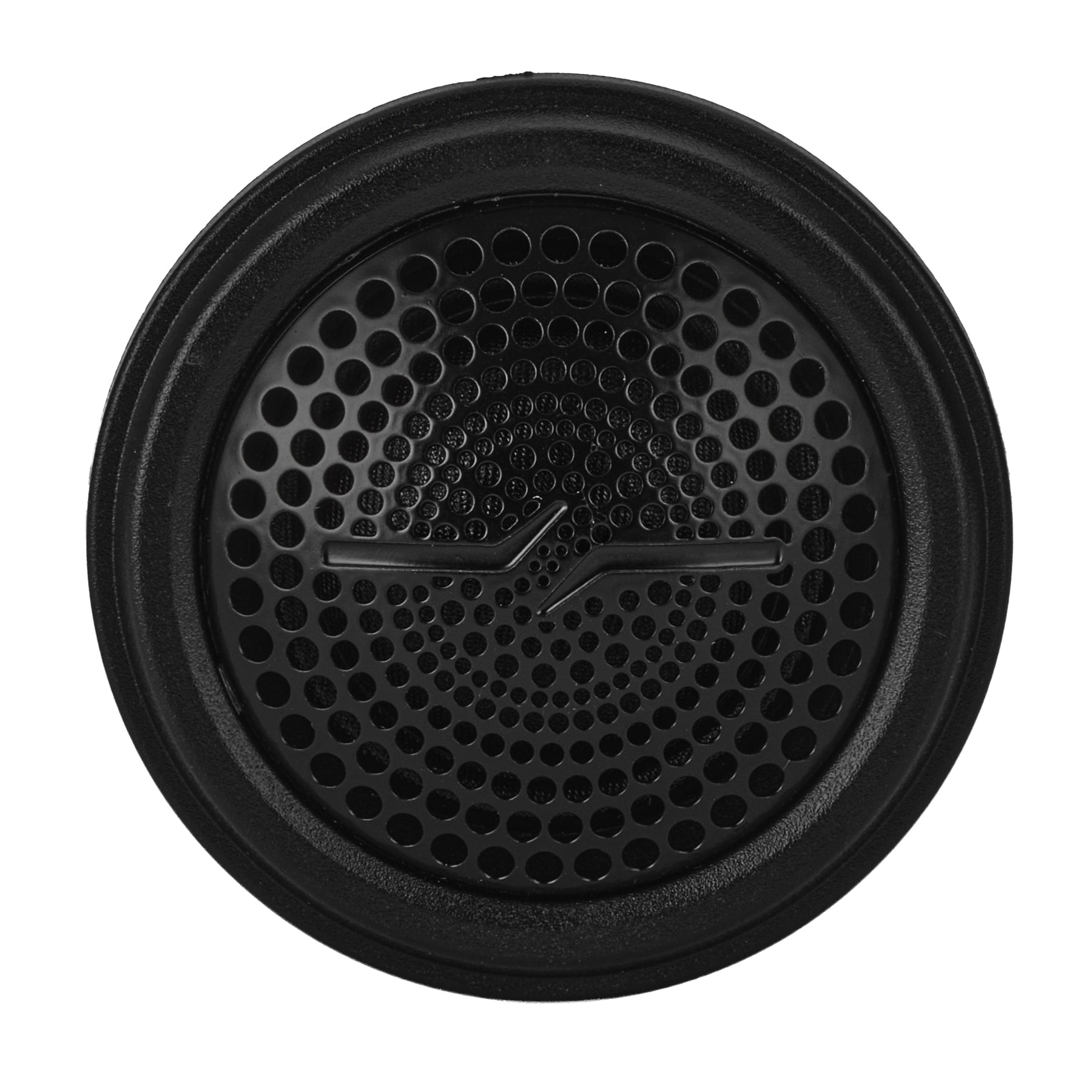

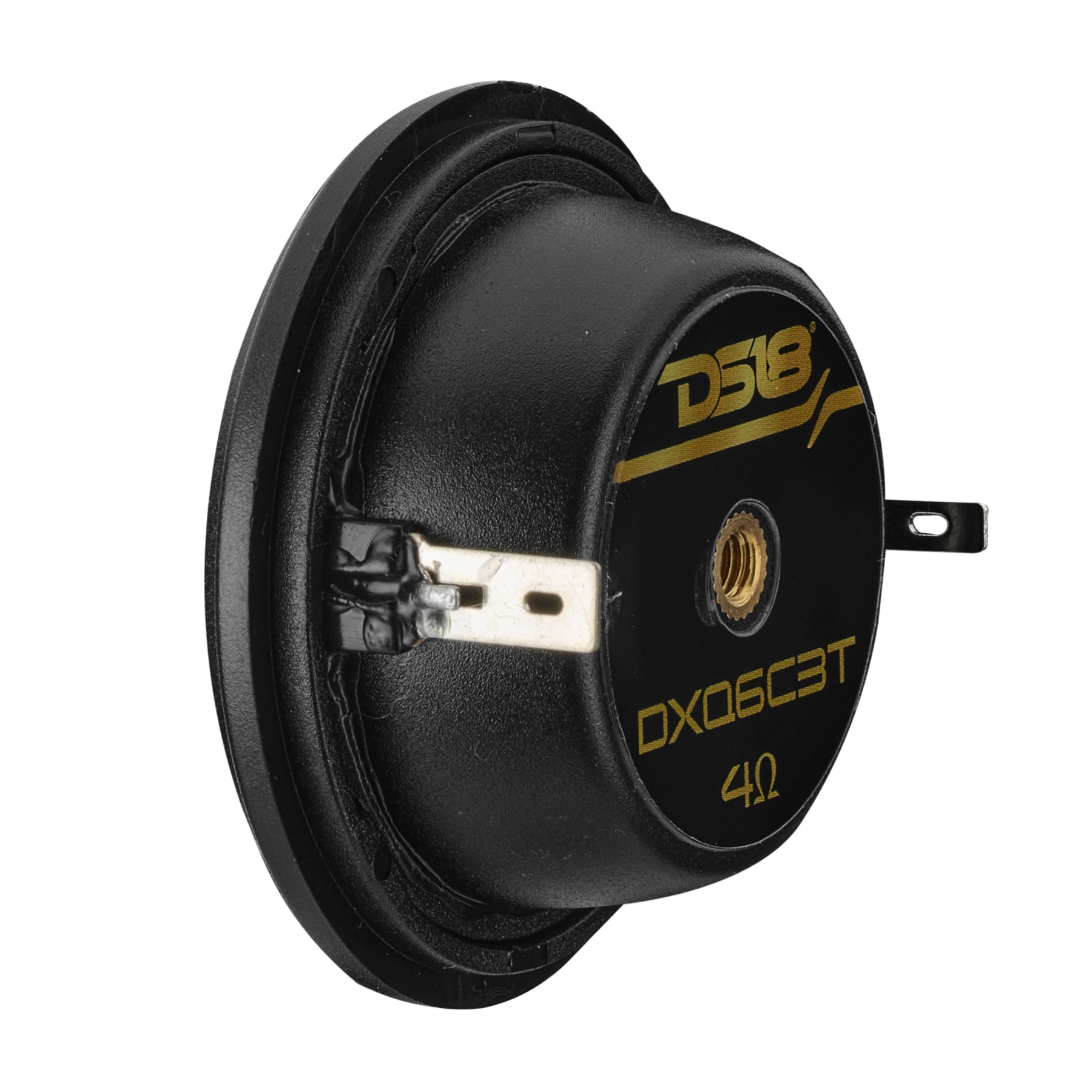

TWEETER

Nominal Diameter
2" / 51mm
Nominal Impedance
4 ohms
MAX Power Handling
60W
RMS Power Handling
30W
Sensitivity (1w/1m)
90dB
Frequency Response
800Hz-20KHz
Voice Coil Diameter
1" / 25mm
Voice Coil Former Material
ASV
Winding Material
CCAW
Diaphragm Material
Silk
Magnet Material
Neodymium
Magnet Weight
0.5 oz / 14g
Body Material / Color
ABS / Black
Overall Diameter
2" / 51mm
Overall Depth
1" / 25.5mm
Front Mount Baffle Cutout
1.85" / 47mm
Mounting Depth
0.6" / 15mm

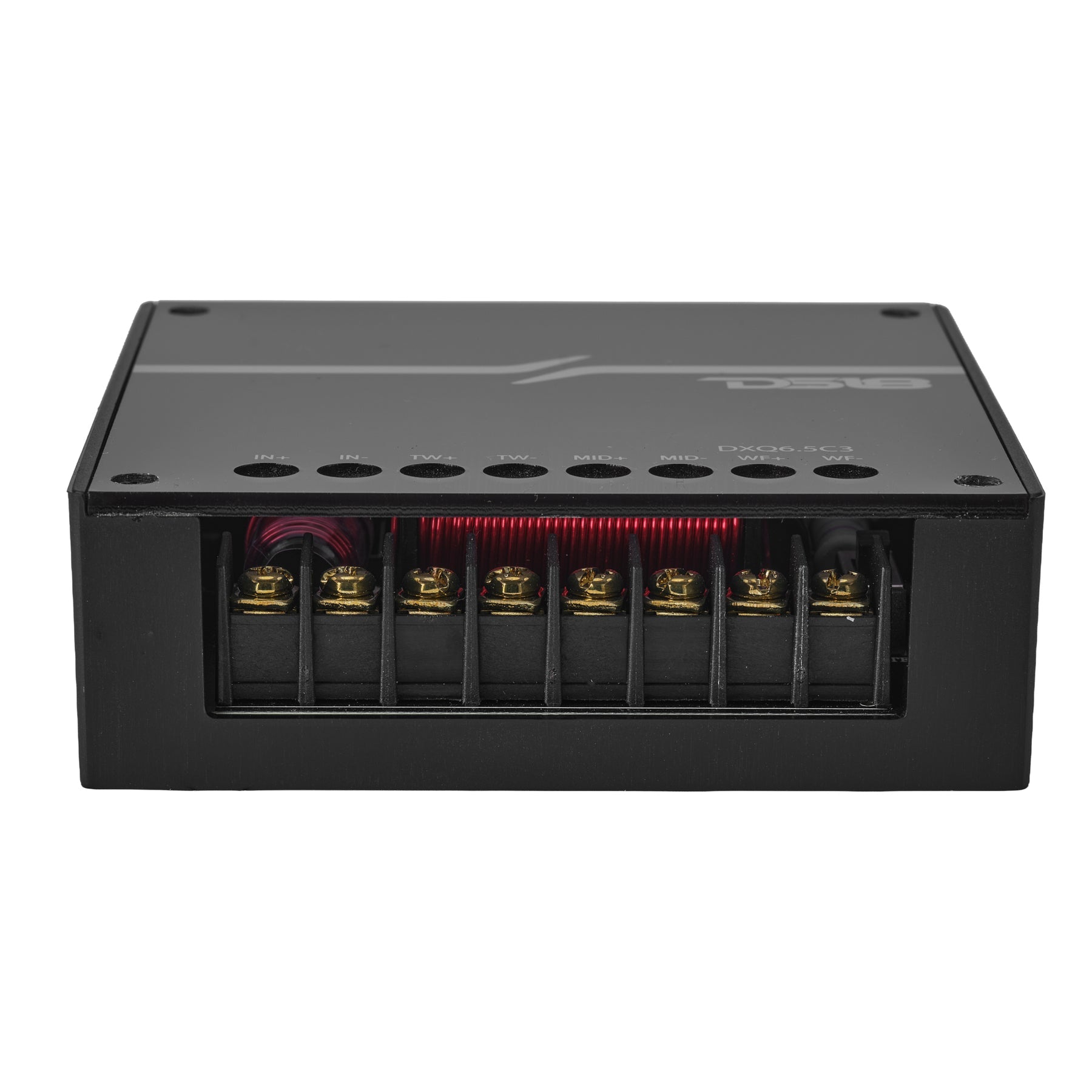

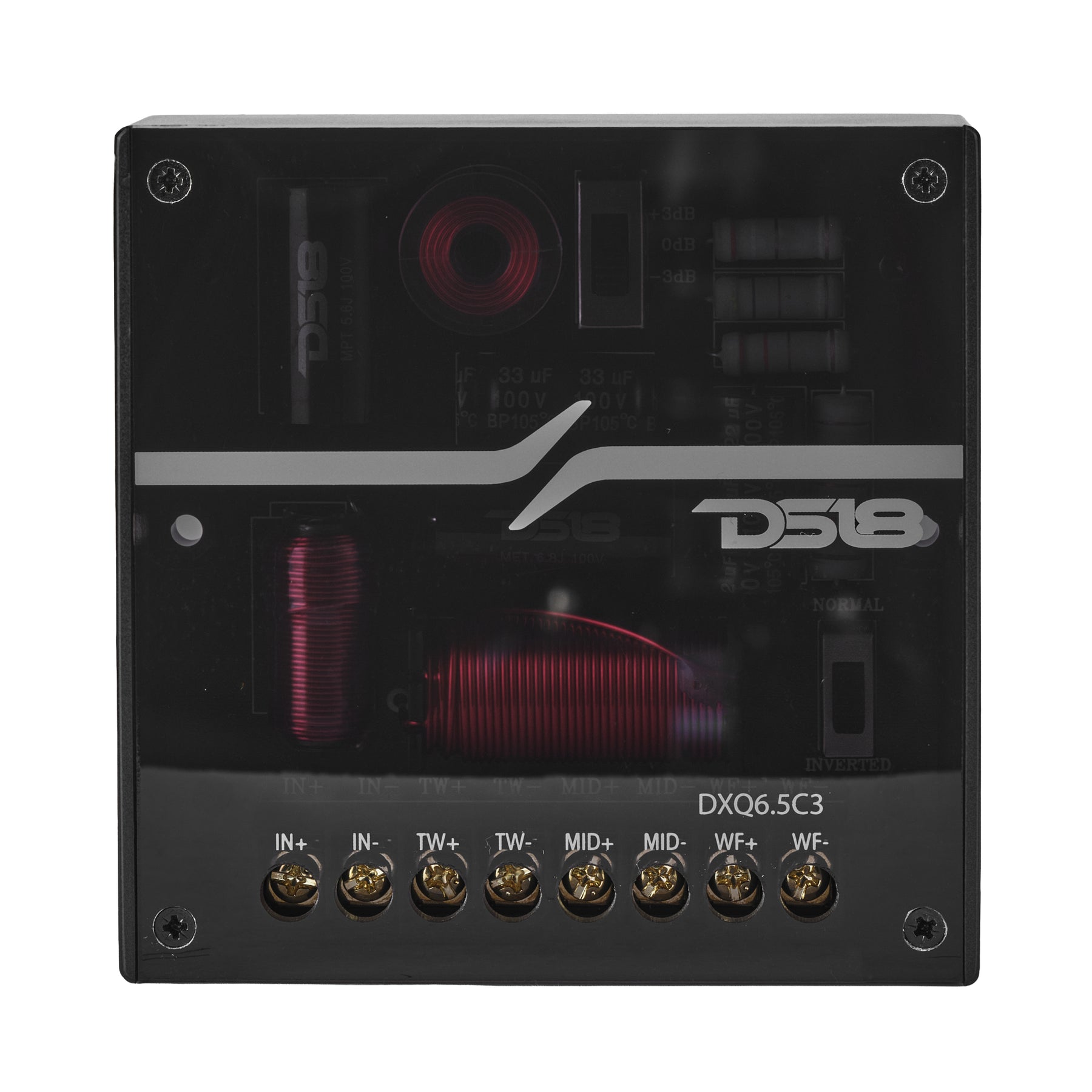

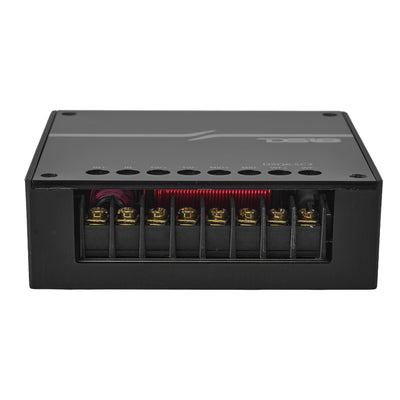

CROSSOVER

Passive Crossover Ways
3-Ways
Frequency Crossover point
800Hz (Mid) / 3.8KHz (TW)
Power Handling
300W
Cut-Off Slope
6dB/Oct (Mid) 12dB/Oct (TW)
Tweeter Attenuation
(+/-) 3dB
Capacitor Type
METAC Film
Coil Type
Inductor
Terminal Type
Screw Terminals
Housing Material
ABS + Acrylic
Adjustments
TW Att
Extra Features
Speaker Phase Selector
Overall Length
4.3" / 110mm
Overall Depth
4.3" / 110mm
Overall Height
1.37" / 35mm

Product Overview

DXQ6C3

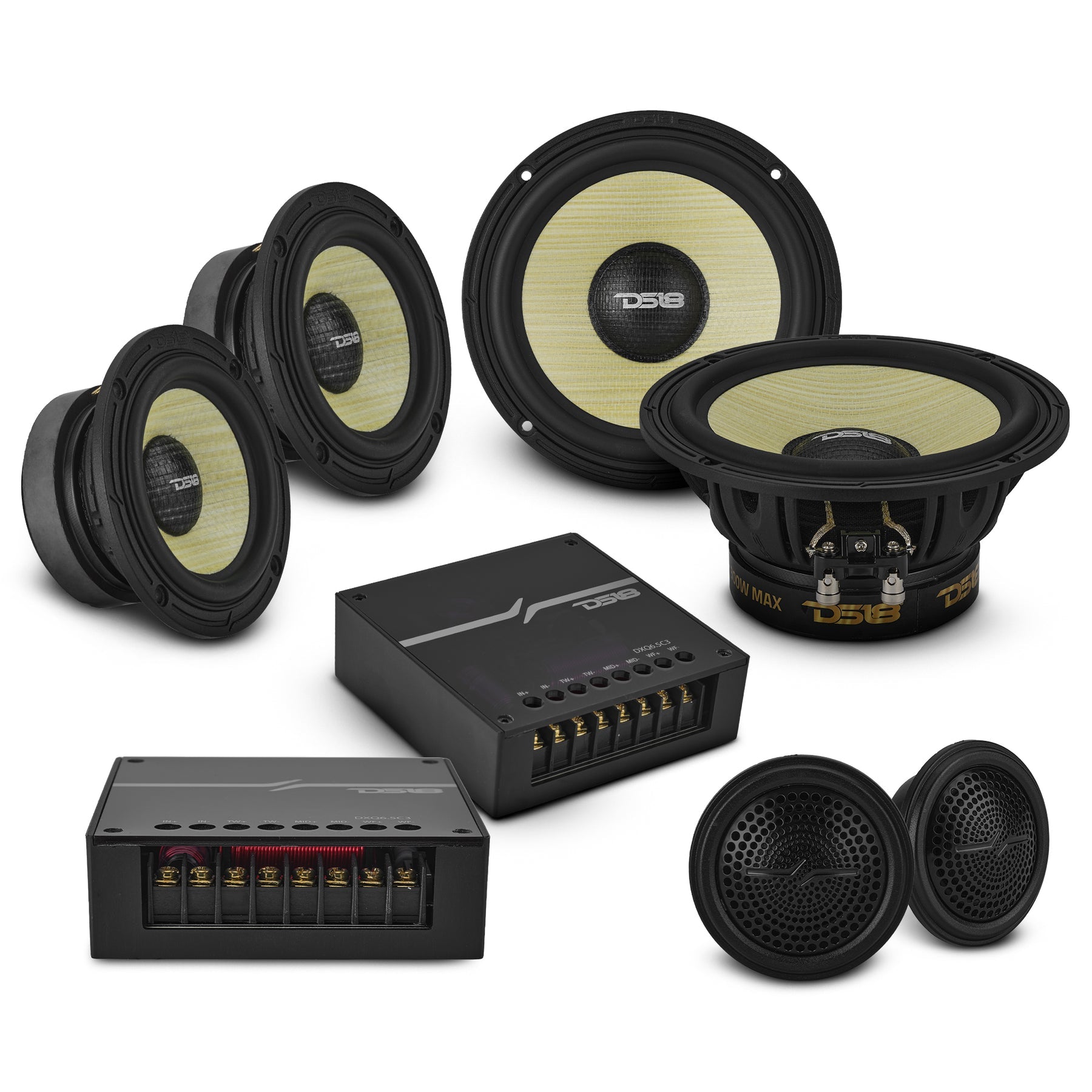

6.5" 3-Way Component Speaker Set with Yellow Straw + Composite Foam Cone — 150W RMS, 4-Ohm

The DXQ6C3 is engineered for crystal-clear sound across all frequencies. This 3-way system includes two 6.5" woofers, two 3.5" midrange drivers, two 2" tweeters, and two 3-way crossovers for a detailed full-range audio experience.

With a combined RMS of 150W and MAX of 300W, this component set outputs clean, distortion-free audio at manageable power levels. The 90dB sensitivity guarantees loud and clear playback, while the 4-ohm impedance guarantees compatibility in most car audio setups.

The woofers and midranges feature yellow straw and composite foam cones for added durability and accuracy. The included tweeters feature silk diaphragms and neodymium magnets for smooth highs with brilliant detail.

Included 3-way crossovers with screw terminals allow for easy system integration and speaker phase selection. The capacitors and inductors protect your speakers and keep transitions clean across bass, mid, and treble ranges.
